KWorld M102 User manual

ONE Introduction..............................................................02
1.1 Features..............................................................02
1.2 Specification........................................................03
1.3 Package Contents................................................03
1.4 Remote Control Guide.............................................04
1.5 Connection Chart.................................................05
TWO Installation and Instructions...................................06
2.1 Setting Up Your KWorld Media Player M102..................06
2.2 System Settings.............................................................06
2.3 Getting Started With Your Media Player M102...................08
2.4 Format Factory...........................................................11
2.5 Updating a firmware file?..............................................11
THREE FAQ..............................................................12
Q1 Why can’t enter the Main Menu, or the Start-up Screen looks different?......12
Q2 How do I restore to the factory settings on my Media Player M102?............12
Q3 Where is there No sound?.................................................................12
Q4 How do I adjust the time interval for the photo slideshow?..........................12
Q5 Why can’t my Media Player M102 detect the USB HDD enclosure?..................12
Q6 Why can’t my Media Player M102 detect my memory cards or USB memory stick?...12
Q7 How do I create subtitle files in SRT or SUB format with ANSI encoding?....13
Q8 Why doesn’t my M102 Media player respond when playing some media file?.......13
Q9 Why isn’t the LED of the remote on?.......................................................12
Contents V1.0

© 2009 KWorld
2
Introduction
Thank you for purchasing the KWorld Media Player M102 and you will be able to enjoy
digital entertainment on the big screen in your living room. This manual will guide you
through all of the installation and instruction. You will be able to use many of the exciting
and useful features that make your multimedia experience more enjoyable than ever.
ONE
Instruction
1.1 Features
• A light and compact device.
• User-friendly OSD control.
• No installation of application software and driver is necessary.
• Video playback: Supports video formats in AVI/MP4(Divx, Xvid),Mpeg 1/2, RM, RMVB,
DAT, MOV(not H.264 format) and VOB
• Music playback: Supports MP3, WAV, OGG, and WMA audio formats
• Picture playback: Supports JPEG, GIF, BMP, TIFF, and PNG image formats
• Subtitle format: Supports SRT, SUB, SSA, SMI subtitle in AVI video format
• Supports USB Host interface and hot swap of devices (you can save and remove
instantly, without waiting for the system to reply that it is safe to remove the device. Files
will be safely stored.) .
• Directly displays les from USB devices such as USB disk or HDD enclosure.
• File Management: Copy, delete les directly within the USB device or memory card. No
PC or notebook is necessary.
• Maximum resolution: HDMI/YPbPr up to 720p.
• Multi-TV display mode: NTSC Composite/PAL Composite/HD YPbPr/HDMI/NTSC
Interlace/NTSC Progressive/PAL Composite/PAL Interlace/PAL Progressive.
• Maximum resolution of RM/RMVB les: Up to 1024 x 576. Resolution of other video
formats is 720 x 576 / 640 x 480.
• Supports 4:3 and 16:9 display ratio
• Card reader: Supports SD/SDHC/MS memory cards.
• A remote control with full functions
• Bonus software: Format Factory

M102
3
1.2 Specications
1.3 Package Contents
TV System
HDD Partition
Max output Resolution
System I/O
AV output
Card Reader
Power Adaptor
Support Media format
Support Subtitle format
PAL/NTSC
FAT32,NTFS
HDMI/YPbPr:720P
Card reader * 1
IR Receiver * 1
USB Host * 1 (USB2.0)
Power Jack * 1
YPbPr output RCA * 3
CVBS output RCA * 1(The Y connector)
Audio L/R RCA * 2
HDMI connector
SD/SDHC/MS
AC102-240V 50/60Hz 5V 2A
AVI/MP4(Divx,Xvid),Mpeg 1/2, RM, RMVB, DAT, MOV(not H.264),
VOB, MP3, WAV, OGG, WMA, JPEG, GIF, BMP, TIFF, PNG
SRT,SUB,SSA,SMI
Media Player M102 User Manual
Power Adaptor
(DC5V, 2A)
AV cableRemote Control
(no AAA batteries)
Format Factory CD
YPbPr Cable
Y
Pb
Pr MediaPlayerM102
Photo Music Movie
16:9/4:3 Turn Zoom
Vol
BGMExit
OSD Menu
VideoStandard

© 2009 KWorld
4
1.4 Remote Control Guide
Key Function
Volume up
Switch between different aspect ratio
Volume down
Play/Pause
Stop
Rewind
Fast Forward
Previous
Next
BGM: Playback background music
Exit: Exit or Back to previous page
OSD: OSD menu / Info
Menu: Enter Main Menu page
Blue: Subtitle
Video Standard: Switch between different output
modes (YPbPr/Composite…). It only works in the
Menu page.
Red (the “Memory” button): saves the part of video
you are watching into the memory space of your
storage device that you connect to this media player
Green (the “Resume” button): resumes to the part of
video that you saved with the Red button.
Arrow key, Up
Arrow key, Down
Arrow Key, Left
Arrow Key, Right
OK key, Select and confirm
Turn: The photo will rotate 90 degrees clockwise
each time this button is pressed Switch between
different aspect ratio
Zoom: Zoom image
Photo: Enter Photo page.
Music: Enter Music page.
Movie: Enter Movie page.
Power on/off: activate Stand by mode
Mute: Enable/Disable Mute function.
Media Player M102
Photo Music Movie
16:9/4:3 Turn Zoom
Vol
BGMExit
OSD Menu
Video Standard

M102
5

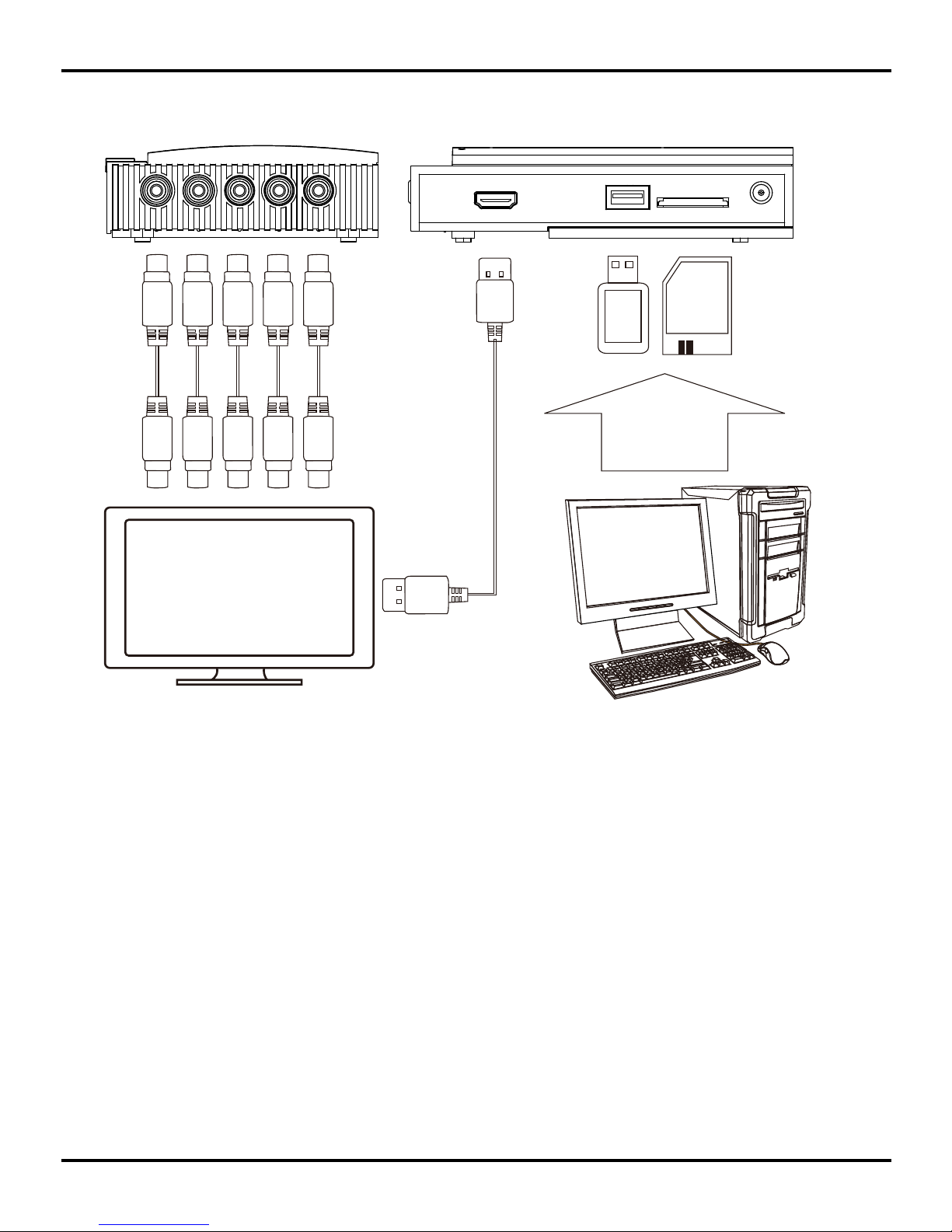

1.5 Connection Chart
1.Connecting the Media Player:
Connecting with the HDMI cable:
Connect your media player to a display device, such as TV, with a HDMI cable for both video/
audio outputs. HDMI connection is supported in many high denition TV sets in the market,
but please check if your TV set supports it before you connect with HDMI cable (Note: The
HDMI cable is not provided).
Connecting with the YPbPr:
Plug the YPbPr component cables (Y—green, Pb---blue, Pr ---red) to your media player and
link to the correct input ports of your display device, such as TV sets, for better visual quality.
Please check if your TV set is equipped with YPbPr input ports before you connect with these
component cables.
(Note: some TV sets feature both YPbPr and Composite input types. Please be noted that the
YPbPr comes in colors of green, blue and red)
Note: Users can switch the output modes by press “Video Standard” key on the Remote.
2.Connecting to storage devices:
The player has USB Host interface and card reader, which can be used for plugging USB
ash driver, external HDD or memory cards.
PC
L
R
HDMI
HDMI
Pr Pb
AV/Y
Download
media files
via internet
TV Screen
LCD Monitor /
CRT Monitor /
Plasma...
SD
SDHC
MS
Card
USB
Storage
Device

© 2009 KWorld
6TWO
Installation and Instruction
2-1. Setting up Your KWorld Media Player M102
2-2. System Settings
1.Please check if you have properly connected the
followings:
a.Connect the Power Adapter to the “DC 5V” connector
on the media player and then plug the other end of
the adapter to a power outlet for power connection.
b.Connect the YPbPr or HDMI cable to your Media
Player M102. and link the other end of the cable to
your display device (i.e. TV sets).
c.Connect the Audio L/R Cable to your media player.
2. Please insert a USB storage device or memory card.
3. Turn on your TV and set the TV to YPbPr, HDMI or CVBS input mode according to the
type of connection you have established, and turn on your Media Player M102. You will
see the operation interface on the TV Screen. Press the “Video Standard” key on the
Remote to switch to modes.
4. Once you turn on your Media Player M102, it will start loading. After the loading for
system initialization is completed, the main page will show as the gure below. You will
see “SETTINGS” and ”USB ”( the name of this icon depends on the storage device you
connect to the Media Player).
5. If you need to congure the system settings, please press ◄/► key on the Remote to
select “SETTINGS”, then press “OK” key to access the setting page.
Once you have entered the “SETTINGS” page, you will
see the following options:
Language: Please use the ◄/► key on the Remote to
select your preferred language, then press “OK” to conrm.
Slideshow duration: Set your slideshow interval to 3 sec,
5 sec, 15 sec, 1 min, 15 min or 1hour. Please use the ◄/►
key on the Remote to select the preferred time interval
that you like to set for your slideshows, then press “OK” to
conrm.

M102
7
Slideshow Mode: “Random/Fading off/Off/Bottom To Top/
Top To Bottom/Left to Right/Right to Left/Door Close/Door
Open/Hori-Cross/Verti-Cross”. Please use the ◄/► key on
the Remote to select your preferred mode, then press “OK”
to conrm. (This function supports photos in JPEG format)
TV System: You can set your TV settings as “NTSC
Composite, HD Mode, NTSC Interlace, NTSC
Progressive, PAL Composite, PAL Interlace or PAL
Progressive”. Please use the ◄/► key on the Remote to
select the proper TV setting, then press “OK” to conrm.
Display Mode: Set the display ratio based on your TV
screen ratio. Please use the ◄/► key on the Remote to
set the proper ratio, then press “OK” to conrm.
Movie repeat Mode: You can set the Video Play Mode as
“Repeat one” or “Repeat All”. Please use the ◄/► key on
the Remote to select, then press “OK” to conrm.
Music repeat Mode: You can set the Music Play Mode as
“Repeat one” or “Repeat All”. Please use the ◄/► key on
the Remote to select which one you prefer, then press “OK”
to conrm.

© 2009 KWorld
8
Default: To return to the default settings. Simply select it,
then press “OK” to conrm.
This Main Menu lists out all the media functions such as
Movie, Music, Photo, Text and File. User can enjoy the
selected multimedia functions in full screen by pressing the
Movie, Music, Photo keys on the Remote.
2-3. Getting Started With Your Media Player M102
Autorun: You may enable or disable the auto play
function. Please use the ◄/► key on the Remote to set
your preference, then press “OK” to conrm.
File Sort mode: You can choose how your les are sorted
by “Name/Size/Time”. Please use the ◄/► key on the
Remote to select the proper TV setting, then press “OK” to
conrm.

M102
9
For Video Playback:
Use the “▼/▲” key on the Remote to select the video le and press “OK” to play or press the
“Exit” key to return to the previous page and back to the le listing. In full screen mode, press
the “OK” key on the Remote to enable the Video Control Bar. Use the “◄/►” key to select the
icon and press “OK” to conrm.
1.Movie: Please select the Movie icon on the Main Menu and press “OK” key to enter the
video le list. Choose a video le, and proceed to the full screen play mode.
Note: If you want to exit the current video playing or return to the previous menu, just press the
“Exit” key on the Remote or select Stop on the Video Control Bar.
Subtitle: The subtitle is only available when you watch the video in AVI format. You may press
the “OK” key on the Remote and select the Subtitle icon on the Video Control Bar to turn on or
off the subtitle. Please note this function is not available in other video formats.
Notes on the Subtitle Function:
A.Subtitle Format: supported only by ANSI encoding format. Please refer to FAQ-7 on
how to make a subtitle le with ANSI encoding format.
B.When naming the subtitle file, it should correspond with the video file name. For
example, if the video le name is “A.avi”, then the Subtitle le name must be “A.srt”.
C.The corresponding video and subtitle les must be stored in the same folder.
D.The timing of the corresponding video playback and subtitle display must be exact.
Otherwise, the subtitle would be ahead or delayed.

© 2009 KWorld
10
For Photo Playback:
Press the “▼/▲/◄/►” key to select the photos and
press “OK” to enable full-screen play. Use the “Zoom”
key to zoom-in/out of the photos and the “▼/▲/◄/►”
key to browse the photos. Press the “Exit” key if you
wish to return to the preview page. In full screen play
mode, please press the “OSD” key on the Remote to
enable the Photo Control Bar and select the icon to
proceed.
3.Photo: Select the Photo icon on the Main Menu and press the “OK” key to enter Photo
listing, and enter the photo-play page. You can also simply press the “Photo” key on the
Remote to enter it directly.
For Music Playback:
Press the “▼/▲” key to select a music le and “OK”
key to play. You can use the “◄” key to return to the
previous page or the catalog. You can also enter the
catalog by pressing the “OK” key. In full screen play,
press “OSD” key on the remote to enable the Music
Control Bar. Use the “◄/►” keys to select the icon and
press “OK” to conrm.
Music playback with lyrics: you can view lyrics while
playing music. However, it only supports lyrics in LRC
formats and the le names for LRC lyrics must be the
same as the ones for the music les. If your les are in
A.mp3 or A.lrc, you have to download the lyrics.
Memory and Resume Functions for Videos:
2.Music: Select the Music icon on the Main Menu and press “OK” key to enter Music
play list. You can also use the “Music” key on the Remote to enter the Music play page
directly.
When you are watching a video, you can press the ” ” button on your remote to
activate the video memory function. There will be a icon appearing on the top right
corner of the screen. This icon indicates that the media player has memorized the part of
video you are currently watching. If you want to resume to the part of video that you have
memorized, just press the button on the remote. There will be a icon appearing on
the top right corner of the screen, indicating that the resume was successful. If you have
not memorized anything for the videos with the button, the icon will appear on the
top right corner of the screen, indicating that there is no memorized parts of videos for
playback resume.

M102
11
For Text Files Viewing:
Please press the “▼/▲” key to select text les and press “OK” to start full-screen mode. Use the
“▼/▲” key on the Remote to scroll up and down the text le.
5.File: Select the File icon on the Main Menu and
press the “OK” key to enter File Listing page.
Please press the ▼/▲ keys on the remote to
browse the les and press the “►” key to conrm
your selection, and then a check mark will appear
on the right of the selected file. To cancel the
selection, simply press the same key again.
4.Text: Select the Text icon on the Main Menu and press the “OK” key to enter Text le
listing page.
Background Music: You can play background music during the photo slideshow by pressing
“BGM” key on the remote.
File Copy/Delete: Press the “OSD” key on the Remote
to enable le option (Copy/Delete). Press ▼/▲ keys
to select Copy or Delete, and then the “OK” key to
confirm. To cancel the selection, simply press the
“OSD” key to return to the le menu.
To make a copy of a le, please select the le and use the ▼/▲/◄/► keys to select the le
location you wish to store it, then press the “OK” key to conrm the le path selected. Press the
“OK” key again to conrm the copy.
To delete a le, select the le and press the “OK” key to conrm, then the les will be deleted.
Note: The le path for the copied le should be different from the one of the original le.

© 2009 KWorld
12
KWorld has included a multi-functional media converter – Format Factory as a bonus software
that you can easily convert your video, audio and picture files from one format to another.
This software supports 48 languages and le conversion in MP4, 3GP, MPG, AVI, WMV, FLV,
SWF, MP3, WMA, AMR, OGG, AAC, WAV, JPG, BMP, PNG, TIF, ICO, GIF, and TGA. You can
also rip DVD into a video le or input RMVB les for your source les for conversion. Besides
converting one format to another, you may attach subtitle les during the conversion so that the
video would appear with subtitles. For more information, please refer to the “Help” section of this
software application.
2-4. Format Factory
2-5. Updtaing a rmware le?
1. Please download the rmware le from KWorld
ofcial website.
2. Unzip the rmware le to USB Thumb Drive or
Memory Cards and then plug it to Media Player
M102H. Select the “USB” or “SD” icon and then
press “OK“ to enter Main Menu.
3. Please select “File” and press “OK” to enter le
browser.
4. Press ▼/▲/◄/► key to select the rmware le,
and then “OK” key to update rmware. A dialog
box will pop up. Please select “√” with ◄/►
key, and then press “OK” to update the selected
rmware.
5.Please wait a moment while the firmware is
upgrading. Once it is finished, the system will
reboot automatically.

M102
13
THREE
FAQ
Q1: Why can’t I enter the Main Menu, or the Start-up Screen looks different?
Q2: How do I restore to the factory settings on my Media Player M102?
Q4: How do I adjust the time interval for the photo slideshow?
Q5: Why can’t my Media Player M102 detect the USB HDD enclosure?
Q6: Why can’t my Media Player M102 detect my memory cards or USB
memory stick?
Q3: Why is there no sound?
A1: Please follow the steps below:
1. Please check the connections. Have you properly connected all of the necessary
cables? (For example, the power cord for your KWorld Media Player M102.)
2. Is the TV set at “YPbPr input” or “AV input” mode?
A5: Please follow the steps below:
1. Is your USB HDD enclosure working properly when it is connected to other
devices such as your PC?
2. Please check if the USB HDD enclosure is properly linked with M102.
3. Please check the Power LED of your USB HDD enclosure to see if it’s properly
powered-up.
A6:Please check if your memory card or USB memory stick works when it is
connected to other devices such as your PC. If it works with other devices,
please try re-plug it.
A2: Please press the “Menu” key on the remote to enter the Setup page and select
the Factory Default option then press the “OK” key to return to the factory
default settings.
A4: Please press the “Menu” key on the Remote to enter the Setup page Select the
Slide Interval option and use the ◄/► key to select the interval period that you
prefer. Then, press the “OK” key to save the setting.
A3: Please check the connection of the audio cables and the audio volume.

© 2009 KWorld
14
Q7: How do I create subtitle les in SRT format with ANSI encoding?
Q8: Why doesn’t my Media Player M102 respond when playing some media
le?
Q9: Why isn’t the LED of the remote on?
A7: Since Media Player M102 only supports subtitle les in ANSI encoding format,
please follow the steps below:
A8:If the le size is too big or there are many les in your storage device, it will
take a few minutes to load the le. Please wait for a while.
A9:The remote control for Media Player M102 is an IR (infrared sensor) one. That
is why the LED is not on when you press a button on the remote.
Please open the subtitle file with
Notepad (a program that comes with
your Windows Operating System). Click
on the Files Menu and select the “Save
As” option. Please change the Encode
option to ANSI encoding and click on
Save to proceed.

M102
15
End-user License Agreement
Please read this agreement carefully before using the product:
Please ensure:
(1)Do not dismantle the product for improper purposes.
(2)Do not read and refresh the rmware of the product by improper means.
(3)Do not conduct inverse engineering and disassembling for related software and codes of
the product
(4)The product and this license agreement can be transferred to a third party who accepts the
terms and conditions of the agreement. When you transfer the full or part of the product to
a third party, the license agreement for you to use the product terminates automatically.
How to use this user Manual:
Please read this user manual carefully before using the product. The content of the manual as
well as the hardware and software of the product have been processed with intensive care.
No responsibility is assumed for any direct or indirect losses arising from hardware damage,
program damage, le loss or system breakdown due to improper operations. As you have
carefully read this agreement, it is ensured that the terms and conditions have been fully
understood and will be strictly followed.
Precautions
Please carefully read and pay close attention to the following before using the product:
(1)Do not expose the product to rains or damp environments to prevent re or electric shock.
(2)Do not expose the product to moisture, dripping or splashing in order to reduce the danger
of re, electric shock or product damage.
Safety Instructions
(1)Use the original adapter for the product, and do not share an adapter with any other
devices.
(2)Do not place the power cord and plug of the adapter near heat sources.
(3)Do not dismantle and repair the adapter and its power cord.
(4)Do not open the enclosure of the product to ensure your safety. Please ask trained
professionals to conduct maintenance if necessary.
Maintenance Tips
(1)The product is of complicated and sophisticated structure, so only trained professionals are
allowed to open the product to prevent damage from happening.
(2)Do not dismantle components of the product on your own .The warranty mark will be invalid
automatically if you dismantle and repair the product on your own.
(3)Please contact our local warranty department to arrange for maintenance if necessary.
To replace devices or accessories, please select the original ones designated by the
manufacturer.

© 2009 KWorld
16
WARNING
This User’s Manual is for specic product, and all its contents are processed with due care but
are not ensured fully correct. We assume no responsibility for any loss arising from use of this
manual. The right to interpret all contents of this User’s Guide belongs to the company. The
manual is subject to change without notice. This User’s Manual is not authorized to any party
and no reproduction or copy, in part or whole, of the manual in any way is permitted.
KWorld Website: www.kworld-global.com
