KWorld M101 User manual

Table of Content
1. Introduction
1-1.Features-------------------------------------------------------------------------------2
1-2.Specification-------------------------------------------------------------------------3
1-3.Package Contents-------------------------------------------------------------------------- 3
1-4.Location of Controls(Remote)----------------------------------------------------------- 4
1-5.Connection Chart -------------------------------------------------------------------------- 5
2. Operation
2-1. Setting Up Your KWorld Media Player M101 --------------------------------------- 6
2-2. System Settings---------------------------------------------------------------------------- 7

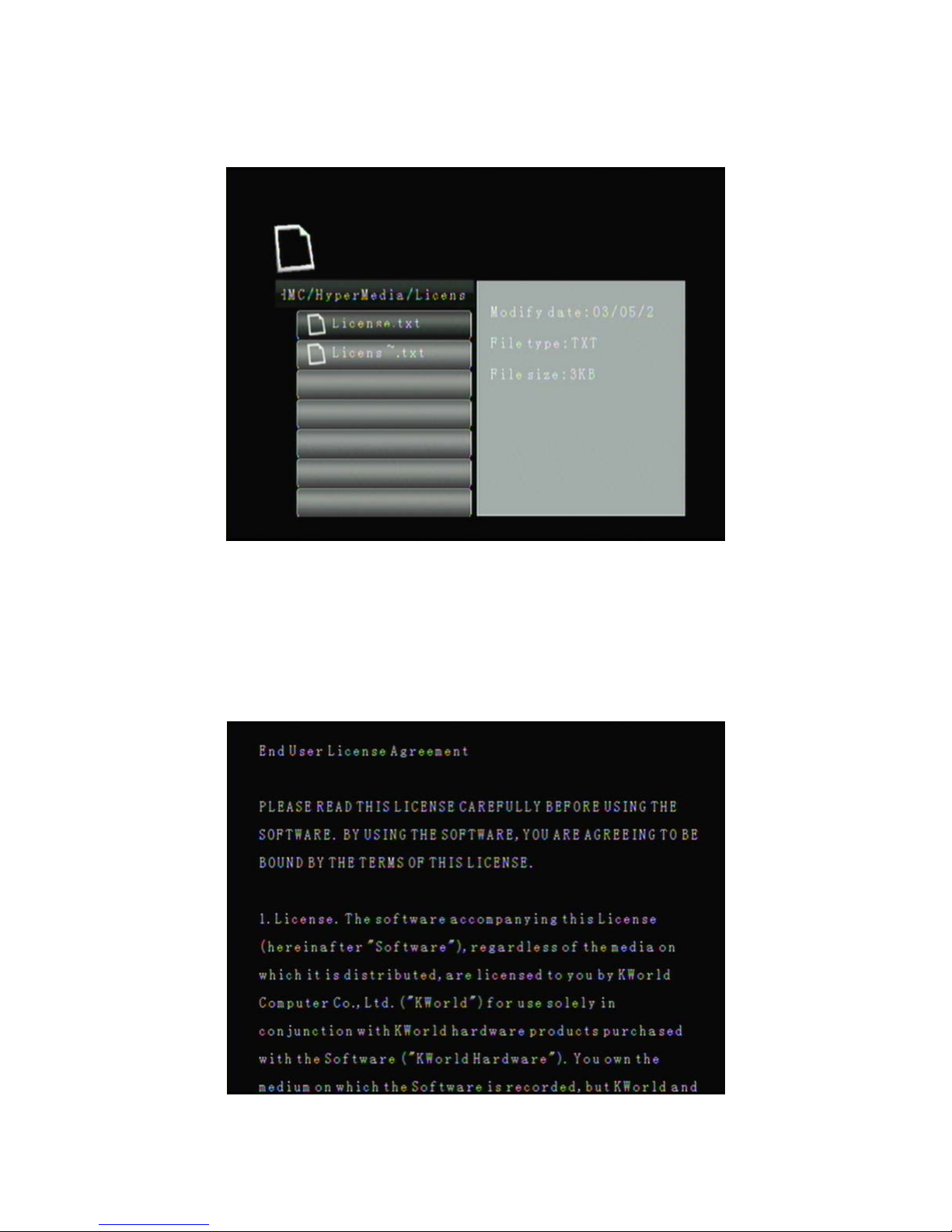

2-3. Using Your Media Player M101--------------------------------------------------------12
2-4. ArcSoft Media Converter ----------------------------------------------------------------18

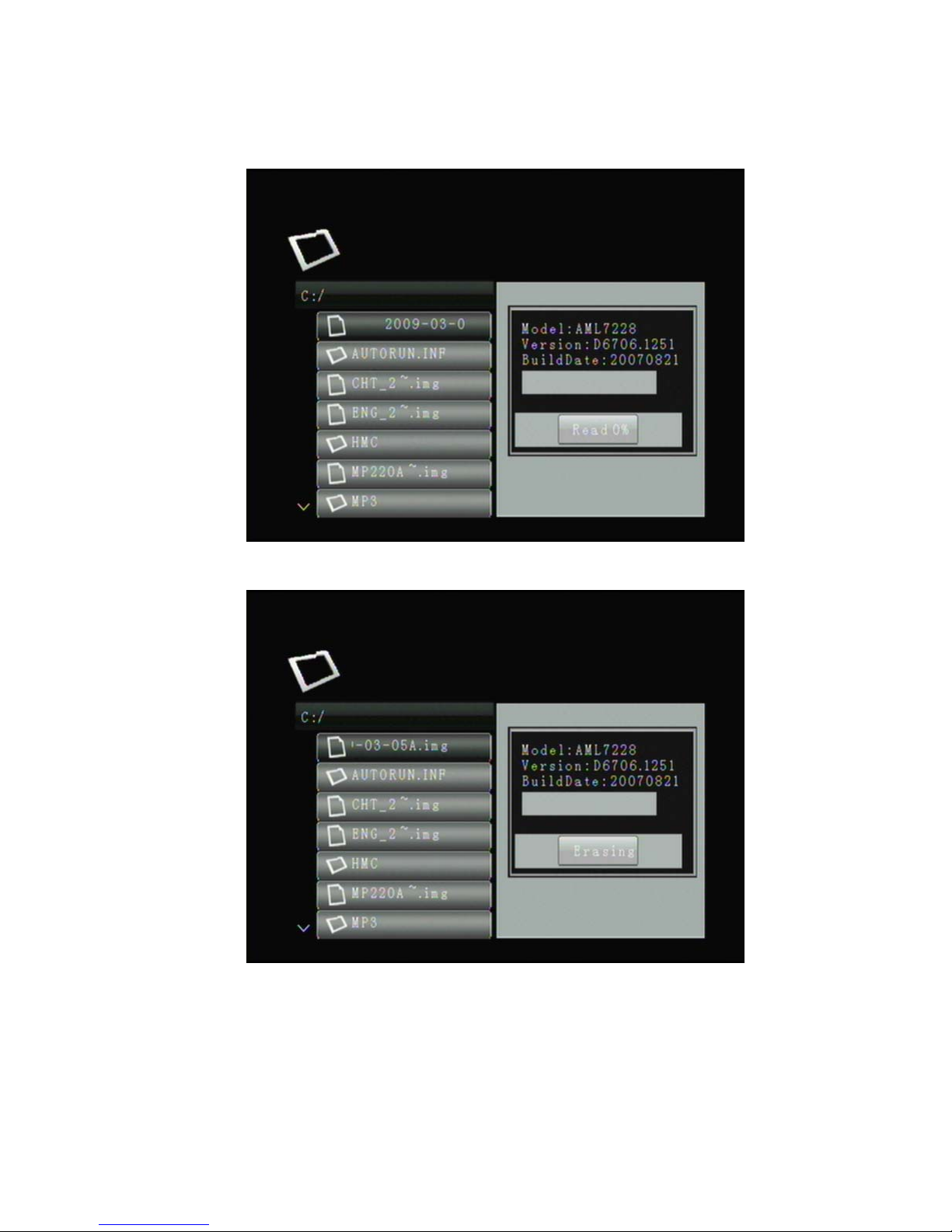

2-5.How to update firmware file? ----------------------------------------------------------18
3. FAQ
1. Why can’t enter the Main Menu, or the Start-up Screen looks different?-------21
2. How do I restore factory settings on my Media Player M101?--------------21
3. Where is there No sound? --------------------------------------------------------------- 21
4. How do I adjust the time interval for the photo slideshow? -----------------21
5. Why can’t Media Player M101 recognize the USB HDD enclosure? ---21
6. Why can’t Media Player M101 recognize memory cards or USB memory
stick? ----------------------------------------------------------------------------21
7. How do I create subtitle files in SMI, SSA, SRT, ASS format with ANSI
encoding? ------------------------------------------------------------------------22
8. Why M101 Media player doesn’t respond when playing some media file? ---22

1.Introduction
Congratulation! You have purchased a KWorld Media Player M101 and you
can enjoy digital entertainment on the big screen in the living room. We will
guide you through all of the feature installation and operation. This manual will
help you use the many exciting and useful features to make your viewing
experience more enjoyable than ever before.
1-1. Features
zA light and compact device to belong anywhere it is placed.
zBuilt-in with hot keys and intuitive user interface
zAll user-friendly OSD control.
zDo not need to install application software and driver. No compatible problem.
zVideo play: Support video formats as RM, RMVB, MPEG-1/2, DAT, AVI,
DIVX, XVID

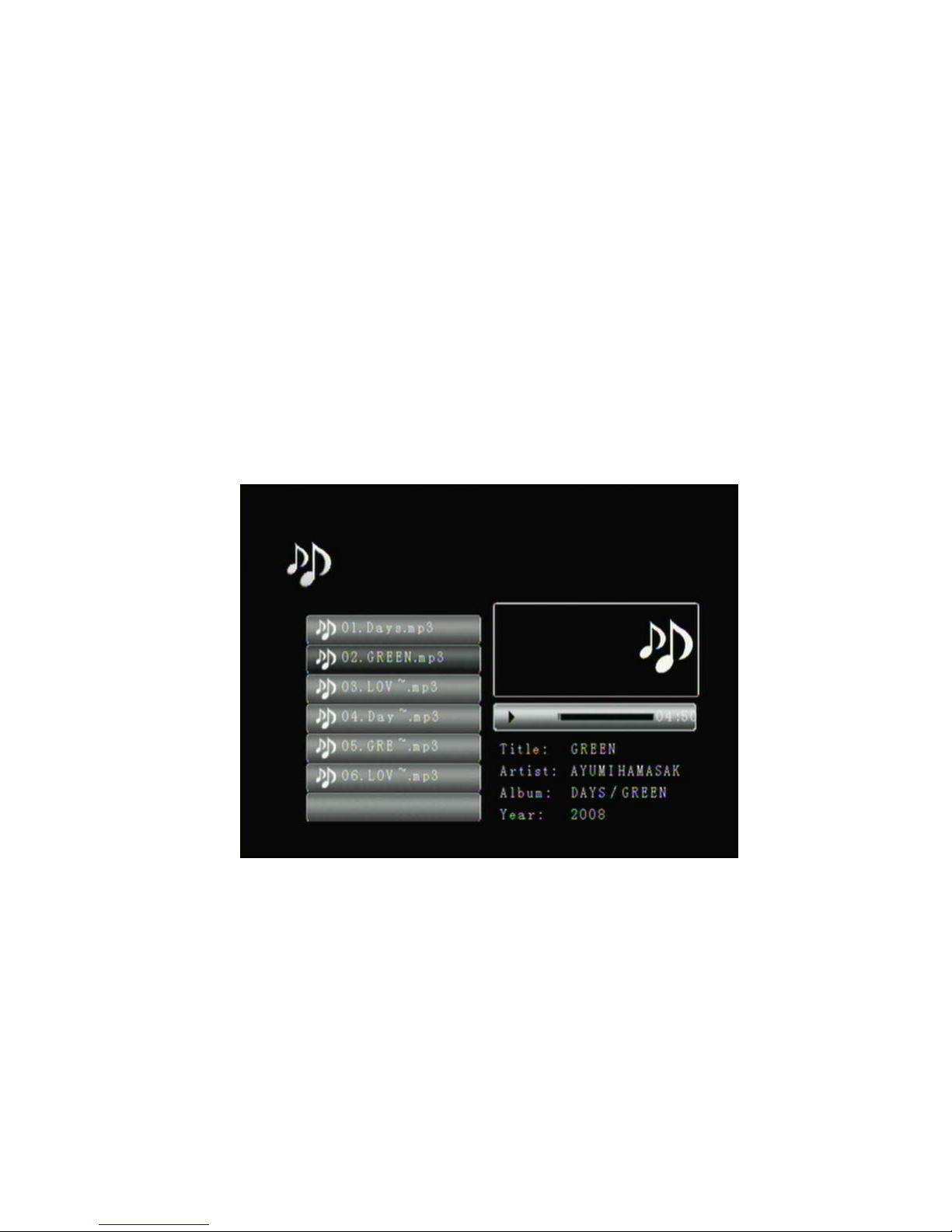

zMusic playback: Support MP3 & WMA music formats
zPhoto playback: Support JPEG, BMP and PNG photo formats.
zSubtitle format: Media Player M101 supports SRT、SSA、ASS、SMI subtitles
for AVI video formats in ANSI format.
zSupports USB Host interface and hot swap of devices. It can directly display the
files in USB device such as USB disk or HDD enclosure.

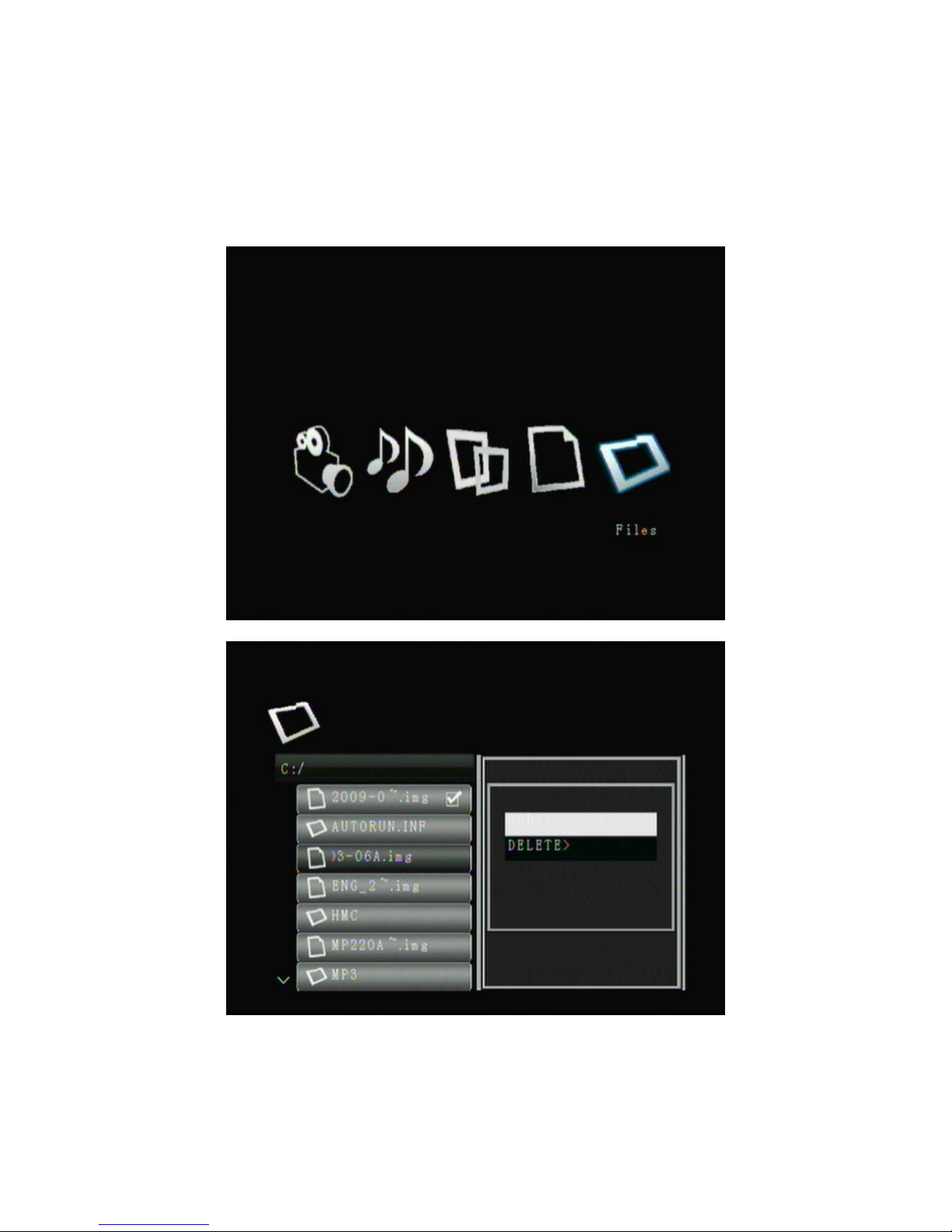

zFile Management: Copy or delete files within the USB device or memory card.
You don’t need any computer.
zMulti TV display modes: NTSC interlace,NTSC progressive, PAL interlace,
PAL Progressive, NTSC composite, PAL composite, HD720P(YPbPr), VGA.
zMaximum output resolution: YPbPr up to 720p, VGAup to 1024 x 768.
zMaximum resolution of RM/RMVB files: Up to 1024 x 576. Resolution of other
video formats is 720 x 576.
zSupports 4:3 and 16:9.
zCard reader: Support SD/SDHC/MMC/MS/XD memory cards.
zFull function remote control.
zBonus: ArcSoft Media Converter 2.5
2

1-2. Specifications
TV System PAL/NTSC
HDD Partition FAT32,NTFS
Max output Resolution VGA:1024*768 ; YPbPr:720P
System I/O
Card reader * 1
IR Receiver * 1
USB Host * 1 (USB2.0)
Power Jack * 1
AV output
YPbPr output RCA * 3
VGA output D-sub 15 * 1
S-Video output DIN4 * 1
CVBS output RCA * 1
Audio L/R RCA * 2
Card Reader SD/SDHC, MS, MMC, XD
Power Adaptor AC100-240V 50/60Hz 5V 2A
Support Media format RM, RMVB, MPEG1, MPEG2, AVI, DIVX, XVID, DAT, WMA, MP3,
JPEG, BMP, PNG,TXT
1-3. Package Contents
3

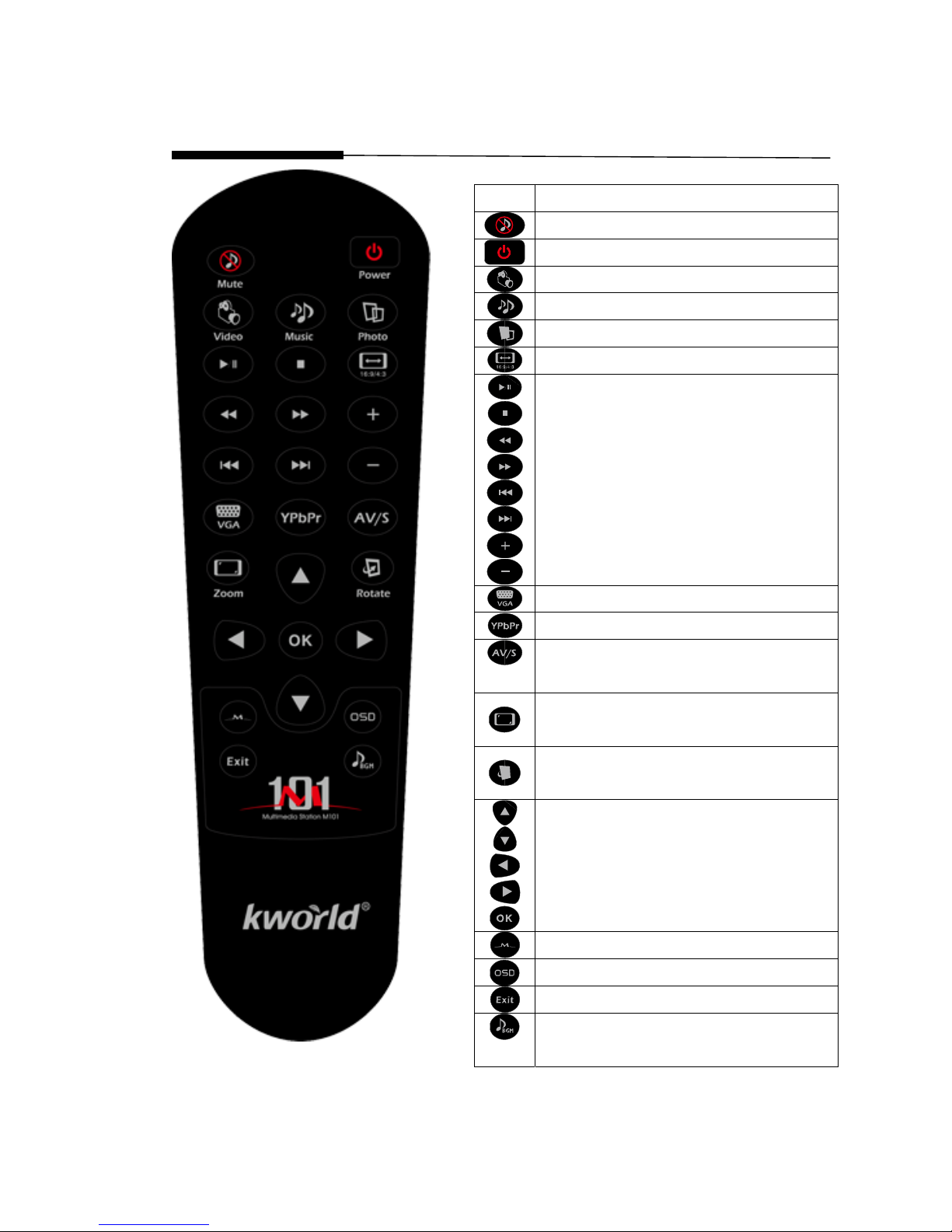

1-4. Remote Control Guide
Key Key Function
Mute: Enable/Disable Mute function.
Power: Stand by/Switch on.
Video: Enter Movie page.
Music: Enter Music page.
Photo: Enter Photo page.
Switch between 16:9 and 4:3
Play/Pause
Stop
Rewind
Fast Forward
Previous one
Next one
Increase Volume
Decrease Volume
VGA: Switch to VGA output mode
YPbPr: Switch to YPbPr output mode
AV/S: Switch to AV/S-video output
mode
Zoom: Zoom image
Rotate: For each press, the photo
grees clockwise.will rotate 90 de
Arrow key, Up
Arrow key, Down
Arrow Key, Left
Arrow Key, Right
OK key, Select and confirm
Menu: Enter Setup page
OSD: Enter OSD page
Exit: Exit or Back to previous page
Background Music: Play Background
Music
4

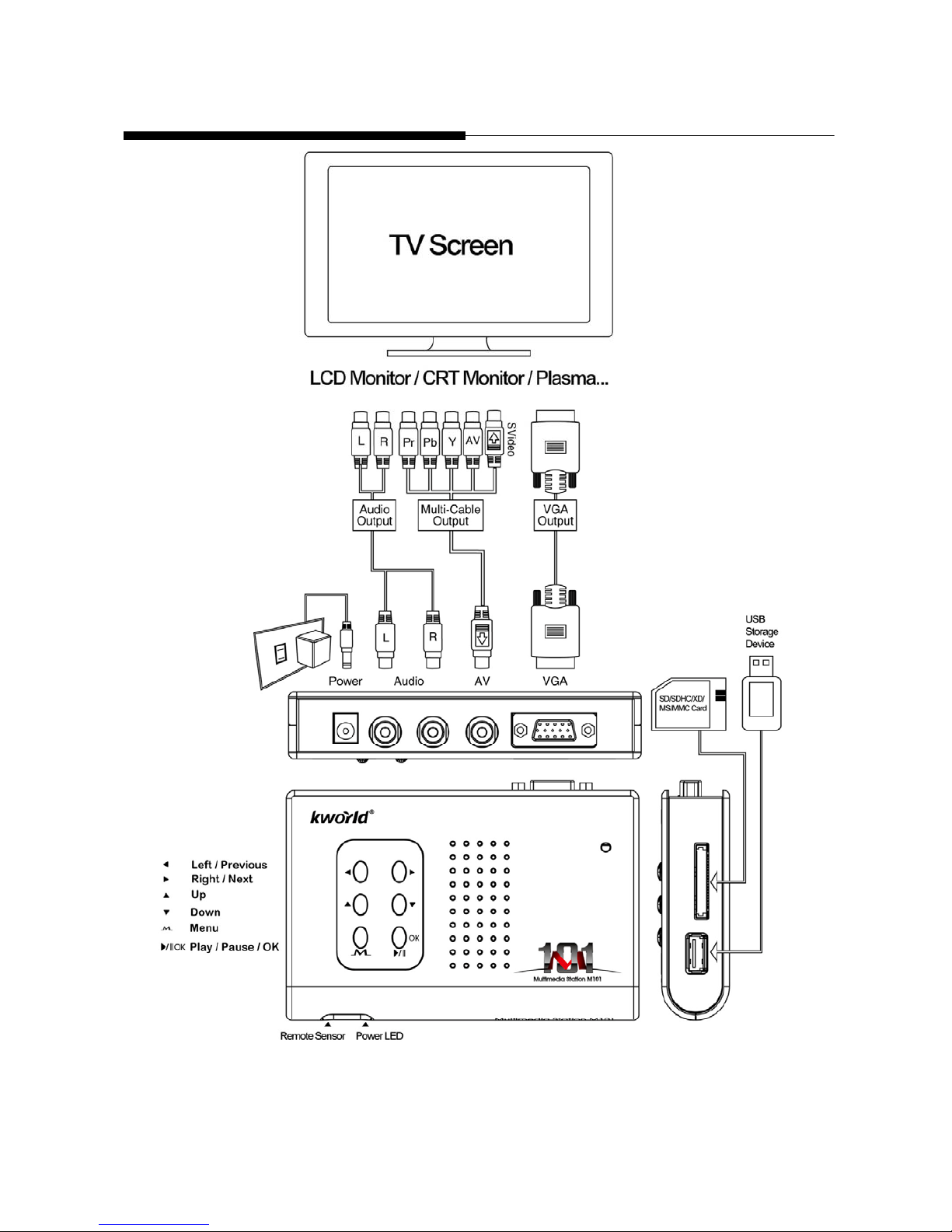

1-5.Connection Chart
Note: You do not have to connect all of the output cables such as VGA, YPbPr, AV, S-video.
Please connect the cables according to your need. (Please note the package does not
supply VGA & S-video cables.)
5

2. Operation
2-1. Setting Up Your KWorld Media Player M101
1. Please connect your KWorld Media Player M101 with the TV set via AV
cables.
2. Please connect the device with its power adaptor and turn it on. Please set
the device output setting to TV to AV mode.
I. If the device cannot be turned on, please follow the step below:
- Please check if the device has already been set to TV to AV mode?
- Please check the output setting of all cables in use. For example, if you
would like to check the YPbPr output setting, please press the YPbPr key
on the Remote to change the output mode to YPbPr mode.
3. Please wait a moment. If the device is not connected to any storage devices
(USB Thumb Drive or Memory Cards), the Main Menu will only show the
“Setup” option. However, if the device is already connected to one of the
above, the Main Menu will show the related options.
6

4. Please select “Setup” and press “OK” to enter the Setup page.
2-2. System Settings
Once you have entered the System Setup page, you will see the options
below:
Language: Please use the Left/Right key on the Remote to select the
preferred language, then press “OK” to confirm.
7

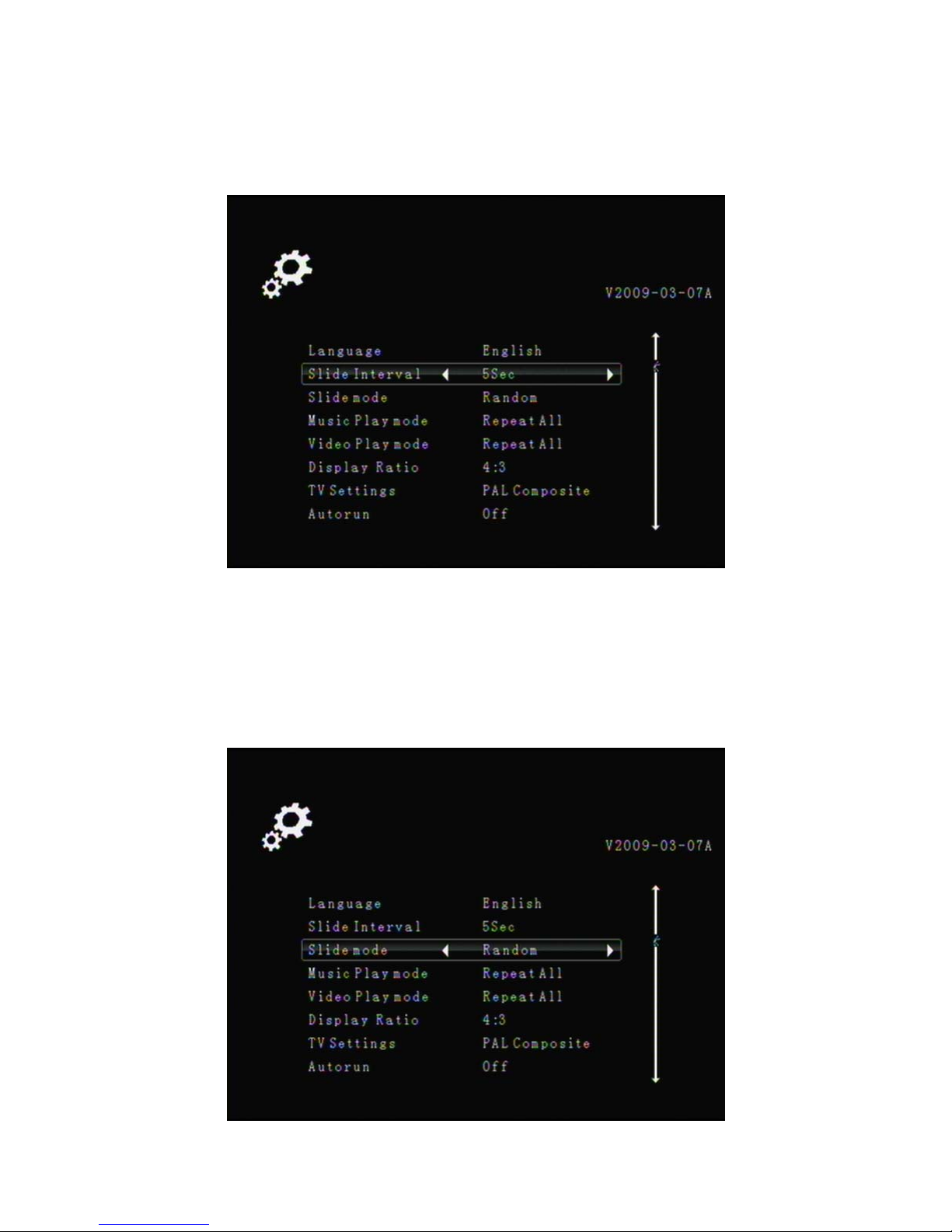

Slideshow Interval (3sec, 5sec, 15sec, 1min, 15min, 1hr): Please use the
Left/Right key on the Remote to select the preferred time interval for your
slideshow, then press “OK” to confirm.
Slideshow Mode (Bottom to Top, Top to Bottom, Left to Right, Right to
Left, Door close, Door open, Horizontal cross, Vertical cross, Random,
Fading): Please use the Left/Right key on the Remote to select the preferred
mode, then press “OK” to confirm. (This function only supports JPEG format
photos)
8

Music Play Mode: You may set the Music Play Mode as “Repeat one” or
“Repeat All”. Please use the Left/Right key on the Remote to select, then
press “OK” to confirm.
Video Play Mode: You may set the Video Play Mode as “Repeat one” or
“Repeat All”. Please use the Left/Right key on the Remote to select, then
press “OK” to confirm.
9

Display Ratio: Set the aspect ratio for your TV according to its screen ratio.
Please use the Left/Right key on the Remote to set the right ratio, then press
“OK” to confirm.
TV Settings (NTSC interlace, NTSC progressive, PAL interlace, PAL
progressive, NTSC composite, PAL composite, HD(YPbPr), VGA):
Please use the Left/Right key on the Remote to select the right TV setting, then
press “OK” to confirm.
