KWorld SA295-Q DE User manual

ONE Instruction............................................................02
1.1 Features................................................................02
1.2 Output Source & Resolution.........................................02
1.3 Input Resolution Support................................................03
1.4 Package Content.............................................................03
1.5 Specification...............................................................03
TWO Installation................................................................04
2.1 Connection Equipment.............................................04
2.2 Connect to HDMI System.........................................06
2.3 Connect to DVI-I System.........................................06
2.4 Connect to DVI-D System..........................................07
2.5 Connect to VGA System..........................................07
THREE Remote Control Guide.............................................08
3.1 TV Mode......................................................................08
3.2 USB Mode.....................................................................09
3.3 MP3 Mode.....................................................................09
3.4 JPEG Mode.....................................................................09
FOUR Operation..........................................................10
4.1 Installation Guide..............................................10
4.2 Menu.................................................................11
FIVE FAQ.......................................................................16
Contents V1.0
SA295-Q DE.indd 1 2009-01-09 13:35

© 2009 KWorld
2
Instruction
Thank you for purchased the External ATSC / QAM TVBox (SA295-Q DE). It can make
your Personal Multimedia Player (such as your PC, HDMI playback) enhanced with TV
function. This manual will guide you through all of the installations, features, setup and
operation. It will also help you to use all of the exciting and useful selections to improve
your viewing pleasure.
ONE
Instruction
1.1 Features
1.2 Output Source & Resolution
• ATSC 8-VSB & Clear QAM support.
• Compliant with both FCC and A/74 standard recommendation
• Low power consumption and high performance.
• DVI-I I/O interface adapt to VGA / HDMI function compatible.
• YPbPr / AV output for Set-top Box application.
• Support USB storage for MP3 player and JPEG viewer.
• Power Saving Setting.
• Parental Control.
• Close Caption Support.
• PC (HDMI Playback) / TV Switch changeover by one-click.
• Keep on pressing Power Key after 5 seconds to do Factory Reset.
• Full function remote control.
DVI / HDMI
VGA
YPbPr
AV
720 X 480 1024 X 768 1280 X 720 1920 X 1080
SA295-Q DE.indd 2 2009-01-09 13:35

SA295-Q DE
3
Stereo Audio
Cable
DVI-I Cable
Power
Adapter
SA295-Q DE
TV BOX
Remote control User manual
ATSC Antenna
AAA Batteries
DVI-D to HDMI
Cable
HDMI/F to
DVI-D/M
VGA/F to
DVI-I/M
DVI-I/F to
VGA/M

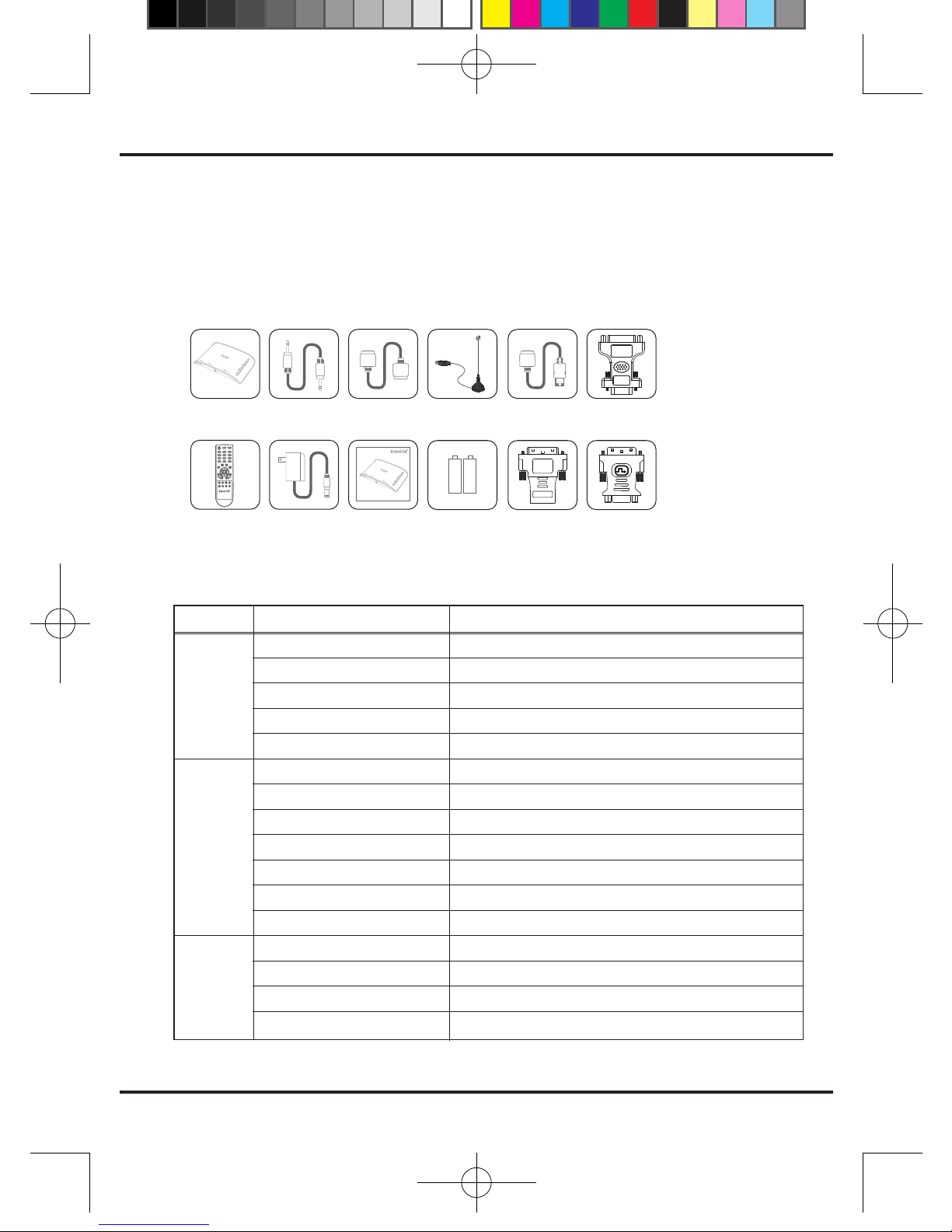

1.3 Input Resolution Support
1.5 Specication
1.4 Package Contents
I / O Interface
DVI-I
Phone Jack 3.5Ø（Blue）
F-Type
USB A-Type
Power Jack 2.0Ø
DVI-I
Phone Jack 3.5Ø（Green）
RCA Jack（Green）
RCA Jack（Blue）
RCA Jack（Red）
RCA Jack（White）
RCA Jack（Red）
Infrared Receiver
Infrared Transmitter
Click Button
LED（Blue / Red）
Input
Output
Others
Description
Adaptor to VGA / HDMI compatible.
Stereo audio line in.
ATSC / QAM 75Ω RF signal cable.
FAT / FAT32 storage for MP3 player & JPEG viewer.
DC 5V / 2A power adaptor.
Adaptor to VGA / HDMI compatible.
Stereo audio line out.
Component Y / AV multi-output
Component Pb
Component Pr
Audio left voice.
Audio right voice.
On board sensor.
36Key Remote Control
Power on / Menu / Vol - / Vol + / Ch - / Ch +
DVI-I indicate blue, Component indicate red.
Depending on PC graphic card or other compatible device, and the 60Hz refresh rate is
recommended on LCD monitor.
SA295-Q DE.indd 3 2009-01-09 13:35

© 2009 KWorld
4

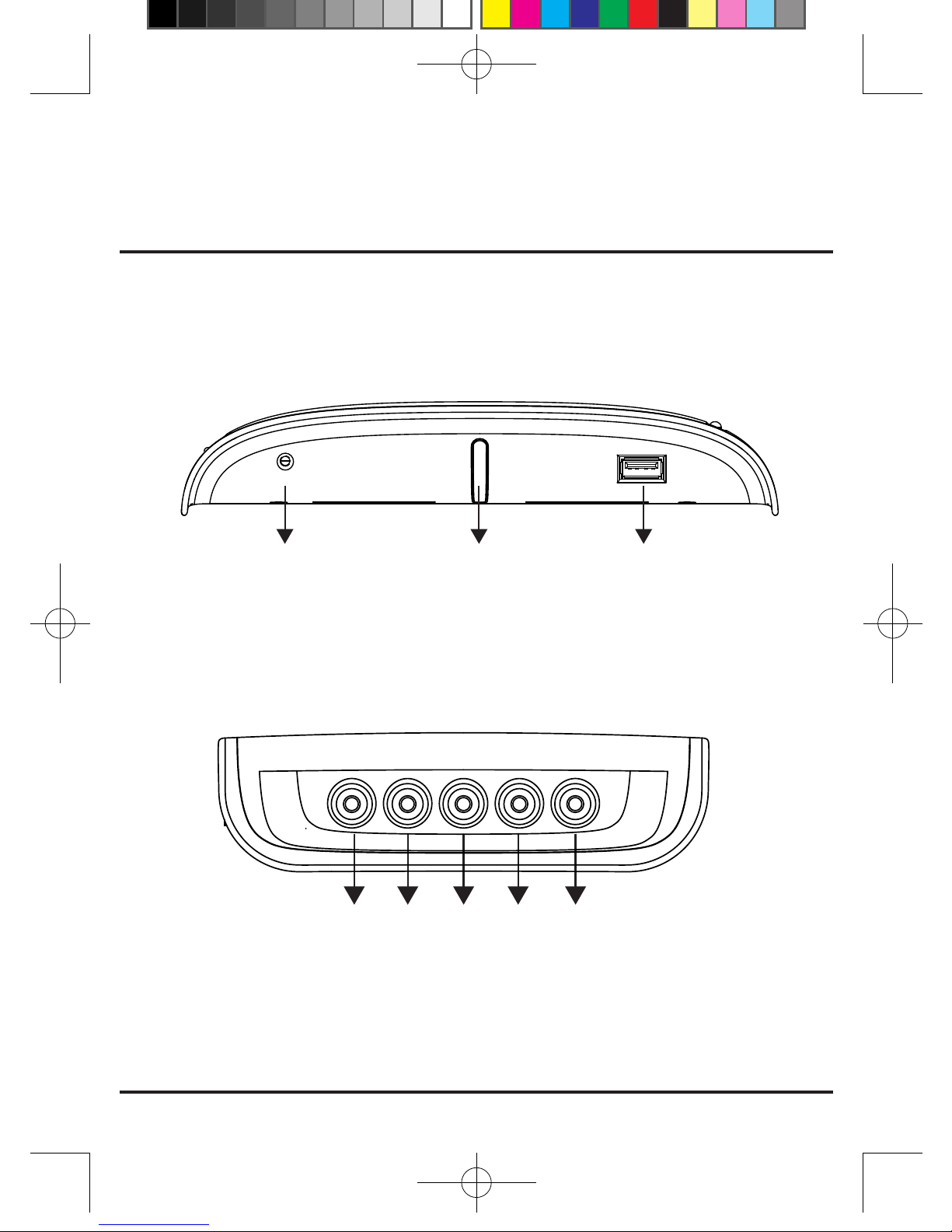

2.1 Connecting Equipment
(Front View)
(Side View)
TWO
Installation
USBRemote SensorPower LED
RL
RL
PrPbY
AV
SA295-Q DE.indd 4 2009-01-09 13:35

SA295-Q DE
5

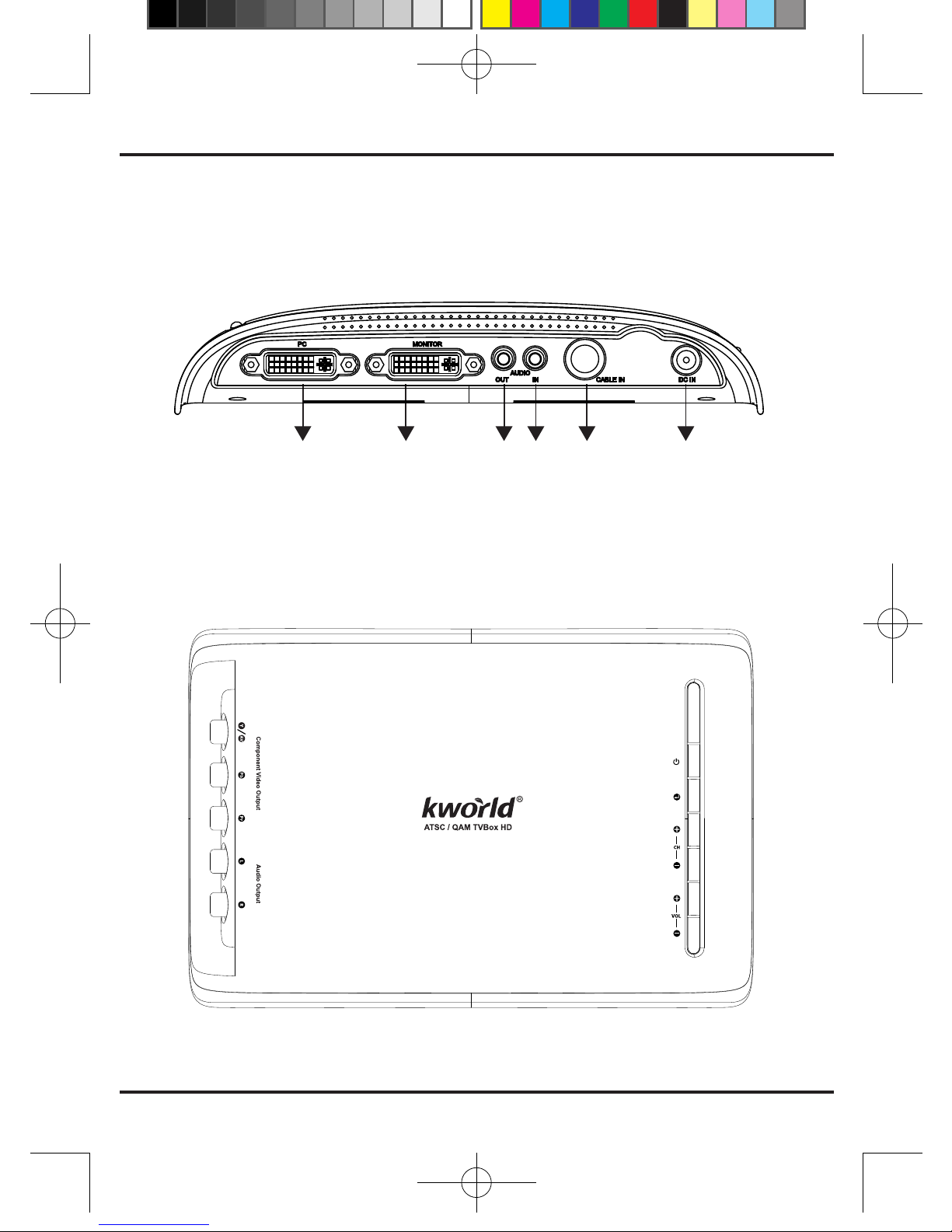

(Rear View)
(TOP View)
DVI Input DVI Output Line
Out
Line
In
ATSC
Input
DC
5V/2A
SA295-Q DE.indd 5 2009-01-09 13:35

© 2009 KWorld
6

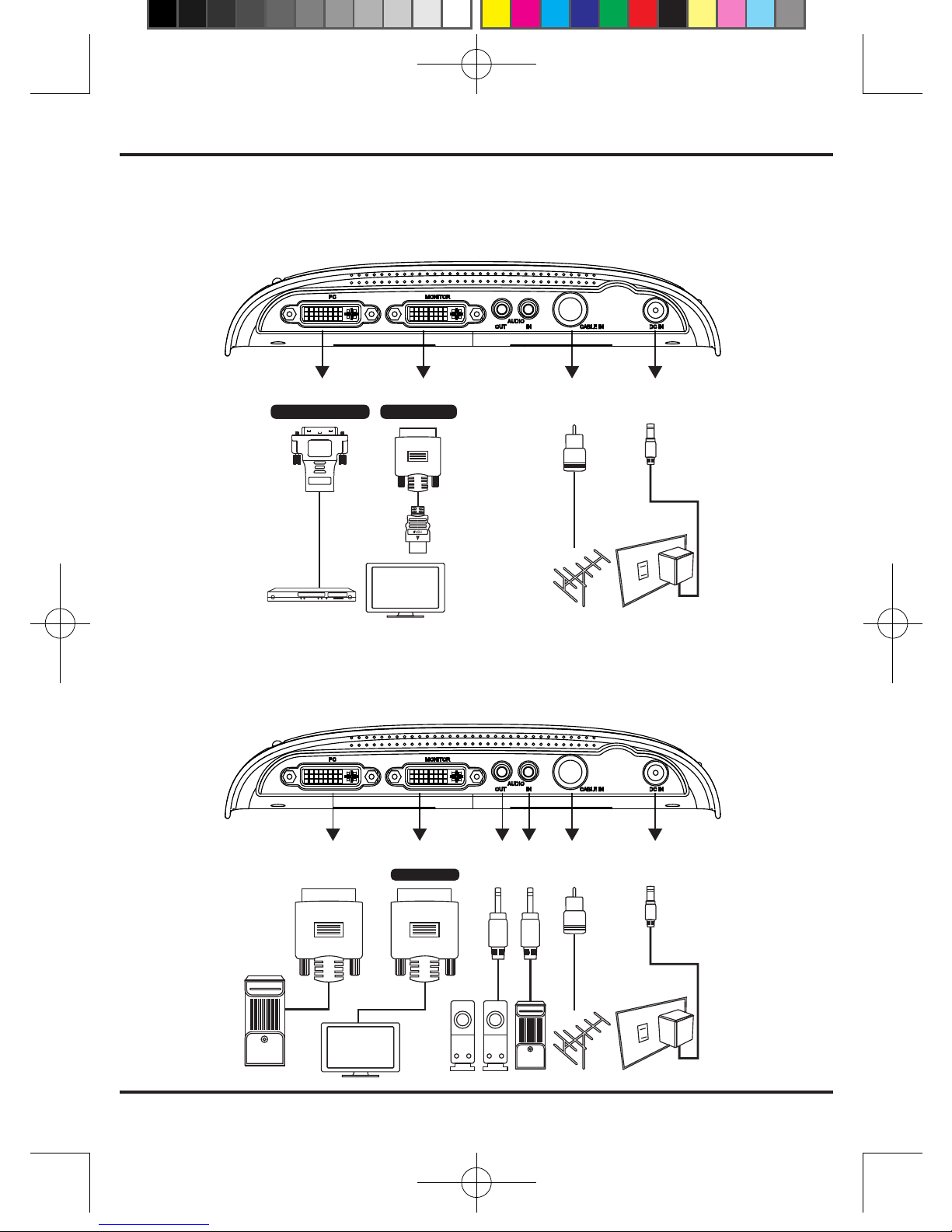

2.2 Connect to HDMI System
2.3 Connect to DVI-I System
DVI Input DVI Output ATSC
Input
DC
5V/2A
HDMI Player
HDMI
Monitor
DVI -D /M to H DMI /F A dap to r DVI -D to H DM I C ab le
HDMI System
ATSC
Input
TV C ab le
DVI Input DVI Output Line
Out
Line
In
ATSC
Input
DC
5V/2A
Ster eo Sp eak er
DVI-I PC PC
DVI-I
DVI-I M onitor
DVI-I System
DV I- I to D VI -I C ab le
ATSC
Input
TV C abl e
SA295-Q DE.indd 6 2009-01-09 13:35

SA295-Q DE
7

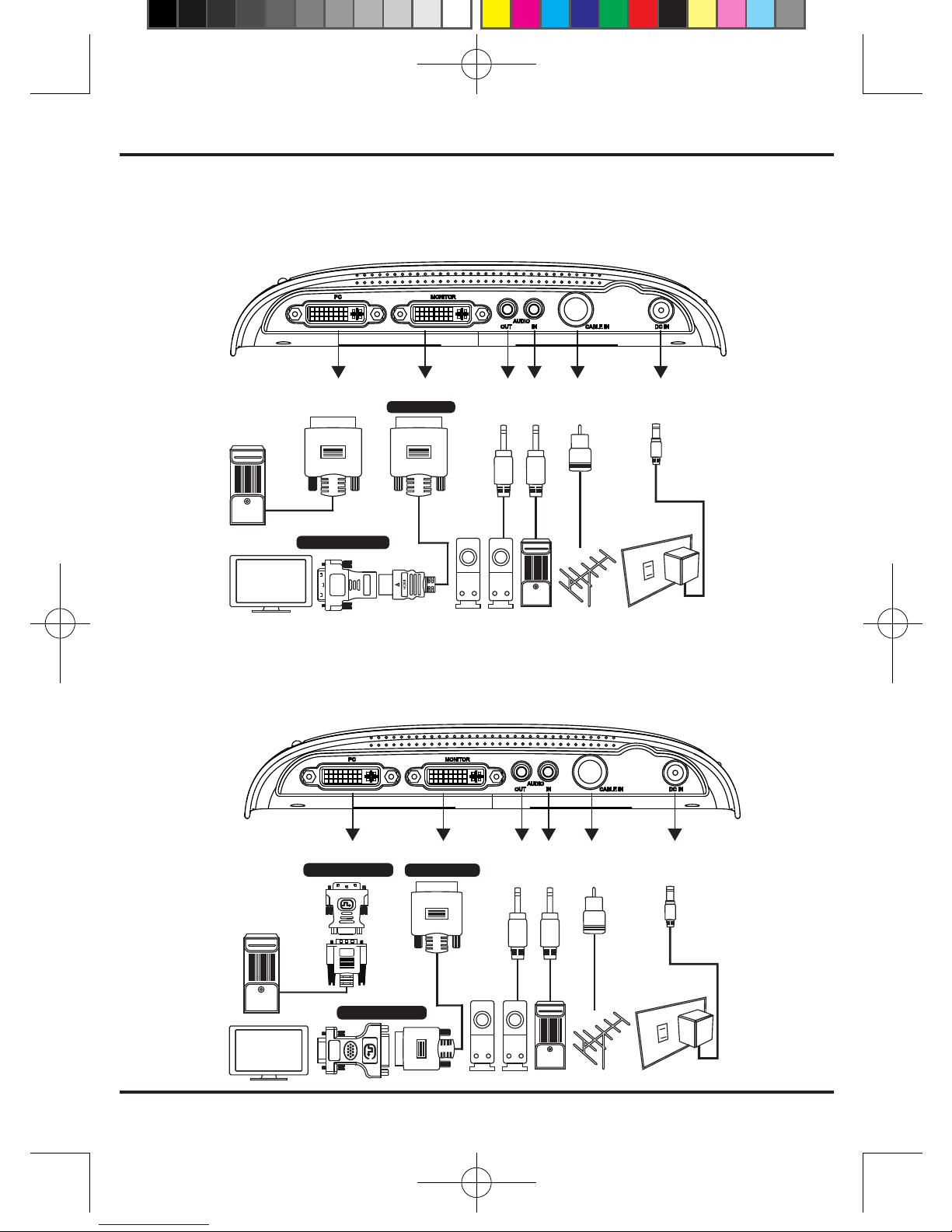

2.4 Connect to DVI-D System
2.5 Connect to VGA System
DVI Input DVI Output Line
Out
Line
In
ATSC
Input
DC
5V/2A
St er eo Sp eak er PC
DVI-D
DVI-D Monitor
HD MI /F t o D VI -D /M A da pt or
DV I- D to H DM I Ca bl e
DVI-D System
DV I- D P C
ATSC
Input
TV C abl e
DVI Input DVI Output Line
Out
Line
In
ATSC
Input
DC
5V/2A
St er eo Sp eak er PC T V Cab le
VGA
VGA Mon itor
VGA System
DV I- I/ M to V GA /F A da pto r
DV I- I/ F to V GA /M A da pto r
DV I- I to DV I- I Ca ble
VG A PC
SA295-Q DE.indd 7 2009-01-09 13:35

© 2009 KWorld
8

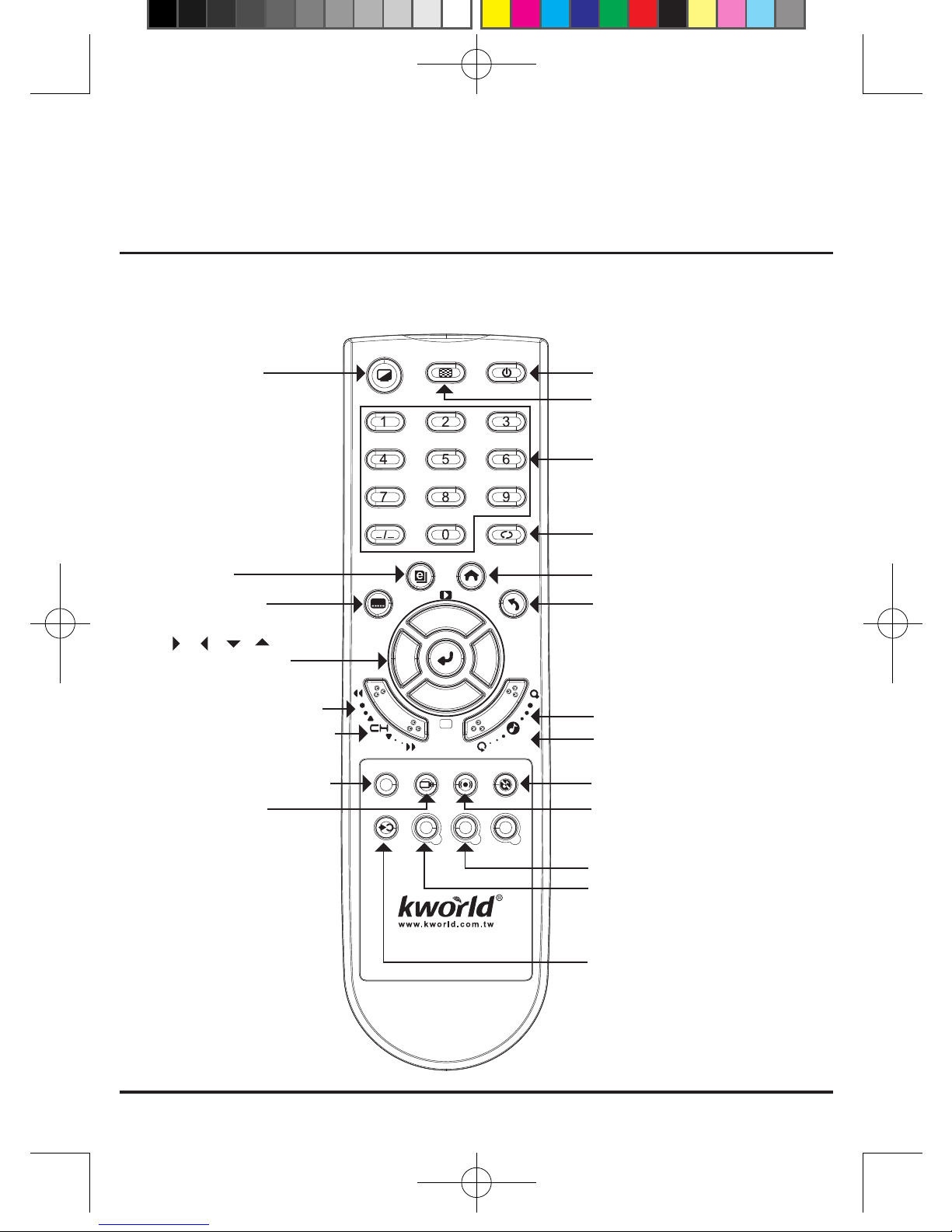

3.1 Remote Control Guide (TV Mode)
THREE
Remote Control Guide
?!
A B C
[RESOLUTION]：
Change the Video Resolution
[0~9&-]：
Channel Number buttons
[Recall]：
Channel Recall button
[Menu]：
Select Item for Adjusting Function
[VOL+]：Volume Up button
[VOL-]：Volume Down button
[USB]：
Enter USB Mode
[Audio]：SAP Switch
[Mute]：Mute On/Off
[OUPUT]：
Change Video Output Source
[Source A]：DVI/HDMI or VGA
[Source B]：YPbPr or AV
[OK]：
Enter Button
[Close Caption]：
On/Off
[EPG]：
Enter EPG
[Back]：Exit or Back
[POWER]：
Power ON/OFF
[ ] [ ] [ ] [ ]：
Browsing Arrow
[Display]：
Display Channel Information
[CH+]：Channel Up button
[CH-]：Channel Down button
[TV/PC]：
TV/PC Switch
SA295-Q DE.indd 8 2009-01-09 13:35

SA295-Q DE
9

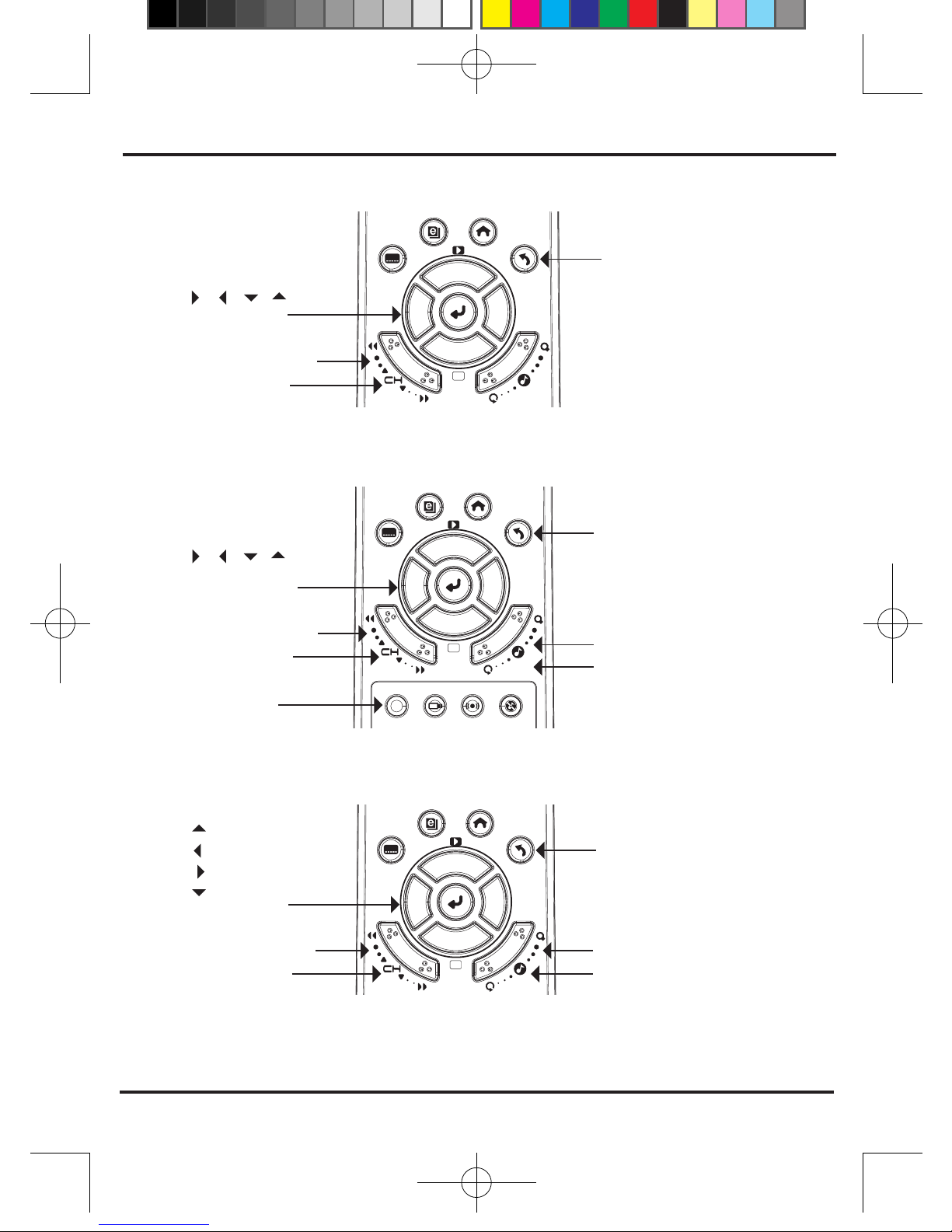

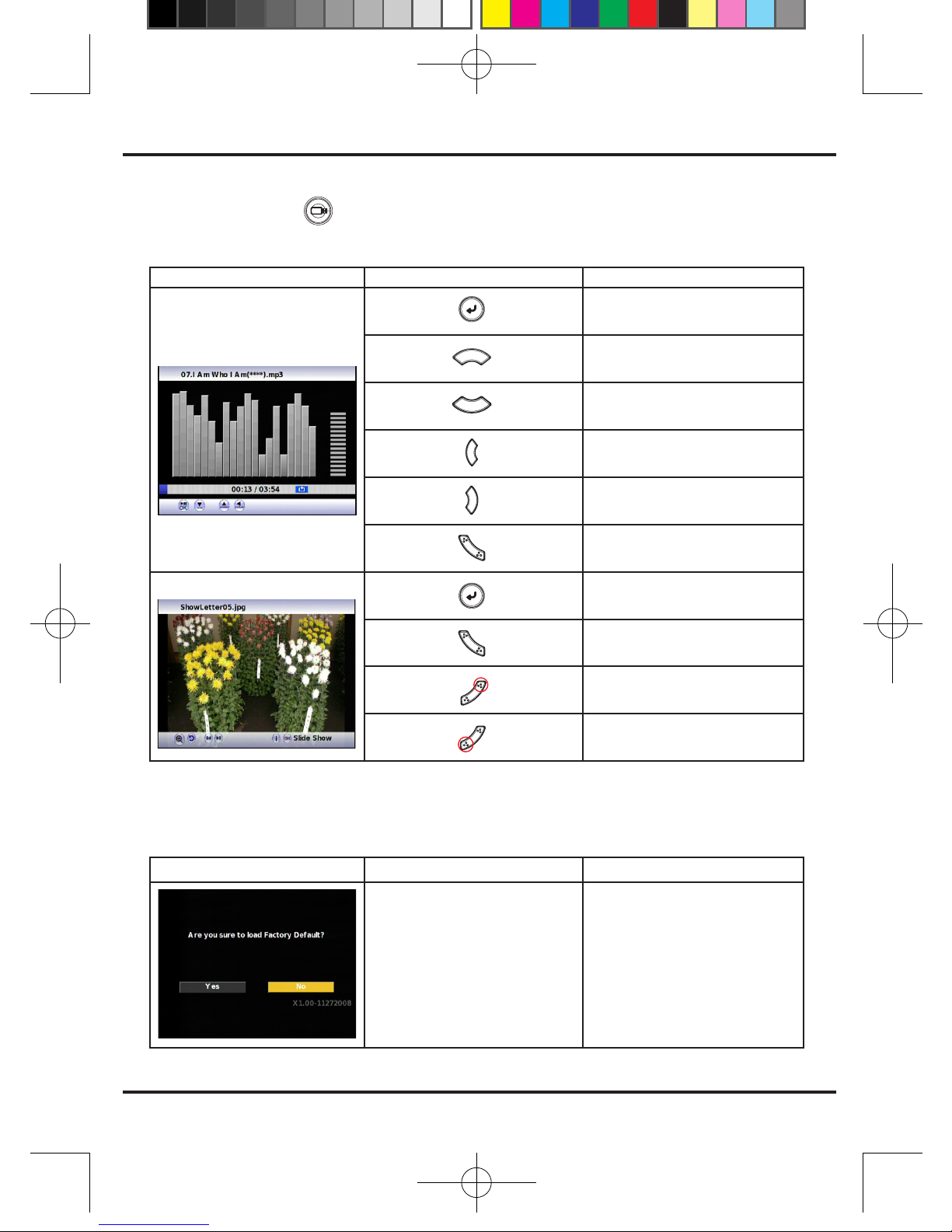

3.2 Remote Control Guide (USB Mode)
3.3 Remote Control Guide (JPEG Mode)
3.4 Remote Control Guide (MP3 Mode)
[Recall]: Channel
Recall button
[CH+]：Previous Page
[CH-]：Next Page
[OK]：To Enter or Confirm
[Back]：To Exit USB Mode
[ ] [ ] [ ] [ ]：
Browsing Arrow
?!
[Recall]: Channel
Recall button
[CH+]：Previous Image
[CH-]：Next Image
[Display]：
Show File Name
[OK]：
Enter or Stop Slide Show Mode
[Back]：
Exit Image View Mode
[ ] [ ] [ ] [ ]：
Browsing Arrow
[VOL+]：Use Zoom Function
[VOL-]：Spin Current Picture
[Recall]: Channel
Recall button
[VOL+]：Volume Up
[VOL-]：Volume Down
[OK]：Play / Pause
[Back]：Exit Music Mode
[ ]：Restart
[ ]：Play all and Repeat
[ ]：Next Song
[ ]：Stop
[CH+]：Previous Song
[CH-]：Next Song
SA295-Q DE.indd 9 2009-01-09 13:35

© 2009 KWorld
10
FOUR
Operation

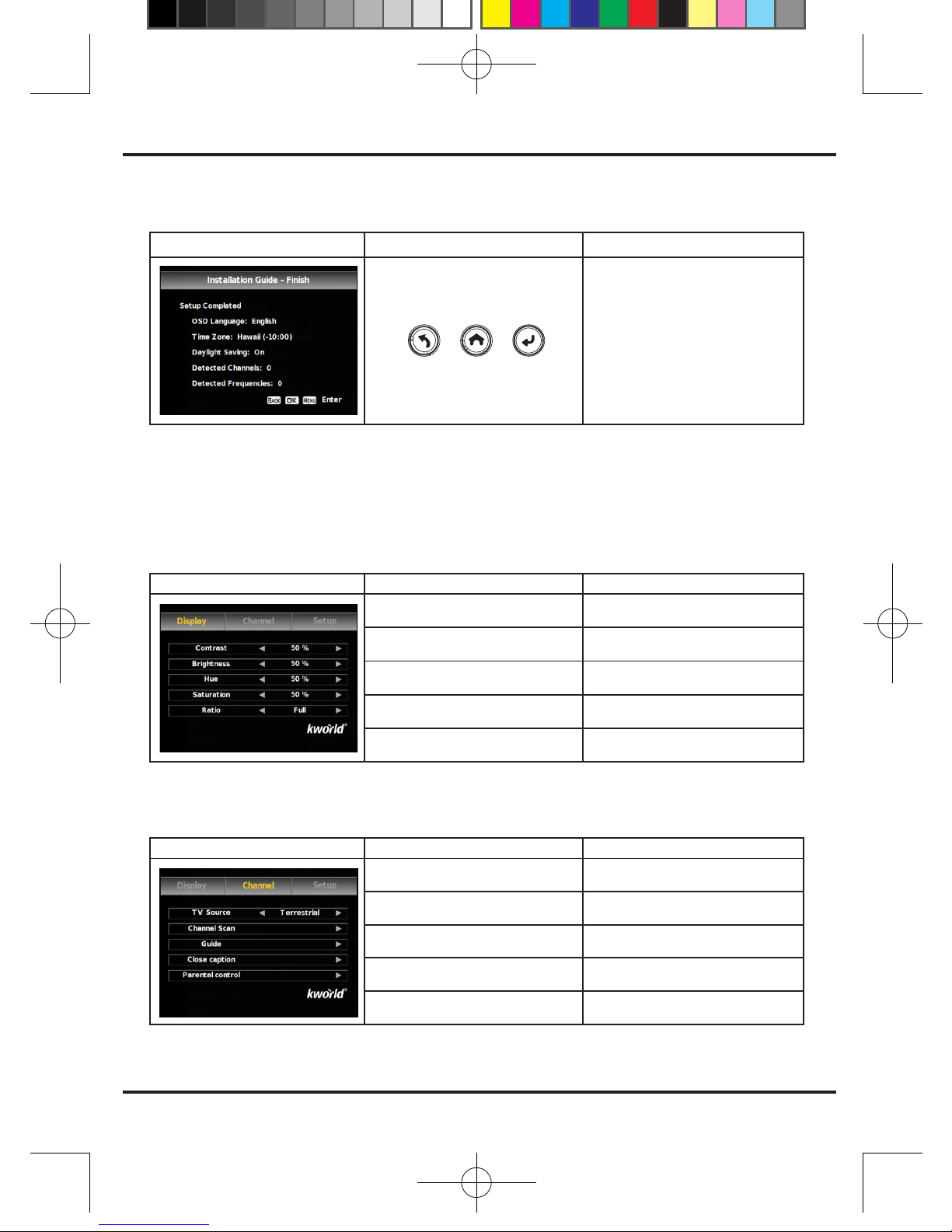

4.1 Installation Guide
When you turn on the unit at the rst time or after you do the factory reset, it will begin
the installation guide.
Step 1-Setup
Step 2-Scan
Step 3-Scanning
Image Item Setting
OSD Language English / Spanish / French
Time Zone Hawaii / Alaska /Pacic / Mountain /
Central / Eastern
Auto Daylight Saving Yes / No
To Next
Image Item Setting
TV Source Terrestrial / Cable
Back
Start Scanning
Image Item Setting
Abort
