Kymeta™ u7 Terminal User Manual
Includes Kymeta™ u7 Antenna
For Integrator and Standard u7 terminal configurations
Covers TRM-U7Hxx-xxx and TRM-U7Xxx-xxx Kymeta u7 terminal configurations
Document number: 700-00064-000 revA
10 April 2020

Table of contents
1 Introduction 4
2 Product description 5
3 Indoor unit (IDU) 6
3.1 Modem 6
4 Physical connection interfaces 7
4.1 Power cable 8
4.2 RX in cable (LMR-195) 8
4.3 TX cable 8
4.4 RXcable 8
4.5 Ethernet cable 8
5 u7 antenna automatic reboot schedule 9
6 Over-the-air (OTA) updates 10
6.1 OTAupdate process 10
6.2 Software rollback 10
7 Package the Kymeta u7 terminal 11
7.1 Package the u7 terminal 11
7.2 Package the u7 terminal IDU 11
8 Clean the u7 antenna 12
9 Replace components 13
9.1 Replace the BUC 14
9.2 Replace the LNB 15
9.3 Replace the diplexer 16
9.4 Replace the data interface box 17
9.5 Replace the power interface box and power supply assembly 19
9.6 Attach mounting handle accessory kit 22
9.7 Attach cable accessory kit 24
10 Kymeta u7 terminal configuration diagram 26
11 Component replacement tools 27
12 Component replacement hardware 29
12.1 BUC replacement hardware 29
12.2 LNB replacement hardware 30
12.3 Diplexer replacement hardware 31
12.4 Data interface box kit 31

12.5 Power interface box and power supply assembly accessory kit 32
13 Accessories 33
13.1 Cable kit 33
13.2 Mounting handle kit 34
14 Customer support 35
15 Revision history 35
16 Copyright and trademark information 35

© 2020 Kymeta Corporation. All rights reserved. 4 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
1 Introduction
This document describes use, maintenance, and hardware of the Kymeta™ u7 terminal.
This document is intended for u7 terminal owners and operators.
For information on installing the u7 terminal, refer to 700-00065-000 Kymeta™ u7 terminal installation guide TRM
U7H U7X configurations.
For your safety, read 700-00065-000 Kymeta™ u7 terminal installation guide TRM U7H U7X configurations,
section "Safety and handling instructions" before performing any maintenance on the u7 terminal.
For information on the Kymeta u7 antenna web-based user interface and instructions on checking the antenna status,
refer to 700-00006 Kymeta™ u7 antenna software user guide.

© 2020 Kymeta Corporation. All rights reserved. 5 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations

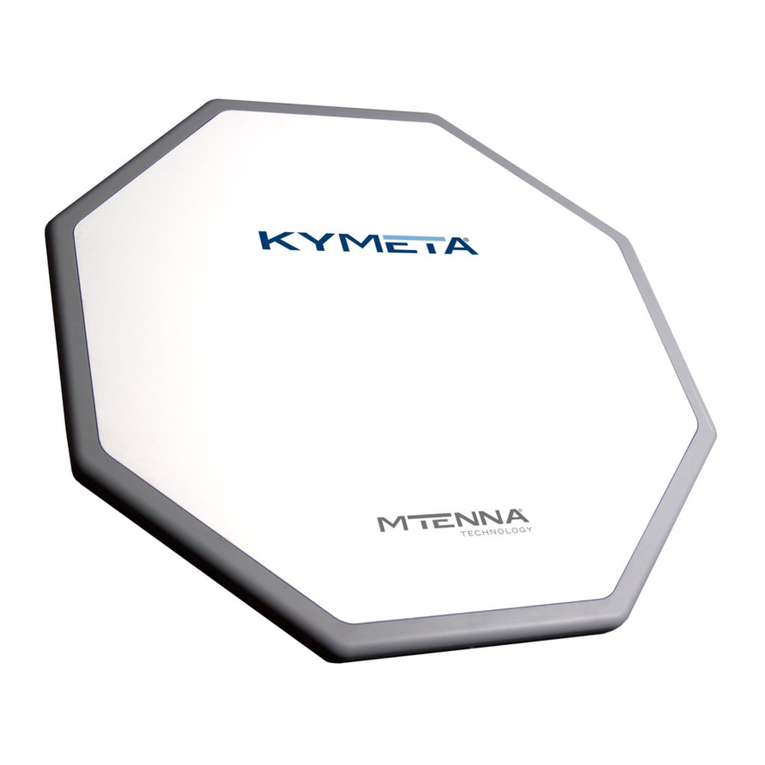

2 Product description
The Kymeta u7 terminal is available in two configurations - integrator and standard.
Kymeta u7 terminal integrator configuration
Outdoor unit:
Kymeta™ u7 antenna
Support plate with the attached RF chain (BUC, diplexer, LNB, and
RXIN cable) and power components
Cable connectors (for power and Ethernet cables)
Indoor unit: Modem
Kymeta u7 terminal standard configuration
Outdoor unit:
Kymeta™ u7 antenna
Support plate with the attached RF chain (BUC, diplexer, LNB, and
RX IN cable) and power components
Cables (power, RX, TX, and Ethernet)
Mounting handle
Indoor unit: Modem
The initial release of the u7 terminal requires installation and initialization upon commissioning it to a known satellite
network. This initialization must be performed by a trained field engineer. Once the product is installed and
commissioned, it will be ready to facilitate data communications through a satellite network. For information on
commissioning, contact Kymeta customer support.
✎The power interface box and data interface box do not contain antenna control software; the ODU manages all
antenna control.
✎This is a transmit and receive satellite terminal; you must comply with all applicable local, national, and
international laws and regulations regarding the installation and use of this product.

© 2020 Kymeta Corporation. All rights reserved. 6 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
3 Indoor unit (IDU)
3.1 Modem
Install the IDU in a climate-controlled environment with temperature and humidity control.
If the modem temperature indicator light turns yellow or red during operation, the air temperature is too high for the
modem and climate control measures are insufficient. Do not operate the IDU in an environment which allows the
modem temperature to exceed 50° C.
Refer to the modem manufacturer's installation and support guide for details regarding the iDirect X7 modem.

© 2020 Kymeta Corporation. All rights reserved. 7 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
4 Physical connection interfaces
The Kymeta u7 terminal includes the following physical connection interfaces:
Power out cable
Antenna control cable
BUCcontrol cable
Ethernet cable
TX cable
RX cable
Power cable
RX out cable
RX in cable

© 2020 Kymeta Corporation. All rights reserved. 8 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
4.1 Power cable
The power cable connects the external power supply to the power interface box.
When attaching the power cable, check the keying: the threads may engage slightly when the connector is rotated by
180° from the correct alignment. Ensure that the threading fully engages. If the power cable is correctly attached and
fully seated, the metal nut at the end of the cable will cover the gasket on the power box input.
⚠Incorrectly seating the power connector will likely result in a short circuit, which will damage the cable and
interface box.
4.2 RX in cable (LMR-195)
This LMR-195 cable connects the LNB to the antenna RX IN port. The cable requires a right-angle N-type connector at
the antenna end to maintain the low profile of the antenna without sharp or protruding cable bends. The connector has
standard N-type connectors at teach end.
4.3 TX cable
This N-type IF cable connects the BUC in the ODU to the TX Out of the modem within the IDU. The TX cable works in the
frequency range from 1050 MHz to 1700 MHz and passes a 10 MHz reference signal to the BUC. This protocol and the
cabling is dependent on the specific modem and BUC used for each solution. Kymeta provides an N-type to F-type
adapter to connect this cable to the modem.
4.4 RXcable
This N-type IF cable sends the L-Band (950 MHz to 2150 MHz) signal from the antenna to the modem and provides DC
power for the LNB. It connects the antenna RX OUT port to the modem primary RX IN port (Rx 1). The RX cable works in
the frequency range from 950 MHz to 2150 MHz and provides power for the LNB. Kymeta provides an N-type to F-type
adapter to connect this cable to the modem.
4.5 Ethernet cable
This cable connects the data interface box to port 1 on the modem. The Ethernet port is for a standard 10/100/1000
network and is the primary monitor and control (M&C) port. It supports multiple protocols for a web server (GUI), ACU-
Modem Interface (OpenAMIP™), and an M2M (machine-to-machine) RESTful API. Installation engineers can make
multiple connections with an external switch.

© 2020 Kymeta Corporation. All rights reserved. 9 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
5 u7 antenna automatic reboot schedule
The u7 antenna requires an automatic reboot every 24 hours (software version 1.0.0.2295 and 1.0.0.2210) or every 7
days (software version 1.1.0.3240 and later) to avoid potential failures in u7 antenna functionality, including loss of
service and/or performance degradation.
u7 antenna software versions 1.0.0.2295 and 1.0.0.2210 allow the operator to set the time of day when the 24-hour
automatic reboot occurs. Software versions 1.1.0.3240 and later allow the antenna operator to set the time of day and
the day of the week when the weekly automatic reboot occurs. Note that the automatic reboot cannot be disabled.
u7 antenna software version 1.4. 0.64 initiates an automatic reboot only if the system has been up for at least 6 days. If
the system restarted (either via a manual reboot or as a part of software update) within the 6-day time period before the
scheduled reboot, the scheduled reboot is skipped.
The u7 antenna detects the operator's time zone from the computer being used to set the time of day; that is, if the
operator's laptop is set to EST and the time of day is set to 3 AM, the automatic reboot will occur at 3 AM EST. If the
antenna changes time zones, the reboot time will need to be updated accordingly.

© 2020 Kymeta Corporation. All rights reserved. 10 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
6 Over-the-air (OTA) updates
The Kymeta™ u7 antenna requires factory installed software to operate, which is pre-installed at the factory. Users with
software version 1.0.0.2210 or later can opt in to secure, automatic OTA updates as new software releases are made
available.
OTA updates are available to all Kymeta customers is their u7 antenna has access to the internet and Kymeta Cloud
Services. Ao KĀLO™network services subscription is not required to get OTA updates.
To enable OTA updates or update your software version to get OTA updates, contact Kymeta customer support.
6.1 OTAupdate process
1. The antenna checks on start-up to determine if an OTA update is available. The antenna performs this check
through secure web services calls to Kymeta Cloud Services.
2. If the antenna is eligible for an update, a package is downloaded and installed. If the antenna is not eligible, no
action is taken.
The u7 antenna operates normally during the OTA update process. The newly-installed software version takes effect on
the next restart of the antenna. Restart is triggered on completion of the software installation in version 1.1.0 and later.
Software version 1.0.0 reboots on the next scheduled reboot. You will experience a brief internet outage during the
restart.
✎It is not possible to monitor the status of the OTA download. However, you can verify the update has completed
by the software version number displayed in the top right corner of the web-based user interface. Refer to 700-
00006 Kymeta™ u7 antenna software user guide for details.
If the OTA update download is interrupted, the u7 antenna retries up to 10 times to successfully download the update
package. You will not see any indication of the activity. If after 10 attempts the download does not complete, it retries on
the next restart.
If the OTA update install is interrupted, the software reverts to the original version, and the antenna retries installation
on the next restart.
6.2 Software rollback
Contact Kymeta customer support if you want to roll back to a previous software version.

© 2020 Kymeta Corporation. All rights reserved. 11 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
7 Package the Kymeta u7 terminal
✎Kymeta recommends boxing the u7 terminal in the original packaging. If you need to return a terminal, Kymeta
provides the replacement terminal first. Use the packaging from the replacement terminal to ship the original one
back.
7.1 Package the u7 terminal
The order of the following steps may vary depending upon your mounting structure. Always follow the guidelines in700-
00065-000 Kymeta™ u7 terminal installation guide TRM U7H U7X configurations, section "Safety and handling
instructions" for best practices.
1. Power off the terminal using the power switch on the power interface box.
2. Carefully disconnect and cap the power cable, RX cable, TX cable, and Ethernet cable, being mindful of pins and
connectors.
a. Ensure cable ends do not drop into water or dirt.
b. Dry off cables and coil them into the box, binding with cable ties.
c. Do not leave adapters on cables.
3. Remove the terminal ODU from the mounting structure and place face-down on a non-abrasive surface for safe
and easy access.
4. Dry off all equipment and remove any debris.
5. Place the terminal ODUback into the shipping compartment in the original cardboard box.
a. Secure any loose items (e.g., screws, tools, cable ends).
b. Close the box.
6. Place the terminal ODUoriginal shipping box inside a reusable container.
7. Close the container and fasten the latches carefully.
7.2 Package the u7 terminal IDU
1. Confirm power is off.
2. Carefully disconnect and cap all cables, being mindful of pins and connectors.
3. Coil and secure all cables with cable ties.
4. Check all fasteners to make certain they are still secure.
5. If the unit is warm, let it cool.
6. Place foam inside the rack mount unit.
7. Close unit and fasten latches carefully.

© 2020 Kymeta Corporation. All rights reserved. 12 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
8 Clean the u7 antenna
Prior to cleaning any part of the u7 antenna, ensure it is powered off.
General cleaning
Blow or rinse off loose debris first, and then apply a cleaning agent and use a clean, soft towel to clean the stained area.
Avoid scrubbing and do not use abrasive materials when cleaning the terminal components.
Avoid exposing rubber parts (for example, gaskets) to alcohol or alcohol-based cleaners, for these can deteriorate the
rubber.
General cleaning agents
Clean fingerprints, smudges, salt spray, and light marks with isopropyl alcohol products (CAS Number 67-63-0). It is safe
to use isopropyl alcohol on the antenna.
Clean difficult stains, such as oil, grease, soot, ink, and other soils with LPS Precision Clean Multi-Purpose Cleaner
Degreaser at 10 to 1 dilution.
Connectors
Use a soft bristle acid brush or cotton swab with isopropyl or denatured alcohol to gently clean all connectors. Take extra
care when cleaning RF air-dielectric connectors and don’t damage, bend, nick, push in, or pull out the center connector
as this can affect your signal. Carefully clean any surface corrosion on the exterior of the connector. Do not scrape or
overscrub the connector as this can damage the connector coating and render it more susceptible to corrosion.
Ensure connectors are completely dry before reconnecting.
Screws
Use a soft bristle brush and isopropyl or denatured alcohol to clean lightly oxidized screws. Replace heavily corroded or
oxidized screws when possible. For information on replacing parts and components, see Section 9 Replace components.

© 2020 Kymeta Corporation. All rights reserved. 13 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9 Replace components
Before replacing any components, familiarize yourself with 700-00065-000 Kymeta™ u7 terminal installation guide
TRM U7H U7X configurations, section Safety and handling instructions.
⚠Prior to replacing any parts, power down the u7 terminal and disconnect all power sources to avoid possible
injury from electric shock.
General recommendations:
Read all instructions carefully. Pictures are provided for your reference and do not replace text instructions.
Always start fasteners by hand to ensure you do not to cross thread, then tighten with a tool.
Follow torque recommendations.
When there are multiple fasteners in an assembly, first start all fasteners by hand, then tighten partially in a star or
cross pattern using a tool before tightening completely.
There are some items that you should not tighten completely until instructed to do so. Follow tightening steps
carefully.

© 2020 Kymeta Corporation. All rights reserved. 14 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9.1 Replace the BUC
1. Unplug the TX cable and the BUCcontrol cable from the BUC.
2. Loosen the BUCsupport plate/ODUsupport plate screws.
3. Loosen the diplexer/antenna screws.
4. Detach the diplexer from the antenna WR-75 flange. Ensure you don't lose the O-ring between the diplexer and
the WR-75 flange.
5. Detach the BUCfrom the diplexer.
6. Detach the BUCfrom the BUCsupport plate.
7. Attach the replacement BUCto the BUCsupport plate. Check the illustration below to determine the orientation
of the BUC support plate. Mount the plate toward the side of the BUC that has the Power and RF In ports.
Tighten fasteners in a cross pattern.
Tools: Torque screwdriver with 0.2 N-m (2 in.-lb.) minimum rating
Hardware: (1) BUC, (1) BUC support plate, (4) BHCS, M4 x 10
Torque: 1.47 N-m (13 in.-lb.)
8. Attach the BUCto the diplexer.
9. Loosely bolt the diplexer to the antenna WR-75 flange with four socket head cap screws. Ensure the O-ring is in
place, correctly aligned, and not pinched when installing the diplexer. Poor O-ring installation can degrade RF
performance.
Hardware: (1) diplexer, (4) 6-32 × 1/2” socket head cap screw
Tools: Torque screwdriver with a 1.47 N-m (13 in.-lb.) minimum rating, 7/64" bit with ball head and 3 in.
(minimum) extension
10. Loosely attach the BUC to the support plate. Apply a small amount of Loctite (included in conversion kit) onto the
threads of the (4) 6-32 x 1/2" socket head cap screws.
Hardware: (1) BUC support plate with the attached BUC, (4) BHCS, M4 × 12
Tools: Torque screwdriver with 0.2 N-m (2 in.-lb.) minimum rating, metric hex bit with 2.5 mm ball head and 3 in.
(minimum) extension
Torque: 1.47 N-m (13 in.-lb.)
11. Tighten the diplexer/antenna screws.
12. Tighten the BUC support plate/ODU support plate screws.
13. Tighten the ODU support plate/antenna screws.
14. Reattach the TX cable and the BUCcontrol cable to the BUC.

© 2020 Kymeta Corporation. All rights reserved. 15 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9.2 Replace the LNB
1. Disconnect the RX in cable from the LNB.
2. Disconnect the LNB from the diplexer by removing the four socket head cap screws and the O-ring. Locate and
save the black O-ring between the LNB and diplexer.
Tools:M3 ball-head Allen driver.
3. Insert the provided orange O-ring into the provided WR-75 spacer groove and place it on the diplexer with the
O-ring facing the diplexer.
4. Replace the original black O-ring in the groove on the WR-75 side of the LNB.
5. Connect the LNB to the diplexer with four M4 × 16 mm socket head cap screws, four metal bonded rubber
washers, and apply a small amount of Loctite to the thread of each M4 x 16 mm socket head cap screw. Ensure
the screws are aligned.
Tools:Torque screwdriver with 0.2 N-m (2 in.-lb.) minimum rating, hex bit, M3 ball head with 3 in. (minimum)
extension
Hardware: (4) SHCS, M4 x 6, O-ring
Torque:1.47 N- m (13 in.-lb.)
6. Connect the RX in cable to the LNB.
⚠Ensure the LNB film stays on. The film keeps dust from entering the LNB and does not reduce gain.
⚠Do not cross thread or overtighten the screws.

© 2020 Kymeta Corporation. All rights reserved. 16 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9.3 Replace the diplexer
⚠Never grab or lift the support plate with the attached RF chain (BUC, diplexer, LNB, and RX IN cable) or the
assembled ODU by the diplexer or any other part of the RF chain. Never use the diplexer or any part of the RF chain
to mount the ODU. Avoid damaging the coating on the diplexer.
⚠Prior to replacing any parts, power down the u7 terminal and disconnect all power sources to avoid possible
injury from electric shock.
Dismount the ODU and lay it face down on a clean, flat surface.
1. Remove the diplexer from the antenna WR-75 flange by unscrewing the four socket head cap screws.
Tools:US standard driver with ball head, 7/64''
2. Remove the O-ring.
3. If you are not immediately replacing the diplexer, replace the antenna WR-75 flange protective cover.
Hardware:Antenna WR-75 flange protective cover
4. If necessary, remove the protective cover from the antenna WR-75 flange.
Hardware:Antenna WR-75 flange protective cover
5. Place an O-ring at the antenna WR-75 flange.
Hardware: (1)O-ring, WR-75 flange
6. Bolt the diplexer to the antenna WR-75 flange with four socket head cap screws. Ensure the O-ring is in place,
correctly aligned, and not pinched when installing the diplexer. Poor O-ring installation can degrade RF
performance.
Tools: Torque screwdriver with 1.47 N-m (13 in.-lb.) minimum rating, 7/64" bit with ball head and 3 in. (minimum)
extension
Hardware: (1) diplexer, (4) 6-32 x 1/2” socket head cap screw
7. Refer to Section 9.1 Replace the BUC and Section 9.2 Replace the LNB for remounting the BUCand LNB.

© 2020 Kymeta Corporation. All rights reserved. 17 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9.4 Replace the data interface box
What’s in the kit
The data interface box accessory kit consists of the following components:
(1) Data interface box and antenna control cable assembly
(1) Loctite 242
(3) Button head cap screw (BHCS), M4 x 10 for mounting the item to support plate
(1) 2.5 mm ball end Allen wrench
Before you begin
Before replacing any components, familiarize yourself with 700-00065-000 Kymeta™ u7 terminal installation guide
TRM U7H U7X configurations, section Safety and handling instructions.
⚠Prior to replacing any parts, power down the u7 terminal and disconnect all power sources to avoid possible
injury from electric shock.
Assembly instructions
1. Dismount the ODU and lay it face down on a clean, flat cushioned surface to protect the radome coating.
2. Disconnect the Ethernet cable from the data interface box.
3. If the mounting handle has been attached, remove it. Use a 1/4” ball-end hex key wrench (not provided with the
kit).
4. Disconnect the 18-pin connector of the BUC control cable from the data interface box.
5. Disconnect the power out cable from the back side of the data interface box.
6. Remove the data interface box from the support plate. Discard the screws.
7. Disconnect the 31-pin connector of the antenna control cable from the back of the antenna. Discard the
data interface box and antenna control cable assembly per local regulations.
8. Holding the new data interface box and antenna control cable assembly, attach the 31-pin connector to
the back of the antenna.
a. Inspect the female and male pins of the 31-pin plug and jack connectors.
b. Align the inner and outer key.
c. Align the keyway of the connector with the key of the 31-pin receptacle. Gently press the connector into
place with firm even pressure. The connector should sink into place when the pins and keyways are aligned.
Do not force the connector down or apply pressure at an angle or with the keyway not aligned.
d. Once the connector has seated, push down and twist the outer lock ring clockwise to secure the connector
in place, until the lock ring is engaged. Do not over twist the lock ring; it is not a screw down fastener. When
connected correctly, the 31-pin connecter will not disconnect if you pull gently on the plug.

© 2020 Kymeta Corporation. All rights reserved. 18 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9. Placing a drop of Loctite on the thread of each screw, attach the new data interface box to the support plate.
Tools: Torque screwdriver with 0.2 N-m (2 in.-lb.) minimum rating, metric hex bit with 2.5 mm ball head and 3 in.
(minimum) extension
Hardware: (3) BHCS, M4 × 10
Loctite: One small drop per screw
Torque: 1.47 N-m (13 in.-lb.)
10. Connect the 18-pin connector of the BUC control cable to the data interface box.
a. Inspect the female and male pins of the 18-pin connector.
b. Align the inner and outer key of the connectors, place the cabled connector squarely against the connector
on the back of the data interface box, and then press in until the connector engages.
c. Screw the outer ring clockwise until the threads are engaged and the outer ring no longer turns easily to
secure the connector in place.
11. Connect the power out cable to the back side of the data interface box.
12. Attach the mounting handle, if it’s been removed. Use a 1/4” ball-end hex key wrench (not provided with the kit).
13. Secure cables on the back of the modules using cables clamps and cable ties.
14. Connect the Ethernet cable to the data interface box.
15. Power on the terminal and do a self-check after the replacement. Refer to 700-00065-000 Kymeta™ u7
terminal installation guide TRM U7H U7X configurations for details.

© 2020 Kymeta Corporation. All rights reserved. 19 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
9.5 Replace the power interface box and power supply assembly
What’s in the kit
The power interface box accessory kit consists of the following components:
(1) Power interface box and power supply assembly
(1) RX OUT cable, to connect the power interface box to the antenna RX OUT port (12 in. LMR-195 male-to-male
coaxial cable)
(7) Button head cap screw (BHCS), M4 x 10 for mounting items to support plate
(1) Loctite 242
(1) 2.5 mm ball end Allen wrench
Self-fusing silicon rubber electrical tape
(6) cable clamps
Before you begin
Before replacing any components, familiarize yourself with 700-00065-000 Kymeta™ u7 terminal installation guide
TRM U7H U7X configurations, section Safety and handling instructions.
⚠Prior to replacing any parts, power down the u7 terminal and disconnect all power sources to avoid possible
injury from electric shock.
Assembly instructions
1. Dismount the ODU and lay it face down on a clean, flat cushioned surface to protect the radome coating.
2. If the mounting handle has been attached, remove it. Use a 1/4” ball-end hex key wrench (not provided with the
kit).
3. Disconnect the power cable and the RX cable from the power interface box.
4. Disconnect the RX OUT cable from the antenna RX OUT port.
5. Disconnect the RX OUT cable from the power interface box. Discard the cable per local regulations.
6. Disconnect the power out cable connector from the back side of the data interface box.
7. Carefully open the installed cable clamps (or any other cable ties), to free up the power in cable and power out
cable.
8. Using the provided 2.5 mm Allen wrench, remove 7 button cap screws to release the power interface box and
power supply assembly from the ODU support plate. Discard the screws and assembly per local regulations.
9. From the new power supply, connect the power out cable to the back side of the data interface box.

© 2020 Kymeta Corporation. All rights reserved. 20 10 April 2020
700-00064 revA Kymeta™ u7 terminal user manual — TRM-U7H and TRM-U7X configurations
10. Placing a drop of Loctite on the thread of each screw, attach the new power interface box and power supply
assembly to the ODU support plate.
Tools: Torque screwdriver with 0.2 N-m (2 in.-lb.) minimum rating, metric hex bit with 2.5 mm ball head and 3 in.
(minimum) extension
Hardware: (7) BHCS, M4 × 10
Loctite: One small drop per screw
Torque: 1.47 N-m (13 in.-lb.)
11. Connect the new RX OUT cable 90-degree angle side to the antenna RX OUT port, and the straight side to the
power interface box, and torque to 8 in.-lb. or hand-tighten at both ends. DO NOT OVER-TORQUE RF
CONNECTORS. Apply self-sealing silicon rubber tape to the RF connectors to inhibit water ingress.
12. Attach the cable clamps to hold the cables in place. If clamps fail or cannot be reclosed, replace them with the
provided clamps.
13. Attach the mounting handle, if it’s been removed. Use a 1/4” ball-end hex key wrench (not provided with the kit).
14. Connect the power cable and the RX cable to the power interface box. Apply self-sealing silicon rubber tape
to the RF connector to inhibit water ingress.
15. 16. Power on the terminal and do a self-check after the replacement. Refer to 700-00065-000 Kymeta™ u7
terminal installation guide TRM U7H U7X configurations for details.
