La Crosse Technology WT-971L User manual

1
WWVB-RADIO CONTROLLED WATCH
The NIST (National Institute of Standards and Technology-Time and
Frequency Division) WWVB radio station is located in Ft. Collins,
Colorado, and transmits the exact time signal continuously at 60 kHz.
The signal can be received up to 2,000 miles away through the
internal antenna in the La Crosse Technology watch. However, due

2
to the nature of the Earth's Ionosphere, reception is very limited
during daylight hours.
The Watch will search for a signal every night when reception is best.
The WWVB radio station derives its signal from the NIST Atomic
clock in Ft. Collins, Colorado. A team of atomic physicists is
continually measuring every second, of every day, to an accuracy of
ten billionths of a second per day. These physicists have created an
international standard, measuring a second as 9,192,631,770
vibrations of a Cesium-133 atom in a vacuum. This watch is
regulated by the WWVB transmitter.
For more information on WWVB and the NIST Atomic clock please
visit their website at
http://www.boulder.nist.gov/timefreq/stations/wwvb.htm

3

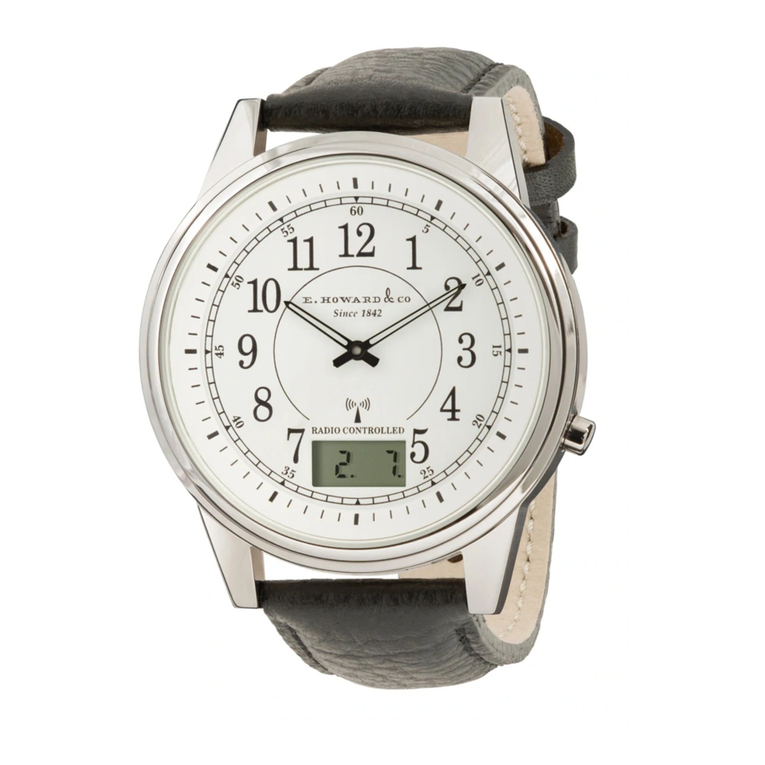

SET-UP GUIDE, FEATURES AND OPERATION
DISPLAY OF HOURS/MINUTES
Recessed
button Push-piece
button
Digital LCD
A
nalogue displa
y

4
Normally upon purchase, the watch will already display the correct
time and date, and it will not be necessary to use the manual
settings.
Hours and Minutes are shown using the analog display.
Date and Seconds are shown in the digital LCD.
DIGITAL DISPLAY OF DATE, SECONDS, AND WWVB
RECEPTION CONTROL

5
Press and release the PUSH-PIECE to toggle between the displays:
•Month and Day
The Date appears as Month and day (ex: 12.30)
•Or Seconds and WWVB Signal Reception Icon

6
Manual Setting
TIME & DATE
If the wristwatch is not able to receive the WWVB signal, you may set
the time manually.
IMPORTANT:
If the WWVB signal is received correctly, the symbol (tower) is
shown, and setting the time and date manually is not possible.
1. To change the setting mode for time and date, press the PUSH-
PIECE and the RECESSED BUTTON simultaneously for about
4 seconds. The seconds will flash in the LCD display.

7
2. Press and release the PUSH-PIECE. The seconds will be set to
zero (00).
3. Press and release the PUSH-PIECE to set the minutes. Hold
the PUSH-PIECE continuously to fast forward the minutes.
4. By pressing and releasing the RECESSED BUTTON you can
change the setting menu in the following order:
a. Seconds
b. Minutes
c. Hours

8
d. Year
e. Month
f. Day
g. The display of the date without the possibility to adjust it
5. As soon as the WWVB signal can be received again, the watch
will automatically adjust to the correct time.
BEGIN WWVB SIGNAL SEARCH MANUALLY
*If the WWVB reception is disturbed, you can start the WWVB signal
search manually.
1. Press and hold the PUSH-PIECE for about 4 seconds. The
hands will advance to the 12:00 position. “SET” and “12” will
then flash alternately in the LCD. If the hands do not move
exactly to the 12:00 position, you will have to manually adjust the
hands. (See “Adjusting the Hands”)

9
2. Place the watch on a steady surface for better reception. Prior
to WWVB reception (and 15 seconds after holding the PUSH-
PIECE) the hands will automatically return to the manually set
time. The watch is now set to the WWVB signal reception mode.
If the reception is disturbed (ex: close proximity to metallic
objects or electric appliances), the watch will automatically try
several times to receive the WWVB signal.
ADJUSTING THE HANDS
If the time is displayed incorrectly despite successful WWVB signal
reception, the hands may have been moved by mechanical
influences and will need to be adjusted manually.
1. Press and hold the PUSH-PIECE for about 4 seconds. The
hands will move towards the 12:00 position.

10
a. If the hands do not stop at the 12:00 position, press and
release the RECESSED BUTTON one time. Press and
release the RECESSED BUTTON several times to advance
the big hand in small steps until the hands are set exactly to
the 12:00 position.
b. To exit this setting, press and release the PUSH-PIECE.
2. Press and release the PUSH-PIECE. The watch automatically
adjusts to the manually set time and attempts to receive the
WWVB signal. After successful WWVB signal reception, the
time will be set automatically.
SETTING TIME ZONE
You may select your time zone manually.

11
1. Press and hold the RECESSED BUTTON for about 4 seconds.
The current hour is shown at the left of the display. The right
side displays the current time zone selection.
2. Press and release the PUSH-PIECE until you see your desired
time zone.
Time
Difference City
HA Honolulu
P Los Angeles

12
M Denver
C Chicago, Mexico City
E New York, Toronto
-3 Rio de Janeiro, Buenos Aires
0 London
+1 Paris, Rome, Berlin, Hamburg
+2 Cairo, Helsinki, Johannesburg
+3 Moscow
+4 Dubai
+5 Karachi
+7 Bangkok
+8 Hong Kong
+9 Tokyo
+10 Sydney

13
3. Once you have selected your correct time zone, to exit this
setting press and release the RECESSED BUTTON or wait
about 15 seconds without pressing any buttons and the watch
will automatically return to its normal display setting.
Warranty
La Crosse Technology, Ltd provides a 1-year limited warranty on this
product against manufacturing defects in materials and
workmanship.
This limited warranty begins on the original date of purchase, is valid
only on products purchased and used in North America and only to
the original purchaser of this product. To receive warranty service,
the purchaser must contact La Crosse Technology, Ltd for problem

14
determination and service procedures. Warranty service can only be
performed by a La Crosse Technology, Ltd authorized service center.
The original dated bill of sale must be presented upon request as
proof of purchase to La Crosse Technology, Ltd or La Crosse
Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our
option and at no charge as stipulated herein, with new or
reconditioned parts or products if found to be defective during the
limited warranty period specified above. All replaced parts and
products become the property of La Crosse Technology, Ltd and
must be returned to La Crosse Technology, Ltd. Replacement parts
and products assume the remaining original warranty, or ninety (90)
days, whichever is longer. La Crosse Technology, Ltd will pay all
expenses for labor and materials for all repairs covered by this

15
warranty. If necessary repairs are not covered by this warranty, or if
a product is examined which is not in need or repair, you will be
charged for the repairs or examination. The owner must pay any
shipping charges incurred in getting your La Crosse Technology, Ltd
product to a La Crosse Technology, Ltd authorized service center. La
Crosse Technology, Ltd will pay ground return shipping charges to
the owner of the product to a USA address only.
Your La Crosse Technology, Ltd warranty covers all defects in
material and workmanship with the following specified exceptions: (1)
damage caused by accident, unreasonable use or neglect (including
the lack of reasonable and necessary maintenance); (2) damage
occurring during shipment (claims must be presented to the carrier);
(3) damage to, or deterioration of, any accessory or decorative
surface; (4) damage resulting from failure to follow instructions

16
contained in your owner’s manual; (5) damage resulting from the
performance of repairs or alterations by someone other than an
authorized La Crosse Technology, Ltd authorized service center; (6)
units used for other than home use (7) applications and uses that this
product was not intended or (8) the products inability to receive a
signal due to any source of interference. This warranty covers only
actual defects within the product itself, and does not cover the cost of
installation or removal from a fixed installation, normal set-up or
adjustments, claims based on misrepresentation by the seller or
performance variations resulting from installation-related
circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY
FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER
SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR

17
MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO
BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC
INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF
CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have
other rights specific to your State. Some States do no allow the
exclusion of consequential or incidental damages therefore the
above exclusion of limitation may not apply to you.
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2809 Losey Blvd. S.
La Crosse, WI 54601

18
Phone: [phone]
Fax: [phone]
e-mail: [e-mail]
(warranty work)
[e-mail]
(information on other products)
web: www.lacrossetechnology.com

19
All rights reserved. This handbook must not be reproduced in any
form, even in excerpts, or duplicated or processed using electronic,
mechanical or chemical procedures without written permission of the
publisher.
This handbook may contain mistakes and printing errors. The
information in this handbook is regularly checked and corrections
made in the next issue. We accept no liability for technical mistakes
or printing errors, or their consequences.
All trademarks and patents are acknowledged.
