laerdal SimPad User manual

SimPad
with SkillReporter
User Guide
www.laerdal.com
EN
FR
DE
ES
BR
NL
PL
JA
ZH
IT
KO

Contents
3
Intended Use 4
Important Information 4
Items Included 5
SimPad Overview 6
SimPad PLUS Overview 7
Charge Battery 8
Setup 9
Manikin Setup 11
Manikin Settings 16
Home Screen Overview 17
BLS Learner Mode 18
BLS Instructor Mode 19
QCPR Feedback 25
BLS Settings 30
Troubleshooting 31

Intended Use
4
Items Included
5
SimPad PLUS
Link Box PLUS
Important Product Information
EN
www.laerdal.com
SimPad
with SkillReporter
User Guide
www.laerdal.com
EN
FR
DE
ES
BR
NL
PL
JA
ZH
IT
KO
This version of SimPad is installed with SkillReporter software for Basic Life Support
(BLS) training. For feedback on CPR performance, use QCPR enabled manikins, such as
Resusci Anne or Resusci Baby with QCPR.
For more information visit www.laerdal.com/SimPad-SkillReporter
Important Information
Read this User Guide and become familiar with the operation of the product prior to use.
This User Guide describes operating instructions for the following models:
• SimPad
• SimPad PLUS
SimPad when used throughout this User Guide, applies also to SimPad PLUS model,
unless otherwise specified.
Items included may vary in appearance and are subject to change.
SimPad/SimPad PLUS
USB cable
Power Cord
User Guide
Sleeve
Wrist Strap
AC Adapter Power
Supply
Important Product
Information (IPI)

SimPad PLUS Overview
7
SimPad Overview
6
Auxiliary button
On/Off
Status LED
Audio out
USB
Ethernet
DC
Auxiliary button
On/Off
Status LED
Audio out
USB
Ethernet
DC

Charge Battery Setup
8 9
Flashing yellow light -
battery charging
Steady yellow light -
battery charged
Turn On/Off
Note
Ensure that the SimPad SkillReporter software and Resusci Anne QCPR manikin software is the
most up to date version. Latest versions of all software and product downloads are available
from the Download section of the product page www.laerdal.com/SimPad-SkillReporter.
When charged,
turn on by pressing
On/Off button
LED starts flashing green
A steady green light
indicates the device
is ready to use
Connect SimPad to
the AC adapter and plug
it into a wall outlet

Connect To One Manikin Using USB Cable
The USB cable provides the most reliable connection when connecting SimPad to one
manikin.When using the USB cable, the manikin is powered by SimPad. Use the power
adaptor to avoid quick battery discharge when the manikin is powered by SimPad.
Connect To One Manikin Using WiFi
For wireless use, make sure the manikin is in WiFi mode, indicated by the green WiFi
symbol on the manikin’s control panel. Use the toggle button to select between cable,
WiFi or Bluetooth mode.
Toggle button
Setup Manikin Setup
10 11
Status LED
Off and charging battery -
flashing yellow light.
Starting and shutting down -
flashing green light.
Low battery - flashing red light.
Off but battery charged -
steady yellow light.
On - steady green light.
Error, needs service - steady red light.
Contact your local Laerdal representative.

Manikin Setup Manikin Setup
12 13
Connecting Multiple Manikins
In BLS Instructor Mode multiple manikins can be connected.When operating multiple
manikins (2-6) it is recommended to use a router (Multi Manikin Router).
Note
In BLS Learner mode only one manikin can be selected.This happens automatically if the
manikin is connected through the USB cable, or if only one manikin is available.
Multi Manikin Router Setup
It is recommended to use the Laerdal Router (purchased separately) to establish network.
Start up the router completely (approx. 2 minutes) before starting up SimPad and manikins.
Note
Do not reset or change the router (i.e. password, configuration etc).
Router switch
(set to Router or
AP, not Client)
Reset button
(do not use)
Power connector
To power the router, use the
included USB power supply (5V)*
To reboot, disconnect the
power supply for at least
30 seconds, then reconnect.
Edit Manikin Name
When using manikin for the first time, it will have a default name (e.g Resusci Anne
QCPR).To keep track of multiple manikins, label each with a unique name.This name will
be used to identify the manikin in the BLS Instructor Mode.
3
1
2
Turn on the Manikin
(ensure it is in WiFi mode)
Select BLS Instructor Mode
Turn on SimPad
For optimal performance, place
the router above floor level.

14 15
Select Manikins
Select Network
If more than one manikin is selected, a prompt will appear to choose a network.The
network enables communication between several manikins and SimPad.
Selected
Connected
Occupied
(in use by
another SimPad)
Lost Connection
Tap manikin to
access the manikin
selection and
available networks
Number of manikins
connected
Tap to select
Network
6
4
5
Turn off the Manikin
(repeat procedure for every new manikin)
Manikin Setup Manikin Setup
Press Start
Session
Edit name to match
the physical name
given earlier
Select the manikin that
appears on the screen
(this should be the one
that is turned on)

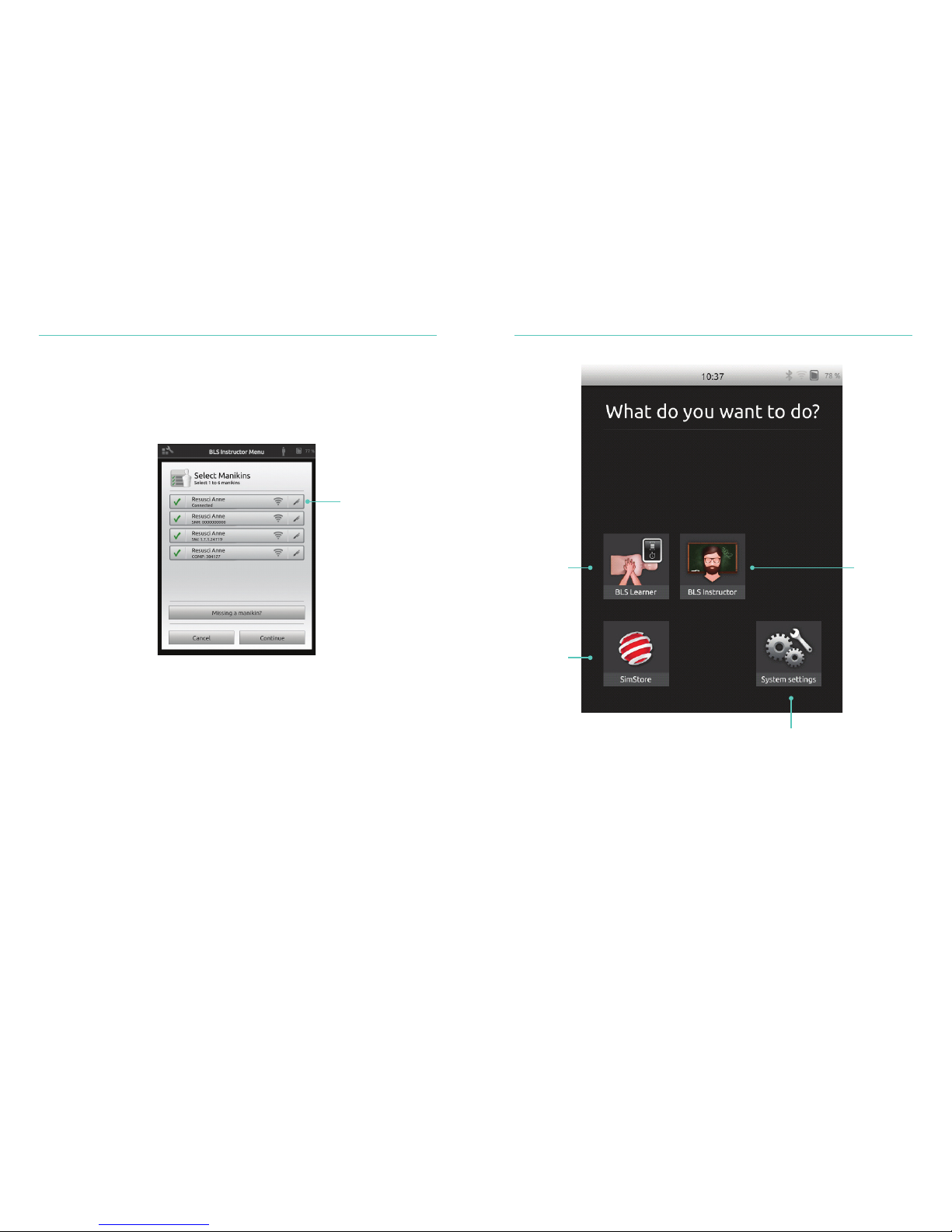

Manikin Settings
16
Manikin Information
For detailed information about the manikin, tap and hold (2 seconds) on one of the
connected manikins.Toggle between manikin status, manikin serial number, manikin
software version, and number of compressions performed on that manikin during its
lifetime.
Tap and hold
for 2 seconds to
toggle between
states
Home Screen Overview
17
SkillReporter has two modes, BLS Learner and BLS Instructor
BLS Learner gives feedback on CPR performed on a single manikin.
BLS Instructor enables the instructor to:
• Monitor CPR feedback on up to 6 manikins
• Register events with a single manikin
• Control and monitor AED (Automated External Defibrillator) training (single manikin)
• Monitor and debrief on CPR-D/ShockLink training (single manikin)
Adjust brightness, clock,
and other settings
BLS Learner BLS Instructor
SimStore

BLS Learner Mode
18
BLS Learner gives feedback on CPR performance for learners using a single manikin.
Choose between Practice and Assessment, and between CPR (single rescuer or two-
rescuer), Compressions Only and Ventilations Only.
Practice CPR with
corrective feedback
Test performance
(with or without
feedback) and save
the results
View results from
the previous session
View results from
the saved sessions
Tap to start
BLS Instructor Mode
19
BLS Instructor helps the instructor review learners’ performance on one or several
manikins, register events, and control defibrillation features (depending on manikin model).
Sessions can be saved and features for managing learners are available.
Note
BLS Instructor can only monitor and provide feedback for AED and training with ShockLink on
one manikin at a time.
Monitor CPR classes
with up to 6 manikins.
View details of one or
all of the manikins
View results from
the previous session
Tap to start
View results from
the saved sessions

20
BLS Instructor Mode
Choose Algorithm
Practice CPR, Compressions only or Ventilations only. For CPR sessions, select either single
rescuer or two-rescuer. Participants in two-rescuer sessions are allowed less no flow time
than single rescuers.
Assign one or more learner names to each manikin.Tap Learners and assign names either
before, during, or after a session.These will be stored for later reference.View and edit
the Learners list in BLS Settings.
Tap to assign Learner names
to connected manikins
BLS Instructor Mode
Learner Administration
To manage a large group of learners, import a list of names to SimPad. Connect SimPad to
a computer, using the USB cable. SimPad appears as an external disk drive.
Create a document in “.txt” format named “class.txt” (e.g. in Notepad) that has one learner
name per line.Transfer the file into the folder named ‘’Learners’’ on the SimPad drive.
Learners
class.txt
Logs
Scenarios
Themes
21

BLS Instructor Mode
Event Registration
Register Events including Response Check and Call for Help during a session.These
events are displayed in the timeline and stored in the session.
Customised Events
Create customised events from BLS Settings >View Event Registrations.The Event
Registration feature can be disabled in BLS Settings.
Note
Event registration is only available with a 1:1 connection.
Green circle indicates
registered event.
Number indicates
frequency of Event
registered
Tap to
register event
23
BLS Instructor Mode
Defibrillator Features
Defibrillation training with live defibrillators (manual and automatic) can be monitored by
SimPad with SkillReporter.Training can be performed in 3 ways:
• ShockLink with Resusci Anne AED Manikin
• Resusci Anne QCPR D
• AED Trainer 2 and AED Trainer 3
Defibrillation with ShockLink or Resusci Anne QCPR D
ShockLink enables the connection of compatible live defibrillators to ShockLink prepared
training manikins and Patient Simulators. For more information about ShockLink visit
www.laerdal.com/ShockLink.
Select a new rhythm.
Flashing indicates
pending rhythm
Tap to Activate
(Rhythm is also activated
upon shock)
22

BLS Instructor Mode
AED Trainer 2 and AED Trainer 3
Enable this feature in BLS settings by selecting the AED Trainer type. After correct training
pad placement, SimPad can be used as a remote control for the AED trainer.
Select AED Trainer
AED Trainer features
QCPR Feedback
SkillReporter displays real time CPR feedback
Compression Depth
Compression Rate
Full Session, with
compressions and
ventilations over time
Compression Depth
Target
Compression
Release Target
Compression Rate
Indicator
Ventilation volume
Compression Depth
Indicator
Compression
Rate Target
Adequate
depth
Adequate
release
Too slowAdequate rate Too fast
2524

26 27
QCPR Feedback QCPR Feedback
Ventilation Volume
Ventilation Rate
Results
The initial result screen gives an overall score (if enabled in Settings) and advice on how
to improve CPR performance.
Tap or swipe screen
for more details
Indicates two main
findings from the
CPR performance
QCPR Summary
Tap or swipe screen for more details
For more details on the scoring, visit www.laerdal.com/qcpr.
Adequate Too little Too much
Too slowAdequate Too fast

28
Timeline
Performance data for the previous 30 seconds is displayed in the timeline.
When doing a Ventilations Only session, the ventilation rate curve is displayed instead of
the compression rate curve. Events and AED activity are viewed in the timeline.
Zoom in and scroll in
the timeline
Compression rate curve
Compression depth curve
Ventilation Volume
Flow Fraction is not included in the overall score for Scenario training with AED or when
events are registered (Response Check, Check Breathing, etc.).This is to allow for correct
medical procedures, without having the overall score reduced.The Flow Fraction is then
shown separately.
Events and AED
actions are displayed
in the timeline
Tap the events
or heart rhythms
for details
29
QCPR Feedback QCPR Feedback

BLS Settings
BLS Settings Menu
In the BLS Settings Menu, select predefined CPR Guidelines (European Resuscitation
Council (ERC) and American Heart Association (AHA)), or specify custom thresholds
and other settings.
Select predefined
CPR Guidelines
Create customised
thresholds
31
Problem Solution
Manikin is not connecting.
It might take up to 15 seconds to
identify the manikin. If it does not
appear on the list, try the following
solutions.
• Ensure the manikin is switched on and in WiFi
mode, indicated by the green WiFi symbol on
the control panel on the manikin.
• It may be connected to a network other than
SimPad.To make it available for selection,
press and hold the manikin’s toggle button.
After two seconds a beep confirms that the
manikin is reset.
Connection problems may occur in
areas with a high WiFi traffic.
• To avoid high traffic WiFi-channels, log on to
the LaerdalNetMobile router to change to a
low-traffic WiFi channel.
• A “How to change the router channel” guide
is available from the SimPad SkillReporter
product page.
www.laerdal.com/SimPad-SkillReporter
• The most reliable connection for single
manikin use is the USB cable. A cable
connected manikin appears in the manikin list
as preselected and connected.
Troubleshooting
30

20-06569 Rev E
© 2016 Laerdal Medical AS. All rights reserved.
Manufacturer: Laerdal Medical AS
P.O. Box 377
Tanke Svilandsgate 30, 4002 Stavanger, Norway
T: ([phone]
Printed in USA
www.laerdal.com
