Lagoon Seventy 7 Release Note

Technical handbook
28_06_2016_Couverture_Livret_Tech_77_7.indd 1 01/09/2016 14:33

Technical handbook
• Owner suite & bathroom - balcony option.......................................................... 40
• Midhsip starboard cabin.................................................................................................... 42
• Forward starboard cabin.................................................................................................... 43
• Aft starboard cabin................................................................................................................. 44
• VIP forward Port cabin......................................................................................................... 46
• Midship port cabin................................................................................................................. 48
• Aft port cabin & bathroom............................................................................................... 49
• Lighting & plug......................................................................................................................... 50
• HIFI & video.................................................................................................................................. 51
• Aircon ............................................................................................................................................... 54
• Electrical main system ........................................................................................................ 56
• AC distribution .......................................................................................................................... 58
• Yacht management monitoring system .............................................................. 60
• Electronics..................................................................................................................................... 62
• Fuel system and tanks ......................................................................................................... 64
• Fresh water system and tanks....................................................................................... 66
• Grey water system and tanks........................................................................................ 68
• Black water system and tanks...................................................................................... 70
• Bilge pump system................................................................................................................. 72
• Port engine room..................................................................................................................... 74
• Starboard engine room....................................................................................................... 75
• Notes................................................................................................................................................. 76
SUMMARY
• Technical sheet ..............................................................................................................................3
• Sails ........................................................................................................................................................4
• Spars & rigging...............................................................................................................................5
• Deck gear ...........................................................................................................................................6
• Engines ................................................................................................................................................8
• Flybridge ....................................................................................................................................... 10
• Main deck layout .................................................................................................................... 14
• Wood - standard....................................................................................................................... 18
• Wodd - options.......................................................................................................................... 19
• Ambiance Nomade................................................................................................................. 20
• Ambiance Pure........................................................................................................................... 21
• Ambiance Fusion...................................................................................................................... 22
• Salon.................................................................................................................................................. 24
• Aft galley and crew quarters 3 cabin version..................................................... 26
• Aft galley and crew quarters 4 cabin version..................................................... 27
• Forward galley and crew quarters 4 cabin version........................................ 28
• Forward galley and crew quarters 5 cabin version........................................ 29
• Forward galley version - aft area custom station proposals................... 30
• Aft galley & crew quarter.................................................................................................. 32
• Forward galley & crew quarter..................................................................................... 34
• Bow compartment ................................................................................................................. 36
• Owner suite & bathroom - (4 cabin version)...................................................... 38

Technical handbook
l3 l
n Architects VPLP Design
n Exterior design Patrick Le Quément
n Interior design Nauta Design
n Length waterline 23,28 m / 76’5”
n LWL 22,60 m / 74’2”
n Beam 11 m / 36’1”
n Draft 1,90 m / 6’3”
n Light displacement (EEC) 57 t / 125,685 Lbs
n Mast clearance 36,60 m / 120’1”
n Sail area 337,4 m² / 3,630 sq.ft.
n Fresh water capacity 1 600 l / 396 US gal.
n Fuel capacity 2 800 l / 740 US gal.
n Standard Engine VOLVO D4 - 180 HP
n EC certication A : 14 - B : 18 - C : 24 - D : 40
TECHNICAL SHEET

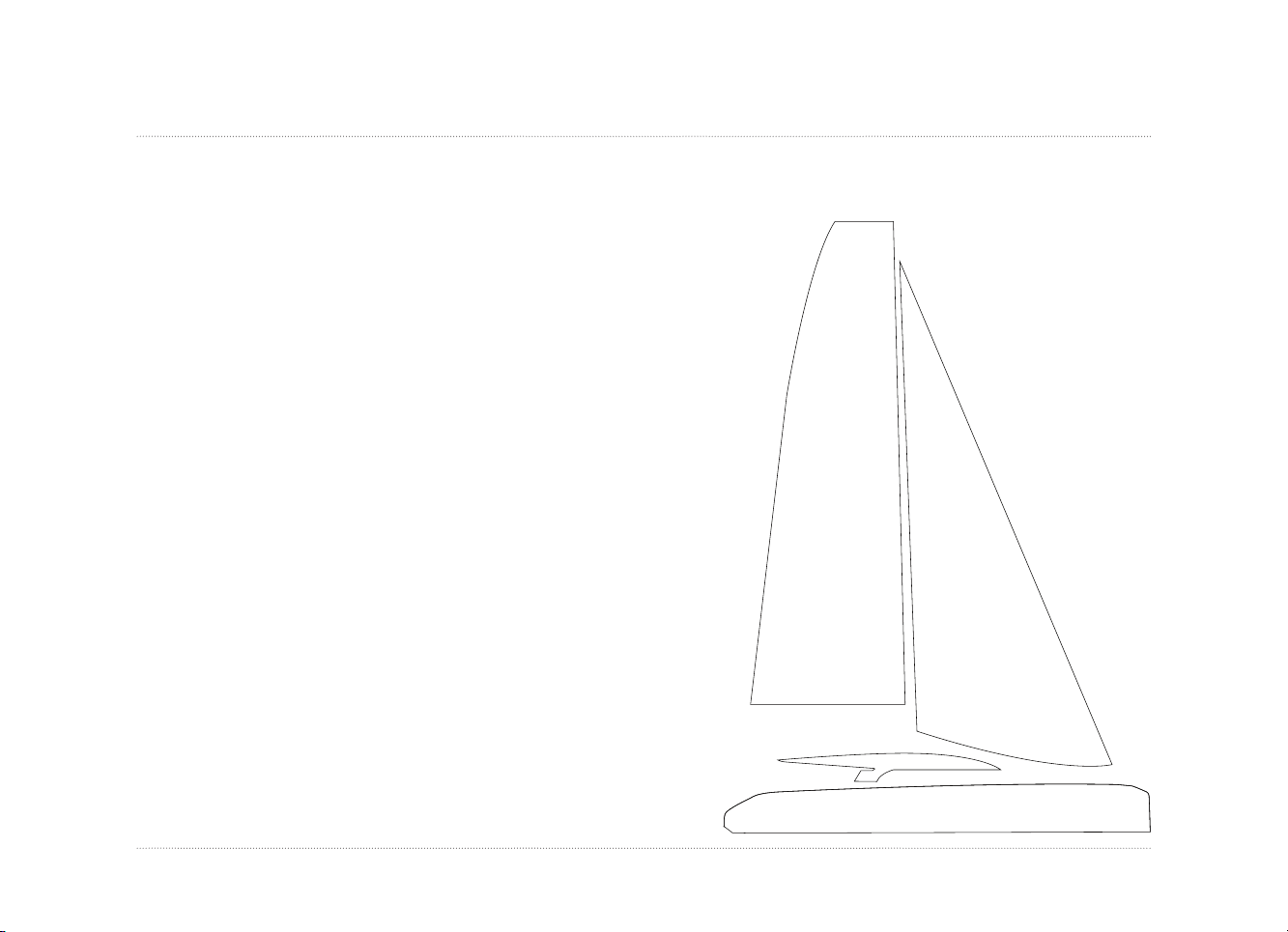

l4 lSAILS*
n Square Top Main Sail 205 m² / 2206 sq ft
Available in DFI or Hydranet
n Genoa 130,4 m² / 1403 sq ft
Available in DFI or Hydranet
n Furling Staysail 81 m² / 872 sq ft
Available in Dacron
n Code 0 208 m² / 2238 sq ft
Available in D4 Kevlar black
or Mylar Kevlar x Gold
n Asymmetrical spinnaker 458 m² / 4928 sq ft
Available in Nylon Maxilite
* All sails are in option.

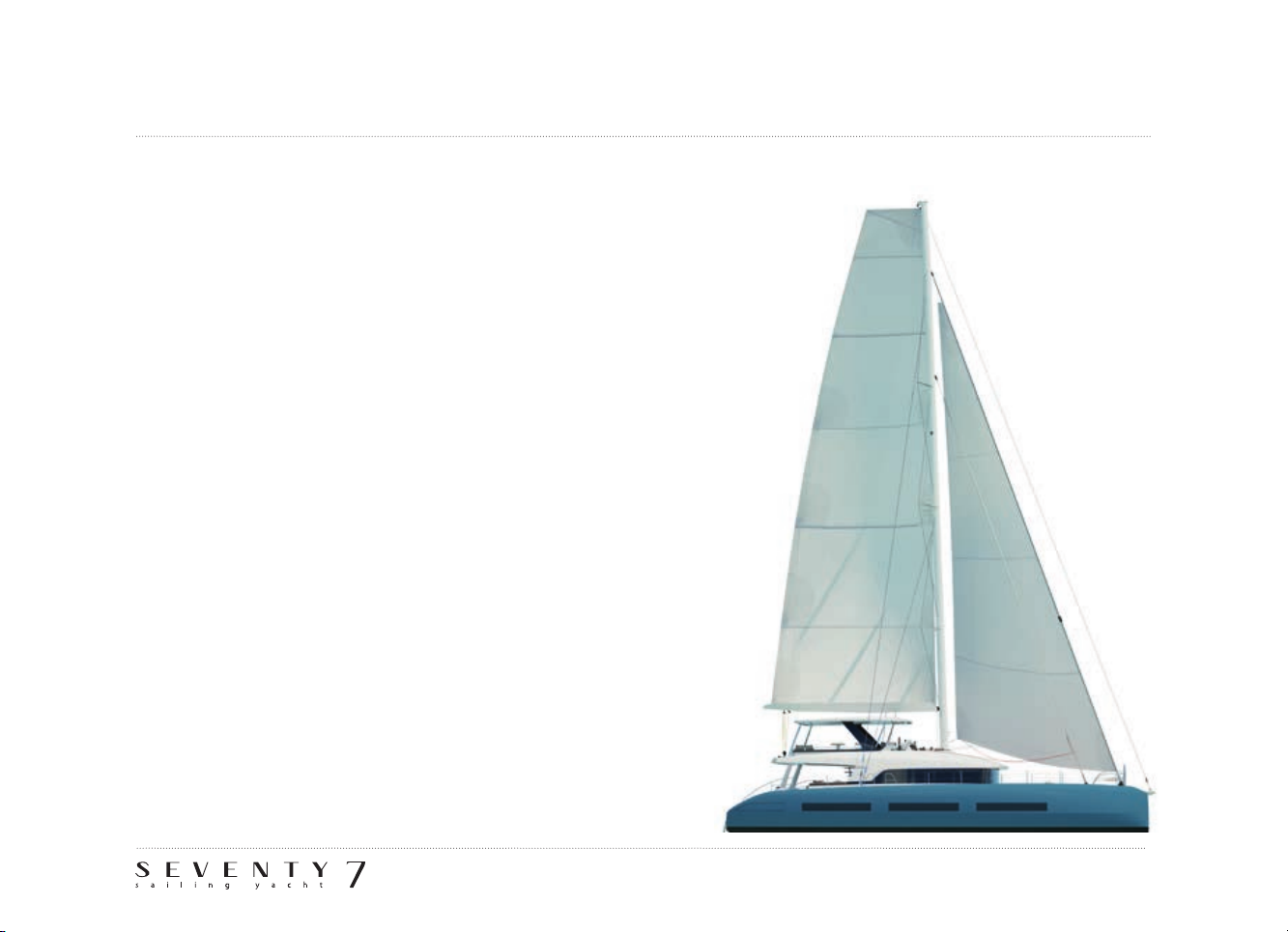

Technical handbook
l5 l
SPARS & RIGGING
n White painted aluminum Mast - 3 spreaders
(forward deck light* in standard)
n White painted aluminum boom (integrated spot-lights*)
n White painted aluminum transverse beam
n Standing rigging Kevlar
n Running rigging Dynema
n Genoa furler HARKEN Hydraulic
n Staysail furler (Option) HARKEN Hydraulic
OPTION
n White carbon canoe boom (integrated light* and cover)
n White carbon mast & canoe boom (integrated light * and cover)
n Spreaders light* (2 white spots on second spreader)
n Decoration mast lights * (2 white spots on each spreader - Tot: 6)
(*) All lights can be managed from the starboard helm station and chart table

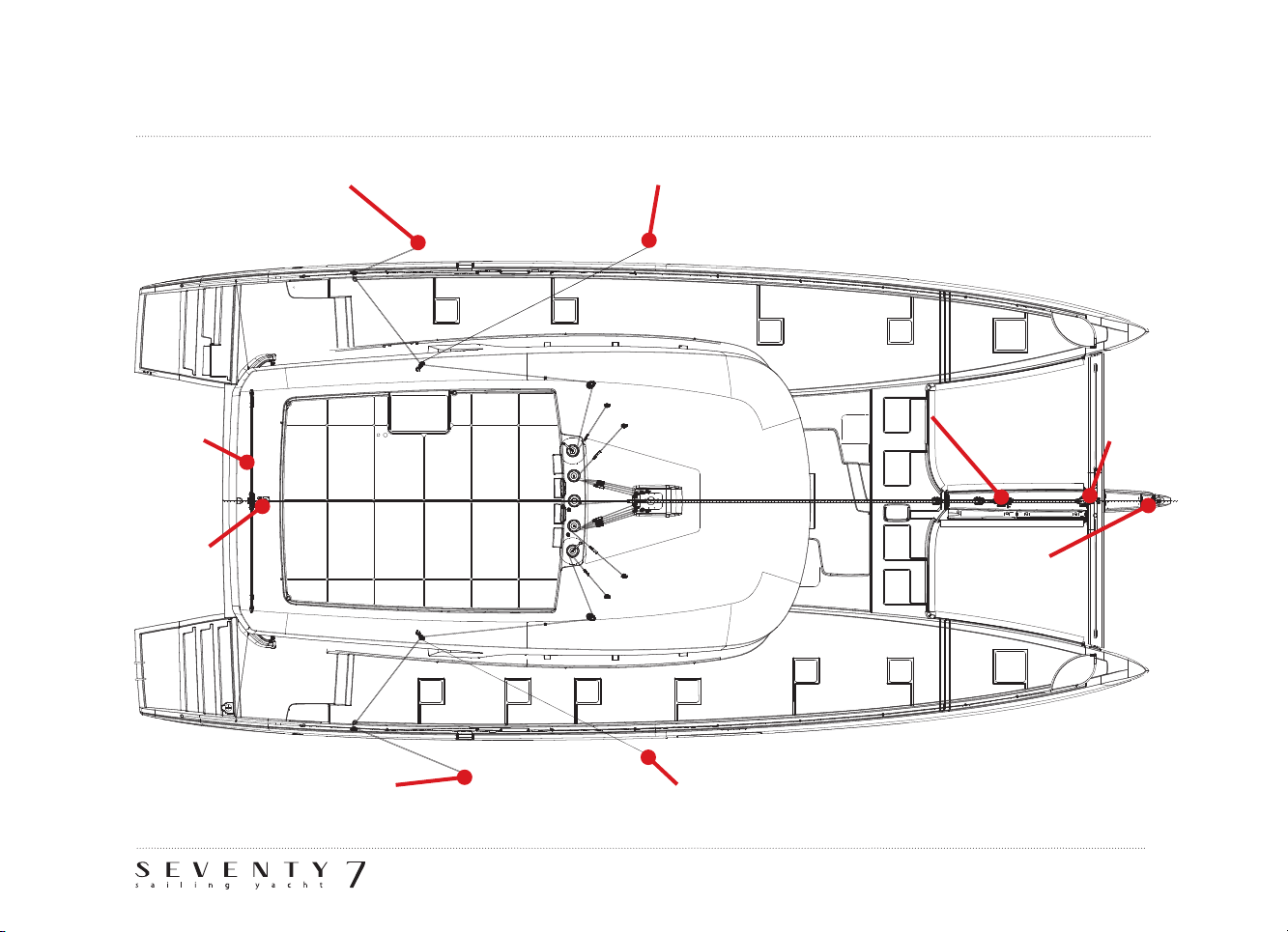

l6 lDECK GEAR
CODE ZERO
OPTION
ASYMMETRICAL SPINNAKER
OPTION
ELECTRICAL LINE
DRIVER
MAINSAIL
TRAVELLER
ASYMMETRICAL SPINNAKER
OPTION
CODE ZERO
OPTION
STAYSAIL FURLER
OPTION
GENOA
FURLER
CODE ZERO
FURLER
OPTION

Technical handbook
l7 l
DECK GEAR
1 • Winch
- Genoa
- Asymmetrical Spinnaker (Option)
- Code 0 (Option)
2 • Winch
- Reef 3
- Reeftack 3
- Topping lift
- Code 0 halyard (Option)
- Spinnaker halyard (Option)
3 • Winch
- Mainsail sheet
4 • Winch
- Mainsail halyard
- Reef 1
- Reef 2
- Reeftack 1
- Reeftack 2
5 • Winch
- Genoa sheet
- Asymmetrical Spinaker (Option)
- Code 0 (Option)
nWinches HARKEN 80.2 STA 24V
1 2 3 4 5
Electrical as an option Electrical in standard
nElectrical line driver ANTAL 1 000 W LD

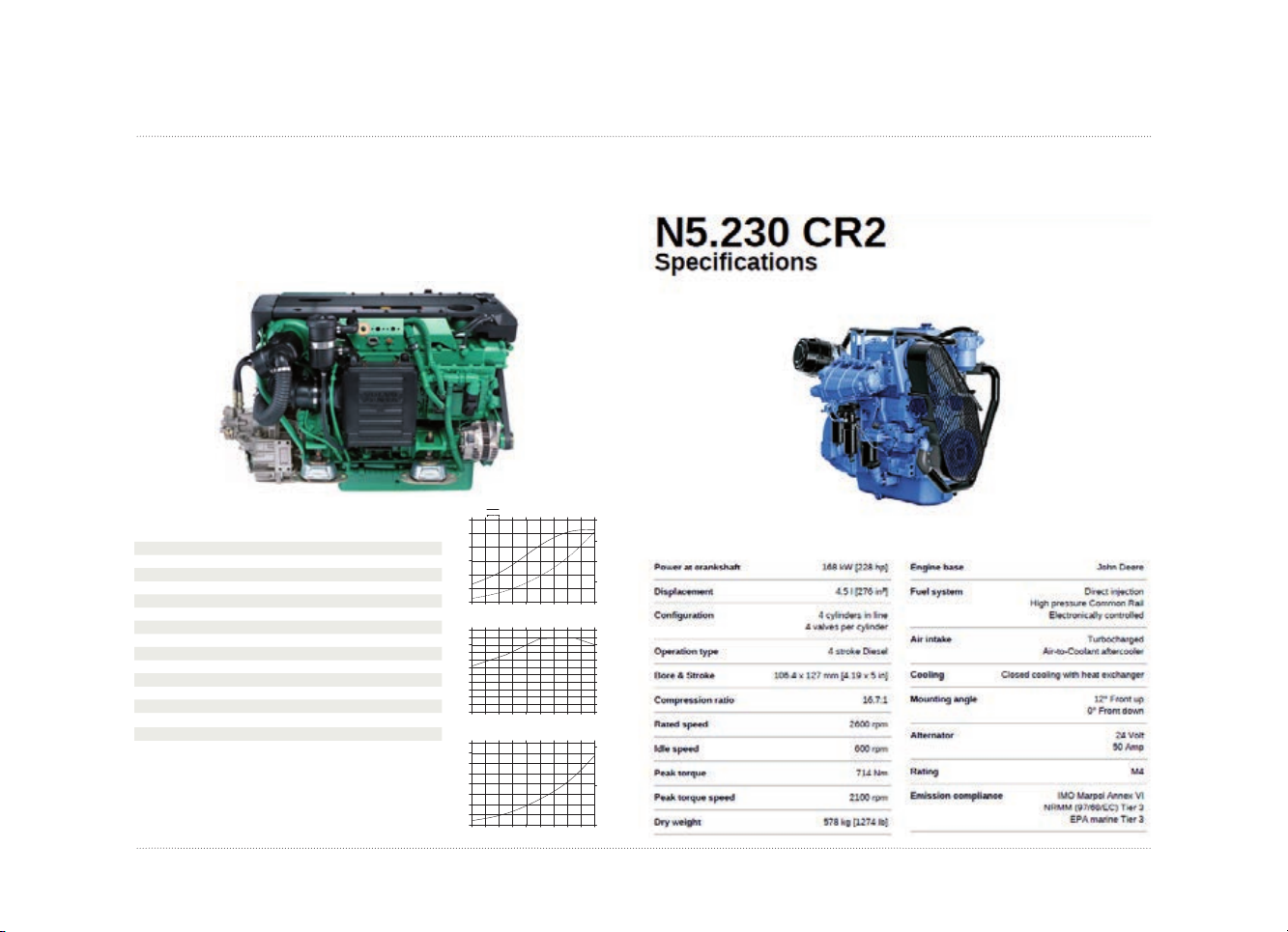

l8 lENGINES
n Standard Engines VOLVO D4 – 180 HP (2x80 Ah 24V)
n Maneuvering system EVC E VOLVO
Engine throttles and control panel on starboard steering station on y bridge
Engine throttles on port steering station on y bridge as an option
Engine throttles at chart table as an option
n Optional Engines JOHN DEER N5.230 HP (2x150 Ah 24V)
n Propellers MAUCOUR Hydraskew 4.73 25‘’- 4 blades
n Optional Propellers BRUNTONS Varifold 28‘’- 4 blades
Rope cutters on the propeller shafts as an option
n Bow thruster SIDE POWER SD285 48V 285 Kg
Optional equipment located on starboard side
Dedicated batteries and chargers (2x75Ah & VICTRON)

Technical handbook
l9 l
ENGINES
D4-180
0
5
10
15
20
25
30
35
40
Fuel consumption
At cal cul ated propeller l oad exp. 3
1000120014001600180020002200240026002800
0
5
10
15
20
25
30
35
40
0
5
10
h/lag SUh/sretiL
Rpm
0
25
50
75
100
125
150
Powe r
1000120014001600180020002200240026002800
0
25
50
75
100
125
150
0
50
100
150
200
cirtem ,phWk
Crankshaft power
Cal cula ted propeller l oad exp. 3
Rpm
0
50
100
150
200
250
300
350
400
450
500
550
Torque
To rque measured at crankshaft
1000120014001600180020002200240026002800
0
50
100
150
200
250
300
350
400
450
500
550
0
5
10
15
20
25
30
35
40
45
50
55
Nm kpm
Rpm
d4_inboard.pzm:180_ftp-bulletin - Mon Jan 17 16:09:17 2005
Technical Data
Engine designation D4-180 I
Crankshaft power, kW (hp) 132 (180)
Propeller shaft power, kW (hp) 128 (174)
Engine speed, rpm 2800
Displacement, l (in3) 3.7 (224)
Number of cylinders 4
Bore/stroke, mm (in.) 103/110 (4.05/4.33)
Compression ratio 17.5:1
Dry weight with HS45AE, kg (lb) 546 (1204)
Ratio HS45AE 2.04:1, 1.51:1
Ratio ZF63E 2.78:1
Ratio HS63AE 2.52:1, 2.04:1, 1.56:1
Ratio HS63IVE 2.48:1, 1.99:1, 1.56:1
Emission compliance IMO NOx, EU RCD, US EPA Tier 3
Rating R4* & R5**
Technical data according to ISO 8665. With fuel having an LHV of 42700 kJ/kg and density of
840 g/liter at 15°C (60 °F).
Merchant fuel may differ from this specification which will influence engine power output and
fuel consumption.
*RATING 4. For light planing craft in commercial operation
**RATING 5. For pleasure craft applications, and can be used for high speed planing crafts in
commercial applications
VOLVO PENTA INBOARD DIESEL

l10 lFLYBRIDGE
n Access from the cockpit through a staircase with teak steps
and white lacquered aluminum structure
n Manual hatch for ybridge access (1380 x 960mm)
n 2 equipped steering stations on the ybridge
• Main one on starboard
- Helm seats with locker underneath
- Cushions for settees & backrest
- Steering wheel Ø 1100mm
- Hydraulic wheel
- Console for electronics
- Compass
- Engine control panel on starboard
- Windlass control & chain counter on starboard
- Light control panel on starboard
• Port furniture
- Corian® top
- Storage behind doors
- Optional electrical Teppanyaki grill
• Central furniture
- Corian® top with integrated sink
- Stainless still Cup holder
- Fridge (50 L)
- Optional ice maker

Technical handbook
l11 l
FLYBRIDGE
n General options
- Teak oor
- Composite bimini with windows and curtain,
lights & enclosures with windows
(Headroom : 2,15m)
- Hydraulic crane (Capacity 550kg at 4,50m)
Not available with the composite bimini
3 OPTIONAL LAYOUTS
n Sunlounger pads
- Sunlounger pad aft area
- Bench with teak table and chairs
- Cushions & Protection covers
- Storage under seats and sun pad
n Jacuzzi
- Sunlounger pad aft area
- Jacuzzi
- Bench with teak table and chairs
- Cushions & Protection covers
- Storage under seats and sun pad

l12 lFLYBRIDGE
TRIBU aluminum furniture
• 1 table - Tribu ILLUM Table
White Frame Linen Top (2100 x 710 mm)
• 8 chair - Tribu CTR Chair
White Frame Linen Back
• 1 armchair - Tribu CU CTR Armchair
White Frame Linen Back
• 1 Low Table - Tribu BRANCH
White Frame & Linen Top (1530 x 790 mm)
• 1 Side Table - Tribu Drop side table
Linen
• Sofa - Tribu NATAL ALU Sofa
White frame (1880 x 3700 mm)
• Stool - Tribu NOMAD Pouf
610 mm Ø - H 485 mm
* Upholstery depending on client choice

Technical handbook
l13 l

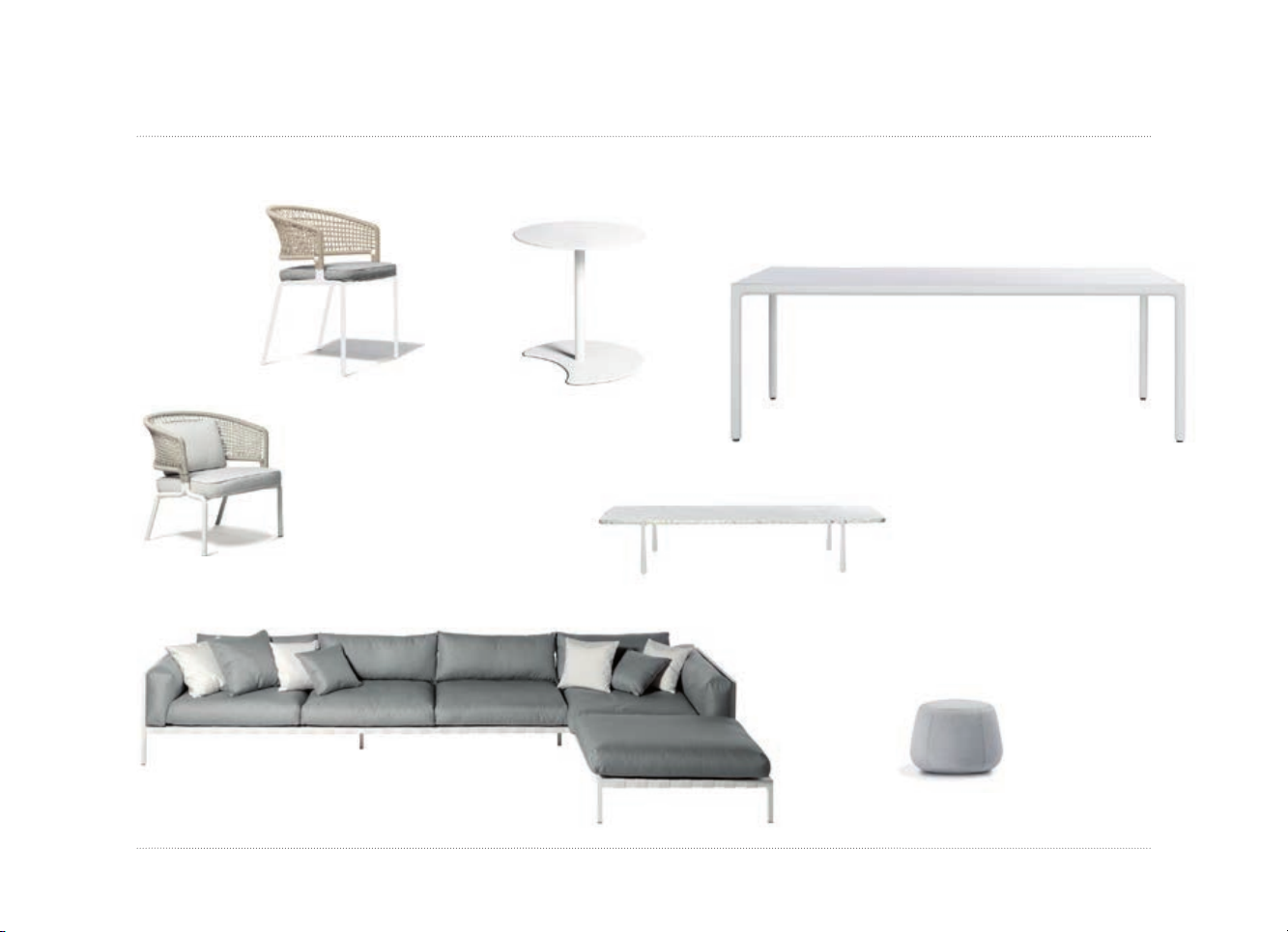

FLYBRIDGE
Tribu ILLUM Table
Tribu NOMAD PoufTribu NATAL ALU Sofa
Tribu CU CTR Armchair
Tribu CTR Chair
Tribu BRANCH Low table
Tribu Drop side table

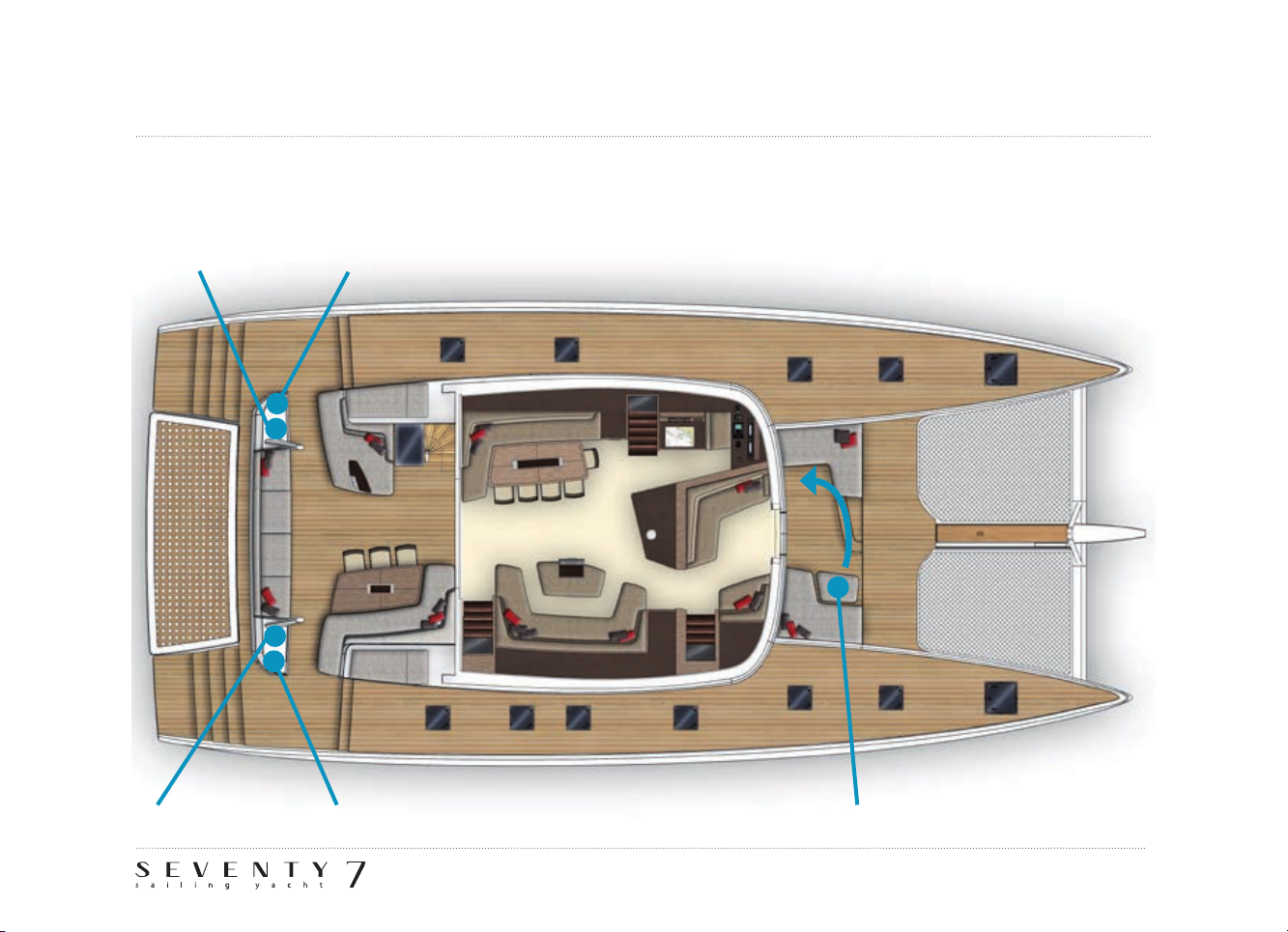

l14 lMAIN DECK LAYOUT
ICE MAKER
OPTION
GRP STOOL OPTIONFRIDGE 50 LSINK
BBQ PLANCHA
OPTION

Technical handbook
l15 l
n General characteristics
• Teak oor on transom, cockpit, foredeck and
deck passage way
• Deck passage way width from 1,25m to 2,3m
• Deck drain through gunwale
• Hatches
- Flush integrated Lewmar T60
- Flush integrated Lewmar T77 for forward bow
compartment
• Lighting
- Led spots on ceiling
- Strip led hidden in benches’kickers
- Strip led underneath in transoms and deck steps
- Led spots along the bulwark
- Options
- 2 spotlights in aft beam
- 8 blue led underwater lights
• Humans protections
- Stanchions: 880mm (230 mm GRP bulwark on
deck passage way)
- 2 lifeline rows
- Aft retractable lifelines on transom
- Forward wooden seats 1,2 x 0,5m
- Option
- Boarding ladder
n Transoms
• Folding and removable swimm ladder with
s/s handle + Hot/cold cockpit shower on starboard
transom
• Shore power on starboard transom
• Fresh water inlet
• Options
- 2nd swimm ladder with hot/cold cockpit shower
- Hydraulic aft platform with remote
(Approx. 5,7 x1,9 m - Lifting capacity: 1500 kg )
- Retractable hydraulic gangway on portside
transom (3,5 m unfolded /1,8m overowing)
- Transom removable shower column
(starboard side)
- Deck wash pumps – sea/fresh water
(aft cockpit & foredeck)

l16 lMAIN DECK LAYOUT
RETRACTABLE HYDRAULIC GANGWAY
HYDRAULIC AFT PLATFORM
33 m28 m2

Technical handbook
l17 l
MAIN DECK LAYOUT
n Aft Cockpit (33 m²)
• Starboard aft beam furniture
- Cup holders
- Storage behind doors
- Corian® counter top (DOVE – Light grey)
- Sink under GRP cover
- Exterior cockpit dustbin
- Cockpit fridge 65 L
• Port aft beam furniture
- Cup holders
- Storage behind doors
- Corian® counter top (DOVE – Light grey)
Options
- Electrical Teppanyaki grill, under GRP cover
- Ice Maker
• Teak table: 2,2 x 1,1 m
• 3 Exterior chairs (see page 13)
n Forward Cockpit (8 m²)
• GRP stool with cushion (included in
upholstery deck option)
n Forward deck
• Nylon polyester grey trampoline & gearing covers
n Cushions, covers & awnings (optional)
• Exterior cushions with protection covers
(aft & forward cockpit)
Including cushions on aft beam, starboard aft cockpit
bench, port aft cockpit bench, port&stb aft cockpit
sun pad, starboard fwd cockpit bench, port fwd
cockpit bench, grp stool with cushions
• Cockpit enclosures with windows & privacy curtains
• Forward cockpit sun awning with posts
• Kit of covers (steering wheel, nav stations, cockpit
tables...)

l18 lWOOD - STANDARD
Furniture Niche Floor Floor & Top (head)
n SALON & CABINS (grey oak UV varnish - Wengé oor - Corian)
Furniture Niche Floor Floor & Top
(head)
Top (galley)
n CREW QUARTER (nishing for all options)
