Laguna Tools PX-16 SHEARTEC II User manual

1

2
Dealer Machinery Warranty- Pg. 4.
Contant Information/Customer Service-Pg. 5.
Safety Protocols-Pg.6-10.
Electrical Safety-Pg. 11-16.
All New PX-16 Planer Signals- Pg. 17-18.
Specifications of the PX-16- Pg. 19.
Machine Overview- Pg. 20-23.
Set-Up Machine (MUST READ)- Pg.24.
Placement Of Machine & Unboxing- Pg. 25-27.
Inventory List- Pg. 28.
Assembling- Pg. 29-38.
(Optional) Installing Universal Casters- Pg. 30.)
Power Supply/Circuit Requirements-pg. 39.
Motor Specifications-Pg. 40.
Calibrating the Thickness Scale-Pg. 41-42.
Calibrating the DRO (Digital Read-Out)- Pg. 43.
Operation- Pg. 44-45.
Maintenance- Pg. 46.
Shear-Tec II Knife Rotation/Replacement- Pg. 47-48.
PX-16 Planer Front/Rear Precision Adjustment SOP- Pg. 49-61.
Lubrication- Pg. 62-66.
Troubleshooting- Pg. 67.
Wiring- Pg. 68-69.
Replacement Parts Diagrams- Pg. 70-72.
Parts List- Pg. 73-82.
Warranty- Pg. 83.
Table of Contents-

3
Thank you for investing in a PX-16 Planer by Laguna Tools. This planer is one of a family
of unique machines proudly offered by Laguna Tools. Every Laguna machine is
engineered for years of dependable service. Please feel free to contact Laguna Tools if
you have a question or suggestion. We appreciate working with you and your choice of
a Laguna Tools machine for your shop.
Regards,
Torben Helshoj
President & Founder Laguna Tools

4
Dealer Machinery Warranty
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of dealer invoice to
consumer. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by
this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts, and
materials. We will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect.
We require that the defective item/part be returned to Laguna Tools with the complaint. An RMA (return merchandise
authorization) must be requested, from Laguna Tools, and included with all parts or machines returned to Laguna Tools for
warranty consideration. Any machines returned to Laguna Tools must be returned with packaging in the same way it was
received. If a part or blade is being returned it must have adequate packaging to ensure no damage is received during
shipping. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the
customer will be responsible for the cost to replace the item/part, plus all related shipping charges. This limited warranty does
not apply to natural disasters, acts of terrorism, normal wear and tear, product failure due to lack of maintenance or cleaning,
damage caused by accident, neglect, lack of or inadequate dust collection, misuse/abuse or damage caused where repair or
alterations have been made or attempted by others.
This manual applies to the PX-16 Planer.
Enter the model number and serial number below for quick reference when ordering accessories,
supplies or parts.
NOTE: The model and serial number plate can be found on the side of the planer.
Model: ___________
Serial: ___________
Laguna Tools
744 Refuge Way, Suite 200
Grand Prairie, TX 75050 Toll Free #: 1-800-234-1976 www.lagunatools.com

5
Contact Information and Customer Service Phones-
For immediate service on any Laguna Tools products:
[phone]
[email protected]
Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc.
All rights reserved. 12/01/2021
LAGUNA AMERICAN HEADQUARTERS
Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A.
Phone: [phone]
Huntington Beach: 7291 Heil Ave. Huntington Beach, CA 92647,
U.S.A. Phone: [phone], South Carolina: 825 Bistline Dr. Suite 101, West Columbia, SC 29172,
U.S.A. Phone: [phone], Minnesota: 5250 West 74th St., Edina, MN 55439,
U.S.A Phone: [phone] or [phone]
lagunatools.com
supermaxtools.com
lagunacleanair.com
lagunalathe.com
LAGUNA EUROPE
Walker Rd., Bardon Hill,
Coalville LE67 1TU, United Kingdom.
Phone: [phone]
lagunatools.uk
DAKE CORPORATION
724 Robbins Road, Grand Haven, MI 49417,
United States [phone]
dakecorp.com

6

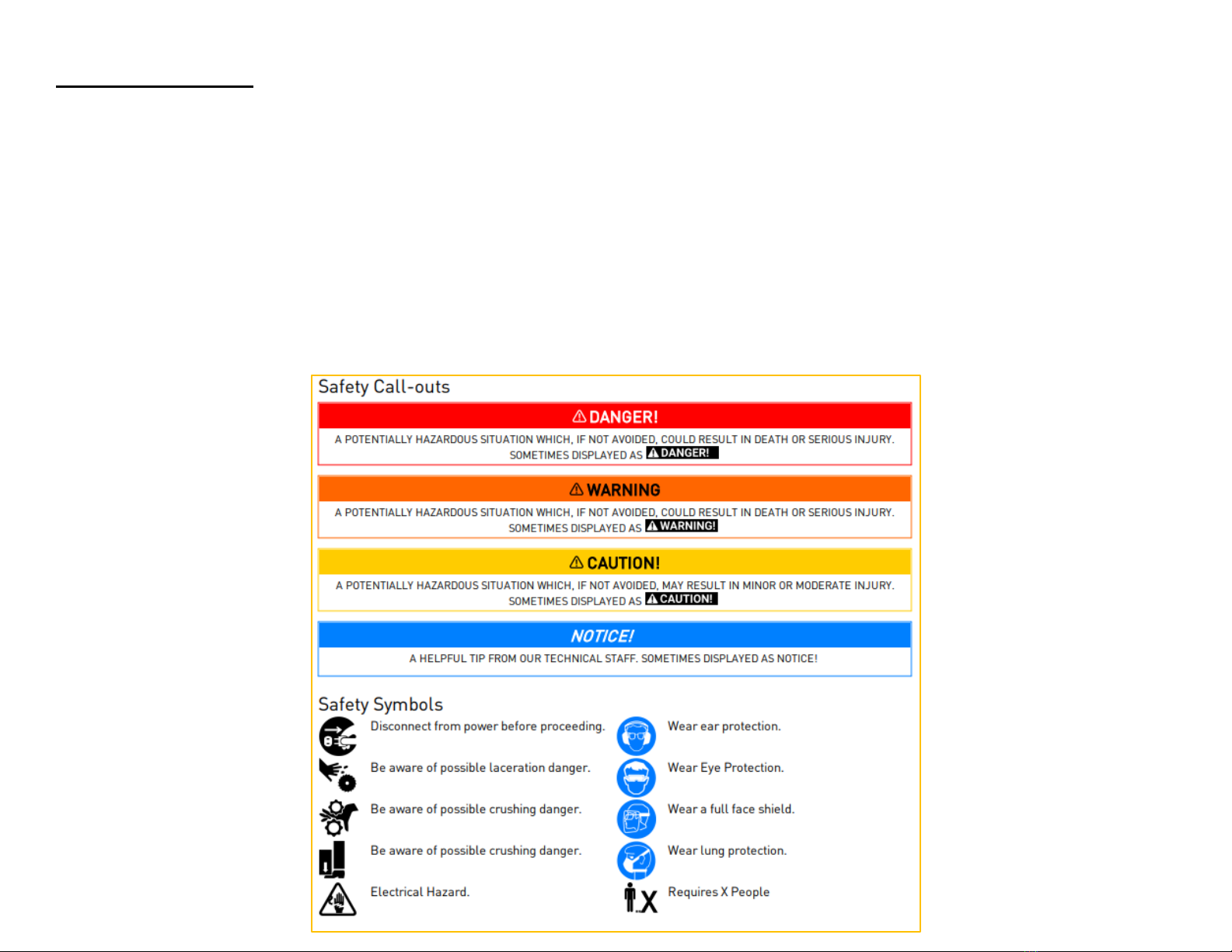

Safety Protocols-
Read and understand all warnings and operation instructions before using any tool or
equipment. Always follow basic safety precautions to reduce the risk of personal injury. Improper
operation, maintenance or modification of tools or equipment could result in serious injury and
property damage. There are certain applications for which tools and equipment are designed. This
product should NOT be modified and/or used for any application other than for which it was
designed. It is important for you to read and understand this manual. The information it contains
relates to protecting your safety and preventing problems.

7
Safety Protocols-

8
Safety Protocols (Cont’d.)-

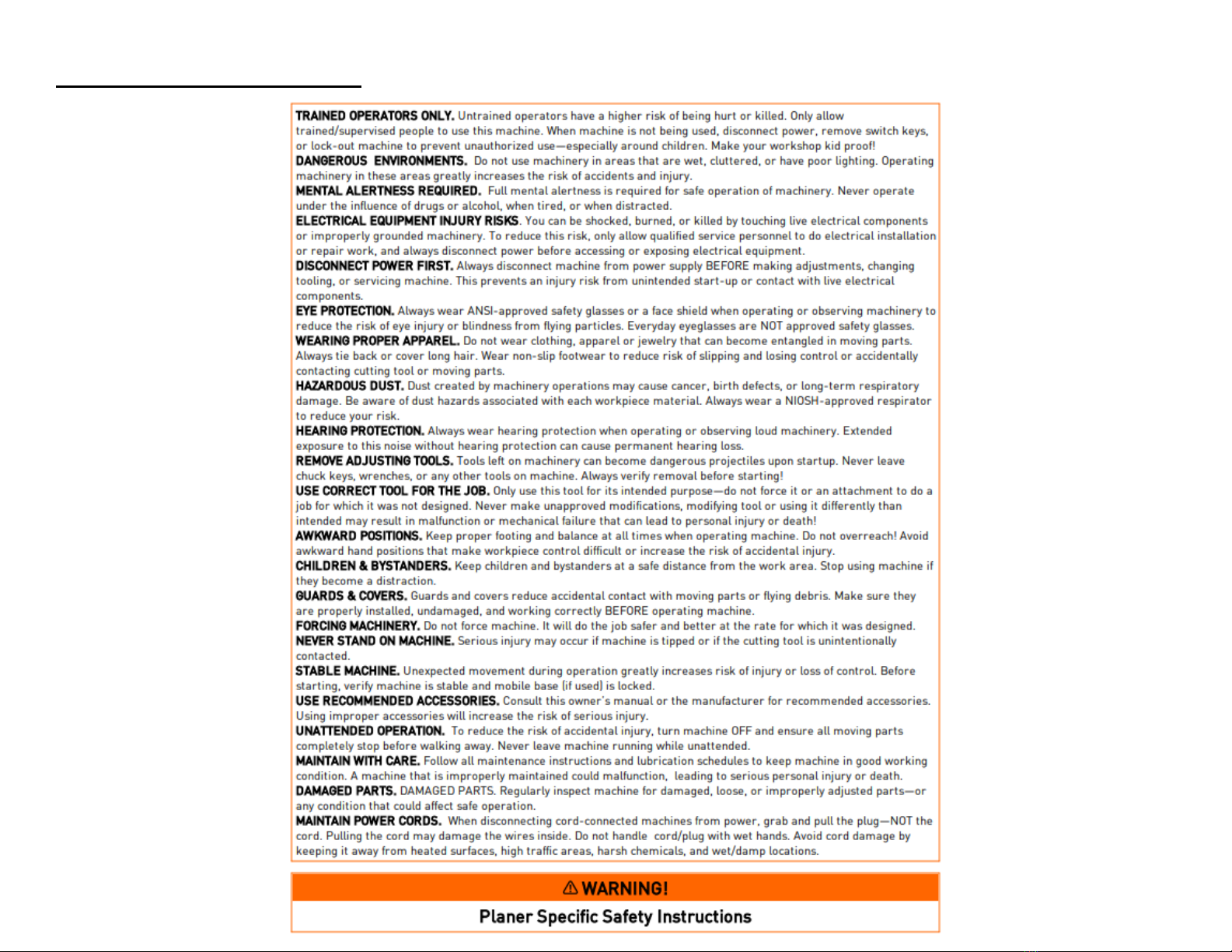

9
Safety Protocols (Cont’d.)-

10
Safety Protocols (Cont’d.)-
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
LIKE ALL MACHINES, THERE IS DANGER ASSOCIATED WITH THE MACHINE. INJURY IS FREQUENTLY CAUSED BY LACK OF
KNOWLEDGE OR FAMILIARITY. USE THIS MACHINE WITH RESPECT. IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED
OR IGNORED, SERIOUS PERSONAL INJURY MAY OCCUR.
1. KICKBACK
"KICKBACK" IS WHEN THE WORK PIECE IS THROWN OFF THE PLANER TABLE BY THE CUTTER HEAD. THE "KICKBACK ZONE",
IS THE PATH DIRECTLY BACK THROUGH THE IN-FEED TABLE. NEVER STAND OR ALLOW OTHERS TO STAND IN THIS AREA
DURING OPERATION. IF KICK BACK OCCURS, SEVERE INJURY MAY RESULT.
2. CUTTER HEAD ALIGNMENT
TO REDUCE THE POSSIBILITY OF KICKBACK, KEEP THE TOP EDGE OF THE OUT-FEED TABLE ALIGNED WITH THE CUTTER
HEAD INSERT AT TOP DEAD CENTER (TDC).
3. SUPPORTING THE WORK
ONLY MAKE CUTS IF THE WORK PIECE IS STABLE AND NEVER ATTEMPT TO CUT UNSTABLE PLANKS, OR INJURY MAY
OCCUR.
4. CUTTING DEPTH
NEVER EXCEED THE MAXIMUM CUTTING DEPTH of 1/16” or 1.60 mm, AS STATED IN THE
SPECIFICATION FOR YOUR MACHINE. IT IS FAR BETTER TO TAKE SEVERAL SMALL CUTS RATHER THAN LARGE CUTS.
5. DIRECTION OF CUT
PLANING AGAINST THE GRAIN OR PLANING END GRAIN IS DANGEROUS AND COULD PRODUCE CHATTER OR EXCESSIVE
CHIP OUT. ALWAYS PLANE WITH THE GRAIN.
6. GUARDS
GUARDS ARE DESIGNED TO REDUCE THE RISK OF INJURY. ALWAYS USE THE GUARDS. IF IT IS IMPERATIVE TO USE THE
MACHINE WITHOUT THE GUARDS, [RABBETING] ALWAYS REPLACE THE GUARDS.
7. CUTTING DIRECTION
ONLY CUT FROM THE IN-FEED TABLE TO THE OUT-FEED TABLE, AND ALWAYS COMPLETE THE CUT. DO NOT STOP THE
WOOD PROGRESS UNTIL THE JOB HAS CLEARED THE CUTTER HEAD COMPLETELY. ONLY CUT WITH THE GRAIN OR AT A
SLIGHT ANGLE TO THE GRAIN.
8. STOCK
YOUR SAFETY WILL BE GREATLY ENHANCED IF YOU ONLY USE GOOD LUMBER. ONLY WORK WITH LUMBER AFTER YOU
HAVE INSPECTED IT COMPLETELY. STAPLES, NAILS LOOSE KNOTS AND ANY OTHER METAL IN THE PLANK WILL DAMAGE
YOUR CUTTER HEAD AND COULD CAUSE INJURY AND OR FIRE. IF YOU HAVE ANY QUESTION ABOUT A PIECE OF LUMBER,
DO NOT USE IT.

11
Electrical Safety- A Electrical Cord and Plug is not provided with Ordered Machine. Make
sure to follow Electrical Installation stated in the instructions below.

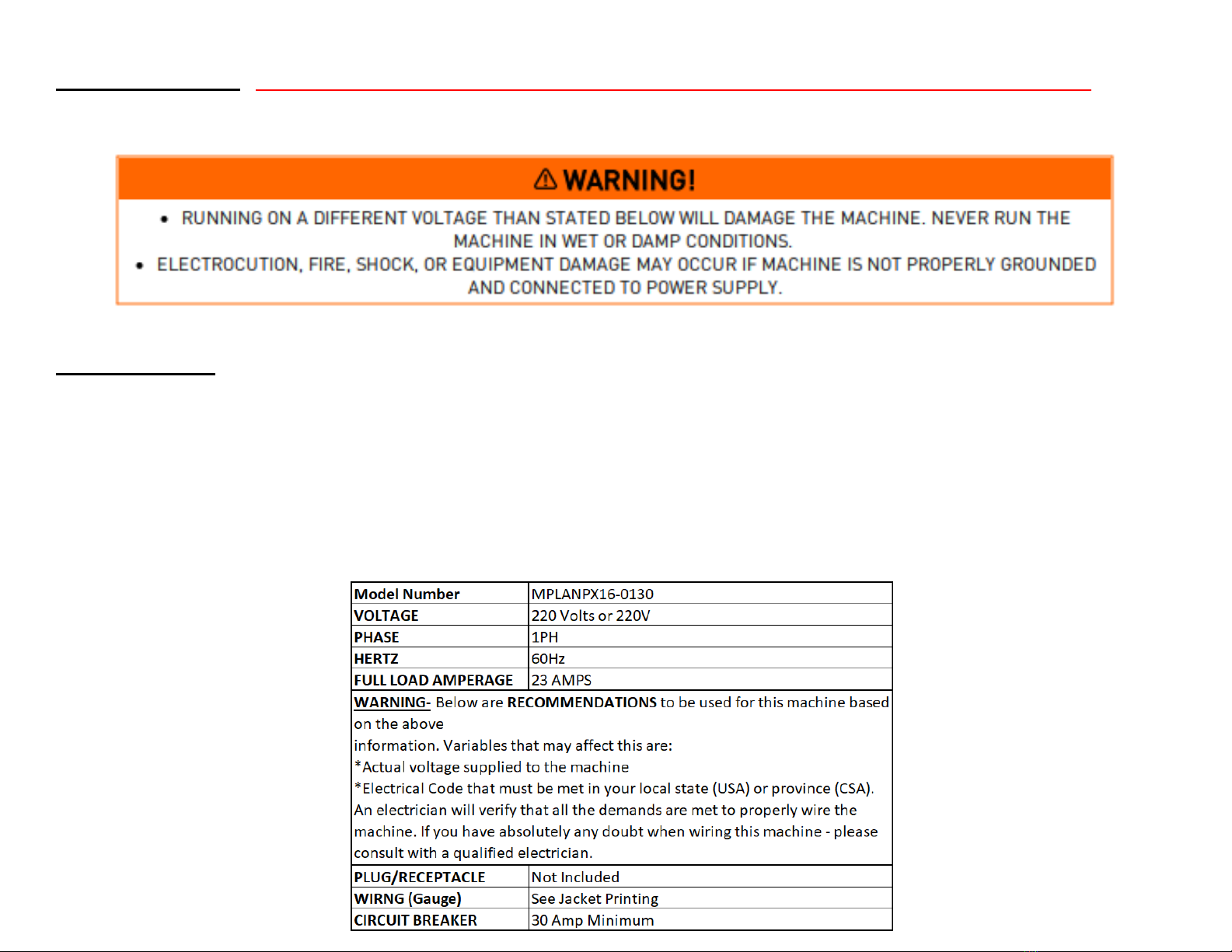

Power Supply
A separate electrical circuit should be used for each machine. This circuit should not be less than
the wiring listed below and should be protected with an appropriate circuit breaker based on the
total running and start-up amperage's (listed below). If an extension cord is used, use only 3-wire
extension cords which have 3-prong grounding type plugs and matching receptacle which will
accept the machine’s plug.

12
Electrical Safety (Cont’d.)-A Electrical Cord and Plug is not provided with Ordered
Machine. Make sure to follow Electrical Installation stated in the instructions below.
If this information is different than what is stated on the Motor Specification Plate - omit this
information. It is possible that the documentation is outdated to a machine change - such as a
different motor. Always check the motor plate prior to any wiring. If any doubts, please consult a
certified electrician. Know when to use a time delay fuse! AKA Slow blow fuse. Generally, if the
motor uses a start capacitor, a time delay fuse is required. This type of fuse (circuit breaker) will
not trip with the initial amperage needed to start the machine, which is typically double that of
the running amperage. Most woodworking machines use this type of fuse.
Electrical Safety- Electrical Cord and Plug is not provided with Ordered Machine. Make
sure to have a Qualified Electrician install required a qualified/standardized electrical cord and
plug for purchased machine. *Electrical Code that must be met in your local state (USA) or
province (CSA). An electrician will verify that all the demands are met to properly wire the
machine. If you have absolutely any doubt when wiring this machine - please consult with a
Qualified Electrician.

13
Electrical Safety (Cont’d.)-A Electrical Cord and Plug is not provided with Ordered
Machine. Make sure to follow Electrical Installation stated in the instructions below.
*Electrical Code that must be met in your local state (USA) or province (CSA).
Grounding Methods- Electrical Cord and Plug is not provided with Ordered Machine.
When a proper qualified electrical cord and plug is installed please follow the following ground
methods and procedures.

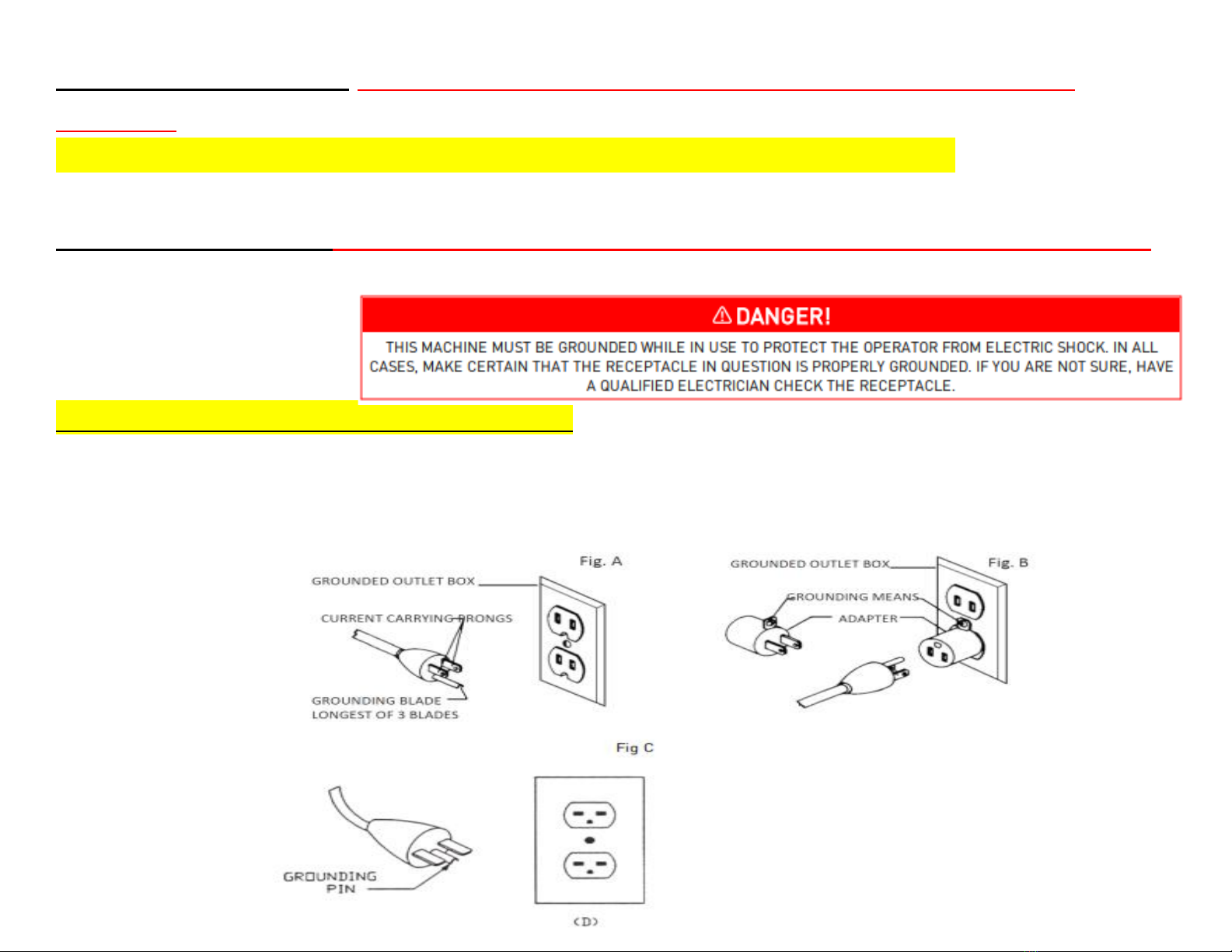

Grounding Methods Provided by CSA Group.
Fig. (A) Receptacle with nominal rating less than 150 volts.
Fig. (B) 150 Volt receptacle without grounding pin fitted with adapter.
Fig. (C) 150-250 Volt receptacle.

14
Electrical Safety (Cont’d.)-
1.) All Grounded, Cord-Connected Machines:
In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This tool is equipped with an electric cord
having an equipment grounding conductor and a grounding plug. The plug must be plugged into a
matching outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by
a qualified electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
The conductor with insulation having an outer surface that is green with or without yellow stripes
is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded. Use only 3-
wire extension cords that have 3-prong grounding plugs and 3 pole receptacles that accept the
tool's plug. Repair or replace damaged or worn cord immediately.

15
Electrical Safety (Cont’d.)-
2.) Grounded, cord-connected machines intended for use on a supply circuit having a nominal
rating less than 150 volts:

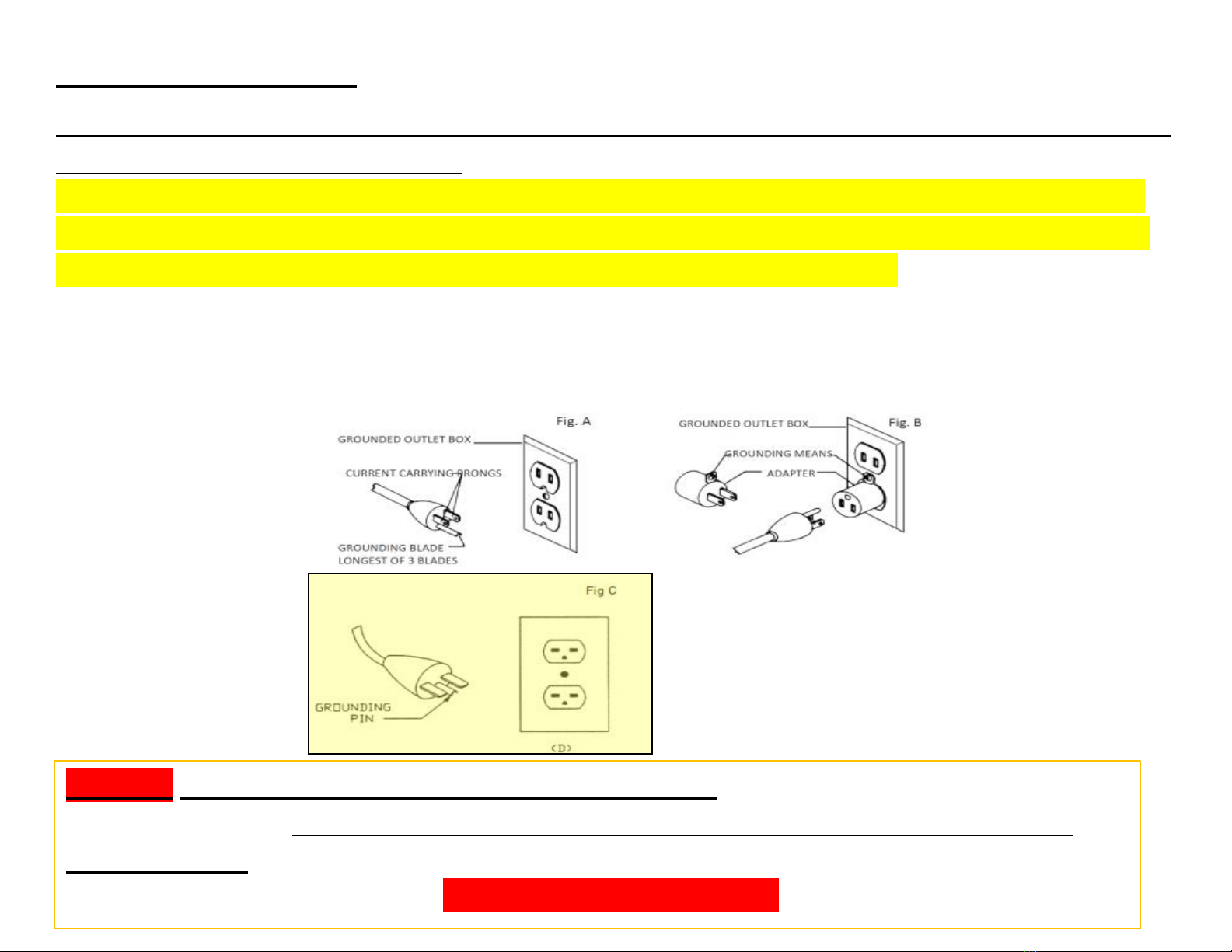

This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in
Fig. A.) The tool has a grounding plug that looks like the plug illustratedin Fig A.) A temporary
adapter, which looks like the adapter illustrated in Fig B may be used to connect this plug to a 2
Pole receptacle as shown in Fig. B.) if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualified
electrician. This adapter is not permitted in Canada. The green-colored rigid ear, lug, and the like,
extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box.

16
Electrical Safety (Cont’d.)-
3.) Grounded, Cord-Connected tools intended for use on a supply circuit having a nominal rating
between 150 –250 volts, inclusive:
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in
Fig. C. The tool has a grounding plug that looks like the plug illustrated in Fig. C. Make sure the
tool is connected to an outlet having the same configuration as the plug. No adapter is available
or should be used with this tool. If the tool must be reconnected for use on a different type of
electric circuit, the reconnection should be made by qualified service personnel; and after
reconnection, the tool should comply with all local codes and ordinances.
Warning: EXTENSION CORDS ARE NOT RECOMMENDED. If the customer needs to use an
extension cord, the Extension Cord must be qualified to fall within Local Electrical Code
(USA, CSA, etc.). If the customer utilizes an Extension Cord that does not fall within Code
and causes damage to machine, the Warranty will be Voided.

17

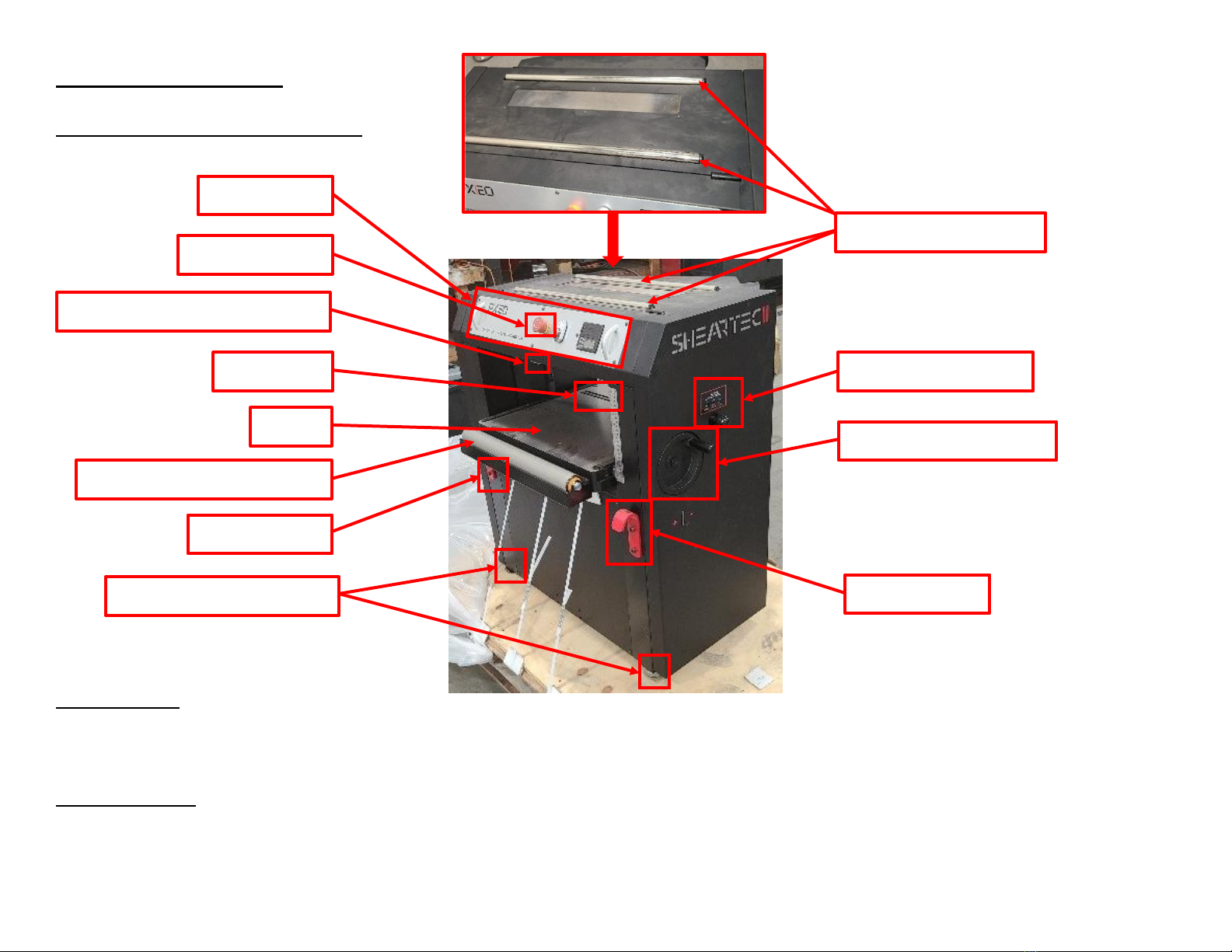

The All-New PX-16 Planer signals an innovative new design for Laguna planers. The
Laguna PX-16 is loaded with new ergonomic features to make woodworking safer and
more enjoyable.
Features:
Infeed and Outfeed Rollers –The PX-16 features infeed and outfeed rollers to assist with material
loading and feeding while keeping a compact footprint.
Digital Readout –The DRO has been moved to the control panel to provide better ergonomics
and make precision settings easier.
Ergonomic Control Panel –Machine controls have been moved to the control panel at the top of
the machine and angled toward the machine operator for easy access and better visibility.
Combined with the new cabinet, the PX-16 sports a sleek, modern design.
Improved Dust Collection –The 4″ diameter dust chute offers the option to point to right or left
to optimize dust collection system layout.
4-Post Bed Support –Provides precise and consistent performance with every cut.

18
The all-new PX-16 planer signals an innovative new design for Laguna planers. The
Laguna PX-16 is loaded with new ergonomic features:
Shear Tec II Cutterhead –The Shear Tec II cutterhead comes as standard equipment on PX-16
Planer. The Shear Tec II is a 6-row carbide insert cutterhead that produces a superior surface
finish on all woods including challenging hardwoods. The Shear Tec II knives and fasteners have a
T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The
4-sided carbide insert knives produce a shear cut for flawless results. The Shear Tec II cutterhead
has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided
knives can be rotated for a new cutting edge without the need for a knife setting jig.
Serrated Infeed Roller –The serrated infeed roller and pressure bar are mounted close to the
cutterhead to virtually eliminate snipe.

19
Specifications for the PX-16 SHEARTEC II Planer-

20
Machine Overview-
PX-16 Shear-Tec: II Planer-
The Limiter:
Acts as a stop to prevent the cutterhead from contacting the table and to prevent stock from sliding past the
edge of the cutterhead.
Table Rollers:
The Rollers act as a stop to reduce the chance of stock from sliding past the edge of the cutterhead or table.
(Limiter) Min. Stop Block
(1/16”)
Emergency Stop
Table Roller
Table Extension Roller Qty. (2)
Leveling Feet (Qty. 4)
Table
Stock Return Rollers. (2)
Feed Speed Controller
Control Panel
Table Height Adjustment
Loading Hook
Loading Hook
