Laguna Tools DAKE Force 25DA Operating and maintenance manual

Dake Corporation Phone: [phone] www.dakecorp.com
1809 Industrial Park Dr Fax: [phone]
Grand Haven, MI 49417
DAKE SINGLE PHASE DURA-PRESS
Force 25DA
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 1 REV012021
TABLE OF CONTENTS
DAKE STANDARD LIMITED WARRANTY ............................................................ 2
RETURN & REFUND POLICY ............................................................................... 4
SAFEGUARDING THE POINT OF OPERATION................................................... 5
SPECIFICATIONS.................................................................................................. 6
SAFETY.................................................................................................................. 7
SET UP................................................................................................................... 8
PRESS PLACEMENT ................................................................................... 8
FILLING THE PRESS WILL OIL ................................................................... 8
WIRING INSTRUCTIONS ............................................................................. 9
OPERATION .......................................................................................................... 9
BEFORE FIRST TIME OPERATION............................................................. 9
MAINTENANCE ................................................................................................... 10
LUBRICATION ............................................................................................ 10
HYDRAULIC LINES AND FITTINGS .......................................................... 10
TROUBLESHOOTING ......................................................................................... 11
EXPLODED VIEWS & PART LISTS..................................................................... 12

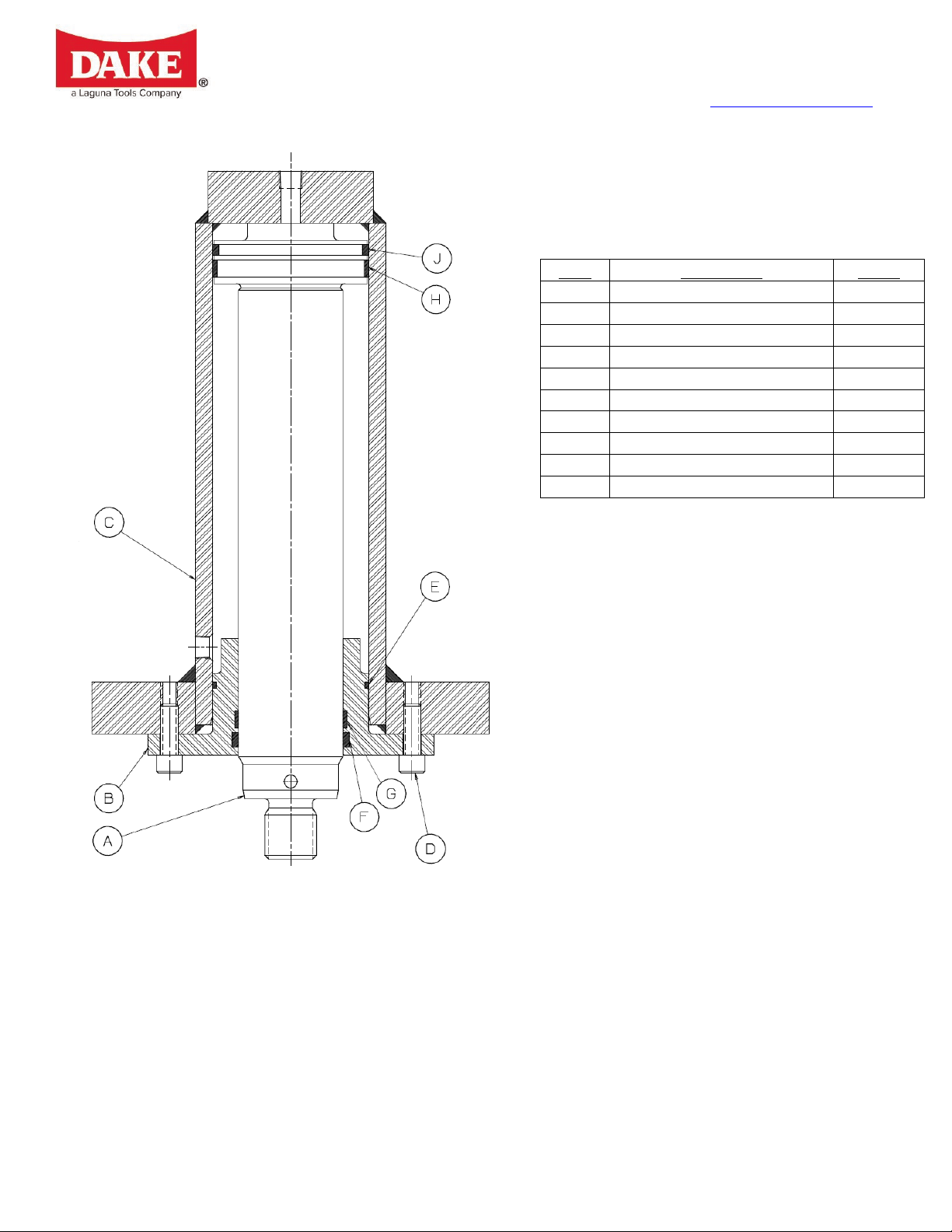

25 DA WOKRHEAD DIAGRAM .................................................................. 14
ORDERING INFORMATION ................................................................................ 14

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 2 REV012021
DAKE STANDARD LIMITED WARRANTY
Finished Machines
Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free
from defects in material and workmanship under normal use and service within 1 year (12 months) from
the delivery date to the end user.
Parts
Dake warrants to the original purchaser the component part manufactured or distributed by it to be free
from defects in material and workmanship under normal use and service within 30 days from the delivery
date to the end user.
The standard limited warranty includes the replacement of the defective component part at no cost to the
end user.
Sale of Service (Repairs)
Dake warrants to the original purchaser the component part repaired by Dake Corporation at the
manufacturing facility to be free from defects in material and workmanship under normal use and service
within 90 days from the return date to the end user, as it pertains to the repair work completed. The
standard limited warranty includes repair of the defective component part, at no cost to the end user.
Warranty Process
Subject to the conditions hereinafter set forth, the manufacturer will repair or replace any portion of the
product that proves defective in materials or workmanship. The manufacturer retains the sole right and
option, after inspection, to determine whether to repair or replace defective equipment, parts or
components. The manufacturer will assume ownership of any defective parts replaced under this
warranty.
All requested warranty claims must be communicated to the distributor or representative responsible for
the sale. Once communication has been initiated, Dake Customer Service must be contacted for
approval:
Phone: [phone]
Email: [email protected]
When contacting Dake, please have the following information readily available:
- Model #
- Serial #
- Sales Order #
Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return
Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA number
must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA will not be
processed.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 3 REV012021
Warranty Exceptions:
The following conditions are not applicable to the standard limited warranty:
(a) Part installation or machine service was not completed by a certified professional, and is not
in accordance with applicable local codes, ordinances and good trade practices.
(b) Defects or malfunctions resulting from improper installation or failure to operate or maintain
the unit in accordance with the printed instructions provided.
(c) Defects or malfunctions resulting from abuse, accident, neglect or damage outside of prepaid
freight terms.
(d) Normal maintenance service or preventative maintenance, and the parts used in connection
with such service.
(e) Units and parts which have been altered or repaired, other than by the manufacturer or as
specifically authorized by the manufacturer.
(f) Alterations made to the machine that were not previously approved by the manufacturer, or
that are used for purposes other than the original design of the machine.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 4 REV012021
RETURN & REFUND POLICY
Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to
help.
Returns
All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These
policies are valid from the date of final shipment to the end user.
To be eligible for a return, the item must be unused and in the same condition as received.
All requested warranty claims must be communicated to the distributor or representative responsible for
the sale. Once communication has been initiated, Dake Customer Service must be contacted for
approval:
Phone: [phone]
Email: [email protected]
Once the return request has been approved by Customer Service, a representative will supply a Return
Material Authorization (RMA) number. The returned item must have the provided RMA number clearly
marked on the outside packaging. Any item received without an RMA number clearly visible on the
packaging will not be processed.
An RMA number can only be provided by the Dake Customer Service team and must be obtained prior
to the return shipment.
Refunds
Once the item has been received and inspected for damages, a representative will notify the requestor
referencing the provided RMA number.
If the return is approved, a refund will be issued to the original method of payment, less a 20% restocking
fee. The restocking fee may be waived if an order is placed at the time of return with like-value
merchandise.
Transportation costs are the responsibility of the end user and will not be credited upon return approval.
Any item that is returned after the initial 30 days or has excessive/obvious use will not be considered for
a full refund.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 5 REV012021
SAFEGUARDING THE POINT OF OPERATION
ANSI B11.2 - Hydraulic Power Presses -
Safety Requirements for Construction, Care, and Use
It is important that Dake press users have a clear understanding of their responsibility involving the care
and use of their Dake hydraulic press, including point-of-operation safe guards. Dake strongly
recommends that Dake press users obtain a copy of the current American National Standard Institute
(ANSI) B11.2 standard, for a more complete understanding of their responsibilities.
ANSI B11.2 states the following, relative to point of operation safeguarding:
“Normally, only the employer (press user) can determine the requirements of the press productions
system components, including the dies and methods for feeding. Therefore, the employer is ultimately
responsible to designate and provide the point-of-operation safeguarding system.”
The standard also discusses additional responsibilities of the employer. Some of the key responsibilities
are:
•The employer is responsible for the safety, use, and care of the hydraulic power press production
system.
•The employer is responsible to consider the sources of hazards for all tasks to be implemented on
the hydraulic power press production system.
•The employer is required to eliminate, or control identified hazards in the scope of their work activity.
•The employer is responsible for the training of personnel, caring for, inspecting, maintaining, and
operating hydraulic press production systems to ensure their competence.
•The employer is responsible to provide and ensure that point-of-operation safeguarding is used,
checked, maintained, and where applicable, adjusted on every production operation performed on a
press production system.
A complete and current copy of the ANSI B.11.2 standard can be obtained by contacting the following:
American National Standards Institute
1430 Broadway
New York, NY 10018
AMT – The Association for Manufacturing Technology
7901 Westpark Drive
McLean, VA 22102

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 6 REV012021
SPECIFICATIONS
Model
Force 25DA
Number
909215
Capacity
25 tons
Horse Power
1 HP
Voltage
110V Single Phase
Ram Travel
10”
Pressing Speed
10 ipm
Width between uprights
28”
Max. ram to table
44”
Height
88”
Base
30” x 38”
Weight
3,450 lbs.
In the space provided record the serial number and model number of the machine. This
information is only found on the black and gold Dake tag shown below. If contacting Dake this
information must be provided to assist in identifying the specific machine.
Serial No.
Model No.
Install Date:

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 7 REV012021
SAFETY
This is the safety alert symbol. When you see this symbol on your press be alert to the
potential for personal injury.
Employer is responsible to perform a hazard/PPE assessment before work activity.

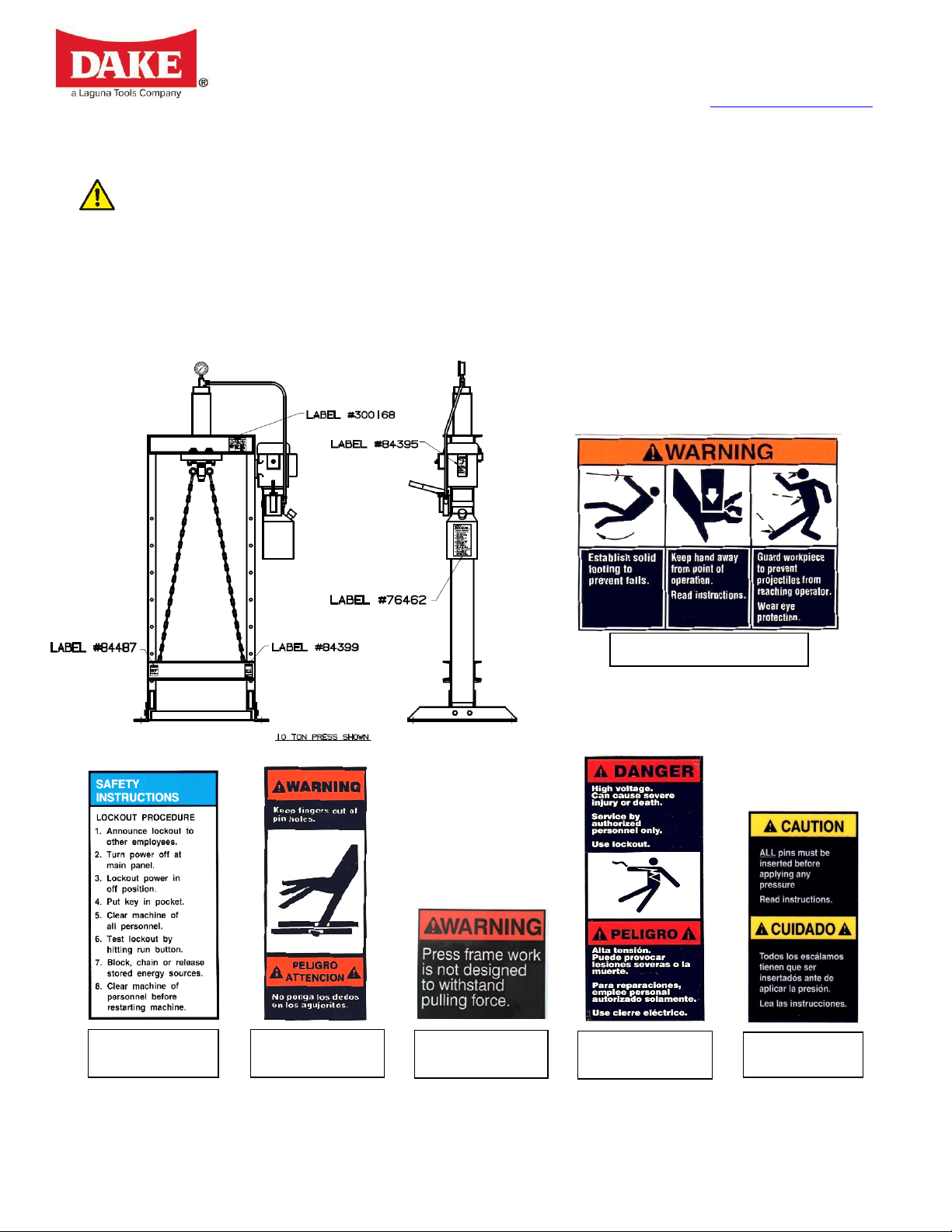

Label Placement View
Label Part No. 300168
Label Part No.
302070
Label Part No.
84487
Label Part No.
84395
Label Part No.
84399
Label Part No.
76462

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 8 REV012021
Follow recommended precautions and safe operating practices. It is important that the
operator understand all safety instruction listed below in order to prevent damage to
themselves, others, or the machine:
•Carefully read all the safety messages in this manual and on your press safety labels.
Keep safety labels in good condition. Replace missing or damaged safety labels.
•Do not alter this press from its original design.
•Do not make repairs or adjustments to any hydraulic system unless you are competent or
working under competent supervision.
•Only use Dake original parts.
•This machine is intended to be operated by one person. This person should be conscious
of the ram movement not only for themselves but also for persons in the immediate area
of the machine.
•This press is not intended for pulling operations. Personal injury or machine damage can
result.
SET UP
PRESS PLACEMENT
•The press needs to be placed so that it has a safety perimeter of 2-1/2 feet on all sides
from any other objects or machines.
•Press should be placed on level floor with base angles touching the floor at all points.
Use shims where necessary.
FILLING THE PRESS WILL OIL
Fill the reservoir with DTE 24 Mobil hydraulic oil or equivalent.
a. 25DA holds 2 gallons of oil. Make sure the oil is new and be cautious no
contaminants get in while filling the reservoir.
b. Oil should be changed about once a year.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 9 REV012021
WIRING INSTRUCTIONS
WARNING: A licensed qualified electrician that follows all state and local laws must
wire and install electrics on this press.
110 Volt
WARNING: Machine must have a designated 30 amp drop for 110 volts. This press
will not operate correctly without 30 amps.
For 110 volts this machine is ready to plug in. The machine can be wired 220-volt single phase.
Always follow the wiring diagram provided in the moor cover when converting to 220-volt single
phase. A cord and plug that is rated for a specific voltage and amperage must be used. This
rating can be found on the motor.
220 Volt Single Phase
The press new is shipped out as a 110-volt machine. If wiring must be changed to suit 220-volt
single phase.
1. The leads on the motor must be changed to fit 220-volt, 17.2 amps, follow the diagram on
the motor.
2. Install plug and wire that fits the rating on the motor, the plug and wire must be rated for
the voltage and amperage listed on the motor.
OPERATION
BEFORE FIRST TIME OPERATION
1. Make sure the reservoir is filled with 3 gallons of Mobil DTE 24 hydraulic fluid or
equivalent.
2. Turn the on/off power (toggle) switch to the “on” position (up).
3. Move the control lever down, this will advance the ram in the downward position.
4. Release the control lever and the ram will stop all movement.
5. Move the control lever to the up position and the ram with move up.
6. When the press is new be sure to move the ram up and down to work out any air that
may be in the system.
WARNING: When using the control lever in pressing operations or to return the ram
stop applying pressure once the handle reaches its positive stop. Applying additional
force on the lever does not increase ram speed and will lead to premature damage of the
valve.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 10 REV012021
MAINTENANCE
LUBRICATION
Keep all working parts of press well oiled for easier operation. Also, keep a light film of oil over
the entire surface of the ram to prevent rust.
HYDRAULIC LINES AND FITTINGS
If there is ever any maintenance done with the hydraulic components below is how to reinstall all
components.
Item
Part No.
1
72050
2
73425
3
72047
4
302938
5
69671
6
72402
7
302183
8
302061
9
302224

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 11 REV012021
TROUBLESHOOTING
SYMPTOM
CAUSE
SOLUTION
Ram runs jerky while moving
up and down Air is in the system
This press has a self-
bleeding system, continue to
run the ram up and down
approximately 15 times.
Machine will not build desired
pressure Relief valve needs to be reset
Remove octane cap from
back of manifold and adjust
set screw to correct pressure.
WARNING: Do not exceed
2413 PSI
Pins are shearing or bending Relief valve needs to be reset
Remove octane cap from
back of manifold and adjust
set screw to correct pressure.
WARNING: Do not exceed
2413 PSI
Oil Leaks around the ram
Cylinder seals are worn or
damaged
Replace cylinder seals
Oil leaks around holes other
than the ram
Bolts need to be tightened Tighten bolts around the ram
Ram will not extend the full
10 inches
Oil level is too low Re-fill the reservoir with oil
Hydraulic gauge will not read
pressure
Hydraulic gauge is bad Replace hydraulic gauge
Motor will not start
No power to press
Double check electrical cord
Motor overheats and shut
down
Duty cycle time is exceeded
Check the duty cycle time on
the motor. (Has no cooling
fan, 15-20 minutes)
Extension cord is being used
Extension cord will lower the
APMS and will cause
overheating of the motor.
Remove cord.

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 12 REV012021
EXPLODED VIEWS & PART LISTS

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 13 REV012021
Item Part Description Part No. Qty
1
Frame
86684
1
2
1/2" - 13NC x 2 3/4"
43355
4
3
1/2" Channel Washer
43657
4
4
Work-head Assembly
716640
1
5
1/2" Lock Washer
43647
4
6
1/2" - 13 Hex Nut
43916
4
7
Base Angle
978
2
8
1/2" – 13 x 1-1/2” Grade 5
43349
4
9
Table Pin
85407
2
11
Table Channel
86682
1
12
1/2" Lock Washer
43644
4
13
1/2" - 13 Hex Nut
43916
4
20
Nose Piece
86683
1
23
Hydraulic Power Unit
300265PU
1
24
5/16" - 18NC x 1"
43315
4
25
5/16" Flat Washer
43632
4
27
Warning Label
84487
1
28
Warning Label
84399
1
29
3-IN-1 Warning Label
300168
1
30
Safety Instructions
76462
1
31
Warning Label
84395
1
32
DAKE Name Plate
81002
1
33
Made In USA Plate
76936
1
34
Table Plates
85508
2
PARTS NOT ILLISTRATED
Item
Description
Part No.
Qty
Breather Vent & Elbow
Reservoir fill port
300267
1
Eyebolts
300284
2
Triangular Snap Hooks
300285
4
Coil Chain
78477
2
Gauge
Tons/PSI
302938
1
Reservoir
2 Gallons
300269
1
Valve Kit
Fittings, hoses, valve,
manifold, bolts, & O-rings
300265KIT 1
Optional Check Valve
302071
1
Optional Relief Valve
290-3625 PSI or 20-250 Bar
301949
1
Optional Relief Valve
43.5-435 PSI or 3-30 Bar
302197
1
Bolts SHC #10-24 x 1-3/4”
Mounting bolts for valve only
43403
4
Bolts SHC #10-24 x 2-3/4”
Mounting bolts for valve,
relieve valve, or check valve
76749 4
Bolts SHC #10-24 x 4-1/2”
Mounting bolts for valve,
relieve valve, or check valve
302221 4

Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
www.dakecorp.com
909215 14 REV012021
25 DA WOKRHEAD DIAGRAM
Please contact factory for current prices.
ORDERING INFORMATION
Parts are available for direct purchase from Dake or through a distributor. When placing a parts
order, you will need to provide the part number, name of part, and model number. All parts
shipped F.O.B. Factory in Grand Haven, MI.
Item
Description
Part #
A
Piston
86463
B
Cylinder Flange
86462
C
Cylinder
86461
D
Socket Head Cap Screw
43471
E
O-Ring
79881
F
Seal
79880
G
Wear Ring
78486
H
Wear Ring
79840
J
O-Ring Seal
79882
-
Workhead Assembly
716640
