Laguna Tools MJOIN 8012-0130 User manual

1
Laguna Tools
8" MJOIN 8012-0130 Jointer manual.

2
Dear Woodworker:
Thank you for your purchase and welcome to the Laguna Tools group of
discriminating woodworkers. I understand that you have a choice of
where to purchase your machines and appreciate the confidence you
have in our products.
Every machine sold by Laguna Tools has been carefully designed and
well thought through from a woodworkers perspective. I cut on our
bandsaws, lathes, table saws and combination machines. Through my
hands-on experience, I work hard to make our machines better. I
strive to give you machines that inspire you to create works of art.
Machines that are a joy to run and work on. Machines that encourage
your performance.
Today, we offer high-performance machines with innovative solutions
that meet the needs of woodworkers and their ever-evolving craft.
I started Laguna Tools as a woodworker, I still am.
Thank you again for becoming a Laguna Tools customer.
Torben Helshoj
President and Founder - Laguna Tools
Imagination, Innovation and Invention at work.

3
Table of contents
Page number
Safety Rules
4
Warranty
5
Noise emission
6
Specification sheet
6
Receiving your jointer
6
Introduction to your jointer
6
What you receive with jointer
8
Parts of the jointer
9
Where to locate your jointer
10
Unpacking your jointer
11
Assembly and set up
12
Running & adjusting the jointer
17
Electrical drawings
25
Maintenance and troubleshooting
26

4
Safety Rules
As with all machinery there are certain hazards involved with the
operation and use. Using it with caution will considerably lessen the
possibility of personal injury. However, if normal safety precautions are
overlooked or ignored, personal injury to the operator may result. If you
have any questions relative to the installation and operation, do not use the
equipment until you have contacted your supplying distributor.
Read carefully before operating the machine.
1. Keep the working area clean and be sure adequate lighting is
available.
2. Do not wear loose clothing, gloves, bracelets, necklaces or
ornaments. Wear face, eye, respiratory and body protection devices
as indicated for the operation or environment.
3. Be sure that the power is disconnected from the machine before tools
are serviced or an attachment is to be fitted or removed.
4. Never leave the machine with the power on.
5. Do not use dull, gummy or cracked cutting tools.
6. Be sure that the keys and adjusting wrenches have been removed
and all the nuts and bolts are secured.

5
Limited Warranty
New woodworking machines sold by Laguna Tools carry a one-year warranty
from the date of shipping. Laguna Tools guarantees all new machines sold to be
free of manufacturers’ defective workmanship, parts, and materials.
We will repair or replace, without charge, any parts determined by Laguna
Tools, Inc. to be a manufacturer's defect. We require the defective item/part to
be returned to Laguna Tools. In the event the item/part is determined to be
damaged due to lack of maintenance, cleaning or misuse/abuse, the customer
will be responsible for the cost to replace the item/part, plus all related shipping
charges.
This limited warranty does not apply to natural disasters, acts of
terrorism, normal wear and tear, product failure due to lack of maintenance or
cleaning, damage caused by accident, neglect, lack of or inadequate dust
collection, misuse/abuse or damage caused when repair or alterations have
been made or attempted by others.
Laguna Tools, Inc. is not responsible for additional tools or modifications sold
or performed (other than from/by Laguna Tools, Inc.) on any Laguna Tools,
Inc. woodworking machine. Warranty may be voided upon the addition of such
noted tools and/or modifications, determined on a case-by-case basis.
Normal user alignment, adjustment, tuning and machine settings are not
covered by this warranty. It is the responsibility of the user to understand
basic woodworking machinery settings and procedures and to properly
maintain the equipment in accordance with the standards provided by the
manufacturer.
Parts, under warranty, are shipped at Laguna Tools, Inc's cost either by
common carrier, FedEx Ground service or similar method.
Technical support to install replacement parts is primarily provided by phone,
fax, or e-mail. The labour required to install replacement parts is the
responsibility of the user.
Laguna Tools is not responsible for damage or loss caused by a freight
company or other circumstances not in our control.
Only new machines sold to the original owner are covered by this warranty.
For warranty repair information, call 1-800-332-4094.
Copyright 2010 Laguna Tools, Inc
** Warning –no portion of these materials may be reproduced without written
approval from Laguna Tools, Inc.

6
Noise emission
Notes concerning noise emission
Given that there exists a relationship between noise level and exposure times, it is
not precise enough to determine the need for supplementary precautions. The
factors affecting the true level of exposure to operators are clearly the amount of
time exposed, the characteristics of working environment other sources of dust and
noise etc. For example, adjacent machines in other words the level of ambient
noise. It is possible that exposure level limits will vary from country to country.
Specification sheet
Motor
2 hp
Fence tilt
90 to 40 degrees
Dust chute diameter
4 inches
Max cutting depth
1/64 inch
Volts
220V single phase
Weight net/gross
447 lb / 538 lb [203 kg / 2454 kg]
Receiving your machine.
Note. It is probable that your machine will be delivered by a third party. Before you
unpack your new machine, you will need to first inspect the packing, invoice, and
shipping documents, supplied by the driver.
Insure that there is no visible damage to the packing, or the machine. You need to
do this prior to the driver leaving. All damage must be noted on the delivery
documents and signed by you, and the delivery driver. You must then contact the
seller, [Laguna Tools] within 24 hours.
Introduction to jointer.
The jointer is designed to give you years of safe service. Read this owner’s manual
in its entirety before assembly or use.
The jointer is generally defined as a machine that cuts planks of wood flat, and
smooth. The machine achieves this by the plank being pushed along a flat table,
and passing the plank over a revolving cutter head.
There are many types of cutter head, and this machine uses an inserted cutter type.
The insert cutters main advantage is to reduce tear out of the grain, but the finish is
not as smooth as the parallel blade system. It is well within the capabilities of a belt
sander to give a professional finish to the jointed plank.
The parallel blade system, gives a finish without the lines that the insert cutter
system gives, but, is susceptible to tear out, especially on planks with knots. On
balance, it is better to use a machine with the insert cutters than the parallel blades,
as it greatly reduces the risks of having to scrap valuable wood, or spending
excessive time sanding tear out marks.

7
Additional instructions for the use of the jointer.
Like all machines, there is danger associated with the machine. Injury is frequently
caused by lack of knowledge or familiarity. Use this machine with respect. If normal
safety precautions are overlooked or ignored, serious personal injury may occur.
1. Kickback.
"Kickback" is when the work piece is thrown off the jointer table by the cutter head.
Always use push blocks and safety glasses to reduce the likelihood of injury from
“kickback”. The "kickback zone", is the path directly through the end of the in feed
table. Never stand or allow others to stand in this area during operation. If kick back
occurs, severer injury may occur.
2. Cutter head alignment.
To reduce the possibility of kickback, keep the top edge of the out feed table aligned
with the cutter head insert at top dead centre (TDC).
3. Push blocks.
The cutter heads are extremely dangerous and you must never pass your hands
over the cutter head. Always use push blocks whenever surface planning.
4. Supporting the work.
Only make cuts if the work piece is stable and never attempt to cut unstable planks,
or injury may occur.
6.Cutting depth.
Never exceed the maximum cutting depth as stated in the specification for your
machine. It is far better to take several small cuts rather than large cuts.
7. Direction of cut
Jointing against the grain or jointing end grain is dangerous and could produce
chatter or excessive chip out. Always joint with the grain.
8.Guards.
Guards are designed to reduce the risk of injury. Always use the guards. If it is
imperative to use the machine without the guards, [Rabbeting] always replace the
guards.
9.Cutting direction.
Only cut from the in feed table to the out feed table, and always complete the cut.
Do not stop the wood progress until the job has cleared the cutter head completely.
Only cut with the grain or at a slight angle to the grain.
10. Stock.
Your safety will be greatly enhanced if you only use good lumber. Only work with
lumber after you have inspected it completely. Staples, Nails Loose knots and any
other metal in the plank will damage your cutter head and could case injury and or
fire. If you have any question about a piece of lumber, do not use it.

8
What you will receive with the jointer.
Dust cover Screws special V belts Handles
Tools Cutters Screws Handles
Guard
Cover

9
Parts of the jointer.
3 10 9
16 5 8 4 7 2
The jointer doe’s not have many parts. The major parts are discussed in this
manual. If you are not familiar with the jointer, take the time to read this section and
become familiar with the machine.
1. Out feed Table.
2. In feed Table.
3. Fence.
4. Cutter head Guard.
5. Dust port.
6. Table height adjusting handles.
7. Body.
8. Mobility kit.
9. Start and stop switches.
10. Table clamp handles.
Out feed Table.
The function of the out feed table is to support the job once it has been machined by
the cutter head. The out feed table must be adjusted level with the cutter head teeth
at top dead centre [TDC].
In feed Table.
The in feed table is adjusted to suit the depth of cut that is required.

10
Note. Never exceed the maximum depth of cut specified for your machine. It is far
safer to take many small cuts rather than one large cut.
Fence.
The fence is used to keep the job square to the cutter head and is also used to
produce angle cuts on the edges of panels. The fence can be adjusted from 90 to 45
degrees.
Cutter head Guard.
The guard is there to protect you. Always adjust the guard to expose only the
minimum amount of cutter to suit the job width.
Dust port.
The dust port is designed to allow maximum extraction of saw dust and wood
chippings. Connect a 4” flexible dust collection hose between the machine and your
dust extraction system.
Note. The stronger the dust collector the better.
Table height adjusting handles.
The hand wheels adjusts the tables to the required height.
Body.
The body of the machine supports the table etc. It is manufactured from heavy
gauge steel and provides a heavy base that is designed for rigidity.
Mobility kit.
The mobility kit allows the machine to be moved to various locations within your
work area.
Start & stop switches.
The switches are used to start and stop the machine.
Table clamp handles.
The table clamp handles lock the table in position after adjustment.
Serial and data plate.
This plate is mounted on the back of the machine.
Where to locate your Machine.
Before you unpack your machine, select the area where you will use your machine.
There are no hard and fast rules for its location, but, below are a few guidelines.
1. There should be an area around the machine suitable for the length of wood that
you will be machining.
2. Adequate lighting. The better the lighting, the more accurate, and safely
you will be able to work
3. Solid floor. You should select a solid flat floor, preferably concrete or
something similar.
4. Close to power source and dust collection.

11

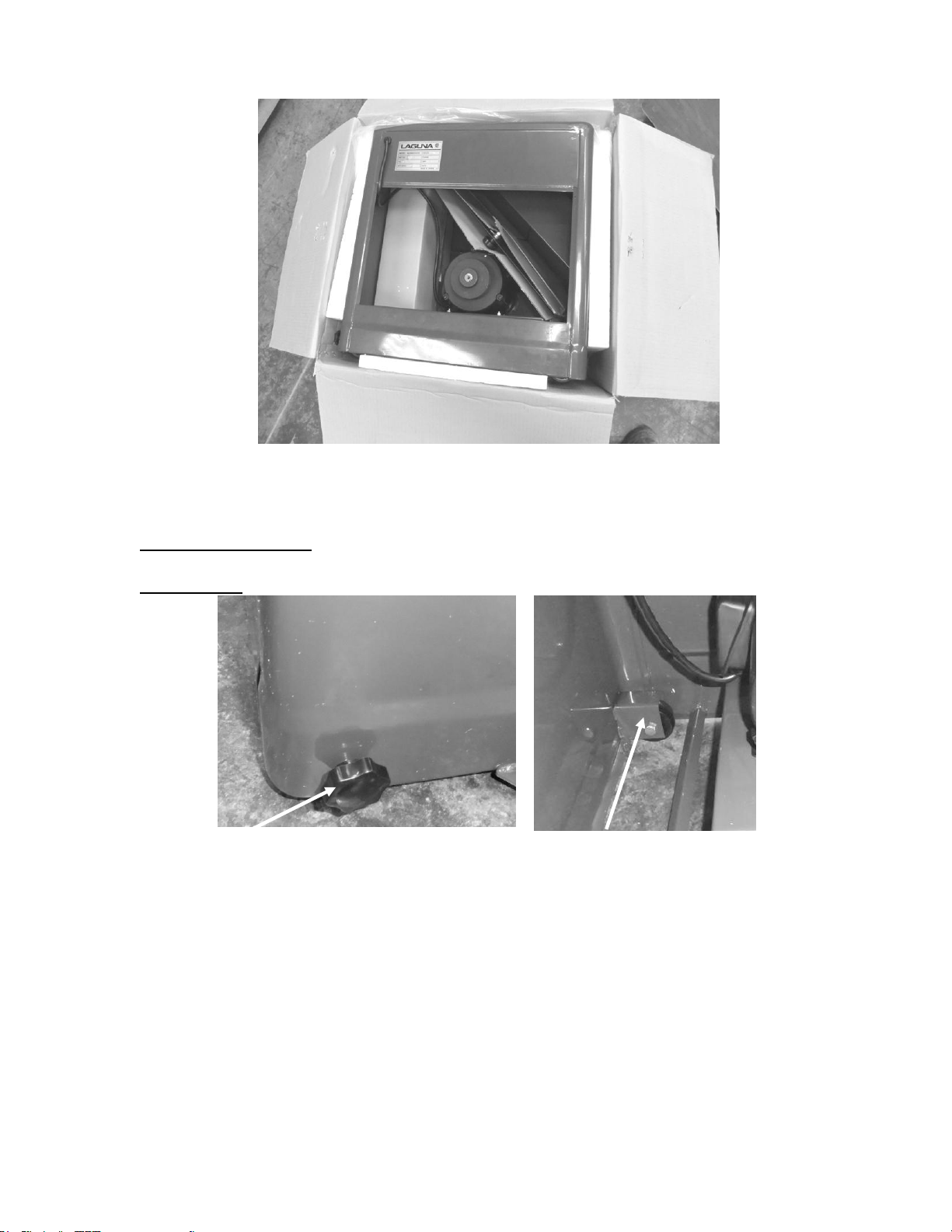

Unpacking your machine.
To unpack your machine, you will need tin snips, knife and a wrench.
1. Using the tin snips, cut the banding that is securing the machine to the
Pallet [if fitted].
WARNING: EXTREME CAUTION MUST BE USED BECAUSE THE
BANDING WILL SPRING AND COULD CAUSE INJURY.
2. Open the long box.
3. Remove the plainer from the box. The parts will be packed at the side of the
plainer.
Note. The machine is heavy, and if you have any doubt about the
described procedure, seek professional assistance. Do not attempt any
procedure that you feel is unsafe, or that you do not have the physical capability of
achieving.
Note. To remove the plainer from the box you will need 2 or more people.

12
4. Remove the body from the box and remove the parts that are packed inside the
body.
Assembly & set up.
Mobility kit.
Mobility clamp screw
Mobility wheel
The mobility wheels come pre-fitted to the base of the machine.
The wheels are locked by tightening the clamp screws on the outside of the body.

13

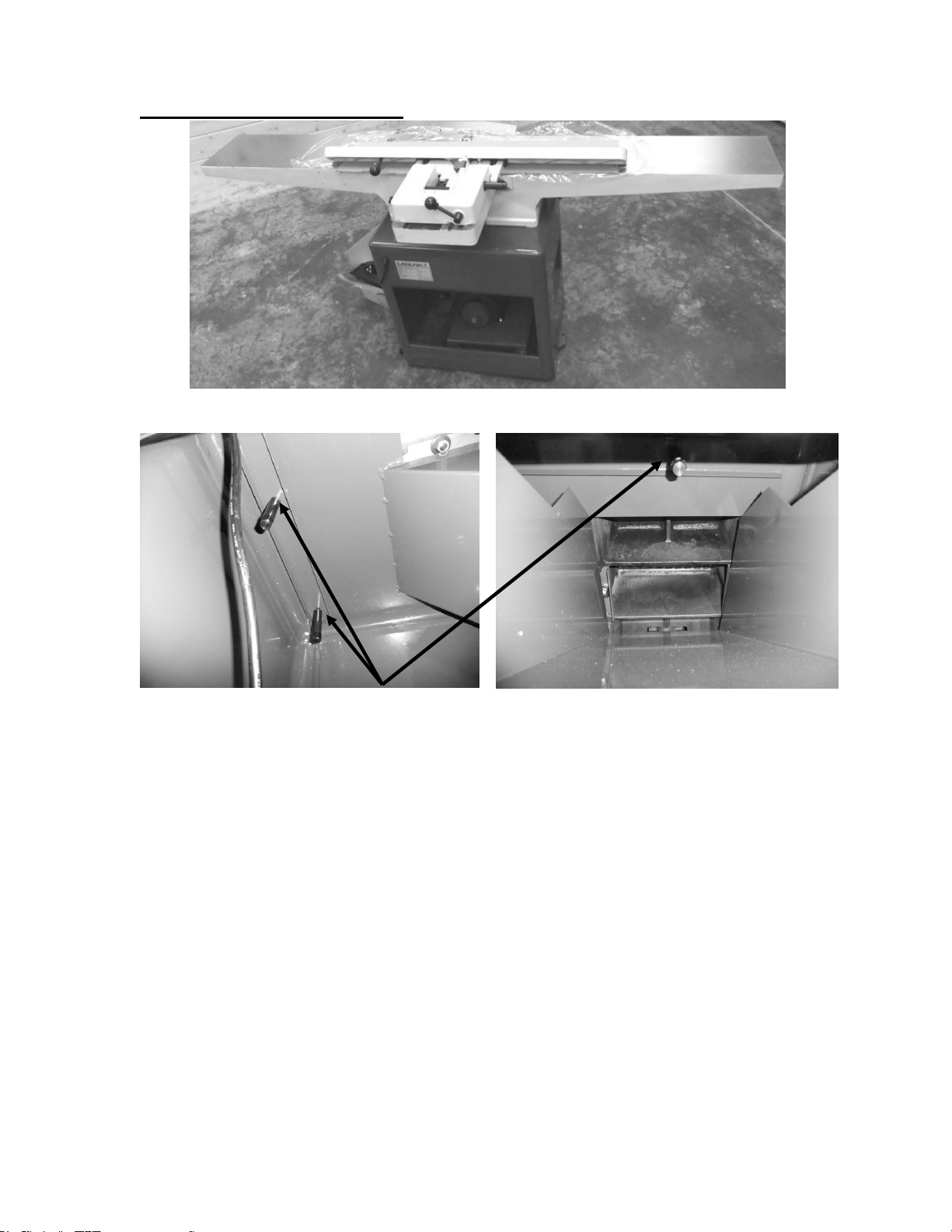

Fitting the jointer to the body.
Jointer on base
Fixing bolts special
1. Remove the side panels from the body.
2. There are 3 slots on the top of the body. The jointer must be placed on top of the
body and lined up with the slots.
Note. The jointer is heavy, and if you have any doubt about the
described procedure, seek professional assistance. Do not attempt any procedure
that you feel is unsafe, or that you do not have the physical capability of achieving.
Note. To fit the plainer to the body you will need 2 or more people.
3. Attach the jointer to the body with the 3 special bolts as shown from the inside of
the body.

14
Fitting the drive belts.
Cover
Motor pulley
Cutter head pulley
Adjusting bolt
1. Remove the cover and side panel.
2. Loosen the motor adjusting bolts. Move the
motor to the top of the slots and clamp.
3. Fit the belts over the motor and cutter pulleys.
4. Loosen the motor adjusting bolts and lower the
motor. Tighten the bolts.
Note. The belts should be tensioned so that with
moderate pressure there is approximately 3/16 inch
deflection.
5. Re fit the side panel and cover.
Fitting the on / off switch.
Fit the on / off assembly to the side of the table as
shown.
Mounting bolts

15
Connecting the dust collection.
Assemble the dust hose connector to
the body of the jointer as shown.
Connect a 4” flexible hose between the
dust hose connector and your dust
collector.
Once fitted pull on the hose to ensure
that the connection is tight.
Note. You will need a dust collection
system with a minimum of 1000 cubic
feet per minuet capacity. The stronger
the dust collection the better, as the
machine is capable of producing a lot of
waste.
Fitting the table adjusting handles.
Key
Handle
Assemble the two handles as shown.
Fit the key into the key way in the table
adjustment shaft.
Note. The key is a tight fit in the keyway
and may need to be filed to ensure that it
fits snugly into the keyway.
Slide the handle onto the shaft with the key
in place, and secure with the screw.
Repeat the procedure for the other table
adjusting handle.
Dust hose connector
Fixing screw

16
Fitting the cutter guard.
Cutter guard
Allen key sprung pin
The cutter guard fits into a hole in the in-feed table. It is sprung loaded to ensure that
it will move back across the cutter after the job passes to the out feed table.
When assembling the cutter guard, ensure that the spring is tensioned and that the
pin is touching the casting as shown.
When assembled the guard should move back to cover the cutter head by the action
of the spring.
The jointer is now fully assembled but before the machine is connected to the
electrical supply the following checks and adjustments must be carried out.
1. Move the jointer to the location that it
will be used.
2. Check that the cutter head can rotate
freely and that the teeth do not contact
either the in or the out feed tables.
3. Check that the guard is covering the
cutter head and that is free to move and
spring back once released.
4. Check that all tools have been removed
from the machine.
Connecting the electrical supply.
Note. A qualified electrician must carry out
the installation.
Ensure that the main supply corresponds
with that of the machine [Single phase 220
V].
It is recommended that you use a 30-amp
mains breaker.
Electrical cable

17
If you need a longer cable than that supplied on the machine, you can connect a
new cable into the internal power termination.
Note. The machine is not normally supplied with an electrical plug, as the type of
plug will be dependent on the installation.
Running and adjusting the machine.
Cleaning the machine.
The machine is shipped with none painted surfaces protected from rust by a film of
grease.
The grease must be removed with WD40 or similar, as it attracts saw dust and dirt.
The surfaces should then be coated with a Teflon lubricant or similar. Teflon tends to
dry and will not attract saw dust and dirt.
Test Run.
Now that the assembly is complete it is time to conduct a test run.
During the test run you will check the following points.
1. Motor starts and runs smoothly.
2. That the stop button, function correctly.
Before you run the machine check the following.
1. All the tools have been removed from the machine.
2. That the guard is in place.
3. You are wearing the appropriate safety equipment.
5. You have read and understood the instruction manual.
Note. If any of the below functions fail to operate correctly, the fault must be
corrected prior to continuing to the next test. Any investigation to find or correct a
fault must be conducted with the power disconnected.
1. Start the machine by pressing the green start button.
The machine should run smoothly with little or no vibration.
2. Press the red stop button. The machine should slow down and stop.
Adjustments.
Note. The machine has had all its functions calibrated at the factory but due to
shipping conditions, some movement may have taken place. This is unavoidable
and it is therefore recommended that the following checks are made prior to starting
production. As the machine is used some functions may move and it is therefore
good practice to know the process for adjusting the machine prior to production.
Adjusting the drive belts.
Adjust the belts so that there is approx 3/16 in deflection when pressed with
moderate finger pressure.
The drive belts should be checked after running the machine for approximately 10
hours. The belts bed into the pulleys, and will slacken off slightly. If they are not

18
adjusted, slippage may accrue and this will cause early belt failure. There should be
a 3/16” deflection when the belt is pressed with moderate finger pressure.
Note. To access the motor and drive belts, remove the side panel.
Note. Disconnect the power to the machine prior to conducting machine
adjustments or repairs.
Setting the out feed table to the cutter head.
The out feed table must be level with the teeth of the cutter head when the teeth are
at top dead centre [T.D.C.]
1. Rotate the cutter head so that the teeth are at the T.D.C. position.
2. Place a straight edge on the out feed table over the cutter head and check that
the teeth just touch the straight edge.
Note. This has to be checked at both sides of the table.
Setting the in feed table.
1. Place a straight edge so that it
is equal on both the in feed and
out feed tables.
2. Bring the in feed table up so
that the straight edge is even on
both tables.
3. Check that the table is lined
up with the scale at “0”.
Fitting teeth to the Sher tec cutter head.
The carbide cutter head [Sher Tec] has multiple teeth,which have 4 cutting edges.
The teeth can be rotated as follows, when they are blunt or damaged.
Note. You will notice that each cutter
tooth has a registration dot to enable
you to ensure that the teeth are
moved round in the same direction.
1. Loosen the tooth with the special
allen key.
2. Lift the tooth and rotate to the new
cutting face.
Note. Take special care to clean the
tooth and its mating surface. Any dirt
or sawdust that is trapped under the
tooth will cause it to be at a different
height to the other teeth, and
degrade the surface finish when you start machining. This will result in you having to
Scale
Registration dot

19
take all the teeth out and clean both the teeth and the mating surfaces again. This is
very frustrating, and a waste of time. Take your time and ensure that you are very
thorough with cleaning.
3. Lower the tooth into the cutter head and clamp with the allen key.
Note. Only move all the teeth to a new cutting edge. Do not move less than all the
teeth.
Note. The carbide cutter head will has several advantages over the parallel blade
type cutter head.
1. The teeth are carbide and will last longer than high speed steel parallel blades.
2. There is less chance of tare out.
The disadvantage is that they are initially more expensive and the surface finish is
slightly wavy. This is caused because the teeth have a very slight radius. This
waviness is easily removed by a light sanding.
Adjusting the fence.
90 degree stop
45 degree stop
The fence has 2 adjustable stops. One for
45 degrees, the other stop for the 90
degree position.
The fence is clamped in the angle position
with the clamp handle located at the side
of the fence housing assembly.
To adjust the fence, loosen the clamp
handle, move to the required position, and
re clamp.
The stops may not come pre set, and to
set, follow the guide lines below.
Adjusting the 45 degree stop
1. Adjust the fence to 45 degrees using a
set square, and lock in position.
Forward back clamp handle
Angle clamp handle

20
2. Adjust the stop screw so that it touches the back of the fence, and lock in position
with the lock nut.
3. Unlock the fence and move. Move the fence back to the 45 degree stop and lock
in position. Check that the fence is at 45 degrees. If the fence is not at 45 degrees,
readjust.
Adjusting the 90 degree stop
1. Adjust the fence to 90
degrees using a set square, and
lock in position.
2. Move the flip stop to the
position shown.
3. Adjust the stop screw so that
it touches the flip stop, and lock
in position with the lock nut.
4. Unlock the fence and move.
Move the fence back to the 90
degree stop and lock in position.
Check that the fence is at 90
degrees. If the fence is not at 90
degrees, readjust.
Maintenance
As with any machine, to ensure optimal performance you must conduct regular
maintenance.
Daily checks.
1. Clean the machine and lubricate unpainted surfaces with a Teflon lubricant. Wipe
off any excess and buff with a dry polishing cloth. This will reduce the likely hood of
rust forming and reduce the friction on the tables as the wood is machined.
2. Check cutter teeth for chips and dullness.
3. Generally inspect the machine for damage and loose or warn parts.
Weekly checks.
1. Clean the cutter head.
2. Check cutter teeth for chips and dullness.
3. Generally inspect the machine for damage and loose or warn parts.
4. Check the dust extraction for blockages and any large bits that could cause
blockages.
Monthly checks.
1. Check the motor drive belts for wear, splits and cuts.
Set square
