laguna REVO 18 User manual

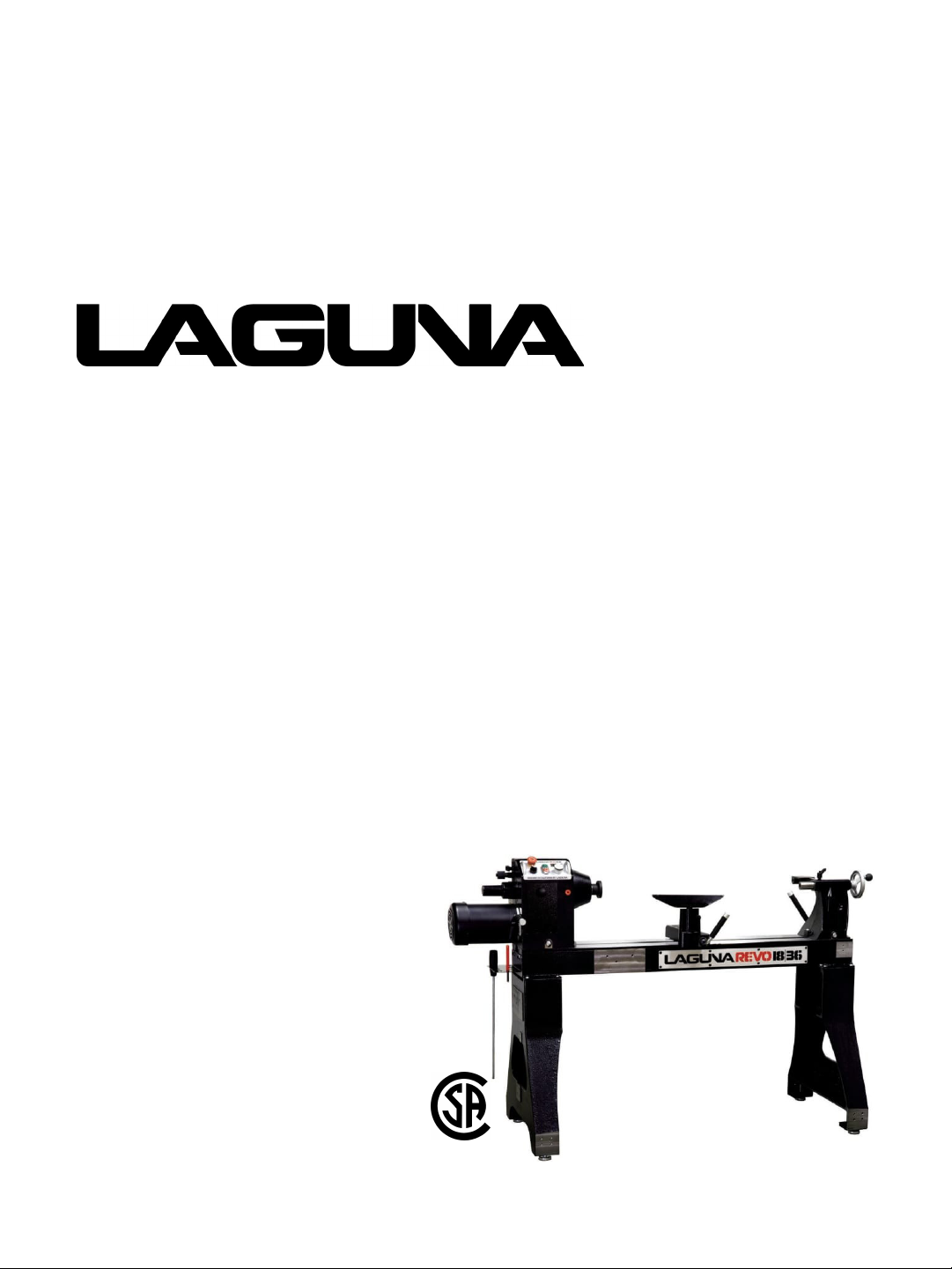

Revo 18|36 Lathe
Owner's Manual
MLAREVO 1836-110-150
MLAREVO 1836-220
2/19/2021
256540
PRECISION
WOODWORKING

Laguna takes pride in our products and stands behind them with continuing service and support for our
customers. Your Laguna machine was designed to bring a new dimension of productivity to your shop.
Before using your machine for the first time, learn how to use it. This manual covers a step-by-step process
of assembly and machine operation. If you have any questions, this manual will provide answers.
We do our best to thoroughly document every product that we sell for customer reference. Several files are
compiled to cover all components of a machine.
Several machines may be covered by one manual.
Many machines sold by Laguna include components with independent owners’ manuals.
The information contained in this publication was correct at the time of print. In the interest of continuous
innovation, we reserve the right to change specifications, design or included equipment without notice or
obligation. No part of this publication may be reproduced, transmitted, or translated into any language in any
form by any means without our written permission. Errors and omissions may be current.
Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc.
All rights reserved. 04/01/2019
LAGUNA AMERICAN HEADQUARTERS
Texas: 744 Refuge Way Suite 200, Grand Prairie, Texas 75050, U.S.A. Phone: +1-800-332-4094
Huntington Beach: 7291 Heil Ave Huntington Beach, CA 92647, U.S.A. Phone: +1-949-474-1200
South Carolina: 825 Bistline Dr. Ste 101, West Columbia, SC 29172, U.S.A. Phone: +1-800-234-1976
Minnesota: 5250 West 74th St, Edina, MN 55439, U.S.A Phone: +1-949-474-1200
lagunatools.com
supermaxtools.com
lagunacleanair.com
lagunalathe.com
LAGUNA EUROPE
Walker Rd, Bardon Hill, Coalville LE67 1TU, United Kingdom. Phone: +44-1530-516921
lagunatools.uk
DAKE CORPORATION
724 Robbins Road, Grand Haven, MI 49417, United States +1-800-937-3253
dakecorp.com

3Revo 18|36 Lathe
Table of Contents
Safety ................................................................................ 4
Electrical Saftey ........................................................... 10
Specifications .............................................................. 14
Machine Overview ....................................................... 15
Setup ............................................................................... 21
Videos ..................................................................... 21
Placement & Unboxing ....................................... 23
Inventory List ........................................................ 27
Assembling the Lathe ......................................... 29
Standard Accessories ........................................ 34
Adjustments .................................................................. 38
Maintenance ................................................................. 43
Troubleshooting ........................................................... 44
Wiring .............................................................................. 45
Replacement Parts Diagram ..................................... 46
Replacement Parts Table .......................................... 48
Warranty ......................................................................... 53

4Revo 18|36 Lathe \ Safety
Safety
Read and understand all warnings and operation instructions before using any tool or equipment. Always
follow basic safety precautions to reduce the risk of personal injury. Improper operation, maintenance or
modification of tools or equipment could result in serious injury and property damage. There are certain
applications for which tools and equipment are designed. This product should NOT be modified and/or
used for any application other than for which it was designed.
It is important for you to read and understand this manual. The information it contains relates to protecting
your safety and preventing problems.
Safety Call-outs An imminently hazardous situation which, if not avoided, will result in death or
serious injury. Sometimes displayed as
A potentially hazardous situation which, if not avoided, could result in death or
serious injury. Sometimes displayed as
A potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. Sometimes displayed as
A helpful tip from our technical staff. Sometimes displayed as NOTICE!
Safety Symbols
Disconnect from power before proceeding.
Wear ear protection.
Be aware of possible laceration danger.
Wear Eye Protection.
Be aware of possible crushing danger.
Wear a full face shield.
Be aware of possible crushing danger.
Wear lung protection.
Electrical Hazard.
..X
Requires X People

5Revo 18|36 Lathe \ Safety
Important Safety Instructions
Read and understand all warnings and operating instructions before using this equipment. Failure to follow
all instructions listed below, may result in electric shock, fire, and/or serious personal injury or property
damage.
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all
machinery, there are certain hazards involved with the operation of the product. Using the machine with
respect and caution will considerably lessen the possibility of personal injury. However, if normal safety
precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as
guards, push sticks, hold-downs, feather boards, goggles, dust masks and hearing protection can reduce
your potential for injury. But even the best guard won’t make up for poor judgment, carelessness or
inattention. Always use common sense and exercise caution in the workshop. If a procedure feels
dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal
safety is your responsibility.
This machine was designed for certain applications only. We strongly recommend that this machine not be
modified and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, do not use the machine until you have first contacted the
manufacturer to determine if it can or should be performed on the product.
If you have any questions relative to its application do not use the product until you have contacted the
manufacturer and we have advised you.
General Safety Rules
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE OPERATING
THE MACHINE. Learn the unit’s application and limitations as well as the specific hazards peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet locations or expose it to
rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe distance from work
area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any part that is
damaged.
Safety Rules: Wood Turning Lathe
"WARNING" For Your Own Safety Read Instruction Manual before Operating Lathe
a) Wear eye protection.
b) Do not wear gloves, a necktie, or loose clothing.
c) Tighten all locks before operating.
d) Rotate work piece by hand before applying power.

6Revo 18|36 Lathe \ Safety
e) Rough out work piece before installing on faceplate.
f) Do not mount split work piece or one containing a knot.
g) Use lowest speed when starting new work piece.
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
3. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
4. DON'T USE IN A DANGEROUS ENVIRONMENT. Don't use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should be kept at a safe distance from the work area.
6. MAKE YOUR WORKSHOP KID PROOF with padlocks, master switches, or by removing starter keys.
7. DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don't force tool or attachment to do a job for which it was not designed.
9. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table A
shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use
the next heavier gauge. The smaller the gauge number, the heavier the chord.
10. WEAR PROPER APPAREL Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry
which may get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering
to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use a face or dust mask if cutting operation is dusty. Everyday
eyeglasses only have impact resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold the work when practical. It's safer than using your hand
and it frees both hands to operate the tool.
13. DON'T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing and when changing accessories, such as blades, bits, cutters,
and the like.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure power switch is in the OFF position
before plugging the machine in.
17. USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended accessories. The
use of improper accessories may cause risk of injury to persons.
18. NEVER STAND ON TOOL Serious injury could occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should
be carefully checked to determine that it will operate properly and perform its intended function - check
for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.

7Revo 18|36 Lathe \ Safety
20. DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or
cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't leave tool until it comes to a
complete stop.
Règles de sécurité
"AVERTISSEMENT" : Pour votre sécurité, lire le manuel d'instru on a en vement avant d' liser le tour à bois.
a) Portez des lune es de protec
b) Ne pas porter de gants, de cravate, ou de vêtements amples.
c) Serrer tous les verrous avant d'opérer la machine.
d) Tourner la pièce à la main avant d'appliquer le courant.
e) Débiter grossièrement la pièce avant de l'installer sur le plateau de montage.
f) Ne pas monter une pièce fendue ou comportant un noeud.
g) U liser la vitesse la plus lente au démarrage d'une nouvelle pièce.
1. CONSERVEZ TOUS LES DISPOSITIFS DE PROTECTION EN PLACE et en bon état de fonc onnement.
2. ENLEVEZ LES CLÉS ET OUTILS. Prenez l'habitude de vérifier si les clés et autres ou ls ne sont pas trop
près de la machine avant de la démarrer.
3. CONSERVEZ LA SURFACE DE TRAVAIL PROPRE ET LIBRE D'ENTRAVES. Les endroits encombrés
augmentent le risque d'accident.
4. NE PAS UTILISER DANS LES ENVIRONNEMENTS DANGEREUX. N' lisez pas d'ou ls électriques dans les
endroits humides, détrempés, ou sous la pluie. Conservez l'espace de travail bien éclairé.
5. TENEZ LES ENFANTS À L'ÉCART. Tous les visiteurs doivent être tenus à une distance sécuritaire de
l'aire de travail.
6. RENDEZ L'ATELIER À L'ÉPREUVE DES ENFANTS avec des verrous, des interrupteurs principaux ou en
enlevant les clés de démarrage sur les
7. NE FORCEZ PAS L'OUTIL. L'ou l effectuera un meilleur travail et de façon sécuritaire s'il est u lisé au
rythme pour lequel il a été conçu.
8. UTILISEZ L'OUTIL APPROPRIÉ. Ne forcez pas un ou l ou un accessoire pour effectuer un travail pour
lequel il n'a pas été conçu.
9. UTILISEZ UNE RALLONGE ÉLECTRIQUE APPROPRIÉE. Assurez-vous que votre rallonge électrique est en
bon état et que le calibre du filage soit adéquat pour transporter le courant que la machine a besoin. Une
rallonge de trop faible calibre induira une perte d'intensité du voltage, ce qui provoquera une surchauffe
et une perte de puissance. Le tableau A indique le bon calibre à u liser en fonc on de la longueur de la
rallonge et de la demande en intensité du moteur. En cas de doute, u lisez la rallonge de calibre plus fort.
Plus le numéro est pe t, plus la rallonge est de fort calibre.
10. PORTEZ DES VÊTEMENTS APPROPRIÉS. Ne portez pas de vêtements amples, des gants, des colliers,
des bracelets, ou tout autre bijou ou accessoire qui pourrait être entraîné par des pièces mobiles. Des
souliers à semelle an dérapante sont également recommandés. achez les cheveux longs et portez un
bonnet pour contenir la chevelure trop abondante.
11. PORTEZ DES LUNETTES DE PROTECTION. Portez également un masque contre la poussière si le travail
exécuté dégage de la poussière. Veuillez prendre note que les lune es de prescrip ordinaire ne résistent
pas aux impacts et qu'elles ne sont pas homologuées à re de lune es de sécurité.

8Revo 18|36 Lathe \ Safety
12. IMMOBILISEZ VOTRE TRAVAIL. lisez des serres ou un étau pour immobiliser votre travail lorsque c'est
possible. C'est plus sécuritaire que d'u liser votre main, et ça permet de libérer vos deux mains pour
opérer l confortablement.
13. NE VOUS ÉTIREZ PAS AU-DESSUS DE LA MACHINE. Demeurez solidement en équilibre sur vos pieds en
tout temps.
14. ENTRETENEZ LES OUTILS AVEC SOIN. Gardez les ls de coupe tranchants et propres pour en rer les
meilleures performances. Suivez les ins du fabricant pour la lubrifica on et l'entr en des accessoires.
15. DÉBRANCHEZ LES OUTILS avant d'en effectuer l'entr en ou lors du changement d'accessoires tels que
lames ou couteaux.
16. RÉDUISEZ LES RISQUES DE DÉMARRAGE NON INTENTIONNEL. Assurez-vous que l'interrupteur est en
posi on fermée avant le branchement d'un ou l.
17. UTILISEZ LES ACCESSOIRES RECOMMANDÉS. Consultez le manuel d'instru pour connaître les
accessoires recommandés. L'u lisa on d'accessoires inappropriés pose des risques de blessures aux
lisateurs.
18. NE VOUS TENEZ JAMAIS DEBOUT SUR UNE MACHINE. Des blessures graves pourraient survenir si la
machine bascule ou si les ls coupants sont touchés accidentellement.
19. VÉRIFIEZ LES PIÈCES ENDOMMAGÉES. Avant de poursuivre l'u lisa on d'un l, tout disposi f de prot ou
toute pièce endommagée devra être inspecté pour déterminer si elle peut fonc onner correctement et
selon l'u lisa on qui en est prévue. Vérifiez l'alignement des pièces mobiles à savoir s'il y a blocage, un
bris, ou toute autre co on qui nuirait à son lisa on. Une pièce ou un protecteur endommagé doit être
réparé ou remplacé.
20. SENS D'ALIMENTATION. Alimentez la pièce vers la lame ou le couteau dans le sens contraire de sa rota
on seulement.
21. NE LAISSEZ JAMAIS UN OUTIL FONCTIONNER DANS SURVEILLANCE – ÉTEIGNEZ L'OUTIL. Ne laissez
pas l'ou l sans surveillance jusqu'à ce qu'il s'arrête complètement.

9Revo 18|36 Lathe \ Safety

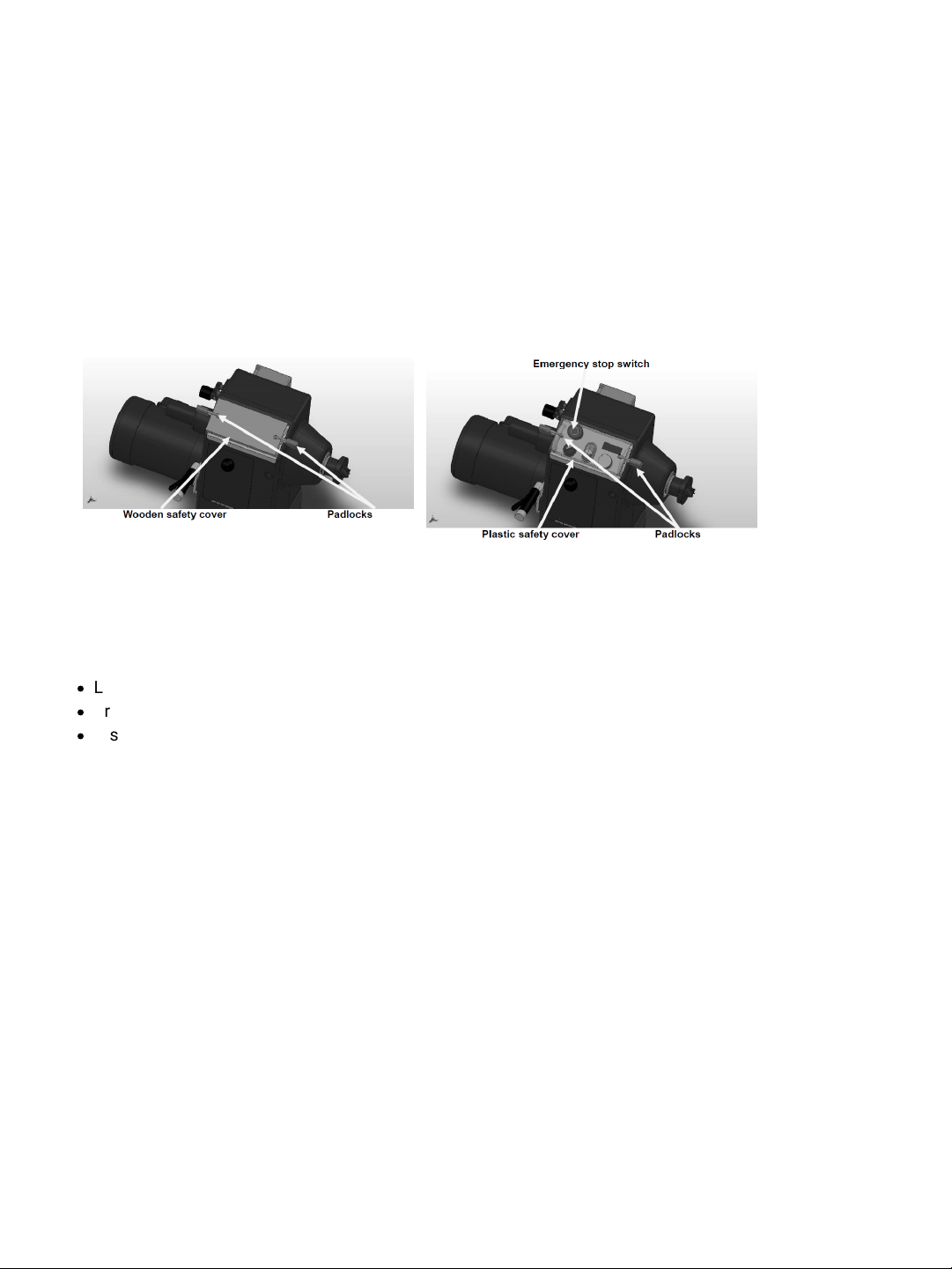

Locking the Lathe
It is strongly recommended that the lathe is never be left unattended in the unlocked condition.
To lock the machine it is recommended that a cover (not supplied) is made to lock the control panel. We
have supplied two concepts for locking the panel (see below). The cover can be made from wood or
plastic.
First, push down the emergency stop. Then lock the cover together by putting padlocks [not included] on the
two handles on the control panel. To safeguard your machine from unauthorized operation and accidental
starting by young children, the use of padlocks is strongly recommended.
Proposition 65 Warning of Harmful Exposure
Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
·
Lead from lead-based paint.
·
Crystalline silica from bricks, cement, and other masonry products.
·
Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals, work in a well-ventilated area and work with approved safety equipment, such as face or
dust masks that are specifically designed to filter out microscopic particles.
Notes Concerning Noise Emission
Given that there exists a relationship between noise level and exposure times, it is not possible to precisely
determine the need for supplementary precautions. The factors affecting the true level of exposure to
operators are clearly the amount of time exposed and the characteristics of the working environment, such
as other sources of dust and noise, etc.,
for example, adjacent machines - in other words, the level of ambient noise. It is possible that exposure
level limits will vary from country to country.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.

10 Revo 18|36 Lathe \ Electrical Saftey
Electrical Saftey
Power Connections
A separate electrical circuit should be used for each machine. This circuit should not be less than the
wiring listed below and should be protected with an appropriate circuit breaker based on the total running
and start-up amperage's (listed below). If an extension cord is used, use only 3-wire extension cords
which have 3-prong grounding type plugs and matching receptacle which will accept the machine’s plug.
Running on a different voltage than stated below will damage the machine. Never run the
machine in wet or damp conditions.
MLAREVO 1836-110-150
VOLTAGE
115V
PHASE
1Ph
HERTZ
60Hz
FULL LOAD AMPERAGE
See Motor Plate
Below are RECOMMENDATIONS to be used for this machine based on the above
information. Variables outside of our control are:
·
Actual voltage supplied to the machine
·
Electrical code that must be met in your local province.
An electrician will verify that all the demands are met to properly wire the machine. If you have
absolutely any doubt when wiring this machine - please consult with a qualified electrician.
PLUG/RECEPTACLE
5-15
WIRING (Gauge)
14 Ga.
CIRCUIT BREAKER
15A
MLAREVO 1836-220
VOLTAGE
230V
PHASE
1PH
HERTZ
60Hz
FULL LOAD AMPERAGE
See Motor Plate
Below are RECOMMENDATIONS to be used for this machine based on the above
information. Variables outside of our control are:
·
Actual voltage supplied to the machine
·
Electrical code that must be met in your local province.
An electrician will verify that all the demands are met to properly wire the machine. If you have
absolutely any doubt when wiring this machine - please consult with a qualified electrician.
PLUG/RECEPTACLE
6-15
WIRING (Gauge)
14 Ga.
CIRCUIT BREAKER
15A

11Revo 18|36 Lathe \ Electrical Saftey
If this information is different than what is stated on the Motor Specification Plate - omit this information. It
is possible that the documentation is outdated to a machine change - such as a different motor. Always
check the motor plate prior to any wiring. If any doubts, please consult a certified electrician.
Know when to use a time delay fuse! AKA Slow blow fuse. Generally, if the motor uses a start capacitor, a
time delay fuse is required. This type of fuse (circuit breaker) will not trip with the initial amperage needed
to start the machine, which is typically double that of the running amperage. Most woodworking machines
use this type of fuse.
Grounding Methods
This machine must be grounded while in use to protect the operator from
electric shock. In all cases, make certain that the receptacle in question is
properly grounded. If you are not sure, have a qualified electrician check the receptacle.
Grounding Methods Provided by CSA Group. (A) Receptacle with nominal rating less than
150 volts. (B) 150 volt receptacle without grounding pin fitted with adapter. (C) 150-250 volt
receptacle.
Fig C
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-

12 Revo 18|36 Lathe \ Electrical Saftey
grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor with insulation having an outer surface that is green with or without yellow stripes is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding plugs and 3 pole receptacles that accept the
tool's plug.
Repair or replace damaged or worn cord immediately.
2. Grounded, cord-connected machines intended for use on a supply circuit having a
nominal rating less than 150 volts:
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. A. The
tool has a grounding plug that looks like the plug illustrated in Fig A. A temporary adapter, which looks like
the adapter illustrated in Fig B may be used to connect this plug to a 2 pole receptacle as shown in Fig B if a
properly grounded outlet is not available. The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician. This adapter is not permitted in Canada. The
green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent
ground such as a properly grounded outlet box.
3. Grounded, cord-connected tools intended for use on a supply circuit having a
nominal rating between 150 – 250 volts, inclusive:
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig C. The tool
has a grounding plug that looks like the plug illustrated in Fig C. Make sure the tool is connected to an outlet
having the same configuration as the plug. No adapter is available or should be used with this tool. If the
tool must be reconnected for use on a different type of electric circuit, the reconnection should be made by
qualified service personnel; and after reconnection, the tool should comply with all local codes and
ordinances.

13Revo 18|36 Lathe \ Electrical Saftey
Extension Cords
Use proper extension cords. Make sure your extension cord is in good condition and is a 3-
wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the
machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. If
in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
MINIMUM GAUGE EXTENSION CORD 120V
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere
Rating
Volts
Total Length of
Cord in Feet
Gauge of Extension Cord
0-6
0-6
0-6
0-6
120
120
120
120
up to 25
25-50
50-100
100-150
18 AWG
16 AWG
16 AWG
14 AWG
6-10
6-10
6-10
6-10
120
120
120
120
up to 25
25-50
50-100
100-150
18 AWG
16 AWG
14 AWG
12 AWG
10-12
10-12
10-12
10-12
120
120
120
120
up to 25
25-50
50-100
100-150
16 AWG
16 AWG
14 AWG
12 AWG
12-16
12-16
12-16
120
120
120
up to 25
25-50
14 AWG
12 AWG
GREATER THAN 50 FEET NOT RECOMMENDED
MINIMUM GAUGE EXTENSION CORD 240V
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere
Rating
Volts
Total Length of
Cord in Feet
Gauge of Extension Cord
0-6
0-6
0-6
0-6
240
240
240
240
up to 50
50-100
100-200
200-300
18 AWG
16 AWG
16 AWG
14 AWG
6-10
6-10
6-10
6-10
240
240
240
240
up to 50
50-100
100-200
200-300
18 AWG
16 AWG
14 AWG
12 AWG
10-12
10-12
10-12
10-12
240
240
240
240
up to 50
50-100
100-200
200-300
16 AWG
16 AWG
14 AWG
12 AWG
12-16
12-16
12-16
240
240
240
up to 50
50-100
14 AWG
12 AWG
GREATER THAN 100 FEET NOT RECOMMENDED

14 Revo 18|36 Lathe \ Specifications
Specifications
MLAREVO 1836-220
MLAREVO 1836-110-150
Motor
Induction,1725RPM, 2 HP 220V
Induction,1725RPM, 1.5 HP 110V
Voltage
220v 60hz single phase input, 3 phase
output
110v 60hz single phase input 3 phase
output
Recommended breaker
size
15 amp
15 amp
Swing over bed
18" (457mm)
18" (457mm)
Swing over banjo
13.5" (343mm)
13.5" (343mm)
Outboard swing max
32" (813mm)
32" (813mm)
Distance between centers
36" (914mm)
36" (914mm)
Floor to spindle
center
41.5"(1054mm)
41.5"(1054mm)
Floor to bed height
32.5" with pads (826mm)
32.5" with pads (826mm)
Floor space
W60" D26" H47"(1524mm,
660mm, 1194mm)
W60" D26" H47"(1524mm,
660mm, 1194mm)
Tool rest
12" (305mm)
12" (305mm)
Speed range high
135 - 3500 RPM
135 - 3500 RPM
Speed range low
50 - 1300 RPM
50 - 1300 RPM
VFD
DeltaS1 variable frequency drive
DeltaS1 variable frequency drive
Drive belt
Poly-groove drive belt with
easy access
Poly-groove drive belt with
easy access
Spindle
1.25" x 8 tpi right hand thread
1.25" x 8 tpi right hand thread
Spindle taper
MT 2
MT 2
Spindle lock
Spring loaded
Spring loaded
Spindle index
14 / 36 / 48 positions with lock
14 / 36 / 48 positions with lock
Headstock &
tailstock bore
0.375" dia (9.5mm dia)
0.375" dia (9.5mm dia)
Tail stock travel
4.5" (114mm)
4.5" (114mm)
Tail stock removal
Self- ejecting
Self- ejecting
Tailstock tapers
MT 2
MT 2
Face plate
3" diameter (76mm)
3" diameter (76mm)
Bed material
Steel
Steel
Weight (Net / ship)
427/452 lbs (194kg / 206 kg)
425/450 lbs(193/205 kg)

15Revo 18|36 Lathe \ Machine Overview

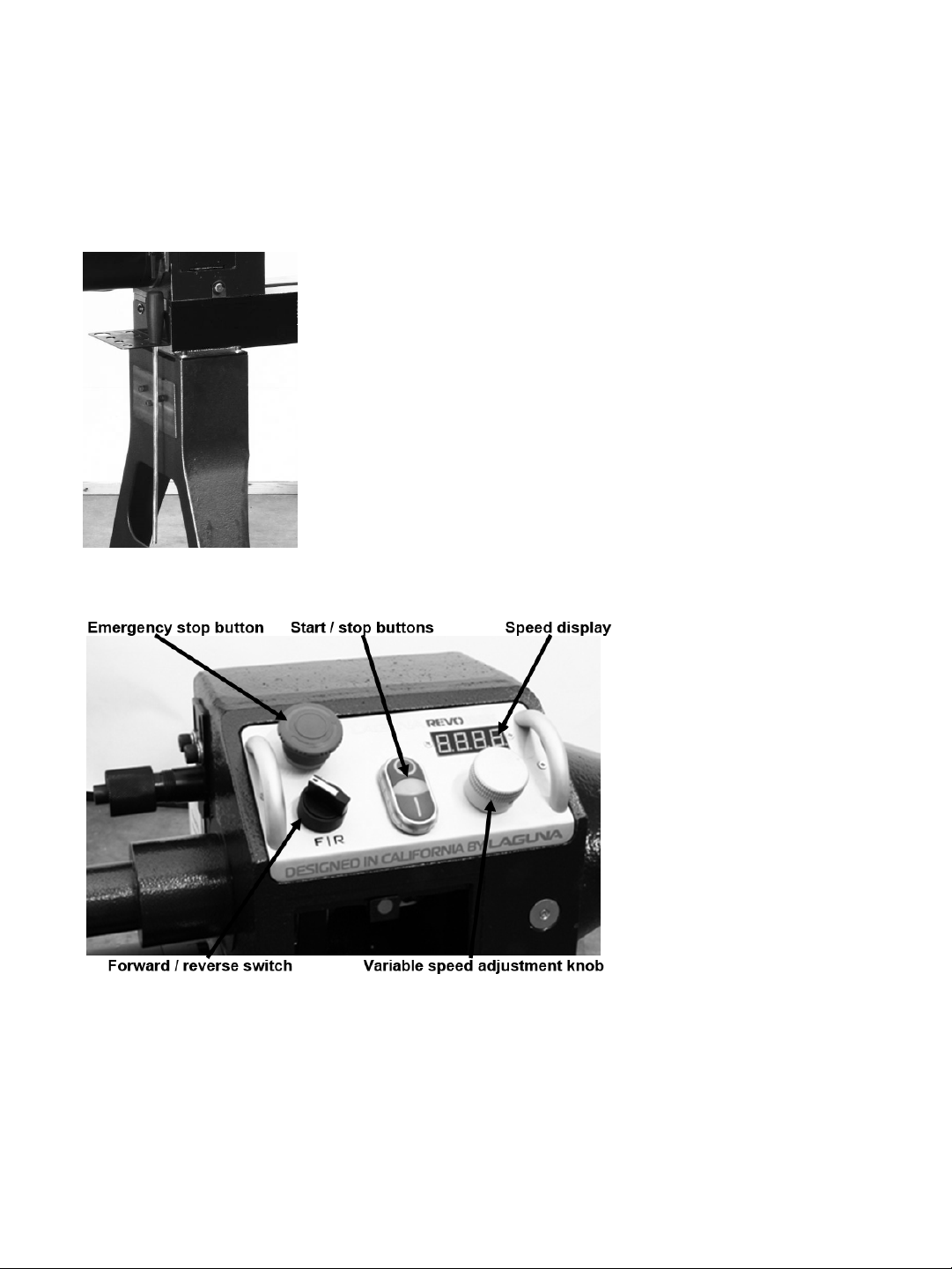

Machine Overview
Revo 18|36 Lathe
This machine is designed to give you years of safe service. Read this owner's manual in its entirety before
assembly or use.
The lathe consists of a number of major parts, which are discussed in this manual. Take the time to read
this section and become familiar with the machine.
Parts of the Lathe
Identification Plaques
The identification plaques (name plate) is located on the reverse side of the bed.

16 Revo 18|36 Lathe \ Machine Overview
Lathe Bed
The bed is a machined heavy steel welded construction.
Lathe Legs
The Legs are cast iron, and their heavy construction gives the machine a low center of gravity and ensures
that it is very stable. The legs are supplied with adjustable feet to allow the machine to be leveled.
Head Stock
The head stock is cast iron and houses the variable speed control and motor. The Spindle can be locked in
14 / 36 and 48 positions.

17Revo 18|36 Lathe \ Machine Overview
Tail Stock
The tail stock is of cast iron construction, and the spindle has a travel of 4 1/2 in. It can accommodate
centers and other tools which have a number 2 Morse Taper. The tail stock can be moved to any position on
the lathe bed and locked to suit the job at hand.
NOTICE! Lathes with machine serial number 20074159 and later will come with the new center to center
adjustable function called "precise position" built into the tail stock. This allows fine adjustments to the
spindle centers.

18 Revo 18|36 Lathe \ Machine Overview
Tool Rest
The tool rest can be moved to any position on the lathe bed and locked to suit the job at hand. The tool rest
has a tall profile to allow the bowl turner to turn steep angles. The leading edge is made from 6mm
hardened steel.
Tool rest assembled to the bed
Tool rest
Electrical System
220V: The electrical control system (VFD) is housed at the back of the head stock, The VFD converts single
phase 220v to three phase. There is a speed readout at the front of the lathe with controls to fine adjust the
RPM of the spindle. . A power cord with 220V plug is provided.
110V: The electrical control system (VFD) is housed at the back of the head stock, The VFD converts single
phase 110v to three phase. There is a speed readout at the front of the lathe with controls to fine adjust the
RPM of the spindle. A power cord with 110V plug is provided.
VFD with cover open
Power cord

19Revo 18|36 Lathe \ Machine Overview
Tool Storage
A tool storage bracket which can be mounted on either leg.
Left of Bed Storage
Lathe Controls
Emergency stop button
The emergency stop button will lock in the OFF position when fully depressed. To reset it, twist clockwise
and it will pop out.
Forward / reverse switch.
The forward / reverse switch selects the direction of the rotation of the spindle.
The forward / reverse switch must only be used once the spindle has come to a complete stop.

20 Revo 18|36 Lathe \ Machine Overview
Start / Stop buttons.
The start / stop buttons start the motor and the rotation of the spindle.
Speed display.
The speed display shows the RPM of the spindle.
Variable speed adjustment knob.
The Variable speed adjustment knob adjusts the spindle speed.
Turns clockwise to increase the speed, turns counter-clockwise to decrease the speed
Other manuals for REVO 18
