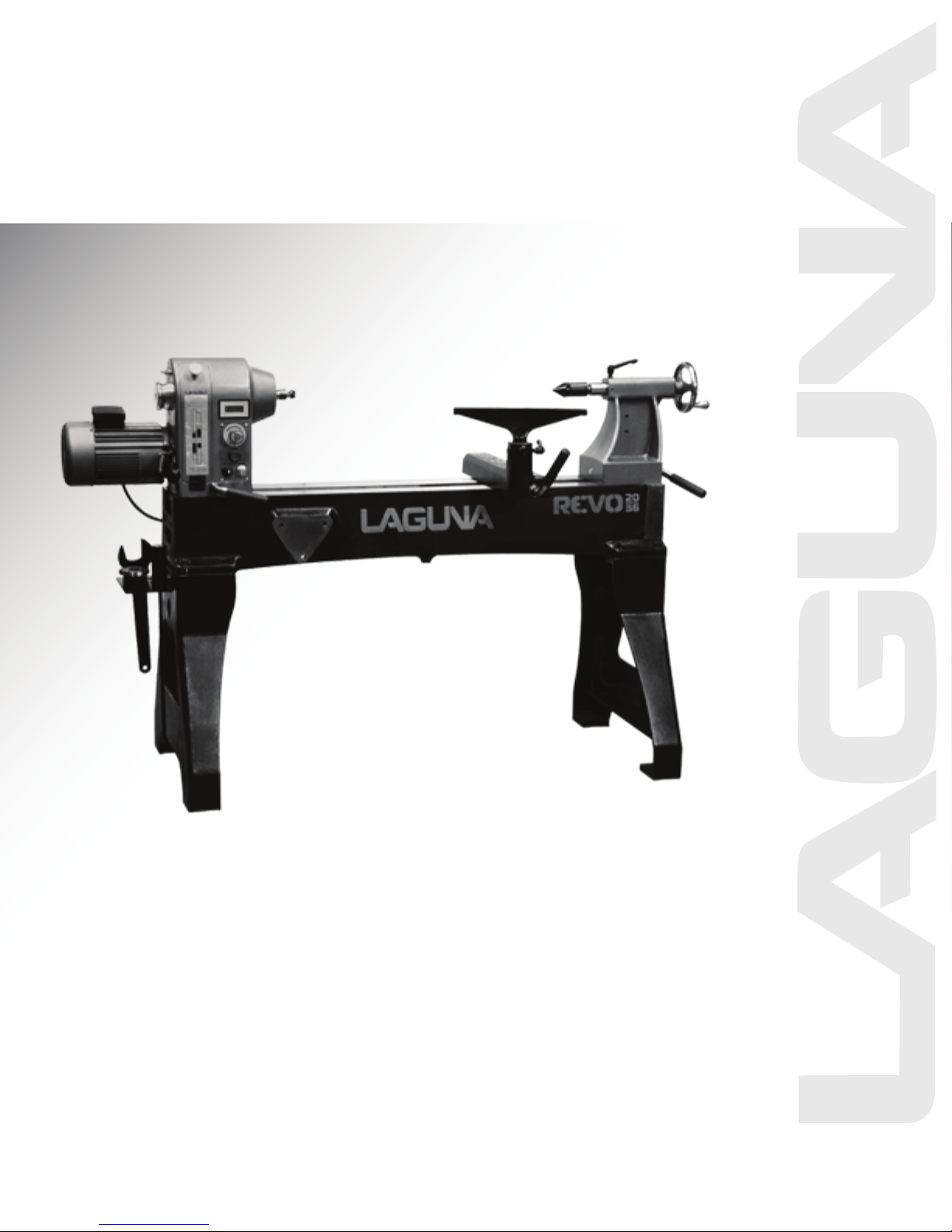

laguna Revo 2036 User manual

Revo 20|36 & 24|36
Lathe Manual
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com
Model Numbers: MLA Revo 20-0180
MLA Revo 24-0180
© 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

4
Safety Rules
As with all machinery there are certain hazards involved with the operation
and use. Using it with caution will considerably lessen the possibility of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator may result. If you have any
questions relative to the installation and operation, do not use the
equipment until you have contacted your supplying distributor.
Read carefully before operating the machine.
1. Keep the working area clean and be sure adequate lighting is
available.
2. Do not wear loose clothing, gloves, bracelets, necklaces or
ornaments. Wear face, eye, respiratory and body protection devices
as indicated for the operation or environment.
3. Be sure that the power is disconnected from the machine before
tools are serviced or an attachment is to be fitted or removed.
4. Never leave the machine with the power on.
5. Do not use dull, gummy or cracked cutting tools.
6. Be sure that the keys and adjusting wrenches have been removed
and all the nuts and bolts are secured.

Limited Warranty
New machines and accessories sold by Laguna Tools carry a one-year warranty
effective from the date of shipping. Machines sold through dealers must be registered
with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna
Tools guarantees all new machines and accessories sold to be free of manufacturers’
defective workmanship, parts and materials. We will repair or replace, without charge,
any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. We require
that the defective item/part be returned to Laguna Tools with the complaint. Any
machines returned to Laguna Tools must be returned with packaging in the same
manner in which it was received. If a part or blade is being returned it must have
adequate packaging to ensure no damage is received during shipping. In the event the
item/part is determined to be damaged due to lack of maintenance, cleaning or
misuse/abuse, the customer will be responsible for the cost to replace the item/part,
plus all related shipping charges. This limited warranty does not apply to natural
disasters, acts of terrorism, normal wear and tear, product failure due to lack of
maintenance or cleaning, damage caused by accident, neglect, lack of or inadequate
dust collection, misuse/abuse or damage caused where repair or alterations have been
made or attempted by others.
Laguna Tools, Inc. is not responsible for additional tools or modifications sold or
performed (other than from/by Laguna Tools, Inc.) on any Laguna Tools, Inc.
machine. Warranty maybe voided upon the addition of such described tools and/or
modifications, determined on a case-by-case basis.
Software purchased through Laguna Tools Inc. is not covered under this warranty
and all technical support must be managed through the software provider. Software is
non-refundable.
Normal user alignment, adjustment, tuning and machine settings are not covered by
this warranty. It is the responsibility of the user to understand basic machinery
operation, settings and procedures and to properly maintain the equipment in
accordance with the standards provided by the manufacturer.
Parts, under warranty, are shipped at Laguna Tools, Inc.’s cost either by common
carrier, FEDEX ground service or a similar method. Technical support to install
replacement parts is primarily provided by phone, fax, e-mail or Laguna Tools
Customer Support Website. The labor required to install replacement parts is the
responsibility of the user.
Laguna Tools is not responsible for damage or loss caused by a freight company or
other circumstances not in our control. All claims for loss or damaged goods must be
notified to Laguna Tools within twenty-four hours of delivery. Please contact our
Customer Service Department for more information.
Only new machines sold to the original owner are covered by this warranty.
For warranty repair information, call 1-800-332-4094.

INTRODUCTION TO THE LATHE
Turbo lathes are designed and built to satisfy the most imaginative fantasies of
woodworkers. With outstanding new features, energetic performances and so many user-
friendly considerations, Turbo lathes simply turn turning jobs an unprecedented
experience.
Featuring
High grade cast iron structure for headstock, beds and stands to secure maximum
stability
All beds are precisely ground to mirror like surface for smooth operations
Driven by advanced Servo DC brushless motor with variable speeds 50-3500 RPM
Digital wide angle speed readout with blue backlight
Extraordinarily high torque at low speeds for easy working on large workpiece
Oversized alloy spindle supported by three precision bearings
Easy belt changing without taking off spindle
Sliding headstock for easy outboard turning
Unique “Swing-away” Extension Bed System (SEB) for easy tailstock storage
(standard for T-60, optional for T-50)
Heavy duty banjo with easy maneuver and secure locking
Cast steel chrome trimmed tool rest
End mounts for extension bed for longer center distance
Side mounts of extension bed for back turning
Lower end mounts of extension bed for outboard turning set up
Extension bed mounts on both ends of bed
Built-in spindle lock and index

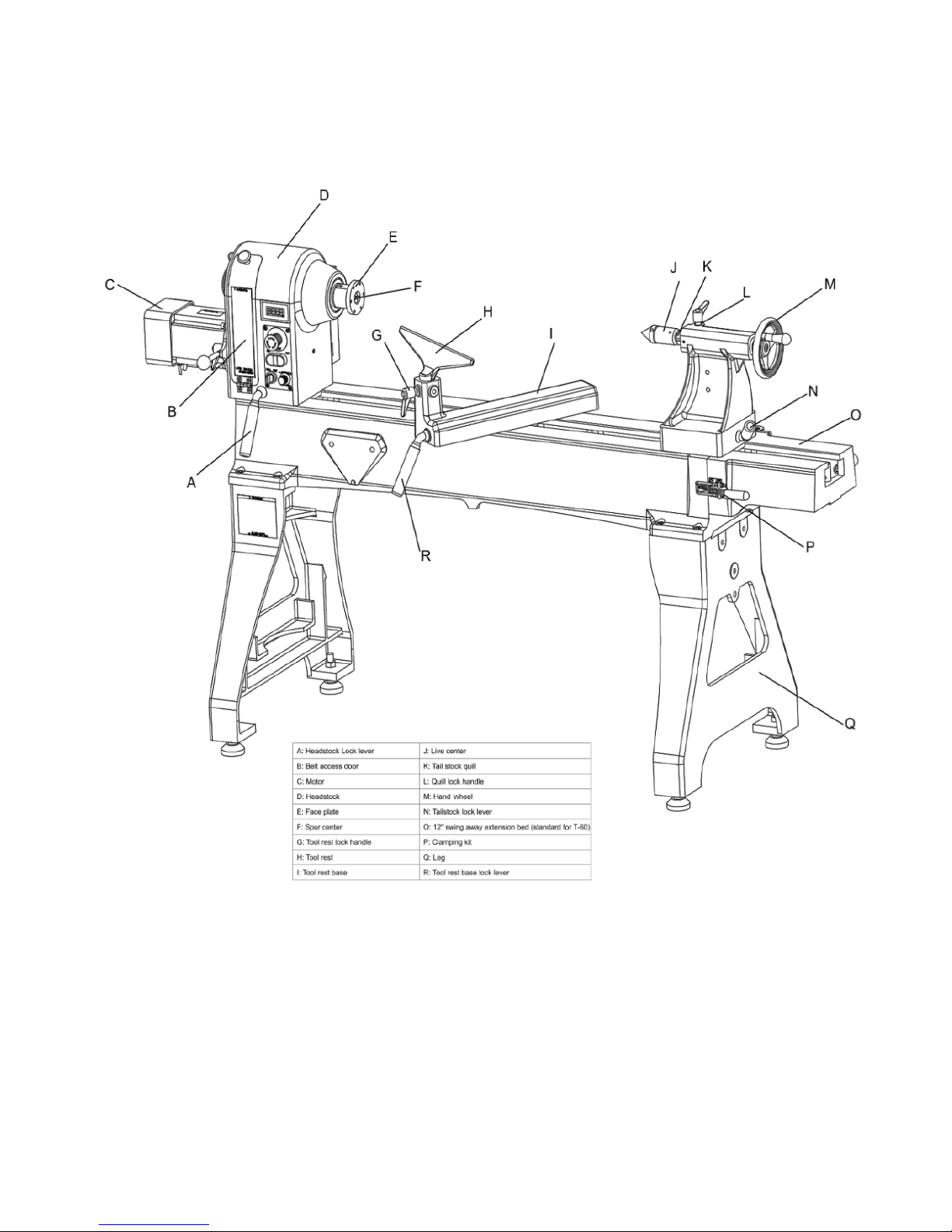

Identifications

Specifications
Models
T-50
T-60
Operation Information
Swing Over Bed
20”
24”
Dist. Between Centers
36”
48”
Swing Over Tool Rest Base
16”
20”
Spindle Speeds: H
200-3500rpm (Variable)
200-3500rpm (Variable)
L
50-820rpm （Variable）
50-820rpm (Variable)
Floor to Spindle Center
Height
44”
44”
Headstock Travel
Full Length
Full Length
Max. Outboard Turning
Swing
32”
34”
Spindle
Spindle Taper
MT#2
MT#2
Spindle Size
1-1/4 x 8(RH) TPI
1-1/4 x 8(RH) TPI
Spindle Bore
5/8”
5/8”
Spindle Index#
48
48
Spindle Bearing
2x6209 Front, 1x6208 Rear
2x6209 Front, 1x6208 Rear
Tailstock
Tailstock Taper
MT#2
MT#2
Hole through Tailstock
3/8”
3/8”
Tailstock Quill Travel
4-1/2”
4-1/2”
Swing away
Optional
Standard
Accessories
Tool Rest Width
14”
14”
Face Plate
3”
3”
Swing away Bed Length
12”
12”
Spur Center
MT#2
MT#2
Live Center
MT#2
MT#2
Extension Bed
20”
20”
Electrical and Motor information
Motor Type
DC Brushless
DC Brushless
Motor Power
2HP
3HP
Speed
0-3500rpm
0-3500rpm
Switch
On/Off w/contactor, Variable
Speed Dial
On/Off w/contactor, Variable
Speed Dial
Power requirement
230V/single phase
230V/single phase
Standard accessories:
Spur Center
Live Center
Face Plate
Knockout Rod
Tool Kits
Optional accessories:
12” Extension bed with swing away system （standard for T60）
20” Extension bed
2nd lathe bed
Tool rest riser bushing for outboard turning
Chisel storage pan
Spindle shield
Comparator kits
Mobility kits

POWER SUPPLY
Warning: For your own safty and protection of property, consult an electrician if you are
unsure about wiring practices or electrical codes in your area.
Caution: If the plug does not fit the available receptacle, or the machine must be
reconnected for use on a different type of circuit, or use an extension cord with this
machine, the reconnection must be made by a qualified electrician and comply with all
local codes and ordinances.
Nominal Voltage-----------220V/240V
Cycle--------------------------50/60Hz
Phase-------------------------Single-Phase
Power Supply Circuit----- 15Amps (T-50), 20Amps (T-60)
ASSEMBLY & SETUP
Location of the lathe
A level concrete floor is the best location for the lathe. The lathe should be located in a dry
area. Keep electrical box and motor away from direct sun shine. Plenty of space around
the lathe is good for operations and maintenances.
Unpacking
Report any damage to your shipping agent or dealer immediately as soon as check for
shipping damage.
Check the shipping crate with the following parts list to make sure all parts are intact. If
there is any missing parts please report to your dealer. Read this manual thoroughly for
assembly, maintenance, operation and safety instructions.

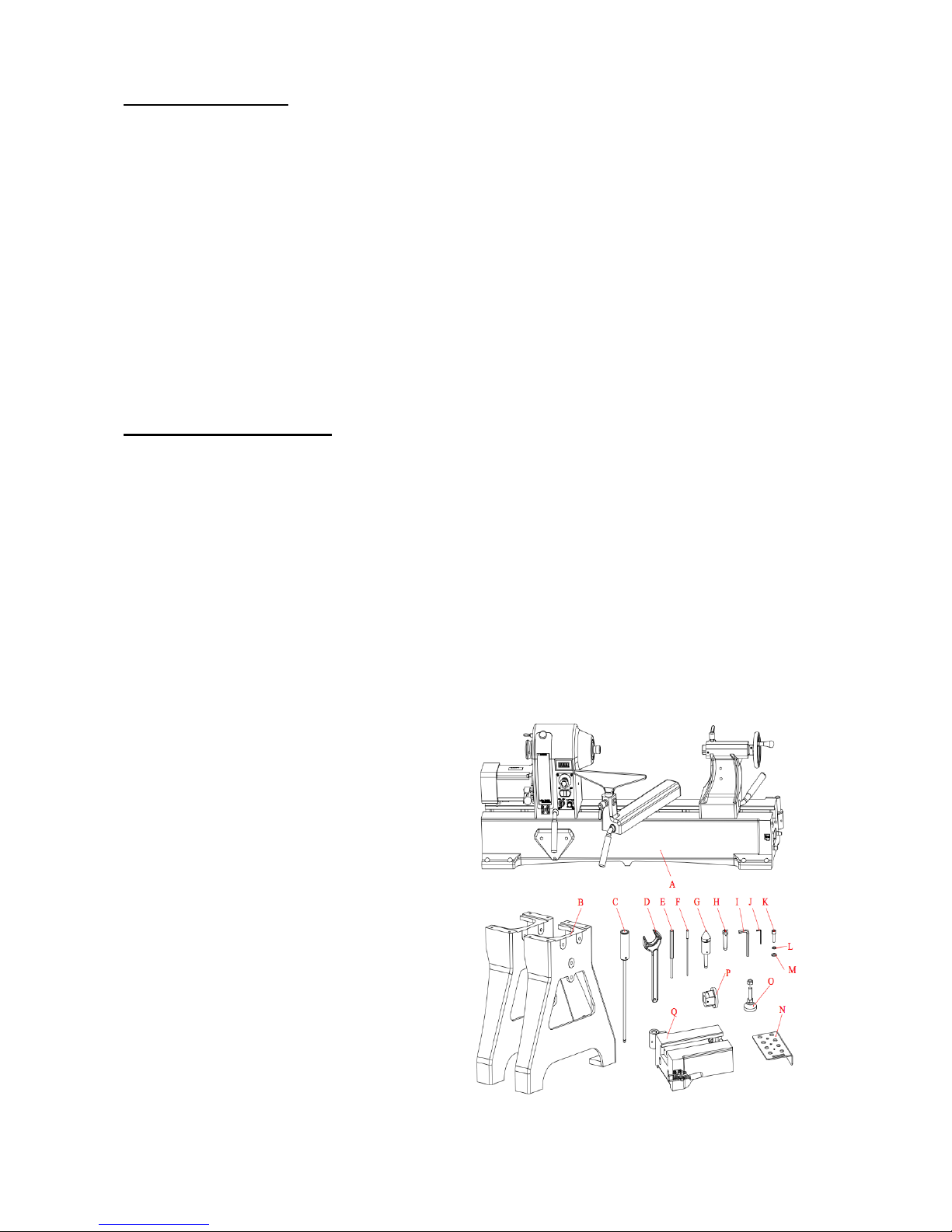

Contents of the Shipping Crate(Fig.1)
A, Lathe bed with Headstock,
Tailstock, Tool Rest Base (Banjo),
Tool Rest
B, Leg Assemblies x 2
C, Knockout rod x 1
D, Face plate wrench x 1
E: Spindle lock rod x 1
F: Live center pin x 1
G: Live center x 1
H: Spur center x 1
I: 12mm alan wrench x 1
J, 3mm alan wrench
K,12mm bolt x 6
L, 12mm spring washer x 6
M, 12mm flat washer x 2
N, Tool storage bracket x 1
O, Foot x 4
P, Operation Manual
Fig. 1

Assembling Instruction
Warning: The lathe must be disconnected from power source during assembly.
Legs Installation (Fig. 2)
1, Life the lathe off the pallet by using a hoist or forklift. Place it on a table or workbench
with sufficient clearance to allow the support legs to be attached from underneath.
2, Attach the legs to the bed by using 12mm hex head bolts A with washer B. Firmly
tighten the bolts.
3, After firmly securing the legs to the lathe, carefully lower the lathe onto the floor.
4, Adjust the leveling feet to ensure all four feet sit firmly on the floor. Make sure that the
lathe does not rock.
Fig. 2
Tool Storage Bracket (Fig. 3)
The tool storage bracket D can be mounted to the left end of the lathe. Use two 12mm
head cap screws A with flat C and spring washers B to secure it to the lathe.
Fig. 4
Fig. 3

Comparator Brackets (Optional)
See Fig.4, mount the front comparator bracket C to the back of the headstock with two
12mm socket head cap screws. This bracket can be also used for spindle shield guard
mounts.
Rear comparator bracket should be mounted to the back of the tailstock. The bracket has
a slot so it can be aligned with the front comparator bracket. Use two 12mm head cap
screws to secure rear comparator bracket to the tailstock
Spindle Shield (Optional) - Fig. 5
1, Lift up the spring pin B and insert the support rod A into the bracket hole. Release the
spring pin, slide the rod and you will feel the spring pin snap onto position.
2, Install the outer collar C and tighten the set screw D.
Fig. 5 Fig.6
20” Extension Bed (Optional)
An optional 20” extension bed can be mounted on the lathe in three locations:
Fig. 7 Fig.8

A: Right end of bed: for up to 56” center distanc (Fig. 6).
B: Right leg: for outboard turning (Fig.7)
C:Front bed: for convenience operation (Fig.8)
12” Swing away Extension Bed (Standard for T-60, Optional for T-50)
12” swing away bed is standard for T60 lathe (pre-installed before delivery).
If you purchase the Swing Away Bed System as optional accessory, please follow the
instructions as below:
Fig. 9 Fig. 10
Fig. 11 Fig. 12

1, With an assistant, attach the extension bed to lathe bed right end with two head cap
bolts B. Slightly tighten the bolts. These two bolts must be taken off as soon as swing
away system assembly is completed (Fig.9)
2, Adjust the extension bed flush to the lathe bed. Make sure inside ways and surfaces are
aligned.
3, Slide the tailstock back to the position as show in figure. X=30mm or 1-1/2” (Fig. 10)
4, Rotate the lock handle until the tailstock locked firmly. Now the extension bed is well
aligned with lathe bed (Fig. 11)
5, Put the two eccentric pivot pins in lathe bed, turn the pins until it slightly touch extension
bed bottom. Secure pivot pins with nuts D (Fig.9)
6, Mount the hinge between lathe bed and extension bed with head cap screws, spring
washers and flat washer (Fig.11). Do not tighten head cap screws at this moment. Use
alan wrench to tun the set screws until it hit beds. Then firmly tighten bolts.
7.,Mount clamping device on both lathe and extension bed as shown on Fig.12.
Operation of Lathe
Control Panel Information (Fig. 13)
Fig. 13
A, Spindle speed readout: Indicates the
spindle speed in RPM.
B, On/Off Switch: Turns lathe ON and OFF
NOTE: If a sudden power failure occurs,
the spindle will not re-start automatically
when the power is restored to the machine.
Push the off button C to reset the switch,
and then press the on button D to restart
the lathe.
C, Spindle direction switch: Toggles the
spindle direction between forward or
reverse.
Forward: Spindle rotates towards you;
Reverse: Spindle rotates away from you;
D, Speed control knob: Adjust the spindle
speed within the range.

Change Over of low-high speed ranges
This lathe is designed with two speed ranges (Low/High speed range) , within each range,
speed can be changed variablly by an electronic variable speed controller. To change the
spindle speed range, please follow instructions as below (Fig 14):

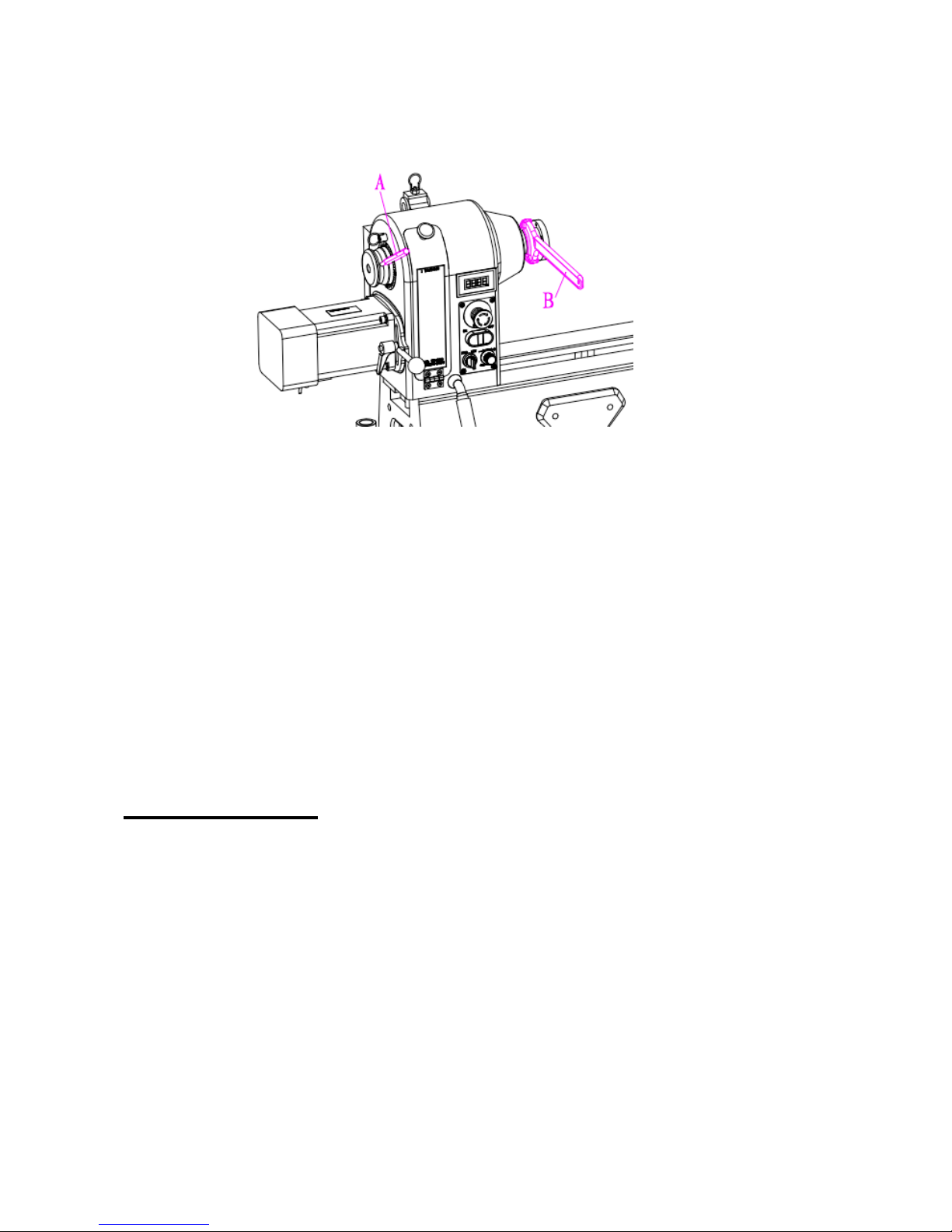

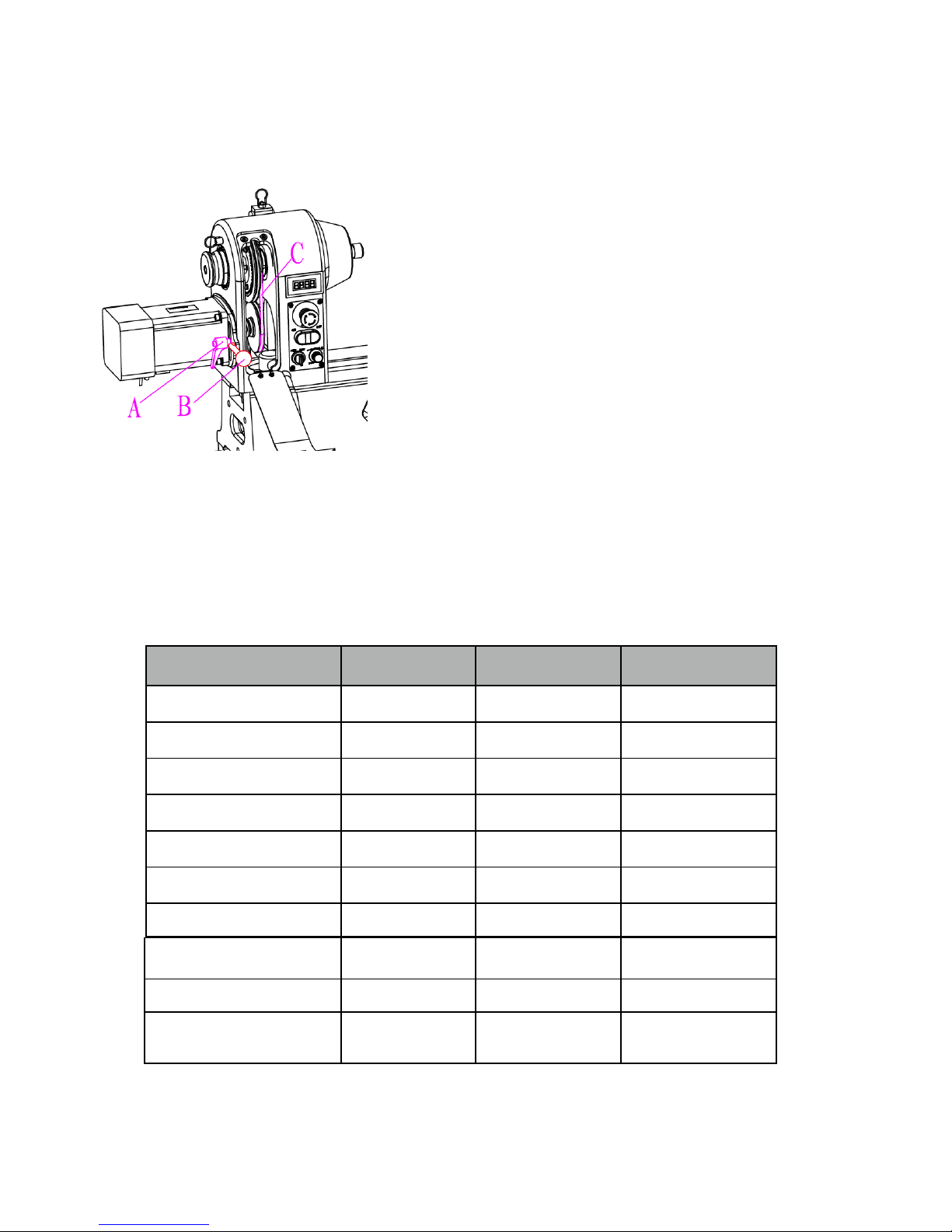

Fig.14
1, Unplug the lathe from the power source.
2, Open the magnetic belt cover which is
located on the headstock.
3, Loosen lock lever A and pull the belt
tension release lever B.
4, Place the belt C in the desired speed
range.
5, Rotate the spindle by hand and make
sure the pulley grooves are aligned with
the belt grooves and the belt runs smooth.
6, Pushing the tension release lever
properly and tighten the lock lever A.
Note: The best belt tension should be that when pressing belt on the middle by one finger,
the bellt deflects about 1/4” -1/2” (about 6-12mm)
Note: Always use the lowest speed of the range when starting lathe
For best turning result, find the following recommended spindle speed chart:
Diameter of wood-stock
Rough cutting
General cutting
Finishing/Sanding
under 50mm
1600rpm
3500rpm
3500rpm
50-100mm
800rpm
1600rpm
2500rpm
100-150mm
500rpm
1100rpm
1700rpm
150-200mm
400rpm
800rpm
1250rpm
200-250mm
300rpm
700rpm
1000rpm
250-300mm
250rpm
550rpm
900rpm
300-400
200rpm
450rpm
680rpm
400-500mm
150rpm
350rpm
550rpm
500-600mm
100rpm
280rpm
400rpm
more than 600mm on out
board turning
80rpm
200rpm
300rpm

Tool Rest Base (Banjo)
The Banjo is designed with cam-lock system. it can slide along the bed freely when
unlocked. Loosen the locking handle and move the Banjo to the desired place. Lock the
lever firmly after adjustment.
Tool Rest
A 14” tool support is provided with your lathe as standard. It is designed to allow
adjustment for height and angle. Loosen the locking lever to raise or lower the tool
rest and angle it to the work. Tighten the handle before operating the Lathe.
The locking lever can be inserted into one of three holes on the tool rest base.
Headstock, Tailstock
Both headstock and tailstock can slide along the bed. Loosen the locking lever and move
the Headstock or Tailstock to a desired place. Tighten the lever firmly after adjustment.
CAUTION: Always Unplug the lathe from the power source before headstock adjusting.
Spindle Centers installation/removing
1, Unplug the lathe from the power source.
2, Make sure the taper of center and the spindle taperred hole are clean and free of debris.
Then push the center into the spindle taperred hole for installation.
3, To remove the center, insert the knockout rod from back hole in end of spindle and tap
the center end (Fig. 15) out.
Fig. 15
Faceplate-Mounting and Removing
1, Unplug the lathe from the power source.
2, Mount the faceplate to the workpiece.
3, Install the face plate onto the spindle thread and turn it clockwise

4, Insert lock rod A (Fig.16) into handwheel hole. Hold the rod and tighten the faceplate
with faceplate wrench.
5，There is a set screw on face plate. Please tighten it when you work with the lathe in
reverse rotation.
Fig. 16
Tailstock Quill
The tailstock quill can be turned in and out by turning the quill handwheel. A locking lever
is used for secure the quill in position.
Tailstock centers Installation/removing
1, Make sure the taper of the center and the quill hole are clean and free of debris. Then
push the center into the quill hole.The taper contact will hold the center securely.
2, To remove the center from tailstock, loosen the tailstock locking lever and move the quill
out by turning the quill hand wheel until the quill end is almost inside the tailstock, then the
center can be taken out by hand.
MAINTENANCE
Daily:
Clean off dust;
Clean and apply rust-proof oil on spindle and tailstock quill, bed ways.
Monthly:
Check belt tension;
Replace belt if it is damaged or worn;
Clean off dust from pulleys if any.

PARTS LIST / DIAGRAMS
Parts List
For models T-50 and T-60
Note: The parts for T-50 and T-60 lathes are mostly the same, except for some parts are
different which are underlined below and clearly specified for T-50 or T-60.
Index No.
Part No.
Description
Size
Qty
1
HWT50-01-10
Headstock Casting for T-50
T-50
1
1A
HWT60-01-10
Headstock Casting for T-60
T-60
1
2
HWT50-01-30
Lock Handle
1
3
Rubber Sleeve
￠21.5×120
3
4
HWT50-01-34
Position Pin
M6-￠5
4
5
HWT50-01-31
Lock Shaft
2
6
HWT50-01-32
Clamp Block
3
7
GB/T 889.1-2000
Lock Nut
M20
3
8
HWT50-01-33
Position Block
3
9
GB/T70.2-2000
Round Head screw
M6×16
11
10
GB/T117
Taper Pin
6×20
8
11
HWT50-01-11
Spindle
1
12
6209/P6-2RZ
Ball Bearing
2
13
HWT50-01-12
Separate Ring
1
14
6208/P6-2RZ
Ball Bearing
1
15
Gasket
1
16
HWT50-01-13
Lock Nut
1
17
7M650
Motor Belt for T-50
T-50
1
17A
7M750
Motor Belt for T-60
T-60
1
18
HWT50-01-17
Pulley
1
19
GB/T 1096
Flat Key
10×25
1
20
GB/T 77-2000
Set Screw
M6×12
6
21
HWT50-01-15
Position disc
1
22
GB/T 70.2-2000
Round Head Screw
M6×12
3
23
GB/T 93-1987
Spring Washer
6
3
24
GB/T 97.1-1985
Flat Washer
6
3

25
HWT50-01-27
Position Pin
1
26
GB/T 889.1-2000
Lock Nut
M12
1
27
HWT50-01-14
Degree Indictor
28
HWT50-01-16
Spindle Hand-wheel
1
29
HWT50-01-35
Cover for T-50
T-50
1
29A
HWT60-01-35
Cover for T-60
T-60
1
30
Hinge
1
31
GB/T70.3-2000
Hex Socket Cap screw
M5×14/16
4
32
GB/T 97.1-1985
Flat Washer
5
8
33
GB/T 889.1-2000
Hex Nut
M5
2
34
HWT50-06-03
Speed Step Indictor
1
35
HWT50-01-38
Button
1
36
GB/T 70.1-2000
Hex Socket Cap screw
M8×16
37
Magnet
D15×5-￠4
2
38
GB/T 70.3-2000
Hex Socket Cap screw
M4×12
2
39
GB/T 889.1-2000
Hex Nut
M4
2
40
HWT50-04-02
DC Motor Driver for T-50
2HP, T-50
1
40A
HWT60-04-02
DC Motor Driver for T-60
3HP, T-60
1
41
HWT50-04-06
Wire
1
42
HWT50-04-05
Wire
1
43
Wire
1
44
Wire
1
45
Wire
1
46
Wire Indictor
1
47
Voltage Label
80
1
48
HWT50-06-06
Motor Driver Label
T-50
1
48A
HWT60-06-06
Motor Driver Label
T-60
1
49
GB/T 70.2-2000
Hex Socket Cap screw
M5×16
4
50
GB/T 93-1987
Spring Washer
5
6
51
HWT50-04-03
Speed DRO
1
52
HWT50-04-13
Cover
1
53
GB/T 70.2-2000
Cross Head Screw
M5×10
4
54
Emergency Stop Label
￠22-60
1

55
Ce4T-10R-01
Emergency Stop Button
1
56
MPD2-11B
On/Off Switch
1
McBH-00
Bracket
1
McB-10
Contact Point
1
McB-01
Contact Point
1
57
C3SS1-10B-20
Three-position Switch
1
58
Speed Controller
1
59
HWT50-04-15
Speed Adjusting Button
1
60
GB/T 77-2000
Hex Socket Cap screw
M4×6
1
61
Cable Clamp
10.4mm
1
62
GB/T 70.2-2000
Hex Socket Cap screw
M4×16
1
63
GB/T 889.1-2000
Hex Nut
M4
1
64
Cable Clamp
1
65
HWT50-04-04
Switch
1
66
GB/T 6173-2000
Hex Nut
M8
2
67
Magnet
D8×5
2
68
HWT50-04-11
Switch Bracket
1
69
GB/T 70.2-2000
Round Head Screw
M5×12
2
70
HWT50-04-01
2HP DC motor for T-60
HBL-124IM-2HP-L
1
70A
HWT60-04-01
3HP DC motor for T-60
HBL-124IM-3HP-L
1
71
HWT50-06-05
Motor Label
T-50
1
71A
HWT60-06-05
Motor Label
T-60
1
72
HWT50-01-18
Pulley
1
73
GB/T 1096
Key
6×22
1
74
HWT50-04-10
Flange
1
75
JB/T7271.1-1994B
Handle Ball
M10×32
1
76
GB/T 70.1-2000
Hex Socket Cap screw
M8×25
4
77
GB/T 93-1987
Spring Washer
8
4
78
GB/T 97.1-1985
Flat Washer
8
4
79
Adjusting Handle
M8×20
1
80
GB/T 96-1985
Flat Washer
8
1
81
HWT50-04-12
Motor Screw
1

82
GB/T 889.1-2000
Hex Nut
M8
1
83
HWT50-02-01
Tail stock for T-50
T-50
1
83A
HWT60-02-01
Tail Stock for T-60
T-60
1
84
HWT50-02-11
Position Block
1
85
HWT50-02-10
Lock Handle
1
86
HWT50-02-02
Sleeve
1
87
HWT50-02-03
Lead Screw
1
88
HWT50-02-04
Position Ring
1
89
HWT50-02-05
Washer
1
90
HWT50-02-06
Hand Wheel
1
91
HWT50-02-07
Handle
1
92
GB/T 77-2000
Set Screw
M8×10
2
93
Adjusting Handle
M10×45
1
94
HWT50-02-08
Lock Block
1
95
HWT50-03-01
Tool-post Base
1
96
HWT50-03-03
Lock Handle
1
97
HWT50-03-06
Brass Sleeve
1
98
HWT50-03-04
Lock Shaft
1
99
Adjusting Handle
M10×25
1
100
HWT50-01-01
Bed
1
101
HWT50-01-02
Stand
2
102
GB/T70.1-2000
Hex Socket Cap screw
M12×40
10
103
GB/T 93-1987
Spring Washer
12
10
104
HWT50-01-37
Position Pin
2
105
HWT50-06-01
Specs Label for T-50
T-50
1
105A
HWT60-06-01
Specs Label for T-60
T-60
1
106
HWT50-06-02
Safety Label
1
Standard Accessories
111
HWT50-01-51
Face Plate
3”
1
112
GB/T 77-2000
Set Screw
M6×10
2
113
HWT50-06-04
Alert Label
1

114
HWT50-01-52
Wrench
1
115
HWT50-01-40
Dead Center
1
116
HWT50-01-41
Live Center
1
117
HWT50-01-42
Knockout Bar
1
118
HWT50-01-43
Profiling Center
1
119
HWT50-01-44
Profiling Center
1
120
HWT50-01-45
Knockout Rod
1
121
HWT50-01-55
Spindle Locating Rod
122
HWT50-03-02
Tool Rest
1
123
Leveler
M16×65
4
124
GB/T 6176-2000
Hex Nut
M16
4
125
HWT50-01-50
Tool Holder
1
126
GB/T 97.1-1985
Flat Washer
12
2
127
HWT50-01-03
Support Bracket
20”
1
128
GB/T70.1-2000
Hex Socket Cap screw
M10×30
4
129
GB/T 93-1987
Spring Washer
10
4
130
GB/T 97.1-1985
Flat washer
10
4
131
HWT50-01-28
Position Pin
M12-￠8
1
132
HWT50-01-04
Rear Support Bracket
20”
1
133
Adjusting Handle
M10×25
1
Optional Accessories
140
HWT50-01-57
Spindle Guard
1
141
HWT50-01-58
Guard Position Ring
2
142
GB/T 77-2000
Set Screw
M6×8
4
143
HWT50-05-01
Extension Bed
20〃
1
144
GB/T70.1-2000
Hex Socket Cap screw
M12×40
3
145
HWT50-01-37
Position Pin
1
146
HWT50-05-02
High Tool-rest Bar
1
147
Adjusting Handle
M10×20
1
148
HWT50-01-53
Chisel Storage Pan
1
149
HWT50-01-54
Chisel Storage Rod
1
12” Swing-Away Extension Bed
(Standard For T-60)
