Quick Start Guide (QSG) – Serial Port Profile
Laird part # DVK-BT730-SA or DVK-BT730-SC
INTRODUCTION
This Quick Start Guide demonstrates using the Serial Port Profile (SPP) role on the DVK-BT730 in four
different scenarios.
REQUIREMENTS
DVK-BT730 including BT730 Carrier Board
BRBLU03-010A0 USB Bluetooth adapter or Computer
with built-in Bluetooth
BT730 development motherboard
Windows XP Operating System or later
Terminal Software such as Laird / EZURiO terminal -
www.lairdtech.com/zips/LairdTerminal_v6_9_0.zip
Laird’s MpBtHost utility (if using MultiPoint
functionality) -
http://www.lairdtech.com/zips/MpBtHost_v3_5_0.zip
RS232 cable or USB-RS232 adaptor
The development kit motherboard’s USB socket provides ONLY power to the module. A RS232 connection is
required to have serial communications with the module on the carrier board. Laird provides a terminal
emulator program called Laird / EZURiO Terminal for AT mode operation but you can use your preferred
terminal emulator program in its place. Another program Laird provides is MpBtHost for multipoint (MP)
mode operation. This example uses the Microsoft Bluetooth stack and software that comes with Windows 7.
If your computer has built-in Bluetooth support, you can modify the computer aspect of the procedure
documented below to match your existing Bluetooth instead of using the supplied BRBLU03-010A0.
PREPARATION
To prepare your setup, follow these steps:
1. Plug in the BT730 Carrier Board to the DVK motherboard.
NOTE: The carrier board plugs into 40-pin Hirose connector as shown in Figure 2.
Figure 2: Carrier board connector
Figure 1: BT730-SA Development Kit
Connector receptacle for
BT730 carrier board

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 2 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
2. Connect RS232/USB-RS232 to the computer and development board.
3. Connect the USB cable to the computer and development board. TP2 is the power switch and there is
an LED for power indication.
4. Install your preferred terminal program. We recommend using Laird / Ezurio Terminal.
5. Install MpBtHost, if utilising MP mode.
6. Open your terminal program and select the COM port that the RS232 / USB RS232 Adapter shows
(9600 8N1)
7. Check communications by sending
AT and then return. This should return OK .
8. Send the following commands to set up the module, as shown in Figure 3:
ATS538=1
Auto save link key if pairing is successful
ATS512=4
Put the module in discoverable and connectable mode
ATS0=1
Auto answer in 1 second
AT+BTK=”1234”
Legacy pairing code
AT&W
Store new S Register settings
ATZ
Reboot the module, so settings become effective
Figure 3: Module setup
EXCHANGE SERIAL DATA WITH A WINDOWS 7COMPUTER
EQUIPPED WITH A BRBLU03-010A0 USB BLUETOOTH DONGLE
The section details serial data exchange between the BT730 and a PC equipped with a BRBLU03-010A0 USB
Bluetooth dongle. This communication is illustrated in Figure 4.
Figure 4: Serial data exchange
Hardware and Software Installation
To install the BLBLU03-0101A0 on your Windows PC, complete the following steps:

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 3 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
1. If your PC has a built-in Bluetooth module, disable it. To do so, locate it in the Windows Device
Manager, right-click the device, and click Disable.
2. Plug the BRBLU03-010A0 into your computer. Windows 7 automatically detects the device and installs
the required drivers. No driver downloads are required.
3. Once installed, check the Windows Device Manager (Figure 5 ). Note the presence of the Microsoft
Bluetooth Enumerator and TDK Bluetooth USB Adaptor. These indicate a successful installation.
Figure 5: Windows Device Manager
Discovery and Pairing
The DVK-BT730 is now ready to be discovered by the PC. To initiate this process, follow these steps:
1. Click Start > Devices and Printers.
2. Click Add a device.
The DVK-BT730 appears (in this case as Laird 00157B) (Figure 6). If you cannot identify the correct
device, refer to the ATI4 command in Preparation.
3. Select the device and click Next.
Figure 6: Add a Device window

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 4 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
4. Select Enter the device’s pairing code (Figure 7). This was set to “1234” via AT+BTK=”1234” in the
Preparation.
Figure 7: Enter the device's pairing code
A successful pairing is indicated by a “PAIR 0 <remote device address>” message in the terminal program
connected to the module (Figure 8).
Figure 8: Device successfully added
Windows now displays the COM ports assigned for use with the DVK-BT730 (Figure 9).

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 5 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
Figure 9: COM ports displayed
Connecting from PC to Module
To connect to the DVK-BT730 from the PC, open a second instance of Laird / EZURiO terminal using the
outgoing computer COM port (COM43) noted in the previous step.
In the example below, the first Laird / EZURiO Terminal is connected to the module (COM16) and the second
Laird / EZURiO Terminal is connected to virtual COM 43 on the PC. When the second Laird / EZURiO terminal
(COM43) is opened, the connection is made and you should see a RING message followed by a CONNECT
message from the module (Figure 10).
The 12 characters following the RING and CONNECT messages are the Bluetooth address of the remote
device. The four characters following the BT address indicate the UUID, where 1101 is serial port profile.
Figure 10: Connection made

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 6 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
A transparent data connection is now present. Any text entered into one Laird / EZURiO Terminal appears in
the other terminal having been transmitted over the Bluetooth link between the DVK-BT730 modules and the
PC. Note the status of the DCD during a connection (Figure 11).
Figure 11: Transparent data connection present
The connection can be dropped by typing ^^^ into the module terminal window on COM16. This appears in
the computer terminal window but is interpreted as a command to enter local command mode. Once in local
command mode, OK displays and you may issue ATH to drop the connection; at this point, NO CARRIER
displays (Figure 12).
Figure 12: Connection dropped

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 7 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
EXCHANGE SERIAL DATA WITH A WINDOWS 7COMPUTER
(EQUIPPED WITH A BUILT IN BLUETOOTH MODULE)
Figure 13: Serial data exchange with Windows 7 computer
The customer can confirm if the computer is equipped with a built-in Bluetooth module by checking
Windows Device Manager (Figure 14).
Figure 14: Windows Device Manager
Discovery and Pairing
The DVK-BT730 is now ready to be discovered by the computer.
To discover and pair the DVK-BT730, follow these steps:
1. Open Device and Printers.
2. Click Add a device. The DVK-BT730 should now appear, in this case as Laird 00157B (Figure 15). If you
cannot identify the correct device, refer to the ATI4 command from the module setup (Figure 3).
Figure 15: Add a device

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 8 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
3. Select the device and click Next.
4. Select Enter the device’s pairing code (Figure 16). This code was set to “1234” using the command
AT+BTK=”1234” in Preparation.
Figure 16: Select Enter the device's pairing code
A successful pairing is indicated by a “PAIR 0 <remote device address>” message in the terminal program
connected to the module (Figure 17).
Figure 17: Successful pairing indicated
Windows displays the COM ports assigned for use with the DVK-BT730 (Figure 18).
Figure 18: COM ports displayed

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 9 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
Connecting from Module to PC
To connect from the DVK-BT730 to the PC, open a second instance of Laird / EZURiO terminal using the
incoming computer COM port (COM32) noted in the previous step. In the example below, the first Laird /
EZURiO Terminal is connected to COM40 as an incoming port on PC and the second Laird / EZURiO Terminal
is connected to the module on COM 16.
The virtual incoming COM port (COM32) is waiting for an incoming connection, as the DCD indication is
deserted (Figure 19).
Figure 19: Virtual incoming COM32 port
When ATD<Computer BT MAC address> is issued to the module, a SPP connection is initiated (Figure 20).
The 12 characters following the CONNECT message are the Bluetooth address of the PC BT module. The four
characters following the BT address indicate the UUID, where 1101 is Serial Port Profile.
Figure 20: SPP connection initiated
A transparent data connection is now present. Any text entered into one Laird / EZURiO Terminal appears in
the other having been transmitted over the Bluetooth link between the DVK-BT730 modules and the PC.
Note the status of the DCD during a connection (Figure 21).
Figure 21: Transparent data connection

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 10 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
The connection can be dropped by typing ^^^ into the module terminal window. This appears in the
computer terminal window but is interpreted as a command to enter local command mode. Once in local
command mode, OK displays and you may issue ATH to drop the connection; at this point, NO CARRIER
displays (Figure 22).
Figure 22: Connection dropped
EXCHANGE SERIAL DATA WITH AN ANDROID PHONE
To create an SPP connection to the module, we use the BlueTerm application available from the Play Store.
Discovery and Pairing
The DVK-BT730 is now ready to be discovered by the Android phone. To do this, follow these steps:
1. From the BlueTerm application, click Menu and select Connect device.
2. Click Scan for devices. The BTM731 should appear in the list.
3. Select the applicable device and enter 1234 as the pairing code.
These steps are illustrated in Figure 23.
Figure 23: Discovery using an Android phone
Connecting
Once pairing is successful, a SPP connection is initiated automatically from phone to module (Figure 24).

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 11 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
Figure 24: SPP connection initiated automatically
A transparent data connection is now present. Any text entered into Laird / EZURiO Terminal appears on
BlueTerm. Note the status of the DCD during a connection.
The connection can be dropped by typing ^^^ into the module terminal window (left). This appears in the
computer terminal window but is interpreted as a command to enter local command mode. Once in local
command mode, OK displays and you may issue ATH to drop the connection; at this point, NO CARRIER
displays (Figure 25).
Figure 25: Connection dropped

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 12 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth

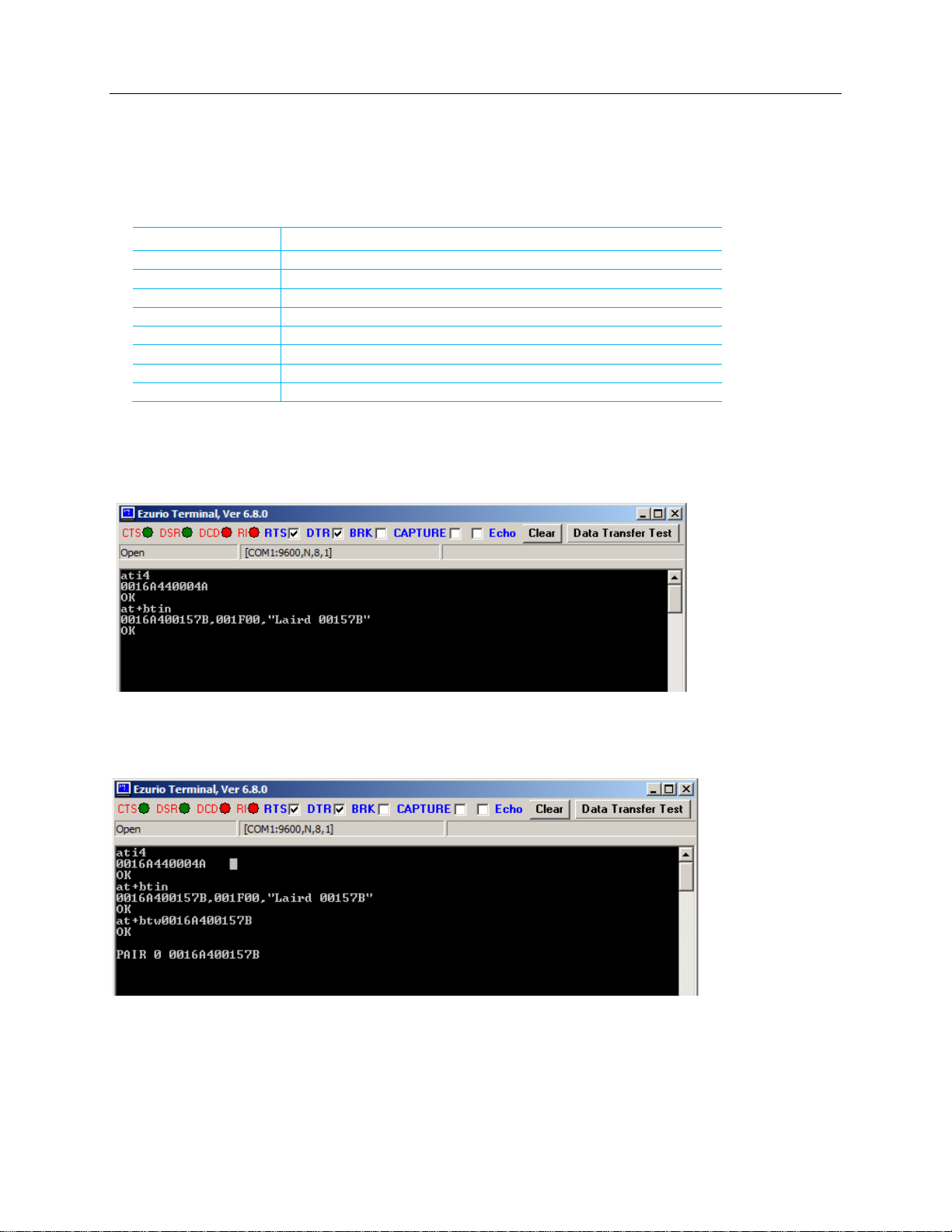

EXCHANGE SERIAL DATA WITH ANOTHER DVK-BT730 BOARD
A pair of DVK-BT730s is required in this example. The first board is configured as in the previous section. On
the second board, no specific configuration is required.
Discovery and Pairing
The first DVK-BT730 with MAC address (0016A4400157B) (on COM16) is ready to be discovered by the
second DVK-BT730 with MAC address 0016A440004A which is physically connected to COM1.
On the second development board, issue AT+BTIN to discover the first board (Figure 26).
Figure 26: Issue AT+BTIN
Once the first board is discovered, issue AT+BTW<MAC address> and AT+BTK=”1234” to complete the
pairing process. Since Auto Save link is not enabled, AT+BTT is issued to save the link manually (Figure 27).
Figure 27: Complete pairing process

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 13 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
Connecting
On the second board, issue ATD<MAC address> to initiate a SPP connection (Figure 28).
Figure 28: Initiate a SPP connection
A transparent data connection is now present between the two development boards. Any text entered into
one terminal appears on the other.
Drop the connection by typing ^^^ into the module terminal window (left). This appears in the computer
terminal window but is interpreted as a command to enter local command mode. Once in local command
mode, OK displays and you may issue ATH to drop the connection; NO CARRIER displays (Figure 29).
Figure 29: Connection dropped

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 14 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
AUTOMATIC CONNECT
Issue AT+BTR<MAC address> on the second board on COM 1 to initiate an SPP connection automatically. It
can attempt to reconnect if the connection is disconnected.
Configuration on the second board (COM 1)
ATS538=1
Auto save link key if pairing is successful
ATS500=1
Default authentication for outgoing connections
ATS512=1
Idle Mode
ATS507=1
Allows DSR input to be used to inhibit autoconnect cycle
ATS505=10
Connection attempts timeout after ten seconds
ATS530=15000
Wait period in milliseconds between connection attempts
AT+BTK=”1234”
Legacy pairing code
AT&W
Store S register settings
ATZ
Reboot module
Discovery and Pairing
The first DVK-BT730 (with MAC address 0016A400157B) on COM16 is now ready to be discovered by the
second DVK-BT730 (with MAC address 0016A440004A), which is physically connected to COM1.
Figure 30: COM1
Once the first board is discovered, issue AT+BTW<MAC address> on the second board to complete the
pairing process (Figure 31).
Figure 31: Complete the pairing process

DVK-BT730 Development Kit
Quick Start Guide - SPP
Americas: [phone] Option 2 15 Laird Technologies
Europe: [phone]
Hong Kong: [phone]
www.lairdtech.com/bluetooth
Connecting
Set the peer address and reboot the module. The second board automatically initiates the SPP connection to
the first board (Figure 32).
Figure 32: Connection completed
ADDITIONAL DOCUMENTATION AND RESOURCES
Laird offers a variety of documentation and ancillary information to support our customers through the initial
evaluation process and ultimately into mass production. Further documentation is available from
www.lairdtech.com/Products/Embedded-Wireless-Solutions/Bluetooth-Radio-Modules/BT700-Series/BT730/ includes:
BT730 –Firmware User manual
BT730 –Hardware Integration Guide (HIG)
DVK-BT730 –User Manual
DVK-BT730 –Schematics
Software Links
FTDI Driver: http://www.ftdichip.com/Drivers/VCP.htm
Laird / EZURiO terminal: http://www.lairdtech.com/zips/Bluetooth%20Terminal%20Download.zip
Windows 7 Bluetooth: http://windows.microsoft.com/en-us/windows7/add-a-bluetooth-enabled-
device-to-your-computer
For any additional questions or queries, or to receive local technical support for this Development Kit or for
the BT730 module series, please contact [e-mail].
