lamber S400-dy User manual

GLASSWASHER
S400-dy
S460-dy
S480-dy
INSTRUCTIONS MANUAL
R.00-JAN-2018

2

3
DECLARATION OF CONFORMITY
The following : LAMBER S.R.L. – Via Italia 6 – 26855 Lodi Vecchio (LO) ITALY
Declare under our responsibility that:
Apparatus: PROFESSIONAL GLASSWASHER
Trademark:LAMBER - Manufacturer :LAMBER S.R.L.
Type / Model
for which this declaration refers to the conformity of the following standards:
Safety of household and electrical appliances - General requirements EN 60335-1(2012) +EC/2014+A11:2014
Safety of household and electrical appliances - Part 2^ Particular requirements for commercial electric dishwashing machines EN
60335-2-58 (2005) + A1 (2008) + A11 (2010).
Household and similar electrical appliances – Electromagnetic fields – Measurement methods for electromagnetic fields of
household appliances and similar apparatus with regard to human exposure EN 62233 (2008)
Limits and methods of measurement of radio disturbance characteristics of electrical motor-operated and thermal appliances for
households and similar purposes, electric tools and similar electric apparatus - EN 55014-1 (2006) + A1 (2009) + A2 (2011)
Limits for harmonic current emissions (equipment input current
 16 A per phase) - EN 61000-3-2 (2014) or >16A and  75A EN
61000-3-12 (2011)
Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current
 16 A. EN 61000-3-3
(2013) o >16A e 75A EN 61000-3-11 (2000)
Immunity requirements for household appliances, tools and similar apparatus. Product family standard EN 55014-2 (1997) + A1
(2001) + A2 (2008)
Safety of machinery Basic concepts, general principles for design - Basic terminology, methodology – EN ISO 12100 (2010).
on the basis of what is foreseen by the Directives - aufgrund der vorgesehenen Richtilinien:
2014/30/UE and 2006/42/CE.
We decline any responsability for injuries or damage derived from machine misuse, abuse by others or improper machine maintenance or repairs.
(date) Lodivecchio li 2018
The administrator
technical file case manager : Ing Roberto Affaba
address : via italia 6 – 26855 – Lodi Vecchio (LO) Italy

4
WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE,RAEE in Italy) 2002/96/EC AND
SUBSEQUENT 2003/108/EC
The marking shown below indicates that the product cannot be disposed of as part of normal household
waste. Electrical and Electronic Equipment (EEE) can contain materials harmful to health and the
environment, and therefore is subject to separate waste collection: it must be disposed of at appropriate
waste collection points or returned to the distributor against purchase of new equipment of similar type or
having the same functions.
The directive mentioned above, to which make reference for further details, provides for punitive actions in
case of illegal disposal of such waste.
Lamber guarantees a percentage of recovery at least of 90% in medium weight for each equipment. The
80% - always as regards the medium weight- of recovered material is recycled or reused.
LAMBER, manufacturer of this equipment, is enrolled in the Italian WEEE Register – the Register of
Producers of Electrical and Electronic Equipment- from the 18th /02/2008 with the number
IT08020000000617.

5
INDEX
General notes pag. 06
Introduction and safety notes pag. 07
Learn to use the appliance pag. 08
First section - FOR THE USER pag. 09
Control panel pag. 10
Working and use pag. 11
Instructions before washing pag. 11
Washing pag. 12
Achievements pag. 13
Stand by, self-washing pag. 13
Instructions drain pump pag. 14
Descaling pag. 15
Automatic message list pag. 16
List ALARMS pag. 17
Placement of dishes pag. 18
Cleaning and preventive maintenance pag. 19
Daily cleaning of the interior of the glasshwasher pag. 20
Detergents, rinse additives, descaling, sanitation pag. 23
Inconveniences – Possible causes-remedies pag. 24
Useful advices for the maintenance of stainless steel pag. 26
Second section - FOR THE INSTALLER pag. 27
Installation pag. 28
Electrical connections pag. 29
Water connections pag. 30
Dispenser of washing, rinsing and descaling (programming) pag. 31
Descaling cycles (programming) pag. 32
List ALARMS pag. 33
Replacing of the detergent and washing of dispenser washing pipes pag. 34
Programming – user pag. 35
Connection scheme pag. 41
Wiring diagram pag. 42
Components pag. 46
Specifications pag. 47

6
GENERAL NORMS
Thank You for purchasing our Gasswashing Machine.
Perfect washing-up results as far as hygiene concerns and a correct operation of the dishwashing machine
can be assured only in case the instructions reported in the present manual are carefully followed.
We hope the information reported in the present manual will be helpful to You.
They are based on data and on our best updated knowledge.
Carefully read the Instructions reported in the manual, recommendations and suggestions included.
Carefully read the terms of sale too, even the ones limiting warranty.
This appliance in not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance (EN 60335-2-102/7.12).
The glasswasher has to be installed in an area with air recirculation and that complies with the local
work hygiene rules !

7
INTRODUCTION
AND SAFETY NOTES
INTRODUCTION
- The machines are Industrial glass-washing machines .
- Noise level of the machine: < 60dB(A)
(Norms EN ISO 4871 and EN ISO 11204)
PRELIMINARY OBSERVATION
Carefully read the instructions reported in the present user manual, as it gives important indications about safety of
installation, operation and maintenance:
- carefully keep the present manual for further consultations;
- the illustrations and drawings showing the machine are intended for general reference only and are not
necessarily accurate in every instance;
- the dimensions and characteristics of the machine, given in this Manual, are not to be considered binding and
may be changed without prior notice;
- once removed the packing material, check that all the equipment is present. If there is any doubt, do not use it and
contact qualified personnel. The packing elements (plastic bags, nails, etc.) should be kept away from children,
because they are dangerous.
GENERAL SAFETY REGULATIONS
THIS SAFETY CODE HAS BEEN COMPILED IN YOUR INTEREST. Strict adherence to these rules will reduce the risks
of injury both to yourself and to others;
Personnel working with this machine must adhere strictly to all statutory safety regulations as well as the specific rules
listed below. Failure to do so may result in personal injury and damage to the machine;
- DO NOT attempt to move, install, set up or operate this machine until you have read and fully understood this
Manual. If doubt persists, ask your supervisor;
- never leave tools, parts or other loose material on or in the machine;
- Before switching the equipment on, make sure that the model plate data conform to those of the electrical and
water distribution network;
- remember that even with the mains indicator in the “OFF” position, the incoming cables are still live;
- BEFORE starting the machine or the cycle, after any maintenance or repair work, make sure all protective are
correctly installed;
- be vigilant at all times, remember that your safety and that of your fellow workers depends on you;
- when moving or lifting the machine, care must be taken to comply with all the relevant regulations governing such
operations;
- installation should be carried out by qualified personnel according to the manufacturer's instructions.
- this equipment should be destined to the use which it has been conceived for. Any other application should be
considered improper and consequently dangerous;
- the equipment should only be used by personnel trained for its use;
SPECIAL SAFETY REGULATIONS
- adjustement and repairs must be carried out only by qualified personnel. Repair carried out by unskilled personnel
may be dangerous;
- perfect washing-up results as regards hygiene and a correct operation of the washing machine can be assured
only in case the instructions reported in the present handbook are carefully followed;
- the machine must be used only by authorized personnel who must comply with sanitary measures;
- do not leave the machine in an environment with temperatures lower than 0°C;
- the machine protection degree is IP21, therefore it should not be washed with direct high pressure
jets of water;
- If the power cable is defective, it must be replaced by your manufacturer or by a technical assistance
service or by a qualified technician in order to avoid risks.
RESIDUAL RISKS
Although the appliance is equipped with the above-mentioned safety devices, danger of burns to upper limbs persists.
Avoid dipping your naked hands into the soapy hot water present in the tanks. This can cause burns and skin irritations.
In this case, immediately rinse them with plenty of water.
When the machine is working, do not open the inspection doors too quickly.

Double skin
Stainless steel Lower
rotating washing
Stainless steel tank filter
Pump filter
Overflow
Control panel
Washing pump
Rinse aid dispenser
Body,tank and Top in
Stainless steel construction
Stainless steel Boiler
with insulation
Tank Heating element
Stainless steel Lower
rotating rinsing (90°)
Tank drain
Rinsing solenoid valve
Water inlet solenoid valve

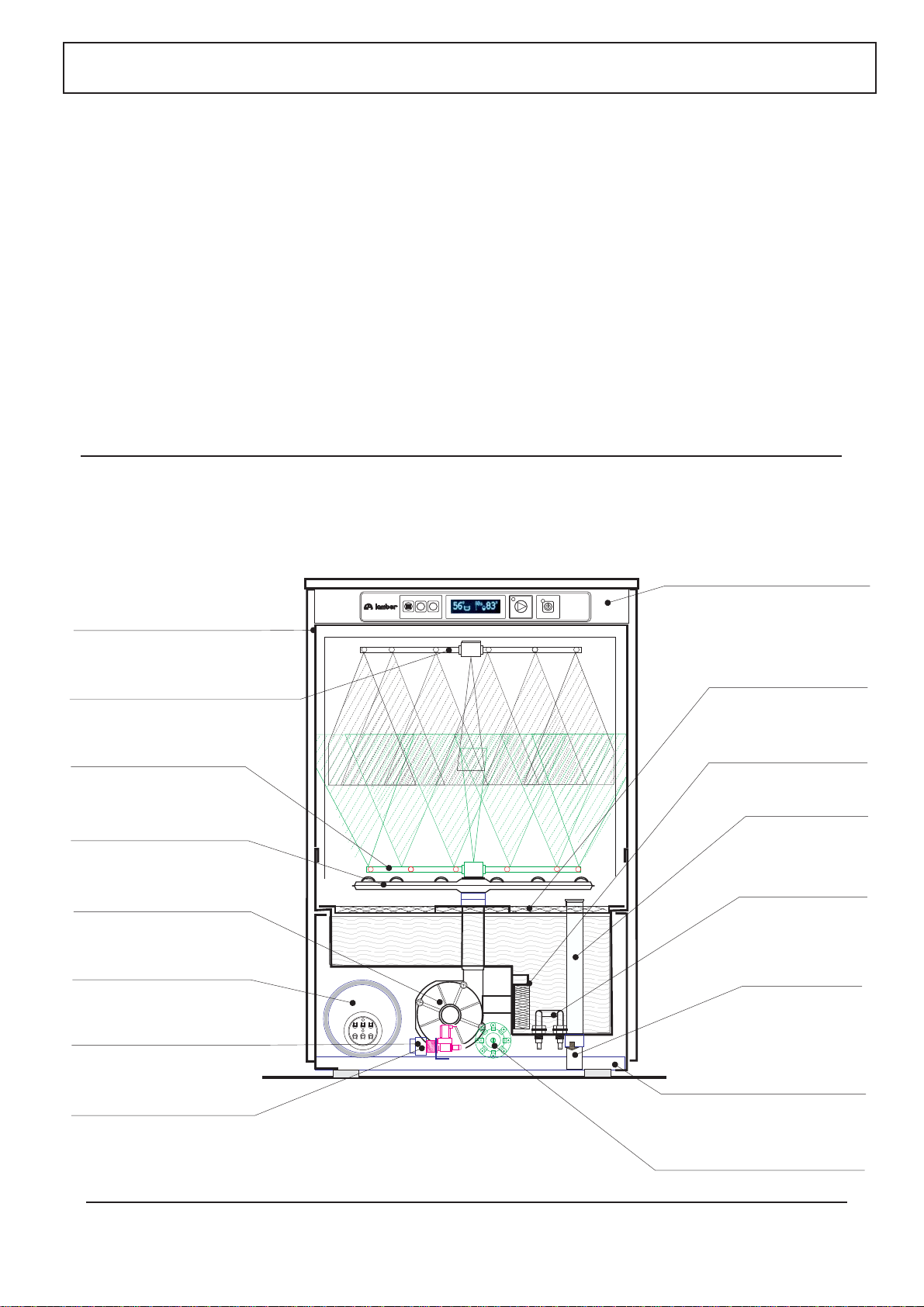

Learn to use the appliance
descr-s400-dy-2018
Stainless steel Upper
rotating rinsing (90°)
+
+
-
-

INSTRUCTIONS FOR THE USER

Dis.1

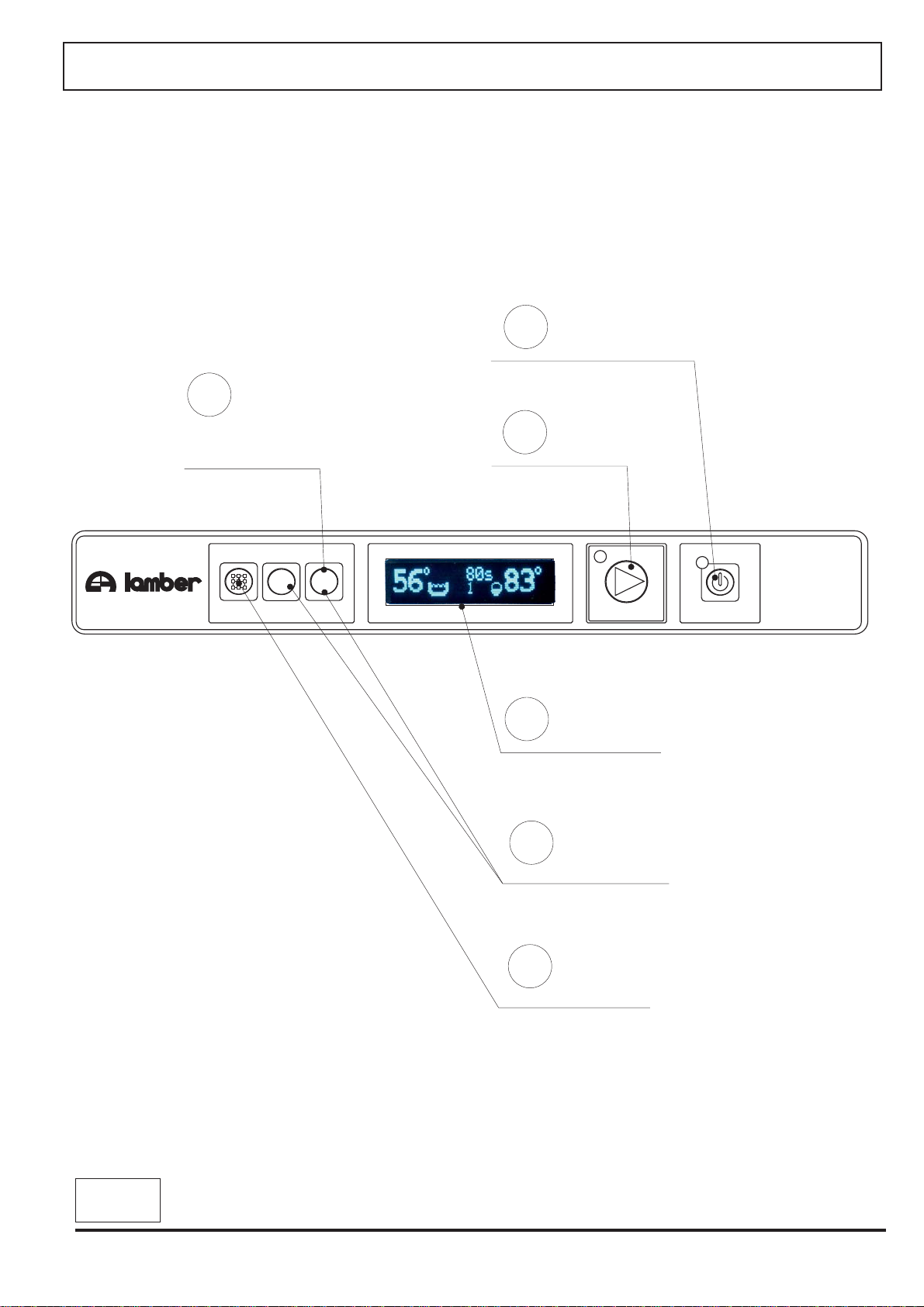

CONTROL PANEL
Cycle
pushbutton
Wash time selection
pushbutton
Interactive display
Programming
pushbutton
Main switch
A
C
D
E
B
+
+
-
-
Temperature
data display
F
F92-display-2016

11
First Section - FOR THE USER
WORKING AND USE
The glasswashing machine can wash up to 900 glasses per hour.
The machine protection degree is IP21, therefore it should not be washed with direct high pressure jet water;
The correct placing of the objects is an essential condition for a good washing-up result;
We suggest to descale dishes, from time to time, in order to remove calcareous and/or starchy sediments
by soaking it in suitable solutions suggested by your cleansing agent supplier.
If you need to buy new dishes remember the following:
Dishes and cups: preference must be given to china or non-porous pottery articles, with smooth surface.
Glasses: choose a glass suitable to be washed in dish-washing machines. Surfaces must be smooth and
bottoms as flat as possible.
INSTRUCTIONS BEFORE WASHING
BEFORE STARTING THE WORKING OPERATION MAKE
SURE THAT:
- the cock is open;
- the filters are in their housings;
- the overflow is in its place;
(Attention! In case of machines with drain pump,
there is no Overflow ! );
- the wash arm and the rinse arm are free to
pivot;
- rinse aid and washing powder dispenser
containers are loaded.
THEN PROCEED:
1 - Open the door and put into the tank,
possibly over the pump-filter, about 54 gr.
of detergent in powder. Every 10 cycles add
about 40 gr. of detergent.
If the machine is provided with an automatic
dosing device, make sure that the detergent is
in its container.
CAUTION: Observe the safety notes and
dosage data for the use of chemicals. During
the use of the chemical substance wear
protective clothing, gloves and protective
glasses. Do not mix different cleaning
products.
TURN ON THE MACHINE and
operating state of emergency.
2- Turn on the power using the switch on the
wall .
You will see the serial number of the machine
followed by the logo Lamber.
Close the door of the glasswasher.
Please pay attention to the opening and
closing of the door of the glasswasher. Do not
use the machine if you are wearing
clothes/items that could get entangles in the
dishwasher parts. As they can limit personnel’s
regular moving ability!

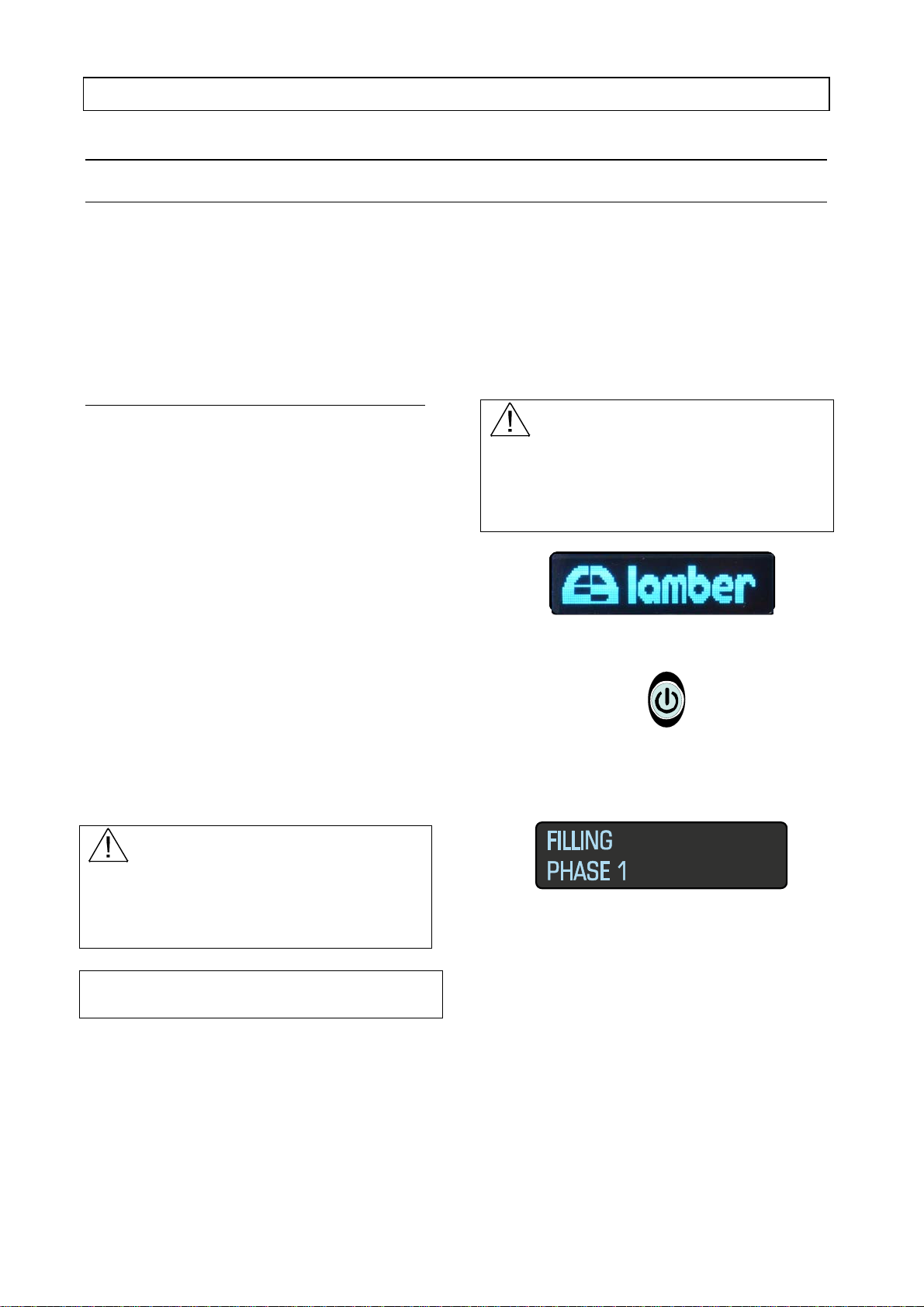

Press at this point the key switch “A” on the
control panel (draw 1)
At this point the LED will turn green and the
interactive display will show “Fill phase 1” that will
signal the start of the filling phase of the tank.
The filling phase is implemented in two stages.
In STEP 1 begins the load of the tank with water
from the water mains; in STEP 2 continues the
filling but also begins a warm-water washing.
Note: If the machine is equipped with water
softener, during the FILLING PHASE 1 it will be
made to one or more cycles of Regeneration and
a subsequent Resins’ Washing.
Attention: during tank filling don’t open the door
of the glasswasher !

12
Attention!
If during the loading phase, appears the message
“BREAK TANK”, this means that you’re filling up
with water the rear Break Tank.
If after 5 minutes the data is still flashing in
alternation with the inscription FILLING PHASE 1,
you will see the word ALARM BEREAK TANK and
this will means that there may by a problem in the
tank loading. (Call the Technical Assistance
Service!)
If function Tank Thermocontrol is activated in
any wash-program, the tank water inlet phase is a
little different:
During “TANK FILLING PHASE 1” the tank filling
begins with water from the mains;
Then the Rinse Tank Thermocontrol activate itself
to be able to fill the tank with hot water during
“TANK FILLING PHASE 2”, that will begin once
the rinse tank temperature is reached.
Then a “ BLENDING” will be performed for 3
seconds by the wash pump to blend the detergent
wih the water.
At the end of the filling phase of the tank on the
interactive display will appear the following
information (from left to right):
-Temperature of washing;
-Time of washing;
-Number of cycle;
-Temperature of rinsing..
The data of the temperature Tank and Boiler,
flashes slowly and increases in value, indicating
the current warming of the water in the boiler.
When temperature has reached, the data stops
flashing.
Attention !
The machine is programmed at the factory so you
can start the washing programm after filling the
tank up to the required level.
However, before you start the cycle, make sure
that the machine has reached the ideal
temperature range (55°C for washing and 82°C
for rinsing):
In any case, the rinse will start only in
temperature regime reached. The duration of the
washing time chosen will then be continued until
it reaches the set temperature ((Thermocontrol).
WASHING
3- Open the door of the machine and insert
the basket. .
N.b.The display informs you when the top of the
dishwashers is open.
4- Place the glasses in the racks, making
sure to first remove all the solid waste and fats.
Make a preventive soak to cutlery and possibly
even to dishes if they are washed after a long
time use. Do not overload the baskets, dishes
should not overlap, the water must have a way of
being able to invest directly in their entirety.
For a correct positioning of glasses see the
specific paragraph on page 18.
5- Select the time of the washing cycle by
pressing the time selection “D”
,
According to the following criteria:
- cycle 1 :short 1 minute ;
- cycle 2 : intermediate 2 minutes ;
- cycle 3 : long 3 minutes ;
- cycle 4 : infinite 15 minutes ;
(If function Tank Thermocontrol is activated in
the program P4, this one converts itself in the
DISINFECTION cycle:
If the pump works for at least 10 minutes at the
set tank temperature, at the end of the cycle the
indication COMPLETE DISINFECTION will be
displayed.
On the contrary the indication DISINFECTION
FAILED will be displayed.
In any case the pump won’t function for more than
15 minutes.
The duration of the cycle must be chosen
according to the type of dirt to be removed from
the dishes.
See paragraph specifically for custom
programming, in the section dedicated to the
installer.
6- Close the door of the glasswasher.
Start at this point the washing cycle of the
chosen duration comprising in addition to washing
a rest period of 5 seconds, and a rinsing phase
lasting 15 seconds with clear water at 85°÷90°C.

13

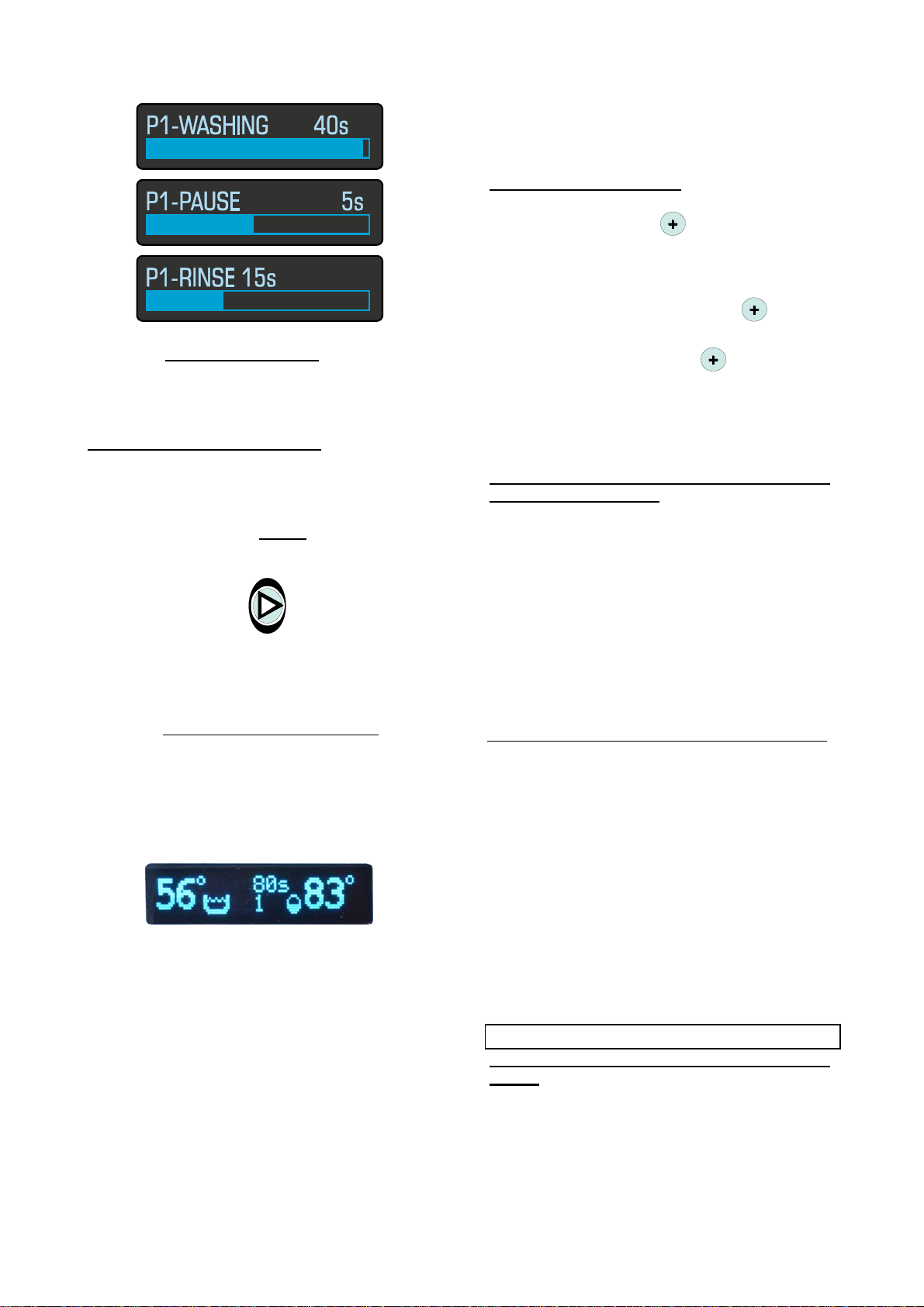

If function Tank Thermocontrol is activated at
the beginning of the cycle, the wash pump will
start working only once the programmed washing
temperature is reached.
To temporarly pause the cycle, simply open the
hood of the dishwasher.
Closing it, the cycle will start again at exactly the
point were it was interrupted.
It is possible at any time to stop the wash cycle by
simply pressing the button again cycle “B”
.
When you restart the cycle, this will restart from
the beginning.
7- At the end of the wash cycle , the
message “END WASH” will appear followed by a
short beep.
The LED turns off and the B button appear the
temperature data and the data number and
duration of the cycle.
Open the door of your glasswasher.
Remove the basket and tilting it, shake it lightly to
bring down the remaing drops. Allow to dry the
dishes by evaporation, then remove them from
the basket, taking care not to touch the inside
edge of the same.
Then put them on hygienic shelves.
To continue the wash load another basket and
close the door. The cycle will restart
automatically.
If you want to change the wash cycle, before
closing the door, you will need to select the new
cycle by pressing the time selection “D”.
Temperature data display: to view temperature
data during the wash cycle, it is necessary to
press the push-button . You will see the
temperature data for 3”.
If you want to fix the values of temperature for
the whole duration of the selected cycle, it is
necessary to press the button for 3”.
To re-display the data of the wash cycle, it is
necessary to press the switch .
Attention! At the next cycle the temperature data
will not be displayed automatically, but the data
will appear in the wash cycle.
Levels state visualization for glasswashers
with Break Tank / SRS:
During the tank feeding and the rinsing the state
of the water levels in the break tank is displayed.
Symbol “H” indicates the high level, instead
symbol “L” indicates the low level.
N.B. the graphic display changes automatically
every 10 minutes the configuration of the
visualization from bright screen to dark screen
and vice versa. This system allows to protect the
life of the display in the time.
ACHIEVEMENTS
Any deficiency in the washing process is
obvious when dirty residuals are visible. Any
halos might be caused by an insufficient rinsing:
in this case, check that the rinsing jets are clean
and that there is a sufficient pressure in the
water distribution network.
In case you find residuals, check that:
• the washing jets are clean
• there is some detergent
• the pump suction filter is clean
• objects in the rack are placed in a correct
position.
STAND BY-ECONOMY
(only available on a machine with automatic
start!):
The stand-by function allows you to keep the
machine closed at rest, keeping active heating
functions.

14

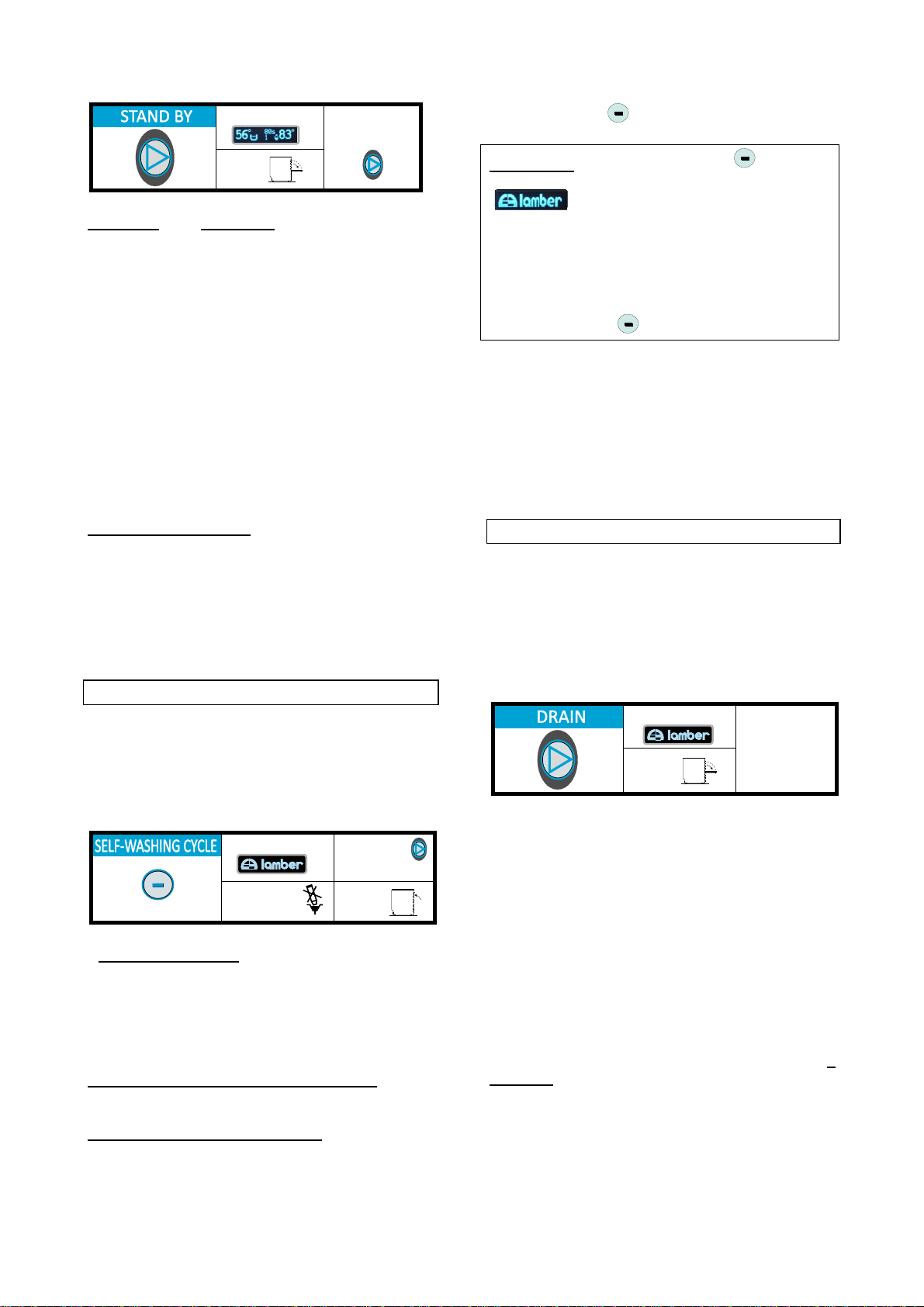

machine «ON»
Door
open
To start cycle
pressbutton
keep
button
pressed
for 3 sec.
1
2
Stand-by : with open hood and the machine is in
“ON”, press the cycle “B” push-button for 3
seconds, then closing the door, the machine will
not operate the wash cycle while maintaining
active heating functions.
The display shows the word “ECONOMY”. The
temperature of the heater stabilizes at 70°
reducing the consumption of energy.
Attention!: make sure, after you start the
stand-by function to close the door to keep
the wash tank hot and not disperse heat!
To restart the cycle, close the door and press the
push-button “B”.
Automatic Stand-by : after 10 minuters of non-
use of the machine, with the door open, it
automatically activates the STAND BY-
ECONOMY, (the display shows the word
ECONOMY P*)
To restart the cycle, put the top down and press
the push-button “B”.
SELF-WASHING
The function of self-washing allows you to make
a cleansing cycle at the inside of the washing
tank.
The inside of the washing tank is cleaned with
water coming from water network.
machine «OFF»
Door
closed
Remove the
overflow
Wait the End
of the drain
(with drain pump
press button)
keep
button
pressed
for 3 sec.
1
2
3
4
- Self-washing cycle: with the machine ”ON” do
the following operations::
-1 Put the machine OFF by pressing the
push-button “A” ( led off)
-2 Remove the overflow of the tank and wait
until same is empty;
For machines equipped with drain pump, see the
instructions at the specific paragraph.
For machines without drain pump:
Visually check that the tank is empty,
-3 Close the door of the glasswasher ;
-4 Hold the ” ”button for 3 seconds.
ATTENTION: before your press the ” ”, button,
make sure that the display shows the logo lamber
””.
In case it is off, turn the machine on by pressing the
switch “A” and then pressing it again to to turn off
again the push button “A”
The logo Lamber will reappear and will then be able to
start the function SELF-WASHING holding down the
select push button ” ”for 3 seconds
On the display you will see the words “SELF-
WASHING” with the time bar that indicates the
increase for the duration of the cycle of 5 or 10
minutes depending on the time of rinse set by
default
If you want to stop the cycle SELF-WASHING, it
is sufficient to press the switch “A”
DRAIN PUMP INSTRUCTIONS (optional)
(only for machines with drain pump)
(Attention! In case of machines with drain pump,
there is no Overflow ! );
The pump discharge function allows you to
automatically download the wash tank at the end
of the workday.
machine«OFF»
Door
open
1
23
keep
button
pressed
for 3 sec.
The operation of the discharge pump is
automatic only during the cleaning cycle to
drain the excess water that enters during the
rinsing phase
At the end of the working day, to discharge
the tank completely, you must perform the
following steps:
-1 Put the machine OFF by pressing the
switch “A” (the display shows LAMBER
logo);
-2 Open the door of the glasswasher;
-3 Then press the “B” cycle-button for 3
seconds
Alternately flash the words “DRAIN” and
“REMOVE OVERFLOW”
(N.B. The word “REMOVE OVERFLOW” will
disappear only to the closing of the door)

15

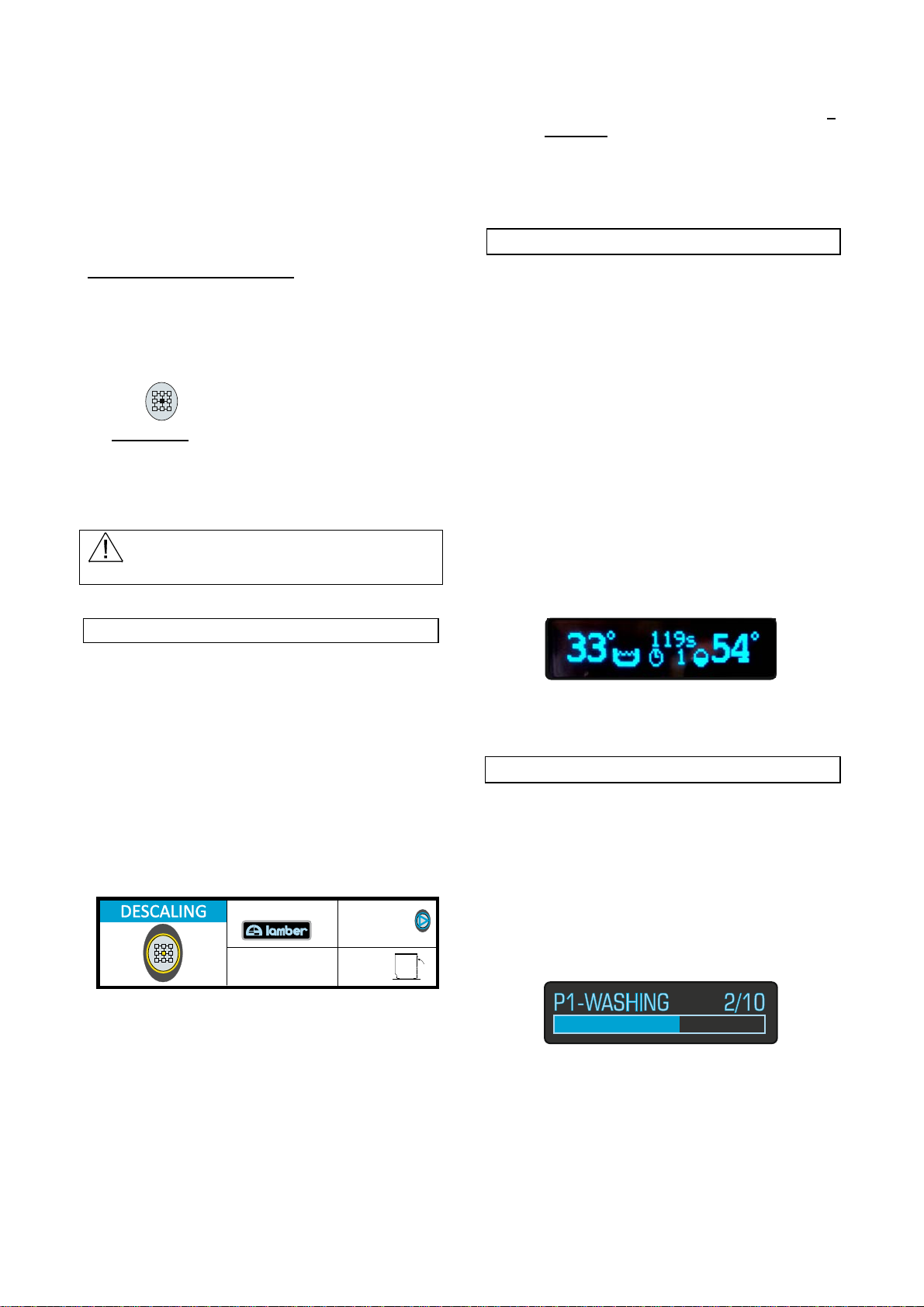

The discharge stops automatically after about
2’,20’’ minutes.
The discharge can be interrupted at any time by
pressing the cycle-button “B”
After drainig, the machine will turn off
completely (display OFF).
Then close the door.
EMERGENCY MANUAL DRAIN:
In case of emergency or for any reason, it’s possible to
drain manually the exceeding water from the wash tank.
-1 Open the door of the glasswasher;
-2 Press the setting button “E”
for 3 seconds and, always keeping pressed this
button, drain the exceeding water as
needed (the message ‘MANUAL DRAIN’
will be displayed). When you release the
button, the drain pump will stop.
ATTENTION: Don’t use this function to drain
completely the dishwasher.
DESCALING (optional)
(only for machine with drain pump and
dispenser )
The descaling function is a cycle that leads
descaling liquid in the pipelines of rinsing, in the
washing tank and boiler allowing the removal of
limescale deposits from the water products.
The cycle lasts about 35 minutes.
For an average water limestone is recommended
cycle activation at least once a week.
The frequency may vary depending on type of
water.
machine «OFF»
Door
closed
keep
button
pressed
for 3 sec.
keep button
pressed for 3 sec
and w . ait the End
of the drain
12
3
To make the cycle do the following operations:
-1 Put the machine OFF by pressing the
switch “A” (led off)
-2 Press the “B” button for 3 seconds and
wait for the complete emptying of the
tank;
-3 Close the door of the glasswasher;
-4 Then press the “E” button for 3
seconds
At the end of the descaling cycle (approx. 35
minutes) will appear on the LED the words
“END OF THE DESCALING CYCLE”.
AUTOMATIC OFF
The function “Automatic OFF” allows to activate
the automatic switch off of the glasswasher.
If the dishwasher is not used during 1 hour, it
switches off completely (machine OFF), and all
the heating elements are disconnected at the
same time.
To switch on again the glasswasher press the
pushbutton “A”.
To restart the cycle, close the door and press the
cycle pushbutton “B”.
Attention! This function can be activated on
demand only by a qualified technician.
See the specific paragraph about the customized
programming, in the section for the installer.
If this function is activated, on the display the
symbol of the clock will appear.
CYCLE REPETITION
It’s possible to program the serial repetition of a
certain number of cycles (up to 50).
The programming can be independently carried
out for every wash cycle.
During the cycle the display will show the
numeration of the cycles sequence (1 of 10, 2 of
10 etc….)
Attention! This function can be activated on
demand only by a qualified technician.
See the specific paragraph about the customized
programming, in the section for the installer.

16
WATER CHANGE
It’s possible to program after how many cycles
we want to change water completely.
A number (for ex. 1/5 according to what you have
set in the parameter) is displayed during the
washing phase. This number indicates how many
cycles lack to the beginning of the complete
water change phase.
The words “WATER CHANGE DRAIN” will be
displayed: to start this phase you have to open
the door of the dishwasher.
List of automatic MESSAGES
On the display may appear some messages to
inform about the status of the cycle start of
abnormalities. Below is the eXplanation of some
MESSAGES that appear on the display
automatically.
1-BREAK TANK :
This indicates that the tank of Break Tank is
filling of water to reach the required level.
2- BREAK TANK’S LEVELS STATE :
During the tank feeding and the rinsing the state
of the water levels in the break tank is displayed.
Symbol “H” indicates the high level, instead
symbol “L” indicates the low level.
3-ECONOMY :
After 10 minutes of non-use of the machine with
hood open, it appears the word ECONOMY.
The temperature of the heater stabililzes at 60°
reducing the consumption of energy.
4-BOILER THERMOCONTROL :
This indicates that the washing cycle will be
extended to reach the ideal temperature for
rinsing .
This message is accompanied by the value of the
temperature. This gives flashes and increments
until it reaches the programmed temperature, at
which may start the rinsing phase.
5-TANK THERMOCONTROL:
This message indicates that the wash pump will
start working only when the programmed
washing temperature will be reached.
Next to this message also the temperature value
will be displayed. This data flashes and
increases itself till when the programmed
temperature is reached. Once the temperature is
reached, the wash pump will start working.
6-REMOVE OVERFLOW :
This indicates that the overflow has to be
removed to perform the selected operations (self-
washing, descaling or discharge of the tank)
(Attention! In case of machines with drain pump,
there is no Overflow ! );
The data will disappear automatically after 10
seconds after you close the door of the
dishwasher.
7-REGENERATION IN PROGRESS :
(only for machines with built-in water softener).
It indicates that a cycle of regeneration of the
resins varying from 30” to 90” seconds is in
progress.
8- WASH OF THE RESINS :
(only for machines with built-in water softner).
It indicates that a washing cycle of the resins of
the duration of 10” seconds is in progress..
9-SALT OR PRODUCT CONTROL:
This message indicates salt lack inside the salt
container (only for glasswasher with water
softener) or liquid lack inside the descaling liquid,
detergent and/or rinse aid dispensers.
Add salt tablets or descaling liquid or detergent
or rinse aid according to the indications given by
your supplier.
This message is one-off for all 4 products.
Check which one is lacking.
10-SERVICE :
It Iindicates that you need to do maintenance
work. The scheduled maintenance service allows
you to control all the devices and efficiently
maintain your dishwasher over the time. Normal
functioning is still guaranteed. It is well worth
however not to wait too long to make the
intervention.
11-CYCLE END
COMPLETE DISINFECTION
DISINFECTION FAILED
These messages disapper only at the
glasswasher’s door / hood opening.

17
List ALARMS!
BREAK TANK ALARM
This indicates a fault in the operating system:
lack of water mains, valve not functionning: Call
Customer Service!
Alarm: A3-TEMP.SENSOR
This message indicates that the probe of the tank
temperature thermostats or boiler is defective.
Call the Technical Support Service!!
Alarm: A2-HIGH TEMP.
This message indicates that the temperature in
the boiler is greater than 105°C.
Call the Technical Support Service!
Alarm: BOILER PROBLEM FAILURE
This message indicates that the probe of the
boiler is not working properly. In this case the
functioning of the resistance of the boiler and the
Thermocontrol are disabled.
Call the Technical Support Service!
Alarm: TANK PROBLEM FAILURE
This message indicates that the probe of the
washing tank is not working properly. It is
disabled in this case the functioning of the
washing tank resistance.
Call the Technical Support Service!
TANK FILLING ALARM
If after 15 minutes the tank filling is not concluded,
the message TANK FILLING ALARM will be
displayed accompanied by an acoustic alarm.
The glasswasher stops working.
Switch off the machine by pressing ON/OFF
pushbutton.
Call the Technical Support Service!
(If possible check before if there is water inside
the network or the overflow is in correct place.)
CHECK THE WATER LEVEL
This message indicates that, during the wash
cycle and every time that the glasswasher fills
with water, an excessive decrease of the water
level inside the tank has occurred.
Check that the water feeding cock is open, or
that the overflow is correctly placed in its
housing.
On the contrary, Call the Technical Support
Service!
TANK HEATING CHECK RINSE
ATTENTION: if the glasswasher is in the washing
phase (pump is functioning), the cycle will stop.
Verify that there is no trace of detergent on the
dishes before to use them.
Call the Technical Support Service!
CHECK TANK HEATING
ATTENTION: if the dishwasher is in the washing
phase (pump is functioning), the cycle will stop.
Verify that there is no trace of detergent on the
dishes before to use them.
Call the Technical Support Service!

work/cdr/cestelli-S480-dy-2017
CA-40 cod.CC00075 (1x) LBQ-40 cod.CC00052
(S400-dy/S460-dy:2x/S480-dy-1x)
(only S480-dy-1x) IP-10 cod.CC00049 (1x)
G cod.CC00045 (1x)
400
400
S400-dy
S460-dy
S480-dy
240
260
300
Saucers should be placed vertically
on the appropriate rack.
Plates clearance
Plates clearance
Plates clearance
GLASSES POSITIONING
To achieve optimal cleaning results, make sure that tableware is correctly stored
inside the washer.glass
Put the cutlery into the small baskets,
handles down. Avoid overlapping it
(see picture above).
Insert the baskets inside the
machine glasseswith the in the
direction shown in the picture.
Warning !
Only use the baskets
supplied with the
dishwasher !
Glasses, bowls and cups should be positioned face
down into the proper compartment as shown below.

CLEANING AND PREVENTIVE
MAINTENANCE
PRECAUTION AND CLEANING
INSTRUCTIONS
- IMPORTANT : Before carrying out the
cleaning and maintenance operations,
disconnect the equipment from the mains
power supply:
-Follow the directions on the maitenance in
this guide;
-Wear protective clothing and gloves when
challenged elements are impregned with
clearing solution;
-high temperatures can be reached inside
the machine (90°C). After power supply has been
removed, wait until the machine has reached
room temperature, before working on it.
-never leave tools, parts or other loose
material in or on the machine;
- Chek that there are no rusting foreign
bodies, because of the material “stainless steel”
could begin to rust. Rust particles can come from
non- stainless steel dishes or damaged wire
baskets.
- Do not wash the machine and the area
surrounding it with fire hydrants, steam jets of
high-pressure cleaners;
- When clearing the floor be careful not to
saturate the base of the machine, in order to
avoid a prolonged stagnation of water;
- To clean the inside of the machine, use a
brush or a soft cloth;
- To clean the machine do not use abrasive
cleaners;
-BEFORE starting machine or cycle, after
any maintenance or repair work, make sure
all protectives are correctly installed;
Attention. Before carrying out cleaning the
inside of the machine, make sure that there are
no foreign objects that could damage the rusty
steel inside the tank. The eventual rust particles
could come from non-stainless steel dishes, from
baskets or damaged water pipes not rust-proof.
DAILY MAINTENANCE
- Turn off the machine by pressing the
switch “A” and drain the water from the
tank by removing the overflow;
(Attention! In case of machines with drain pump,
there is no Overflow ! );
- Wait until the water is drained and there is
no debris on the bottom of the tank.
- Proceed to the specific operation of daily
clearing as descrbed on the next page
Please pay attention to the opening and
closing of the door of the glasswasher. Do not
use the machine if you are wearing
clothes/items that could get entangles in the
dishwasher parts. As they can limit personnel’s
regular moving ability!
- If there is an extended downtime is
advisable to prevent the formation of
unpleasant odors and leave the hood
raised.
- When the machine is to remain idle for a
long time, drain all the water from the
boiler (the drain plug is located on the
lower side of the boiler) and from the
electropump. Also leave the wash tank
open.
NEVER WASH THE EXTERNAL PART
OF THE MACHINE WITH A WATER JET

20
DAILY CLEANING OF THE INTERIOR OF THE GLASSWASHER
Attention. Before carrying out cleaning the inside of the machine, make sure that there are no foreign
objects that could damage the rusty steel inside the tank. The eventual rust particles could come from non-
stainless steel dishes, from baskets or damaged water pipes not rust-proof.
Open the door of the
glasswasher
Remove the washing lower
arm
Remove the overflow pipe
(Attention! In case of
machines with drain pump,
there is no Overflow ! );
Unscrew the lower rinse arm
Remove the rinse arm on the
top
Remove the tank filters
ATTENTION! Daily
disassemble the lower and
upper wash arms by
working on the „big“ ring
nut, like in the picture.
Remove the pump filter
