Lamborghini Caloreclima XILO T 20 M W TOP U/IT User manual

1
MANUALE DI
INSTALLAZIONE E
MANUTENZIONE
INSTALLATION
AND MAINTENANCE
MANUAL
MANUAL PARA
LA INSTALACIÓN Y
EL MANTENIMIENTO
MANUAL DE
INSTALAÇÃO E
MANUTENÇÃO
20 M W TOP U/IT
20 MS W TOP U/IT
AZIENDA CERTIFICATA ISO 9001
PREGASI CONSEGNARE
L'INSERTO "MANUALE D'USO"
AL SIG. UTENTE
PLEASE MAKE SURE THAT THE
"USE MANUAL" IS HANDED
OVER TO THE USER
TENGAN LA AMABILIDAD DE
ENTREGARLE AL USUARIO EL
"MANUAL DE USO"
FAVOR ENTREGAR O
"MANUAL DE USO"
AO SR. UTENTE
CALDAIA MURALE A GAS TERMO - ALTO RENDIMENTO - MODULANTE
WALL-HUNG GAS BOILER FOR HEATING - HIGH EFFICIENCY - MODULATING
CALDERA MURAL A GAS PARA CALEFACCIÓN - ALTO RENDIMIENTO - MODULANTE
CALDEIRA DE PAREDE A GÁS PARA CALEFACÇÃO - ALTO RENDIMENTO - MODULANTE

27
Read carefully all warning and instructions contained in this manual at they give important
safety instructions regarding installation and maintenance. Keep this manual for future
reference.
Installation must be carried out by qualified personnel who will be responsible for respecting
existing safety regulations.
GB

30
Congratulations...
......on an excellent choice. We thank you for the preference accorded to our products.
LAMBORGHINI CALORECLIMA has been actively present in Italy and throughout the world since
1959 with a widespread network of agents and concessionary agents to constantly guarantee the
presence of our product on the market.
Alongside this is the support of a technical service, “LAMBORGHINI SERVICE”, which is entrusted
with the qualified servicing of the product.
For the installation and positioning of the boiler:
CAREFULLY OBSERVE THE LOCAL REGULATIONS IN FORCE
INDEX PAGE
GENERAL INSTRUCTIONS _____________________________________________ 31
DESCRIPTION _______________________________________________________ 32
MAIN COMPONENTS ________________________________________________ 33
DIMENSIONS _______________________________________________________ 34
TECHNICAL FEATURES ________________________________________________ 34
GAS - NOZZLE CALIBRATION __________________________________________ 35
ELECTRICAL CONNECTIONS - WIRING DIAGRAMS _______________________ 36
MALFUNCTIONS AND ADJUSTMENTS __________________________________ 43
WATER CONNECTION _______________________________________________ 44
WATER CIRCUIT ______________________________________________________ 45
INSTALLATION _______________________________________________________ 46
START-UP ___________________________________________________________ 46
FLUE EXHAUST CONNECTION _________________________________________ 47
FLUE EXHAUST INSTALLATION _________________________________________ 49
ADJUSTMENTS ______________________________________________________ 50
SWITCHING OFF ____________________________________________________ 51
MAINTENANCE _____________________________________________________ 51
OPERATION WITH DIFFERENT TYPES OF GAS ____________________________ 53
FAULT-FINDING CHART _______________________________________________ 54

31
GENERAL INSTRUCTIONS
●This booklet constitutes an integral and essential part of the product.
Read carefully the instructions contained in this booklet as they provide important directions regarding the
safety of installation, use and maintenance. Preserve this booklet with care for any further consultation.
The installation of the boiler must be carried out in compliance with current regulations, according to the
instructions of the manufacturer and by qualified personnel. An incorrect installation can cause injury or
damage to persons, animals and objects, for which the manufacturer cannot be held responsible.
●After removing the packaging materials, check the content integrity. In case of doubt, do not use the unit
and contact the supplier. The packaging material (wooden crates, nails, clips, plastic bags, foam, etc.)
must not be left within reach of children as they are potential sources of danger.
●This boiler is designed to heat water to a temperature below boiling (atmospheric pressure). It must be
connected to a heating system compatible with its performances and output.
●This appliance should be destined only for the use for which it has been expressly envisaged. Any other
use is to be considered improper and therefore dangerous. The manufacturer cannot be considered
responsible for any damages caused from improper, erroneous or unreasonable use.
ALL INSTALLATION, MAINTENANCE AND GAS CONVERSION OPERATIONS MUST BE CARRIED OUT BY
AUTHORISED SKILLED TECHNICIANS.
TO ENSURE THAT BOILER IS INSTALLED CORRECTLY AND THAT IT FUNCTIONS PROPERLY, WE RECOMMEND
THAT ONLY LAMBORGHINI ACCESSORIES AND SPARE PARTS BE USED.
ON NOTICING THE SMELL OF GAS DO NOT TOUCH ANY ELECTRIC SWITCH. OPEN DOORS AND WINDOWS.
SHUT OFF THE GAS COCKS.
INSTALL THE BOILER ON WALLS WHICH ARE AS WIDE AS OR WIDER THAN THE BOILER ITSELF.

32
DESCRIPTION
These boilers are fully automatic and gas control is effected by an electronic control unit having the following
characteristics:
-continuous modulation mode on both circuits;
-possibility to adjust the heating output;
-possibility to adjust the slow ignition;
XILO T models are equipped with:
-no-water pressure switch;
-total safety thermostat;
-high efficiency bi-thermal flue gas exchanger;
-Hot water plate exchanger.
XILO T 20 M W TOP
Electronic ignition with ionization flame control.
Atmospheric-type combustion and flue gas exhaust. A special FLUE CONTROL device for flue gas exhaust is
also supplied.
FLUE CONTROL THERMOSTAT
The boiler is fitted with the FLUE CONTROL thermostat for control of fume evacuation. An increase in
fume temperature in the down-draught diverter indicates an anomaly in fume evacuation. The FLUE
CONTROL probe in the down-draught diverter detects variations in temperature and shuts down the
boiler. Efficient operation of this safety system depends on observance of the following:
-Do not deactivate the FLUE CONTROL thermostat.
-Inspect the boiler and the flue immediately if the FLUE CONTROL device trips frequently.
-If the FLUE CONTROL device is changed make sure you observe assembly and probe positioning
instructions carefully and use only original LAMBORGHINI spare parts.
If there is a fume evacuation anomaly act quickly to prevent the formation of Carbon Monoxide, a
poisonous gas that causes intoxication and potentially fatal harm to both humans and animals.
XILO T 20 MS W TOP
Equipped with electronic control unit for automatic ignition and ionization electrode flame control.
To ensure safe operation, the electric fan is controlled by a pressure switch.
Flue gas exhaust can be made by means of the following:
-aflue pipe concentric with the air intake pipe;
-adouble pipe, one for flue gas exhaust and the other for combustion air intake.

33

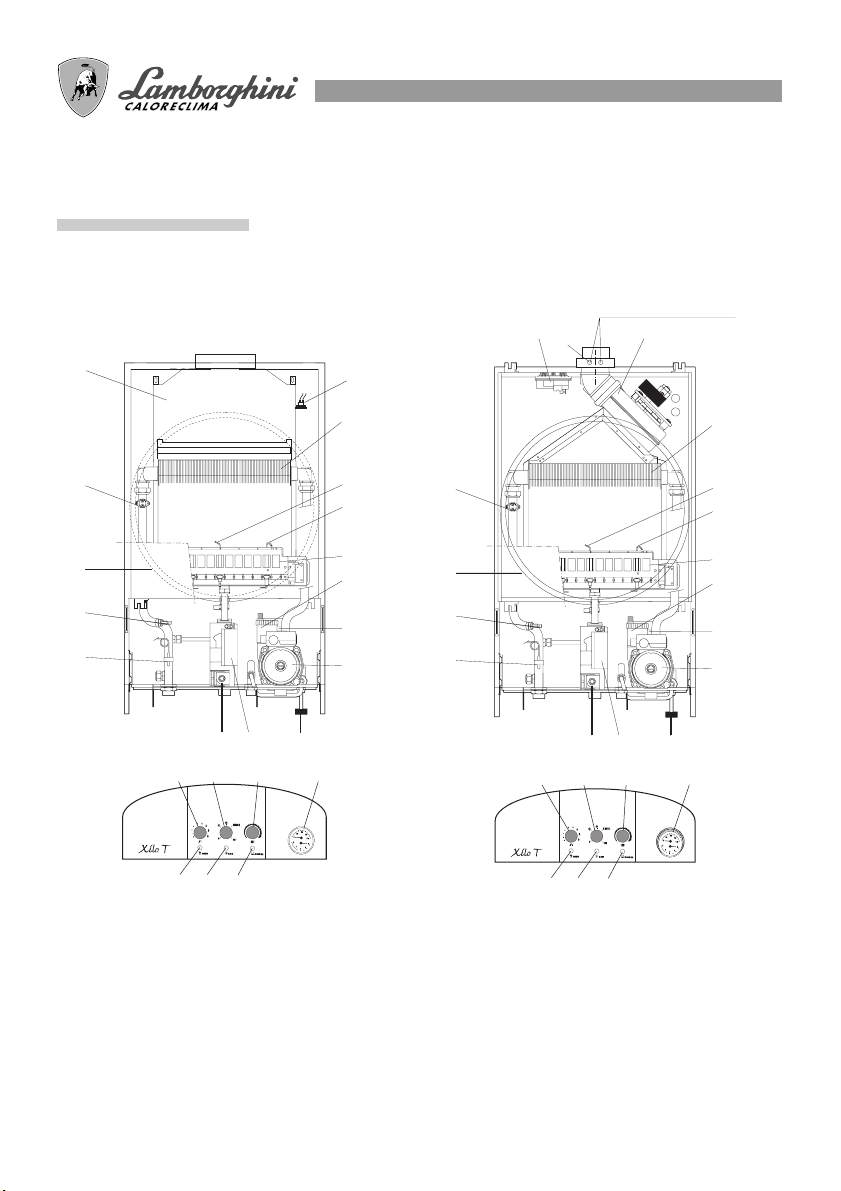

MAIN COMPONENTS
LEGEND
1Fumes pressure switch
2Fan
3Heating sensor
4Total safety thermostat
5Exchanger
6Burner
7Ignition electrodes
8Control electrode
9Automatic air bleed valve
10 Safety valve
11 Circulator
12 Filling cock
13 Gas valve
14 Modulating coil
15 Gas pressure reading point
16 Expansion tank
17 Thermohydrometer
18 Malfunction warning light
19 ON/OFF warning light
20 Lock-out warning light
21 Fixed knob
22 Function selector
23 Heating adjustment
potentiometer
24 Flue hood
25 Flue control
26 Taken combustion test
XILO T 20 MS W TOPXILO T 20 M W TOP
12
4
16
15
3
14 13 12
5
8
6
9
10
11
17
23
22
21
181920
26
7
4
16
15
3
14 13 12
5
8
6
9
10
11
17
23
22
21
181920
1009DIS1358
24 25
7
Fume analysis points

34
300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
600
500
400
300
200
100
Prevalenza residua
mbar
Portata (l/h)
DIMENSIONS mm
CIRCULATING PUMP FEATURES
System delivery/pressure
Boiler version: mod. M type B11 BS Max. water temperature 90°C
mod. MS type C12-C32-C42-C52-C62-C82 Rated gas pressure:G20 20 mbar
Category: II 2H3+ G30 28-30 mbar/G31 37 mbar
Cl NOx : 1 (M) - 2 (MS)
TECHNICAL FEATURES
Residual pressure
mbar
Delivery (l/h)
XILO T 20 MS W TOP
100 Max. 3000 220
105
440
770
100 Max. 3000
160
330
XILO T 20 M W TOP
220
440
770
160
330
132,5
MODEL
XILO T 20 MS
W TOP
XILO T 20 M
W TOP
Input Output Main system
Gas
Supply
kW kcal/h kW kcal/h
ØØØ
kg
26
Return
Ø
kW kW kcal/h
Cold water
inlet
Operating
pressure
max.
22.360
23.73 20407 12,1 10406
10,47
9004
3/4”
3/4” 3/4” 1/2”
Thermal capacity Min. thermal capacity Connections
35
Input Output
kcal/h
26 22.360
23.66
20348 12,1 10406
10,62
9133 3/4”
3/4” 3/4” 1/2”
33
Bar
3
3
lt
8
Expansion
tank
8
Weight

35
The boilers leave the factory calibrated and ready to operate with G20 (Natural gas) and G30/G31 (LPG).
For proper calibration, see the table below:

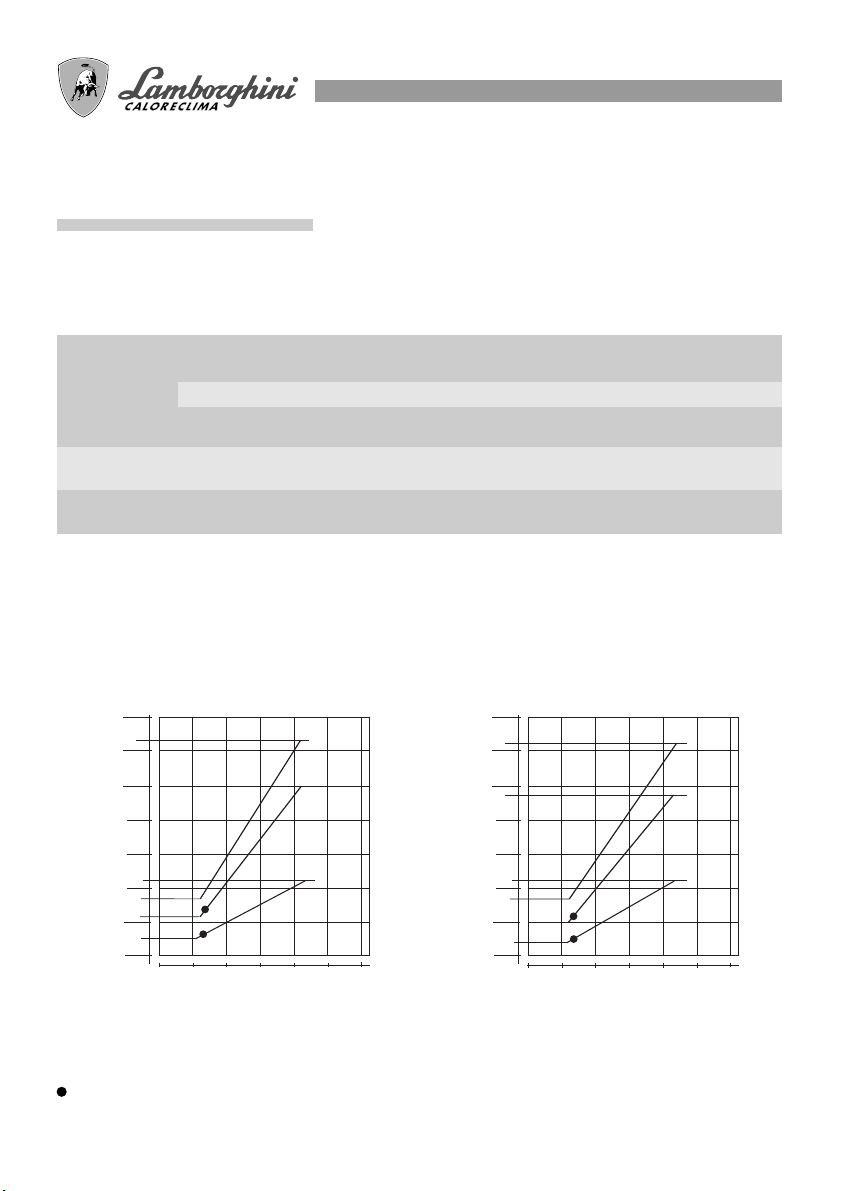

BURNER PRESSURE CURVES - OUTPUT
GAS - NOZZLE CALIBRATION
Gas type
G20 20 mbar
(Natural gas)
G30 28-30 mbar
(LPG)
G31 37 mbar
(LPG)
Jets pressure mbar
Slow ignition adjustment
3 mbar G20 (Natural Gas) (M) - 2,7 mbar G20 (Natural Gas) (MS)
7 mbar G30/G31 (LPG) (M) - 6 mbar G30/G31 (LPG) (MS)
Burner
jets
Ø mm.
1,25
0,77
0,77
L.C.V.
kcal/h
8.550
29.330
22.360
Delivery
m3/h
2,61
0,76
1
XILO T 20 MS
max.
10,7
24
31,4
1,8
5
7,9
min.
XILO T 20 M
max.
11,2
25
31,5
2,7
5,7
8,7
min.
XILO T 20 MSXILO T 20 M
10 kW
mbar
1,8
10,7
24
2515 20
10
5
10,7 G20
0
15
20
25 24 G30
kPa
30 35
0
35
1
0,5
0
1,5
2
2,5
331,4 31,4 G31
0,1
30
7,9
1009DIS1354
10 kW
mbar
2,7
11,2
2515 20
10
5
11,2 G20
0
15
20
25 25 G30
kPa
30 35
0
35
1
0,5
0
1,5
2
2,5
331,5 31,5 G31
0,1
30
8,7
5,7
1009DIS1353

36
ELECTRICAL CONNECTIONS - WIRING DIAGRAMS
The boiler must be connected to an earthed, single-phase 230V-50 Hz mains supply by means of a three-wire
cable, ensuring that connections to the PHASE and NEUTRAL terminals are made correctly.
A bipolar switch must be used with contacts opening to at least 3 mm.
The power lead must only be replaced by another with the following characteristics: “HAR H05 VV-F” 3 X 1.00
mm2. (You are strongly advised to use original LAMBORGHINI accessories and spare parts only).
Installation must be made in compliance with safety REGULATIONS IN FORCE.
Grounde connections are compulsory. Connect the boiler to an efficient grounding system.
To gain access to the electrical panel which houses the power supply terminal block and any connection to a
room thermostat, proceed as follows:
Voltage
V
230
Frequency
Hz
●Disconnect the boiler power
supply
●Undo the two grating screws
(fig. 1)
●Undo the two jacket fixing
screws (fig. 2)
●Raise the jacket and then pull it
towards you (fig. 3)
●To access electrical and
electronic parts loosen screws A
and pull the entire panel
outwards (fig. 4). Tilt
downwards and undo the
screws B on the cover C
fig.3 fig.4
50
fig.1 fig.2
fig.5
A
A
B
c
Absorbed power
kW Noise level dB (A)
MS
46
M
51
Protection
index
IP
X 4D
MS
0,150
M
0,120

37

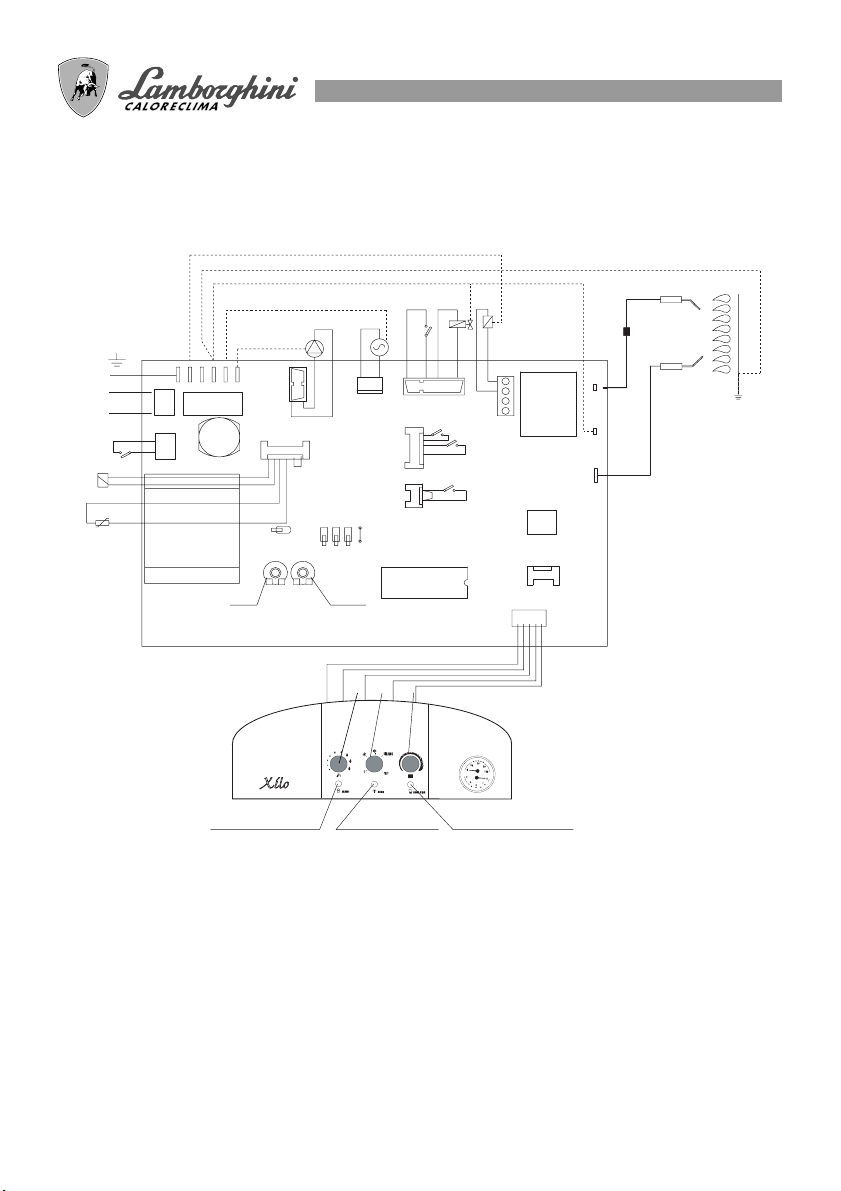

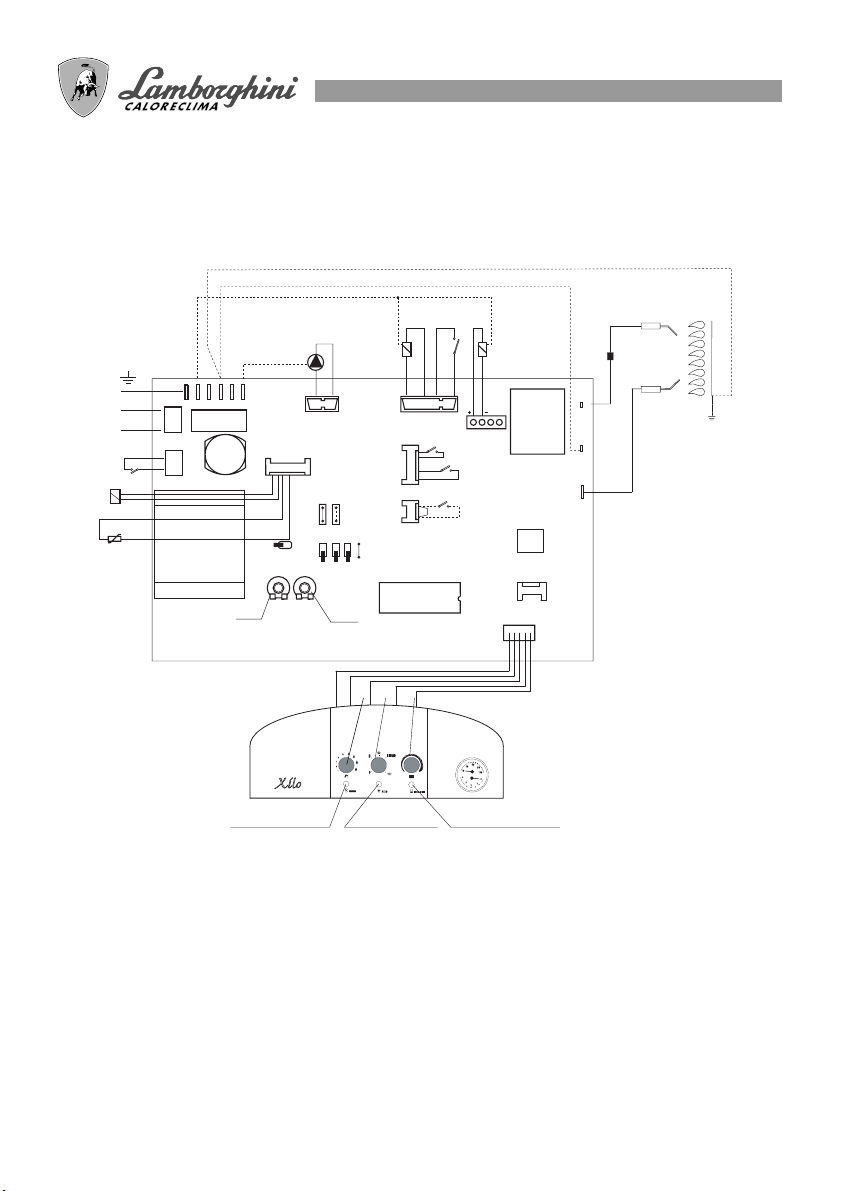

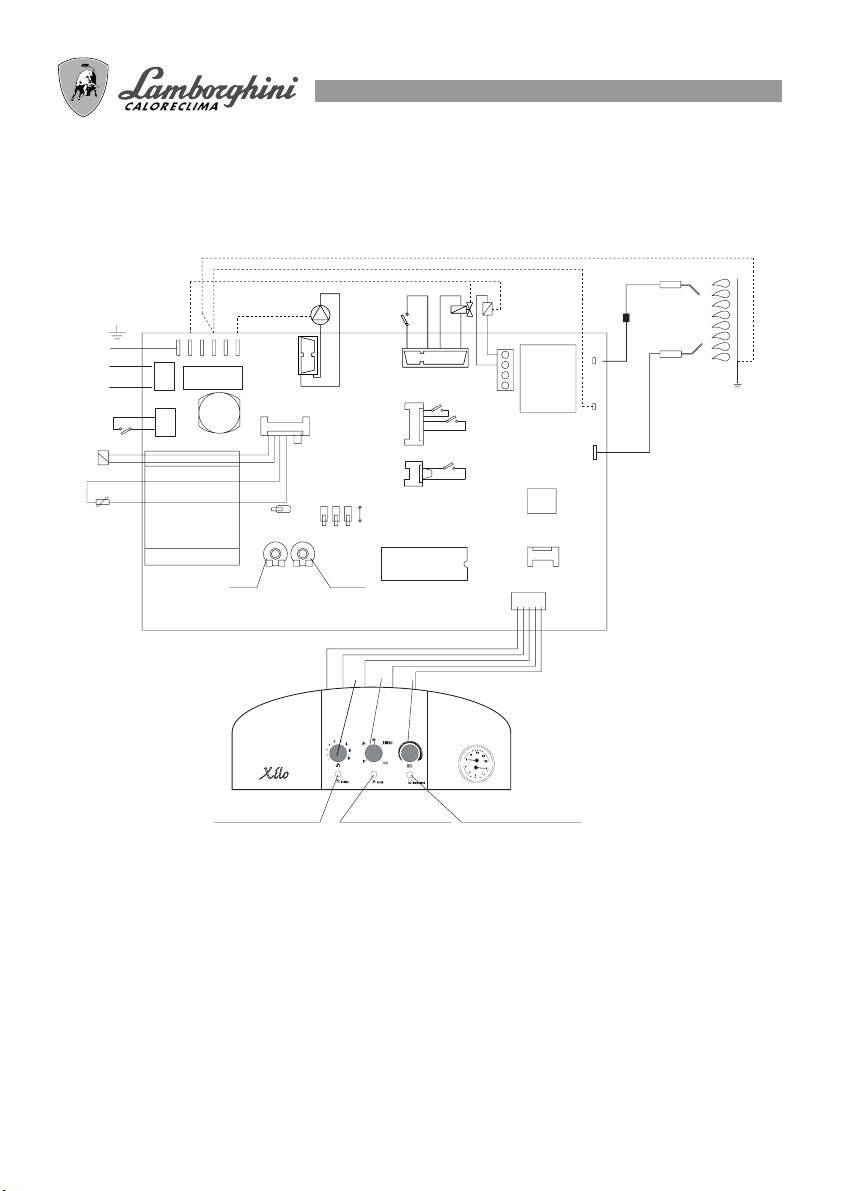

ASSEMBLY DIAGRAM XILO T 20 M W TOP - card code 4.56035.0
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse 2(A)
FC Flue control
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low
temperature
JP6 Mono-thermal/bi-thermal switch
LPhase 230 V 50 Hz
NNeutral
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve SIT 837
VG1 Gas valve Honeywell
VK 4105M
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3Fixed knob
J12
TST VG
L
NJ1 F
J14
L1
TA
TL (BASSA TEMP.)
J6
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
J13
J9
J8
BM
JP4 JP2
JP3
RLA Rmax.
SR
PS
PANEL
CONNECTION
JP5
JP1
FC
EA
VG1
EC
J15
Lock-out warning light
ON/OFF warning light
Malfunction warning light
21
CiR
J3
3
Resist.
1 kohm
MODULATOR
J10
MP
+ S
Warning: One of the two gas valves only, VG or VG1, is fitted on the boiler.

38
ASSEMBLY DIAGRAM XILO T 20 MS W TOP - card code 4.56035.0
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse 2(A)
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low temperature
JP6 Mono-thermal/bi-thermal switch
LPhase 230 V 50 Hz
NNeutral
PA Air pressure switch
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve SIT 837
VG1 Gas valve Honeywell
VK 4105M
VN Fan
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3Fixed knob
L
NJ1 F
J14
L1
TA
TL (BASSA TEMP.)
J6
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
J13
J9
J8
BM
JP4 JP2
JP3
RLA Rmax.
SR
PS
PANEL
CONNECTION
JP5
JP1
PA
CiR
J3
VG1
VG
J12
TST
EA
EC
J15
Lock-out warning light
ON/OFF warning light
Malfunction warning light
21
3
J4
VN
MODULATOR
Resist.
1 kohm
J10
MP
+ S
Warning: One of the two gas valves only, VG or VG1, is fitted on the boiler.

39
ASSEMBLY DIAGRAM XILO T 20 M W TOP - card code 4.55828.0
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse
FC Flue control
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low
temperature
LPhase 230 V 50 Hz
NNeutral
PS No-water pressure switch
RLA Slow ignition power
adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3 Fixed knob
L
NJ1 F
J14 L1
CiR
J3
J15
TL
J6
J13
J9
J8
BM
JP4
JP3
RLA Rmax.
SR
PS
JP5 (BASSA TEMP.)
JP1
FC
TA
VG
J12
TST
EA
EC
21
3
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
PANEL
CONNECTION
Lock-out warning light
ON/OFF warning light
Malfunction warning light
MODULATOR
Resist.
1 kohm
J10
MP
+ S

40
ASSEMBLY DIAGRAM XILO T 20 MS W TOP - card code 4.55828.0
L
NJ1 F
J14 L1
CiR
J3
J15
TL
J6
J13
J9
J8
BM
JP4
JP3
RLA Rmax.
SR
PS
JP5 (BASSA TEMP.)
JP1
FC
TA
VG
J12
TST
J10
EA
EC
21
3
J4
VN
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
PANEL
CONNECTION
Lock-out warning light
ON/OFF warning light
Malfunction warning light
Resist.
1 kohm
MODULATOR
MP
+ S
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse 2(A)
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low temperature
LPhase 230 V 50 Hz
NNeutral
PA Air pressure switch
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve
VN Fan
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3Fixed knob

41
ASSEMBLY DIAGRAM XILO T 20 M W TOP - card code 4.56040.0
L
NJ1 F
J14 L1
CiR
J3
J15
TL
J6
J13
J9
J8
BM
JP4
JP3
RLA Rmax.
SR
PS
JP5 (BASSA TEMP.)
JP1
FC
TA
JP6JP7
VG
J12
TST
VG1
EA
EC
21
3
Lock-out warning light
ON/OFF warning light
Malfunction warning light
PANEL
CONNECTION
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
Resist.
1 kohm
MODULATOR
J10
MP
+ S
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse 2(A)
FC Flue control
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low
temperature
JP6 Mono-thermal/bi-thermal switch
LPhase 230 V 50 Hz
NNeutral
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve SIT 837
VG1 Gas valve Honeywell
VK 4105M
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3Fixed knob
Warning: One of the two gas valves only, VG or VG1, is fitted on the boiler.

42
ASSEMBLY DIAGRAM XILO T 20 MS W TOP - card code 4.56040.0
L
NJ1 F
J14 L1
CiR
J3
J15
TL
J6
J13
J9
J8
BM
JP4
JP3
RLA Rmax.
SR
PS
JP5 (BASSA TEMP.)
JP1
FC
TA
JP6JP7
VG
J12
TST
VG1
EA
EC
Resist.
kohm
1
21
3
J4
VN
PANEL
CONNECTION
JUMPER TO BE CUT
IF LIMIT THERMOSTAT
IS REQUIRED
MODULATOR
Lock-out warning light
ON/OFF warning light
Malfunction warning light
J10
MP
+ S
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
FFuse 2(A)
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low temperature
JP6 Mono-thermal/bi-thermal switch
JP7 Gas valve switch
LPhase 230 V 50 Hz
NNeutral
PA Air pressure switch
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve SIT 837
VG1 Gas valve Honeywell
VK 4105M
VN Fan
1Heating potentiometer
2Selector: Off
Winter
Reset
Test
3Fixed knob
Warning: One of the two gas valves only, VG or VG1, is fitted on the boiler.

43
MULFUNCTIONS AND ADJUSTMENTS
Should the boiler shut down it must be reset by rotating functions selector switch to position A.
B: see TEST functions at “Gas pressure adjustments with Honeywell VK 4105 valve”
B
A
Constant light:
Ignition shutdown
Fast flashing light:
TST shutdown
G30/G30
LPG G20
Natural Gas
(post.circ. off)
heating post.circ. on 2,5 min.
Heating timer off heating timer on
2,5 min.
JP5
JP4
JP3
JP1
Resistor jumper cut, floor heating temp. set to 30/40°C.
Resistor jumper uncut, temperature 35/80°C
Legend:
OffOn
JP6
Present: bi-thermal function
Absent (cut): mono-thermal function
cards only:
4.56035.0
4.56040.0
RLA
R max.
Increase
Increase
Slow ignition adjustment
Max. heating power adjustment
Constant light: No water
Fast flashing light: Sensor fault
Slowly flashing light:
Air pressure switch (MS)
Flue Control (M)

44
WATER CONNECTION
Fit the supporting hooks and attach the assembly template, moving it up to the wall; fit all the pipes, starting
with the end pipe fittings already mounted on the template: system supply, system return, cold water, hot water,
any gas pipes and electric mains leads with room thermostat.
Once the pipes have been fitted, the end pipe fittings can be removed and ordinary caps fitted, ready for
hydraulic tests to be carried out. The template can be removed or, if left in place, will be embedded in the wall
once finishing operations have been completed (plaster and tiles); only the two supporting hooks will protrude
from the wall, as well as an opening for the connections. Attach the boiler to the hooks through the holes at the
back of the frame, pushing it up against the finished wall. Make the necessary hydraulic connections.
ADVICE AND SUGGESTIONS ON PREVENTING SYSTEM VIBRATION AND NOISE.
-Do not use pipes of reduced diameter.
-Do not use low-radius elbows or fittings that significantly reduce cross-section.
-Hot-flushing of the system is recommended in order to eliminate any impurities from the piping and
radiators (especially oil and grease) which might damage the circulator.
LEGEND
GGas Ø 1/2” - Ø 3/4”
(see cock supplied with the boiler)
FBoiler water supply Ø 1/2" (cold)
AE Electrical supply
MSystem delivery Ø 3/4"
RSystem return Ø 3/4"
GS Holding hooks Ø10 mm.
NOTE: Provide female water connections.
98
440
130,5
278
13,5
770
440
384 28
GS
28
MR
AE
GF
12 744,5
220
342 98

45
WATER CIRCUIT
LEGEND
ASystem delivery
BGas
CCold water inlet
DSystem return
1Exchanger
2Modulator coil
3Heating sensor
4Gas valve
5Filling cock
6Safety valve
7No-water pressure switch
8Circulator
9Burner
10 Expansion tank
11 Fumes pressure switch
12 Fan
13 Automatic air bleed valve
14 Total safety thermostat
15 Flue control
16 By-Pass (if any)
XILO T 20 M W TOP XILO T 20 MS W TOP
DCBA
4
265
16
7
8
13
14
9
10
1
3
15
1009DIS1359
1009DIS1360
D
C
B
A
4
265
16
7
8
13
14
9
10
11
12
1
3
Fume analysis points

46
INSTALLATION
To be carried out by qualified personnel.
The installation must be in compliance with the stipulations of the law regarding the evacuation of combustion
materials according to the REGULATIONS IN FORCE.

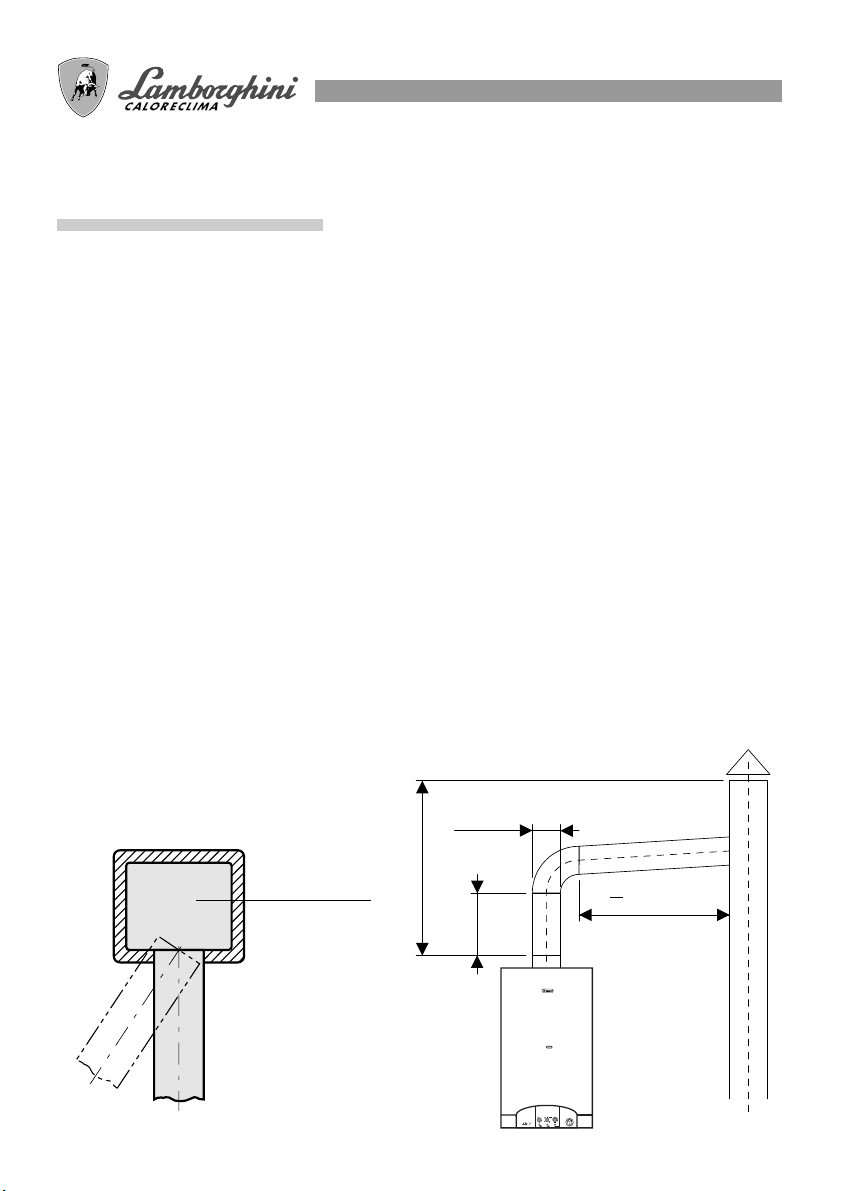

The gas fume evacuation must be effected with a pipe of a diameter not less than that required by the boiler
and it must be connected to a flue pipe suitable for the capacity of the installation.
For connection of appliances to smoke conduits:
a) they must be easy to dismantle;
b) they must be sealed and of a material able to resist the products of
combustion and their possible condensation;
c) they must not have regulation devices (gate valves). If such devices are
already in operation they must be eliminated;
d) the connection itself must not protrude inside the flue pipe but stop before the internal
face of the same.
GAS CONNECTION
Carry out the gas connection in accordance with the regulations in force.
The boiler must be connected to the installation with a rigid metal pipe or a flexible stainless steel pipe with
continuous wall of the approved type. The flexible corrugated metal pipes must be installed in such a way that
their length, in a state of maximum extension, is not greater than 2000 mm. The boilers are calibrated and
tested to function with G20 (Natural Gas) and G30/G31 (LPG), category II 2H3+, with rated pressures of 20
mbar, 28/30 mbar and 37 mbar respectively.
PUTTING THE BOILER INTO SERVICE
●Proceed with the clearing out of air.
●Check that there are no gas leaks (use a soapy solution or equivalent product).
SYSTEM FILLING
Open the feeding tap slowly until the system reaches a working pressure (indicated on the hydrometer) of 1.5
bar, then close it. Check that the automatic air bleed valve, on the circulator, has its cap loosened; run the
circulator repeatedly to eliminate any air in the circuit.
IGNITION
Open the gas tap and turn the selector switch to the desired position. The burner will ignite automatically.
Should the unit fail to ignite see if the lock-out indicator is on. If it is, turn the selector switch to RESET so that the
boiler repeats the ignition sequence. Then adjust heating and hot water temperature as desired via the appropriate
controls.
START-UP

47
CONNECTION TO THE CHIMNEY - VERSION XILO T 20 M W TOP
The boiler is envisaged being connected to a chimney and/or a flue pipe; the combustion fumes can also be
discharged directly outside.
The joining to the chimney or flue pipe must be made with a smoke conduit having the following features:
●of being sealed airtight, as with the connection to the chimney itself;
●of being of suitable material;
●of being connected within sight;
●of having changes in direction, not more than 3 no., which must be carried out with internal angles greater
than 90°and with the use of curved elements;
●of not having any intercepting devices;
●of having the axis at the entrance of the terminal section perpendicular to the opposite internal wall of the
chimney;
●of being firmly fixed and sealed at the entrance, without protruding beyond the inner walls of the chimney;
●of receiving preferably one boiler only;
●of observing the local regulations in force.
WARNING:
This unit is fitted with a Flue Control device to control flue draught. This device is tripped when there is a risk of
combustion fume backflow. This device must never be deactivated. If combustion fumes re-enter the room they
may cause chronic or acute intoxication and can be fatal. If the Flue Control device is changed use only
original spare parts. If the device trips repeatedly check for proper fume outflow via the chimney flue and
contact a Lamborghini Service Centre.
FLUE EXHAUST CONNECTION
Ø 132,5 mm 3%
1000 mm
min. 265 mm
Hmax. 2500 mm
4
1009DIS55
NO
YES
Flue pipe or
chimney
