User & Installation Guide
HJA2450-2
Stainless Steel
Chimney Extractor

www.howdens.com
Page _ 2
LAMONA Appliances
Dear Customer,
Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you
excellent service.
The user manual will help you use your product quickly and safely.
 Please read this user manual before installing and using the product.
 Always follow the safety instructions.
 Keep this user manual within easy reach for future reference.
 Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
ThisapplianceismarkedaccordingtotheEuropeanDirective2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE). By ensuring this
productisdisposedofcorrectlyyouwillhelppreventpotentialnegative
consequencesfortheenvironmentandhumanhealth. The symbol on this
product indicates that this product may not be treated as household waste.
Insteadit should be handedover to the applicablecollection point for recy-
cling of electrical and electronic equipment. Disposal must be carried out in
accordancewithlocalenviromentalregulationsforwastedisposal. Formoredetailed
information please contact your local council household waste site.

Exclusive to Howdens Joinery.co Page _ 3
User manual HJA2450-2
Index
Before using the extractor 03
Safety 03
General 03
Safety for children 06
Safety when working with electricity 07
General information and operation 08
Extractor layout 08
Control panel layout 08
Care and maintenance 09
General Cleaning 09
Grease Filters 09
Carbon Filters 10
Replacing the Lamps 10
Installation 11
Methods of extraction 11
Extraction Via Ducting 11
Extraction Via Recirculation 11
Parts
Hanging your extractor 13
Decorative Chimney Fitting 15
Electrical Connections 16
17
Troubleshooting 17
Your Guarantee 18
12

www.howdens.com
Page _ 4
LAMONA Appliances
Make sure that you have removed all
packaging, wrappings, stickers and films
from the Extractor
Before using the Extractor
General
Safety
This appliance is for domestic extraction
purposes only. It must not be used for
other purposes. Commercial use will void
the guarantee.
The manufacturer shall not be liable for any
damage caused by improper use, installation or
handling errors.
This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced people
(including children) unless they are supervised
by a person who will be responsible for their
safety or who will instruct them accordingly in
the use of the product.

www.howdens.com Page _ 5
Do not carry out any repairs or modifications
on the product. However, you may remedy
some the problems that do not require any
repairs or modifications. See Troubleshooting,
at the rear of this manual.
Never wash down the product with excessive
water, as there is the risk of electric shock!
Never use the product when your judgment or
coordination is impaired by the use of alcohol
and/or drugs.
Product must be disconnected from the mains
during installation, maintenance, cleaning and
repair procedures.
Repair procedures must always be performed
by qualified service agents. The manufacturer
shall not be held responsible for damages
arising from procedures carried out by
unauthorised persons, which may also void
the guarantee.
Do not operate the product if the power cable
is damaged. Call qualified service agent.
User manual HJA2450-2

www.howdens.com
Page _ 6
LAMONA Appliances
Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cable insulation may melt and cause a fire as
a result of a short circuit.
Safety for children
Make sure that the product function buttons
are switched off after every use.
Product must be installed by a qualified
person in accordance with the regulations in
force otherwise, the guarantee may become
void.
Electrical products can be dangerous to children.
Keep children away from the product when it is
operating and do not allow them to play with or
near the product.
The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of the
Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance

www.howdens.com Page _ 7
Safety when working with electricity
In case of any damage, switch off the product
and disconnect it from the mains. To do this,
turn off the fuse at the fuse box.
Make sure that fuse rating is compatible with
the product.
packaging according to environmental standards.
User manual HJA2450-2

Exclusive to Howdens Joinery.coPage _ 8
1. Upper chimney section
2. Recirculation vent
3. Lower chimney section
4. Fan and light controls
5. Extractor body
6.
7. Light
General Information & Operation
2. 3. 4. 5.1.
Extractor layout
Control panel layout
1. Light on/off
2. Extractor Power off
3. Extractor power level 1
4. Extractor power level 2
5. Extractor power level 3
1.
3.
5.
4.
6.
2.
7.
LAMONA Appliances

www.howdens.com Page _ 9
Before cleaning or attempting any type
of maintenance, always make sure that
the electricity supply is disconnected.
The manufacturer declines all liability in cases
where the instructions for the appropriate
installation,maintenance and use of the extractor
hood are not observed.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Care and maintenance
To avoid the possibility of fire, adhere
strictly to all of the recommendations
included in this booklet, paying particular
attention to the grease filters to ensure
grease deposits do not build up.
If the power cable is cut or damaged in any way,
disconnect the extractor from the electricity
supply and call the service number on the rear
cover of this booklet or a suitably qualified
repairer.
The Grease Filters
The grease filter is of a metallic material and should be washed using a neutral detergent.
User manual HJA2450-2

Exclusive to Howdens Joinery.coPage _ 10
Replacing the Lamps
Halogen lamps that may need to be replaced
periodically.
To do this, ensure that the power is switched off and
the lamps have had time to cool.

 Unscrew the lamps and replace with new
lamps of the same type and wattage.
Lamp replacement is not covered by your
guarantee.
The lamps on this appliance should only be used
during operation of the cooker hood. They should
not be left on permanently and used as a main
lighting source. The extractor is for domestic use
only.
1 Press latch towards side of extractor
2 Lower to remove.
The Carbon Filters
Carbon have a limited life. We advise you
to change them when there is a noticeable drop
in performance. The intervals between changing
the will depend entirely upon the amount of
cooking you do, but on average they will last about
6 months. Please quote the part refrence number
HJA2900 (pack of 2) when re-ordering.
 To gain access to the carbon
of all
remove the grease as above.
 Remove the old and install new charcoal
by turning them gently
1
2
LAMONA Appliances
28w

www.howdens.com

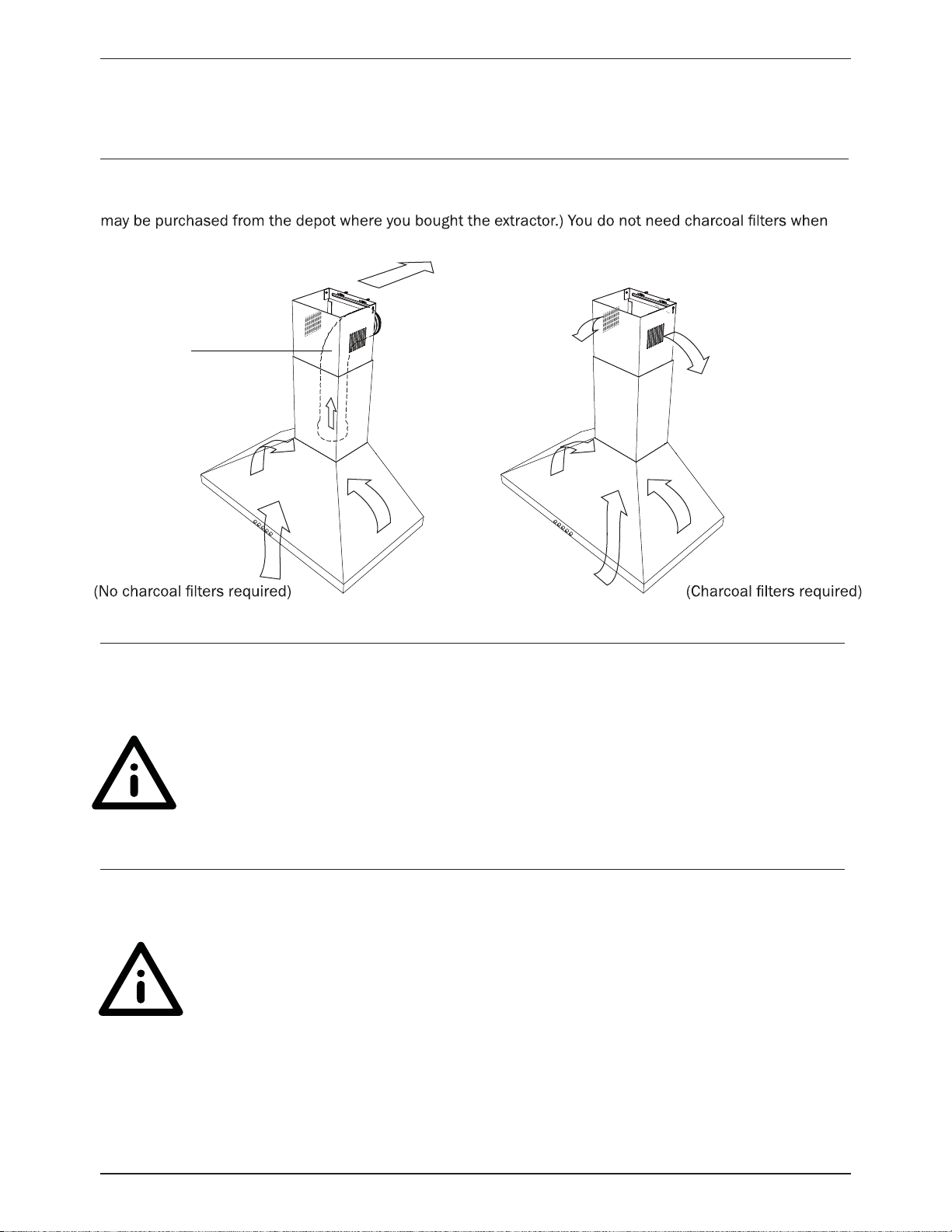

Methods of Extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits
using the external ducting mode.
Fig 1.
Ducting mode
Fig 2.
Recirculation mode
Extraction Via Ducting
Never use the hood in areas where devices with exhaust pipes connected to the outside are already operating
unless perfect ventilation can be guaranteed.
 Connect the external ducting kit to the outlet of the extractor.
Installation
Ducting kit
Supplied Separately
Vent through external
wall or ceiling
Filtered air
recirculated
Charcoal filters are not required if the
extractor is to be ducted out.
Extraction Via Recirculation
For extraction via recirculation, attach 2 charcoal filters to the sides of the motor inside the hood.
(Part reference HJA2900)
Before attempting to change or fit the
charcoal filters ensure power to the
extractor is switched off.
 Remove the grease filters
 Align the carbon filters over the pins located
on either side of the fan motor.
 Turn the carbon gently, until you feel them
click into postilion.
 Replace the grease filters before the power
supply it turned back on.
Page _ 11
User manual HJA2450-2

Exclusive to Howdens Joinery.coPage _ 12

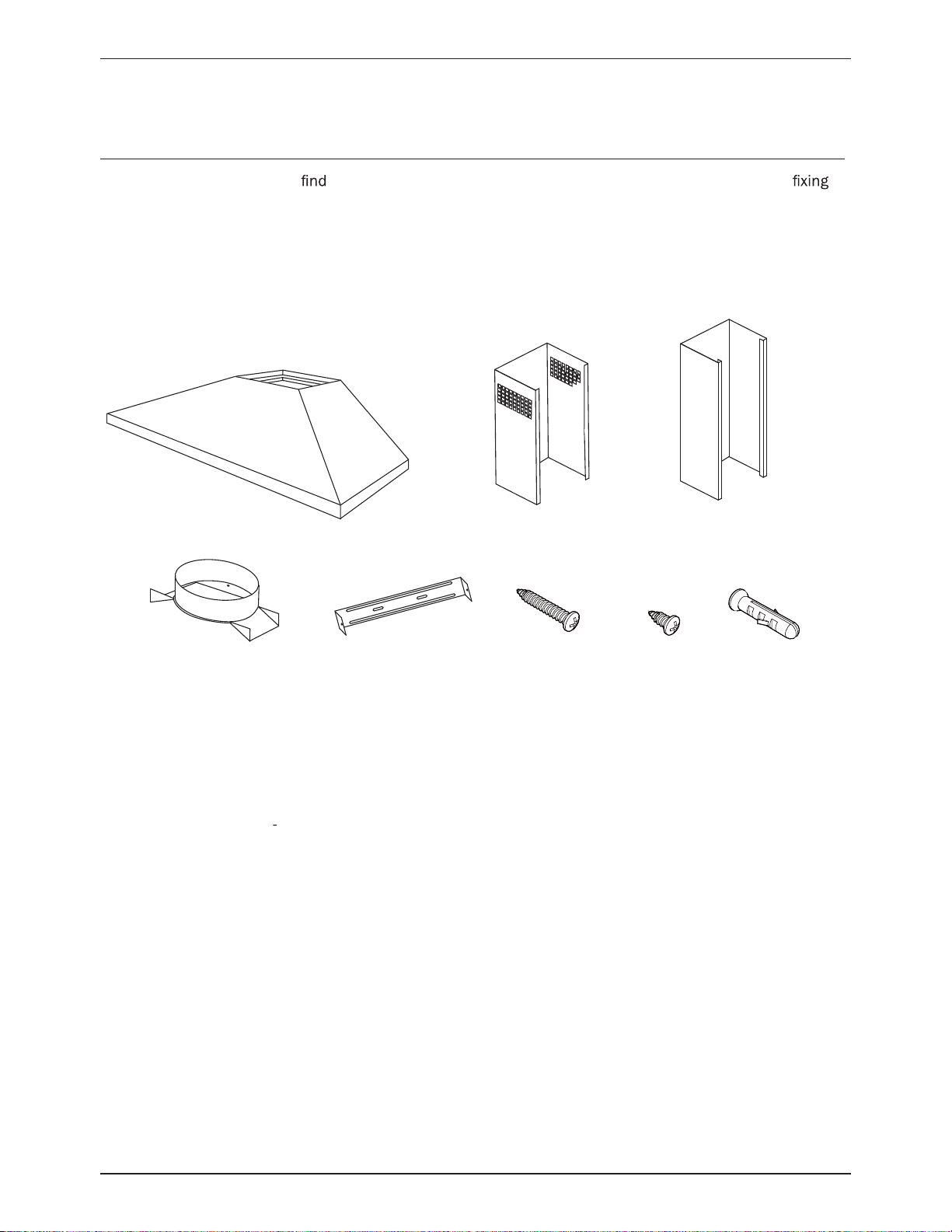

PARTS IDENTIFICATION
On opening your box you will the extractor body, a two-piece telescopic decorative chimney, one
brackets, ducting connector, four 10mm screws, six 32mm screws and six rawl plugs.
1. Main Extractor Body
2. Upper Chimney
3. Lower Chimney
4. Vent Adaptor
5. Chimney Bracket
6. 32mm Screws
7. 10mm Screws
8. Rawl Plugs
1. 2. 3.
4. 5. 6. 7. 8.
LAMONA Appliances

www.howdens.com Page _ 13
Hanging Your Extractor
This instruction must be strictly adhered
to. Failure to comply could result in
overheating and serious damage to your
appliance. It is recommended that the
installation is carried out by two people.
 If ducting externally ensure the ducting tube is kept as short as possible and with the minimum
of bends to permit the smoothest airflow. (Maximum length 3 metres.).Ducted air must not be
discharged into a flue, which is used for exhausting fumes from appliances supplied with energy other
than electricity. (E.g. gas boilers)
Before drilling or chiselling the ceiling or
wall, check for pipes and power cables.
 Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust
air.
 Ensure adequate room ventilation is provided when the extractor is used in the same room as
appliances supplied with energy other than electricity.
 Never duct into a hot air flowsuch as a central heating duct
We strongly advise that all exterior
outlets be fitted with a non return flap
or louvred slatting.
 Remove the grease filters before trying to install.
 Mark and drill the holes required to mount the extractor body.
 The principal securing point is the top keyhole slot; fix this screw first leaving approximately 5mm
between the screw head and the wall.
 With the help of an assistant, level and secure in position through the lower two holes tightening the
upper screws as necessary.
 The recommended fixing height for the hood is750mm above the worktop. This canbe reduced to a
minimum of 700mm if required.
User manual HJA2450-2

www.howdens.com
Page _ 14
LAMONA Appliances
Fig 3. Fig 4.
Note: It is recommended that the installation is carriedout by two people.
t
t The accessories required to install the hood are inside the hood.
t
a minimum of 700mm if required.
t
chimney bracket to the wall, using a 6 mm diameter drill.
t
t With the help of an assistant locate the hood on these two screws, tightening if necessary.
750mm
(Min 700mm)
Fixing Height Above Worktop
Recommended = 750mm
Mimimum = 700mm
62
400
188
80
89
A
B
B

Exclusive to Howdens Joinery.co Page _ 15
User manual HJA2450-2

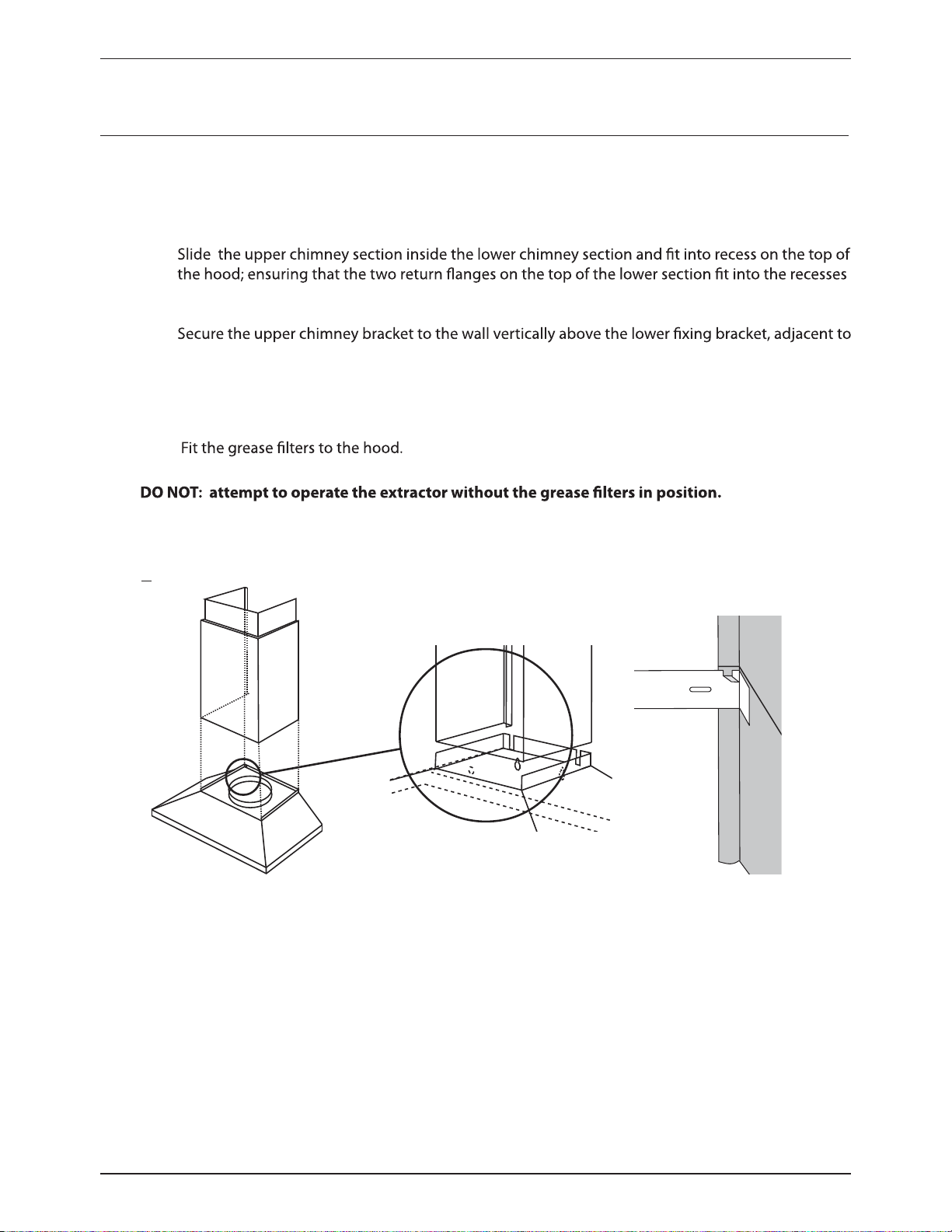

Decorative Chimney Fitting
t Connect the extractor to the electricity supply (see electrical connections page).
t Secure the lower chimney bracket to the wall using the screws provided.
t
provided on the lower chimney bracket.
t
the ceiling.
t Extend the upper chimney section to the ceiling and secure to the upper chimney bracket with the
screws provided.
t
Fig 5. Fig 6.

www.howdens.com
Page _ 16
LAMONA Appliances
Electrical Connections
IMPORTANT: Ensure that the electricity
supply is switched off before connecting.
Your appliance must be connected to teltuorupsdesufdehctiwselopelbuodafoesuehtaivgniriw
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
The terminology DOUBLE POLE -/+ means
that both the live and neutral supplies are
switched and disconnected at the same time.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue..........Neutral
Brown......Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which is
marked with the letter ‘L’ or coloured RED.
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP 250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)
The terminations labelled SUPPLY are the
connections for the internal house wiring and the
terminations labelled LOAD are for connection to
the appliance.

Exclusive to Howdens Joinery.co Page _ 17
User manual HJA2450-2
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Lamps fail to operate?  A replacement lamp is probably
(Remember that the lamps are not
covered by the guarantee.)
Disconnect the mains electricity supply before adjusting
or replacing the lamps.
The extractor lamps may become hot; therefore ensure
 Power is cut. Check if there is power. Check the fuses in the fuse box. If
necessary, replace or reset the fuses.
Motor is on but fan does
as usual?

ensure any venting is not obstructed?
The extractor works normaly
but smells linger? 
unwanted smells.
Product does not operate?  The mains fuse maybe defective or
has tripped Check fuses in the fuse box. If necessary, replace or reset them.
 Product is not connected properly. Check all power connections.
If you cannot eliminate the problem after
following the instructions in this section,
consult your depot or the Authorized
Service Agent. Never try to repair a
nonfunctional product yourself.
Troubleshooting
TECHNICAL INFORMATION
General
Total power consumption 136W
Fuse 3 A
Voltage /Frequency 220-240 V ~ 50 Hz
Cable type / section 0.75mm², 2 core or equivalent
Lamps 2 x E14 28W halogen

www.howdens.com
Page _ 18
LAMONA Appliances
Your guarantee
Product Guarantee Details (UK only)
breakdown repairs. (Details of which are shown on your Proof of Purchase Document).
 Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE)
 The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
 This guarantee does not cover accidental damage, misuse or alternations which are likely to affect the
product.
 The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
The product’s model & serial numbers
Howdens Proof of Purchase document
Your full contact details
Call the Service Line on 0845 00 60 006

Exclusive to Howdens Joinery.co Page _ 19
User manual HJA2450-2
Model HJA2450-2
AEC 74.9 kWh/a
f1.6
FDEhood 11.40%
EEIhood 95.6
QBEP 182.5 m3/h
PBEP 132 Pa
Qmax 284.8 m3/h
WBEP 58.6 W
WL56 W
Emiddle 117 lux
Ps0 W
Po0 W
LWA 73 dB
Product Informa on
Commission Regula on(EU)No66/2014

If supplied, please stick your self adhesive product rating plate
here, or make a note of the product serial number below in the
box below for future reference.
Serial Number : ...........................................................................................
v2 08-10-15
