LP-288ai, 5.8GHz Band Fractional Bandwidth 5/10/20MHz
OFDM Radio, 123 Manual for installation in AP Mode.
LP288ai_M123_ENB01W
LP-288ai, 5.8GHz Band Fractional
Bandwidth 5/10/20MHz OFDM Radio,
123 Manual for installation
in AP Mode.

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
By following these instructions you will be able to install your LP-288AI in AP Mode(Access Point)
Please check package contents shown in gure 1.
1
Figure 1
Please prepare the cable with the connector as shown in gure 2a, 2b and 2c.
2
Connect the cable as shown in gure 3.
3Connect the To ODU output of the PoE injector to your
LP-288AI as shown in gure 4.
4
Connect one of your PC’s or Switch’s Ethernet ports to the To Ethernet input of the PoE injector of the LP-288ai
as shown on gure 5.
5
2
Figura 4
Figure 5
Figure 2a
Figure 3
Figure 2b Figure 2c

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
By following these instructions you will be able to install your LP-288AI in AP Mode(Access Point)

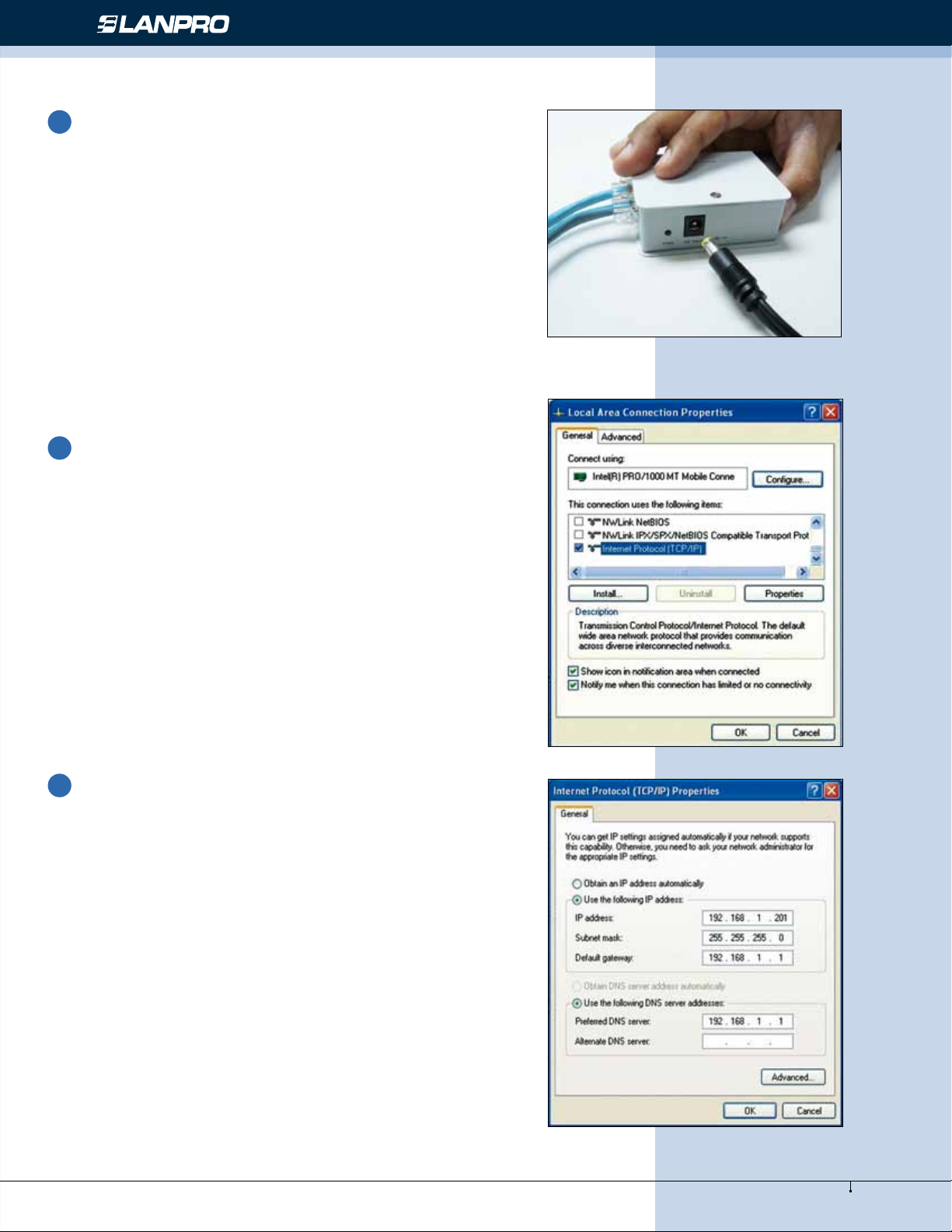

Connect the DC Power to the PoE’s Injector Male Jack
as shown in gure 6.
6
Figure 6
3
Go to the Properties window of your Network Interface
card(NIC): Local Area Connection Properties and
select: Internet Protocol, then select: Properties
as shown in gure 7.
7
Figure 7
In the window: Internet protocol (TCP/IP)
Properties of gure 8, select: Use the following
IP address and input an IP address in the default
IP range of the LP-288ai, in this example we have
selected address: 192.168.1.201. The LP-288ai has
a default address of: 192.168.1.2, input in: Subnet
mask : 255.255.255.0 and in: Default gateway
the destination router address, in: DNS you will have
to input your ISP’s DNS or the destination router
address, the one that provides the Internet service,
in order that any queries are routed to the destination
network`s router.
Once nished, please select: OK and then: Close.
8
Figure 8

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
4
Please open your preferred browser application and
input the default address: 192.168.1.2 , see gure 9.
9
Figure 9
The equipment will ask for a User and a Password.
The LP-288ai has a two level scheme for the users,
one by default with all the privileges named: super,
with a default password: super and another with
less privileges with the user: admin and a default
password: admin. Now please input in User: super
and as password: super, then select: OK as shown in
the window of gure 10.
10
Figure 10
In the window that pops-up shown in gure 11, select:
Operation Mode, then select: Access Point, input
now the name of your wireless LAN in the eld named:
SSID. Select the channel to be used in the eld:
Radio frequency then select: Update.
11
Figure 11
The equipment will save the changes. They will take
effect once the equipment is rebooted. Now select:
Reboot in the window shown in gure 12.
12
Figure 12

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
5
Now watch the equipment doing the reboot in the
window shown in gure 13.
13
Figure 13
Select: click here in the window shown in gure 14
14
Figura 14
In the window shown in gure 15, select: Security
setting, in: Security mode select: the encryption
mode, we recommend, in view of security mode WPA2
PSK (take in mind some equipment doesn’t support
this mode), remember to take in consideration the
connection of the client equipment of this AP, please
check the actual encryption mode they support.
15
Figure 15
Now select the type of cyphering, this depends on the
above mentioned conditions, and of the encryption
mode selected, additionally, you shall input an
encryption phrase you wish and then select: Update.
16
Figure 16

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
6
Once changes are saved, in the window shown in
gure 17 you will select: Reboot for the changes to
take effect.
17
Figure 17
In the window shown in gure 18, you can watch the
progress of the reboot action.
18
Figure 18
In the window shown in gure 19, please select: Click
here.
19
Figure 19
Important recommendation(Optional):
Proceed to change the User password: admin and
the super user password: super of your equipment,
please see gure 20.
In order to change the User: admin, password, select:
administration, input the new password in the eld
named: password, then select: Update.
20
Figure 20

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
7
For the changes to take effect, please select: Reboot
in the window shown in gure 21.
21
Figure 21
The progress of the reboot function is shown in the
window of gure 22.
22
Figure 22
The equipment will ask again the User and Password
if you are authenticated as admin, input the value
you changed and select: OK, then select: click here.
23
Figure 23
Procceed to change the password of the user: super,
in order to be able to make this change you must be
authenticated as super user, now select option: super
user and input a new password, then select : update
(see gure 24).
24
Figure 24

www.lanpro.com
Wireless - Equipment - 5.8 GHz - LP-288ai 123 Manual for installation in AP Mode
8
Watch now the progress of the reboot function, please
see gure 26.
26
Figure 26
In the window shown in gure 27, please select: Click
here.
27
Figure 27
The equipment will ask you to input the new user and
password, input the new values to proceed and select:
OK
To check the status of the connection, select: Status
Association and observe the signal in the Signal
Strength value, as shown in Figure 28, this value will
depend on the distance and link quality.
28
Figure 28
For the change to take effect, please select: Reboot in
the window shown in gure 25.
25
Figure 25
