Lasonic VP-04SBK Instruction Manual

USER HANDBOOK OF MP3 PLAYER
Page 1 of 21
The MP3 player is a bran-new generation of digital portable device, supporting multiple functions including MP3/WAV music format, digital
record, FM stereophonic radio, AMV video format file, game, Tel Book, JPEG, TXT format file .Its perfect sound quality, great reliability and exquisite
appearance make it a masterpiece. Devoutly hope to bring you great enjoyment in this digital era.
Unique Features
●Exquisite Appearance
Unique appearance designed and comfortable for handling
●Multi-Codec Player
e.g.: MP1, MP2, MP3, WMA, WMV, ASF and WAV Music format
●Original creation movie function
Image and music synchronization play
●Support all JPEG picture format and TXT format file
●Lyric synchronous display
●Firmware Upgrade
Providing the latest updated features via firmware upgrade from the website
●FM Function
You may easily listen to FM stations and set your favorite stations by using Auto Preset or Manual Preset.The player can save 40 (20 for each
Band) local stations at different frequency.
●Drive Free U Disk
You may manage your files directly through “Portable Disk” in “My Computer” on Winows2000 Operating System or above without driver.
●“Private Space” Disk Mode
The flash memory can be divided into two parts by using the accessory tools and one is encrypted to hide the contents saved inaccessible by
others. Keep Your Secret!
●Record/ Replay
The player supports recording through built-in microphone and saves as WAV and ACT formats. Meanwhile it supports real digital A-B replay
or comparison replay.
●7 Preset EQ
Normal, Rock, Pop, Classic, Soft, Jazz and DBB
●Multiple Repeat Mode
Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.
●Power Off
You may set Sleep Timer or Off Time mode in your own convenience.
●GUI (Graphic User Interface) Menu
Vivid animation menu with corresponding characters make it easy to operate.
Declaration
○Thank you for your purchase. Please read this manual carefully before using your new player.
Contents in this manual may change possibly for better service.
○we have the right to make changes to this manual without notice.
If the actual operations of your player is not the same as the instruction in this manual, please visit our website for latest product
information.

USER HANDBOOK OF MP3 PLAYER
Page 2 of 21
Catalogue
Unique Features ................................................................................................................................... 11
Declaration .......................................................................................................................................... 11
Catalogue............................................................................................................................................ 22
1. Locating the Controls......................................................................................................................... 33
zAppearance & Keys ................................................................................................................................................................. 33
zLCD Window .........................................................................................................................Error! Bookmark not defined.4
zBattery .................................................................................................................................................................................... 44
2. Basic Operation ................................................................................................................................ 44
zEntering Menu System............................................................................................................................................................. 44
zBrowsing................................................................................................................................................................................. 44
zEntering Different Modes.......................................................................................................................................................... 44
zAdjust volume.......................................................................................................................................................................... 55
zTurn On/Off ............................................................................................................................................................................. 55
3. Operating buttons ............................................................................................................................. 66
zMusic mode and Voice mode.................................................................................................................................................... 66
zRecord Mode........................................................................................................................................................................... 66
zFM Mode ................................................................................................................................................................................ 66
4. Play Music........................................................................................................................................ 67
zBasic Operation....................................................................................................................................................................... 67
zEQUALIZER Mode .................................................................................................................................................................. 77
zLyric Display............................................................................................................................................................................ 77
5. Movie mode...................................................................................................................................... 78
6. Record Voice .................................................................................................................................... 88
zRecording in Record Mode ....................................................................................................................................................... 88
zSelect REC type ...................................................................................................................................................................... 89
7. Play Recorded Files ........................................................................................................................... 99
zConvert ACT format files to WAV format files ............................................................................................................................. 99
8. Operate FM Radio.......................................................................................................................... 1010
9. E-Book function ............................................................................................................................ 1111
10. Game explain .............................................................................................................................. 1212
11. JPEG Album................................................................................................................................ 1313
12. System Setting ............................................................................................................................ 1414
zInstruction ......................................................................................................................................................................... 1415
○“System time” set....................................................................................................................................................... 1415
○“LCD set” setting ....................................................................................................................................................... 1515
○“Language” setting..................................................................................................................................................... 1515
○Power Off.................................................................................................................................................................. 1515
○Online Mode.............................................................................................................................................................. 1516
○Memory Info. ............................................................................................................................................................. 1616
○Firmware Version....................................................................................................................................................... 1616
○Firmware Upgrade..................................................................................................................................................... 1616
13. Use USB Disk.......................................................................................................................... 1616
zCreated new folder .............................................................................................................................................................. 1616
14. Firmware Upgrade 16
15. Others setting ......................................................................................................................... 1718

USER HANDBOOK OF MP3 PLAYER
Page 3 of 21
zSelect Folders (At Stop Submenu) ........................................................................................................................................ 1718
zDelete File (At Stop Submenu) ........................................................................................................................................ 1718
zPlay Mode (Play Submenu).............................................................................................................................................. 1818
zTempo Rate (Play Submenu)................................................................................................................................................ 1818
zReplay Mode..................................................................................................................................................................... 1919
zReplay Times (Play Submenu).............................................................................................................................................. 1919
zReplay Gap (Play Submenu) ................................................................................................................................................ 1919
Strong Recommendation ................................................................................................. 1920
Trouble Shooting .............................................................................................................................. 2121
Specification.................................................................................................................................... 2121
ADD: AMV Convert Tool operation introduce............................................. Error! Bookmark not defined.21
1. Locating the Controls
z

USER HANDBOOK OF MP3 PLAYER
Page 4 of 21
Music mode : Record mode:
Voice mode: FM mode:
USB mode:
zBattery
The player is in multilevel level battery monitoring system.
Indicates that battery is 3.7 and the power in battery will become less when using.
Indicates low battery power and battery should be charged up.
2. Basic Operation
zEntering Menu System
Pressing MENU button may enter the menu system, including main menu (long press MENU button at Stop state), submenu at Play state
(press MENU button to enter) and submenu at stop state (press MENU button to enter).
zBrowsing
zEntering Different Modes
You may enter different modes from the main menu.(press MENU button to enter)
main menu:
Game mode：
E-book：System setting:
Movie mode:
The lyric:
Album:
○Browsing music files or menu options：
Short press /button
○Fast forward or fast backward when playing music：
Long press /button

USER HANDBOOK OF MP3 PLAYER
Page 5 of 21
At the music mode, voice mode and FM mode, press VOL buttons to enter volume control interface and press /button to
adjust volume.
cAfter push the Power button( OFF→ON) , the
player turn on automatically and enter power on logo
interface:
dWhen connecting the USB plug to PC, the player
turn on automatically and will be entering USB mode:
elong press the “PLAY” button to turn on
zAdjust volume
zTurn On/Off
1.Turn on
2.Turn off：
long press the “PLAY” button to turn off
Long press MENU button to return to the main menu at the modes. When connecting the USB cable to PC,
then will enter USB mode.
You may press Play button to fast exit from any menu or option interfaces.
Remark:
Artifice:

USER HANDBOOK OF MP3 PLAYER
Page 6 of 21
3. Operating buttons
zMusic mode and Voice mode
Buttons Operation Stop Status Play Status Play Submenu Stop Submenu
PLAY
long press Turn of
f
Turn of
f
Turn off Turn of
f
Press Play Stop Exit from menu Exit from menu
MENU
Long press Enter main menu Enter main menu Enter main menu Enter main menu
Press Enter Stop-submenu Enter Playing- submenu Confirm current option or
enter next submenu
Confirm current option or
enter next submenu

Press next song Play next song Switch submenu Switch submenu
Press on Continuous forward
browse
Fast forward Continuous forward Continuous forward

Press Previous song Play previous song Switch submenu Switch submenu
Press on Continuous backward
browse
Fast backward Continuous backward Continuous backward
VOL
Press enter volume control
interface
enter volume control
interface
X X
Press on enter volume control
interface
enter volume control
interface
X X
zRecord Mode
Operation Action Stop Status Record Status
PLAY
long press turn off stop recording
press start recording pause recording
MENU
long press enter main menu X
press enter Record submenu X
zFM Mode
Operation Action FM Status FM Submenu
Play long press turn off turn off
press X quit from menu
MENU long press enter main menu enter main menu
press enter main menu confirm current option or enter next submenu
push increase 100KHz gradually or stop search switch submenu
press on Increase 100KHz search continuously continuous forward
push decrease 100KHz gradually or stop search switch submenu
Push on decrease 100KHz search continuously continuous backward
Vol press enter volume control interface X
press on enter volume control interface X
4. Play Music
zBasic Operation
1. Connect the earphone to the player
2. Push POWERÆON
3. Long press PLAY button to power on the player, and then enter the main menu: then press PLAY to play .

USER HANDBOOK OF MP3 PLAYER
Page 7 of 21
Press VOL+ buttons to increase volume .
Press VOL- button to decrease volume.
6. Choose music
7. Volume control

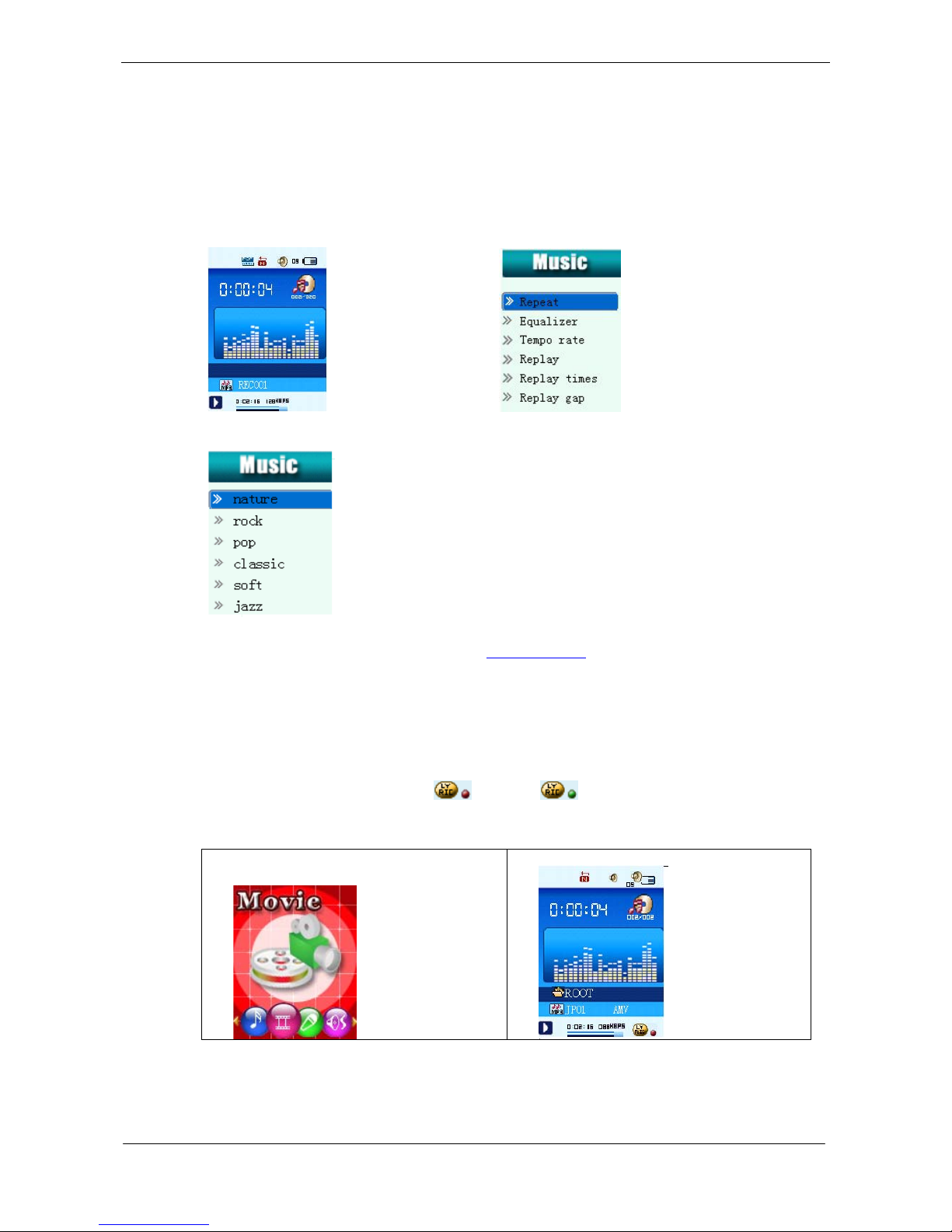

zEQUALIZER Mode
1. When playing music
2. Press the MENU button to enter Play Submenu
3. Pressbutton to choose Equalizer option, then press the
MENU button to enter EQ selection menu.
4.. Press button to switch, and press MENU button to confirm
zLyric Display
This player supports “*.LRC” lyric files (user can download from http://www.51lrc.com), and lyrics may be synchronous displayed while
playing music.
zHow to use lyric files?
Save the lyric file with the same name as that of the corresponding music file.
For example.: Music file name: GiGi-Sky.mp3
Lyricfilename:GiGi-Sky.mp3.
zHow to know whether the lyrics exist?
If the current song has matching lyric files, the lyric sign will become .
5. Movie mode
1. Enter the main menu and press the button to select
“movie mode” mode.
2. Press the MENU button to enter.
button：to choose previous music.
button：to choose next music.

USER HANDBOOK OF MP3 PLAYER
Page 8 of 21
3. Press the PLAY to start playing AMV files
4. Choose AMV files:
button：To choose previous file.
button：To choose next music file.
5.Volume control
Press VOL+ buttons to increase volume .
Press VOL- button to decrease volume.
6. Record Voice
Make sure that the battery is not in the status of “low battery”.
The player may save 99 recording files under each directory.
zRecording in Record Mode
1. At he RECORD menu:
:
2. press mode to enter ,then press PLAY to start:
3.Press Play button to pause recording. (Time icon flickers)
4.Press Play button to continue recording.
5.long press play button to save recording and exit.
5. Long press Play button to stop recording.
zSelect REC type
1. At the record mode stop interface：
2. Press MENU button to enter record submenu
3. Press button to select “REC type” option
4. Press MENU button enter this option
5. Press button to select desired recording type
6. Press MODE to confirm the type selected
If “Overflow” is displayed on the LCD, the player’s memory is full. Please delete other files to make some
space available.
If “over record” is displayed on the LCD, the current directory has already had 99 recording files. Please
switch to another directory.
Onl
y
Pla
y
and men
u
buttons function in the course of recordin
g
.
Remark:

USER HANDBOOK OF MP3 PLAYER
Page 9 of 21
7. Press PLAY button to start recording
Note: Voice control means when No sound the player pause record automatically.。
7. Play Recorded Files
1.Enter the main menu, Press button to choose “Voice
mode”
2. Press MENU button to enter Voice mode interface, Press PLAY
button to start playing.
3 .Choose music
button：to choose previous record file
button：to choose next record file
5.Volume control
Press VOL+ buttons to increase volume.
Press VOL- button to decrease volume.
zConvert ACT format files to WAV format files
The ACT format files can be converted to WAV format files through the accessory installation tools.
1. Run “Sound Convert Tool” program, and click “Open”
button.
2. Choose the ACT format files need conversion
3. Click the “Convert” button, the conversion starts

USER HANDBOOK OF MP3 PLAYER
Page 10 of 21
At FM mode press A-B button to start search stations automatically, then the player can auto scanned frequency between
87.5MHZ and 108MHZ (or and save to scanned station
Press /button and the player forward or backward single step 100KHZ to manual search station；Press on /button
for about 2 seconds, and the player scans forward or backward per 100KHz, and stops at the scanned station. If you want to
stop scanning, press /switch to stop.
Enter FM submenu and search “Save” option, and then Again press MENU button to save current station.
If there exist more than one station, press PLAY button to listen to the station in sequence.
Press MENU button to enter FM submenu, and then press button to choose “MP3 Record” or “ Fine REC” or “ Long REC”
options, and then press MENU button to enter FM Record interface and start recording;。（Other operations are same as the
section of “Record Voice”
8. Operate FM Radio
Function introduce simple:
Auto Search
Manual search
Save the manual searched stations
Listen to the saved stations
FM Record
Besides the conversion from ACT to WAV, the accessory
tool can also play WAV and MP3 files.。
1. Enter the main menu, Press switch
to select FM Mode.
2. Press MENU button to enter FM mode”3. Press MENU button to enter FM
submenu
The player supports US Band (FM87 - 108MHz) and Japan Band
(FM76-90MHz), suitable for different area. (Press MENU button to enter
FM submenu, and press button to select desirable frequency channel.)
Operation of deleting saved stations refers to the section of “Delete Files”.
Remark:
