Launch TLT235 User manual

Launch TLT235、TLT240 Economical Two-post User’s Manual
i
LAUNCH
TLT235/TLT240
Economical Two Post Lift User’s
Manual
Version No:1305
Launch (Shanghai) Machinery Co., Ltd

Launch TLT235、TLT240 Economical Two-post User’s Manual
i

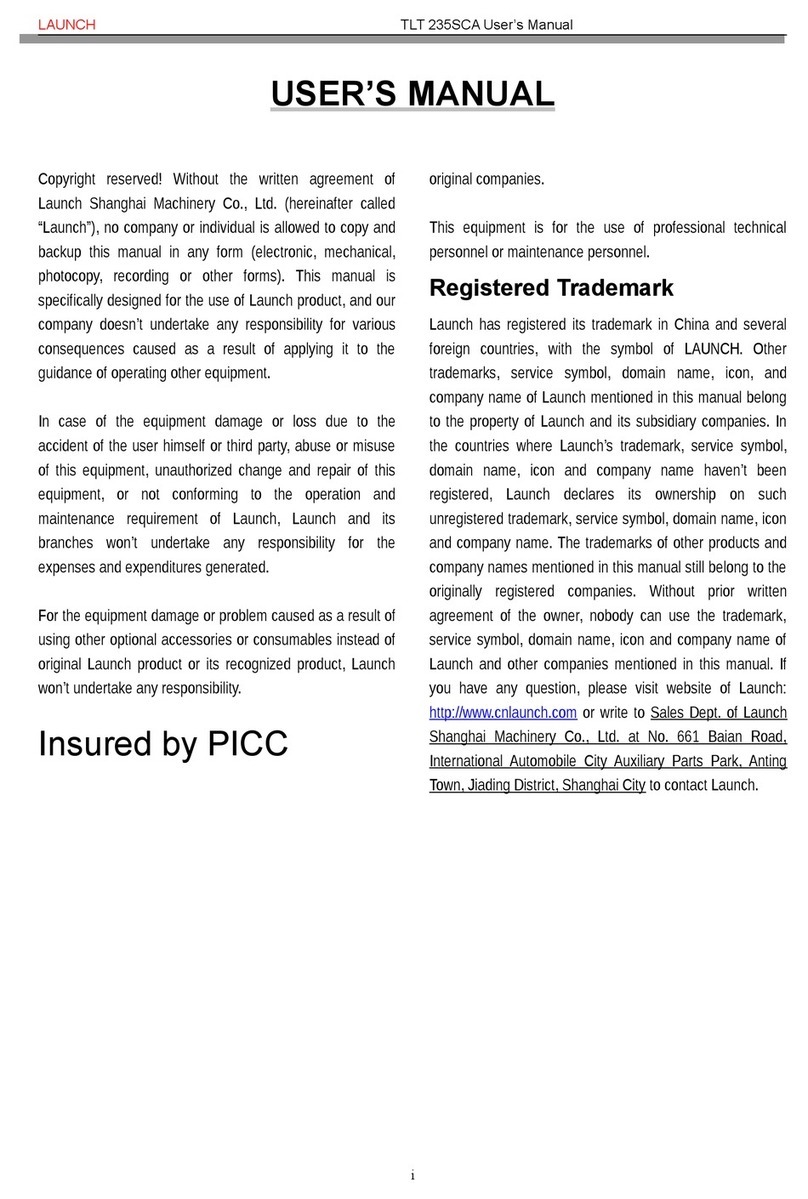

Copyright reserved! Without the written agreement of
Launch Shanghai Machinery Co., Ltd. (hereinafter called
“Launch”), no company or individual is allowed to copy and
backup this manual in any form (electronic, mechanical,
photocopy, recording or other forms). This manual is
specifically designed for the use of Launch product, and
our company doesn’t undertake any responsibility for
various consequences caused as a result of applying it to
the guidance of operating other equipment.
In case of the equipment damage or loss due to the
accident of the user himself or third party, abuse or misuse
of this equipment, unauthorized change and repair of this
equipment, or not conforming to the operation and
maintenance requirement of Launch, Launch and its
branches won’t undertake any responsibility for the
expenses and expenditures generated.
For the equipment damage or problem caused as a result
of using other optional accessories or consumables instead
of original Launch product or its recognized product,
Launch won’t undertake any responsibility.
Official statement: The purpose of other- product- names
mentioned in this manual is to describe how to use this
equipment. Their registered trademarks still belong to the
original companies.
This equipment is for the use of professional technical
personnel or maintenance personnel.
Registered Trademark
Launch has registered its trademark in China and several
foreign countries, with the symbol of LAUNCH. Other
trademarks, service symbol, domain name, icon, and
company name of Launch mentioned in this manual belong
to the property of Launch and its subsidiary companies. In
the countries where Launch’s trademark, service symbol,
domain name, icon and company name haven’t been
registered, Launch declares its ownership on such
unregistered trademark, service symbol, domain name,
icon and company name. The trademarks of other products
and company names mentioned in this manual still belong
to the originally registered companies. Without prior written
agreement of the owner, nobody can use the trademark,
service symbol, domain name, icon and company name of
Launch and other companies mentioned in this manual. If
you have any question, please visit website of Launch:
http://www.cnlaunch.com or write to Sales Dept. of Launch
Shanghai Machinery Co., Ltd. at No. 661 Baian Road,
International Automobile City Auxiliary Parts Park, Anting
Town, Jiading District, Shanghai City to contact Launch.
Insured by PICC

Launch TLT235、TLT240 Economical Two-post User’s Manual
ii
zThis instruction manual is an essential integral part of
this product. Please read all instructions.
zProperly keep this manual for use during the
maintenance.
zThis equipment is only used for its clearly designed
purpose, and never use it for other purposes.
zThe manufacturer is not responsible for any damage
caused by improper use or other purposes of use.
PRECAUTION
zOnly the qualified personnel having undergone
special training can operate this machine. Without the
permission of the manufacturer or not following the
requirement of the manual, any changes in the
machine part and in the usage scope may cause
direct or indirect damage to the machine.
zDon’t keep the lift in the extreme temperature and
humidity environment. Avoid installation beside the
heating equipment, water tap, air humidifier or stove.
zPrevent the lift from contacting large amount of dust,
ammonia, alcohol, thinner or spray adhesive, and
prevent it from rain shower.
zDuring the machine operation, non-operators should
be kept away from the machine.
zInspect machine daily ,do not use lift with damaged
parts or being damaged .Use original components to
replace damaged parts
zThe lift can’t be overloaded. The rated load of the lift
is already marked on the nameplate.
zPlease don’t raise the lift when there are people in the
vehicle. During the operation, the customer and
spectators shouldn’t stand in the lifting area.
zKeep the lifting area free from obstacle, grease,
machine oil, garbage and other impurities.
zPosition the swing arm of the lift, making it contact the
lifting point as recommended by the manufacturer.
Raise the carriage and confirm the lifting pad and
vehicle are closely contacted. Raise the carriage to
the appropriate working height.
zFor some vehicles, the parts dismantling (or
installation) will cause severe deviation of the center
of gravity, leading to unstable vehicle. The support is
needed to keep the balance of the vehicle.
zBefore moving the vehicle away from the lifting area,
please position the swing arm and lifting pad back
away to avoid blockage during the movement.
zUse appropriate equipment and tools as well as
safety protection facilities, e.g. working uniform, safety
boot, etc.
zPay special attention to various safety marks attached
to the machine body.
zKeep hair, loose clothing, fingers, and all parts of
body away form moving parts
zPay special attention not to dismantling the safety unit
of the machine or making it not functioning.
zThe hydraulic oil used for this lift is N32 or N46.
Please refer the safety data of grease and oil shown
in the manual.
zLet components cool down before storage, loosen
component cables completely in storage
zDo not install lift in the open air or expose to
rain ,special requirements should be offered to
manufacturer if it can’t be avoided.
zCarefully check equipment list before
installation .Immediately connect distributor or Launch
for any question.
zLaunch Shanghai Machinery Co., Ltd. is dedicated
to continuously improving the product quality and
upgrading the technical spec. They are subject to
change without notice.
WARNING

Launch TLT235、TLT240 Economical Two-post User’s Manual
i
Caution Labeling Exemplification
（1） Read operating and safety manuals before using
lift!
（2）Proper maintenance and inspection is necessary for
safe operation!
（3）Don not operate a damaged lift！
（4）Lift can be used by trained operators ONLY!
（5）Only Authorized personnel can be in the lift area!
（6）Use LAUNCH commend lifting points!
（7）Use bracket to help disassembly or installation!
（8）Auxiliary adapters would reduce load capacity!
（9）Area should be unimpeded in case of vehicle
overturn!
（10）The central of gravity should be between two arms!

Launch TLT235、TLT240 Economical Two-post User’s Manual
i
（11）Keep area clear when lifting and lowering machine!
（12）Do not shake the vehicle on the lift !
（13）Do not lift single side of vehicle!
（14）Keep feet away when lowering lift!
（15）Do not stand under carrying arms or other load
carrying device while lift is being operated with load!

Launch TLT235、TLT240 Economical Two-post User’s Manual
0
Table of Contents
1. Outline....................................................................................................................1
1.1 MODEL DESCRIPTION......................................................................................................................................1
1.2 PURPOSE ..........................................................................................................................................................1
1.3 FUNCTIONS AND FEATURES .............................................................................................................................1
1.4 TECHNICAL SPECIFICATIONS............................................................................................................................1
1.5 ENVIRONMENTAL REQUIREMENT......................................................................................................................2
2. Lift Structure..........................................................................................................3
2.1 LIFT STRUCTURES .................................................................................................................................. 3
2.2 MAIN STRUCTURE PRINCIPLES:............................................................................................................... 7
3 Operation Description............................................................................................8
3.1 PRECAUTIONS FOR VEHICLE REPAIR WORK ........................................................................................... 8
3.2 PREPARATION BEFORE OPERATION........................................................................................................ 8
3.3 INSPECTION BEFORE OPERATION............................................................................................................ 8
3.4 LIFTING THE VEHICLE .............................................................................................................................. 8
3.5 LOWERING THE VEHICLE......................................................................................................................... 8
4 Hydraulic and Electrical System of the Equipment.............................................9
4.1 HYDRAULIC SYSTEM OF THE LIFT........................................................................................................... 9
4.2 ELECTRICAL SYSTEM OF THE LIFT.........................................................................................................11
5 Solutions to FAQ..................................................................................................12
6．Repair and Maintenance....................................................................................13
7. Storage and Scrap...............................................................................................14
7.1 STORAGE ............................................................................................................................................... 14
7.2 SCRAP.................................................................................................................................................... 14
8. Tools for Installation and Adjustment...............................................................15
9. Unpacking............................................................................................................15

Launch TLT235、TLT240 Economical Two-post User’s Manual
1
10. Installation .........................................................................................................15
10.1 IMPORTANT NOTICE ............................................................................................................................. 15
10.2 INSTALLATION PROCEDURE ................................................................................................................ 15
10.2.1 Selecting installation site ............................................................................................................15
10.2.2 Base plate layout..........................................................................................................................16
10.2.3 Install the power side column.....................................................................................................18
10.2.4 Install the floor plate, top beam ..................................................................................................19
10.2.4.1 Install the top beam...................................................................................................................19
10.2.4.2 Install the floor plate .................................................................................................................20
10.2.5 Install the offside column............................................................................................................21
10.2.6 Install and adjust the balancing steel cables.............................................................................21
10.2.7 Install the power unit and hydraulic lines..................................................................................22
10.2.8 Install the swing arm....................................................................................................................24
11. Lift Adjustment..................................................................................................25
11.1 PREPARATION BEFORE THE ADJUSTMENT.......................................................................................... 25
11.2 ADJUSTMENT PROCEDURE.................................................................................................................. 25
12. List of the Lift components ..............................................................................26
Grease and hydraulic oil for lift..............................................................................41

Launch TLT235、TLT240 Economical Two-post User’s Manual
1
1. Outline
1.1 Model Description
Model Description

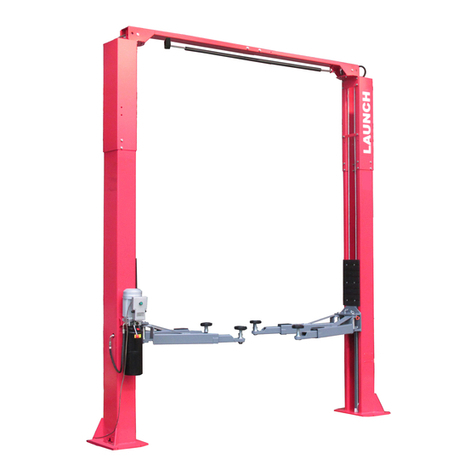

TLT235SC（U）clear-floor 2-post lift 3.5T Economical clear-floor 2-post lift (Fig.1a、Fig.2a、Fig.3a)
TLT235SC clear-floor 2-post lift 3.5T Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT240SC clear-floor 2-post lift 4.0T Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT235SB floor-plate 2-post lift 3.5T Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
TLT240SB floor-plate 2-post lift 4.0T Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
1.2 Purpose
This machine is applicable for the lifting of various small
and medium-sized vehicles with total weight below 3.5t/4.0t
in garage and workshop.
1.3 Functions and Features
zThe cable and oil pipe are fully concealed, with
decent and elegant appearance.
zDesigned based on the international standard,
meeting the demand of the garage and workshop.
zTop limit switch, effectively protecting the vehicle
from overhead collision.
zDual hydraulic cylinders drive, stable lifting and
lowering.
zManual lowering, safe and simple in operation.
zAdopt two steel cables for equalization, force two
carriages to move synchronously, and effectively
prevent the vehicle from tilting.
zLowest height of lifting pad is 110mm, good for
repairing low chassis or low profile car.
1.4 Technical Specifications
Noise:
Working noise: ≤75dB（A）
Power unit:
Working pressure:
16MPa TLT235SC(U)
16MPa TLT235SC
16MPa TLT235SB
18 MPa TLT240SB
18 MPa TLT240SC
Electrical parameters of the machine：
Motor (optional)
Voltage：According to client’s requirement
Single phase: 110V/60Hz 2.2kW ；220V/50Hz 2.2 kW
Single phase: 200V/60Hz 2.2 kW
Three phase 380V/50Hz 2.2 kW

Launch TLT235、TLT240 Economical Two-post User’s Manual
2
Basic parameters of the equipment:
Model Rated
load Lifting height
Rising
time
Descending
time
Net
weight
Passing
width
Machine
width
Machine
height
TLT235SC
（U）
(Symmetric
installation)
2424
mm
95.4 in
3392 mm
133.5 in
TLT235SC
（U）
(Asymmetric
installation)
3500
kg
7875 lb
1850
mm
72.8 in
≤50s ≥20s ≤
40s
660kg
1455 lb 2378
mm
93.6 in
3544mm
139.5 in
3840
mm
151.2 in
TLT235SC
(Symmetric
installation)
2486
mm
97.9 in
3420 mm
134.6 in
TLT235SC
(Asymmetric
installation)
3500
kg
7875 lb
1850
mm
72.8 in
≤50s ≥20s ≤
40s
660kg
1455 lb 2415
mm
95.1 in
3563mm
140.3 in
3840
mm
151.2 in
TLT240SC
(Symmetric
installation)
2486
mm
97.9 in
3420 mm
134.6 in
TLT240SC
(Asymmetric
installation)
4000
kg
9000 lb
1850
mm
72.8 in
≤50s ≥20s ≤
40s
690kg
1521 lb 2415
mm
95.1 in
3563mm
140.3 in
3840
mm
151.2 in
TLT235SB
3500
kg
7875 lb
1850
mm
72.8 in
≤50s ≥20s ≤
40s
610kg
1345 lb
2486
mm
97.9 in
3370 mm
132.7 in
2860
mm
112.6 in
TLT240SB
4000
kg
9000 lb
1850
mm
72.8 in
≤50s ≥20s ≤
40s
645kg
1422 lb
2486
mm
97.9 in
3370 mm
132.7 in
2860
mm
112.6 in
1.5 Environmental Requirement
Working temperature：-5℃～+40℃Relative humidity: Temperature +30℃，relative humidity 80%
Transport/storage temperature：-5℃～+40℃Height above sea level：No more than 2000m

Launch TLT235、TLT240 Economical Two-post User’s Manual
3
2. Lift Structure
2.1 Lift structures are shown as below：
Model Description
TLT235SC（U）clear-floor 2-post lift 3.5T Economical clear-floor 2-post lift (Fig.1a、Fig.2a、Fig.3a)
TLT235SC clear-floor 2-post lift 3.5T Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT240SC clear-floor 2-post lift 4.0T Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT235SB floor-plate 2-post lift 3.5T Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
TLT240SB floor-plate 2-post lift 4.0T Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
3840mm(151.2in)
110mm(4.3in)
Powerside
column
Top beam
Offside column
Lifting pad
Carriage
Arm assembly
2744mm(108in)
Fig.1a

Launch TLT235、TLT240 Economical Two-post User’s Manual
4
Fig.1b
Fig.1c

Launch TLT235、TLT240 Economical Two-post User’s Manual
5
Fig.2a
Fig.2b

Launch TLT235、TLT240 Economical Two-post User’s Manual
6
Fig.2c
1200mm(47.2in)
800mm(31.5in)
3544mm(139.5in)
2378mm(93.6in)
Fig.3a

Launch TLT235、TLT240 Economical Two-post User’s Manual
7
1200mm(47.2in)
800mm(31.5in)
3563mm(140.3in)
2415mm(95.1in)
Fig.3b
2.2 Main structure principles:
zLifting mechanism: Each column is installed
with a hydraulic cylinder, when hydraulic oil is
pressed from power pack into the lower
chamber of main cylinder, piston rod moves
upwards to drive the upward movement of
carriage through leaf chain.
zLoad supporting mechanism：When vehicle
drives into the working area, adjust the angle
and telescopic length of arms to make lifting
pads at an effective load supporting position
that contact with vehicle, then adjust the lower
screw ’s height of lifting pad to make it
applicable for vehicles with different chassis.
zBalance mechanism：In order to keep machine
balanced during lifting and lowering, two
carriages are interconnected and forced to
move synchronously by two wire ropes. If the
right and left carriages and arms are not at the
same level, adjust the end nut of wire rope and
pull wire ropes tight to make arms leveled.
zManual safety locking system: the safety
locking plates are installed on the two
carriages and the toothed bar plate is welded
on the internal wall of the column. During the
lifting of the carriage, the safety locking plate
goes up against on the toothed bar plate by
the tension of spring. When the carriage stops,
the safety locking plate opens and then is
engaged in the toothed bar slot to ensure the
carriage will not go down; when the lowering
operation is required, just raise the carriage
upward a little to loosen the safety locking
plate from the toothed bar slot, and then
manually pull the steel wire rope so as to jack
up the safety locking plate by sliding plate, so
the safety locking is released so that the
carriage can be lowered down. Because the
manual safety locking systems are installed on
the two carriages, double safety protection can
be provided; therefore, to disengage the safety
locking, the steel rope on the two carriages
shall be respectively pulled. To prevent the
vehicle slip, the swing arm is installed with
positioning mechanism, making the swing arm
capable of automatic locking during operation.
zSafety lock scope: Safety lock mechanism is
effective when the front end of carriage is
between 450mm and 1900mm high above the
ground.

Launch TLT235、TLT240 Economical Two-post User’s Manual
8
3 Operation Description
3.1 Precautions for vehicle repair
work
zDifferent vehicles have different center of gravity
positions. First understand the position of center
of gravity, and when the vehicle enters into the
lift, make its center of gravity close to the plane
formed by two columns. Adjust the swing arm,
and make the lifting pad support onto the lifting
point of the vehicle.
zFor vehicle lift with top beam ,pay attention to
the car roof position observation in order to
avoid accident during lifting.
zCarefully read the warming symbol.
zThe hydraulic valves have been adjusted before
ex-factory, and the user can’t make
self-adjustment, otherwise it will be responsible
for all the consequences generated.
zBased on the production needs, some
specifications in the instruction manual are
subjected to change without notice.
3.2 Preparation before Operation
zLubricate contact surface of the carriage with
general-purpose lithium grease（GB7324-87）.
All sliding surface should be coated evenly from
the top to bottom.
zFill hydraulic oil N32 or N46 to the oil reservoir of
the power unit.
3.3 Inspection before operation
zCheck to see if the motor power is installed properly.
zCheck to see if all the connection bolt s are fastened.
Note: Don’t operate the lift with damaged
cables or damaged and missing part, until it is
inspected and repaired bythe professionals.
3.4 Lifting the Vehicle
zKeep work area clean, don’t operate the lift in
cluttered work area.
zLower the carriage to the lowest position.
zReduce the swing arm to the minimum length.
zSwing the arm along the route of the vehicle
zMove the vehicle to the location between the two
columns
zSwing the arm and put the lifting pad below the
recommended lifting point, and adjust the height
of lifting pad to touch lifting point of vehicle
zPress the UP button on the electric control box,
slowly lift the vehicle to ensure the load balance,
and then raise the lift to the required height.
zRelease the UP button.
zPress the DOWN button to engage the safety
lock of carriage. At this time, the vehicle can be
repaired.
Note:
Before operation, the safety locking devices
must be Inspected.1) The gear blocks of the
arm end must engage the gear block of the
restraint shaft.2)No broken strand in the steel
cable. 3)No deformation in the arm pad.
When lifting the vehicle, all the swing arms
must be used.
Before lifting the vehicle, check all the
hydraulic hose and fittings for oil leakage. In
case of leakage, please don’t use the lift.
Remove the fitting with leakage and re-seal.
Re-install the fitting and check if oil leakage
still exists.
After the vehicle is lifted, when adding or
removing any major heavy object, use jack
stand to maintain the balance of the vehicle.
3.5 Lowering the Vehicle
zClean the work area before lowering the vehicle.
zFirst press the start button to rise the vehicle a little,
then pull two steel ropes on two carriages to
disengage the safety lock.
zPress the lowering handle to lower the vehicle.
zLower the vehicle till the swing arm down to the
bottom and the lifting pads leave the vehicle chassis,
and then release the lowering handle.
zThe swing arms under the vehicle must be fully
shrunk
Note: When the lift doesn’t work, you must
switch off the power.

Launch TLT235、TLT240 Economical Two-post User’s Manual
9
4 Hydraulic and Electrical
System of the Equipment
4.1 Hydraulic System of the Lift
Diagram of the hydraulic system of clear-floor
2-post lift
2
3
1
457
6
8
8
99
10
11
Fig 4a
1- Gear pump, 2- Motor, 3- Oil filter, 4- Check-valve, 5- Safety valve, 6- Lowering handle valve,
7- Servo flow-control valve, 8- Hose, 9- Hydraulic cylinder, 10- Level gauge, 11- Air filter
The working principle of the hydraulic system is as
follows:
As shown in Fig.4a, when the start button is pressed, the
motor 2 is started, driving the oil pump 1 , sucking the
hydraulic oil from the oil tank into the oil cylinder 9, forcing
the piston rod move. At this time, the safety valve 5 is
closed.( the Max working pressure is already adjusted
before ex-factory. The safety valve can ensure the capacity
of the rated load, but when the pressure in the system
exceeds the limit, automatically overflow will be happened
inside safety valve to protect the hydraulic system).
Release the start button to stop the oil supply and the lifting
will stop. For lowering, first start Motor 2 to raise vehicle a
little, pull the steel ropes on two carriages to release the
safety lock mechanism, then press the lowering handle, the
valve 6 is actuated, the hydraulic oil flows back and the lift
starts lowering.

Launch TLT235、TLT240 Economical Two-post User’s Manual
10
Diagram of the hydraulic system of floor-plate 2-post lift
2
3
1
457
6
88
99
10
11
Fig.4b
1- Gear pump, 2- Motor, 3- Oil filter, 4- Check-valve, 5- Safety valve, 6- Lowering handle valve,
7- Servo flow-control valve, 8- Hose, 9- Hydraulic cylinder, 10- Level gauge, 11- Air filter
The working principle of the hydraulic system is as
follows:
As shown in Fig.4b, when the start button is pressed, the
motor 2 is started, driving the oil pump 1 , sucking the
hydraulic oil from the oil tank into the oil cylinder 9, forcing
the piston rod move. At this time, the safety valve 5 is
closed.( the Max working pressure is already adjusted
before ex-factory. The safety valve can ensure the capacity
of the rated load, but when the pressure in the system
exceeds the limit, automatically overflow will be happened
inside safety valve to protect the hydraulic system).
Release the start button to stop the oil supply and the lifting
will stop. For lowering, first start Motor 2 to raise vehicle of
5～10mm, pull the steel ropes on two carriages to release
the safety lock mechanism, then press the lowering handle,
the valve 6 is actuated, the hydraulic oil flows back and the
lift starts lowering.

Launch TLT235、TLT240 Economical Two-post User’s Manual
11
4.2 Electrical System of the Lift
Diagram of electrical system for single phase motor
M1-Motor KM-Contactor SB –Button SQ- Limit switch
Fig. 5a
Diagram of electrical system for three phase motor
M1-Motor KM-Contactor SB –Button SQ- Limit switch
Fig. 5b
The electrical working principle is as follows:
Press the start button (SB), and the contactor (KM) will be
powered; motor (M) is energized to drive the gear pump
supplying oil to push the carriage upward; release the start
button, and the contactor (KM) is open, then the motor (M)
will lose the power, so the carriage will stop rising. As for
the clear-floor lift, if the vehicle is lifted up to the top and
contacts the limit switch on the top beam, the contactor
(KM)) will open, then the motor (M) will lose the power, so
that the carriage stops lifting. Emergency stop button to
emergency power-off function.

Launch TLT235、TLT240 Economical Two-post User’s Manual
12
5 Solutions to FAQ
Symptom Reason Solution
Motor not operation
Check the circuit breaker or thermal
relay for tripping
Check the voltage to the motor
Check the electrical wiring
Limit switch is failed
♦Motor wire is burnt
Close the switch of circuit breaker or
press the blue reset key of thermal relay
Supply correct voltage for motor
Correctly wiring as electrical system
diagram
Replace the limit switch
♦Replace the motor
Motor is running, but
the lift can’t be raised.
Motor rotation reversed
Lowering valve body open.
Hydraulic pump sucks the air
Suction tube is separate from the
hydraulic pump
♦Low oil level
Change the motor rotating direction
through changing wire connection.
Repair or replace the lowering valve
body
Fasten all the suction pipe fittings
Replace the suction tube
♦Add the oil into the oil tank
Motor is running, the
lift can be raised
without load, but the
vehicle can’t be raised
Motor is running under low voltage
Impurities inside the lowering valve
body
Regulation pressure of safety valve is
incorrect
♦Lift is overloaded
Supply correct voltage to the motor
Remove impurities from the lowering
valve body.
Adjust the safety valve
♦Check the weight of the vehicle
The lift is lowering
slowly without
pressing the lowering
handle
♦Impurities on the lowering valve body.
♦External oil leakage
Clean the solenoid valve body
♦Repair the external leakage
The lifting speed is
slow or oil flows out of
the oil fill cap
Air and oil are mixed
Air and oil suction are mixed
♦Oil return pipe is loosened
Replace the hydraulic oil
Fasten all the suction pipe fittings
♦Re-install the oil return pipe
The lift can’t rise
horizontally
Balance cable is not adjusted properly
♦The lift is installed on the slop floor
Adjust the balance cable to the proper
tension
♦Shimming the columns to level the
lift(no more than 5mm), If exceeding
5mm, pour new concrete floor and
make it leveled. Refer to installation
description.
Anchor Bolt is not
fastened
Hole is drilled too big
♦Concrete floor thickness or fastening
force is insufficient 。
Pour the fast curing concrete into the
big hole and reinstall the anchor Bolt ,
or use new drill to drill the hole for
re-positioning the lift
♦Cut open the old concrete and make
new concrete slab for the lift. Refer to
installation description.

Launch TLT235、TLT240 Economical Two-post User’s Manual
13
6．Repair and Maintenance
Keep clean
zThis unit should be cleaned with dry cloth frequently
to keep it clean. Before cleaning, first switch off the
power to ensure the safety.
zThe working environment of this unit should be clean.
In case of dust in the working environment, it will
speed up the parts wearing and shorten the service
life of the lift.
Every day:
zBefore the operation, carefully check the safety
mechanism of the lift to ensure the electromagnet
suction and release action is proper, and the safety
plate is in good condition. When finding any abnormal
situation, make adjustment, repair or replacement
immediately.
zCheck to see if the steel cable connection is proper,
and if the tension is at the optimum status.
zCheck to see if the connection between hydraulic
cylinder and carriage is proper, if the connecting nut
between the steel chain and carriage is loose or
falling. Refer to Fig.6
Fig.6
Every month:
zRetighten the anchor bolts.
zLubricate chains/cables.
zCheck all the chain connectors, Bolt s and pins to
ensure correct installation
zCheck all the hydraulic lines for wearing
zCheck to see if the carriage and the inner side of the
column are properly lubricated. Use high-quality
heavy lubrication grease (lithium based lubrication
grease GB7324-87).
Note: All the anchor Bolt s should be tightened
completely. If any screw doesn’t function for some
reason, the lift can not be used until thebolt is
replaced
Every six months:
zCheck all the movable parts for possible wearing,
interference or damage.
zCheck the lubrication of all the pulleys. If the pulley
has dragging during the lifting and lowering, add
appropriate lubricant to the wheel axle.
zWhen necessary, check and adjust the balancing
tension to ensure the horizontal lifting and lowering.
zCheck the verticality of the column.
Note: The inner corner of each column should
be lubricated with lubricant, to minimize the roller
friction and ensure the smooth and even lifting.
Maintenance of hydraulic system:
zClean and oil change
In the six months after initial use of this unit, clean the
hydraulic oil tank and replace the oil, later clean the
hydraulic system once a year, and replace the oil.
See Fig. 7
zReplace the seal
After this unit is put into operation for certain period, if
finding the oil leakage, carefully check it; if the
leakage is due to the wearing of sealing materials,
immediately replace the worn one based on the
original spec. See Fig. 7
