Operator's Manual
CAUTION: To reduce the risk of injury, the user must read and understand the operator's manual
before using this product.
VARIABLE SPEED - 12 AMP ELECTRIC BLOWER / VACUUM
BV1210E 1201
EN p. 2

2
TABLE OF CONTENTS
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and
dependability have been given top priority in the design of this product making it easy to maintain and
operate.
Section Page
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
SPECIFIC SAFETY RULES
SYMBOLS
KNOW YOUR ELECTRIC BLOWER
FEATURES
ELECTRICAL INFORMATION
ASSEMBLY
OPERATION
CARE AND MAINTENANCE
TROUBLESHOOTING
LAWNMASTER®WARRANTY
ILLUSTRATED PARTS LIST
2
3-5
6
7-8
9
10
11-12
13-16
17-19
20
21
22
23-24
INTRODUCTION

3
IMPORTANT SAFETY INSTRUCTIONS
■ Do not operate power tools in explosive environments (such as in the presence of ammable
liquids, gases, or dust), or use to pick up ammable or combustible liquids, Power tools
create sparks which may ignite the dust or fumes.
■ To reduce the risk of electric shock, this tool has a polarized plug ( one blade is wider than the
other ) and will require the use of a polarized extension cord. The plug will t into a polarized
extension cord only one way. If the plug does not t fully into the extension cord, reverse
the plug. If the plug still does not t, obtain a correct polarized extension cord. A polarized
extension cord will require the use of a polarized wall outlet. This plug will t into the polarized
wall outlet only one way. If the plug does not t fully into the wall outlet, reverse the plug. If
the plug still does not t, contact a qualied electrician to install the proper wall outlet. Do not
change the equipment plug, extension cord receptacle, or extension cord plug in any way.
■ Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
There is an increased risk of electric shock if your body is grounded.
■ Don’t expose power tools to rain or wet conditions, store indoors. Water entering a power tool
will increase the risk of electric shock.
■ Do not handle plug or tool with wet hands.
■ Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJTW-A, or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric
shock.
■ Never allow children to operate the equipment. Never allow adults to operate the equipment
without proper instruction.
■ Wear eye protection with side shields which is marked to comply with ANSI Z87.1 as well as
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below may result in electric shock, re, and/or serious
personal injury.
IMPORTANT
!
READ THESE INSTRUCTIONS BEFORE USING THIS BLOWER / VACUUM
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
WARNING

4
IMPORTANT SAFETY INSTRUCTIONS
hearing protection when operating this product.
■ Protect your lungs. Always wear a face or dust mask if the operation is dusty. Following this
rule will reduce the risk of serious personal injury.
■ Use extra care when cleaning on stairs.
■ Use only as described in this manual. Use only manufacturer’s recommended attachments.
■ Keep hair, loose clothing, ngers and all body parts away from openings, moving parts and all
hot surfaces of the unit.
■ Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
■ Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that
could get caught in moving parts of the machine or its motor.
■ Do not operate the equipment while barefoot or when wearing sandals or similar lightweight
footwear. Wear protective footwear that will protect your feet and improve your footing on
slippery surfaces.
■ Do not force tool. Use the correct tool for your application. The correct tool will do the job
better and safer at the rate for which it is designed.
■ Do not use on steps, a ladder, roof top, tree, or other unstable support. Stable footing on a
solid surface enables better control of the blower in unexpected situations.
■ Keep rm footing and balance. Do not overreach. Overreaching can result in loss of balance.
■ Do not allow to be used as a toy. Close attention is necessary when used by or near children.
■ Avoid accidental starting. Be sure the power switch is not on before plugging in.
■ Do not leave the tool when plugged in. Unplug from the power outlet when not in use,
before servicing, and before storing the tool. Turn off all controls before unplugging. Such
preventative safety measures reduce the risk of starting the tool accidentally.
■ Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
■ Do not use with damaged plug. If tool is not working as it should or has been dropped,
damaged, left outdoors, or dropped into water, take it to a qualied service dealer for
inspection and possible repair.
■ Keep all bystanders, children, and pets at least 50 ft. away.
■ Do not operate this unit when you are tired, ill, upset or under the inuence of alcohol, drugs,
or medication.

5
IMPORTANT SAFETY INSTRUCTIONS
■ Do not operate in poor lighting.
■ Do not put any object into openings. Do not use with any opening blocked; keep openings
free of dust, lint, hair, and anything that may reduce air ow.
■ Check the work area before each use. Remove all objects such as rocks, broken glass, nails,
wire, or string which can be thrown or become entangled in the machine.
■ Never use blower near res, replaces, hot ashes, barbecue pits, etc., which may cause re
to spread.
■ Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated
surfaces.
■ Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
■ Use only identical manufacturer’s replacement parts and accessories. Use of any other parts
may create a hazard or cause product damage.
■ In a double insulated appliance, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double insulated appliance, nor should a means for
grounding be added to the appliance. Servicing a double insulated appliance requires extreme
care and knowledge of the system and should be done only by qualied service personnel.
Replacement parts for a double insulated appliance must be identical to the parts they
replace.
■ For household use only.

6
SAVE THESE INSTRUCTIONS
Refer to them frequently and use them to instruct others who may use this power tool. If you loan
someone this power tool, loan them these instructions also.
SPECIFIC SAFETY RULES
■ Make sure your extension cord is in good condition. When using an extension cord, be sure to use
one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least
14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in
line voltage resulting in loss of power and overheating.
■ Do not point the blower nozzle in the direction of people or pets.
■ Never place the blower/vacuum on any surface, except a hard, clean surface when motor is
running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator
or bystanders, causing possible serious injuries.
■ Never run the unit without the proper equipment attached. Always ensure the blower tubes are
installed.
■ When not in use, the blower/vacuum should be stored indoors in a dry, locked up place - out of the
reach of children.
■ Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for
proper maintenance.
■ Do not attempt to clear clogs from tool without rst unplugging it.
■ Do not pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep
cord away from heated surfaces.
■ If the power supply cord is damaged, stop using the unit.Take the unit to a qualied service dealer
for inspection and possible repair.

7
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and
safer.
SYMBOL NAME DESIGNATION/EXPLANATION
VVolts Voltage
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
Safety Alert Symbol Indicates a potential personal injury hazard.
Read The Operator’s Manual To reduce the risk of injury user must read and
understand operator’s manual before using this product.
Eye and Hearing Protection Always wear eye protection with side shields marked to
comply with ANSI Z87.1, along with hearing protection.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Gloves Wear non-slip, heavy-duty protective gloves when
handling the blower and the blade.
Safety Footwear Wear non-slip safety footwear when using this equipment.
Electric Shock Failure to use in dry conditions and to observe safe
practices can result in electric shock.
Long Hair Failure to keep long hair away from the air inlet could
result in personal injury.
Blower Tubes Do not operate without tubes in place.
Loose Clothing Failure to keep loose clothing from being drawn into air
intake could result in personal injury.

8
SYMBOLS
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.

A - Handle
B - On/Off Switch
C - Power Cord
D - Cord Retainer
E - Mulch/Vacuum Gate
F - Blower Tube Release Button
G - Blower Tube
H - Concentrator Nozzle
I - Vacuum Tubes (Upper/Lower)
J - Collection Bag With Connector Neck
K - Gate Latching Lock
L - Airstream Regulator
M - Roller Wheels
I
A
B
C
D
E
F
G
H
J
K
L
M
9
KNOW YOUR ELECTRIC BLOWER

10
FEATURES
PRODUCT SPECIFICATIONS
Voltage...................................................................................................................................120V~ 60Hz
Current..........................................................................................................................................12 AMP
Air Speed (Max)..........................................................................................................................240 MPH
Air Volume (Max).........................................................................................................................380 CFM
Mulch Ratio.........................................................................................................................................16:1
Weight.............................................................................................................................9.0LBS(4.1 KG )
Collection Bag Volume.......................................................................................................14 Gallon(54L)
KNOW YOUR BLOWER / VACUUM
The safe use of this product requires an understanding of the information on the product and in
this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
MAIN BLOWER TUBE
The main blower tube can be easily installed on blower without any additional tools.

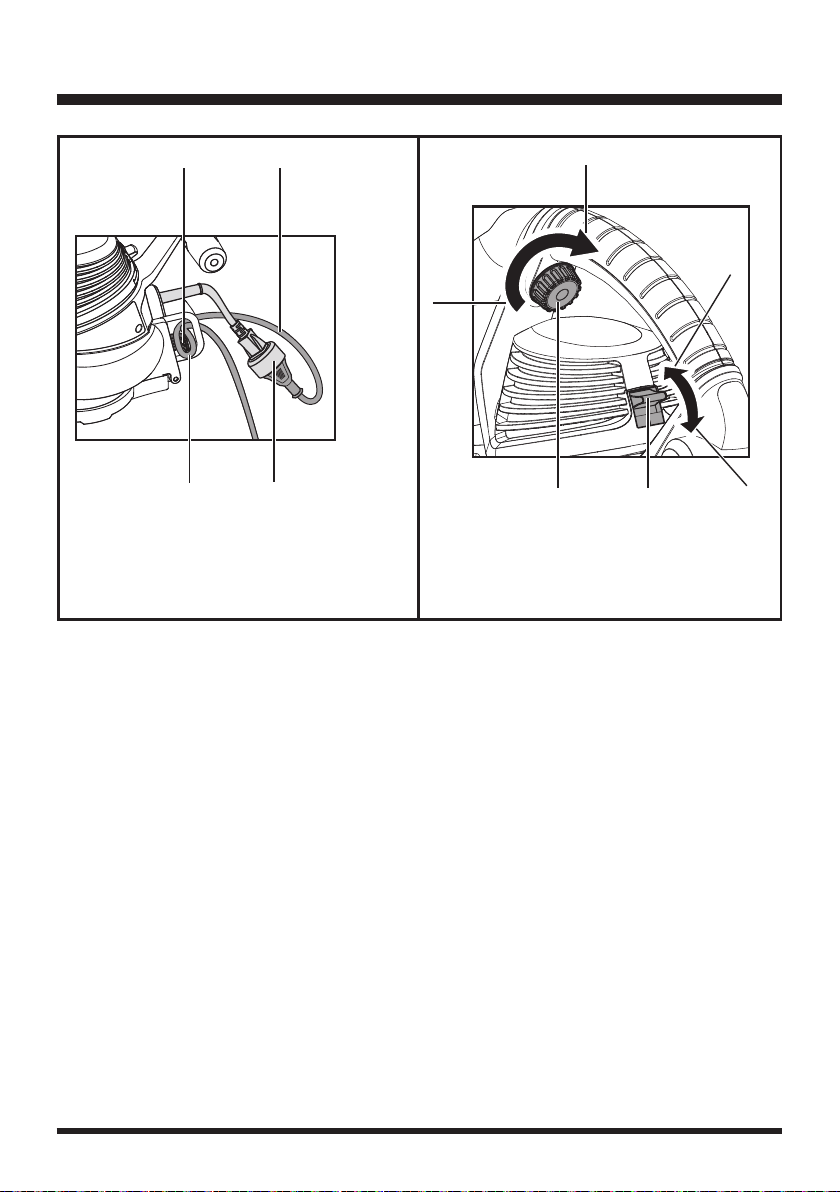

CORD RETAINER
A convenient cord retainer helps keep extension cord connection secure during spacing blower
operation.
VACUUM TUBES
The vacuum tubes can be added without any additional tools to provide mulching spacing and
vacuuming functionality.
DUST BLOCKER COLLECTION BAG
This Blower / Vac includes a Dust Blocker Collection Bag that reduces the amount of dust when
vacuuming.
SECURE LATCHING GATE LOCK
The latching gate lock assists in keeping gate from accidently opening during operations.

11
ELECTRICAL INFORMATION
DOUBLE INSULATION
Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual
threewire grounded power cord. All exposed metal parts are isolated from the internal metal motor
components with protecting insulation. Double insulated tools do not need to be grounded.
NOTICE：Servicing of a product with double insulation requires extreme care and knowledge of the
system and should be performed only by a qualied service technician. Take the unit to a qualied
service dealer for inspection and possible repair using only identical replacement parts.
ELECTRICAL CONNECTION
This product has a precision-built electric motor. It should be connected to a power supply that is 120
volts, AC only (normal household current), 60 Hz. Do not operate this product on direct current (DC).
A substantial voltage drop will cause a loss of power and the motor will overheat. If your product does
not operate when plugged into an outlet, double-check the power supply.
GFCI
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to
be used for the product.Receptacles are available having built-in GFCI protection and may be used for
this measure of safety.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
An undersized cord will cause overheating. The table below shows the correct size to use depending
on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
WARNING
The double insulated system is intended to protect the user from shock resulting from a break in the
tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.

12
ELECTRICAL INFORMATION
Minimum Gauge for Extension Cords (AWG)
(when using 120V only)
Ampere Rating Total Length of Cord in Feet (meters)
More Than Not More Than 25' (7.6 m) 50' (15.2 m) 100' (30.4 m) 150' (45.7 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended
Make sure your extension cord is properly wired and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a qualied person before use.
Keep extension cords away from sharp objects excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12 gauge
and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line,
make sure the switch is in the OFF position and the electric current is identical to that stamped on the
motor nameplate. Running at a lower voltage will damage the motor.
WARNING
ALTHOUGH THIS TOOL IS DOUBLE INSULATED, THE EXTENSION CORD AND RECEPTACLE
MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL
SHOCK.
WARNING
Check extension cords before each use. If damaged replace immediately.
Never use product with a damaged cord since touching the damaged area could cause electrical
shock resulting in serious injury.

13
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
■ If any parts are damaged or missing, do not operate the blower. Return it for replacement to the
retailer from which it was purchased.
PACKING LIST
Blower / Vacuum
Blower Tube
Vacuum Tubes
Concentrator Nozzle
WARNING
Do not use this product if any parts on the Packing List are already assembled to your product when
you unpack it. Parts on this list are not assembled to the product by the manufacturer and require
customer installation. Use of a product that may have been improperly assembled could result in
serious personal injury.
UNPACKING
This product requires assembly.
■ Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
ASSEMBLY
Collection Bag
Roller Wheels
Operator’s Manual
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Use of
this product with damaged or missing parts could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.

Fig. 2
D
C
A
B
A - Slot
B - Tube opening
C - Blower Tube
D - Concentrator Nozzle
14

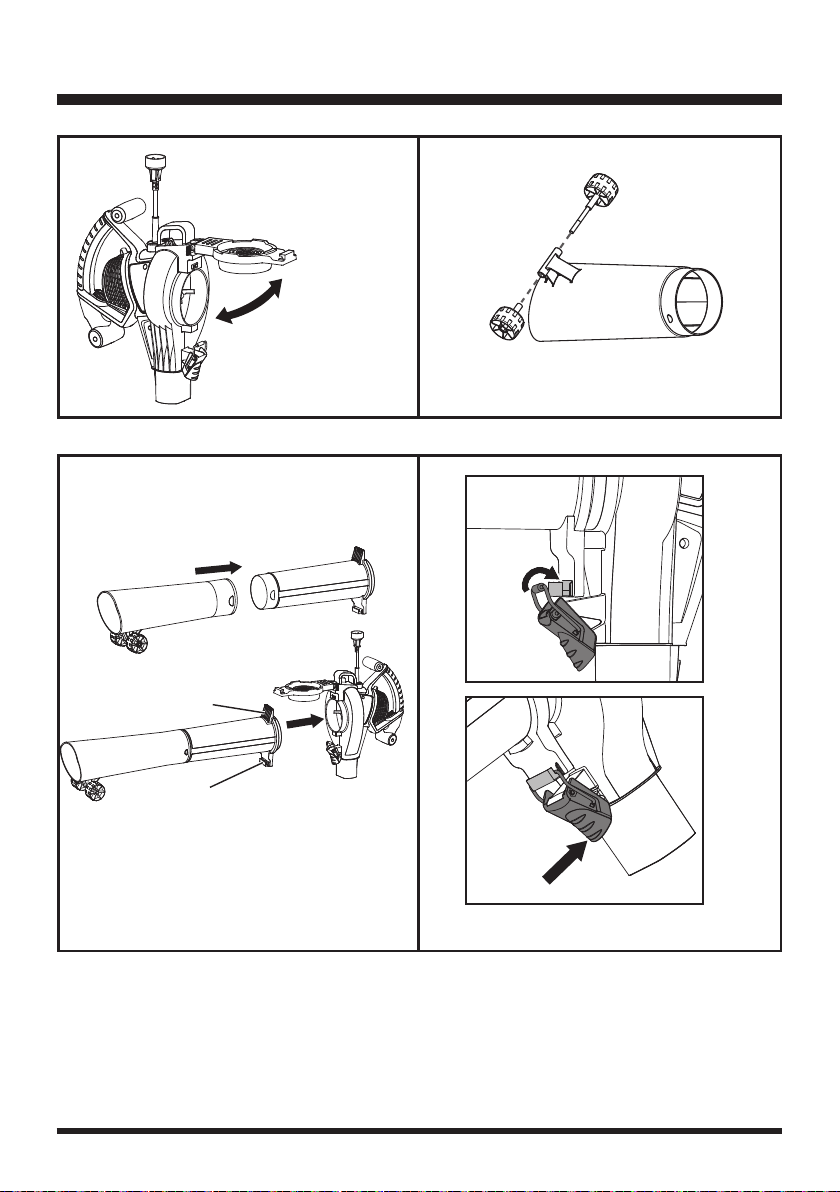

INSTALLING VACUUM TUBE AND COLLECTION BAG WITH SHOULDER
STRAP
See Figure 3-9.
■ Open vacuum gate. (Fig. 3)
■ Unscrew roller wheels, insert the wheel shaft into the aperture under the vacuum tube and screw
down the wheels. (Fig. 4)
■ Align the tabs on the tubes and slide the lower tube into the upper vacuum tube until you hear a
"click"
■ Then position the opening of the upper tube to align with the gate opening. (Fig. 5)
■ With assembled vacuum tube properly aligned, insert into aligned gate opening and using the
latching gate lock, lock vacuum tube into place. Make certain the vacuum tube aligning tab is rmly
"seated" before locking the latch. (Fig. 6)
■ Add collection bag by simply aligning the plastic connector sleeve on the bag to the blower exhaust.
(Fig. 7)
■ While standing in the operating position adjust the length to t the operator’s size. pull the tab to
lengthen, pull the strap to shorten. ( Fig. 8-9)
ASSEMBLY
ASSEMBLING THE BLOWER TUBE
See Figure 2.
■ Slide blower tube forward until the tab on the blower housing clicks into the slots on the tube.
■ Insert the concentrator nozzle onto the blower tube to lock. (Concentrator nozzle is used to
increase air ow in tight areas: ower beds, under decks, etc.).

15
ASSEMBLY
Shut
Open
Fig. 3
A - Vacuum tube aligning tab
B - Vacuum tube locking tab
Latching gate lock
Fig. 4
Fig.5 Fig. 6
A
B

16
ASSEMBLY
Fig. 7 Fig. 8
Fig. 9

17
APPLICATIONS
You may use this product for the purposes listed below:
■ Clearing leaves and other yard debris from your lawn
■ Keeping decks, patios, garages and driveways free from leaves, pine needles and other debris.
STARTING / STOPPING THE BLOWER/VAC
See Figure 10-11.
■ Attach the outlet end of an extension cord to the plug on the rear of the blower.
NOTICE: Use only an approved outdoor extension cord as described previously in this manual.
■ Route the extension cord through the side of the loop located on the rear of the blower housing and
place underneath the cord retainer.
■ To start the blower/vacuum, place the power switch in I (ON) position.
■ With the airstream regulator set the optimal blowing and sucking strength.
■ To stop the blower/vacuum, place the power switch in 0 (OFF) position.
OPERATION
WARNING
Do not allow familiarity with products to make you careless. Remember that a careless fraction of a
second is sufcient to inict serious injury.
WARNING
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing
protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible
serious injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

A - Cord Retainer
B - Loop
C - Plug
D - Extension Cord
A
B C
D
18
OPERATING THE BLOWER/VAC

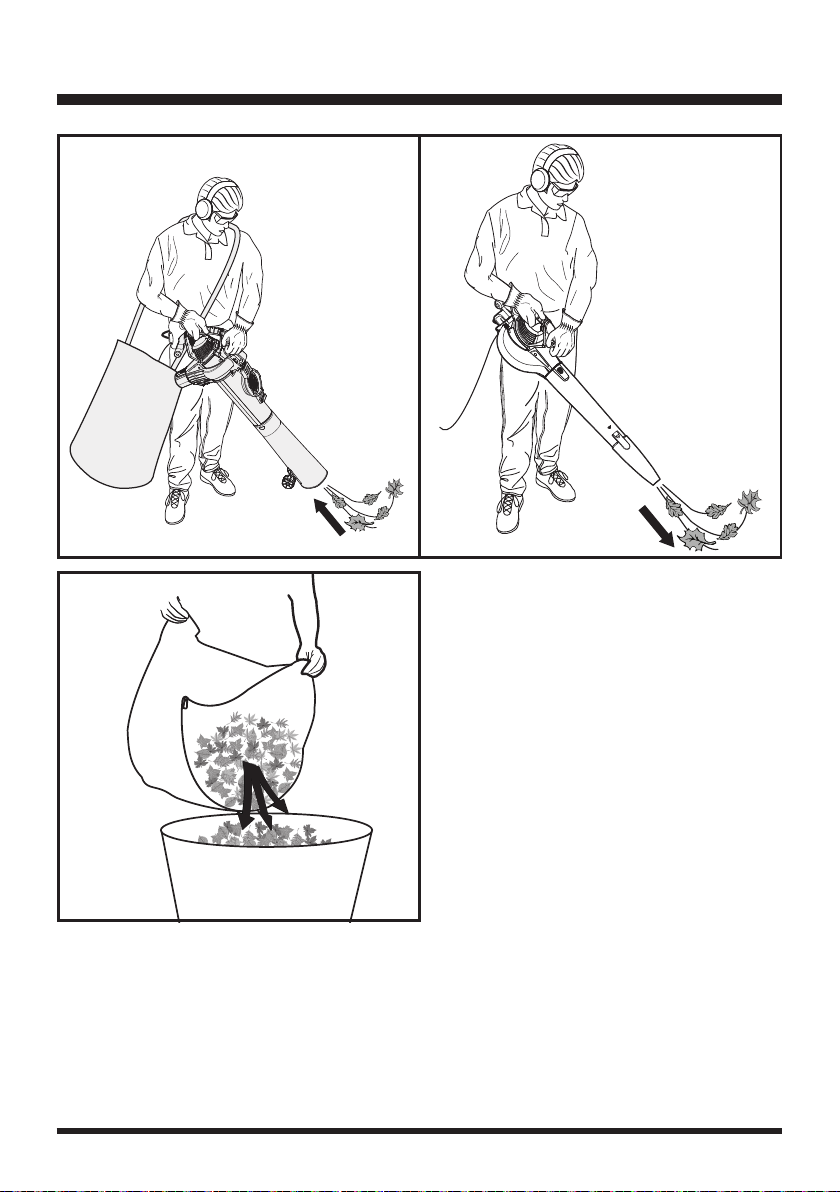

See Figure 12.
■ To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly
into the center of a pile.
■ To reduce sound levels, limit the number of pieces of equipment used at any one time.
■ Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen
surfaces when water is available.
■ Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
■ During operation, hold the device with one hand on the casing grip and the other on the additional
grip. (Fig. 12)
■ Operate power equipment at reasonable hours only - not early in the morning or late at night when
people might be disturbed. Comply with the times listed in local ordinances.
■ After using blowers or other equipment, CLEAN UP! Dispose of debris properly.
■ This blower is equipped with Overheating Protection for consumer safety. If the tool overheats or the
current is high, the tool will automatically shut-off. Turn the tool off and unplug. It will take several
minutes for the tool to revert back to its normal temperature, at which point it can be restarted.
OPERATION
Fig. 10 Fig.11
A - Power Switch
B - ON
C - OFF
D - Airstream Regulator
E - Low Speed
F - High Speed
B
E
A
F
D
C

19
OPERATION
EMPTYING OF COLLECTION BAG
See Figure 13.
■ Switch off the tool and disconnect the plug.
■ Wait until the impeller fan comes to a standstill before removing the collection bag from the tool.
■ Open the zipper of the collection bag and empty it completely. (Fig.13)
Fig.12
Fig.13

20
CARE AND MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust,
oil, grease, etc.
STORAGE (1 MONTH OR LONGER)
■ Clean all foreign materials from the blower.
■ Store indoors in a place that is out of reach of children. Keep away from corrosive agents such as
garden chemicals and de-icing salts.
WARNING
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or
cause product damage.
WARNING
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing
protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible
serious injury.
WARNING
Before inspecting, cleaning or servicing the machine, unplug the power cord and wait for all moving
parts to stop. Failure to follow these instructions can result in serious personal injury or property
damage.
WARNING
Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils, etc., come
in contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which may result in
serious personal injury.
