LCG LCG-UV18 User manual

UV BAR18
LCG-UVB18
User Manual
Please keep this manual for further use

UV BAR18 www.lc-group.ca
-- 1 - -
Contents
Introduction-----------------------------------------------------------------------------P2
Silkscreen on product----------------------------------------------------------------P3
Safety instruction and product specification---------------------------------P4
LED display instruction and
LED display operation ---------------------------------------------------------------P5
DMX512 channel chart ---------------------------------------------------------------P6
DMX512 connection and DMX address
setting------------------------------------------------------------------------------------P7
Rigging and installation-----------------------------------------------------------P8
Light outline /Cleaning /Attention-------------------------------------------------P9
Warranty-------------------------------------------------------------------------------P10

UV BAR18 www.lc-group.ca
-- 2 - -
Product Introduction
Thank you using our LED series products. This fixture is the latest new LED product. It has
aluminum die-cast housing with nice design, international advanced electronic control technology
and excellent industrial design. Product effect more rich, colorful, and color is gorgeous because
of installed high output light source.
LED can realize 0-255 brightness adjustment separately by controlled built-in microprocessor
which used the high precision of constant current control mode. User can invoke the built-in
program, scenario editors and master-slave control mode setting by menu. Also can setting
rainbow, flash frequency and electric dimmer effect.
This product has a fast response, seismic, high impact resistance, good heat dissipation, high
protection grade, long using life, no radiation, high efficiency and energy saving, how energy
consumption, really the green products. Fully accepted international standard DMX512 signal.
This product can be widely used for the large fixed stage, lighting background dyeing, large-scale
theatrical performances, stadium lighting, temporary stage, urban lighting system, TV, conference
center, professional theatre, park, dance hall, bars, small artistic performances and public lighting
environment.
Packing Include
Please check if the following parts are included:
1 x LED light
1 x Power cable
1 x User manual
Caution
Before delivery, this device has passed strict inspection with good quality and perfect packing,
please follow the user manual for correct installation and operation, damage caused by the
disregard of this user manual are not subject to warranty. The dealer will not accept liability for any
resulting defects or problems. and we won't inform in case of further technical changes .
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
Warning!
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.

UV BAR18 www.lc-group.ca
-- 3 - -
Silkscreen on light
------------------------------------------------------------------------CE compliant
---------------------------------------------------------------------Only indoor use
--------------------------------------------------------------------RoHS Certificate
----------------------The minimum distance from lighted objects(meter)
----------------------------------------------------Max. Ambient Temp
--------------------------------------------------Max. Housing Temp
---------------------------------------------------------------------- Safety caution
---------------------------------------------------------------------Careful burns
-------------------------------------------------------electric shock caution
----Not suitable for directly installed on the surface of ordinary combustible materials

UV BAR18 www.lc-group.ca
-- 4 - -
1.Safety Instructions
Please open and check whether break or not for transport once receipt this fixture, if yes, not use it
and contact dealer or manufacture as soon as possible.
The Max Ambient temperature for the light is 40°C. Do not use the light when the ambient
temperature is over 40℃
The fixture is applicable for many occasions, it should keep clean, and avoid long use in
overheating or dusty environment. prevent the fixture from the chemical liquid .
User must be careful of fire, heat, electric and fall-off that make heavy or fatal injury. Please read
this user manual carefully before power on and installation, following safety and operation
instruction in it. If still have any questions, please contact dealer or manufacture.
User must follow this user manual, do not open fixture by yourself, in case of any problems, please
contact technician for repair.
Fix the installation to avoid shack.
Don't power on or start the fixture before installation, please stop after working more than 8 hours
to extend the lifespan of the light
The minimum distance between light and the illuminated surface must be 0.5 meter.
Never look directly into the light source to avoid hurt to eyes (especially epileptics)!
When dustproof glass at light output breaks, cracks or other visible damage, user should replace
with new glass to continue to use.
2. Installation
When install this equipment please make sure there's no flammable surfaces (decorated things,
etc) and minimum distance of 0.5M from the equipment to the flammable.
The installation has to be built and constructed in a proper way that the rigging can hold 10 times
of the light weight .
3. Specifications:
Power supply：AC100V-240V 50/60Hz；
Fuse:BGDP ￠5x20mm 250VAC T2A
Power consumption：70W；
Max load: 120V 6pcs unit; 220V 12pcs unit;
LED：18*3W UV LED
Control mode: Auto/DMX512/Master-slave/ Sound
Light source: high power LED, with long lifespan, high light efficiency, no radiation and low
energy consumption. Etc
2/ 20 DMX channels；
IP Rate:IP20
Net weight: 2.0kg, Gross weight: 2.6kg
Inner packing size: 96*13*14cm
Outer packing size:98*28*32cm(4pcs/ctn)

UV BAR18 www.lc-group.ca
-- 5 - -
4. LED display instruction
5. LED display instruction chart
MENU
UP/DOWN
Default data
Function
1
Addr
1-512
1
Address setting
2
Chnd
20CH
20CH
20CH
2CH 1
2CH Mode 1
2CH 2
2CH Mode 2
3
ShoW
Sh 0
Sh 0
Sh 1-Sh n random show
Sh 1
Show 1
Sh 2
Show 2
Sh 3
Show 3
Sh 4
Show 4
...
...
Sh n
Show n
4
SPEE
1-99
90
Show speed from slow
to fast
5
SoUn
ON/OFF
ON
Sound ON/OFF
6
SENS
0-99
90
Sound sensitivity
7
Ver
Ver1.0
Software version
8
Temp
0°C-120°C
LED temperature
display （ when it arrives
at 50 ° ,it will open to
adjust temperature
E
A B C D
A．Function button （MENU）
B．UP button（UP）
C．DOWN button（DOWN）
D. Enter button（ENTER）
E．LED display

UV BAR18 www.lc-group.ca
-- 6 - -
6. DMX512 chart
2CH Mode 1
2CH Mode 2
20CH
Value
Function
CH1
Dimmer
0-255
All led dimmer 0-100%
CH2
Strobe
0-9
No function
10-255
Strobe from slow to fast
Value
Function
CH1
Mode option
0-9
No function
10-255
Show mode option
CH2
Auto speed/Sound
0-249
Auto from slow to fast
250-255
Sound
Value
Function
CH1
Dimmer
0-255
Dimmer 0-100%
CH2
Strobe
0-9
No function
10-255
Strobe from slow to fast
CH3
LED-1 Dimmer
0-255
LED-1 0-100%
CH4
LED-2 Dimmer
0-255
LED-2 0-100%
CH5
LED-3 Dimmer
0-255
LED-3 0-100%
CH6
LED-4 Dimmer
0-255
LED-4 0-100%
CH7
LED-5 Dimmer
0-255
LED-5 0-100%
CH8
LED-6 Dimmer
0-255
LED-6 0-100%
CH9
LED-7 Dimmer
0-255
LED-7 0-100%
CH10
LED-8 Dimmer
0-255
LED-8 0-100%
CH11
LED-9 Dimmer
0-255
LED-9 0-100%
CH12
LED-10 Dimmer
0-255
LED-10 0-100%
CH13
LED-11 Dimmer
0-255
LED-11 0-100%
CH14
LED-12 Dimmer
0-255
LED-12 0-100%
CH15
LED-13 Dimmer
0-255
LED-13 0-100%
CH16
LED-14 Dimmer
0-255
LED-14 0-100%
CH17
LED-15 Dimmer
0-255
LED-15 0-100%
CH18
LED-16 Dimmer
0-255
LED-16 0-100%
CH19
LED-17 Dimmer
0-255
LED-17 0-100%
CH20
LED-18 Dimmer
0-255
LED-18 0-100%

UV BAR18 www.lc-group.ca
-- 7 - -

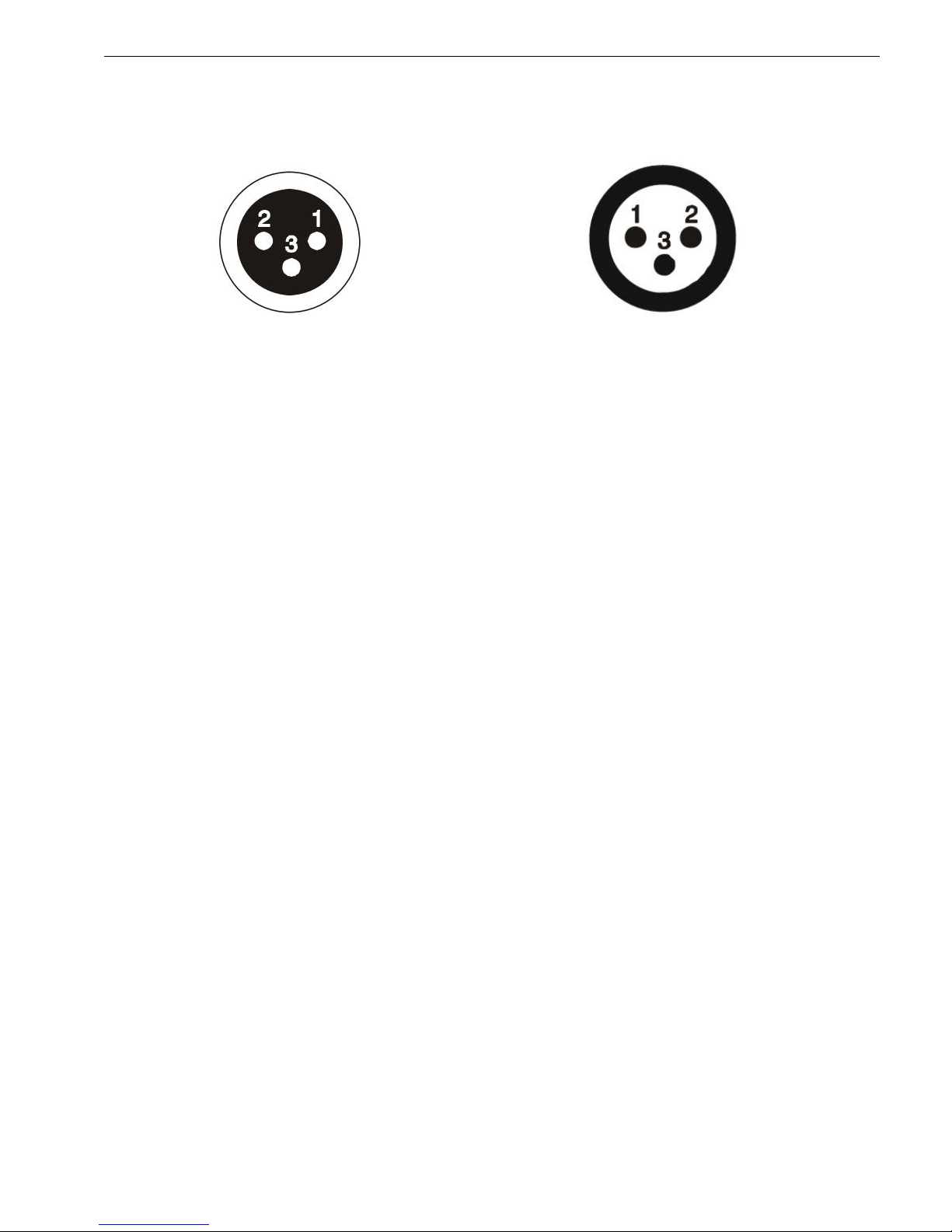

7. DMX-512 controller connection
3pins XLR signal output connector 3pins XLR signal input connector
(female) (male)
1: earth 2 : signal - 3 : signal +
8. DMX address setting
Set an address for each light, and accept the DMX signal from DMX controller, as per the
demand, user can set the same address for all lights, or different address for different light.
If set several light with the same DMX starting address, all lights will accept the same DMX
signal from DMX controller and work synchronously.
If set different address for each light, the light will accept signal from the DMX controller as per
the DMX starting address, if use this way, user must set the DMX starting address for the light
according to channel quantity of each light.
This light has 2 DMX modes: 2/20 channels, when use 2-channel mode, the 1st light has starting
address 1, the 2nd light has starting address 3 (1*2+1), the 3rd light has starting address 5 (2*2+1),...;
when use 20channel mode, the 1st light has starting address 1, the 2nd light has starting address
21(1*20+1), the 3rd light has starting address 41 (2*20+1).

UV BAR18 www.lc-group.ca
-- 8 - -

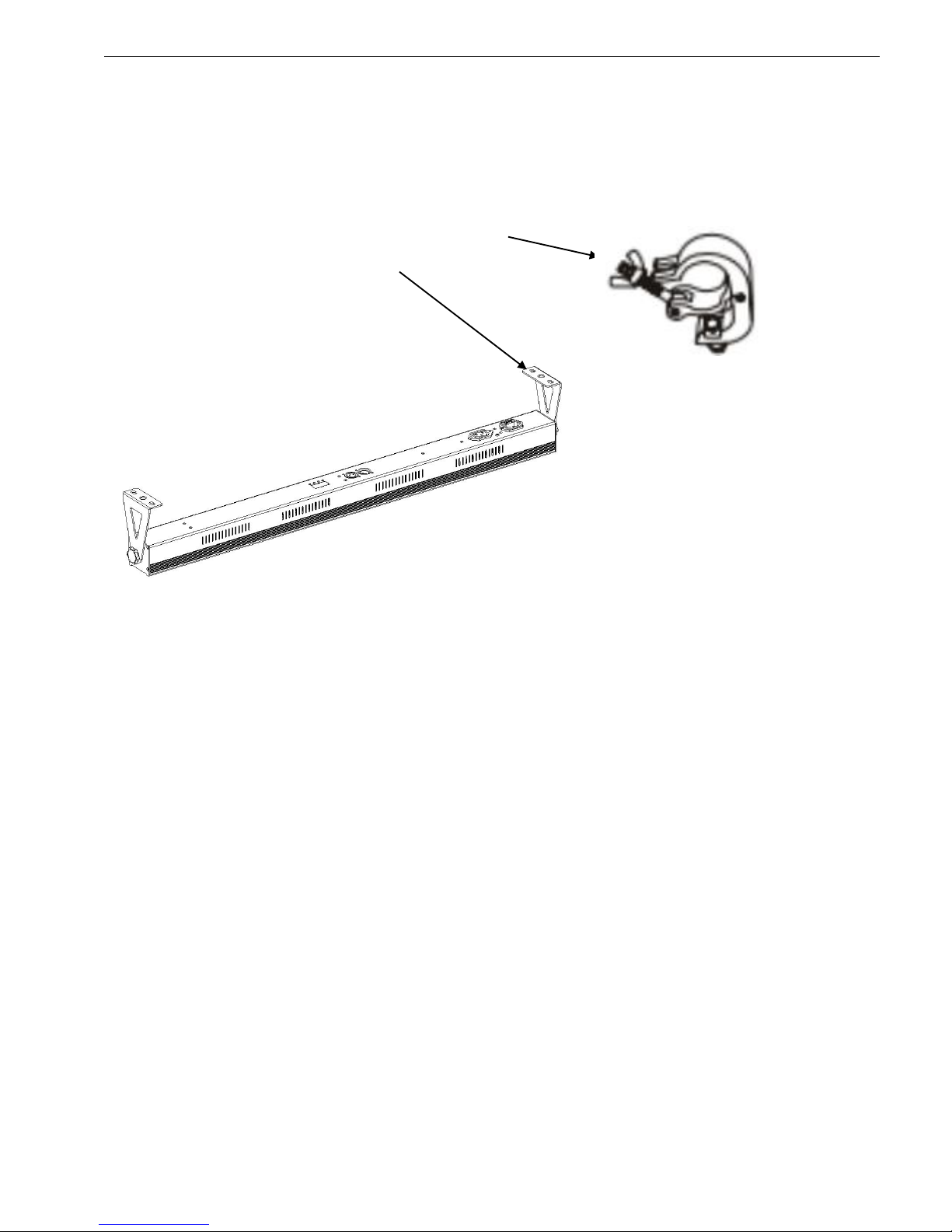

9. Rigging and installation
1. Hook clamp
2. Handle
1
2
1. The light can work properly when the ambient temperature is -25~40℃, do not use the light when
the ambient temperature is over 40℃or under -25℃.
2. The installation has to be built and constructed in a proper way that the rigging can hold 10 times
of the light weight .
3. Don't stand under the light when installing, disassembling, repairing or maintaining the light.
4. Please use safety chain to ensure good installation.
5. Fix the M8 screw of the hook clamp in ￠12.5mm hole of the light handle.

UV BAR18 www.lc-group.ca
-- 9 - -

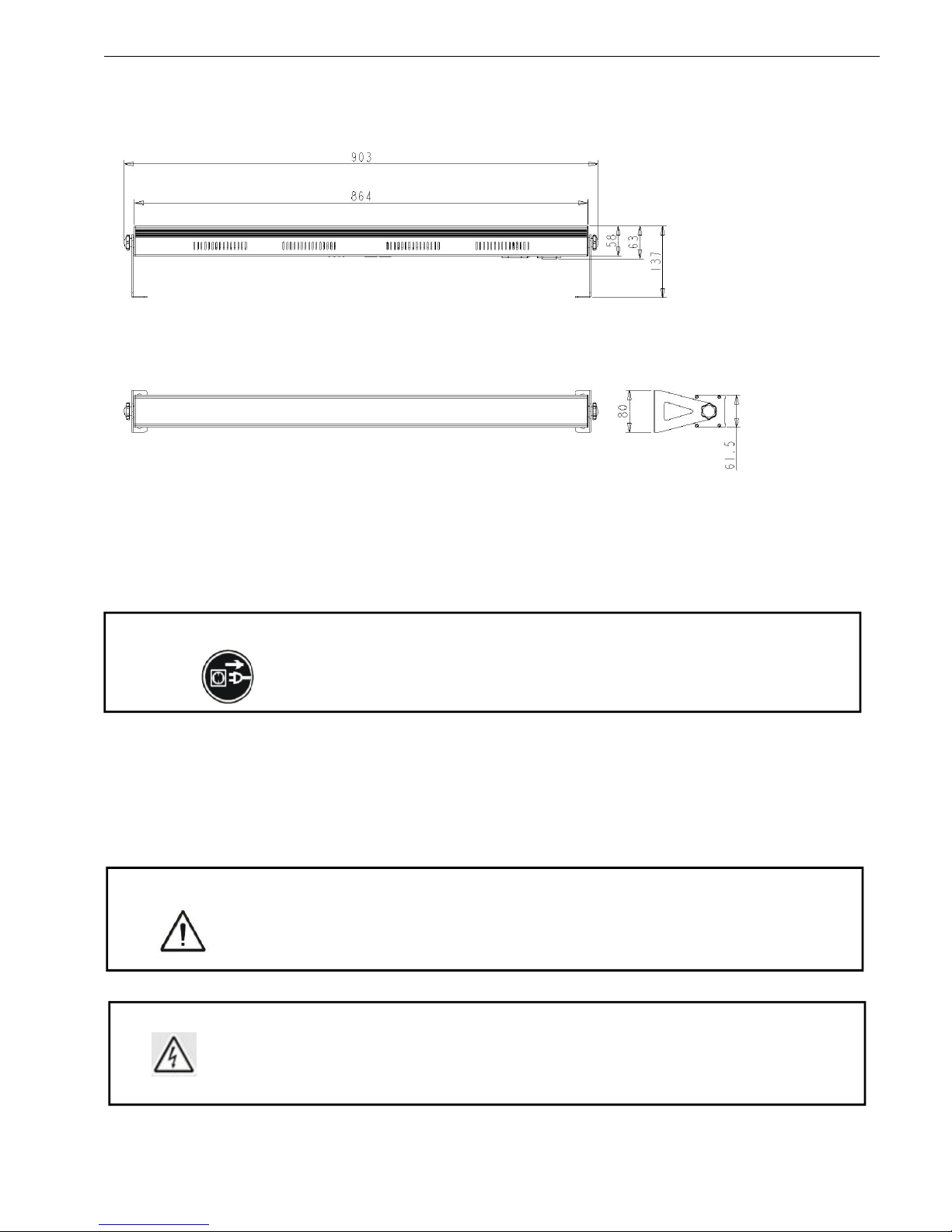

9. Light outline and dimension
10.Cleaning and maintenance
Maintenance should be performed every 15-day period, by using a sponge which is dipped
with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.
Always disconnect from the mains when the device is not in use or before cleaning it.
11.Attention
Do not look into light source directly when turn on the light, and make sure power off before do any installation or
maintenance.
Make sure power off before cleaning and maintenance!
Caution
Warning!
Never look directly into the light source to avoid hurt to eyes(especially meant for
epileptics)!
Warning!
Any power connection can be done only by technician !

UV BAR18 www.lc-group.ca
-- 10 - -
Warranty Card
We provide 2 year warranty under the condition that user has operated the light normally and
lifetime service. We won't provide warranty if the damage is caused by artificial or force majeure
event. Cost of fittings should be charged by user if product need maintenance after 1
year .Please cut this warranty card and shipped it along with the product to our factory when
applying for warranty.
Product：
Purchasing date：
Code of invoice：
Warranty date: From To
User’s name：Add：
Company：Tel：
