LCG Mini Rubik LED LCG-623A User manual

LED Moving Head Light
User manual
Please keep the manual carefully for future reference
Mini Rubik LED
LCG-623A

Moving head light user manual
- 1 -
Contents
Introduction & Symbol Instruction ------------------------------------------------------P2
Safety instructions-----------------------------------------------------------------------------P3
Installation instruction------------------------------------------------------------------------P4
Ringing & Product specification----------------------------------------------------------P5
LCD display & MENU operation & Function setting --------------------------P6-10
Channel Instruction-----------------------------------------------------------------------P10-12
DMX-connection and setting -----------------------------------------------------------P13
Warranty card----------------------------------------------------------------------------------P14

Moving head light user manual
- 2 -
Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your
own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and
operation should be done by the verified technician and follow the instruction strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
Introduction
Thank you for having chosen this professional moving head. You will see you have acquired a powerful and versatile
device.
Unpack the device. Inside the box you should find:
1. One DMX connection cable
2. One quick lock handle
3. One safety rope
4. One use manual
5. One power cable
Please check carefully that there is no damage caused by transportation. Should there be any, consult your local
dealer
Symbol Instruction On The Device
……………………………………………………………
CE Certificate
………
……………………………………………………………
……………………………………………………
……………………………
Suitable directly installed on the common combustible materials devices
Only indoor using
Environmental protection
The minimum distance from lighted objects(meter)
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION
Be careful with your operations. With a dangerous voltage you can suffer a
dangerous electric shock when touching wires!

Moving head light user manual
- 3 -
Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation,
it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
►If the device has been exposed to temperature changes due to environmental changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device switched off until it has reached
room temperature.
►Please make sure that the device be earthed.
►Please replace housing if it is broken. This fixture can be using after finished installed.
►The electric connection must carry out by qualified person.
►Make sure that the available voltage is not higher than stated at the end of this manual.
►Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of
the cable must be done by an authorized dealer.
►If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
►Please cut off the power if don't use the fixture or want to clean, maintenance.
Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep
away from non-professionals.
General Guidelines
►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the device was
designed for indoor use only.
►This fixture is only allowed to be operated with the max alternating current which stated in the technical
specifications in the last page of this manual.
►The device can do continuous work for eight hours. Lighting effects are not designed for permanent operation.
Consistent operation breaks may ensure that the device will serve you for a long time without defects.
Warning!
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.

Moving head light user manual
- 4 -
►Handle with care, do not make the device by strong shocks.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or
dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from
the projector and the illuminated surface must be more than 1 meter.
►Please do not in damp, overheat or dusty environment install and use the device. Do not use light on fuel. The
distance between the device and the projectile to keep at least 1 meter.
►If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the
quick lock holes correctly.
►Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation.
►Please use the original packaging if the device is to be transported.
►For safety reasons, please be aware that all modifications on the device are forbidden.
►If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns,
electric shock, lamp explosion, crash, etc.
Installation Instruction
►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under or above the
temperature.
►The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour
without any harming deformation.
►The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety
rope.Never stand directly below the device when mounting, removing or servicing the fixture.
►The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.
►These installations have to be approved by a skilled person once a year.
►Overhead mounting requires extensive experience, including amougst others calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and the device. If you lack
these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Please consider the GB7000.15/EN60598-2-17 and the other respective national norms during
The installation. The installation must only be carried out by a qualified person.

Moving head light user manual
- 5 -
Ringing
Insert the quick-lock fasteners of the first holder into the respective holes on the bottom of the device.Tighten the
quick-lock fasteners fully clockwise.
Make the finished installed mounting bracket tighten on the fixed bracket.
Pull the safety rope through the holes on the bottom of the base and over the trussing system or other safe fixation
spot.
Note:This step is quite important to ensure that fixture will not drop out by the damage of clamp.
Product specification
●6* 10W Cree RGBW 4in1 LED；
●LED average lifetime over 50000 hours, low power consumption
●DMX channel：14/16CH
●Control mode ：master/slave, auto, DMX, sound
●Standard beam angle：9º ，standard spot angle：18º, (RGBW ) 228lum @5M
●Pan: 630º, TILT: 200º
●360º infinite tilt
● Electrical strobe 1~25Hz；
●Electrical dimming：0%~100%；
●10 built-in programs for auto display or controlled by DMX controller
●can edit program via DMX controller and front display, and save the programs in CPU of the fixture.
● 3Pin DMX connector, LED display:
● Input voltage：AC100 ~240V 50/60Hz
Mounting Bracket
Handing Bracket
Safety Rope
Rapid locking hook

Moving head light user manual
- 6 -
LCD display
LED operation
Main menu Sub-menu Function
Nenu
Dmx address
Address 001~512
Channel 14 Channel
16 Channel
Sound Mode choose
Sh1 (Scene 1)
Sh2 ( Scene 2)
Sh3 (Scene 3)
Master Slave mode
Mast( Master mode)
SL1( Slave 1 mode)
Dmx Lost
Hold(Keep mode)
Shnd (Sound active
mode)
Blac( Black mode)
Sound mode
ON
OFF
Sound Control
000~099%
Pint
yes
No
Tint
Yes
No
System Sett
Pan 000-255
000-255
Tilt 000~255
Til2 000~255
1.DMX in
2.DMX Out
3.Switch
4.Fuse
5.
AC power
socket
1：（MENU）
2：（ DOWN）
3：（UP）
4：（ ENTER）
5：Display

Moving head light user manual
- 7 -
Red
000~255
Green
000~255
Blue
000-255
Whit
000-255
Stro
000-255
Dim
000-255
led
000-255
Led on
off
disp on
off
Test Whole Function Test
Fhrs Operate Time
Ver Software Version
Rest Whole Reset
defa Default
MENU operation
This fixture has 4 keys on front panel for operation, press these to set address, reset, edit and run programs and
so on.
[MENU]: press MENU key to enter edit status, in edit status, if press MENU again, it will return the upper interface. If
no operation 30 seconds after enter edit status, the fixture will exit the edit status automatically.
[Up]: press UP key, the indicator will flash, the address increases one by one, if hold the key continuously, the
address will increase rapidly. If no press within 30 seconds, the indicator stops flashing and exit it. In edit status,
press UP key, it will display the options circularly from down to up.
[Down]：press DOWN key, the indicator will flash, the address decreases one by one, if hold the key continuously,
the address will decrease rapidly. If no press within 30 seconds, the indicator stops flashing and exit it. In edit
status, press DOWN key, it will display the options circularly from up to down.
[ENTER]：in normal status, no function to press ENTER. In edit mode, press ENTER to enter lower interface.
Function setting
1）DMX address setting
1.Press <MENU >to enter EDIT interface
2. Press <UP/DOWN> to choose, then pres <ENTER> to enter【Address setting】
3．Press <Up/Down> to choose address 001~XXX
4．press <ENTER> to confirm, or press "MENU" to exit

Moving head light user manual
- 8 -
2）Channel Setting
1. Press <MENU> to enter EDIT interface
2. Press <UP/DOWN> to choose, then pres ENTER to enter 【channel】
3. Press UP/DOWN to choose each channel.‘14CH’/‘16CH’
4. Press ENTER to confirm, or press "MENU" to exit
3) Sound scene Setting
1. Press <MENU> to enter EDIT interface
2. Press< UP/DOWN> to choose, then pres ENTER to enter 【Shnd】
3. Press< UP/DOWN> can choose light’s three scene:Sh1,Sh2,Sh3 (can choose any scene mode to operate )
4. Press <Enter> to confirm, save and exit.
4）Master-slave setting
1. Press <MENU> to enter EDIT interface
2. Press <UP/DOWN> to choose, then pres ENTER to enter 【SLnd】
3. Press <UP/DOWN> to choose Mast/SL1.
4. Press <Enter> to confirm, save and exit.
5）DMX Lost Setting
1. Press< MENU> to enter EDIT interface
2. Press <UP/DOWN >to choose, then pres ENTER to enter 【DMX Lost】
3.press< UP/DOWN> can choose light’s three scene:hold,shnd,blac (can choose any scene mode to operate )
4. Press <Enter> to confirm, save and exit.
7）Sound sensitivity Setting(before this setting, please Press MENU into <System setting> then to <DMX Lost> to
select <Sound> and save, user should be in Sound Mode first, the different Sound sensitivity can be selected)
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then pres ENTER to enter 【Sec】
3. Press <Up/Down>, <Enter> to adjust the sound sensitivity from 0%-99%.
4. Press <Enter> to confirm, save and exit.
8) Pan reverse setting
1. Press<MENU> to enter EDIT interface.
2. Press UP/DOWN to choose, then pres ENTER to enter 【Pint】
3 Press<Up/Down> to choose ‘YES’，/‘NO’
4. Press <Enter> to confirm, save and exit.
9) Tilt reverse setting
1. Press<MENU> to enter EDIT interface.
2. Press UP/DOWN to choose, then pres ENTER to enter 【Tint】
3 Press<Up/Down> to choose ‘YES’，/‘NO’
4. Press <Enter> to confirm, save and exit.
10)Manual test
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then pres ENTER to enter 【Manu】
3. Press <Up/Down>, to choose【PAN】,【TIL】, 【TIL2】,【Red】,【Gren】,【Blue】,【Whte】
【PAN】：(1)Press <Enter> into【PAN】
(2) Press <Up/Down> to choose ‘P000~P255’
(3) Press <Enter> to confirm, save and exit.
【TIL】： (1)Press<Enter> into【TIL】
(2) Press<Up/Down> to choose ‘T000~T255’
(3) Press <Enter> to confirm, save and exit.
【TIL2】: (1)Press<Enter> into【TIL2】

Moving head light user manual
- 9 -
(2) Press<Up/Down> to choose ‘T000~T255’
(3) Press <Enter> to confirm, save and exit.
【Red】：(1)Press <Enter> into【Red】
(2) Press <Up/Down> to choose ‘R000~R255’
(3) Press <Enter> to confirm, save and exit.
【Gren】:(1)Press<Enter> into【Green】
(2) Press <Up/Down>, Choose ‘G000~G255’
(3) Press <Enter> to confirm, save and exit.
【Blue】：(1)Press <Enter> into【Blue】
(2)Press<Up/Down> choose ‘B000~B255’
(3)Press <Enter> to confirm, save and exit.
【White】：(1)Press <Enter> into【White】
(2) Press <Up/Down> choose ‘W000~W255’
(3) Press <Enter> to confirm, save and exit.
11）Display backlight setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then pres ENTER to enter 【LED blacklight 】
3. Press<Up/Down> to choose ‘ON’，/‘OFF’
4. Press <Enter> to confirm, save and exit.
12) Display reverse setting
1. Press MENU to enter EDIT interface.
2 .Press UP/DOWN to choose, then pres ENTER to enter 【Display reverse】
3. Press<Up/Down> to choose ‘ON’，/‘OFF’
4. Press <Enter> to confirm, save and exit.
13 )Whole test
(1) Press < ENTER> to enter EDIT interface
(2) Press < UP/DOWN>, then press < ENTER> 【test】to do whole test
(3) Press <Enter> to confirm, save and exit.
14) Operate time
(1) Press < ENTER> to enter EDIT interface
(2) Press < UP/DOWN>, then press < ENTER> 【Fhrs】to check the light’s working time
(3) Press <Enter> to confirm, save and exit.
15）Software Version
(1) Press < ENTER> to enter EDIT interface
(2) Press < UP/DOWN>, then press < ENTER> 【Ver】to check the light’s version information
(3) Press <Enter> to confirm, save and exit.
16）Whole reset
1. Press< MENU> to enter EDIT interface.
2. Press UP/DOWN to choose, then pres ENTER to enter 【Rest】
3.After reset, it will go back to the upper interface
17）Restore factory settings
1. Press MENU to enter EDIT interface.

Moving head light user manual
- 10 -
2. Press UP/DOWN to choose, then press ENTER to enter 【Default setting】
3. Press<Enter> to confirm,save and exit
Channel Instruction
14 Channel
Channel
Value
Function
CH1 Pan 000-255 Pan 0-630°
CH2 Tilt 000-255 Tilt 0-196°
CH3 Infinite tilt
000-030 Stop
031-140 Anticlockwise,from fast to slow
141-145 Stop
146-255 Clockwise from slow to fast
CH4 Speed 000-225 Pan/Tilt Speed from fast to slow
226-255 Maximum speed
CH5 Red 000-255 Red(0-100%)
CH6 Green 000-255 Green(0-100%)
CH7 Blue 000-255 Blue(0-100%)
CH8 White 000-255 White(0-100%)
CH9 Strobe
000-015 No Function (open)
016-095 Strobe （1HZ-25Hz Slow-Fast）
096-175 Strobe （1Hz Fast-Slow）
176-255 Random Strobe (Slow-Fast)
CH10 Dimmer 000-255 Master Dimmer 0-100%
CH11 LED strip program
000-036 No Function
037-056 Red
057-077Green
078-098Blue
099-119R&G
120-140 R&B
141-161 G&B
162-176 R&G&B
177-186 RGB Change
187-196 Red-Chase
197-206 Green-Chase
207-216 Blue-Chase
217-226 R&G-Chase
227-236 R&B-Chase
237-246 G&B-Chase

Moving head light user manual
- 11 -
247-255 R&G&B-Chase
CH12 LED Strip Speed 000-015 Speed from slow to fast
CH13 Color Macro
000-045
No Function
046-065 Red
066-085 Green
086-105
Blue
106-125 White
126-145
R&G
146-165 R&B
166-185 G&B
186-205 R&G&B&W
206-255
RGB Change Fast-Slow
CH14 Rest 000-249 No Function
250-255 Whole Reset
16 Channel
Channel
Value
Function
CH1
PAN
000-255
Pan 0-630°
CH2 PAN Fine 000-255 Pan fine
CH3 Tilt 000-255 Tilt 0-196°
CH4 Tilt Fine 000-255 Pan fine
CH5 Infinite tilt
000-030 Stop
031-140
Anticlockwise,from fast to slow
141-145 Stop
146-255
Clockwise from slow to fast
CH6 Speed
000-225
Pan/Tilt Speed from fast to slow
226-255 Maximum speed
CH7
Red1
000-255
Red(0-100%)
CH8 Green1 000-255 Green(0-100%)
CH9
Blue1
000-255
Blue(0-100%)
CH10 White1 000-255 White(0-100%)
CH11 Strobe
000-015 No Function (open)
016-096
Strobe
（
1Hz-25Hz Slow-Fast
）
097-176 Strobe （1Hz Slow-Fast）
177-255
Random Strobe (Slow-Fast)
CH12 Dimmer 000-255 Master Dimmer 0-100%
CH13 LED strip auto
program
000-036 No Function
037-056
Red
057-077Green

Moving head light user manual
- 12 -
078-098Blue
099-119
R&G
120-140 R&B
141-161
G&B
162-176
R&G&B
177-186 RGB Change
187-196
Red-Chase
197-206 Green-Chase
207-216
Blue-Chase
217-226 R&G-Chase
227-236 R&B-Chase
237-246
G&B-Chase
247-255 R&G&B-Chase
CH14
LED Strip Speed
000-255
Speed from slow to fast
CH15 Color Macro
000-045 No Function
046-065 Red
066-085
Green
086-105 Blue
106-125
White
126-145 R&G
146-165 R&B
166-185
G&B
186-205 R&G&B&W
206-255
RGB Change Fast-slow
CH16 Rest 000-249 No Function
250-255 Whole Reset

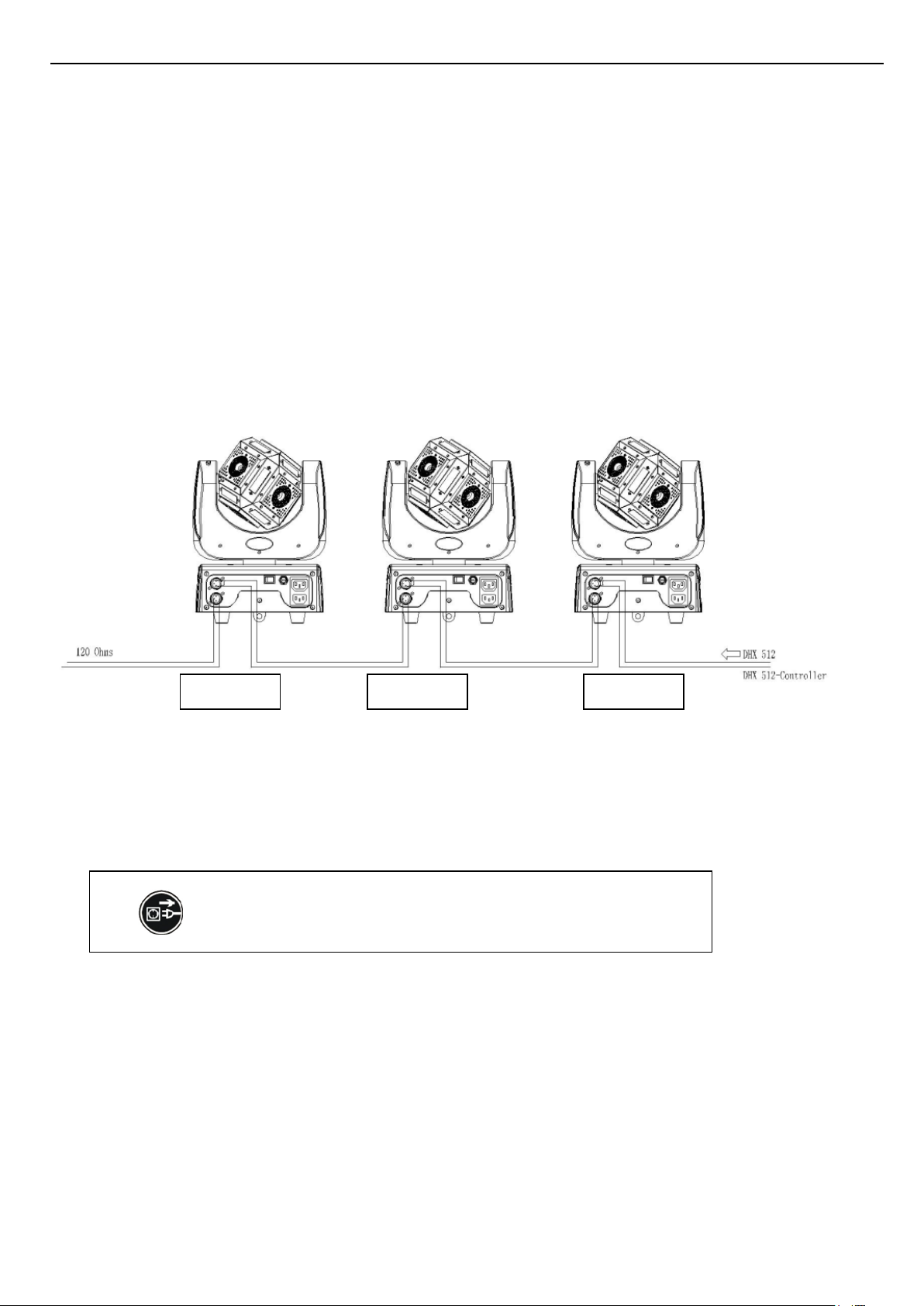

DMX-512 control connection
Connect the provided XLR cable to the male 3-pin XLR output of your controller and the other side to the female
3-pin XLR input of the light.You can chain multiple lights together through serial linking
The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
XLR Mounting socket XLR Mounting plug

Moving head light user manual
- 13 -
DMX address setting
Each fixture must set a specific starting address. When receiving signal transmission, fixture will receive channels
control signals which from the starting address.
According to different requirements or easy to use, the user can set many fixtures to the same address, also can set
up a separately address for every device.
If more than one fixtures set to the same address, all of them receive from DMX channels signal. All connections
fixtures are jointly controlled, controller can't separate control a device.
If each device set to a different address, each device will be separate from its particular set the starting address and
began accepting DMX512 control signal, so that more convenient separate control one of device. Using this method
must be based on channel quantity of device to determine a starting address.
This device have 16 channels, so the first device starting address set 1, second is 17(1+16), third is 33(17+16) and
so on.
Cleaning and maintenance
Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather
than wet cloth or other chemical liquid, to clean the mirror.
Cut off power before cleaning and maintenance!
CAUTION
Address33
Address 17
Address 01

Moving head light user manual
- 14 -
Attention
Do not see directly light source when open the light, and make sure power off before do any installation or
maintenance.
Warranty Card
This product is made of high-brightness transistor. We will provide 1 year warranty
under the condition that user has operated the light normally and lifetime service. We
won't provide warranty if the damage is caused by artificial or force majeure event.
Cost of fittings should be charged by user if product need maintenance after 1
year .Please cut this warranty card and shipped it along with the product to our factory
when applying for warranty.
Product：Purchasing date：Code of invoice：
Warranty date: From To
User’s name：Add：
Company：Tel：
Wires connection must be done professional person!
CAUTION
