LCG Mini Party Mix LCG-305A User manual

LED Laser effect light
User Manual
Please keep read this manual carefully for further use!
Mini Party Mix
LCG-305A

Led effect light user manual
- - 1 - -
Content
Introduction--------------------------------------------------------------------------------- P2
Silkscreen symbol--------------------------------------------------------------------------P3
safety/specification------------------------------------------------------------------------P4
Operation menu-----------------------------------------------------------------------------P5
Remote control map---------------------------------------- ------------------------------P6
Rigging/Product size- ----------------------------------------------------------------------P7
Maintenance/warnings/warranty card-------------------------------------------------P8

Led effect light user manual
- - 2 - -
Thank you using our LED laser series products. This fixture is the latest new LED laser
product.The product housing used Aluminum plastic material, beautiful appearance, with
international advanced electronic control technology and excellent industrial design. Product effect
more rich, colorful, and color is gorgeous because of installed high output light source.
This product applications widely, installation simple. Can widely used for small party, home
party,small club,small stage and so on.
Spare part includes:
Cautions
Before delivery, this device has passed strict inspection, Please follow the user manual
strictly for operation, if this fixture is damaged by improper operation and mistake, the
fixture will be out of warranty, and manufacture or dealer won’t be responsible for it. In case
of any technology change in this manual,we won’t advise in further .

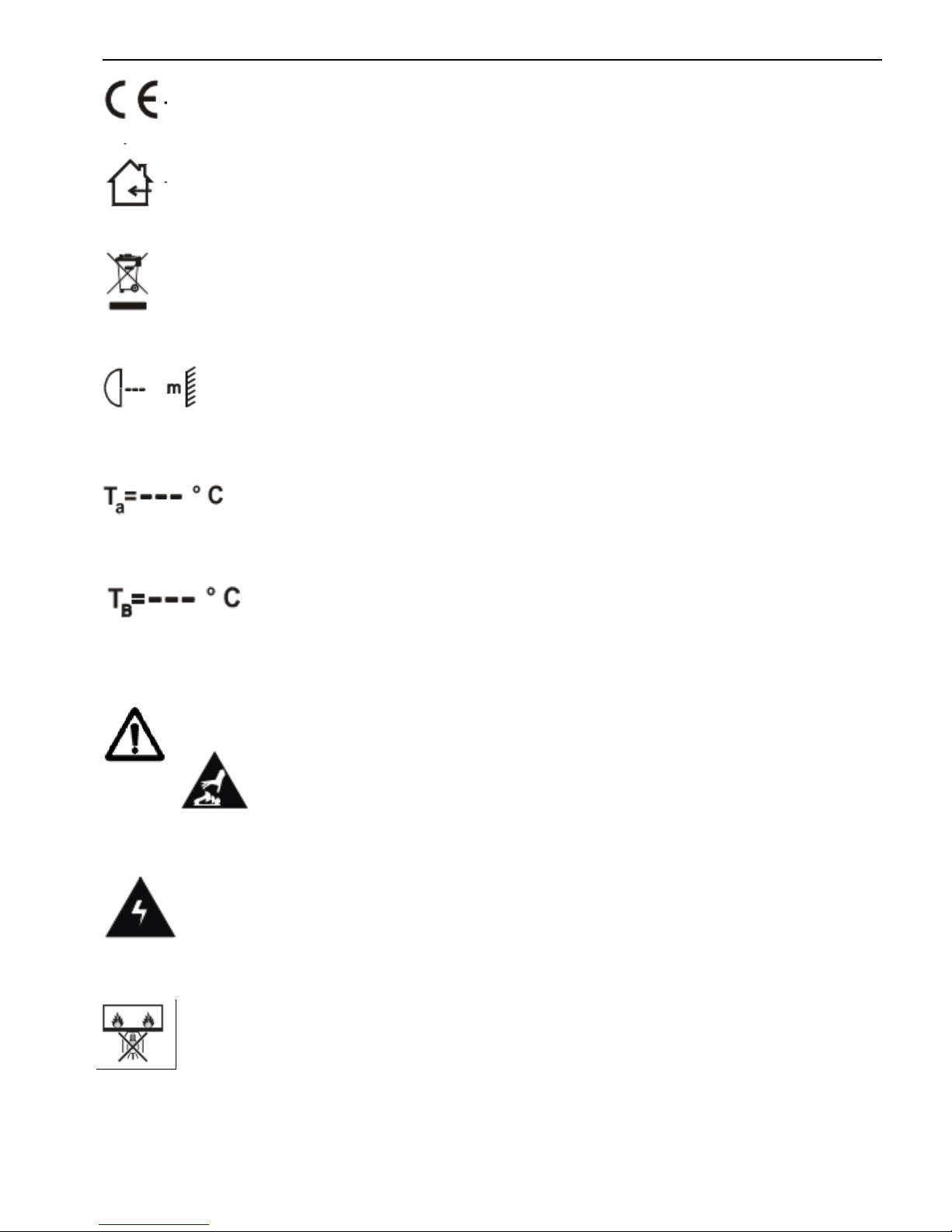

Silkscreen symbol on light
Silkscreen symbol
Parts
Qty
Units
Light
1
pcs
User manual
1
pcs
Power cable
1
pcs
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
Warning!
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.

Led effect light user manual
- - 3 - -
-----------------------------------------------------------------------------CE certificate
------------------------------------------------------------------------Only indoor using
---------------------------------------------------------------------------RoHS certificate
-------------------------------The minimum distance from lighted objects(meter)
--------------------------------------------------------------Max ambient Temp
------------------------------------------------------------Max housing Temp
----------------------------------------------------------------------------- Safety caution
------------------------------------------------------------------------Be careful of
burn
----------------------------------------------------------------------Danger high voltage
-------Not allow installation directly on the surface of ordinary combustible materials

Led effect light user manual
- - 4 - -
1. Safety instruction
Once after received this product , please take and put carefully. And check cautiously that whether
the product was damaged or not during the transportation, if yes, please not use this fixture and
contact local dealers or manufacturers as soon as possible.
The applicable temperature for the lighting is below 40°C. Do not use the lighting above the
temperature.ta=40 ℃
The fixture applicable widely, it must keeping clean, Please do not in overheat or dusty
environment use the device. Do not touching Chemical liquid.
Should be paid attention to the use of this product: fire, heat, electric shock, loss caused by severe
or fatal injury, in electricity or to read the instructions before installation, follow the safety instruction
and pay attention to the manual and warning signs on the equipment, if you have any other
questions about how safe operating equipment, please contact the dealer or manufacturer as soon
as possible.
According to the procedures described in this operating instructions, please do not open by
yourself. Any break, please contact professionals, and must by the professional and technical
personnel for repair.
Do not power in and open before installation. Let have a rest when continuous work for eight hours.
It will longer the device using lift.
Fixed installation, to prevent the strong vibration or impact of the device.
The distance between the device and the projectile to keep at least 0.5 meter.
Never look directly into the light source,as sensitive persons may suffer an epileptic
shock(especially meant for epileptics)!
When light output position of the device of dustproof glass breakage, cracks or other visible
damage, user should replace the new glass to continue to use.
2. Installation
When install this equipment please make sure there's no flammable surfaces (decorated things,
etc) and minimum distance of 0.5M from the equipment to the flammable.
The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight and without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.Never stand directly below the device when mounting, removing or servicing the
fixture.
3. Product Specification
Input voltage: DC12V
Fuse: BGDP￠5*20mm 250VAC T2A
Power load: 220V 20W
Power consumption: 220V 25W
Power cable mode: DC single input
LED: 4*3W (R1/G1/B1/W1), 32*0.2W RGB 3in1
Laser: 100mw/650nm+30mw/532nm
Control mode: sound/auto
Max working Temp: 40℃
Housing max ambient Temp：65 ℃
Net weight：1.6Kg; Gross weight: 2.3Kg
Product size:159 X 248 X 210mm

Led effect light user manual
- - 5 - -

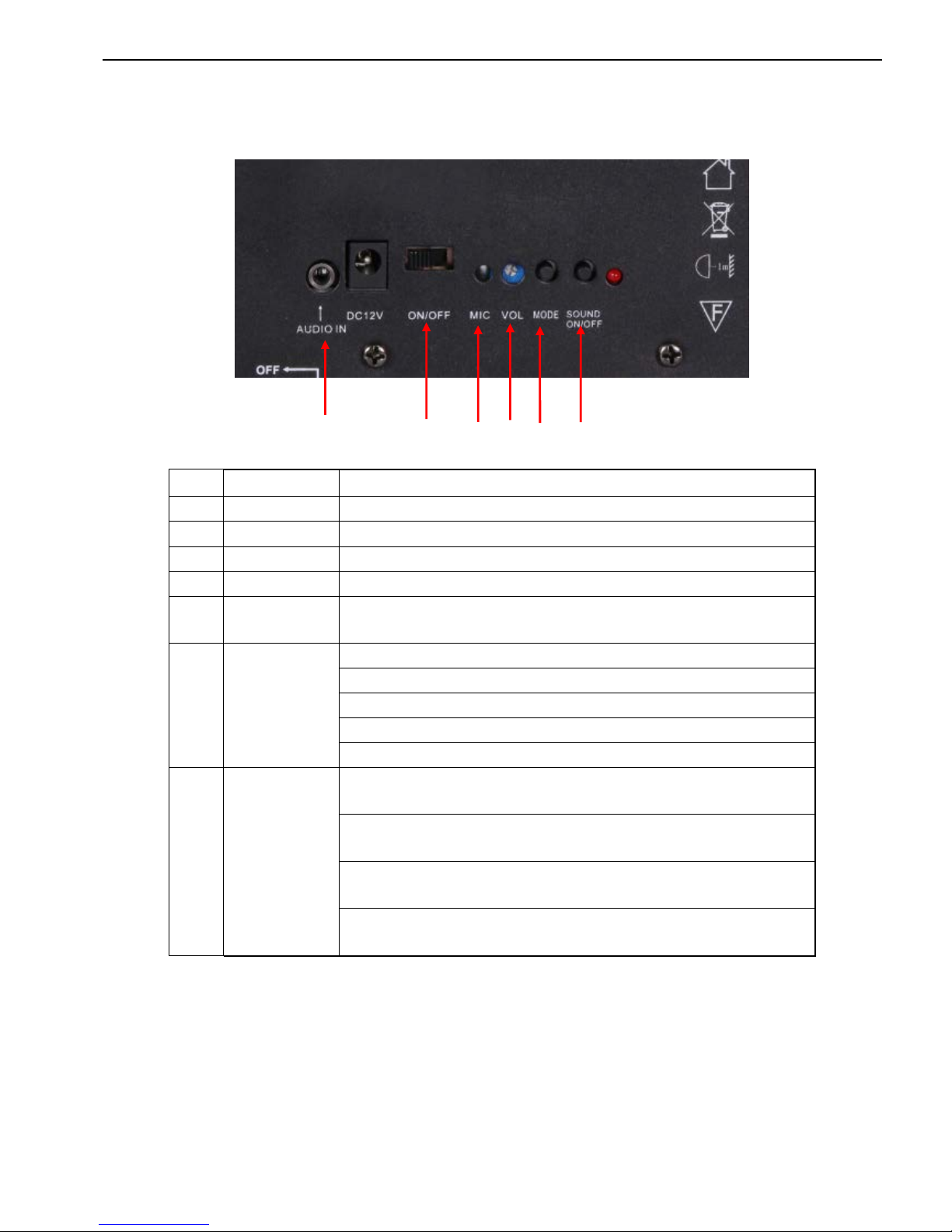

4. Operation Menu
Operation Menu Map
NO Silkscreen Function
1
AUDIO IN
No function
2
DC12V
DC12V power input
3
ON/OFF
Power switch
4
MIC
Microphone
5 VOL
Sound sensitivity adjust
，
adjust clockwise for high
sensitivity, and adjust counter-clockwise for low sensitivity
6 MODE
MODE
，
Show 0-Show3, cycling show
Show 0:Led + Laser + Strobe, random show
Show 1:Led show
Show 2:Strobe show
Show 3:Laser show
7 SOUND
ON/OFF
Sound switch
，
between Show Fast,Show Slow ,Show
Sound
Show Fast
：
Show 0-Show3 at fast speed
，
LED indicator
flickers fast
Show Slow
：
Show 0-Show3 at low speed
，
LED indicator
flickers slow
Show Sound
：
Show 0-Show3 controlled by sound
，
LED
indicator flickers with sound beat
1 2 3 4 5 6 7

Led effect light user manual
- - 6 - -
5. Remote control map
NO
Button Function
1
Mp3 On/Off
No function
2
Mp3 Mode
No function
3
Mp3 Mute
No function
4
Play/Pause
No function
5
Last Song
No function
6
Next Song
No function
7
EQ
No function
8
Vol+
No function
9
Vol-
No function
10
Standby
Light standby
11
Show 0
LED+Laser +Strobe, random show
12
Show 1
LED show
13
Show 2
Strobe show
14
Show 3
Laser show
15
Show Fast
Show 0-Show3 fast show
，
LED indicator flickers fast
16
Show Slow
Show 0-Show3 slow show
，
LED indicator flickers slow
17 Show Sound
Show 0-Show3 controlled by sound
，
LED indicator flickers
with sound beat
3
1
2
4
5
6
7
8
9
10
11
14
17
12
13
15
16

Led effect light user manual
- - 7 - -
Ringing
1 Mounting bracket
2 Hanging bracket
1) The applicable temperature for the lighting is between -25°C to 40°C. Do not use the lighting
under or above the temperature.
2) The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
3) The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.Never stand directly below the device when mounting, removing or servicing the fixture.
4) The operator has to make sure the safety relating and machine technical installations are
approved
by an expert before taking the device into operation for the first time.
5) These installations have to be approved by a skilled person once a year.
6) M8 screws on the mounting bracket which for fixed between hanging bracket’s ￠12.5mm hole.
Product Size

Led effect light user manual
- - 8 - -
Cleaning and maintenance
Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol,
rather than wet cloth or other chemical liquid, to clean the mirror.
Attention
Do not see directly light source when open the light, and make sure power off before do any
installation or maintenance.
Warranty Card
This product is made of high-brightness transistor. We will provide 1 year
warranty under the condition that user has operated the light normally and
lifetime service. We won't provide warranty if the damage is caused by
artificial or force majeure event. Cost of fittings should be charged by user if
product need maintenance after 1 year .Please cut this warranty card and
shipped it along with the product to our factory when applying for warranty.
Product
：
Purchasing date
：
Code of invoice
：
Warranty date: From To
User’s name
：
Add
：
Company
：
Tel
：
Cut off power before cleaning and maintenance!
CAUTION
Wires connection must be professional person!
CAUTION
