You‘ve made the right choice!
We have designed this product to operate reliably over many years. LD Systems stands for this with its name and
many years of experience as a manufacturer of high-quality audio products.
Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product
quickly.
You can find more information about LD SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

3
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
LD ROADMAN 102
MOBILE SounD SyStem 150 W

4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
PREVENTIVE MEASURES:
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall
mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make
certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment -
in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials,
fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with
liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to
tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and
personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or
if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a
powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:
22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to
an outlet with a protective ground. Never deactivate the protective ground of a power cord.
23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do
not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the
equipment until it has reached room temperature.
24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to
the power outlet only if the equipment values and the mains power values match. If the included power cord or
power adapter does not fit in your wall outlet, contact your electrician.
25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the
mains outlet and/or power adapter and the equipment connector.
26. When connecting the equipment, make certain that the power cord or power adapter is always freely
accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want

5
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
SAFETY:
to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or
adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this
can shorten the useful life of the equipment.
28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repea-
tedly, please contact an authorised service centre.
29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter
from the power outlet.
30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be
unlocked before it can be removed. However, this also means that the equipment can slide and fall down if
the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be
careful when laying cables.
31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or
before extended periods of disuse.
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT OPEN
CAUTION:
Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable
parts inside. Have repairs carried out only by qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the
respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is
obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing
high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and
audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS
1. Do not look into the beam from a distance of less than 40 cm.
2. Do not stare into the beam for extended periods at short-to-medium distances.
3. Do not view the beam directly with optical instruments such as magnifiers.
4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this
reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

1RADIO RECEIVER MODULEThe Roadman 102 is
equipped with a radio receiver. If you need to use two
wireless microphones simultaneously, it is possible to
install a second receiver module.
2CD-PLAYERDigital slot-in CD-player with USB memory
stick input and SD card slot. CD player with anti shock
function. Supported file formats (CD-player, USB-player,
SD-card reader). Audio CD, MP3, WMA.
3OPERATING AREAVolume controls: Master, MIC 1 & 2
(wired), Line-in
EQ: Bass, Treble
Audio-Link: XLR-Input/Output (Master or Slave), RCA
Input/Output
Speaker outputs: Switched and Unswitched (with and
without switching)
LED Indicator: Low battery charge (red), battery charging
(flashing green), battery fully charged (static green)
4TROLLEY HANDLE
5HANDLE
6CONNECTOR FOR WIRELESS ANTENNA (TNC)
7TRANSPORT CASTORS
BACK PAneL:
6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
1
2
3
4
5
6
8
1
Y

Roadman
Handheld Microphone
Microphone Case
Antenna
Remote Control
Power Supply
similar to this image
SYSTEM ComPonentS:
7
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH

Carrying Bag (LDRM102BAG)
Belt Pack Transmitter (LDWS1616BP)
Headset Microphone (WS100MH3)
Additional receiver (LDRM102R)
oPtIonAL ACCESSORIES:
Water-resistant Aerobic-Headset (LDHSAE1)
Water-resistant Headset (LDHSM1)
8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo

CD-PLAyeR:
1POWER/VOL
On/Off switch, volume control
Press the button to turn on/off.
2PLAY/PAUSE
3STOP
4FOLDER
In Play mode, use the FOLDER buttons (LEFT/RIGHT)
to select the first track of the previous/next folder.
5SKIP (LEFT/RIGHT)
In Play mode you can select the previous/next track
using the SKIP-buttons (LEFT/RIGHT).
In Play mode, holding down the SKIP-buttons acts as
Fast Forward (Fast Forward, right SKIP-button) or Fast
Reverse (Fast Reverse, left SKIP-button) within a track.
6PROG (PROGRAM)
Programming your own play sequence of tracks on
CD, USB memory stick and SD card.
As soon as you press the PROG button, "PROG"
appears on the display above the track run-time,
and the track number indicator flashes. Select the
track number by using the VOLUME control for the
first program item and confirm your selection with
SHUF. Repeat this process to create a program. The
program will be launched automatically.
7MODE
Press this button to switch between the signal source
SD, USB and CD.
8REPEAT
Press button once to repeat the current track.
Press button twice to repeat all tracks.
9SHUF
Random playback
10 EJECT
Eject CD
11 MUTE
Mute
12 SD CARD SLOT
13 USB 2.0
Slot for Memory Stick
14 IR
Infrared receiver for remote control
9
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
08
12
13
14
1
2345
6
7
8
9
10
11

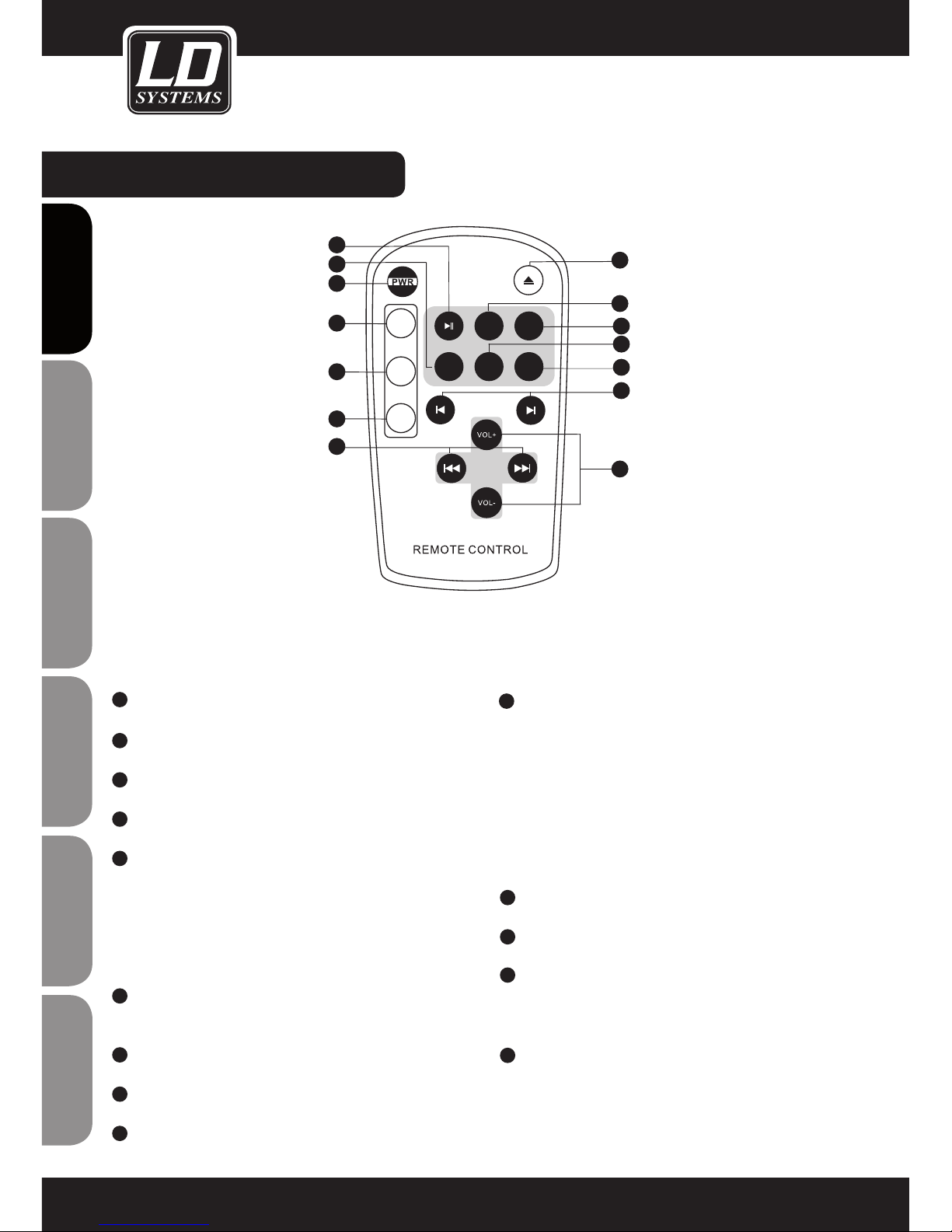

1PWR (POWER): On/Off switch
2USB: Select the USB interface.
3SD: Select the SD-card interface.
4DISC: Select the CD-ROM drive.
5SKIP (LEFT/RIGHT): In Play mode you can select
the previous/next track using the SKIP-buttons
(LEFT/RIGHT).
In Play mode, holding down the SKIP-buttons acts as
Fast Forward (Fast Forward, right SKIP-button) or Fast
Reverse (Fast Reverse, left SKIP-button) within a track.
6VOL +/- : Volume level. Press the Plus button (+) to
increase the volume and Minus (-) to decrease it.
7PLAY/PAUSE
8STOP
9RPT (REPEAT): Press button once to repeat the
current track. Press button twice to repeat all tracks.
The Roadman 102 is equipped with two remote-controllable infrared receiver modules, one on the front and one on the
back of the unit. This allows you to use the remote control both in front of and behind the speaker.
REMOTEContRoL:
10 PROG (PROGRAM) Programming your own play
sequence of tracks on CD, USB memory stick and SD
card. As soon as you press the PROG button, "PROG"
appears on the display above the track run-time, and
the track number indicator flashes. Select the track
number by using the VOLUME control for the first
program item and confirm your selection with SHUF
Repeat this process to create a program. The
program will be launched automatically.
11 SHUF (SHUFFLE): Random playback
12 MUTE: Mute
13 FOLDER:
In Play mode, use the FOLDER buttons (LEFT/RIGHT)
to select the first track of the previous/next folder.
14 EJECT: Eject CD
10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
0909
7
8
9
12
13
14
6
5
4
3
2
1
11
10
USBSTOP RPT
PROG SHUFMUTE
SD
DIS C
FOLDER
4
3
2
1
8
7
10
12
13
5
6
9
11
14

1POWER SOCKET (200-250 V AC, POWER CORD)
2POWER CONNECTOR (24-32 V DC)
3FUSE (5 A)
4'VOICE PRIORITY' SWITCH
During music playback, the "Voice Priority" function
causes an automatic reduction of the volume of the
music whenever the microphone is spoken into.
4As soon as you stop talking, the music volume will
automatically increase again. This function is also
called "Talkover" (or "Ducking").
5POWER SWITCHmain power switch (On/Off switch
for the whole system)
BACK PAneL:
11
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
1
8 9
2 3
4
5
5
6
7
16
15
14
1320
21
22
23
24
10
11 12
25
26
181719
200-250V 50/60 Hz

6LOUDSPEAKER OUTPUT (WITH SWITCH)
You can connect an additional passive loudspeaker in
this output.When this output is used, the loudspeaker of
the Roadman 102 is automatically muted and the sound
is played exclusively from the passive loudspeaker
(Impedance min. 4 Ω).
7LOUDSPEAKER OUTPUT (WITHOUT SWITCH)
You can connect an additional passive loudspeaker
in this output. When this output is used, the sound
comes from both the Roadman and the additional
passive external speaker (Impedance min. 8 Ω).
8LINK OUTPUT
This output enables you to connect the Roadman
with another Roadman unit.
9LINK OPERATION
MASTER/SLAVE: If you want to combine several
Roadman-units with each other (between 2 and
maximum 7), please observe the MASTER/SLAVE
settings. The first Roadman in the "chain" must be
in MASTER mode, the following units in SLAVE-
mode. The MASTER Roadman then controls all other
connected units (volume, On/Off etc. ).
10 VOLUME CONTROL
With this button, you can control the volume of the
SLAVE speakers.
11 RCA OUTPUTS
To connect a recording device.
12 RCA INPUTS
To connect a playback device.
13 MASTER
Master volume control of the system
14 TREBLE
The treble tone control (treble)
15 BASS
Tone controls for the bass range (low)
16 LINE
Volume control for the Line Input (12)
17 MIC 1
Volume control for microphone 1 (Input 20)
18 MIC 2
Volume control for microphone 2 (Input 22)
19 TAPE
No function
20 MIC/LINE
Microphone/Line Input 1 (XLR/Jack combo Jack)
21 SPEECH/MUSIC
SPEECH = MIC: Microphone level signals
MUSIC = LINE: Line-level signals
22 MIC/LINE
Microphone/Line Input 2 (XLR/Jack combo Jack)
23 SPEECH/MUSIC
SPEECH = MIC: Microphone level signals
MUSIC = LINE: Line-level signals
24 LINK
This output enables you to connect the Roadman
with another Roadman unit. Connect the LINK input
of the SLAVE Roadman with the LINK output of the
MASTER Roadman.
25 CHARGING/LOW BATT
LED Indicator: Low battery charge (red), battery
charging (flashing green), battery fully charged
(static green)
26 POWER LED
Lights up red when the system is in operation
(turned on).
SYSTEM SettInG AnD oPeRAtIon:
12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo

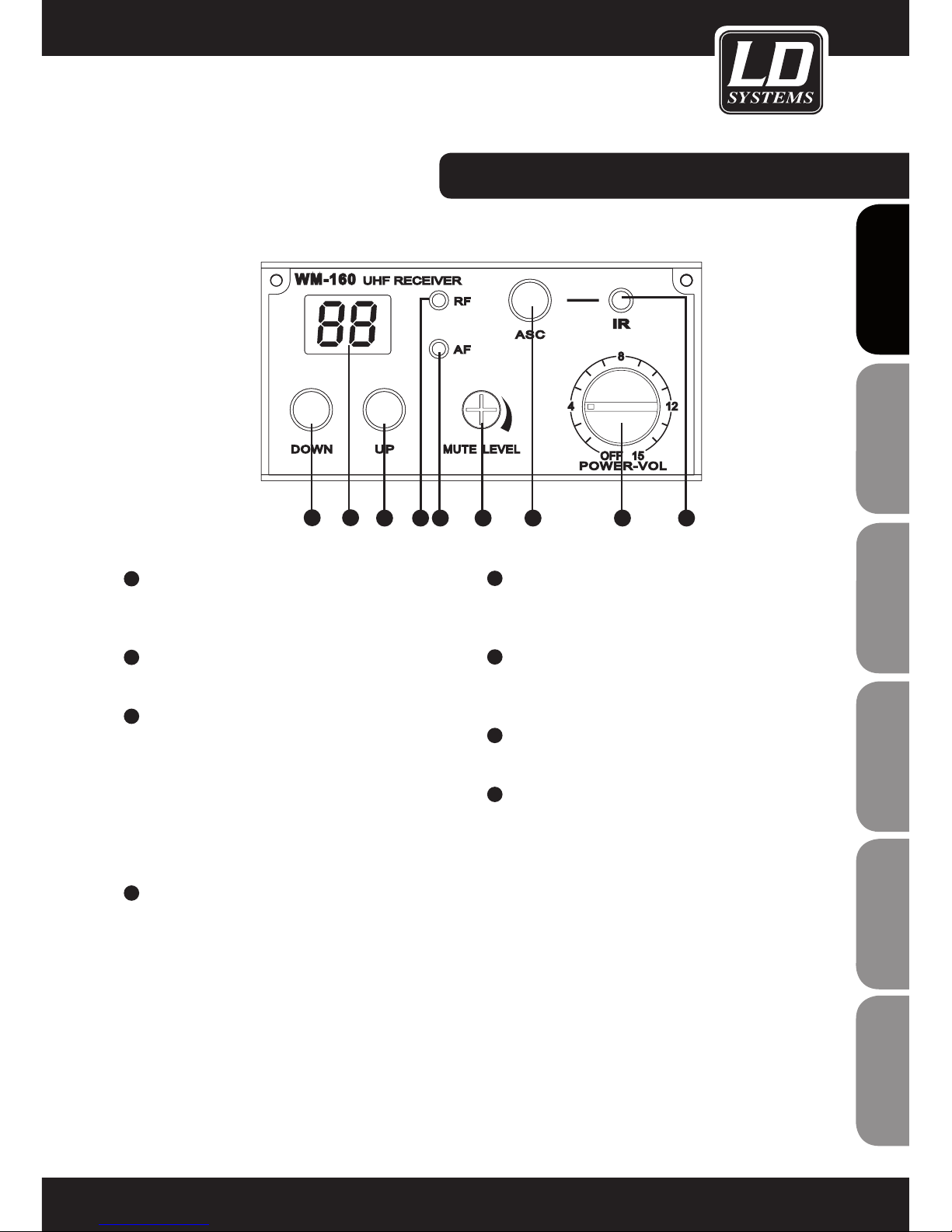

RADIo RECEIVER moDuLe:
1IR WINDOW
Sends infrared signals to the transmitter for
frequency synchronisation.
2POWER
On/Off switch and volume control.
3ASC
Select the frequency for the transmission on the
receiver and then press the ASC-button to synchronise
transmitter and receiver. Align the IR window (infrared
interface) of the microphone with the IR window of the
receiver. (Synchronisation with Belt Pack Transmitter:
Press the "ASC" button on the transmitter and the
receiver in order to enable the synchronisation.)
4MUTE LEVEL
Squelch setting on the receiver:
The squelch function is used for noise reduction, if the
transmitter is turned off or the receiver does not receive
a sufficiently strong signal from the transmitter.
The squelch value (mute level) of the receiver is
already correctly adjusted at the factory. Normally,
no further adjustment is required.
However, should a readjustment be necessary, set
the squelch value to a level that does not generate
any noise in the receiver when the transmitter is
switched off.
5AF LED
Indicates whether or not the module receives an
audio signal.
6RF LED
Indicates whether or not the module receives a
radio frequency signal (RF signal).
7UP/DOWN
Select channel 1 - 16
8LED DISPLAY
Channel number display
13
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
8767 5 4 321

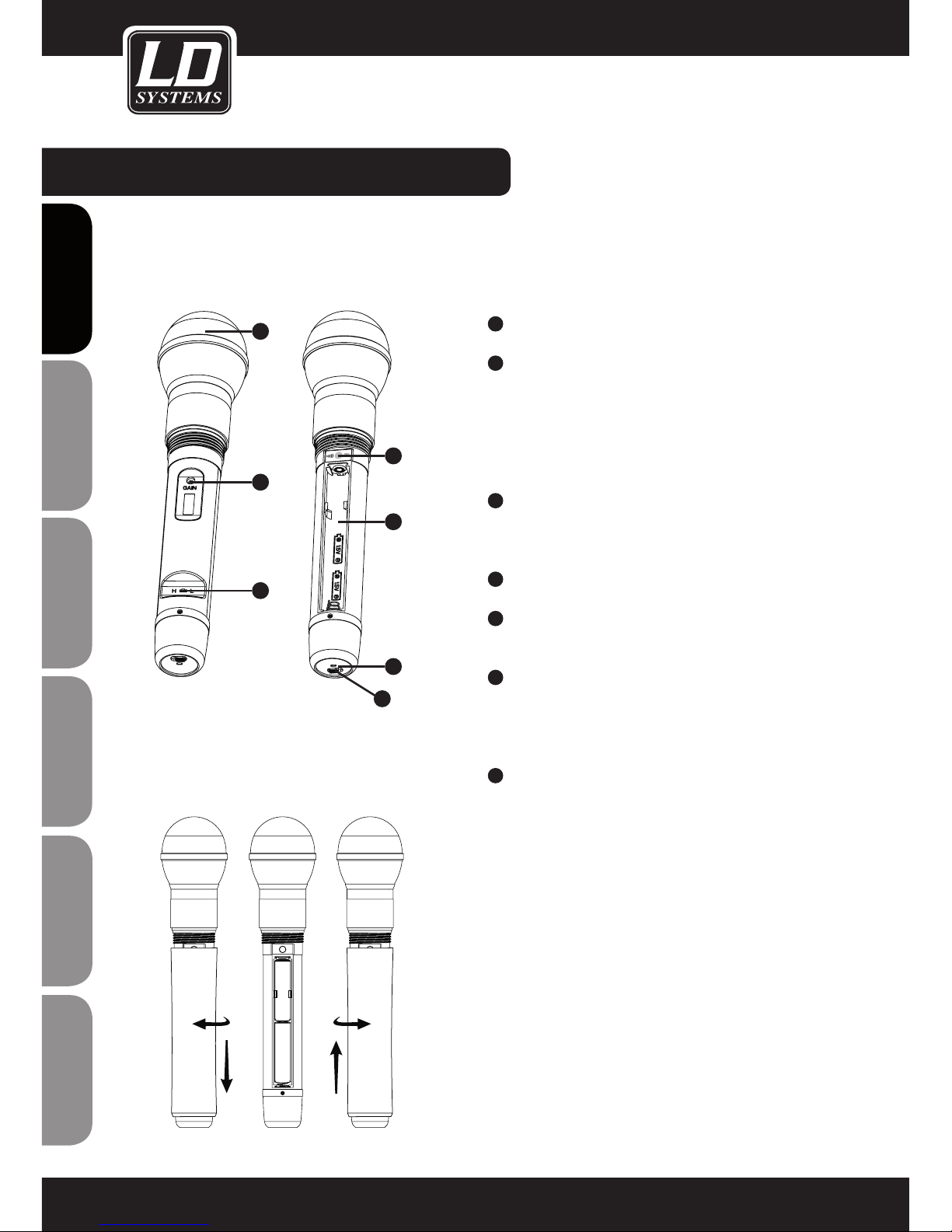

HANDHELD tRAnSmItteR:
1MICROPHONE HEAD GRILL
2GAIN
This button controls the sensitivity of the microphone
(rotation to the left reduces the sensitivity, rotation to
the right increases it).
The sensitivity is factory set to the optimum level
(for most applications).
3RF SWITCH (RADIO SIGNAL)
"H" stands for "High" (strong signal), "L" for "Low"
(weak signal).
4IR INTERFACE
5BATTERY COMPARTMENT
Please insert 2 "AA" alkaline batteries (LR6, 1.5 V).
6POWER/ASC
LED is static green: the microphone is switched on
LED flashes green: the infrared transmission is active
LED flashes red: Low Battery
7ON/OFF SWITCH
REPLACING THE BATTERIES
If the battery LED light flashes, please replace the
batteries immediately.
14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
1
4
5
6
7
2
3

BELT PACK tRAnSmItteR:
1ANTENNA
2GAIN SETTING
Mic: Microphone
0: guitar with passive pickups
-10 dB: guitar with active pickups
3POWER-LED
Green: Operating
Red: Low Battery
Flashing red: the infrared transmission is active
4MICROPHONE INPUT (MINI XLR)
5POWER BUTTON (ON/OFF)
6ASC BUTTON (ACTIVATE SYNC)
Frequency synchronisation via infrared
7IR INTERFACE
HOW TO ATTACH THE BELT PACK TRANSMITTER
Attach the transmitter to a belt or strap. To ensure a
secure grip, slide the clip of the transmitter as far down
as possible on the belt or strap.
Guitarists have the option to slide the guitar strap
directly through the clip.
REPLACING THE BATTERIES
If the battery status indicator is flashing red, you should
replace the batteries immediately (see figure on the left).
Please insert 2 "AA" alkaline batteries (LR6, 1.5 V).
15
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
5
6
234
1
7

Before you install the Roadman 102 for the first time, the batteries should be charged for 12 hours.
When the battery charge status is low, the corresponding LED lights up red. During the charging process the LED
flashes green.
If you want to charge the batteries, you only need to plug the power cord of the appliance into a power socket.
The Roadman 102 is equipped with two batteries (12 V).
Recharge the battery fully at every opportunity. Never completely discharge a rechargeable lead battery or store
it in discharged or semi-charged condition. During extended periods of disuse and storage, the battery must be
recharged fully at regular intervals.
HOW TO REPLACE THE BATTERIES
1. Make sure that the device is turned off and not connected to the mains power supply.
2. Unscrew the bottom cover of the Roadman.
3. Remove the old batteries and insert the new ones. Be sure to pay attention to the correct polarity (red = + // black = - ).
4. Insert the new batteries and screw the cover back on.
5. Charge the new batteries for at least 12 hours.
BAtteRy MULATOR:
16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
THE BATTERY IS LOCATED IN THE BOTTOM OF
THE ROADMAN

SPECIFICATIONS:
BASIC SPECIFICATIONS MAIN UNIT
Output power (max.): 150 W
Frequency response: 70 Hz - 16 kHz
Maximum sound pressure: 115 dB
Speaker: 10“ Woofer / 1“ Tweeter
Power: 200 V - 250 V Switching power supply
Charge battery: 12 V / 5 Ah (2 pieces)
Size (W x H x D): 355 x 610x 315 mm
Weight: 19 kg
Receiver module: UHF Module (863 - 865 MHz)
(art. LDRM102R)
CD PLAYER
Product type:
Compact disc digital audio system with mechanic &
electronic anti-shock CD, CD-R, MP3, WMA, USB, SD,
MP3, WMA available.
Disc loading: Slot-in Type
Supply voltage: DC 12 V (10 ~ 16 V)
Power consumption: Within 5 W
Dimensions (W x H x D): 160 x 147,4 x 68,5 mm
Weight: 1.2 kg
RECEIVER
Channels: 16
Carrier frequency range: 863 - 865 MHz
Audio bandwidth: 60 Hz - 16 kHz
THD: <1%
Signal/noise ratio: > 100 dB
Modulation: FM
Dimensions: 73 x 36 x 120 mm
Net weight: 100 g
Power requirements: 12 V DC
HANDHELD TRANSMITTER
HANDHELD TRANSMITTER
Channels: 16
Carrier frequency range: 863 - 865 MHz
Capsule type: Dynamic
Polar pattern: Cardioid
RF Output power: 10 mW
Audio bandwidth: 60 Hz - 16 kHz
Signal/noise ratio: > 102 dB
Modulation: FM
Dimensions: 235 x 54 mm
Net weight: 280 g
Power requirements: 2 x "AA" batteries
Battery Life: >10 hours
BELT PACK TRANSMITTER
Channels: 16
Carrier frequency range: 863 - 865 MHz
RF Output power: 10 mW
Max. input level: 6 mV
Audio bandwidth: 60 Hz - 16 kHz
Signal/noise ratio: > 102 dB
Modulation: FM
Dimensions: 85 x 65 x 24 mm
Net weight: 80 g
Power requirements: 2 x "AA" batteries
Battery Life: >10 hours, depending on batteries
17
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH

LDWS1616 / Roadman / Roadboy
For Intermodulation frequency list, free use of up to three wireless microphones simultaneously.
SPECIFICATIONS:
18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
Nr.
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400
Frequency MHz Simultaneous

19
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
MANUFACTURER´S DECLARATIONS:
MANUFACTURER‘S WARRANTY
This warranty covers the Adam Hall, LD Systems, Defender, Palmer, and Cameo brands.
It applies to all products distributed by Adam Hall.
This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands
them with additional warranty claims vis-a-vis Adam Hall.
Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall
authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years
(please inquire on a product-by-product basis) from the date of purchase.
The warranty period begins on the date on which the product was purchased, proof of which must be produced
(through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim.
Should products of the brands named above be in need of repair within the limited warranty period, you are entitled
to warranty service according to the terms and conditions stated here.
During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product.
In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or pro-
ducts become property of Adam Hall.
In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its
discretion, to replace the defective product with another product, provided that the new product is at least equi-
valent to the product being replaced with regard to the technical specifications.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall
branded product. The manufacturer‘s warranty does not cover – expendable parts (e. g., rechargeable batteries)
- products from which the serial number has been removed or with a serial number that has been damaged as a
result of an accident - damage due to improper use, user error or other external reasons
- damage to devices operated outside the usage parameters stated in the documentation included with the product
- damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall,
- damage due to modification or servicing by anyone other than Adam Hall.
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.

20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
MANUFACTURER´S DECLARATIONS:
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to
the lesser of the price you have paid for the product or the cost of repair or replacement of any components that
malfunction under conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and
cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised
Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however,
in the event of claims for damages in connection with personal injuries.
This manufacturer‘s warranty grants you specific rights; depending on jurisdiction (nation or state), you may be
be entitled to additional claims. You are advised to consult applicable state or national laws for a full determina-
tion of your rights.
REQUESTING WARRANTY SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EC DECLARATION OF CONFORMITY
The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be found at www.adamhall.com.
