LDARC DJ220 PNP User manual

User manual and video please visit：WWW.LDARC.COM
PRODUCE>>MULTIROTOR>>HD CINE MULTIROTOR>>DJ220
DJ220 manual
DJ220 PNP
Manual
191217
DJI FPV Digital RunCam 4K

-1-
Configuration
Package list
Description
Wheelbase：219mm
Drone weight：369.1g(DJ220-Digital)
347.1g(DJ220-4K)
316.7g(DJ220)
Package size：275*205*90mm
Package weight：842g(DJ220-Digital)
795.4g(DJ220-4K)
765g(DJ220)
Plate thick：up plate 2.5mm，down plate 2.5mm，
arm frame 5mm，bottom plate 3mm
Camera angle：15-50
Mounting size：Flytower 30.5*30.5mm，
motor Φ16 M3*8 , camera 19mm/20mm
KK tower new name
KKT16 mounting size 16*16mm
KKT20 mounting size 20*20mm
KKT30 mounting size 30.5*30.5mm
。
Configuration
FC：KKT30-F4D Old name：F4+VTX
ESC：KKT30-E40A Old name：ESC 40A(KK supper part)
DJ220-Digital : DJI FPV Digital+Camera
DJ220-4K：RunCam 4K KKT30-V600
DJ220 : NO CAM+VTX
Motor：XT2306-2500KV
Prop：51499-3blade
Recommend battery：14.8V 1300-1800mAh
Receiver：DJ220-Digital（Include DJI RX，it canable to use DJI transmitter）,
FC can use AC2000，XM+ etc. receiver，it can use Frsky ,
Futaba transmitter
DJ220-Digital
DJ220-Digital PNP*1（include prop）
DJ FPV manual*2
Sticker*2
battery strap*1
Fixed seat*6
Damping*6（blue,red clear both 2pcs）
Antenna rack*1
ST2*6*2
Video rack*2
ST1.2*4*4
M2*6*4
DJ220-4K
DJ220-4K PNP*1（include prop）
RunCam 4K manual card*1
Sticker*2
battery strap*1
Fixed seat*6
Damping*6（blue,red clear both 2pcs）
Antenna rack*1
ST2*6*2
Video rack*2
ST1.2*4*4
M2*6*4
DJ220
DJ220 PNP*1
51499-3blade*2pairs
Sticker*2
battery strap*1
Fixed seat*6
Damping*6（blue,red clear both 2pcs）
Antenna rack*1
ST2*6*2
Video rack*2
ST1.2*4*4
M2*6*4

-2-
S.BUS和PPM接收机连接方式
FC pin definition
DSM2和DSMX接收机连接方式
PPM
B08
GND BAT M1 M2 M3 M4 CUR
nR2 GND R1 T1 GND 10V
T6 GND T3/
SCL T2 GND GND nR2 GNE BAT-
LED BAT+
PPM
/B08
R6 +5V R3/
SDA R2 3V3 +5V nT2
T6 GND T3/
SCL T2 GND GND nR2 GNE BAT-
LED BAT+
PPM
/B08
R6 +5V R3/
SDA R2 3V3 +5V nT2
G
5V
TM
10V
G
T
R1
G
nR2
R
BL
W
G
BR
Y
LED 5V BAT PPM
B08
M3 M1 T1 VO BAT G
G G CUR M4 M2 TM VI +5V G
T6 GND T3 T2 GND GND nR2 GNE BAT-
LED BAT+
PPM
B08
R6 +5V R3 R2 3V3 +5V nT2
T6 GND T3 T2 GND GND nR2 GNE BAT-
LED BAT+
PPM
B08
R6 +5V R3 R2 3V3 +5V nT2
DSM2/DSMX
IBUS etc.
SBUS/PPM
Supply voltage is 3.3V
NOT invert RX2 signal input
Supply voltage is 5V
PPM or invert RX2 signal input
S.BUS and PPM receiver connection DSM2 and DSMX receiver connection
Supply voltage is 5V
NOT invert RX2 signal input
iBUS receiver connection
DJI FPV
Digital

VideoGND 5V outRX GNDVCC
-3-
M4(CW) M2(CCW)
M3(CCW) M1(CW)
VTX(IRC-Tramp)
描述
- Wide input voltage and low power consumption 7-24V
- 5V@1A high load output
- Up to 600mW of output power
- 48CH , With self-test output power function
- 30.5*30.5mm mounting size
- IRC-Tramp
Note：
- Make sure output terminal is installed antenna before power on
- Pay attention to static electricity protection during transportation and installation
Frequency and power control
- Button frequency control：shot press once to switch CH（CH1-CH8）
long press for 2s and then short press to switch frequency group FR（A-L）
- Button power control : Long press for 6s and then short press to
switch power level 25/100/200/400/600mW
MotorESC
2~4S
M3
M4
M1
+-
M2
4 3 2 1 B
C G G G B
Video GND 5V out RX GND 7-24V
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
5865 5845 5825 5805 5785 5765 5745 5725
5733 5752 5771 5790 5809 5828 5847 5866
5705 5685 5665 5645 5885 5905 5925 5945
5740
5362
5658
5760
5399
5695
5780
5436
5732
5800
5473
5769
5820
5510
5806
5840
5547
5843
5860
5584
5880
5880
5621
5917
A
Frequency table(Mhz)
CH/Band
B
E
F
R
L
25mWPower switching 100mW 200mW 400mW 600mW
FR
CH
Note:pay attention to the direction of rotation
of the motor when installing the prop

-4-
DJ220（NO CAM+VTX）
DJI220-Digital
DJI FPV Digital
DJI220-4K pin definition
FC VTX
RunCam 4K ESC
FC
G
7-24 GND RX 5V out GND Video
+5VG
GND VCC(5-20V)Video
GBATVO

-5-
DJI FPV Digital

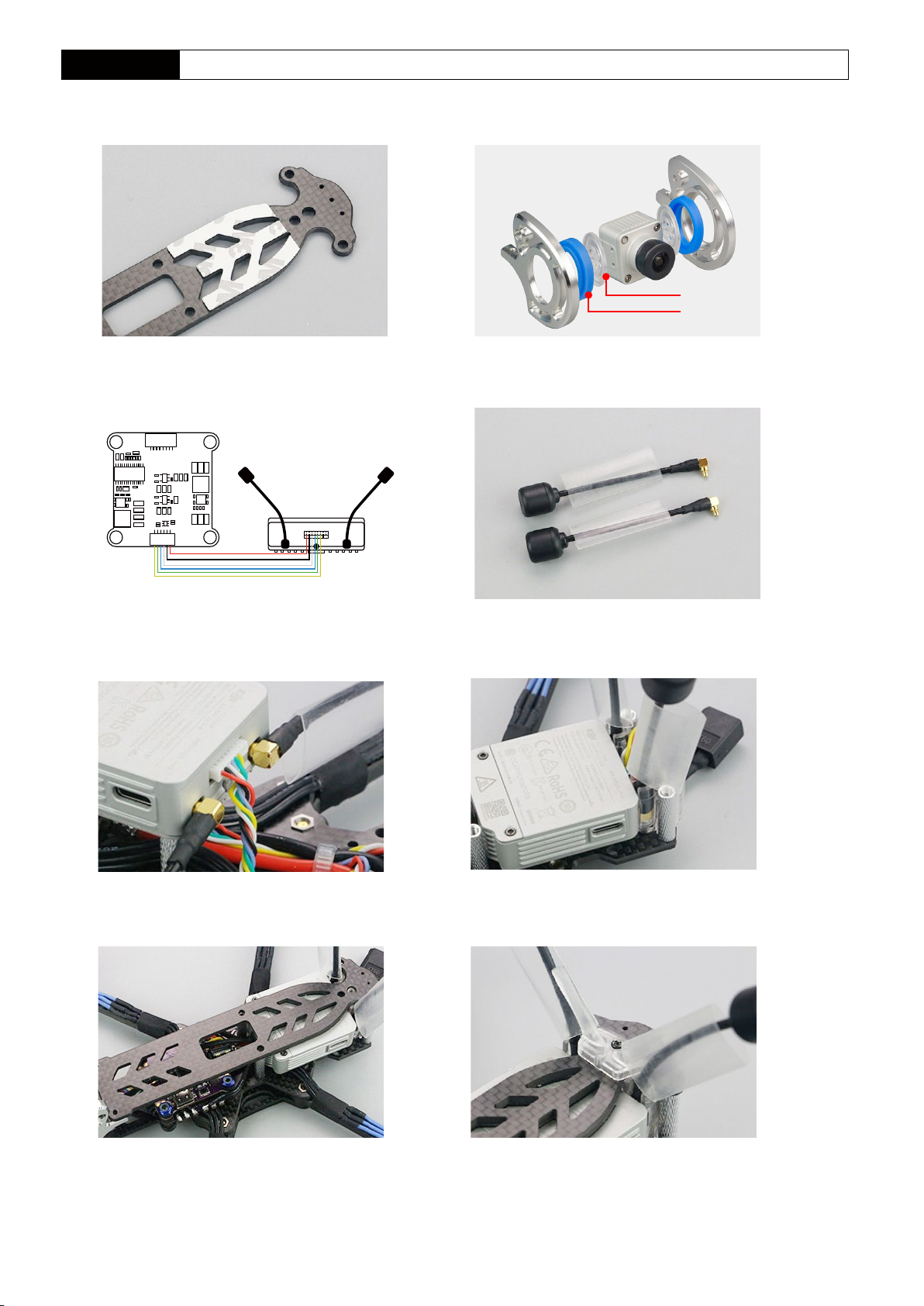

DJI FPV Install
1.Remove the upper plate, and then stick the EVA
on the upper plate
2.Remove the aluminum parts, then refer the picture to
install the camera
3. Connect the FC and DJI FPV Digital well 4.The antenna is pre-installed with heat shrink tube
5. Install antenna and connect DJI FPV Digital 6.Install DJI FPV Digital
7.Install DJI FPV upper plate 8.Install antenna fixed seat
20#fixed seat
TPE(40HA)

-6-
Mounting screw
M2*6
M3*20
M3*20
M3*20
M2*6
M2*6
M3*10
M3*20
ST2*6 M3*8
M2*6
M3*8
M3
M3
M3*8
M3
ST2*6
M3*6
M3*20
ST2*6
M3*6
M2*6
M2*6
M2*6
M2*6
M3*6
ST2*6

-7-
Receiver bind
AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ)
Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16
FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind
mode, user can release the key. Bind procedure is completed and the receiver is working normally when green LED is solid
FRSKY D16(NO Telemetry) BIND:Power on AC900 while pressing the key, green LED fast blink meaning already in bind mode,
user can release the key, then set your TX into D16 bind mode. red LED solid meaning bind finished, exit TX from bind mode,
receiver’s green LED solid meaning working normally

-8-
BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode,
user can release the key,then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished,
exit TX from bind mode,receiver’sgreen LED solid mean working normally.
RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6)

-9-
4.Port，open UART2 switch
BETAFLIGHTF4
4.0.4- BETAFLIGHTF4 -01-07-2019 20:36(stable)
Connect
BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter
1.Open betaflight configuration ,then click ,select FW version
2.Click ,then click to download FW to FC, click after FW
updating finish into setting menu
3.Calibration“Calibrate Accelerometer”
Firmware Update

6.PID setting
-10-
5.Select ESC protocol is DSHOT600,then follow the steps to set up

-11-
7.Mode setting
8.OSD setting

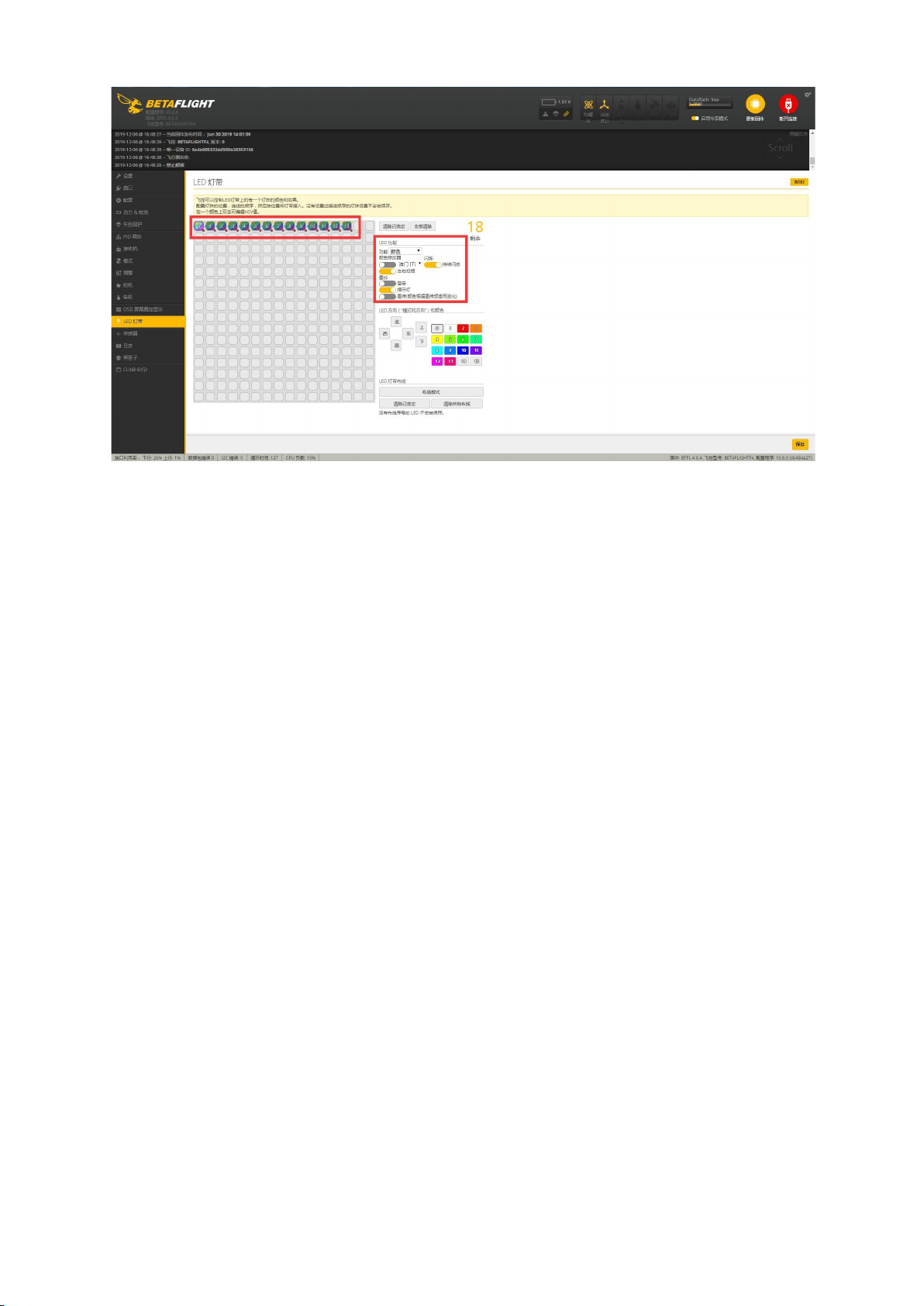

9.LED setting
-12-

-13-
Name
DJ220-Digital
DJ220-4K NO RX
DJ220
DJ220 KIT
DJ220 arm frame
XT2306-2500KV
KKT30-C2
KKT30-F4D
KKT30-E40A
KKT30-V600
Factory Code
PNP.DJ220-DIGITAL
PNP.DJ220-4K NO RX
PNP.DJ220
KIT.DJ220
PART.DJ220 ARM FRAME
MOTOR.XT2306-2500KV
FLYTOWER.KKT30-C2
FC.KKT30-F4D
ESC.KKT30-E40A
VTX.KKT30-V600
Product and Factory Code
1.Provide free reparation service when find the product defect after purchase.
2.Provide pay-needed reparation service when product damage because improper operation.
3.China customers please contact with the after-sales service,overseas client please contact the dealer.
PNP/RTF Test report ID :
Flight test
Transmitter functions properly
Flying in good condition
Camera OK
VTX OK
QC:
Package check
PNP
RTF
Frame
Transmitter
ID is the same
All parts of the installation
Insulating sleeves have been installed manual
Complete accessories,total packages
QC:
