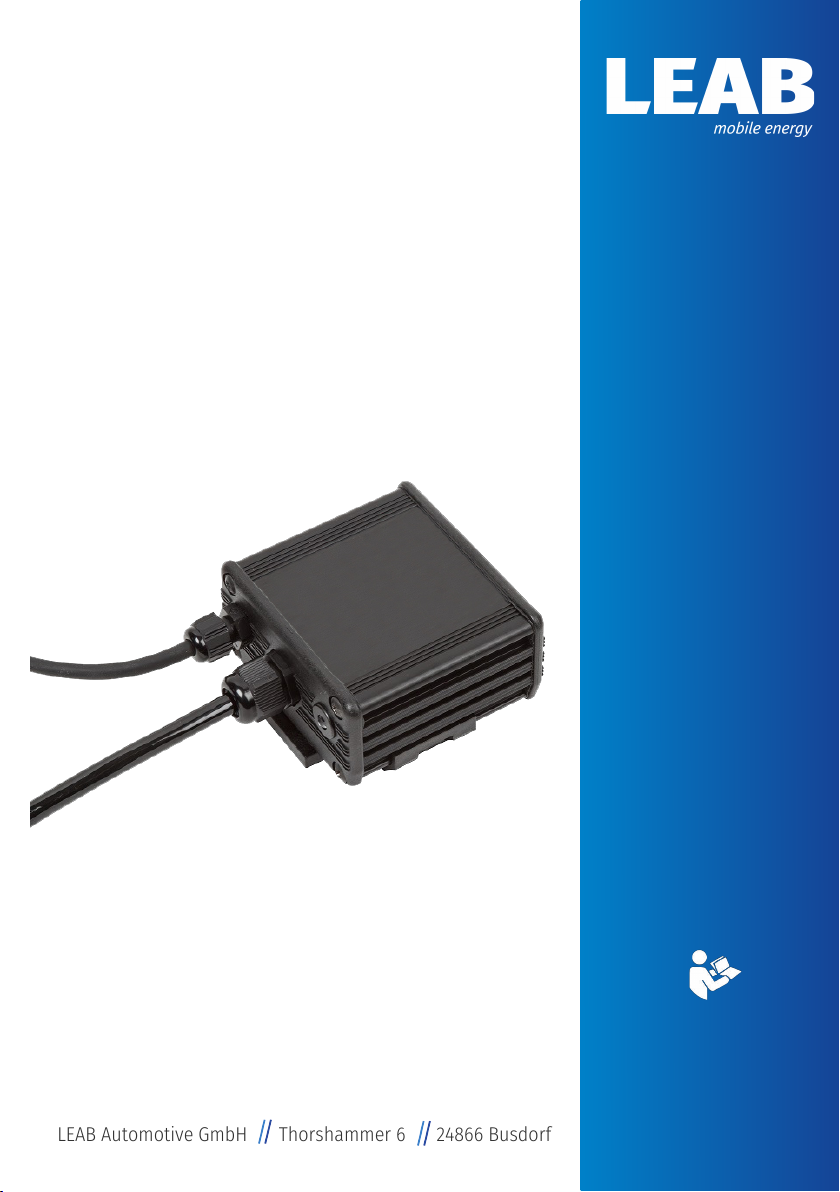

LEAB TS 12 User manual

www.leab.eu
USER MANUAL
VERSION 7
14/07/2021
DC-DC BATTERY CHARGER
TS 12/12-03
LEAB Automotive GmbH Thorshammer 6 24866 Busdorf

Table of Contents
1 About this Manual................................................................................................................ 3
2 General Safety........................................................................................................................ 4
2.1 Intended Use............................................................................................................... 5
2.2 Foreseeable Misuse.................................................................................................. 5
3 Technical Specifications.................................................................................................... 6
4 Package Contents................................................................................................................. 6
5 About this Product............................................................................................................... 7
6 Assembly.................................................................................................................................. 8
7 Installation.............................................................................................................................. 8
8 Operation................................................................................................................................. 10
9 Maintenance........................................................................................................................... 10
10 Troubleshooting.................................................................................................................... 10
11 Disposal.................................................................................................................................... 11
12 EU Declaration of Conformity.......................................................................................... 11
Table of Contents LEAB Automotive GmbH

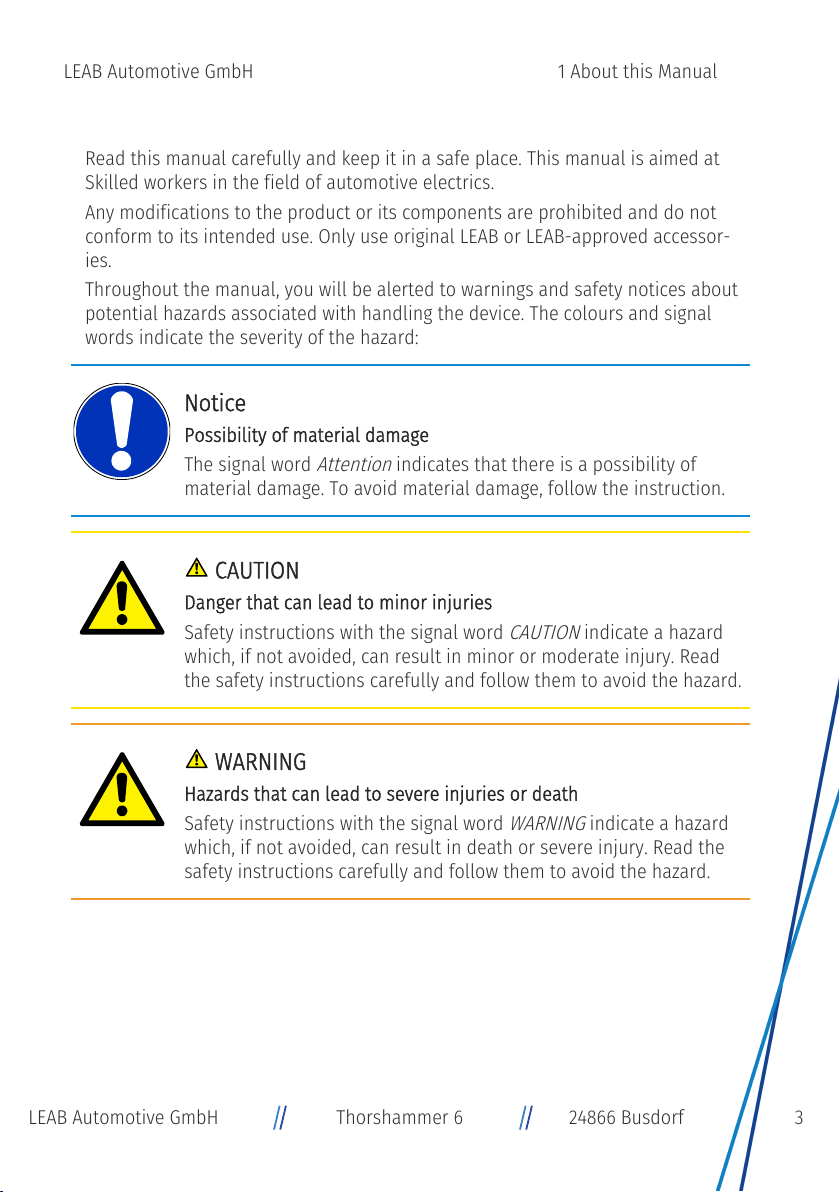

1 About this Manual
Read this manual carefully and keep it in a safe place. This manual is aimed at
Skilled workers in the field of automotive electrics.
Any modifications to the product or its components are prohibited and do not
conform to its intended use. Only use original LEAB or LEAB-approved accessor-
ies.
Throughout the manual, you will be alerted to warnings and safety notices about
potential hazards associated with handling the device. The colours and signal
words indicate the severity of the hazard:
Notice
Possibility of material damage
The signal word Attention indicates that there is a possibility of
material damage. To avoid material damage, follow the instruction.
CAUTION
Danger that can lead to minor injuries
Safety instructions with the signal word CAUTION indicate a hazard
which, if not avoided, can result in minor or moderate injury. Read
the safety instructions carefully and follow them to avoid the hazard.
WARNING
Hazards that can lead to severe injuries or death
Safety instructions with the signal word WARNING indicate a hazard
which, if not avoided, can result in death or severe injury. Read the
safety instructions carefully and follow them to avoid the hazard.
3LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 1 About this Manual

DANGER
Danger that will lead to severe injury or death
Safety instructions with the signal word Danger indicate a hazard
which, if not avoided, will result in death or severe injury. Read
the safety instructions carefully and follow them to avoid the
hazard.
You will find useful tips and tricks in certain parts of the manual. These ap-
pear as follows:
TIP
Tips provides additional, useful information.
Read the tip carefully and follow the instructions where
applicable.
2 General Safety
This manual will help you to handle the device safely. Use the device solely in
accordance with its intended use. Observe the safety instructions.
WARNING
Risk of injury from damaged, frozen or deformed batteries
Damaged, frozen or deformed batteries can cause injuries.
1. Before using the battery, make sure that the battery is un-
damaged and the electrolyte is not frozen.
WARNING
Burns from escaping acid
Acid can leak out when handling batteries.
1. Wear acid-proof clothing when handling batteries.
4 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
2 General Safety LEAB Automotive GmbH

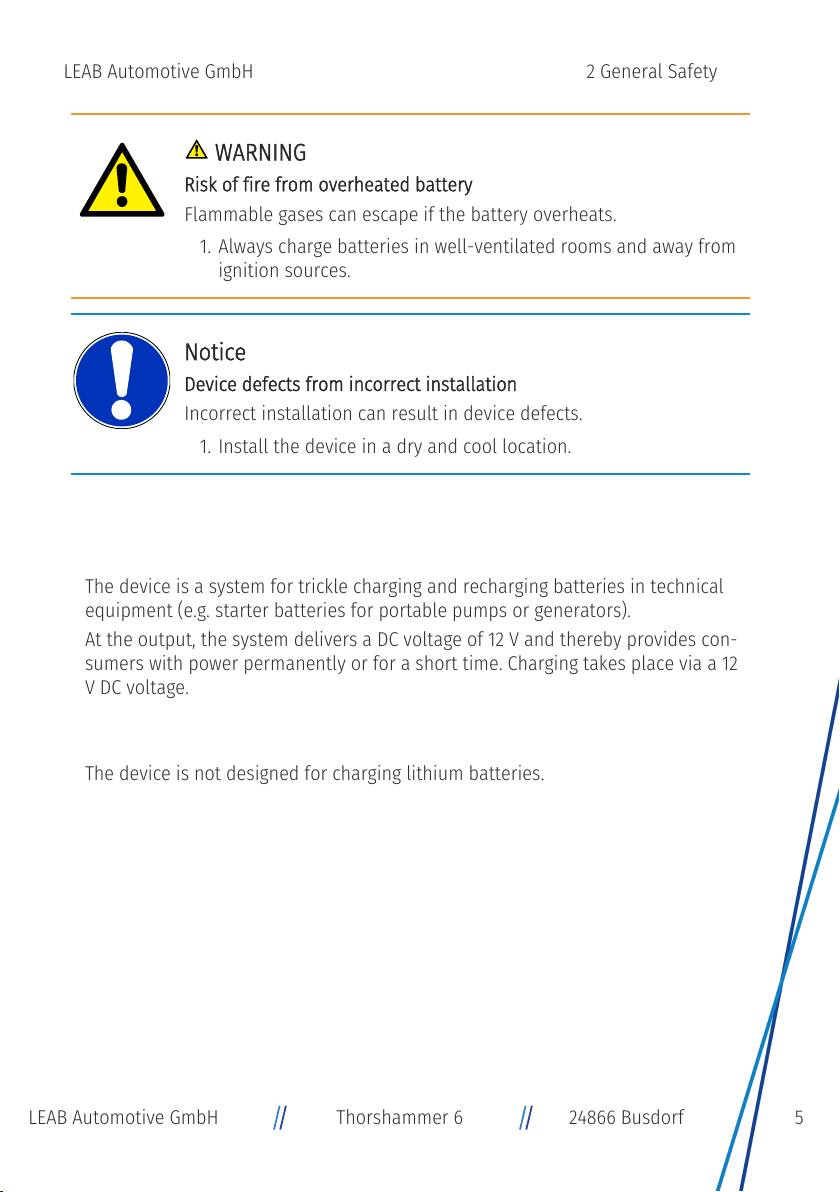

WARNING
Risk of fire from overheated battery
Flammable gases can escape if the battery overheats.
1. Always charge batteries in well-ventilated rooms and away from
ignition sources.
Notice
Device defects from incorrect installation
Incorrect installation can result in device defects.
1. Install the device in a dry and cool location.
2.1 Intended Use
The device is a system for trickle charging and recharging batteries in technical
equipment (e.g. starter batteries for portable pumps or generators).
At the output, the system delivers a DC voltage of 12 V and thereby provides con-
sumers with power permanently or for a short time. Charging takes place via a 12
V DC voltage.
2.2 Foreseeable Misuse
The device is not designed for charging lithium batteries.
5LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 2 General Safety

3 Technical Specifications
Part number Output lead
0431212040 DIN 14690
0432412039 MagCode
Tab.1: TS 12/12-03
TS 12/12-03
Battery type Wet, gel, AGM
Battery capacity 6 Ah ... 25Ah
Charging current 3 A (4 A)
Input voltage 12 V (10 V ... 15 V)
Output voltage 13.6 V (-20 %/+15 %)
Cutout 24.3 V
Delay 10 s
Switch on voltage 26.1 V
International Protection
(IP class) IP65
Operating temperature -25 °C ... +80 °C (reduced power from 30 °C)
Dimensions (L x W x H) 108 mm x 91 mm x 52 mm
Weight 0.4 kg
4 Package Contents
No. Name
1x Charger
1x Installation clip
1x User manual
3x Screws with screw covers
1x Only with items with MagCode / MagCode Pro: MagCode power
port
6 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
4 Package Contents LEAB Automotive GmbH

5 About this Product
The DC-DC TS battery charger is especially suitable for trickle charging and re-
charging batteries in technical equipment (e.g. starter batteries for portable
pumps or generators). They are designed for charging lead batteries (wet, gel and
AGM) and have overvoltage and overheating protection. When doing so, the
device is fed from the vehicle battery. For faster charging, the battery chargers
can briefly deliver a higher current.
12
3
4
Fig.1: TS Battery Charger
1 Input cable 2 Output cable
3 Operating indicator (LED) 4 Latch
7LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 5 About this Product

Fig.2: Installation Clip TS Battery Charger
6 Assembly
Fig.3: Mounting the
TS battery charger
To mount the battery charger, proceed as follows:
üChoose a cool, dry and well-ventilated assembly site.
1. Remove the installation clip (5).
CAUTION!To avoid damaging the lock (4), release
the installation clip from the left side.
2. Mark the holes for the installation clip (5) at the
mounting location.
3. Drill the 3 holes (Ø 3.5 mm).
4. Attach the installation clip (5) with the screws included.
5. Cover the screw heads with the screw covers.
6. Insert the battery charger into the installation clip (5).
ðThe battery charger is mounted.
7 Installation
Fig.4: TS charger in-
put lead
To install the battery charger, proceed as follows:
1. Disconnect the vehicle battery from the vehicle power
circuit.
CAUTION!Disconnect the negative cable first.
2. Connect the red wire of the input lead (1) to the posit-
ive terminal of the vehicle battery.
8 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
7 Installation LEAB Automotive GmbH

3. Secure the positive cable as close as possible to the
vehicle battery with a suitable fuse.
NOTE!TS 12/12-03: 5 A.
4. Connect the black wire of the input lead (1) to the negative
terminal of the vehicle battery.
ðThe input lead is connected. Now connect the output
lead according to its design.
Output lead with open cable ends
To connect the open cable ends of the output lead, proceed as follows:
üThe input lead is connected.
5. Connect the red wire of the output lead (2) to the positive connection of your
plug.
6. Connect the black wire of the output lead (2) to the negative connection of your
plug.
NOTE!The green wire is not used.
7. Connect the vehicle battery to the vehicle power circuit.
ðThe operating display (3) is lit green. The battery charger is ready for operation.
OR
Output lead with DIN 14690 plug
To connect the DIN plug of the output lead, proceed as follows:
üThe input lead is connected.
8. Connect the DIN plug of the output lead (2) to the your plug connection.
9. Connect the vehicle battery to the vehicle power circuit.
ðThe operating display (3) is lit green. The battery charger is ready for operation.
OR
Output lead with MagCode plug
To connect the MagCode plug of the output lead, proceed as follows:
üThe input lead is connected.
10.Connect the MagCode plug of the output lead (2) to your plug connection.
11.Connect the vehicle battery to the vehicle power circuit.
ðThe operating display (3) is lit green. The battery charger is ready for operation.
9LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 7 Installation

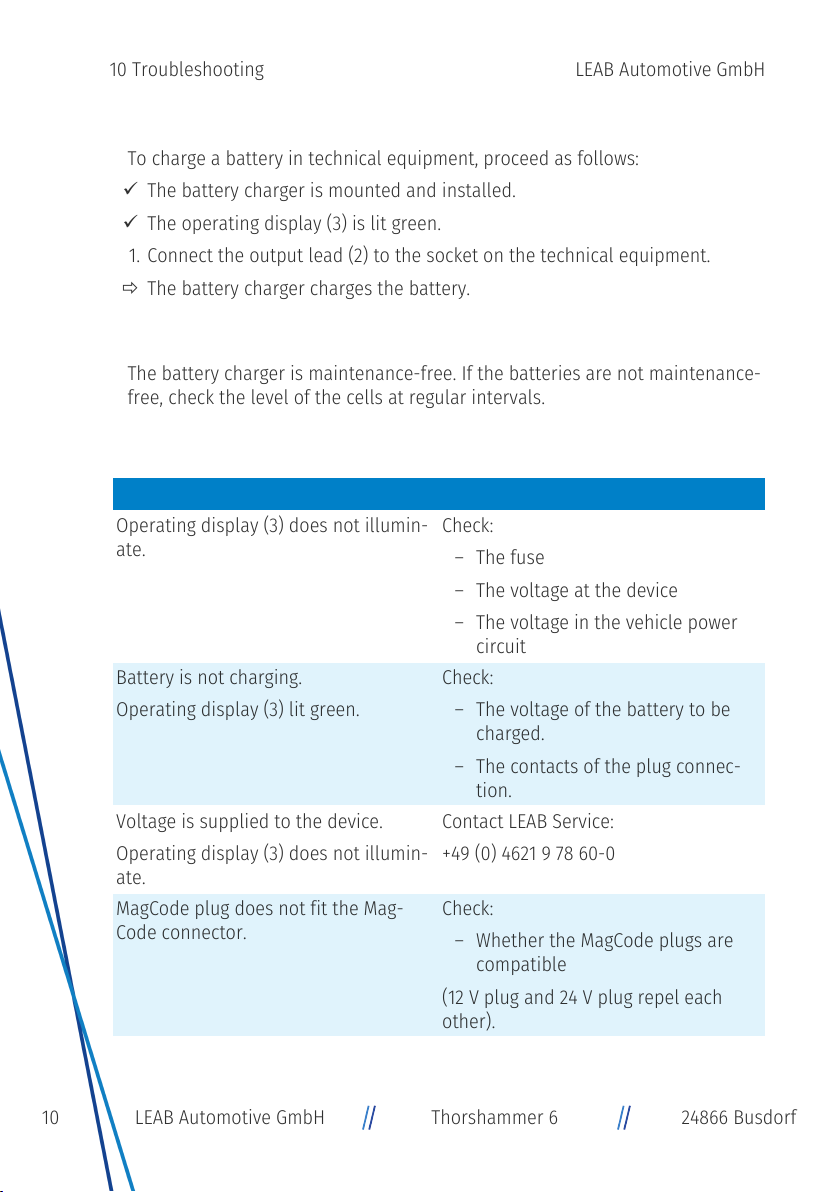

8 Operation
To charge a battery in technical equipment, proceed as follows:
üThe battery charger is mounted and installed.
üThe operating display (3) is lit green.
1. Connect the output lead (2) to the socket on the technical equipment.
ðThe battery charger charges the battery.
9 Maintenance
The battery charger is maintenance-free. If the batteries are not maintenance-
free, check the level of the cells at regular intervals.
10 Troubleshooting
Fault Possible solution
Operating display (3) does not illumin-
ate. Check:
– The fuse
– The voltage at the device
– The voltage in the vehicle power
circuit
Battery is not charging.
Operating display (3) lit green.
Check:
– The voltage of the battery to be
charged.
– The contacts of the plug connec-
tion.
Voltage is supplied to the device.
Operating display (3) does not illumin-
ate.
Contact LEAB Service:
[phone]
MagCode plug does not fit the Mag-
Code connector. Check:
– Whether the MagCode plugs are
compatible
(12 V plug and 24 V plug repel each
other).
10 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
10 Troubleshooting LEAB Automotive GmbH

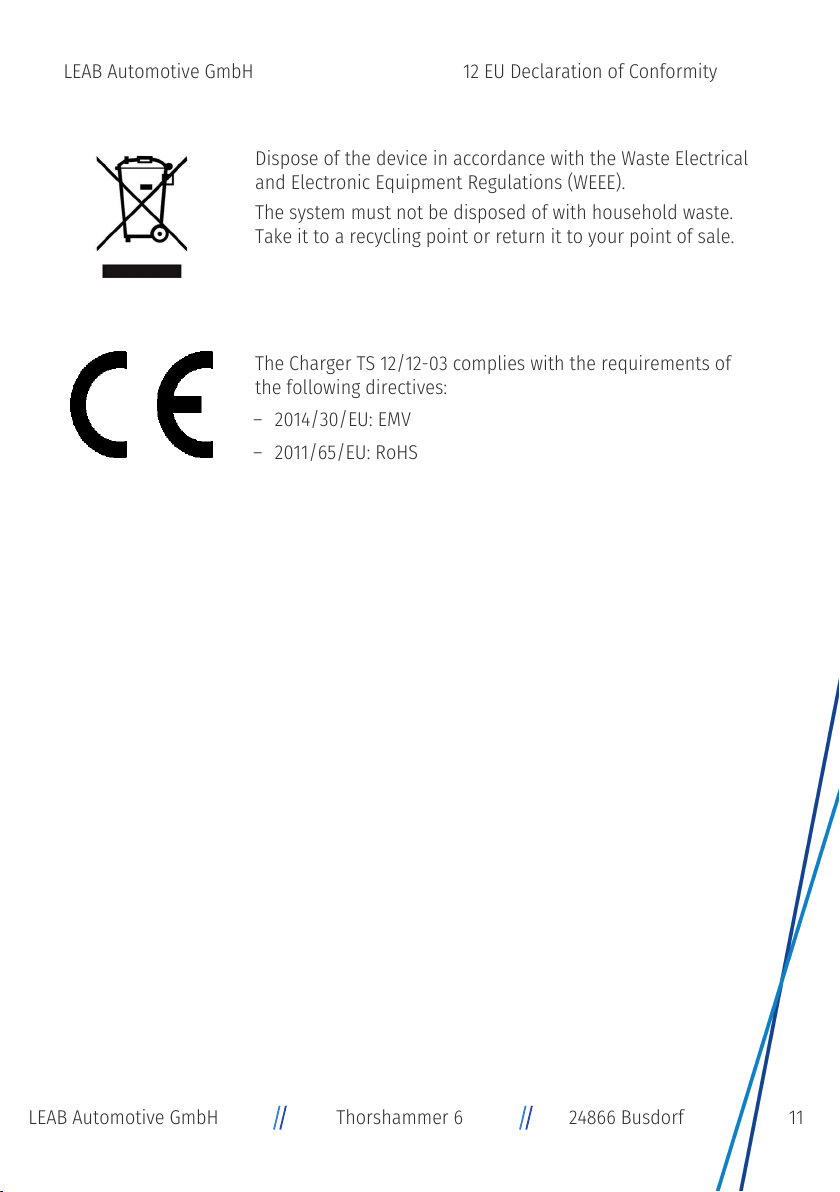

11 Disposal
Dispose of the device in accordance with the Waste Electrical
and Electronic Equipment Regulations (WEEE).
The system must not be disposed of with household waste.
Take it to a recycling point or return it to your point of sale.
12 EU Declaration of Conformity
The Charger TS 12/12-03 complies with the requirements of
the following directives:
– 2014/30/EU: EMV
– 2011/65/EU: RoHS
11LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 12 EU Declaration of Conformity

LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
Tel: [phone]
Fax: [phone]
[email protected]
We make energy
mobile.
It is prohibited to copy, duplicate, translate or otherwise pass on the content of
this guide to third parties without the express written permission of LEAB.
