LEAB CHAMP PRO 24 V User manual

www.leab.eu
USER MANUAL
VERSION 8
19/08/2021
CHARGER
CHAMP PRO 24 V
LEAB Automotive GmbH Thorshammer 6 24866 Busdorf

Table of Contents
1 About this Manual................................................................................................................ 3
2 Safety......................................................................................................................................... 4
2.1 Intended Use............................................................................................................... 5
2.2 Foreseeable Misuse.................................................................................................. 6
3 About this Product............................................................................................................... 7
4 Technical specifications..................................................................................................... 8
5 Package Contents................................................................................................................. 12
6 Charging Characteristics.................................................................................................... 13
7 Assembly.................................................................................................................................. 15
8 Installation.............................................................................................................................. 16
9 Operation................................................................................................................................. 17
9.1 Charging the battery................................................................................................ 17
9.2 Charging the battery................................................................................................ 17
9.3 Change charging characteristic........................................................................... 17
9.4 Temperature Sensor................................................................................................ 18
10 Maintenance........................................................................................................................... 19
11 Disposal.................................................................................................................................... 19
12 EU Declaration of Conformity.......................................................................................... 19
13 Appendix .................................................................................................................................. 20

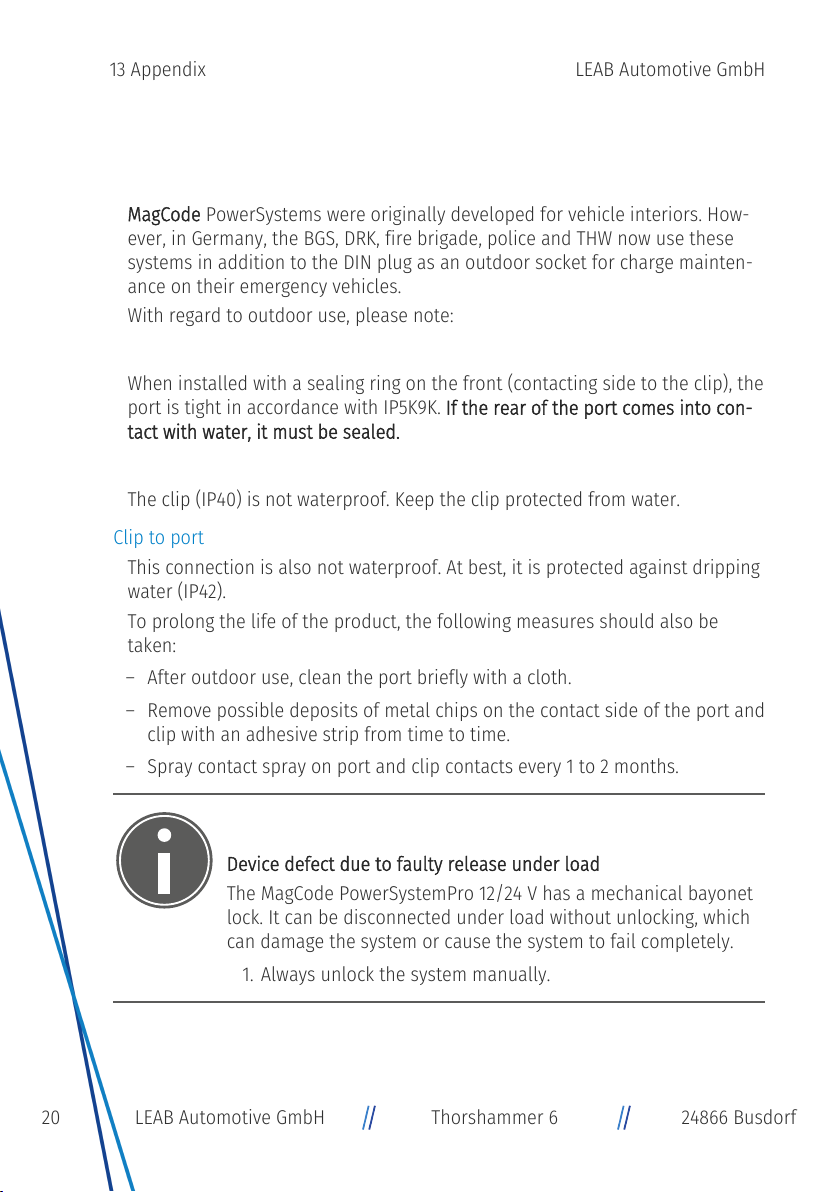

13.1 Information on outdoor use of the PowerSystem 12/24 V...................... 20
13.2 MagCodePowerPort installation instructions................................................ 21
13.3 MagCodePowerClip assembly instructions..................................................... 21
Table of Contents LEAB Automotive GmbH

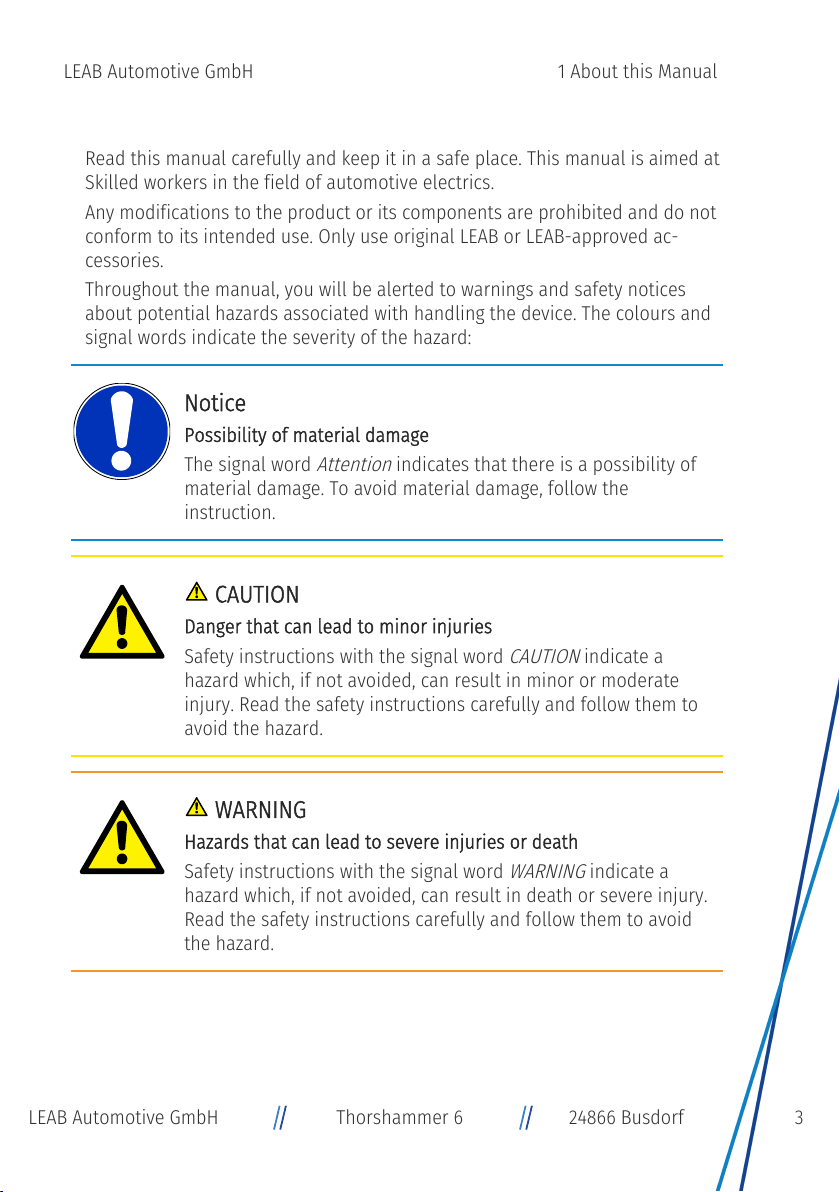

1 About this Manual
Read this manual carefully and keep it in a safe place. This manual is aimed at
Skilled workers in the field of automotive electrics.
Any modifications to the product or its components are prohibited and do not
conform to its intended use. Only use original LEAB or LEAB-approved ac-
cessories.
Throughout the manual, you will be alerted to warnings and safety notices
about potential hazards associated with handling the device. The colours and
signal words indicate the severity of the hazard:
Notice
Possibility of material damage
The signal word Attention indicates that there is a possibility of
material damage. To avoid material damage, follow the
instruction.
CAUTION
Danger that can lead to minor injuries
Safety instructions with the signal word CAUTION indicate a
hazard which, if not avoided, can result in minor or moderate
injury. Read the safety instructions carefully and follow them to
avoid the hazard.
WARNING
Hazards that can lead to severe injuries or death
Safety instructions with the signal word WARNING indicate a
hazard which, if not avoided, can result in death or severe injury.
Read the safety instructions carefully and follow them to avoid
the hazard.
3LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 1 About this Manual

DANGER
Danger that will lead to severe injury or death
Safety instructions with the signal word Danger indicate a hazard
which, if not avoided, will result in death or severe injury. Read
the safety instructions carefully and follow them to avoid the
hazard.
You will find useful tips and tricks in certain parts of the manual. These ap-
pear as follows:
TIP
Tips provides additional, useful information.
Read the tip carefully and follow the instructions where
applicable.
2 Safety
This manual will help you to handle the device safely. Use the device solely in
accordance with its intended use. Observe the safety instructions.
The charger is a trickle and battery charger for permanent installation in
vehicles. This charger can be used to charge all types ofLead-acid batteries
(wet, gel, AGM).
Any modifications to the device or its components are prohibited and do not
conform to its intended use. Keep this manual is a place where it can be ac-
cessed quickly.
4 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
2 Safety LEAB Automotive GmbH

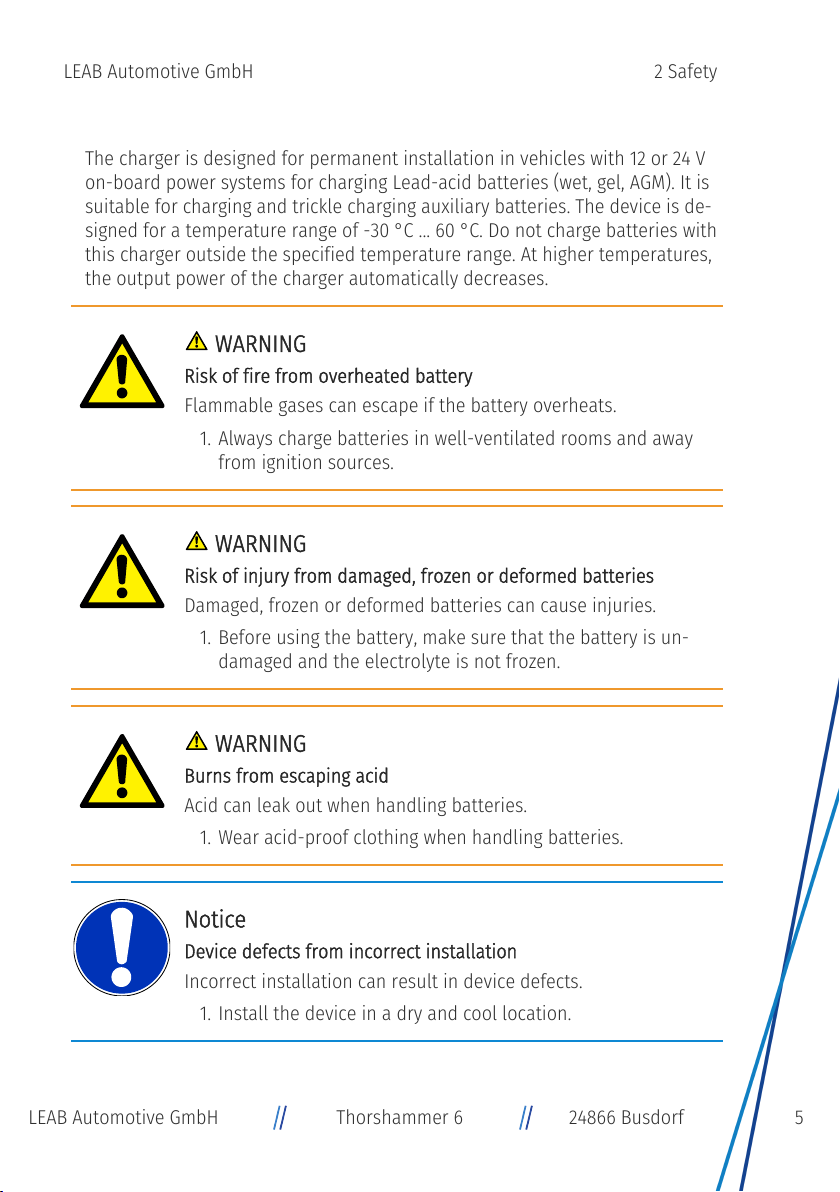

2.1 Intended Use
The charger is designed for permanent installation in vehicles with 12 or 24 V
on-board power systems for charging Lead-acid batteries (wet, gel, AGM). It is
suitable for charging and trickle charging auxiliary batteries. The device is de-
signed for a temperature range of -30 °C ... 60 °C. Do not charge batteries with
this charger outside the specified temperature range. At higher temperatures,
the output power of the charger automatically decreases.
WARNING
Risk of fire from overheated battery
Flammable gases can escape if the battery overheats.
1. Always charge batteries in well-ventilated rooms and away
from ignition sources.
WARNING
Risk of injury from damaged, frozen or deformed batteries
Damaged, frozen or deformed batteries can cause injuries.
1. Before using the battery, make sure that the battery is un-
damaged and the electrolyte is not frozen.
WARNING
Burns from escaping acid
Acid can leak out when handling batteries.
1. Wear acid-proof clothing when handling batteries.
Notice
Device defects from incorrect installation
Incorrect installation can result in device defects.
1. Install the device in a dry and cool location.
5LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 2 Safety

2.2 Foreseeable Misuse
The charger is designed for permanent installation in vehicles. Do not mount
the device outside the vehicle. Only charge lead-acid batteries (wet, gel/AGM)
and traction batteries with this charger.
The negative lead of the charger may contain a temperature sensor, do not
shorten or lengthen the lead under any circumstances.
Never pinch the leads of the charger to avoid damage. In the event of damage,
unplug the charger immediately and contact your dealer or LEAB.
6 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
2 Safety LEAB Automotive GmbH

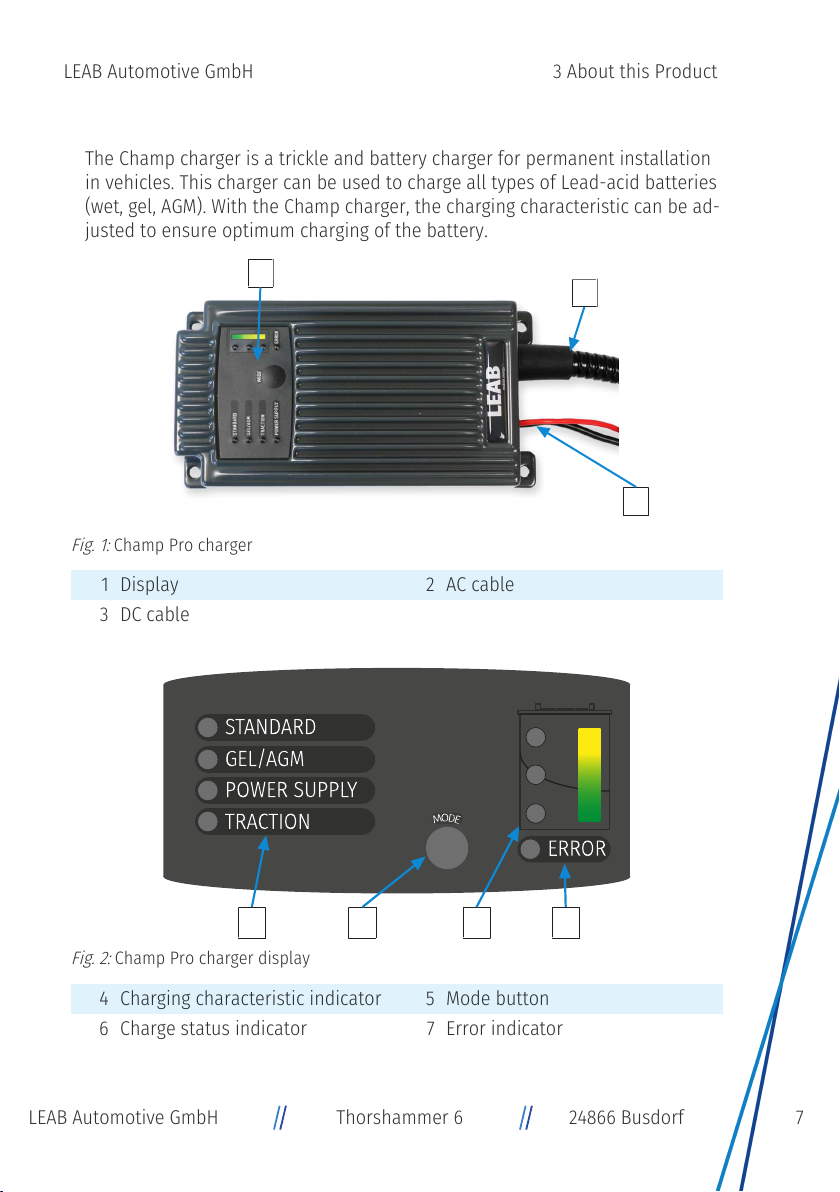

3 About this Product
The Champ charger is a trickle and battery charger for permanent installation
in vehicles. This charger can be used to charge all types of Lead-acid batteries
(wet, gel, AGM). With the Champ charger, the charging characteristic can be ad-
justed to ensure optimum charging of the battery.
1
2
3
Fig.1: Champ Pro charger
1 Display 2 AC cable
3 DC cable
4 5 6 7
Fig.2: Champ Pro charger display
4 Charging characteristic indicator 5 Mode button
6 Charge status indicator 7 Error indicator
7LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 3 About this Product

4 Technical specifications
Part no. 0101043982 Part no. 0101043881
Modell Champ Pro 2412 Champ Pro 2412
Battery type Lead acid (wet, gel/AGM)/
traction Lead acid (wet, gel/AGM)
Charging characteristics Choice of 4charging char-
acteristics Choice of 4charging char- acteristics
Battery capacity 40 Ah ... 120Ah 65 Ah ... 200Ah
Temperature sensor No Yes
AC cable 2.0 m, two-pin earthed
plug 2.0 m, two-pin earthed plug
DC cable 1,5 m, ring terminal, M8 1,5 m, ring terminal, M8
Charging current 12 A 12 A
Ripple < 3 % < 3 %
Main charging 28.4 V/28.8 V 28.4 V/28.8 V
Equalisation charging 32.0 V 32.0 V
Trickle charging 27.0 V/27.6 V 27.0 V/27.6 V
Mains part function 27.4 V 27.4 V
Input voltage 230 V 230 V
Input values 195 V ... 250 V 195 V ... 250 V
Input frequency 40 Hz ... 60 Hz 40 Hz ... 60 Hz
Quiescent current (from
the battery) < 1 mA < 1 mA
Mains fuse B16A or C16A B16A or C16A
Degree of efficiency, max. > 88 % > 88 %
International Protection
(IP class) IP67 IP67
Protection class I I
Operating temperature -30 °C ... +60 °C -30 °C ... +60 °C
Dimensions (L x W x H) 195 mm x 98 mm x 47 mm 195 mm x 98 mm x 47 mm
Weight 1.5 kg 1.5 kg
8 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
4 Technical specifications LEAB Automotive GmbH

Part no. 0101043891 Part no. 0101043999
Modell Champ Pro 2420 Champ Pro 2420
Battery type Lead acid (wet, gel/AGM)/
traction Lead acid (wet, gel/AGM)/ traction
Charging characteristics Choice of 4charging char-
acteristics Choice of 4charging char- acteristics
Battery capacity 65 Ah ... 200Ah 65 Ah ... 200Ah
Temperature sensor Yes Yes
AC cable 2.0 m, two-pin earthed
plug 1.5 m, two-pin earthed plug
DC cable 1.5 m ring terminal, M8 3 m, ring terminal, M8
Charging current 20 A 20 A
Ripple < 3 % < 3 %
Main charging 28.4 V/28.8 V 28.4 V/28.8 V
Equalisation charging 32.0 V 32.0 V
Trickle charging 27.0 V/27.6 V 27.0 V/27.6 V
Mains part function 27.4 V 27.4 V
Input voltage 230 V 230 V
Input values 195 V ... 250 V 195 V ... 250 V
Input frequency 40 Hz ... 60 Hz 40 Hz ... 60 Hz
Quiescent current (from
the battery) < 1 mA < 1 mA
Mains fuse B16A or C16A B16A or C16A
Degree of efficiency, max. > 88 % > 88 %
International Protection
(IP class) IP67 IP67
Protection class I I
Operating temperature -30 °C ... +60 °C -30 °C ... +60 °C
Dimensions (L x W x H) 195 mm x 98 mm x 47 mm 195 mm x 98 mm x 47 mm
Weight 1.5 kg 1.5 kg
9LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
LEAB Automotive GmbH 4 Technical specifications

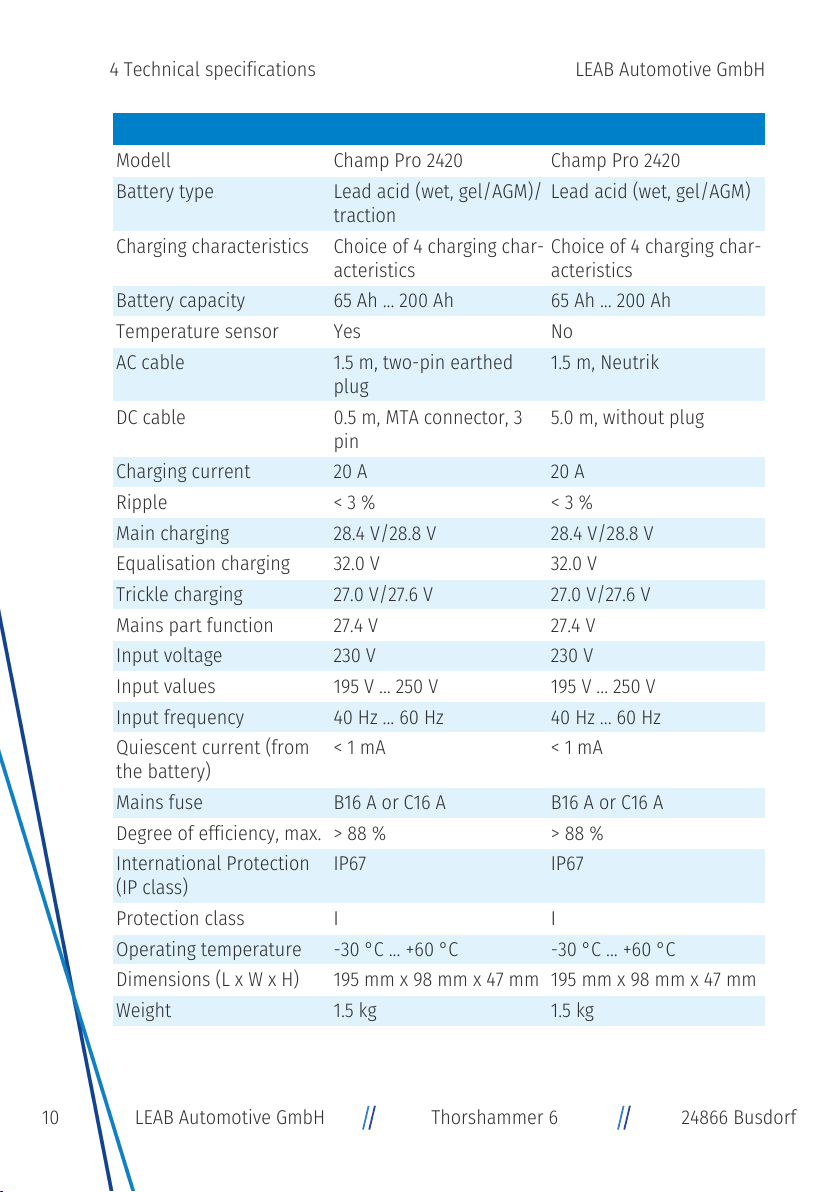

Part no. 0101056901 Part no. 0101056005
Modell Champ Pro 2420 Champ Pro 2420
Battery type Lead acid (wet, gel/AGM)/
traction Lead acid (wet, gel/AGM)
Charging characteristics Choice of 4charging char-
acteristics Choice of 4charging char- acteristics
Battery capacity 65 Ah ... 200Ah 65 Ah ... 200Ah
Temperature sensor Yes No
AC cable 1.5 m, two-pin earthed
plug 1.5 m, Neutrik
DC cable 0.5 m, MTA connector, 3
pin 5.0 m, without plug
Charging current 20 A 20 A
Ripple < 3 % < 3 %
Main charging 28.4 V/28.8 V 28.4 V/28.8 V
Equalisation charging 32.0 V 32.0 V
Trickle charging 27.0 V/27.6 V 27.0 V/27.6 V
Mains part function 27.4 V 27.4 V
Input voltage 230 V 230 V
Input values 195 V ... 250 V 195 V ... 250 V
Input frequency 40 Hz ... 60 Hz 40 Hz ... 60 Hz
Quiescent current (from
the battery) < 1 mA < 1 mA
Mains fuse B16A or C16A B16A or C16A
Degree of efficiency, max. > 88 % > 88 %
International Protection
(IP class) IP67 IP67
Protection class I I
Operating temperature -30 °C ... +60 °C -30 °C ... +60 °C
Dimensions (L x W x H) 195 mm x 98 mm x 47 mm 195 mm x 98 mm x 47 mm
Weight 1.5 kg 1.5 kg
10 LEAB Automotive GmbH Thorshammer 6 24866 Busdorf
4 Technical specifications LEAB Automotive GmbH
