LEAB ABC 1215 User manual

LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
User Manual
Version: V1.5
Issue date: 22.10.2019
ABC Charger
1215, 1220, 1230, 1240, 1250, 2415, 2420, 2430,
3620, 4815
Microprocessor-controlled battery charger
User Manual

Installation Instructions About this Manual
Page 1 of 18
Table of Contents
1About this Manual ............................................................................... 1
2General Safety...................................................................................... 2
3About the Battery Charger................................................................... 3
4Package Contents................................................................................. 3
5Technical Specifications ....................................................................... 4

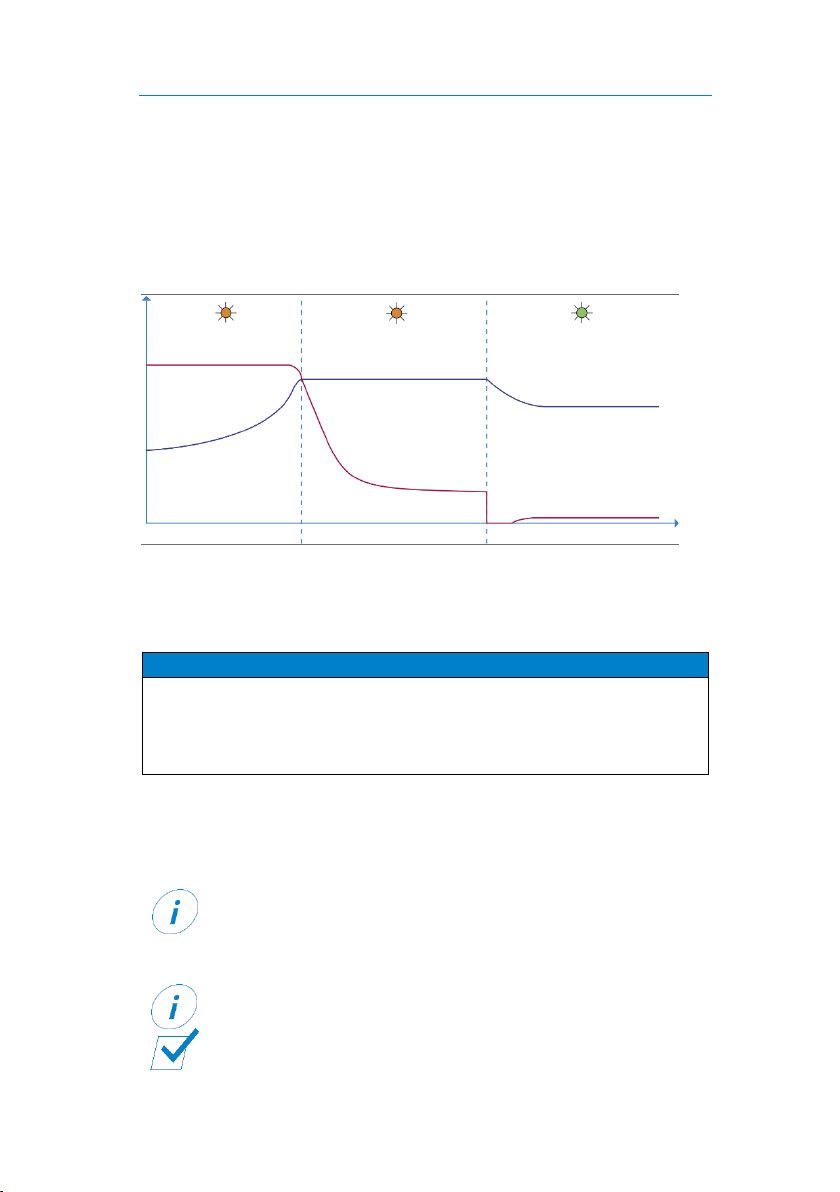

6Charging Characteristics..................................................................... 12
7 Setting Charging Characteristics ........................................................ 12

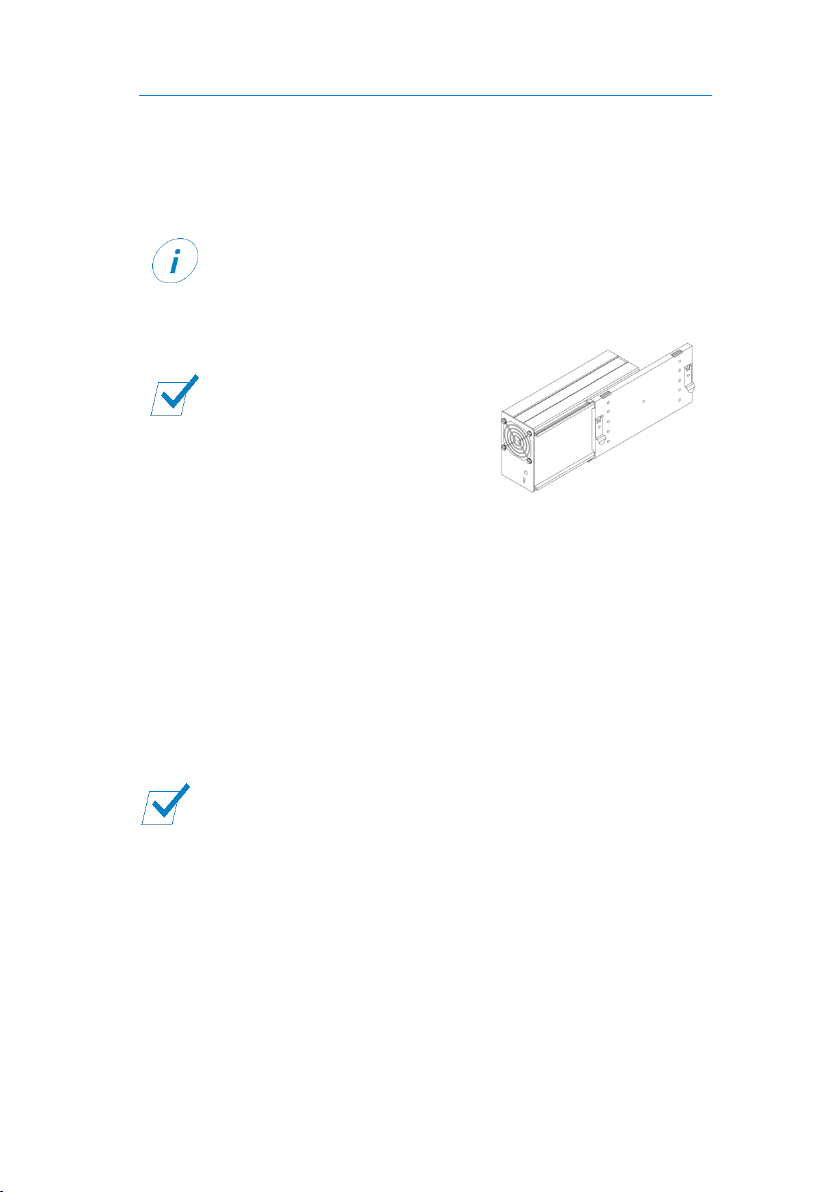

8Mounting ........................................................................................... 13
9Installation ......................................................................................... 13
10 Normal Operation.............................................................................. 15
11 LED Display on the Charger................................................................ 16
12 Maintenance...................................................................................... 17
13 Disposal.............................................................................................. 17
14 EU Declaration of Conformity ............................................................ 18
1About this Manual
Read this manual carefully and keep it in a safe place. This manual is
intended for professionals in the automotive electrical field.
Throughout the manual, you will be alerted to warnings and safety notices
about potential hazards associated with handling the device. The colours
and signal words indicate the severity of the hazard:

Installation Instructions General Safety
Page 2 of 18
Signal word
Meaning
DANGER
Warns of imminent danger resulting in death or
serious injury.
WARNING
Warns of a potentially dangerous situation that can
result in death or serious injury.
CAUTION
Warns of a potentially dangerous situation that can
result in moderate or minor injuries.
NOTICE
Warns of a potentially dangerous situation that can
result in material and environmental damage.
In this manual you will find the following symbols:
Shows you useful tips and information about the device.
Indicates a mandatory requirement for the following
instruction.
Shows the result of an instruction.
2General Safety
This manual supports safe handling of the device. Use the device solely in
accordance with its intended use:
The ABC charger from LEAB has been developed for permanent installation
in vehicles for charging lead acid batteries. Thanks to their compact design,
high performance and excellent radio interference suppression, LEAB
battery chargers have been used for many years wherever optimum battery
charging is required.
Any modifications to the device or its components are prohibited and do not
conform to its intended use.

Installation Instructions About the Battery Charger
Page 3 of 18
Observe the following safety instructions:
Danger from damaged, frozen or deformed batteries: Before charging,
make sure that the battery is undamaged and the electrolyte is not
frozen.
Only charge batteries in well-ventilated rooms and away from ignition
sources.
When handling batteries, wear acid-proof clothing.
Device defect due to incorrect installation: Install the device in a dry
and cool location.

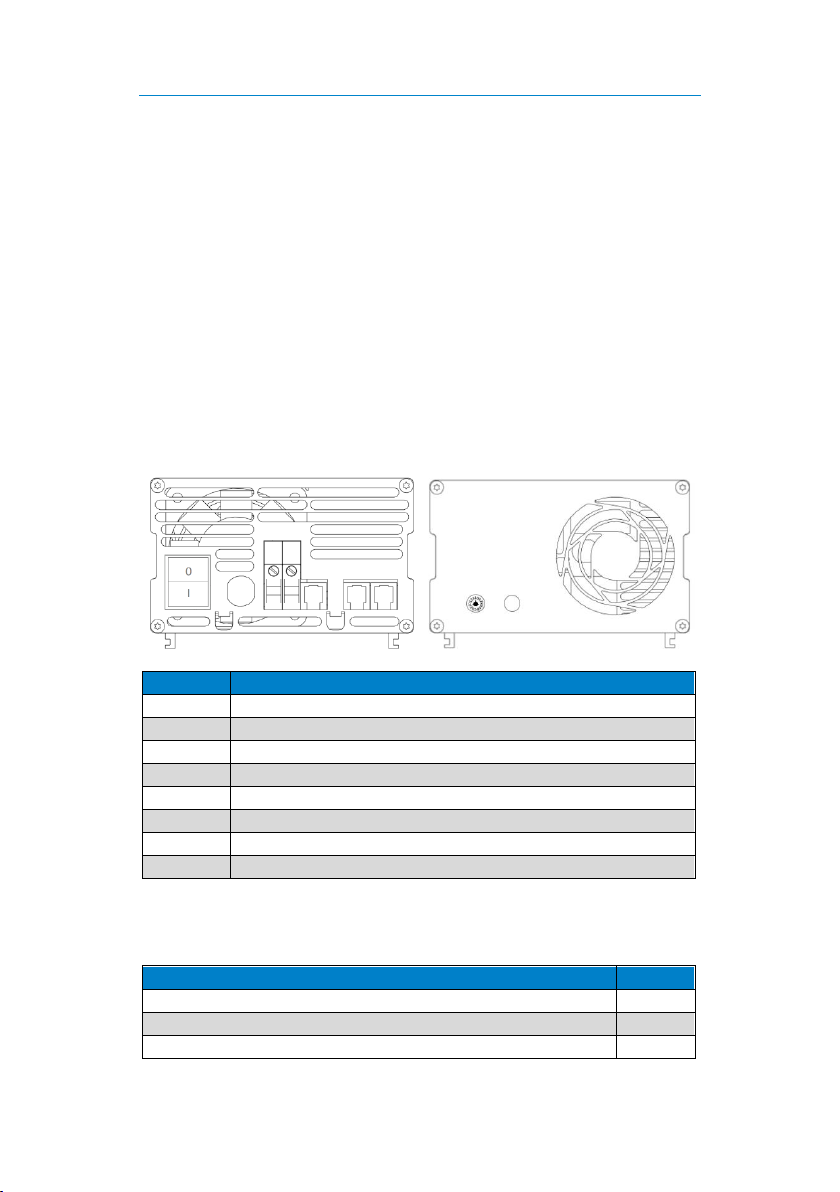

3About the Battery Charger
* Only two connections per device (see Technical Data).
4Package Contents
Number
Details
1
On/Off switch (optional)
2
AC cable
3
DC cable
4
CBL* connection
5
Connecting the sensor cable (CTS/TS)*
6
Connecting the remote display*
7
Potentiometer
8
LED (status display)
Package Contents
No.
Battery charger
x1
User Manual
x1
Charging characteristic data sheet
x1









Installation Instructions Technical Specifications
Page 4 of 18
5Technical Specifications
Model
ABC 1215
ABC 1220
Part number
0101036115
0101036120
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
50 Ah …150 Ah
60 Ah …200 Ah
Charging current
Charging current, max.
15 A
20 A
Charging current, duration
15 A
20 A
Ripple
< 3%
Charge voltage
Main charging
14.2 V / 14.4 V
Trickle charging
13.6 V / 13.8 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m; 0.75 mm²
2 m; 0.75 mm²
Mains plug
Two-pin earthed
plug
Two-pin earthed plug
DC cable
2 x 2 m, 6 mm²
2 x 2 m , 6 mm²
CBL
no
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 5 of 18
Model
ABC 1230
ABC 1230
Part number
0101036134
0101036130
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
90 Ah …300 Ah
90 Ah …300 Ah
Charging current
Charging current, max.
30 A
30 A
Charging current, duration
30 A
30 A
Ripple
< 3%
Charge voltage
Main charging
14.2 V / 14.4 V
Trickle charging
13.6 V / 13.8 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
2 m, 0.75 mm²
1.5 m, 0.75 mm²
Mains plug
Two-pin earthed plug
Two-pin earthed plug
DC cable
2 x 1.5 m, 6 mm²
2 x 2 m, 6 mm²
CBL
yes
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 6 of 18
Model
ABC 1230
ABC 1240
Part number
0101036131
0101036140
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
90 Ah …300 Ah
120 Ah …400 Ah
Charging current
Charging current, max.
30 A
40 A
Charging current, duration
30 A
40 A
Ripple
< 3%
Charge voltage
Main charging
14.2 V / 14.4 V
Trickle charging
13.6 V / 13.8 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 0.75 mm²
1.5 m, 0.1 mm²
Mains plug
Neutrik plug
Two-pin earthed plug
DC cable
2 x 2 m, 6 mm²
2 x 2 m, 10 mm²
CBL
no
yes
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 7 of 18
Model
ABC 1250
ABC 2415
Part number
0101036160
0101036015
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
140 Ah …500 Ah
50 Ah …150 Ah
Charging current
Charging current, max.
50 A
15 A
Charging current, duration
50 A
15 A
Ripple
< 3%
Charge voltage
Main charging
14.2 V / 14.4 V
Trickle charging
13.6 V / 13.8 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 1 mm²
1.5 m, 0.75 mm²
Mains plug
Two-pin earthed plug
Two-pin earthed plug
DC cable
2 x 2 m, 10 mm²
2 x 2 m, 6 mm²
CBL
yes
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 8 of 18
Model
ABC 2420
ABC 2420
Part number
0101036024
0101036020
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
60 Ah …200 Ah
60 Ah …200 Ah
Charging current
Charging current, max.
20 A
20 A
Charging current, duration
20 A
20 A
Ripple
< 3%
Charge voltage
Main charging
28.4 V / 28.8 V
Trickle charging
27.2 V / 27.6 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current (out of the
battery)
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 0.75 mm²
1.5 m, 0.75 mm²
Mains plug
Two-pin earthed
plug
Two-pin earthed plug
DC cable
2 x 2 m, 6 mm²
2 x 2 m, 6 mm²
CBL
yes
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 9 of 18
Model
ABC 2430
ABC 2430
Part number
0101036034
0101036030
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
90 Ah …300 Ah
Charging current
Charging current, max.
30 A
Charging current, duration
30 A
Ripple
< 3%
Charge voltage
Main charging
28.4 V / 28.8 V
Equalisation charging
---
Trickle charging
27.2 V / 27.6 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current (out of the
battery)
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 0.75 mm²
1.5 m, 0.75 mm²
Mains plug
Two-pin earthed
plug
Two-pin earthed plug
DC cable
2 x 2 m, 6 mm²
2 x 2 m, 6 mm²
CBL
yes
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Technical Specifications
Page 10 of 18
Model
ABC 2430
Part number
0101036032
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
90 Ah …300 Ah
Charging current
Charging current, max.
30 A
Charging current, duration
30 A
Ripple
< 3%
Charge voltage
Main charging
28.4 V / 28.8 V
Equalisation charging
---
Trickle charging
27.2 V / 27.6 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current (out of the
battery)
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 6 mm²
Mains plug
Two-pin earthed plug
DC cable
2 x 4 m, 6 mm², open
CBL
no
CTS/TS
yes
Remote display
yes
On/off switch
yes

Installation Instructions Technical Specifications
Page 11 of 18
Model
ABC 3620
ABC 4815
Part number
010103620
0101036415
Battery
Battery type
Lead acid (wet, gel, AGM)
Charging characteristics
15 optional characteristics (see
characteristics sheet)
rec. battery capacity
60 Ah …200 Ah
Charging current
Charging current, max.
20 A
Charging current, duration
20 A
Ripple
< 3%
Charge voltage
Main charging
40.5 V / 43.2 V
Equalisation charging
50.4 V
Trickle charging
40.5 V
Supply voltage (AC)
Input voltage (rated values)
230 V / 50 Hz / 4 A
Input voltage
90 V… 270 V
(< 200 V reduced charging current)
Input frequency
0 Hz …400 Hz
Quiescent current (out of the
battery)
< 2 mA
Switching frequency
100 kHz
recommended mains fuse
B16 A or C16 A
Degree of efficiency, max.
> 88%
Protection class
I
Operating temperature
-30°C … +60°C
IP rating
IP21
Dimension, housing (L x W x H)
220 mm x 112 mm x 73 mm
Weight (without cable)
1.5 kg
Connections
AC cable
1.5 m, 0.75 mm²
1.5 m, 0.75 mm²
Mains plug
Two-pin earthed plug
Two-pin earthed
plug
DC cable
2 x 2 m, 6 mm²
2 x 2 m, 6 mm²
CBL
no
no
CTS/TS
yes
yes
Remote display
yes
yes
On/off switch
yes
yes

Installation Instructions Charging Characteristics
Page 12 of 18
6Charging Characteristics
The ABC charger contains 15 different charging characteristics which you can
select before connecting to the battery. Battery charging is fully automatic
and micro-processor controlled with a 3-stage IU1U2characteristic curve for
gentle and optimum charging of the batteries.
The available charging characteristics can be found on the characteristics
sheet.
7Setting Charging Characteristics
To set a charging characteristic, perform the following steps:
1. Turn the potentiometer to the desired position (see characteristics
sheet).
The arrow in the middle of the potentiometer indicates the
selected characteristic.
2. To prevent accidental adjustment of the charging characteristic, stick
the supplied sticker on the potentiometer.
Ensure that the notch in the sticker is above the LED.
The charging characteristic is set.
NOTICE
Battery defect due to incorrect charging
To protect the battery from damage due to incorrect charging, set a
suitable charging characteristic before installation. Follow the battery
manufacturer's instructions.
I U1 U2

Installation Instructions Mounting
Page 13 of 18
8Mounting
To mount the device, perform the following steps:
Choose a cool, dry and well-ventilated mounting site.
Do not mount the device directly next to or above batteries.
To allow adequate cooling, ensure an unimpeded supply of
cooling air.
1. Fasten the mounting plate to the 4 lateral holes (5 mm Ø).
2. Push the device onto the mounting plate.
9Installation
Connecting the Battery
To install the battery, perform the following steps:
1. Disconnect the battery from the vehicle power circuit.
Warning: Disconnect the negative cable first.
2. Secure the positive cable of the device as close as possible to the vehicle
battery with a suitable fuse (60 A).
3. Connect the positive cable of the device to the positive terminal of the
battery.
4. Connect the negative cable of the device to the negative terminal of the
battery.
5. Connect the vehicle battery to the vehicle power circuit again.
The battery is connected.
The device is mounted.

Installation Instructions Installation
Page 14 of 18
Connect the Device to the 230-V Mains
To install the device to the 230-V mains, perform the following step:
1. Connect the mains plug to a 230-V mains supply.
Connect Remote Display (Optional)
The remote display shows the charging status of the battery with an LED.
To connect the remote display, perform the following steps:
1. Plug the connecting cable for the remote display into the connector for
the remote display.
The remote display is connected.
Connect Sensor Cable (Optional)
The sensor cable measures the battery temperature (sensor cable TS) or the
battery temperature and voltage (sensor cable CTS) in order to charge the
battery optimally.
When connecting, pay attention to the instructions and notes in the
installation instructions for the sensor cable.
The charger is only suitable for connection to fused, earthed
230-V networks.
For devices without an on/off switch, the device switches on
as soon as a voltage is applied.
The charger is connected to the 230-V mains supply.

Installation Instructions Normal Operation
Page 15 of 18
Connect CBL Control Relay (Optional)
A potential-free changeover contact is integrated in the ABC chargers, which
switches during charging operation. For easier connection, a corresponding
adapter cable set with plug and three open cables is available. This option can
be used, for example, to implement an electrical start interlock with 230-V
connection or charge monitoring.
Technical Data (Insulation):
Capacity (max. values):
Output to housing: 500 V
Output to ground: 120 V
24 V (DC): 0.5 A
120 V (AC): 0.5 A
To connect the CBL control relay, perform the following steps:
1. Plug the Western plug into the CBL relay connector on the back of the
device.
The CBL control relay is connected.
10 Normal Operation
Switching on the Device
To switch on the device, perform the following steps:
1. To turn on the unit, press the on/off switch in position I.
The device is switched on.
After establishing the mains connection, the LED flashes red for
2 seconds (device test).
If the battery is charging, the LED illuminates orange.
If the battery is fully charged, the LED illuminates green.
For devices without an on/off switch, the device switches on and
starts charging as soon as the mains plug is plugged into the 230-V
mains.
Switching Function of the Changeover
Contact
Pin 1 and Pin 3 connected when
charger is switched off.
Pin 1 and Pin 2 connected when
charger is switched on.
green (pin 3)
black (pin 1)
red (pin 2)

Installation Instructions LED Display on the Charger
Page 16 of 18
Charging the Battery
The charger begins to charge the battery as soon as it is switched on.
Switching off the Device
To switch off the charger, perform the following step:
1. To turn off the device, press the on/off switch in position 0.
The device is switched off.
11 LED Display on the Charger
Status
Description
Measure
Steady
light
orange
Battery is charging. The
charger is in the main
charging phase.
Steady
light
green
Battery is fully charged,
charger is in trickle charge
phase.
Charger can be switched off and the
battery can be used.
Steady
light
red
Error, overheating
Check battery connection
Measure battery voltage
Disconnect the device from the
battery and allow it to cool down
Flashing
red
Timeout in the main
charge phase, charging
interrupted.
Check battery
Select larger charger
Consumer too large: Switch off
consumer when charging
For devices without an on/off switch, the device switches off as
soon as the mains plug is disconnected from the 230-V mains.

Installation Instructions Maintenance
Page 17 of 18
12 Maintenance
Check the charger as follows before using it each time:
Check the mains cable and mains plug for damage.
Check charging cables and connections for damage.
Check the charger for external damage.
Ensure that the wiring between the charging cable and the charger
is secure.
For battery maintenance, refer to the battery manufacturer's
instructions.
13 Disposal
Dispose of the device in accordance with the Waste Electrical and Electronic
Equipment Regulations (WEEE).
The device must not be disposed of with household waste.
Take it to a recycling point or send it to your point of sale.

Installation Instructions EU Declaration of Conformity
Page 18 of 18
14 EU Declaration of Conformity
The LEAB ABC
with the models 1215, 1220, 1230, 1240, 1250,
2415, 2420, 2430, 3620 and 4815
complies with the requirements of the following
directives:
2014/30/EU: EMC
2014/35/EU: NRL
2011/65/EU: RoHS

LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
Germany
Tel.: [phone]
Fax: [phone]
Email: [email protected]
Web: www.leab.eu
