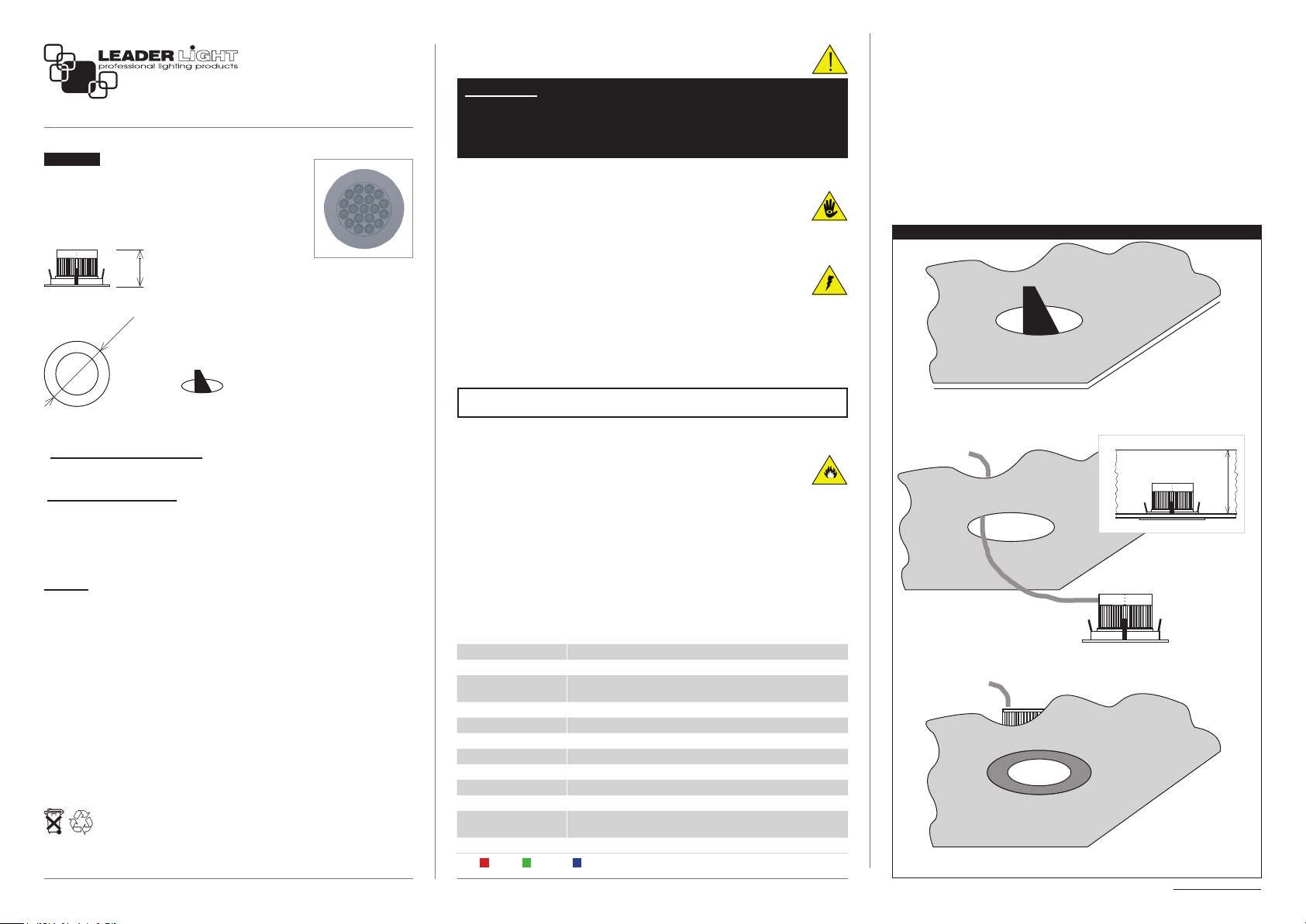

Leader Light LL ARC SPOT 19 User manual

USER MANUAL
LLARC SPOT 19 RECESSED RGB
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
LL31 700
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specication
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Electrical installation
03.3.1 Connecting to AC/DC power supply
03.3.2 Connecting to LL ARC DRIVER for intensity/colour control
04 MAINTENANCE
All dimensions are in millimeters
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an ofcial collection point for recycling. By doing this, you help to preserve
the environment.
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand! Installation can be done only
by a qualied professional in accordance with relevant local codes.
01 SAFETY INFORMATION
01.1 Risk of eyes damage
Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
-
01.2 Protection from electric shock
Shut down power before installation or maintenance.
Luminaries, Driver and recommended power supply must be installed by a qualied
professional in accordance with relevant local codes. Only acceptable source of power and
frequency that complies with local building and electrical codes to use.
Do not use or do not connect the products if the power cable, power plug or xtures are any
way damaged, wet, or if they are overheating.
Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
warranty.
Before removing or installing any cover or part of appliance disconnect from power.
-
-
-
-
-
01.3 Fire prevention
Follow all safety consideration.
Thermostatic switches or fuses never to bypass.
Device never shield. Around the axis of the tting (180°) must be maintained space for
cooling.
LEDs never direct cover with lters or other materials.
Allowing max. ambient temperature is 40°C (104°F).
-
-
-
-
-
02 PRODUCT SPECIFICATION
02.1 Technical Specication
03 INSTALLATION
03.1 Unpacking
Unpack carefully.
This is electronic equipment and should be handled carefully.
Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
-
-
-
03.2 Physical installation
Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
Hairbreadth from combustible materials is 0,5m.
-
-
©MMX - Leader Light – All right reserved If you have any question please, contact [email protected]
COMPLIMENTS ON YOUR PURCHASE!
Edition: A - 2010
Lamp type: 7xR+6xG+6xB Z5 *
Lifetime: Long 50 000 hrs 70% degradation
Optic: Standard: Fresnel optic 40-65°
On request: 10°, 25°, 40°
Control data Input: 3 channels 24V dimming
Input power: max. 25W
Power connection: 24V DC 5m cable with 6pin LINE connector
Net weight: 1kg
IP: IP20
Ambient temp. (Ta): Maximum 40°C
Cooling: Conventional
Materials and nish: Powder-painted anodized aluminium RAL9006
(other colours on request)
Installation: Recessed mounting
*Z5: R-Red, G-Green, B-Blue
Operation only with DC 24V source!
By using a high voltage AC power supply - danger of electric shock!
Φ150
65 - 85
Cut out 120mm
1.1
Suspended installation
Cut out 120mm
1.1.1. Cut hole in suspended ceiling. The aloved thickness of ceiling material is max.
12mm.
minimal.
215 mm
1.1.2. Connect the xture to the DC power supply or ARC DRIVER.
1.1.3. Fit the decoration ring in the suspended ceiling.
Following items are included:
- LL ARC SPOT 19 RECESSED RGB with 5m cable and 6pin LINE connector 1 pc.
- User manual 1 pc.
Additional items needed:
- LL ARC DRIVER
- DC power supply 24V
- Controller compatible with DMX

If you have any question please, contact [email protected]
2.1
2.2
LL ARC SPOT RECESSED connecting to ARC DRIVER and DIN POWER SUPPLY
LL ARC SPOT RECESSED connecting to DIN POWER SUPPLY
DC 24V
max. 10A
POWER
SUPPLY
MW 240
DIN 24V
100-260V AC
Connecting LL ARC SPOT to DIN POWER SUPPLY
enables to switch ON/OFF luminaries.
Connecting LL ARC SPOT to PWM DRIVER and DIN POWER SUPPLY enables to switch
ON/OFF luminaries and in addition intensity and colour control by DMX controller.
DMX
CONTR.
R+ R- G+ G- B+ B-
red
green
blue
black
max. 16A
max. 10A!
DC 24V
100-260V AC
connect max. 1,4A per GROUP
RGB
POWER
SUPPLY
MW 240
DIN 24V
Order code Product name IC (A)
LL31 700 LL ARC SPOT 19 RECESSED RGB 3x0,35A
04 MAINTENANCE
To tackle all Safety Information- 01!
Damage caused by inadequate cleaning or maintenance is not coverd by
warranty.
Regular cleaning is demand (dust, dirt, ...).
Maintenance policy:
Unplug mains before maintenance and at least 10 minutes cool off
Appliance do not illegal open or demount
Clean-up dust only from outer surface (for ex. diffuser).
Use vacuum or dumpy duster (warm water)
Before reinstalling to check failure-free state – no wet parts!
-
-
-
-
-
-
-
-
03.3.1 Connecting to DC power supply (Figure Nr. 2.1)
LL ARC SPOT 19 must be connected to the device- MW power supply In:100-260AC/
Out: 24V
It is not necessary to open xture before connecting to MW power supply.
AC Power Supply Cord plug connections to MW Power Supply:
-
-
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
03.3.2 Connecting to LL ARC DRIVER (Figure Nr. 2.2)
For intensity and colour control is necessary connection with LL ARC DRIVER.
It is not necessary to open xture before connecting to LL ARC DRIVER.
Before installing of LL ARC DRIVER carefully read USER MANUAL for LL ARC DRIVER.
-
-
-
03.3 Electrical installation
To tackle all Safety Information- 01!
You can suffer a dangerous electric shock by using a high voltage AC/DC
power supply - by touching the AC/DC power supply wires inside LL ARC SPOT 19!
LL ARC SPOT 19 can be operated in two ways:
- 03.3.1 LL ARC SPOT 19 connecting to DC POWER SUPPLY - for switch ON/OFF
luminaries
- 03.3.2 LL ARC SPOT 19 connecting to LL ARC DRIVER - for intensity and colour
control
-
-
-
