Leader Light LL FLOOD WASH User manual

USER MANUAL
LL FLOOD WASH
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
LL44 090
All dimensions are in milimeters
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an ofcial collection point for recycling. By doing this, you help to preserve
the environment.
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand! Installation can be done only
by a qualied professional in accordance with relevant local codes.
01 SAFETY INFORMATION
01.1 Risk of eyes damage
Do not look directly into LED lamps.
Do not look into light beam from a distance of less than 40 cm (16 inches)!
-
-
01.2 Protection from electric shock
Shut down power before installation or maintenance.
Luminaries and recommended AC power supply must be installed by a qualied professional
in accordance with relevant local codes. Only acceptable source of AC power and frequency
that complies with local building and electrical codes to use.
Do not use or do not connect the products if the power cable, power plug or xtures are any
way damaged, wet, or if they are overheating.
Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
warranty.
Before removing or installing any cover or part of appliance disconnect it from AC power.
Appliance always connect to earth (eltech.).
-
-
-
-
-
-
01.3 Fire prevention
Follow all safety consideration.
Thermostatic switches or fuses never to bypass.
Device never shield. Around the axis of the tting (180°) must be maintained space for
cooling. Minimum distance from the surrounding objects must be 100mm (4 in.) (gure 1.1).
LEDs never direct cover with lters or other materials.
Allowing max. ambient temperature is 40°C (104°F).
Luminaries never use without mounting brackets.The housing never install directly to the
surface.
-
-
-
-
-
-
02 PRODUCT SPECIFICATION
02.1 Technical Specication
03 INSTALLATION
03.1 Unpacking
Unpack carefully.
This is electronic equipment and should be handled carefully.
Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
-
-
-
03.2 Physical installation
Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
Hairbreadth from combustible materials is 0,5m.
-
-
03.3 Connecting to AC power
To tackle all Safety Information- 01!
For protection from electric shock, the device must be grounded (earthed)!
It is not necessary to open the xture before power supply.
Power supply is solved simple with Neutrik PowerCon connectors.
The xture is equipped with auto-switching power supply that automatically adjusts to
any 50-60Hz AC power source from 100-260V.
Cord plug connections:
-
-
-
-
-
-
©MMX - Leader Light – All right reserved
02.2 Back panel
If you have any question please, contact [email protected]
COMPLIMENTS ON YOUR PURCHASE!
Symbol Pin Wire Colour Screw (US)
Llive brown yellow or brass
Nneutral blue silver
ground (earth) yellow/green green
03.4 Control data connecting
Control data cable length is specied by Norm IEC929 Annex E4.
It is not necessary to open the xture before connecting of DMX512 control signal.
Interconnections are realized by Neutrik XLR 5pin In/Out connectors.
Pin connections :
Pin 1 – ground
Pin 2 – signal negative
Pin 3 – signal positive
-
-
-
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specication
02.2 Back panel
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connecting to AC power
03.4 Control data connecting
03.5 DMX channels
04 MAINTENANCE
Edition: A - 2010
LL44 100
One module RGBAW (4pcs White, 4pcs Green, 4pcs Blue, 5pcs Red, 5pcs Amber) => total 3/6 modules
Lamp type: 66/132 x RGBAW P4 *
Lifetime: Long 50 000 hrs 70% degradation
Optic: Standard: 25°, on request: 10°, 40°, EL and AS
Control data Input: DMX 512 In/Out with XLR 5pin
Input power: max: 102W/203W
Power connection: 100-260V AC 50-60Hz In/Out PowerCon
Net weight: 5,5kg/11kg
IP: IP20
Ambient temp. (Ta): max. +40°C
Cooling: Conventional
Materials and nish: Housing: powder-painted anodized aluminium RAL9006
(other colours on request)
Installation: Surface mounting
*P4: R-Red, G-Green, B-Blue, A-Amber, W-White (6300°K)
LED INDICATION STATUS
POWER (Red) blinking – 2Hz OK - inside xture is everything correct
DATA (Green) light off NO DMX512 signal
DATA (Green) blinking – 4Hz OK- income correct DMX512 signal
DATA (Green) fast blinking NON correct digital signal
POWER (Red) alternate blinking
A utotest function
DATA (Green)
Control LEDs Indication POWER DATA
Dip options » Rotating DIP address 000÷511
“100“ “10“ “1“
DMX Out
XLR-5pin
DMX In
XLR-5pin
Power In
PowerCon
Power Out
PowerCon
Control LEDs
+ +
+ +
+ +
120
80
1200
600
Following items are included:
- LL FLOOD WASH RGBAW 5m power cable with PowerCon 1 pc.
- PowerCon type “A“ 1 pc.
- PowerCon type “B“ 1 pc.
- Adjustable mounting bracket 1 pc.
- User manual 1 pc.
Additional items needed:
- Data cables with XLR 5pin Female/Male 1 pc.
- Controller compatible with DMX 1 pc.
Surface mounting:
- Screws and washers M12, M10

If you have any question please, contact [email protected]
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
ventilating slots
sliding mounting brackets
Ch. FLOOD WASH 600 RGBAW Ch. FLOOD WASH 1200 RGBAW
Mode1: Dip2=Off
1 Red 1,2,3 1 Red 1,2,3,4,5,6
2 Green 1,2,3 2 Green 1,2,3,4,5,6
3Blue 1,2,3 3Blue 1,2,3,4,5,6
4 Amber 1,2,3 4 Amber 1,2,3,4,5,6
5White 1,2,3 5White 1,2,3,4,5,6
6 Master (Dip1=On, Dip4=Off) 6 Master (Dip1=On,Dip4=Off)
7 Strobo (Dip1=On, Dip4=Off) 7 Strobo (Dip1=On,Dip4=Off)
Mode4: Dip2=On
1 Red 1 1 Red 1 18 Blue 4
2 Green 1 2 Green 1 19 Amber 4
3Blue 1 3Blue 1 20 White 4
4 Amber 1 4 Amber 1 21 Red 5
5White 1 5White 1 22 Green 5
6 Red 2 6 Red 2 23 Blue 5
7 Green 2 7 Green 2 24 Amber 5
8 Blue 2 8 Blue 2 25 White 5
9Amber 2 9Amber 2 26 Red 6
10 White 2 10 White 2 27 Green 6
11 Red 3 11 Red 3 28 Blue 6
12 Green 3 12 Green 3 29 Amber 6
13 Blue 3 13 Blue 3 30 White 6
14 Amber 3 14 Amber 3 31 Master (Dip1=On, Dip4=Off)
15 White 3 15 White 3 32 Strobo (Dip1=On, Dip4=Off)
16 Master (Dip1=On, Dip4=Off) 16 Red 4
17 Strobo (Dip1=On, Dip4=Off) 17 Green 4
Extention and control functions:
Dip4=Off, Dip1=Off =>DipBCD: use rotating switch for DMX start address
(RS1-100, RS2-010, RS3-001) from 001 to 511
Dip4=Off, Dip1=On: address+2channel (Master+Strobo)
Dip4=On, Dip1=Off: switch on AutoRun-table functions:
“100“=Prg.0-9, “10“=StepTime, “1“=FadeTime
Dip4=On, Dip1=On: switch all channels on 50% - test function
Dip2=Off: Mode 1 (5+2ch) Dip2=Off: Mode 1 (5+2ch)
Dip2=On: Mode 4 (15+2ch) Dip2=On: Mode 4 (30+2ch)
Dip3=Off: standard curve
Dip3=On: ultraSoft curve
Order code Product name
LL44 090 LL FLOOD WASH RGBAW 600 *
LL44 100 LL FLOOD WASH RGBAW 1200 *
* Optional 10°, 40°, EL (Eliptical 15°x90°), AS (Asymetrical) on request.
04 MAINTENANCE
To tackle all Safety Information- 01!
Damage caused by inadequate cleaning or maintenance is not coveredby warranty.
Regular cleaning is demand (dust, dirt, ...).
Maintenance policy:
Unplug mains before maintenance and at least 10 minutes cool off
Appliance do not illegal open or demount
Clean-up dust only from outer surface (for ex. scuttle, diffuser and lenses).
Use vacuum or dumpy duster (warm water)
Before reinstalling to check failure-free state – no wet parts!
-
-
-
-
-
-
-
-
03.5 DMX channels - subject to change
The latest version of DMX channels appendix are on the websites - www. leaderlight.eu

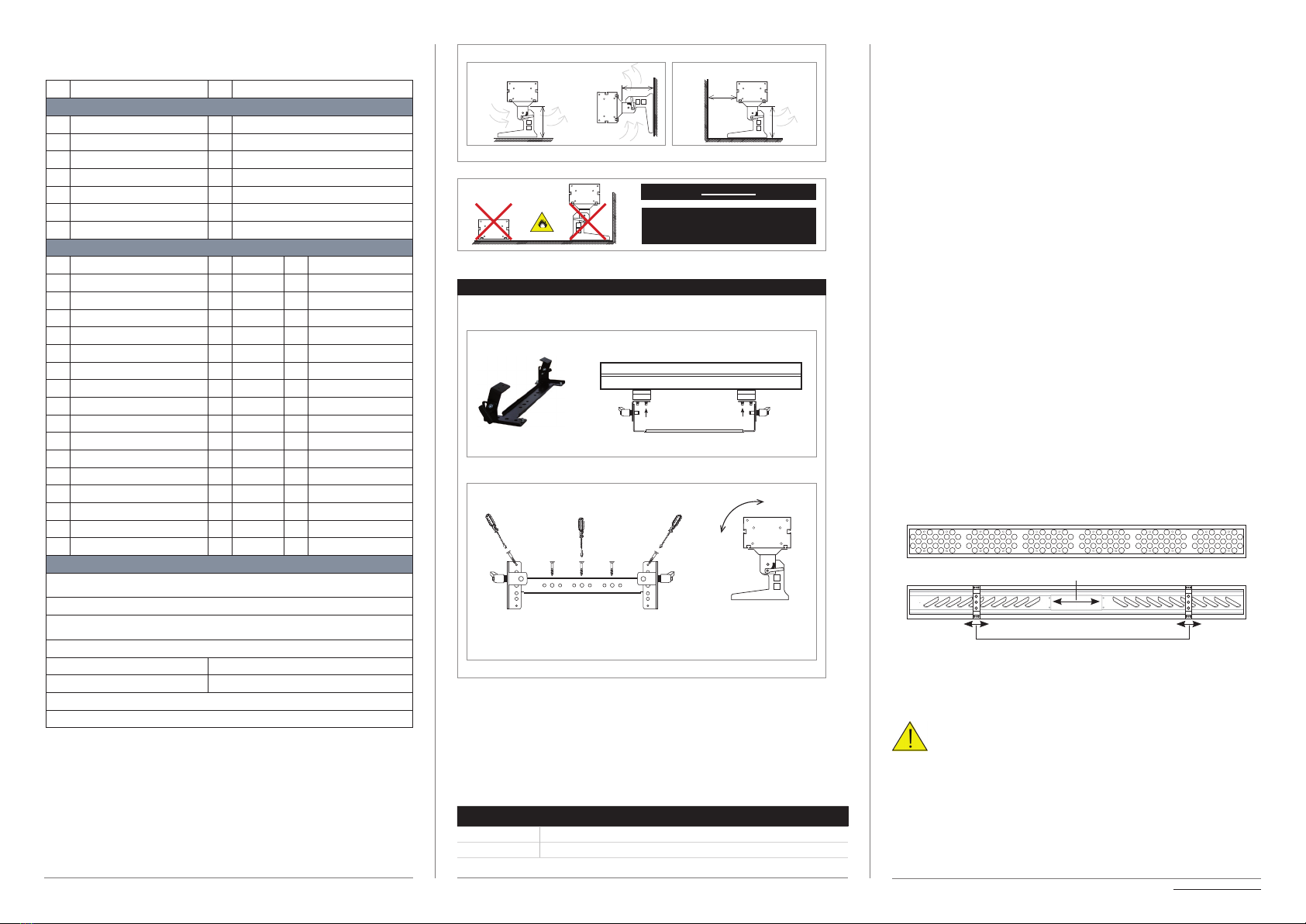

Adjustable bracket
Mechanical mounting of LL FLOOD WASH and Adjustable bracket
2.1 Fit the adjustable bracket on the tting and t with srews.
The installation of LL FLOOD WASH and Adjustable bracket is easy. It is not necessary to
open the xture before the mechanical mounting.
90°
AIMING POSSIBILITY
The xture could be aim
to wish position with the
bracket.
2.2 The bracket x to the solid surface with srews (minimal 4pcs).
1.1
minimal.
100mm
Ventilation space 180° free
Minimal mounting distance from surface
Ventilation space 90° free
INSTALLATION SPACE
minimal.
200mm
minimal.
100mm
minimal.
100mm
WARNING!!!
Non-minimum distance and/or non-use
the original brackets is at your own risk!
!!
+
+
+ +
+ +
+
+
+
+
+
+
+ +
+ +
+ +
+
+
+ +
+ +
+ +
+ +
+ +
+ +
+ +
+ +
