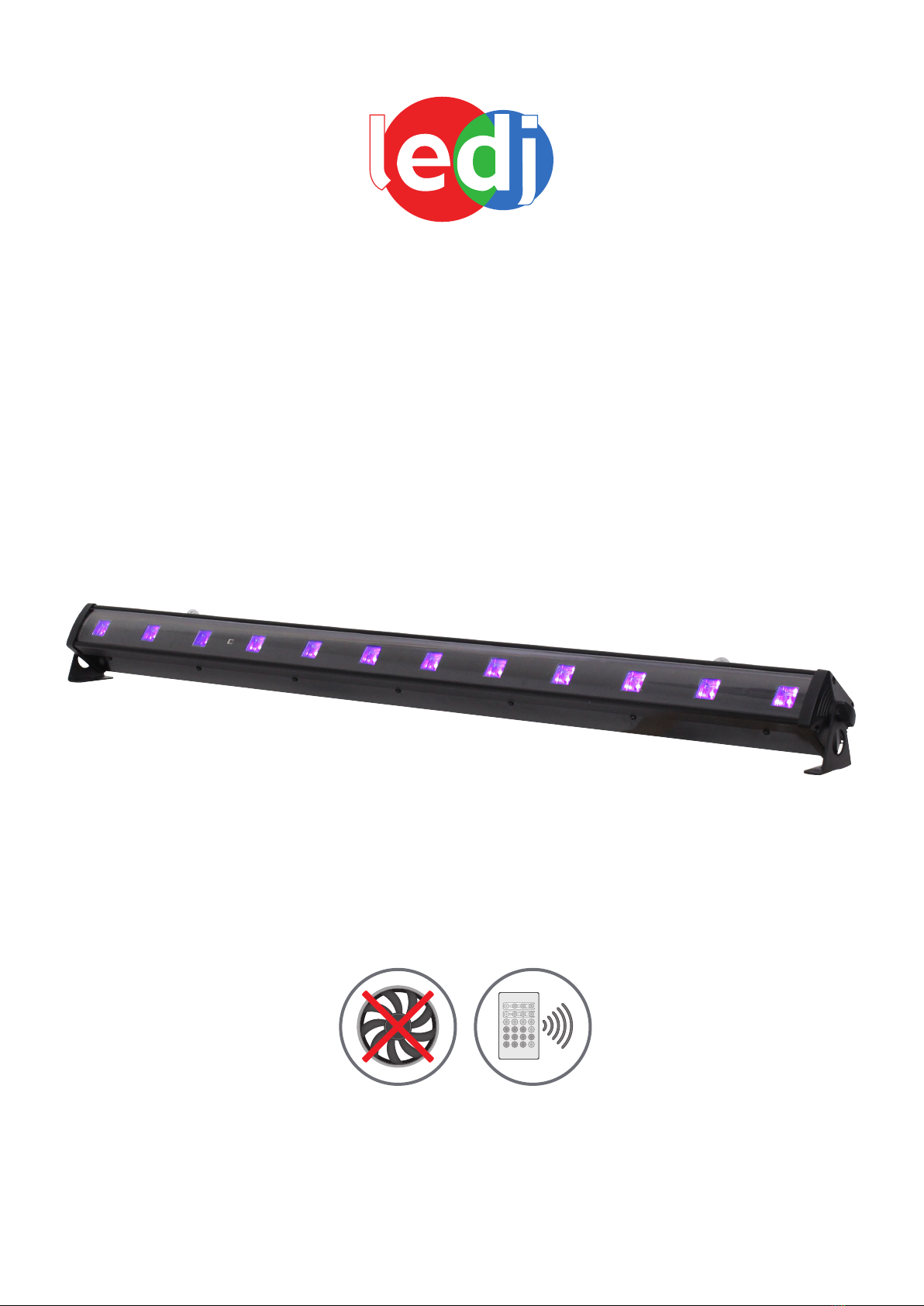

Ledj LEDJ98 User manual

Order code: LEDJ98
UV Spectra Batten
12 x 5W UV LEDs
User Manual
Optional
IR remote
Order ref:
LEDJ90E
Convection
cooled,
no fan!

www.prolight.co.uk UV Spectra Batten User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Beforeyourinitialstart-up,pleasemakesurethatthereisnodamagecausedduringtransportation.
• Shouldtherebeanydamage,consultyourdealeranddonotusetheequipment.
• Tomaintaintheequipmentingoodworkingconditionandtoensuresafeoperation,itisnecessary
fortheusertofollowthesafetyinstructionsandwarningnoteswritteninthismanual.
• Pleasenotethatdamagescausedbyusermodicationstothisequipmentarenotsubjecttowarranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
Ifthisequipmentisoperatedinanyotherway,thanthosedescribedinthismanual,theproductmaysufferdamageand
thewarrantybecomesvoid.Incorrectoperationmayleadtodangere.g:short-circuit,burnsandelectricshocksetc.
Donotendangeryourownsafetyandthesafetyofothers!
Incorrectinstallationorusecancauseseriousdamagetopeopleand/orproperty.
• Neverletthepowercablecomeintocontactwithother
cables.Handlethepowercableandallmainsvoltage
connectionswithparticularcaution!
• Neverremovewarningorinformativelabelsfromtheunit.
• Donotopentheequipmentanddonotmodifytheunit.
• Donotconnectthisequipmenttoadimmerpack.
• Donotswitchtheequipmentonandoffinshortintervals,
asthiswillreducethesystem’slife.
• Onlyusetheequipmentindoors.
• Donotexposetoammablesources,liquidsorgases.
• Alwaysdisconnectthepowerfromthemainswhen
equipmentisnotinuseorbeforecleaning!Onlyhandle
thepower-cablebytheplug.Neverpullouttheplugby
pullingthepower-cable.
• Makesurethattheavailablevoltageisbetween
110~240V,50/60Hz.
• Makesurethatthepowercableisnevercrimpedor
damaged.Checktheequipmentandthepowercable
periodically.
• Iftheequipmentisdroppedordamaged,disconnectthe
mainspowersupplyimmediatelyandhaveaqualied
engineerinspecttheequipmentbeforeoperatingagain.
• Iftheequipmenthasbeenexposedtodrastic
temperatureuctuation(e.g.aftertransportation),
donotconnectpowerorswitchitonimmediately.
Thearisingcondensationmightdamagetheequipment.
Leavetheequipmentswitchedoffuntilithasreached
roomtemperature.
• Ifyourproductfailstofunctioncorrectly,stopuse
immediately.Packtheunitsecurely(preferablyinthe
originalpackingmaterial),andreturnittoyourProLight
dealerforservice.
• Onlyusefusesofsametypeandrating.
• Repairs,servicingandpowerconnectionmustonlybe
carriedoutbyaqualiedtechnician.THISUNITCONTAINS
NOUSERSERVICEABLEPARTS.
• WARRANTY:Oneyearfromdateofpurchase.
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM RAIN,
MOISTURE AND LIQUIDS
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!

www.prolight.co.uk UV Spectra Batten User Manual 3
Product overview & technical specications
Housing12x5WUVLEDsthis1mUVSpectraBattenwillllavarietyofvenueswithanoutstandingUVglow.
Theyarealsoconvectioncooledforsilentoperationandfeaturea65°beamangle.The4pushbuttonLED
menuorincludedIRremotealloweasyaccesstothefunctionsincludingDMX,master/slave,soundactive
andstandalonemodes.
•12x5WUVLEDs
•Beamangle:65°(eldangle:100°)
•DMXchannels:1or2selectable
•Soundactiveandmaster/slavemodes
•0-100%dimmingandvariableash
•Bracketallowsformultipleriggingoroorstandingapplications
•4pushbuttonmenuwithLCDdisplay
•IECin/outsockets
•3-PinXLRin/outsockets
•Convectioncooled
•SuppliedwithIRremote(LEDJ90E)
UV Spectra Batten
Specications UV Spectra Batten
Powerconsumption 70W
Powersupply 110~240V,50/60Hz
Fuse F1A250V
Dimensions 87x1018x63mm
Weight 2.2kg
Ordercode LEDJ98
1018mm 63mm
87mm
01-Brackettighteningknobs
02-Bracket
03-Safetyeye
04-Earthpoint
05-LEDdisplay
06-Functionbuttons
07-DMXinputsocket
08-DMXoutputsocket
09-IECpowerinsocket
10-IECpoweroutsocket
11-FuseF1A250V
Inthebox:1 x xture,
1 x IR remote,
1 x power cable &
1 x user manual
POWER IN
MENU UPENTER DOWN
DMX IN DMX OUT
www.prolight.co.uk
POWER OUT
SAFETY EYE
UV
SPECTRA BATTEN
POWER IN
MENU UPENTER DOWN
DMX IN DMX OUT
www.prolight.co.uk
POWER OUT
SAFETY EYE
UV
SPECTRA BATTEN
POWER IN
MENU UPENTER DOWN
DMX IN DMX OUT
www.prolight.co.uk
POWER OUT
SAFETY EYE
UV
SPECTRA BATTEN
POWER IN
MENU UPENTER DOWN
DMX IN DMX OUT
www.prolight.co.uk
POWER OUT
SAFETY EYE
UV
SPECTRA BATTEN
09
01 0302
11 04 06 0807 05 10

www.prolight.co.uk UV Spectra Batten User Manual 4
Operating instructions
DMX channel mode:
ToaccesstheDMXchannelmode,pressthe“MODE”buttonontherearoftheunittoshowA001
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstosetthe
desiredDMXaddress.Nowpressthe“ENTER”buttontochooseoneofthe1or2DMXchannelmodes
usingthe“UP”and“DOWN”buttons,andpressthe“ENTER”usethe“UP”and“DOWN”buttonstoset
whattheunitshoulddoifitlosesDMXsignal.
bLC-TheunitwillblackoutifDMXsignalislost.
Soun-TheunitwillgointosoundactivemodeifDMXsignalislost.
HoLd-TheunitwillholdthelastDMXcommandifDMXsignalislost.
Toexitoutofanyoftheaboveoptions,pressthe“MODE”button.
Static mode:
Toaccessstaticmodepress“ENTER”untilthedisplayshowsC-00ontheLEDdisplay.
Toadjustthebrightnessusethe“UP”and“DOWN”buttonstoselectbetweenC-00~C-99.
Pressthe“ENTER”buttontoconrmthesetting.Nowusethe“UP”and“DOWN”buttonstoadjustthe
ashspeedbyselectingbetweenF-00~F-99.Pressthe“ENTER”buttontoconrmthesetting.
Toexitoutofanyoftheaboveoptions,pressthe“MODE”button.
Slave mode:
Pressthe“MODE”buttonontherearoftheunittoshowSLAUontheLEDdisplayandpressthe
“ENTER”buttontoconrmthesetting.Theunitwillnowruninsequencewiththemasterunit.
Toexitoutofanyoftheaboveoptions,pressthe“MODE”button.
PleaseensurethatallslaveunitsaresettothesameDMXchannelmodeasthemasterunit.
Sound active mode:
Toaccessthesoundactivemode,pressthe“MODE”buttonontherearoftheunittoshowSU00
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstosetthe
soundsensitivitylevelfromSU.00~SU.99andpressthe“ENTER”buttontoconrmthesetting.
Value: 00 - 99 (00 = low, 99 = high)
Toexitoutofanyoftheaboveoptions,pressthe“MODE”button.
Channel Value Function
1000-255 Masterdimmer(0-100%)
Channel Value Function
1000-255 Masterdimmer(0-100%)
2000-255 Flashspeed(slowtofast)
2 channel mode:
Staticmode C-00~C-99Brightness(0-100%)
F-00~F-99Flashspeed(slow-fast)
Slavemode SLAV
Soundactivemode SU00~SU99
Menusystem
DMXmode 1CH,2CH
Addresssetting A001~A512
IRfunction Iron -IROn
IroF -IROff
1 channel mode:

www.prolight.co.uk UV Spectra Batten User Manual 5
Operating instructions
Included IR remote functions:
Button functions:
DMX address examples:
TosettheDMXaddress;
• Pressthe“S”button,theLEDxturewillilluminateinfull,youcannowstarttosettheDMXaddress
• Selecttherequired3digitDMXaddress(eg001or136or275)theunitwillthenash
toconrmtheaddresshasbeenset
• Nowpressthe“DMXMODE”buttontosavethenewaddressintothememory
Important notes:
• SettheDMXaddressoneachxturebeforepluggingintotheDMXcontroller
• TheIRremotecannotbeusedwhenthexture(s)arebeingcontrolledwithaDMXcontroller
• ThemaximumIRtransmitterdistanceis10m-PleasemakesurethatyouhavetheIRremote
aimeddirectlyatthefrontpanelofeachxturetobeprogrammed
• Ifyoudonotpressthe“DMXMODE”buttonafteryouhavechangedtheDMXaddresswhenyou
powerdownthextureitwilllosetheaddressyouhaveset
01-Blackout
02-TosetthebrightnessoftheLEDeither
select20%,50%or100%oralternatively
youcanusethe‘+’and‘-’buttons
03-Flashoff
04-TosettheashspeedoftheLEDeither
select20%,50%or100%oralternatively
youcanusethe‘+’and‘-’buttons
05-SetstheLEDxtureintoDMXmode
06-SetstheLEDxtureintosoundactivemode
07-SetstheLEDxtureintoslavemode
08-SetstheDMXaddressfortheLEDxture
1 2 3
4 5 6 0
+
_
7 8 9
D SL S
OFF 20% 50% 100%
SA
STROBE
OFF 20% 50% 100%
DIMMING
SLAVE SET ADDRSOUND ACTIVEDMX MODE
01
04
02
07
06
05 08
Included
IR remote
Order code:
LEDJ90E
03

www.prolight.co.uk UV Spectra Batten User Manual 6
Setting the DMX address:
TheDMXmodeenablestheuseofauniversalDMXcontroller.Eachxturerequiresa“startaddress”
from1-512.Axturerequiringoneormorechannelsforcontrolbeginstoreadthedataonthechannel
indicatedbythestartaddress.Forexample,axturethatoccupiesoruses7channelsofDMXandwas
addressedtostartonDMXchannel100,wouldreaddatafromchannels:100,101,102,103,104,105
and106.Chooseastartaddresssothatthechannelsuseddonotoverlap.E.g.thenextunitinthe
chainstartsat107.
DMX 512:
DMX(DigitalMultiplex)isauniversalprotocolusedasaformofcommunicationbetweenintelligent
xturesandcontrollers.ADMXcontrollersendsDMXdatainstructionsformthecontrollertothexture.
DMXdataissentasserialdatathattravelsfromxturetoxtureviatheDATA“IN”andDATA“OUT”
XLRterminalslocatedonallDMXxtures(mostcontrollersonlyhaveadata“out”terminal).
DMX linking:
DMXisalanguageallowingallmakesandmodelsofdifferentmanufacturestobelinkedtogether
andoperatefromasinglecontroller,aslongasallxturesandthecontrollerareDMXcompliant.
ToensureproperDMXdatatransmission,whenusingseveralDMXxturestrytousetheshortest
cablepathpossible.TheorderinwhichxturesareconnectedinaDMXlinedoesnotinuencethe
DMXaddressing.Forexample;axtureassignedtoaDMXaddressof1maybeplacedanywherein
aDMXline,atthebeginning,attheend,oranywhereinthemiddle.Whenaxtureisassigneda
DMXaddressof1,theDMXcontrollerknowstosendDATAassignedtoaddress1tothatunit,
nomatterwhereitislocatedintheDMXchain.
DATA cable (DMX cable) requirements (for DMX operation):
ThisxturecanbecontrolledviaDMX-512protocol.TheDMXaddressissetonthebackoftheunit.
YourunitandyourDMXcontrollerrequireastandard3-pinXLRconnectorfordatainput/output,
seeimagebelow.
Also remember that DMX cable must be daisy chained and cannot be split.
DMX setup
FurtherDMXcablescanbe
purchasedfromallgoodsound
andlightingsuppliersor
ProLightConceptsdealers.
Pleasequote:
CABL10 – 2m
CABL11 – 5m
CABL12 – 10m

www.prolight.co.uk UV Spectra Batten User Manual 7
Notice:
Besuretofollowthediagramsbelowwhenmakingyourowncables.Donotconnectthecables
shieldconductortothegroundlugorallowtheshieldconductortocomeincontactwiththeXLRs
outercasing.Groundingtheshieldcouldcauseashortcircuitanderraticbehaviour.
Special note:
Line termination:
Whenlongerrunsofcableareused,
youmayneedtouseaterminatoron
thelastunittoavoiderraticbehaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89)
5-pin XLR DMX connectors:
Somemanufacturesuse5-pinXLRconnectorsfordatatransmissioninplaceof3-pin.5-pinXLRxtures
maybeimplementedina3-pinXLRDMXline.Wheninsertingstandard5-pinXLRconnectorsintoa
3-pinlineacableadaptormustbeused.Thediagrambelowdetailsthecorrectcableconversion.
Terminationreducessignaltransmission
problemsandinterferance.itisalways
advisabletoconnectaDMXterminal,
(resistance120Ohm1/4W)betweenpin2
(DMX-)andpin3(DMX+)ofthelastxture.
5-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
DMX setup

www.prolight.co.uk UV Spectra Batten User Manual 8
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
Thismarkingshownontheproductoritsliterature,indicatesthatitshouldnotbedisposedof
withotherhouseholdwastesattheendofitsworkinglife.Topreventpossibleharmtothe
environmentorhumanhealthfromuncontrolledwastedisposal,pleaseseparatethisfromother
typesofwastesandrecycleitresponsiblytopromotethesustainablereuseofmaterialresources.
Householdusersshouldcontacteithertheretailerwheretheypurchasedthisproduct,ortheir
localgovernmentofce,fordetailsofwhereandhowtheycantakethisitemforenvironmentally
saferecycling.
Businessusersshouldcontacttheirsupplierandcheckthetermsandconditionsofthe
purchasecontract.Thisproductshouldnotbemixedwithothercommercialwastesfordisposal.
