Legamaster ETX-5520 User manual

Information in this document is subject to change without notice.
2020 Legamaster International B.V. All rights reserved.
Reproduction in any manner whatsoever without the written
permission of Legamaster International is strictly forbidden.
Trademarks used in this text: Legamaster and the Legamaster logo
are trademarks of edding AG. Other trademarks and trade names
may be used in this document to refer to either the entities claiming
the marks and names or their products. Legamaster International
disclaims any proprietary interest in trademarks and trade names
other than its own.
Version 1.0
ENGLISH

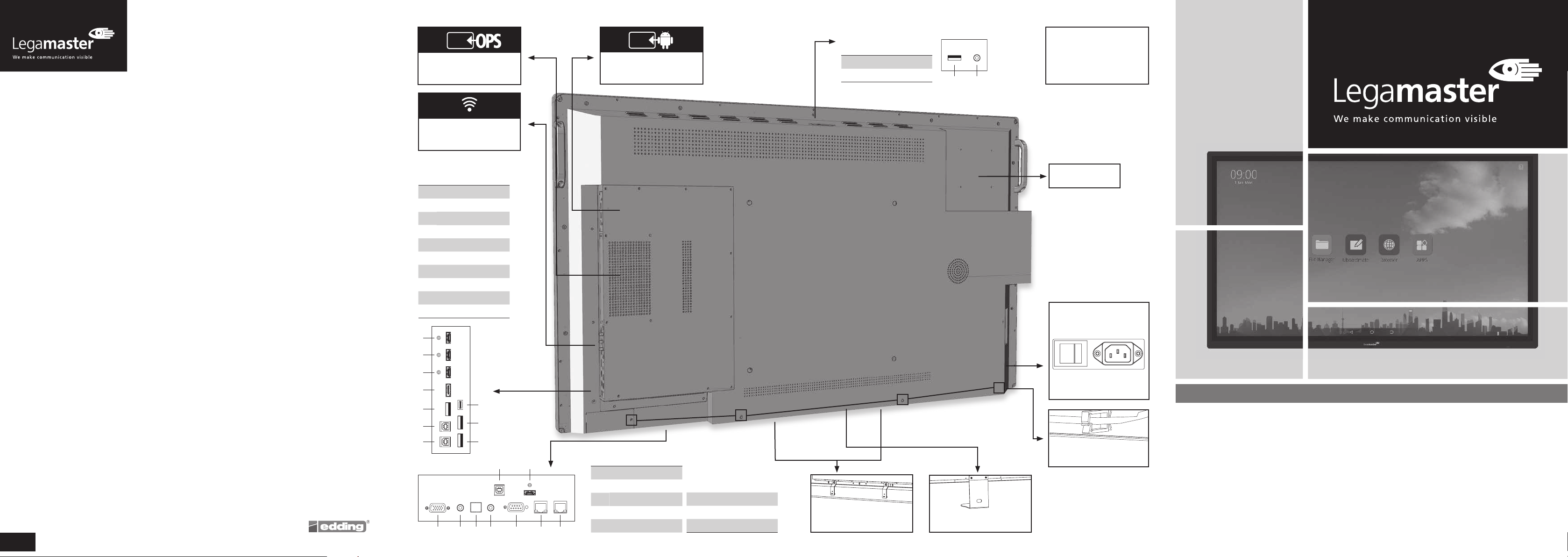

Legamaster – QUICK SETUP GUIDE
1
2
3
4
5
10
9
8
6
7
1 2 3 4 5 6
98
7
1 HDMi Out
2 HDMi (ARC) 1
3 HDMi 2
4 Display Port
5 USB-A 2.0
6 Touch USB 1
7 Touch USB 2
8 USB-C
9 USB-A 3.0
10 USB-A 3.0
1 VGA (PC)
2 Audio-in (PC)
3 S/P Dif
4 Audio-out
5 RS232
“I“ is power on
“O” is power off
Main power –
Switch
AC In socket
Legamaster, brand of the edding group
Legamaster International B.V.
Postbus 111
7240 AC Lochem
tel.: (+31) (0)573-713000
email: [e-mail]
internet: www.legamaster.com
OPS slot
No image
1 Ensure the power plug and, in case of external
sources, the video-cable plugs are installed correctly
at both ends.
2. Check if the main power switch is set to “|“
3. Check if the e-Screen is not in standby mode
by pressing the on/off button on the remote or
e-Screen control pad.
4. Make sure the correct input is selected.
5. Check that source equipment is operating correctly,
for instance:
- The source is turned on and not in standby or
sleep mode
- All video cables are not damaged (e.g. cable
breaks or bent pins inside the connector)
- If possible check with other source and cables
6. In case of long video cables (>5m): check signal
transmission with the originally supplied cables.
7. In case of installations with peripheral equipment
such as distribution amplifiers, matrix switchers, sig-
nal boosters, etc.: check the working of the screen
with the source directly connected to the e-Screen,
using the originally supplied cables.
Bad image quality of source signal
1. Check that source equipment is operating correctly,
for instance:
All video cables are installed correctly at both ends
and are not damaged (e.g. cable breaks or bent
pins inside the connector).
Make sure the resolution of the input signal
is set to the native resolution of the e-Screen
3840x2160@30Hz or 60Hz).
2. If possible check with other source and cables.
The image is positioned incorrectly
1. Disconnect and reconnect the signal cable
2. Restart the entire system, make sure to first switch
on the monitor and secondly the source or OPS PC
3. Perform a factory reset from the menu of the
e-Screen
The image is too light or too dark
1. Adjust the brightness and contrast of the e-Screen
2. Make sure no direct light source shines on the
brightness sensor on the backside of the e-Screen
The picture color looks poor
1. Check the colour picture settings of the e-Screen
2. Perform a factory reset from the menu of the
e-Screen
No Touch
1. Make sure the USB cable is installed correctly at
both ends and is not damaged
2 Disconnect and reconnect the USB cable after 10
seconds, please allow the PC to detect the hard-
ware. This can take a few seconds
3. Reboot the PC.
Touch performance is poor or touch recognition is
not at the correct position.
1. Make sure there are no unwanted objects in range
of the touch system (e.g. jacket sleeves).
2. Make sure there are no light sources (e.g. halogen
lamps or sun light) shining directly at the surface of
the e-Screen.
3. Place your finger or stylus in a 90 degree angle on
the touch surface.
4. Do not hold the stylus too close towards the tip.
5. Please make sure the inside of the bezel (where the
touch sensors are placed) is clean(ed) and free of
items blocking the view of the sensors.
6. Turn off scaling in the display settings of the source.
Touch recognition is slow
1. Close all active windows on the PC
2. Reboot the PC
TROUBLESHOOTING
Android module slot
CONNECTOR TABLE (SIDE)
CONNECTOR TABLE (BOTTOM)
Optional
EasyFix Soundbar bracket
VESA 100x100
pattern
Included accessory
EasyFix Cable Clips
Optional
camera mount
Wifi-module
6 LAN 1
7 LAN 2
8 Touch USB 3
9 HDMi 3
For
frequently asked questions,
trouble-shooting and tips&tricks,
please visit:
www.faq.legamaster.com
QUICK SETUP GUIDE
ETX-5520 / ETX-5520 PLUS
1 2
1 USB-A 3.0
2 Audio-in (PC)
CONNECTOR TABLE (TOP)

QUICK SETUP GUIDE QUICK SETUP GUIDE
Thank you for purchasing this Legamaster e-Screen
interactive display. This Quick Setup Guide will help
you setup the monitor and cover the basic operation
instructions.
Please refer to the user manual that can be found on
the USB drive for more detailed instructions and the
full safety and installation information.
Legamaster guarantees the repair or replacement,
free of charge, of faulty e-Screens and/or parts by an
authorized service partner for a warranty period of 5
years. The warranty shall take effect on the date of
purchase as stated on the receipt.
If you wish to make a claim under the warranty or
you have any other service issues, please contact your
dealer or Legamaster directly. Please refer to www.
Legamaster.com/warranty for specific warranty infor-
mation for your market.
This product, when disposed of, is supposed to be
collected and recycled according to your country‘s
legislation to reduce environmental burden.
When you dispose of this product, please contact a
distributor or an affiliate in your country. The contact
addresses are listed on the Legamaster website
http://www.legamaster.com.
By disposing this product correctly you will help
ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent
potential negative effects on the environment and
human health which could otherwise arise due to
inappropriate waste handling.
FCC:
FCC CFR Title 47
part 15 Subpart B.
CB:
IEC62368-1
CE:
EN55032
EN55035
EN61000-3-2
EN61000-3-3
EN62368
CAUTION
MOUNTING OF THIS PRODUCT CAN ONLY BE EXECUTED BY QUALIFIED STAFF
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL
SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD
FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
Item
IR Remote Control (Batteries Included)
Quick Setup-Guide
Power Cable
HDMi Cable
USB Cable
2-in1 stylus
2 x High precision stylus
Easyfix Cable clips
USB drive with user manual
Label Description
Turn the display on and off
Back / return to previous menu
Navigational buttons
Select / confirm (when in menu) or Freeze screen
(when not navigating menu‘s)
Menu
Home
Source selection menu
Volume down
Mute
Volume Up
Adjusting the Volume
1. Bring up the quick launch menu by pressing the central
control button. Adjust the volume slider to adjust volume.
Alternatively, use the + and - button on the remote cont-
rol to adjust volume.
Selecting the input source
1. Bring up the quick launch menu by pressing the central
control button. In the quick-launch menu, press the source
button to go to the source menu. Alternatively, push
the source button on the remote control to bring up the
source menu. In the source menu, simply touch a source
to switch to that source.
2. If the display cannot find a source, a “No signal” message
will appear.
Turning the display on
1. Connect the display to an AC power outlet
2. Ensure the AC switch is set to
“|“ .
3. Press the central control button on the front of the lower
bezel. Alternatively you can use can use the power button
on the remote control.
Turning the display off
With the Power on, press and hold the central command button
on the center of the lower bezel. A warning message will appe-
ar. Alternatively you can use the power button on the remote
control. To turn off power completely, turn the AC switch to
„O“ or disconnect the AC power cord from the power outlet.
Note: If there is no signal input for a period of time, the display will automatically go into power saving (sleep) mode.
