Legamaster Panorama PAN-10500 User manual

Product Content & Operation - Version 1.0
Touchscreen display
Safety & Recommendations
English Deutsch Nederlands Français Español

Product Content & Operation - Version 1.0 2
Table of contents
01 IMPORTANT INFORMATION 3
1.1 USE 3
1.2 EXEMPTIONS 4
02 SAFETY INSTRUCTIONS 4
2.1 SAFETY PRECAUTIONS 4
2.2 MOVING AND CARRYING NOTICE 5
2.3 INSTALLATION 5
2.4 WALLMOUNT SAFETY NOTICE 6
2.5 RECOMMENDED USE 7
2.6 CLEANING 8

Product Content & Operation - Version 1.0 3
IMPORTANT INFORMATION
1.IMPORTANT INFORMATION
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE. ALSO, DO NOT USE THIS UNIT‘S POLARIZED PLUG WITH AN
EXTENSION CORD RECEPTABLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.REFRAIN FROM OPENING THE E-SCREENS HOUSING
AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS
UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE
UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE.
WARNING:
FOR CONTINUED SAFETY, DEVICES WITH CLASS I CONSTRUCTION SHALL BE
CONNECTED TO A MAIN SOCKET OUTLET WITH A PROTECTIVE EARTHING
CONNECTION.
WARNING:
THIS IS A CLASS A PRODUCT MEANT TO BE USED IN PROFFECIONAL
ENVIROMENTS. - THIS PRODUCT MUST NOT BE USED IN RESIDENTIAL AREAS.
1.1. USE
•Transport the product upright with proper packaging. Avoid placing the product face up or down. Handle
with care!
•Do not send a static (non-moving) image to the e-screen, it may cause image ‘burn-in’ or image retention.
•“Burn in” and/or image retention is not covered under warranty.
•Make sure to change the image on the e-screen periodically. It is recommended to turn off the e-screen
for at least 6 hours after 16 hours of usage in a 24-hour period to help avoid image retention.

Product Content & Operation - Version 1.0 4
SAFETY INSTRUCTIONS
2. SAFETY INSTRUCTIONS
Before using this e-screen, please read this user
manual thoroughly to help protect against property
damage and to ensure your personal safety and the
safety of others.
• Read and follow all instructions and safety-
warnings found in this manual.
• For installation or adjustment, please follow the
instructions in this manual and refer all servicing to
qualified service personnel.
2.1 SAFETY PRECAUTIONS
If smoke or a peculiar smell comes from the e-
Screen, remove the power plug from the outlet
immediately. Failure to do so may result in fire or
electrical shock.
Contact your dealer for inspection.
If the e-Screen has been turned on but there is no
picture, remove the power plug from the outlet
immediately. Failure to do so may result in fire or
electrical shock.
Contact your dealer for inspection.
If water is spilled or objects are dropped inside the
e-Screen, remove the power plug from the outlet
immediately. Failure to do so may result in fire or
electrical shock.
Contact your dealer for inspection.
If the e-Screen is dropped or the e-screen‘s
housing is damaged, remove the power plug from
the outlet immediately. Failure to do so may result
in fire or electrical shock.
Contact your dealer for inspection.
If the power cord or plug is damaged or becomes
hot, turn off the main power switch of the e-
Screen, make sure the power plug has cooled
down and remove the power plug from the outlet.
If the e-Screen is still used in this condition, it may
cause fire or electrical shock. Contact your dealer
for replacement.
1.2. EXEMPTIONS
•This product isn’t warranted for any damage
caused by natural disaster (such as earthquake,
thunder, etc.), fire, acts by third parties,
accidents, owner’s intentional misuse and fault,
or use in other improper conditions.
•This product isn’t warranted for incidental
damages (such as profit loss or interruption in
business, modification or erasure of record data,
etc.) caused by use or inability to use of this
product.
•This product isn’t warranted for any damage
caused by inappropriate operation, or from not
following the user manual.
•This product isn’t warranted for any damage
caused by misuse or malfunction through
simultaneous use of this product and the
connected equipment or software.
•This product isn’t warranted for any damage
caused by neglect of the installation instructions.
•This product isn’t warranted for any damage
caused by improper installation.
•This product isn’t warranted for any damage
caused by disassembly, modification or repair by
non-authorized service centers or people.

Product Content & Operation - Version 1.0 5
SAFETY INSTRUCTIONS
2.2 MOVING AND CARRYING
NOTICE
Moving the product:
Moving the product requires at least four
people. Attempting to move the product with
fewer people may result in damage to the
display or in serious injury of the people
handling the screen. When moving a display in
its shipping carton, lift the carton using the
white handles.
Carrying the product:
This product is heavy; please follow proper
lifting techniques, as pictured below. Failure to
do so may cause injury.
2.3 INSTALLATION
Don‘t install in a high-temperature environment.
If the e-screen is used in high-temperatures or in
direct sunlight, it may cause the housing of the
product or other parts to become distorted or
damaged, resulting in overheating or electrical
shock.
Don‘t install in a high-humidity environment.
This may cause overheating or electrical shock.
Don‘t install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus that produce heat.
This may cause fire or electrical shock.
Don‘t overload outlets or cables beyond electrical
capacity. Don‘t use extension cords as it may cause
fire or electrical shock.
Don‘t insert the power plug into an outlet other
than 100~240V AC.
This may cause fire or electrical shock.
• Don’t use a damaged power plug or worn outlet.
• Don’t insert an improper power plug it may
cause fire or electric shock.
Don‘t place the e-screen on an unstable shelf or
surface. The e-screen may fall, causing injury.
Please install on a horizontal, stable, level surface.
Don‘t place objects on the e-screen.
• If the e-screen is covered or the vents are
blocked, the display could overheat and cause a
fire.
• If objects or liquids get inside the e-screen, this
may cause fire or electrical shock.
• Do not put heavy objects on the e-screen as they
may fall, causing injury.
• Please keep a 10 cm minimum distance between
e-screen, wall and/or other objects to ensure
sufficient ventilation.

Product Content & Operation - Version 1.0 6
SAFETY INSTRUCTIONS

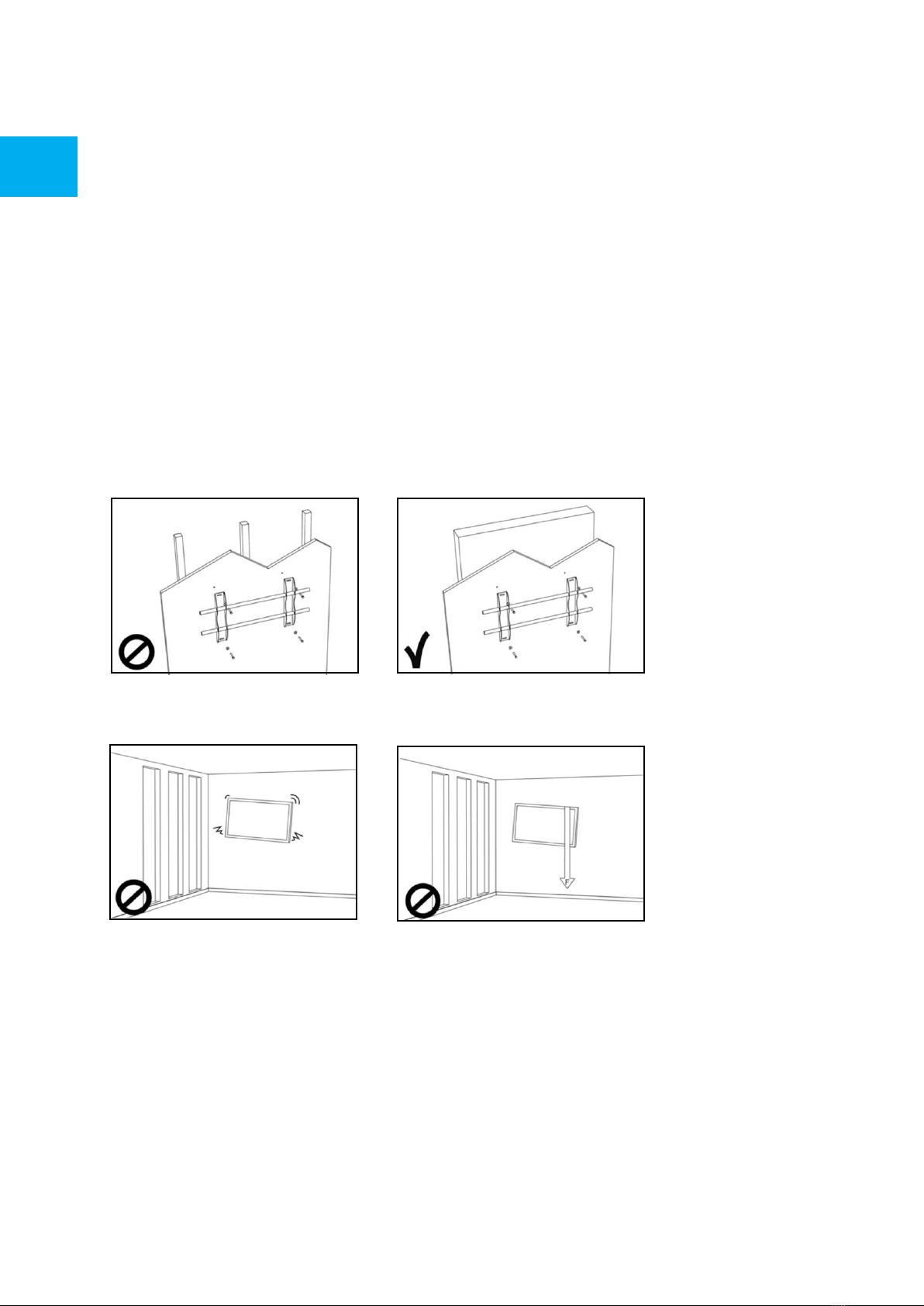

2.4 WALLMOUNT SAFETY NOTICE
1. Please make sure that the bracket is mounted on a solid surface.
2. After mounting the screen, do not pull, push or shake the screen.
Don‘t move the e-screen when it is connected to the power cord and AV cables.
•When moving the e-screen, make sure to remove all cables first.
•When unpacking or carrying the e-screen, at least 4 people are needed. Make sure the e-screen is carried
upright.
•Transport the e-screen upright. Avoid placing the e-screen face up or down.
•Handle the e-screen gently. Do not drop.

Product Content & Operation - Version 1.0 7
SAFETY INSTRUCTIONS
2.5 RECOMMENDED USE
If you encounter a problem during installation, please contact your supplier for assistance. Don’t repair or
open the e-screen by yourself. Failure to do so may result in fire or electrical shock.
Contact your dealer for inspection.
Protect and correctly use the power cord/plug.
•Don‘t pinch the power cord/plug between hard surfaces.
• Don‘t step on the power cord/plug.
• Before inserting the power plug into the wall outlet, connect the power cord to the display.
• Using an e-screen with a damaged or non-original power cord can damage the screen, cause fires or
electrical shocks.
Using extension cords (not recommended)
If an extension cord must be used, ensure the voltage rating exceeds the max power consumption of the
display. If the voltage rating is less than the display, it will cause the extension cord to overheat.
Do not operate the screen during thunder or lightning.
Remove the powerplug from the power outlet.
1. Do not install screens in direct sunlight, humid conditions, or high temperatures.
4.

Product Content & Operation - Version 1.0 8
SAFETY INSTRUCTIONS
Don’t use any kind of liquid on the e-screen.
• If liquid is spilled on the e-screen, remove the power plug from the wall socket and ask qualified service
personnel to check the product.
• If liquid gets on e-screens glass plate, clean it with a dry and soft cloth immediately.
• Don’t use any chemicals on the e-screen.
• If metal or liquids get into the e-screen, it may cause a fire or an electrical shock.
Don’t install or remove the power plug with wet hands. This may cause an electrical shock.
If the e-screen will not be used for a long period of time, unplug the display. Preventing to do so may cause
premature wear of electrical components or fire.
Handle the e-screen with care, prevent glass breakage.
•If the glass of the e-screen is broken, liquids may escape. Please don‘t touch the liquid.
•If these liquids come into contact with skin or eyes, immediately wash it away with clean water and consult
a medical professional.
Precautions with the remote-control batteries
•Please only use approved AAA type batteries.
•Please be sure to insert batteries by matching the + and -.
•Don’t recharge, heat, disassemble, short or throw batteries into a fire.
•Don’t mix a new battery with a used one.
•Don’t mix different types of batteries together (only use the specified type).
2.6 CLEANING
Remove the power plug from the power outlet before cleaning.
Failure to do so may result in electrical shock or damage.
Cleaning the surface of the e-screen
•When the surface of the e-screen becomes dirty, wipe the surface lightly with a soft clean cloth.
•If the surface requires additional cleaning, lightly moisten the cloth.
•Do not to let any kind of liquid enter the e-screen as it may cause electrical shock or damage.
•Do not clean the e-screen with alcohol, solvents or ammonia, as this could damage the e-screen.

Product Content & Operation - Version 1.0 9
Touchscreen display
Product Content & Operation
English Deutsch Nederlands Français Español

Product Content & Operation - Version 1.0 10
TABLE OF CONTENTS
01 PACKAGE CONTENT 11
1.1 UNPACKING 11
1.2 INCLUDED ACCESORIES 11
02 INSTALLATION 11
2.1 ENVIROMENT CONDITIONS 11
2.2 GENERAL OVERVIEW OF THE SCREEN 12
2.3 INPUT / OUTPUT CONNECTOR INFORMATION 13
2.4 REMOTE CONTROL 13
2.4.1 CHANGING THE REMOTE-CONTROL BATTERY 14
03 TURNING THE SCREEN ON AND OFF 14
3.1 SCREEN BASIC OPERATION 15
3.2 SETTINGS MENU 15
04 TROUBLESHOOTING 16
05 WARRANTY 17

Product Content & Operation - Version 1.0 11
PACKAGE CONTENT / INSTALLATION
1.PACKAGE CONTENT
ITEMS
Power Cord 1.8m
Remote Control
Passive Stylus x2
Wall mount x1
1.1. UNPACKING
• The Touch Monitor is packed using cushions to protect the product during shipping.
• Before unpacking, prepare a stable, level, and clean surface near a wall outlet.
•Step 1: Place the box in an up-right stable position.
• Step 2: Remove the white handles and cut the banding.
•Step 3: Smoothly lift the upper part of the box, this will reveal the touch monitor box content.
• Step 4: Remove the top cushion and take the accessory bag out.
•Step 5: Extend the bag up and carefully cut the upper layer to unseal the touch monitor bag.
• Step 6: Prepare your screen for installation, and then remove it from the box by lifting it.
1.2. INCLUDED ACCESSORIES
2. INSTALLATION
2.1 ENVIROMENT CONDITIONS
When operating the screen, ambient room conditions should not exceed the following:
•Operating temperature: -5˚C to 45˚C (41˚F to 104˚F)
•Humidity: less than 90% RH (Max)

Product Content & Operation - Version 1.0 12
OVERVIEW
2.2 GENERAL OVERVIEW OF THE SCREEN
110V-220V
Main Power
All inputs & Outputs
available here.
CONNECTOR BAY
Power the screen ON
& OFF
Power Button
Uniform thin bezel all
around the screen
Thin Bezel
High Precision IR
Touch System
IR Touch
OPS Standard Connector
OPS Slot
Control power to the screen
once its connected
Main Power Switch

Product Content & Operation - Version 1.0 13
OVERVIEW
2.4 REMOTE CONTROL
2.3 INPUT / OUTPUT CONNECTOR INFORMATION
Standby Switch: Turn the display ON & OFF.
Mute: Turn audio ON & OFF
Menu: Direct access to the main settings Menu
Source Selection Displays the input selection screen to select from
Select / Confirm: Confirm your on-screen selection.
Directional Selection: Option selection movement
Volume Down: Lowers the audio volume.
Volume Up: Raises the audio volume.
Return: Return to the previous Menu/Option.
Back to OPS: Direct access to OPS PC input
USB-B 2.0 (x1) Touch USB
HDMI 2.0 (x1)
DP 1.2 (x2)
Audio Out 3.5 Jack

Product Content & Operation - Version 1.0 14
OVERVIEW / OPERATING THE SCREEN
3. TURNING THE DISPLAY ON AND OFF
Please make sure the display is connected to an AC power-socket using the supplied power cable.
Set the AC-switch to “l “. The Touch monitor will start up, if not.
To switch the display on, push the power button (left bottom back side of the screen) “O” on the screen
once, or push the power-button on the remote control.
To switch the monitor off, press the power button “O” on the screen or push the power button on the
remote control. The display will switch to stand-by mode.
To turn off power completely, turn the AC switch to “O “or disconnect the AC power cord from the power
outlet.
2.4.1 CHANGING THE REMOTE-CONTROL BATTERY
1. Remove the battery cover:
On the backside of the remote-control, slide down the battery cover.
2. Insert batteries:
Use two AAA batteries and insert them according to the plus and minus indicators in the remote control.
3. Close the battery cover by sliding it back into place.
I. Discard batteries according to the local waste reduction and recovery regulations.
II. Do not keep used, empty batteries in the remote control. They can leak and result in damages to the
remote control.
III. Only use batteries according to the instructions and regulations found in this manual and to the
instructions and regulations set forth by the batteries’manufacturer.
About the remote control
•Do not drop, shake, or bump.
•Avoid moist conditions, liquids, high-temperatures and/or exposure to direct sunlight.
•Don’t dismantle.

Product Content & Operation - Version 1.0 15
OPERATING THE SCREEN
MAIN SETTING
LEVEL1
VALUES
EXPLANATION
Brightness/Contrast
Brightness
1-100
Brightness level adjustment from 1 to 100
Contrast
1-100
Contrast level adjustment from 1 to 100
Image Adjust
Sharpness
1 - 100
Sharpness level adjustment from 1 to 100
Gamma
OFF/1.8/2.0/2.2/2.4/2.6
Gamma Selection
Color Temperature
Color
Temperature
Cool / Warm / Normal /
User
Color Temperature selection
Red
1 - 100
Red Color level adjustment from 1 to 100
Green
1 - 100
Green Color level adjustment from 1 to 100
Blue
1 - 100
Blue Color level adjustment from 1 to 100
OSD Setting
Language
EN/DE/ES/FR
Language selection
OSD H.
Position
1 - 100
OSD Horizontal position adjustment from 1 to 100
OSD V.
Position
1 - 100
OSD Vertical position adjustment from 1 to 100
Time Out
1 - 60
Time Out timer adjustment (Seconds)
Transparency
1 - 100
OSD Transparency level adjustment from 1 to 100
Reset
Reset
Yes / No
Reset the device to the default factory settings
Reset OPS
Yes / No
Reset power to the OPS computer
PBP Mode
OFF / Activate
Activate the double source display
Right Source
Windows/DP1 / DP2/
HDMI
Right source selection
Audio Source
Right Window/Left
Window
Select between left and right windows audio
Other
Source Input
Windows/DP1 / DP2/
HDMI
Select main source input
Volume
1 - 100
Volume level adjustment from 1 to 100
Low Blue
Light
Off/Low/Middle/High
Blue light filter selection
Version
ON/OFF
Show or hide the device information
Touch
Function
Built in/ External
Select Touch source.
3.2 SETTINGS MENU
3.1 SCREEN BASIC OPERATION
Click the “ “button on the remote control to access the menu adjustment screen, which supports
brightness, contrast and image color temperature adjustments, OSD settings, device factory rest and other
options.
-Brightness & Contrast: Adjust the display brightness and contrast using the up and down cursor
keys on your remote control.
-Image Adjustment: Adjust the displays sharpness and gamma using the up and down cursors key on
your remote control.
-Color Temperature: Use your remote control so select one option: Cool, Normal, Warm and User
(will allow you to set your own color parameters)
-OSD Settings: Multiple options will be available to adjust horizontal and vertical positioning, OSD
timeout, transparency and interface language.
-Other: Source input, Volume setting, low blue light and more options will be available in this menu.

Product Content & Operation - Version 1.0 16
OPERATING THE SCREEN
SYMPTOM
POSSIBLE CAUSE
SOLUTION
The screen does not
display an image, there
is no sound and the
power indicator is OFF.
There could be a
power connection
issue.
Please make sure that
the power cable is
connected and that the
power outlet has
power.
The displayed image
on the screen has
dotted lines or a
colored stripe.
This could be caused
by signal interference.
Please make sure that
there are no other
products that could
cause this signal
interference, use a
different power outlet.
The displayed image
on the screen does not
cover the entire
surface, is blurry or
beyond the display
boundaries.
(1) Improper
adjustment (2) Wrong
display mode selected
(1) Use the auto
adjustment function.
(2) Access the “PC
screen adjustment” to
adjust the H. and V.
positioning. (3) Use the
default display mode.
The Display’s operative
system crashes or
freezes during
operation.
This can be due to
external environment
factors
(1) Restart de device (2)
use a different power
connector
The touch response
time is too slow or
does not respond.
Too many resources
are being used on the
host device.
Please make sure that
the device is not
running multiple Apps
at the same time
The Ops PC cannot be
tuned ON, the OPS
image is not visible or
has no touch response.
The OPS connection is
not correctly set
Please make sure the
OPS connection is
properly set.
4. TROUBLESHOOTING
FOR FREQUENTLY ASKED QUESTIONS, PLEASE VISIT: WWW.FAQ.LEGAMASTER.COM

Product Content & Operation - Version 1.0 17
WARRANTY
For information about the warranty of this product please check our Warranty
Coverage and Statement on our website:
www.legamaster.com/service/warranty
Other manuals for Panorama PAN-10500
1
Table of contents
Other Legamaster Touchscreen manuals

Legamaster
Legamaster e-Screen 84 UMD User manual

Legamaster
Legamaster XTX-5500UHD User manual

Legamaster
Legamaster STX-7550UHD User manual

Legamaster
Legamaster ETX-5520 User manual

Legamaster
Legamaster XTX-8600UHD User manual

Legamaster
Legamaster Panorama PAN-10500 User manual

Legamaster
Legamaster ETX-6520 User manual

Legamaster
Legamaster EVOLVE ETX-6530 User manual

Legamaster
Legamaster XTX-5500UHD User manual

Legamaster
Legamaster XTX-7500UHD User manual
