Power Foundations Owners Manual 99300787-k 3
important information
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
This Power Foundation has been quality engineered with design features to assure comfort and
safety when operated properly.
ELEctRicAL gROUNdiNg
This product is equipped with a polarized or
grounded electrical power cord. The power cord
will only fit into a grounded, electrical surge
protection device (not included) or a grounded
electrical outlet.
FOR OPTIMUM POWER FOUNDATION
OPERATION, USE A GROUNDED,
ELECTRICAL SURGE PROTECTION DEVICE
(NOT INCLUDED). FAILURE TO USE A
SURGE PROTECTION DEVICE COULD
COMPROMISE SAFETY OR CAUSE PRODUCT
MALFUNCTION.
WARRANty WARNiNg
Do not open any control boxes, motors or
hand control devices (with the exception of
the hand control and power down box battery
compartments). The product warranty will be
void if these components are tampered with.
Do not attempt to alter component wiring or
adjust or modify the structure of the product in
any way or the warranty will be void. Any repair
or replacement of bed parts must be performed
by authorized personnel.
LUbRicAtiON
This product is designed to be maintenance
free. The lift motors are permanently lubricated
and sealed—no additional lubrication is
required. Do not apply lubricant to lift motor
lead screws or any nylon nuts or the bed may
inadvertently creep downward from the elevated
position.
PROdUct RAtiNgS
The bed lift motors are not designed for
continuous use. Reliable operation and full life
expectancy will be realized as long as the lift
motors do not operate any more than five (5)
minutes over a thirty (30) minute period, or
approximately 15% duty cycle. Note: massage
equipped beds are not designed for continuous,
extended massage operation. Massage systems
are rated for a maximum of 2 hours of use
within any 6 hour period. Any attempt to
circumvent or exceed product ratings will
shorten the life expectancy of the product and
may void the warranty.
The recommended weight restrictions for Power
Foundations are as follows: AC equipped - 600
lb (272 kg) all sizes; DC equipped - 450 lb
(204 kg) all sizes. The bed will structurally
support the recommended weight distributed
evenly across the head and foot sections. This
product is not designed to support or lift this
amount in the head or foot sections alone.
Note: exceeding the recommended weight
restrictions could damage the bed and void the
warranty.
For best performance, consumers should enter
and exit the adjustable bed with the bed in the
flat (horizontal) position. DO NOT SIT ON THE
HEAD OR FOOT SECTIONS WHILE IN THE RAISED
POSITION.
UL (Underwriters Laboratories) recognized
components.
CFR 1633 approved for use with most
mattresses.
Made in USA.
AdviSORy

Power Foundations Owners Manual 99300787-k
4
AdviSORy
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
This Power Foundation has been quality engineered with design features to assure comfort and
safety when operated properly.
fcc cOMPLiANcE
Electrical components are rated for 110/120
voltage, 60Hz, 3.9 amp. Components meet
Class B digital device rating (Part 15, FCC
rules) for residential use. Power Foundations
generate, use and may radiate radio frequency
energy. Radio communication may be affected
if not installed and operated as recommended
in this manual. Changes or modifications not
expressively approved by the party responsible
for compliance could void the user’s authority
to operate the equipment.
Radio frequency = 310MHz.
LOckiNg cAStER SAfEty fEAtURE
Many Power Foundations are equipped with
locking casters to prohibit the bed from
movement. For best results, place rubber caster
cups under locking casters when the bed is
located on smooth or hard surface flooring—it
is possible for locking caster equipped beds to
slide without the use of rubber caster cups.

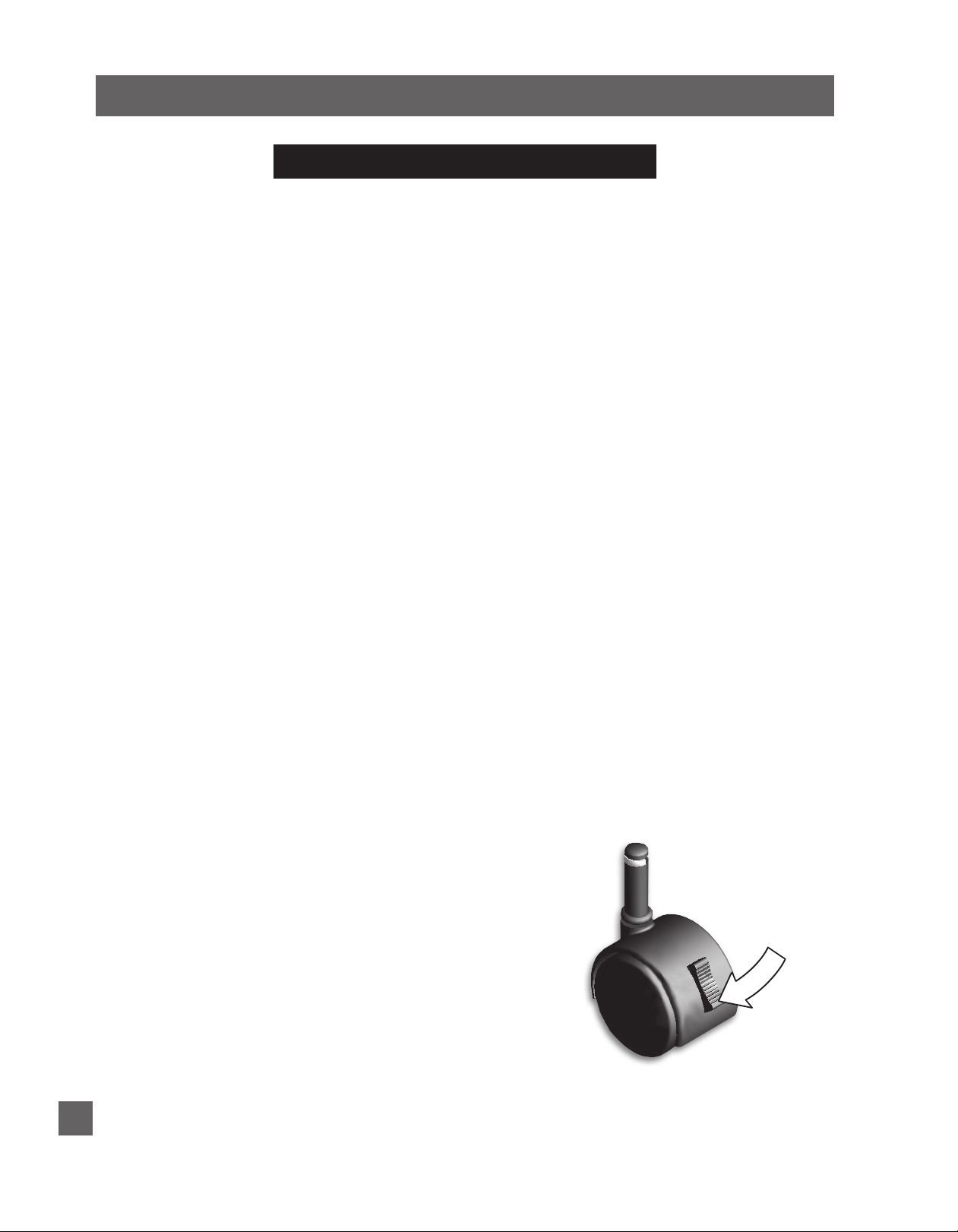

To activate locking casters, push down on the
lock tab. To disengage the locking mechanism,
push up on the lock tab (see illustration below).
LOCKING CASTER
DETAIL
LOCK
SMALL cHiLdREN / PEtS WARNiNg
After the bed is unboxed, immediately dispose
of packaging material as it can smother small
children and pets. To avoid injury, children or
pets should not be allowed to play under or on
the bed. Children should not operate this bed
without adult supervision.
HOSPitAL USE diScLAiMER
This bed is designed for in-home use only. It
is not approved for hospital use and does not
comply with hospital standards. Do not use this
bed with tent type oxygen therapy equipment,
or use near explosive gases.
PAcEMAkER WARNiNg
This product produces a vibrating sensation.
It is possible that individuals with heart-assist
pacemakers may experience a sensation similar
to exercise. Consult physician for complete
information.
SERvicE REqUiREMENtS
Service technicians are not responsible for
moving furniture, removing headboards and
footboards or any items required to perform
maintenance on the bed. In the event the
technician is unable to perform service due
to lack of accessibility, the service call will
be billed to the purchaser and the service will
have to be rescheduled.
important information

Power Foundations Owners Manual 99300787-k 5
AcOUSticS
LiftiNg/LOWERiNg MEcHANiSMS
The lift/lower feature will emit a minimal
humming sound during operation. This is
normal.
During operation, the lift arm wheels make
contact with the platform support of the bed.
This applies slight tension on the moving
components and resonance is reduced to a
minimum level. If excessive noise or vibration
is experienced, reverse the movement action
(up or down) of the bed with the hand control.
This should realign the bed’s activating
mechanisms to the proper operational position.
MASSAgE OPERAtiON
The massage feature will emit a minimal tone
during operation. This is normal. When the
massage level is increased, motor resonance
will intensify accordingly.
LOcAtiON ENviRONMENt
The level of sound experienced during
operation is directly related to the location
environment. For example, when a bed is
located on a hardwood floor with the massage
feature in operation, a vibrating tone will be
audible. To minimize this resonance, place
a piece of carpet—or optional rubber caster
cups—under each leg or caster of the bed. See
the accessory sheet included with this manual
for rubber caster cup order information.
It is possible to experience vibration or noise
from the headboard brackets, headboards or
footboards if mounting bolts are not firmly
tightened.

Power Foundations Owners Manual 99300787-k
6
LEG
(4 PIECES)

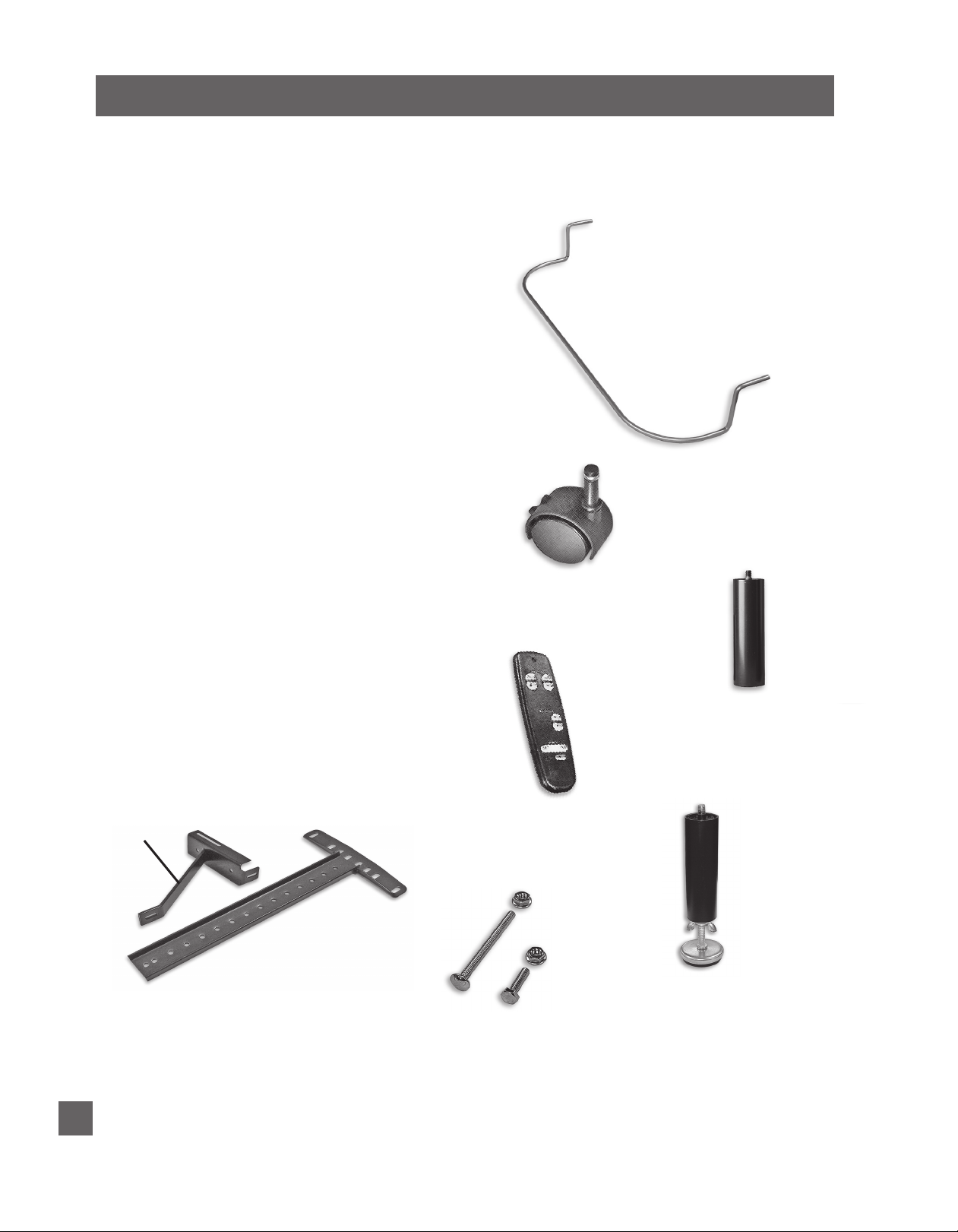

For installation and setup, complete the numbered procedure indicated below and on the
following pages:
iNStALLAtiON
LOCKING LEG CASTER
Optional for Pro-Motion™
products. (4 PIECES)
MATTRESS
RETAINER
(1 per base)
StEP 1
Before discarding any packing materials,
check the adjustable bed shipping carton
and verify the following items are
included:
• (1) Mattress Retainer
• (4) Bed Legs
• (4) Locking Leg Casters (optional for
Pro-Motion™ products)*
• (4) 5 inch Adjustable Legs (standard for
Silhouette™ and Optima products)*
• (2) Headboard Bracket Assemblies (Most
Silhouette™ and Pro-Motion™ products do not include
headboard bracket assemblies)*
• (1) Headboard Bracket Hardware Kit (Most
Silhouette™ and Pro-Motion™ products do not include
headboard bracket assemblies)*
• (1) Hand Control
• (1) Owners Manual
• (1) Hand Control Guide
• (1) Accessory Sheet
• (1) Warranty Sheet
• (1) Warranty Activation Card
• (1) Power Foundation Quick Setup Guide
5 INCH ADJUSTABLE LEG
Standard for Silhouette™ products.
(4 pieces for twin size, 6 pieces for
full size or larger)
HAND CONTROL
(see Hand Control Guide
for complete information)
ANGLE BRACE
HEADBOARD BRACKET ASSEMBLIES
Either twin or queen size—queen size shown.
Optional for Silhouette™ and Pro-Motion™
products. (4 pieces, 2 assemblies)
*S-cape®and S-cape®Platform are Type A bed base
frames.
Silhouette™, Pro-Motion™, and Bronze are Type B bed
base frames.
HEADBOARD BRACKET
HARDWARE KIT
Not included with
Silhouette™ and
Pro-Motion™ products.
(hardware: 16 pieces)

Power Foundations Owners Manual 99300787-k 7
iNStALLAtiON
StEP 2
Carefully lift the bed base frame from the shipping carton, keeping the
unit top-side-down.
StEP 3
Install (4) legs into the base frame. Simply screw each leg into a tapped
hole at each corner of the base frame (FIGURE 1). Insert casters into the
bottom of each bed leg.

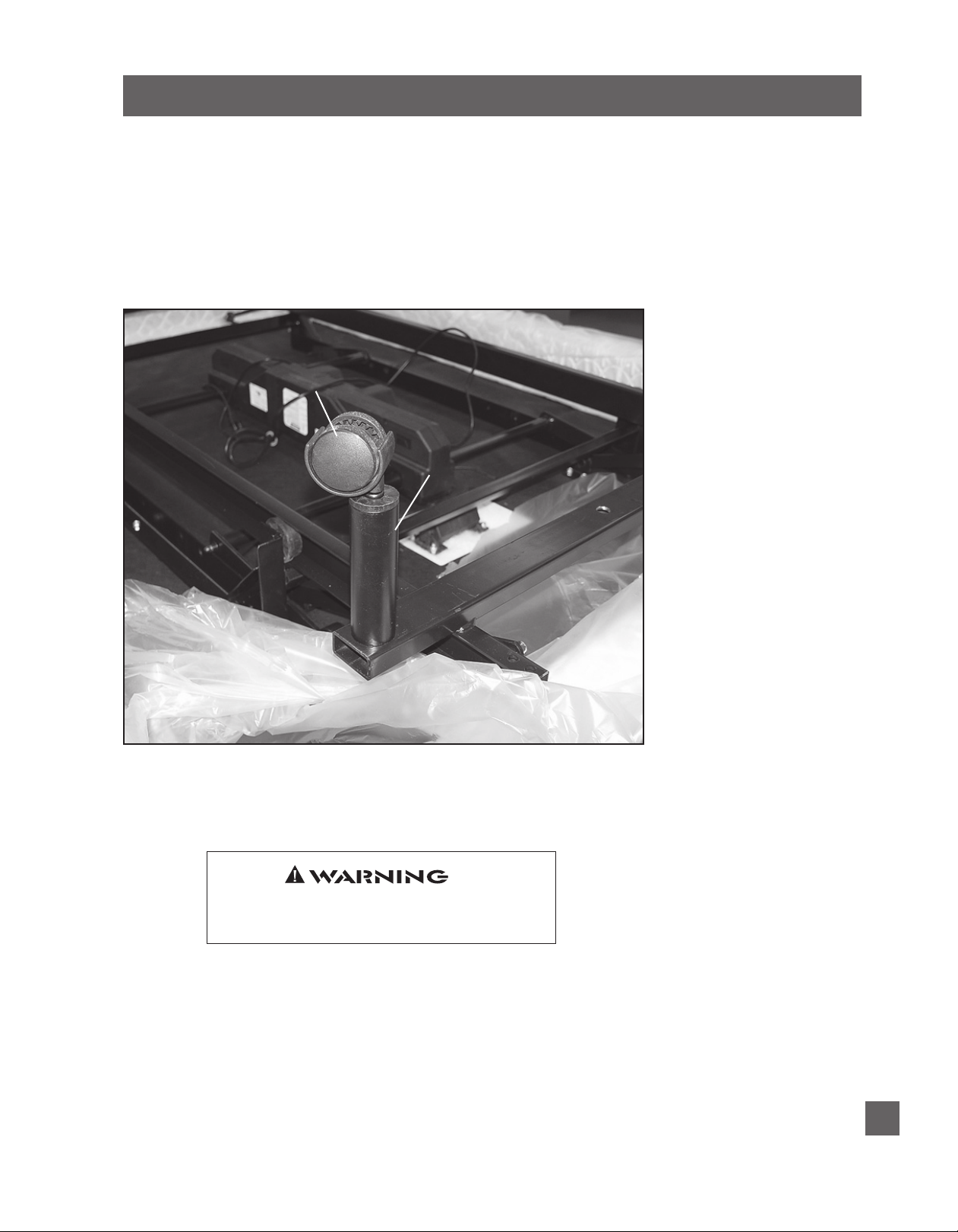

FIGURE 1: Leg and caster installation.
StEP 4
Remove and extend out power cord from the protective packaging.
POWER CORDS MUST NOT INTERFERE WITH
ANY POWER FOUNDATION MECHANISMS.
LEGS – SCREW INTO
TAPPED HOLE AT
EACH CORNER
CASTERS – PRESS-FIT
INTO BOTTOM OF LEGS

Power Foundations Owners Manual 99300787-k
8
FIGURE 2: Receiver unit (power down box)
battery compartment door removal.
PRESS IN (SLIGHTLY) AND
PUSH DOW TO REMOVE
BATTERY COMPARTMENT
DOOR
FIGURE 3: Power down box battery installation and battery compartment door
reinstallation.
BATTERY ORIENTATION IS
INDICATED INSIDE BATTERY
COMPARTMENT
TABS
StEP 5
For beds equipped with power down box, install (2) 9 volt batteries
into the receiver unit (FIGURES 2 and 3). Note: Beds not equipped
with a power down box do not require batteries.
DOOR INSTALLATION:
PRESS COMPARTMENT DOOR
AGAINST THE BATTERY ENDS,
SLIDE DOOR UP AND IN TO
ENGAGE THE DOOR TABS
iNStALLAtiON

Power Foundations Owners Manual 99300787-k 9
StEP 6
Remove the plastic packaging from the bed base frame. Carefully rotate the
base frame over to position the bed top-side-up.
StEP 7
Plug electrical power cord into a working, grounded electrical outlet.
Note: an electrical surge protection device is recommended (not included).
StEP 8
If hand control is non-wired type, install batteries in hand control (wired
hand controls do not require batteries). Briefly activate all functions of the
bed with the hand control to verify all features are in working order. If bed
does not operate, refer to the Troubleshooting section of this manual.
StEP 9
Return bed to the level position.
StEP 10
Install mattress retainer at the foot end of the bed base as follows:
a. Locate grommeted holes at foot of bed base (FIGURE 4).
GROMMETED
HOLES
FIGURE 4: Grommeted hole locations.
FOOT END OF BED BASE
iNStALLAtiON

Power Foundations Owners Manual 99300787-k
10
NOTE: If bed is to be set up without a headboard, basic
installation is now complete. If headboard is to be
installed, proceed to Headboard Bracket Installation.
b. Place mattress retainer ends into grommeted holes in top surface of
adjustable bed base (FIGURES 5 and 6). Press down until horizontal
retainer section is flush against bed base.
FIGURE 5: Mattress retainer installation.
FIGURE 6: Mattress retainer installed.
MATTRESS
RETAINER
FOOT END OF BED BASE
iNStALLAtiON

Power Foundations Owners Manual 99300787-k 11
3 inches MAX.
FIGURE 7: Headboard cross member location must not exceed 3 inches
(76.2mm) from the top of the mattress.
HEAdbOARd bRAckEt iNStALLAtiON
Install headboard brackets to the bed base frame*. When attaching (2)
twin size units to a king size headboard an optional swing hinge kit (see
accessory section) may be used to connect the twin units.
NOTE: It is important to position the bottom of the headboard cross
member a maximum distance of 3 inches (76.2mm) between the
headboard and the top of the mattress (FIGURE 7). Do not exceed 3
inches (76.2mm).
iNStALLAtiON
FAILURE TO FOLLOW HEADBOARD BRACKET
INSTALLATION INSTRUCTIONS MAY CAUSE
HEADBOARD BRACKET INTERFERENCE WITH
BASE FOAM DURING BED OPERATION. BASE
FOAM OR BASE COVER DAMAGE COULD
RESULT.
NOTE
* S-cape®and S-cape®Platform are Type A bed base frames.
Silhouette™, Pro-Motion™, and Bronze are Type B bed base frames.

Power Foundations Owners Manual 99300787-k
12
StEP 11
Install headboard brackets to the bed base frame as follows:
Note: Headboard brackets are optional for Type B beds. See accessory sheet
for order information.
a. Raise the head section of the bed (with hand control) to gain access to
the bed base frame.
b. Determine bed base type (FIGURES 8 and 9). For bed base Type A,
proceed to Step “e”. For bed base Type B, proceed to Step “c”.
iNStALLAtiON
FIGURE 8: Bed base Type A.
FIGURE 9: Bed base Type B.
ADJUSTABLE
BED TYPE A
ADJUSTABLE
BED TYPE B

Power Foundations Owners Manual 99300787-k 13

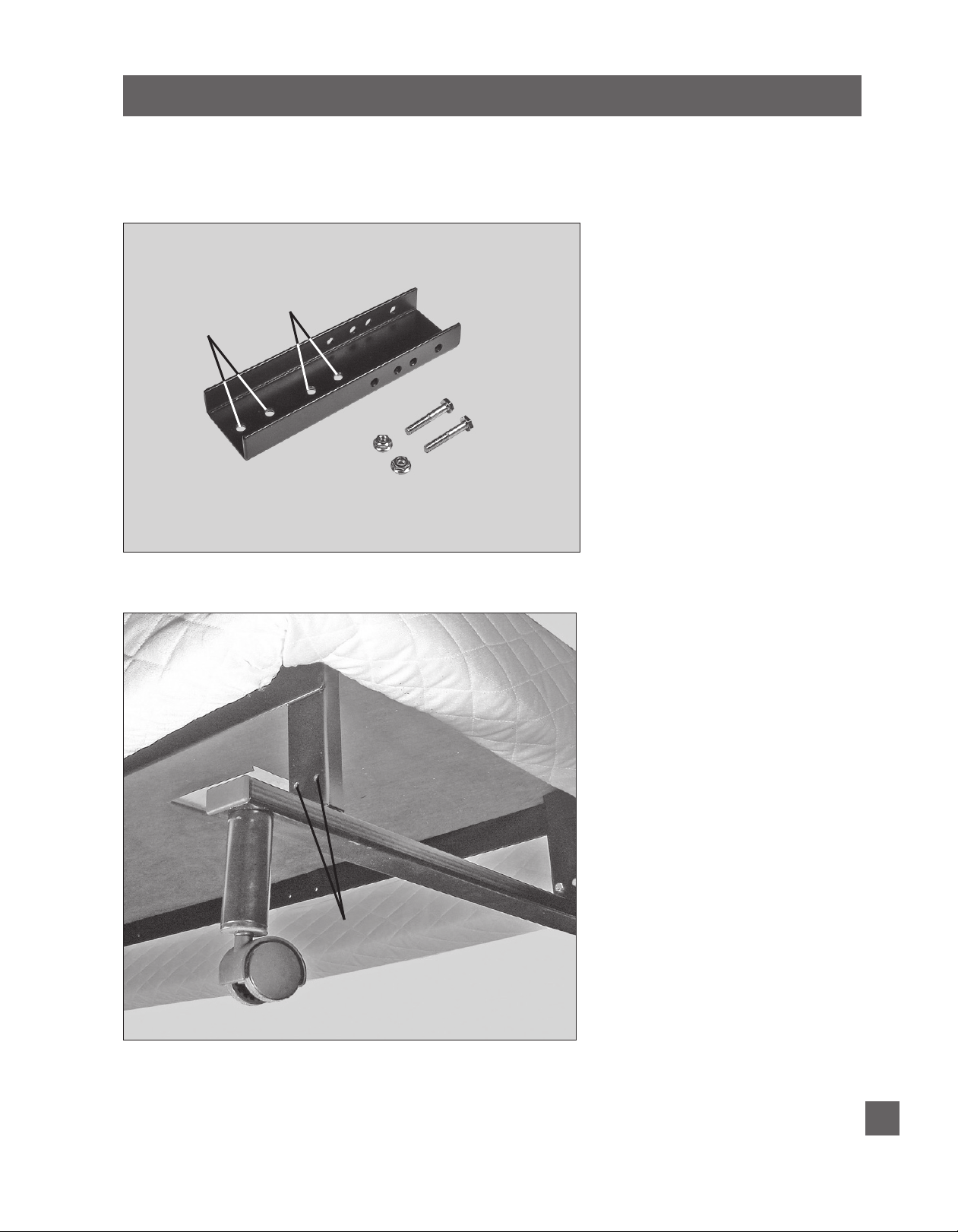

c. For bed base Type B, locate channel connector kit (FIGURE
10). On one side of bed base frame, locate (2) holes for channel
connector mounting (FIGURE 11).
iNStALLAtiON
80” BASE
LENGTH
MOUNTING
HOLES
74” BASE
LENGTH
MOUNTING
HOLES
FIGURE 10: Channel connector kit. (Used with bed base Type B. See accessory
sheet).
FIGURE 11: Channel connector mounting holes.
(2) CHANNEL
CONNECTOR
MOUNTING
HOLES

Power Foundations Owners Manual 99300787-k
14
iNStALLAtiON
d. Position channel connector so that the flat side is flush against
bed base frame. Attach channel connector to bed base frame
using (2) 1½ inch long hex head bolts/nuts (FIGURE 12). Tighten
bolts. Note: For beds with 74” base length, use inner mounting
holes. For beds with 80” base length, use outer mounting holes
(FIGURES 10 and 12).
USE (2) 1½ INCH LONG HEX HEAD
BOLTS AND NUTS (TIGHTEN) TO
ATTACH CHANNEL CONNECTOR
TO BED BASE FRAME
80” BASE
LENGTH
MOUNTING
HOLES
74” BASE
LENGTH
MOUNTING
HOLES
ADJUSTABLE
BED TYPE B

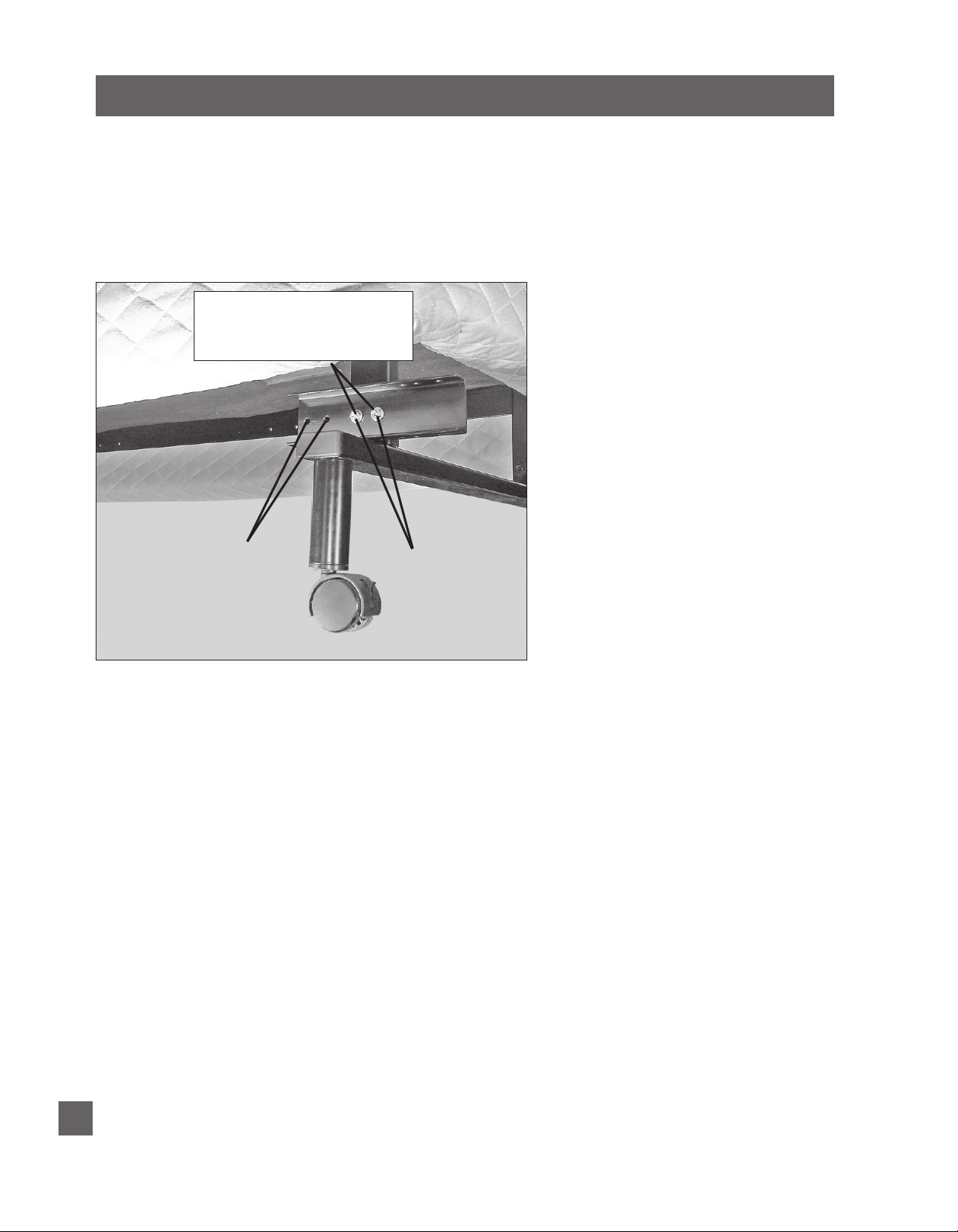

FIGURE 12: Bed base Type B channel connector attachment.

Power Foundations Owners Manual 99300787-k 15
e. Using (2) 3 inch long carriage bolts/nuts, attach (1) headboard
bracket channel to bed base frame (bed base Type A) (FIGURE 13)
or (1) channel connector (bed base Type B) (FIGURE 14). Hand
tighten bolts/nuts (loosely) to allow adjustment of the headboard
bracket channels.
FIGURE 13: Bed base Type A bracket channel attachment.
ADJUSTABLE
BED TYPE A
BED BASE
FRAME BRACKET
CHANNEL
USE (2) 3 INCH LONG CARRIAGE
BOLTS TO ATTACH BRACKET
CHANNEL TO BED BASE FRAME
FIGURE 14: Bed base Type B bracket channel attachment.
ADJUSTABLE
BED TYPE B
CHANNEL
CONNECTOR BRACKET
CHANNEL
USE (2) 3 INCH LONG CARRIAGE
BOLTS TO ATTACH BRACKET
CHANNEL TO BED BASE FRAME
iNStALLAtiON

Power Foundations Owners Manual 99300787-k
16

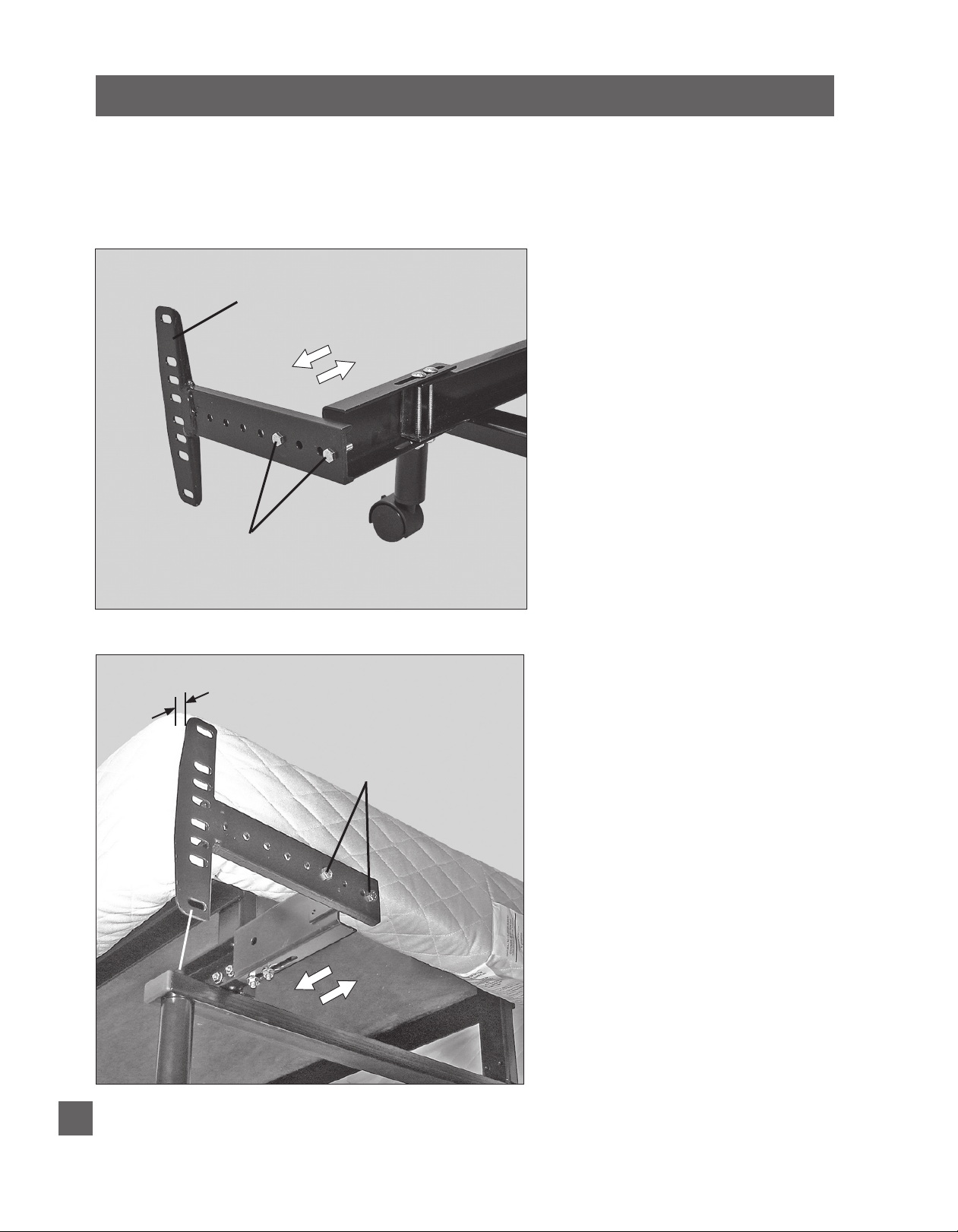

f. Attach (1) headboard bracket flange to one of the bracket channels
with (2) 1 inch long hex head bolts/nuts (FIGURES 15 and 16).
Tighten bolts.
g. Repeat procedure to attach the other headboard bracket.
iNStALLAtiON
FIGURE 15: Bed base Type A headboard bracket flange attachment.
ADJUSTABLE
BED TYPE A
SLIDE BRACKET
ASSEMBLIES IN OR
OUT TO ACHIEVE
POSITION
HEADBOARD
BRACKET
FLANGE
USE (2) 1 INCH LONG HEX HEAD
BOLTS TO ATTACH BRACKET
FLANGE TO BRACKET CHANNEL
SLIDE BRACKET
ASSEMBLIES IN OR
OUT TO ACHIEVE
POSITION
1.5” to 2”
USE (2) 1 INCH LONG HEX HEAD
BOLTS TO ATTACH HEADBOARD
BRACKET FLANGE TO BRACKET
CHANNEL
HEADBOARD
BRACKET
FLANGE
FIGURE 16: Bed base Type B headboard bracket flange attachment.
ADJUSTABLE
BED TYPE B

Power Foundations Owners Manual 99300787-k 17
iNStALLAtiON
h. When installing a headboard, footboard, or four-piece surround (case good),
allow for 1.5 inches (38.1mm) to 2 inches (50.8mm) of clearance at the
head and foot of the bed and a minimum of ½ inch to ¾ inch on the sides
(FIGURE 16).
i. Firmly tighten the 3 inch carriage bolts of both headboard bracket channels.
j. Measure the center-to-center distance between the mounting slots of the
headboard bracket flanges (FIGURE 17).
k. If bracket flange adjustment is required to accept the headboard, remove the
1 inch long hex head bolts and move flanges side-to-side for the adjustment
(FIGURE 17). Reinstall bolts. Tighten all headboard mounting bolts.
l. Install headboard.
Typical Power Foundation installation is now complete. If bed is equipped
with programmable settings or options, refer to the Hand Control Guide for
programming information.
StEP 12
Install mattress on bed base.
MEASURE FLANGE SLOTS
CENTER-TO-CENTER TO CHECK
HEADBOARD HOLE LOCATION
REMOVE 1 INCH LONG HEX HEAD BOLTS AND RELOCATE
FLANGES TO ACHIEVE CENTER-TO-CENTER DISTANCE
REQUIRED FOR HEADBOARD MOUNTING HOLES
FIGURE 17: Headboard bracket measurement and adjustment to accept headboard.
NOTE
TWIN SIZE HEADBOARD BRACKET ASSEMBLIES ARE
SHOWN (FIGURES 16 AND 17). QUEEN SIZE HEADBOARD
BRACKETS ARE EQUIPPED WITH ANGLE BRACES.

Power Foundations Owners Manual 99300787-k
18
StEP 1
On one side of bed base, loosen jam nut on board end of
turnbuckle assembly using a ½” wrench (FIGURE 2). Threads
are right-hand threads. Repeat on other side of bed base.
StEP 2
On one side of bed base, loosen jam nut on carriage end of
turnbuckle assembly with ½” wrench (FIGURE 3). Threads are
left-hand threads. Repeat on other side of bed base.

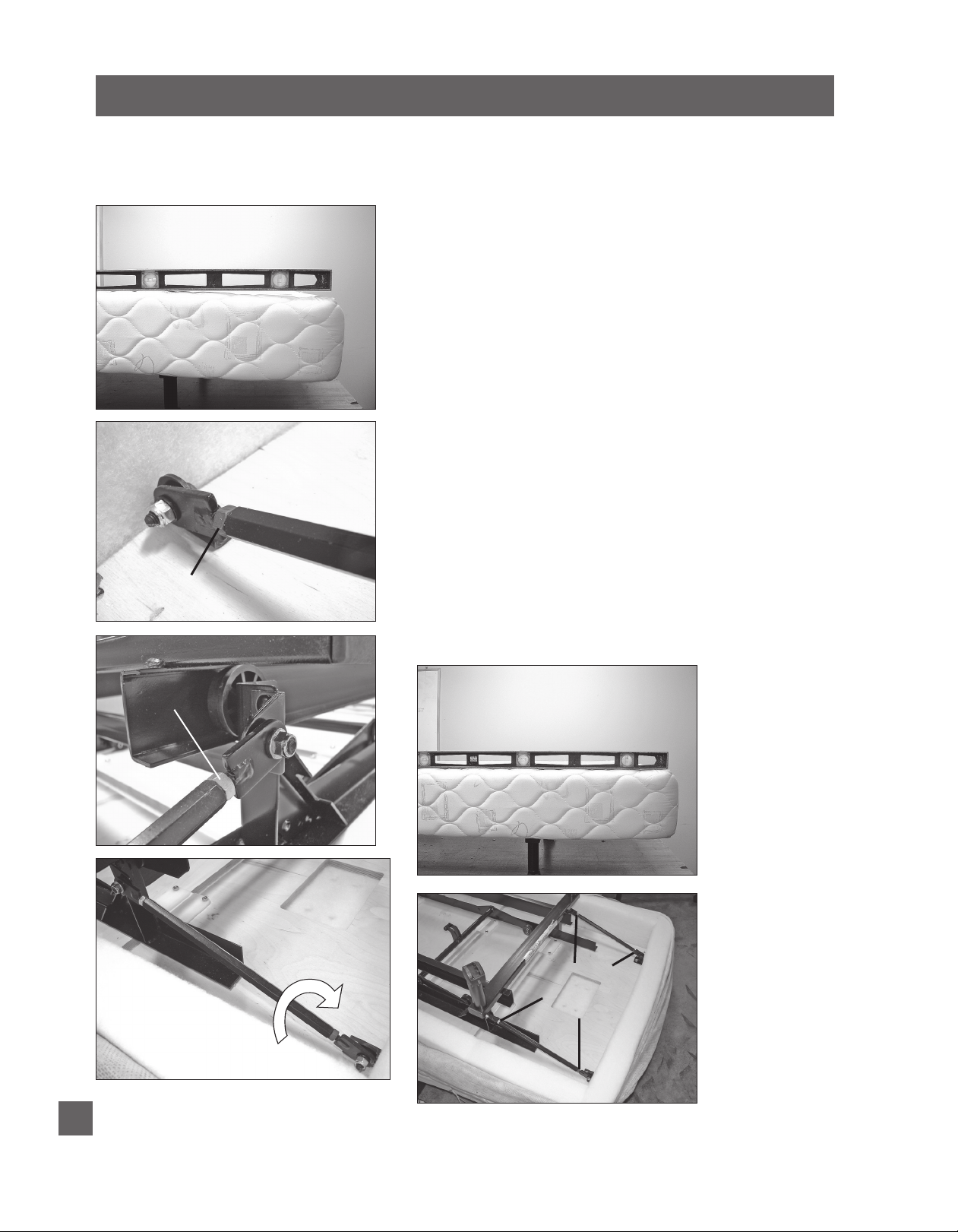

StEP 3
After loosening both jam nuts, grasp and rotate the body of the
turnbuckle on one side of the bed base (FIGURE 4). The foot
of the bed base will rise and flatten out. Repeat on other side
until bed base is completely level.
StEP 4
After adjustments have been made, check the levelness of the
bed base using a straight-edge instrument (FIGURE 5).
StEP 5
When level, tighten all jam nuts in assembly with ½“ wrench
(FIGURE 6). Hold the body of the turnbuckle assembly while
tightening to ensure base remains level. Jam nuts need to be
tight enough to prevent movement in turnbuckle.
Turnbuckle adjustment is complete.
If the foot end of the bed base becomes unlevel (figURE 1), adjust by following the
numbered instructions below.
FIGURE 1
FIGURE 2
FIGURE 4
FIGURE 6
FIGURE 5
FIGURE 3
FOOT END OF BED UNLEVEL
JAM NUT - BOARD
END OF ASSEMBLY
JAM NUT - CARRIAGE
END OF ASSEMBLY
ROTATE BODY OF
TURNBUCKLE UNTIL
BED BASE FLATTENS
OUT
USE STRAIGHT-EDGE TO
CHECK LEVELNESS
WHEN LEVEL,
TIGHTEN ALL
JAM NUTS
tURNbUckLE AdjUStMENt

Power Foundations Owners Manual 99300787-k 19
tROUbLESHOOtiNg
In the event the Power Foundation fails to operate, investigate the symptoms and possible
solutions provided in the chart below:
SyMPtOM SOLUtiON
• Verify power cord is plugged into a working, grounded
electrical outlet. A grounded, electrical surge protection
device is recommended. Test outlet by plugging in
another working appliance.
• Program the hand control (see Hand Control
Programming included with this manual for
programming procedures).
• Unplug power cord, wait 30 seconds and plug in to
reset electronic components.
• Electrical circuit breaker may be tripped. Check
electrical service breaker box to verify.
• Defective surge protection device or electrical outlet.
Test outlet by plugging in another working appliance.
• Replace batteries in the hand control.
• Bed mechanism may be obstructed. Elevate bed and
check for obstruction. Remove obstruction.
• Head section may be too close to the wall.
• Headboard may be too close the edge of the mattress.
Verify a 1.5” (38.1mm) to 2” (50.8mm) distance
between headboard brackets and mattress. Adjust if
required.
• Verify headboard brackets were removed during
installation. Remove headboard brackets if still
attached to the underneath side of bed.
• If bed is located on hard surface ooring, place carpet
pieces or rubber caster cups under each leg or caster
of the bed. (See accessory section of this manual for
rubber caster cup order information.)
• Elevate the head or foot section a short distance (with
the hand control) to realign the lift/lower mechanisms
with the bed support platform.
• Verify that the bed is not positioned against a wall,
nightstand, or other object that may cause vibration or
noise.
• If bed is installed over a bed frame, verify massage
motors are not causing bed frame (or bed frame
components) to vibrate.
• Verify that headboard attachment hardware is tightened
firmly (if used).
Hand control illuminates and appears to be
operable, but will not activate bed.
No features of the bed will activate.
Hand control will not illuminate.
Head or foot section will elevate, but will not
return to the horizontal (flat) position.
Excessive massage motor noise.

[power foundations ]
PowerFoundations.com
© 2011 Leggett & Platt Consumer Products Group, a division of Leggett & Platt, Incorporated
MAdE iN tHE USA
NAtiONWidE cUStOMER SERvicE
toll free: [phone]
