LEGRAND 0 648 47 User manual

Connected cable
outlet
x 1 x 1
or many
1gang or 2gang wireless light switches for all other control
points (not included in this pack)
Connected cable outlet
AND
x 1
or many
AND/
OR
+ 45° C
+ 5° C
200 000
actuations
50/60 Hz 2,5 mm2
230 Vac Maxi. 3000 W
Electrical characteristics
Finishing plate
The circuit must be protected with a 16A breaker
Pack contents
This pack is a connected accessory which requires you to buy and install the «... with
Netatmo» connected starter pack first.
Before you start : wiring precautions
To control a connected cable outlet, only use these products :
LE11208AA
Connected cable outlet
0 648 47/51/63/79/82/83/98
Remove the existing cable outlet
(with or without pilot wire)
14A 230V~
2,5 mm2 rigid wire
(recommended)
14 A - 230 V~
3000 W maxi
OFF
Switch off the power at the main circuit
breaker
Make sure that the power is
off before continuing with the
installation.
CASE N° 1 - Appliance installed without pilote wire
(By default factory mode)
Note : in that case, the connected cable outlet can be controlled by
wireless light switches.
Necessary safety precautions
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
N (neutral) = blue
L (live) = all except blue and yellow
(earth) = green/yellow
Wire the connected cable outlet
2
9 mm
Ø 3.7 min Ø 12.5 max
NFP
Appliance installed without pilot wire
Authorized cables H05 VVF or H07 RNF
For cables Ø maxi. 12,5 mm
Ø mini. 3,7 mm
Wire the appliance on your connected cable outlet
3
Remove the existing cable outlet
Remove the existing cable outlet
OFF
Switch off the power at the main circuit
breaker
Make sure that the power is
off before continuing with
the installation.
CASE N° 2
Appliance installed with pilot wire(*) and without energy
manager
Pilot wire function activable in Legrand Home+Control app.
Note : enabling the pilot wire feature makes the wireless light
switches inoperable on the connected cable outlet.
(*) Pilot wire 4/6 orders (read your appliance instruction sheet)
Necessary safety precautions
4

14A 230V~
Appliance installed with pilot wire(*) and without energy manager
9 mm
Ø 3.7 min Ø 12.5 max
NFP
FP (*)
Authorized cables H05 VVF or H07
RNF
For cables Ø maxi. 12,5 mm
Ø mini. 3,7 mm

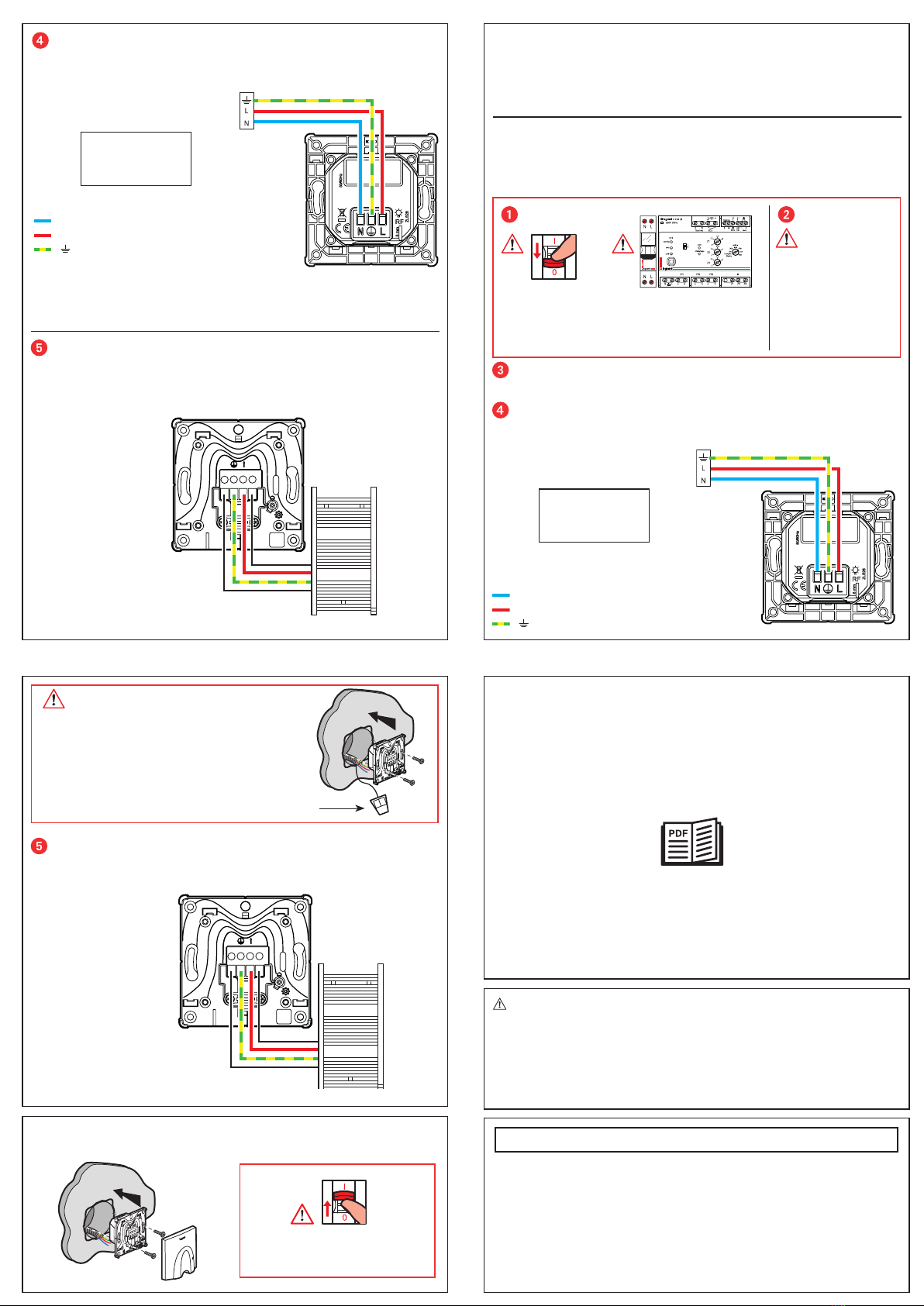

Wire the appliance on your connected cable outlet
Wire the connected cable outlet
2,5 mm2 rigid wire
(recommended)
14 A - 230 V~
3000 W maxi
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
N (neutral) = blue
L (live) = all except blue and yellow
(earth) = green/yellow
5
Remove the existing cable outlet (see § 3 page 2)
Wire the connected cable outlet
14A 230V~
Make sure that the
power is off before
continuing with the
installation.
φ
03821
Switch off the energy
manager power at its
circuit breaker
OFF
Switch off the
power at the
main circuit breaker AND
OFF
CASE N° 3
Appliance installed with pilot wire(*) and with energy manager
Pilot wire function activable in Legrand Home+Control app.
Note : enabling the pilot wire feature makes the wireless light switches inoperable
on the connected cable outlet.
(*) Pilot wire 4/6 orders (read your appliance instruction sheet)
Necessary safety precautions
2,5 mm2 rigid wire
(recommended)
14 A - 230 V~
3000 W maxi
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
N (neutral) = blue
L (live) = all except blue and yellow
(earth) = green/yellow
6
Wire the appliance on your connected cable outlet
Appliance installed with pilot wire(*)
9 mm
Ø 3.7 min Ø 12.5 max
NFP
FP (*)
Make sure to isolate the pilot wire of the current energy
manager with a Nylbloc connector (not supplied).
Install the cover plate on the cable outlet
Authorized cables H05 VVF or H07 RNF
For cables Ø maxi. 12,5 mm
Ø mini. 3,7 mm
ON
Switch on the power at the main
breaker.
The cable outlet will replace the energy manager
functionalities for the connected appliance.
7
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead
to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not
open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and
repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to
replacement and guarantees. Use only Legrand brand accessories.
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.fr
To add a connected product to your connected installation, you should
follow the instructions:
- in the Legrand Home + Control application (Settings/Add a new product section)
- or consult the user manual on legrand.fr
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these
instructions complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website :
www.legrandoc.com
