LEGRAND 4 306 41 User manual

LE04764AA
• Outdoor IP Compact camera 3MP
4 306 41

2
Indice
1Accessories ........................................................................................................................................ 4
2 General Introduction................................................................................................................................ 5
2.1 Overview ........................................................................................................................................ 5
2.2 Features ........................................................................................................................................ 5
2.3 Specications ...................................................................................................................................... 6
3 Framework ........................................................................................................................................ 12
3.1 Multiple functions .............................................................................................................................. 12
3.2 Dimensions ........................................................................................................................................ 13
4 Quick Conguration Tool ........................................................................................................................ 14
4.1First Connection .................................................................................................................................. 14
5 Connecting to a Device and Opening the Web Application ............................................................. 22
5.1PC Conguration ................................................................................................................................. 22
5.2Connection with the Search Tool ..................................................................................................... 23
5.3Connection with Internet Explorer .................................................................................................. 24
5.4Login ........................................................................................................................................ 24
6 Main Interface Introduction ................................................................................................................... 26
6.1 Log in ........................................................................................................................................ 26
6.2 Monitor Channel Menu Tree ........................................................................................................... 27
6.3 System Menu ....................................................................................................................................... 28
6.4 Monitor Window Switch .................................................................................................................... 29
6.5 Preview Window Switch .................................................................................................................... 29
6.6 PTZ Control ........................................................................................................................................ 29
6.7 Color and More Setup........................................................................................................................ 29
7 Congure ........................................................................................................................................ 31
7.1 System Information............................................................................................................................ 31
7.2 System Conguration ....................................................................................................................... 33
7.3 Advanced ........................................................................................................................................ 49
7.4 Additional Function ........................................................................................................................... 55

3
8 Search ........................................................................................................................................ 58
9 Alarm ........................................................................................................................................ 60
10 About ........................................................................................................................................ 61
11 Log out ........................................................................................................................... 62
Annex 1: No-IP DDNS .................................................................................................................................... 63
Annex 2: Using Google Chrome .................................................................................................................. 69
Annex 3: Using Firefox .................................................................................................................................. 71
Annex 4: Using IE8 ........................................................................................................................................ 73
Annex 5: Email Function ............................................................................................................................... 76
Annex 6: Routers conguration .................................................................................................................. 79

4
1 Accessories
Name Qty
IP Camera 1
Multifunction composite cable 1
Quick Start Guide 1
CD 1

5
2 General Introduction
2.1 Overview
This device integrates traditional camera and network video technology. It adopts audio video data collection, transmission
and storage. It can connect to the network directly without any auxiliary device.
This device uses standard H.264 video compression technology which maximally guarantees the video quality.
It can be used alone or used in a network area. When it is used lonely, it can be connected to the network and used from
a network client-end.
2.2 Features
User Management Dierent user rights for each group, one user belongs to one group.
The user right can not exceed the group right.
Data Transmission Support cable network data transmission via Ethernet.
Storage Function
Support central server backup function in accordance with conguration and setup
in alarm or schedule setting.
Support record via Web and the recorded le are stored in the client-end PC.
Support local SD card hot swap.
Alarm Function
Real-time respond to local alarm input and video detection as user pre-dened
activation setup and exert audio prompt(allow user to pre-record audio le).
Realize real-time video detect such as motion detect, camera masking and video
loss.
Network Monitor
Supports one-channel audio/video data transmit to network terminal
Max supports 10 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP and etc.
Support web access.
Network Management
Conguration and management via Ethernet.
Support device management via web.
Support various network protocols.
Peripheral Equipment Support peripheral equipment connection via the RS232 port.
Support serial port (RS232/RS485) transparent data transmission.
Power External power adapter. Support DC 12V/AC 24V power supply.
PoE
Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
Connect the device to the switch or the router that supports PoE function to realize
the network power supply.
To guarantee proper performance, make sure the power source can supply at least
10W power.
Assistant Function
Day/Night mode auto switch (ICR switch.)
Support system resource information and running status real-time display.
Support log function.
Support video watermark function.

6
2.3 Specications
2.3.1 Performance
Please refer to the following sheet for IPC performance specication.
Model
Parameter
4 306 41
System
Main Processor TI Da vinci high performance DSP
OS Embedded LINUX
System resources Support real-time network, local record, and remote operation at the same
time.
User Interface Remote operation interface such as WEB or VMS.
System status SD card status, bit stream statistics, log ,software version ,online user
Video parameter
Image Sensor 1/2.8-inch CMOS 3 Mega Pixels SONY Exmor.
Pixel 2048 (H) *1536 (V)
Day/Night Mode Mecanichal IR-CUT lter.
Auto iris DC Drive
Gain Control Fixed/Auto
White Balance Manual/Auto
Electronic Shutter Manual/Auto (It ranges from 1/50 to 1/10000)
Video Compression Standard H.264
Video Frame Rate PAL: Main stream (2048*1536@15fps) extra stream,(D1@12fps)
Main stream (1920*1080@25fps) extra stream (D1@12fps)
Video Bit Rate 160k~8Mbps. Support customized setup.
Video Flip Does not support mirror. Support ip function.
Video Quality 1~6 level (The 6th level has the highest quality)
Snapshot Max 1f/s snapshot. File extension is JPEG
Privacy Mask Each channel supports max 4 privacy zones
Video Setup Support parameter setup such as brightness, contrast, etc.
Video information Channel title, time title, video loss, motion detect, privacy mask.
Lens 8 mm - 16 mm
Audio
Audio Output RCA
Audio Bit Rate 8 kbps.
Audio Compression Standard G711a/G711u/PCM.
Video
Motion Detect
396 (18*22) detection zones: sensitivity level ranges from 1 to 6
(the 6th level has the highest sensitivity).
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.
Video Loss Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.
Privacy mask
Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage
of the privacy mask zone.
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.

7
Model
Parameter
4 306 41
Alarm Input 2-channel input 1-channel output (NO-NC).
Record and
Backup
Record Priority Manual>Alarm >Motion detect>Schedule.
Record Search Mode Support local data search via time/date, event type (alarm, motion detect,
external alarm) and le type (record/image).
Local Storage Support local SD card hot swap.
Storage Management Support display local storage status.
Network
Network Protocol HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS,
PPPoE.
Remote Operation Monitor, playback, system setup, le download, log information,
maintenance , upgrade, etc.
AUX
Interface
Video Output Analog video output BNC port.
Reset 9-pin port connection
IR light 42 LED, IR distance 20 to 30 meters
Network Interface 10/100 Base-T Ethernet.
General Parameter
Power Support AC24V/DC12V power. Support PoE.
Power Consumption <10W.
Working Temperature -10~+60°C.
Working Humidify 10% ~ 90%.
Dimensions Ø 160 * 118,5 mm
Weight 1,25 kg

8
2.3.2 Factory Default Setup
Refer to the following sheet for factory default setup information.
Function conguration type Item Name Default setup
General Setup
Date format Y-M-D
DST Disable by default
Date separator ‘ _ ’
Time format 24H
Language English
When HDD is full Overwrite
Record duration 8 min
Device No. 8
Video type PAL
Encode Setup
Main stream
Channel Channel01
Compression H.264
Enable audio and video
General bit stream Main stream
Resolution 1080P
Frame rate 25
Bit stream control CBR
Bit stream value 8192
I frame interval control 50
Extra stream
Extension stream Main stream
Audio/Video enable Disable audio and video
Resolution D1
Frame rate 25
Bit stream control CBR
Bit stream value 2048
I frame interval control 50
Image color
Brightness: 50
Contrast: 50
Saturation: 50
Hue: 50
Watermark
Enable
Stream type: All
Type: Character
Character: Digital CCTV
Privacy Mask Never
Time title Enable. OSD transparent (read-only):0
Channel title Enable. OSD transparent (read-only):0
Schedule setup
Channel Ch01
Pre-record 1 second
Time Setup
Start time 0:00:00
End-time 23:59:59
Record Period 1 : Enable motion detection/
alarm

9
Function conguration type Item Name Default setup
Schedule setup Time Setup Snapshot Period 1 : Enable motion detection/
alarm
Week Sunday
RS232 Setup
Option COM01
Function Console
Data bit 8
Stop bit 1
Baud rate 115200
Parity None
Network setup
Ethernet Port 01
DHCP Disable
IP address 192.168.1.108
Subnet mask 255.255.0.0
Gateway 192.168.0.1
Device name Device factory default name
TCP port 37777
HTTP port 80
UDP port 37778
Max connection 4
Network transmission QoS Disable
Remote host Multiple broadcast group
IP address 239.255.42.42
Port 36666
Email setup Disable
Multiple DDNs Disable
NAS setup Disable
NTP setup Disable
IP Filter Disable
Alarm setup
Event type Local alarm
Alarm input Input 01, disable
Type Normal open
Setup
Period: Start time 0:00:00
End time:23:59:59
Period 1:enable Week: Sunday
Anti-dither 0 second
Alarm output Disable
Alarm latch 10 seconds
Record channel 1, enable
Record latch 10 seconds
Send email Enable
PTZ activation
Disable
Event type: never
Address: 0
Snapshot Disable

10
Function conguration type Item Name Default setup
Video detection
Event type Motion detection
Channel Ch01, Disable
Sensitivity 3
Time period setup
Period:
Start time 0:00:00
End time:23:59:59
Period 1:enable
Week: Sunday
Anti-dither 5 seconds
General output Disable
Alarm latch 10 seconds
Record channel Disable
Record latch 10 seconds
Send email Disable
PTZ activation
Event type: Never
Address: 0
Disable
Snapshot Disable
PTZ Setup
Channel Ch01
Protocol DH-SD1
Address 1
Baud rate 9600
Data bit 8
Stop bit 1
Parity None
Default and Backup
All Disable
General Disable
Encode Disable
Schedule Disable
RS232 Disable
Network Disable
Alarm Disable
Video detection Disable
Maintain Disable
Camera Disable
Channel No. Disable
Advanced
Abnormity
Even Type No disk, Disable
General Output Disable
Alarm Latch 10 seconds
Send email Disable
User account
admin/admin (reusable)
888888/888888(reusable)
666666/666666(reusable)
default
Snapshot Channel Ch01

11
Function conguration type Item Name Default setup
Advanced
Snapshot
Snapshot mode Snapshot_Timing
Frame rate 1f/s
Resolution 1080p
Quality 80%
Auto maintain
Auto reboot 2.00 each day
Auto delete old
les Never
Camera cong
Channel 1
Exposure Mode Auto
Night Vision Auto
Backlight Compensation N/A
Auto Iris On
Scene Mode Auto
Signal Type Inside
Mirror N/A
Flip Support
Auto Registration
SN 1
IP 0.0.0.0
Port 7000
DNS Setup DNS 202.101.172.35
Alternative DNS 202.101.172.35

1212
3 Framework
3.1 Multiple-function Composite Cable

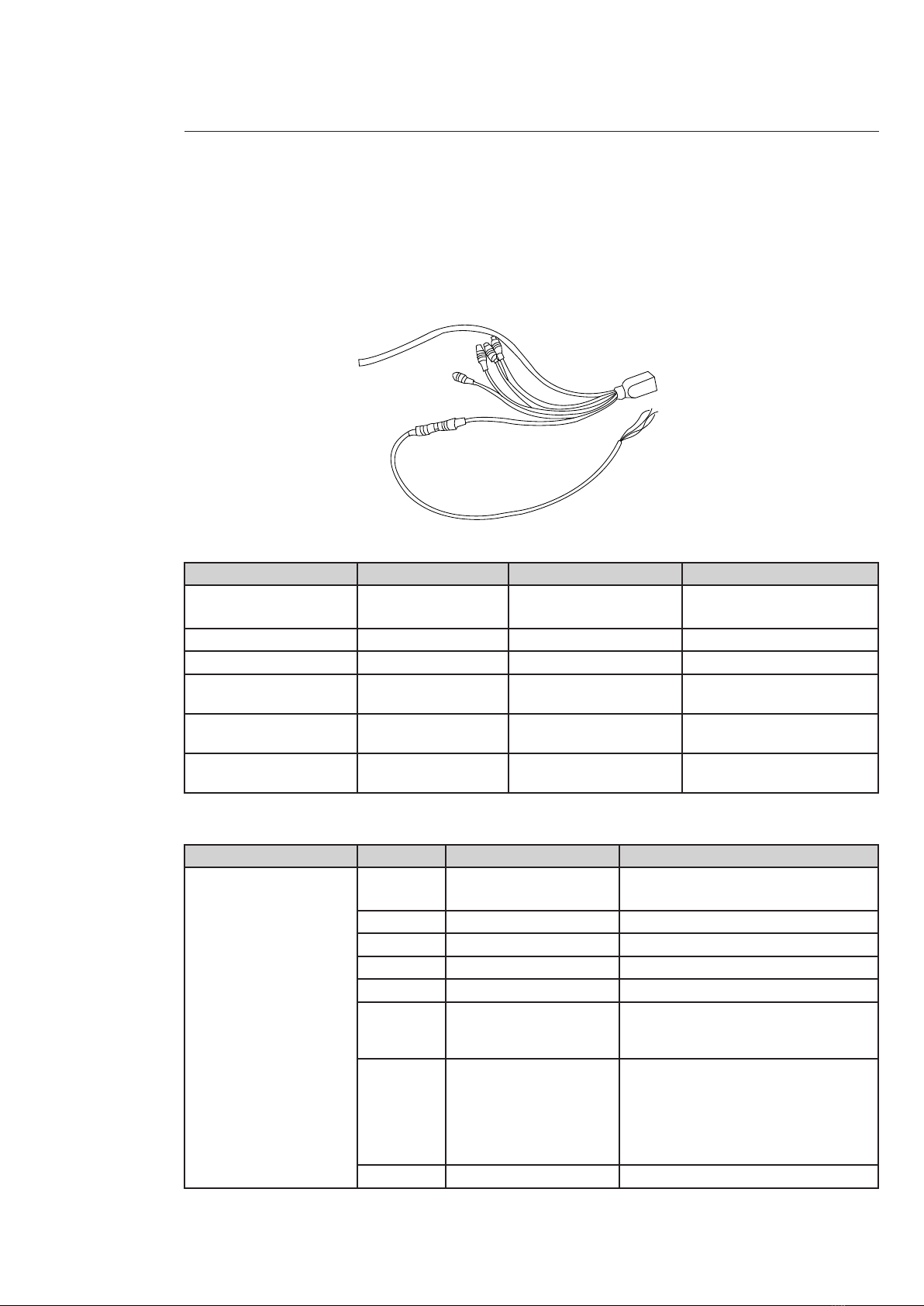

Refer to the following gure for multiple-function composite cable information.
Refer to the following sheet for detailed information.
Port Name Function Connection Note
VIDEO OUT Video output port BNC Output analog video signal
AUDIO IN Audio input port RCA Input audio signal
AUDIO OUT Audio output port RCA Output audio signal
+12V DC Power input port / Multiple function composite
cable
I/O I/O cable port I/O port Pin Connect to data converter
cable.
LAN Network port Ethernet port Connect to standard Ethernet
cable.
Refer to the following sheet for detailed information of data converter cable.
Port Name Cable color Name Note
I/O Port Pin
Yellow RS485_A RS485 - port.
Black RS485_B RS485 + port.
Red ALARM_COM Alarm output common port
Brown ALARM_IN1 Alarm input port 1.
Grey ALARM_IN2 Alarm input port 2
Purple ALARM_NO
Alarm output port.
NO: normal open alarm output port.
Works with the ALARM_COM port.
Blue RESET
Restore factory default setup
When the device is working properly,
connect the blue cable (restore default
setup port) to the orange cable (GND
signal) for 5 seconds, the device will
resume factory default setup
Orange GND Ground port

13
3.2 Dimensions

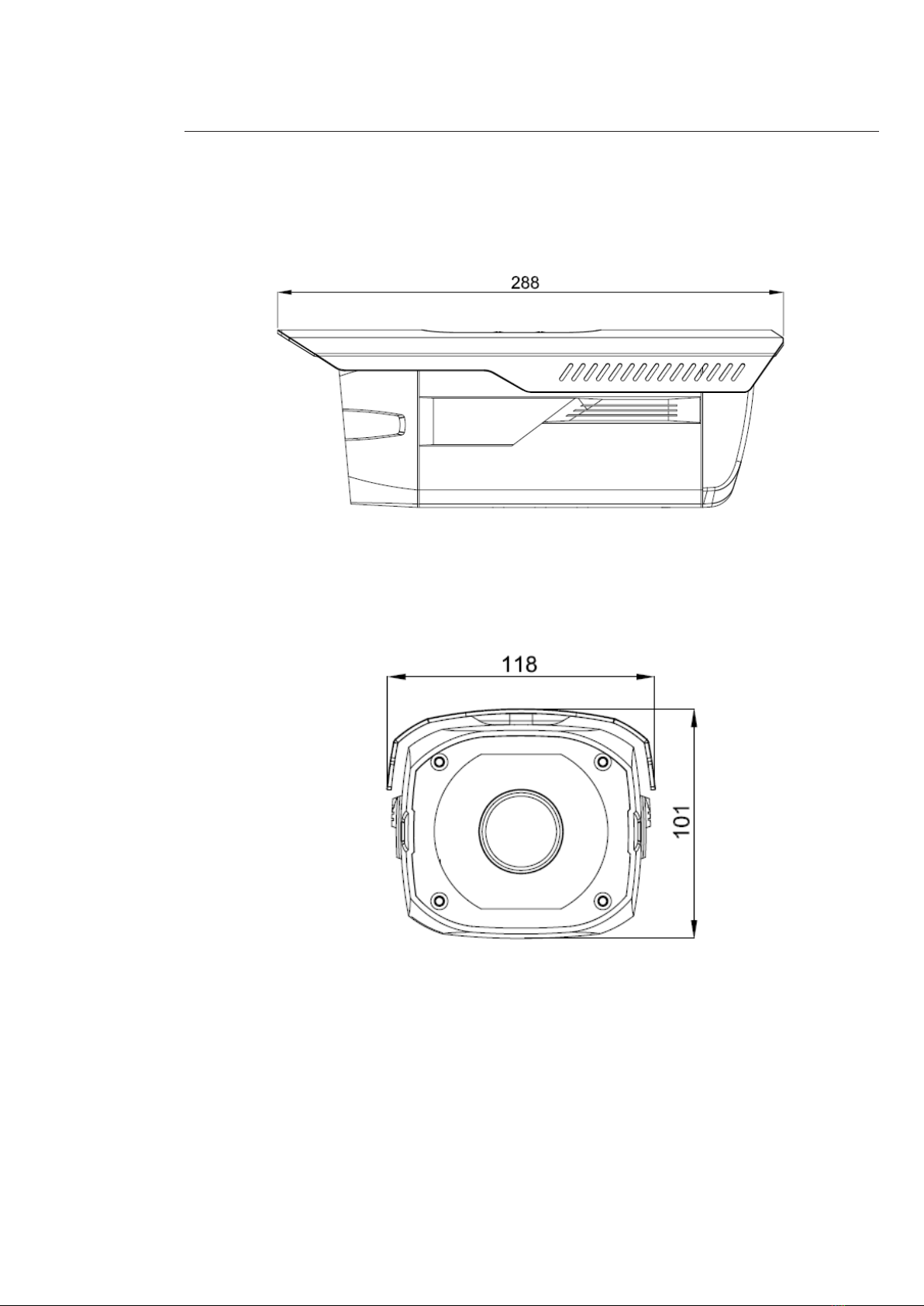

Refer to the following two gures for dimension information.

14
4 Quick Conguration Tool
The quick conguration tool allows you to search for a device's IP address, even if it is in another segment (cameras, DVR,
NVR, encoders and decoders) and to modify it. The conguration tool is available on the CD supplied with the product.
It also allows the software to be upgraded or certain parameters to be modied.
This tool is used to connect to devices with an IP address in the same segment only.
4.1. First Connection
4.1.1 Connection with the conguration tool (to change the IP address or upgrade a device's internal software)
To open the software, double click the "CongTool.exe" icon on the CD supplied with the product.
To search for devices connected to the network:

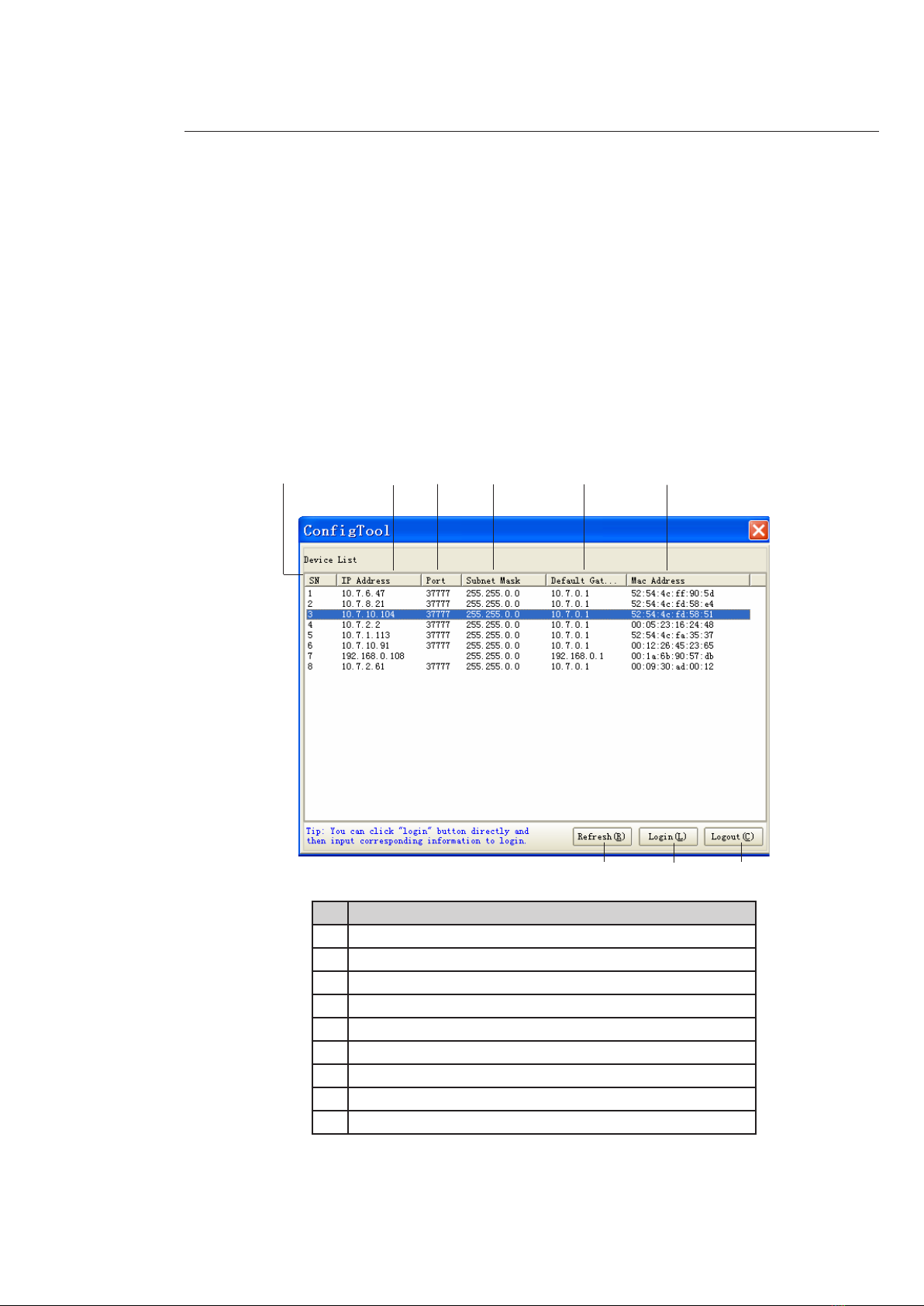

- Click the "Refresh" button; the tool will search for devices connected to the network and display it in the form of a list.

Description
1Number
2Device IP address
3Device TCP port
4Device subnet mask
5Device default gateway
6Device MAC address
7Refresh the list
8Access to the camera's network conguration menu
9Disconnection from the camera's network conguration menu
1234 5 6
789

1515
15
To connect to a device and open the web application:
- Highlight it (single click in the list).
- Right click the highlighted line.

- Click on "Open Device Web".
- The following web page opens:

If the connection fails:
- either the camera does not have an IP address in the same segment as the PC (see chapter 4.1.2 to change it),
- or the Internet Explorer security parameters are not set correctly (see chapter 5 to change them).

16
4.1.2 Connection with the conguration tool (to change the IP address or upgrade a device’s internal software)
To search for devices connected to the network:
- Click the «Refresh» button; the tool will search for devices connected to the network and display them in the form of a
list (see chapter 4.1.1 for details of the interface).
To connect to a device:
- Highlight it (single click in the list).
- Click on button 8 (or double click on the highlighted line).
- The following window opens:

Function Note
IP address Device IP address
User name Device user name
Password Device password
Port Device TCP port
Login Connection
Cancel Cancel
Click "Login" once the information has been entered.
If the following screen appears, this means that the device address is not in the same IP addresses segment as the PC on
which the conguration tool is currently running. It will therefore not be possible to connect.


- Manually modify the IP address by entering the desired new address.
- Click OK to save the new address in the device.

1717
17
- Restart the procedure. The following window should open:

- Click Login to access the parameter modications.

Function Note
Enable DHCP Enable or disable the DHCP function
IP address Device IP address
Subnet mask Device subnet mask
Gateway Device default gateway
MAC address Device MAC address
Save Save
Return Return to the search interface


1818
4.1.3 PPPoE
Select "PPPoE" on the right-hand side of the interface:

Function Note
Enable PPPOE Enable or disable the PPPoE function
User name PPPOE user name
Password PPPOE password
IP address Device IP address in the WAN
Save Save
Return Return to the search interface
- Click the "System Information" tab on the right.

1919
4.1.4 System
Select "System Information" on the right-hand side of the interface.

Function Note
SN Device serial number
Software version Device software version
Device name Model name
Synchronization
with PC
Synchronisation of the device date and time with the date and time on the PC.
Click "Sync" to synchronise, then "Save" to save the date and time.
PC date PC date
PC time PC time
Manual Setup
Manual setup of the device date and time.
Enter the desired date and time.
Click "Sync" to synchronise, then "Save" to save the date and time.
Date Date
Time Time
Sync Synchronise
Save Save
Return Return to the search interface
- By way of example, enter a camera name in the "Device Name" eld.
- Check that “Synchronization with PC” is selected, so that the date and time are synchronised with the PC.
- Check that the date and time are correct. If not, click “Sync(S)”.

2020
4.1.5 System Upgrade
Select "System Upgrade" on the right-hand side of the interface.

Function Note
Upgrade le/Open Click here to select the upgrade le.
Current progress/Upgrade Click here to start the upgrade procedure.
Return Return to search interface
Steps for updating the device's internal software
- Click on the "Open" button and select the *.bin internal software le.
- When the le has been added, click the "Upgrade" button; the le is then transmitted to the device.

