LEGRAND 4 306 52 User manual

USER MANUAL
LE04767AB

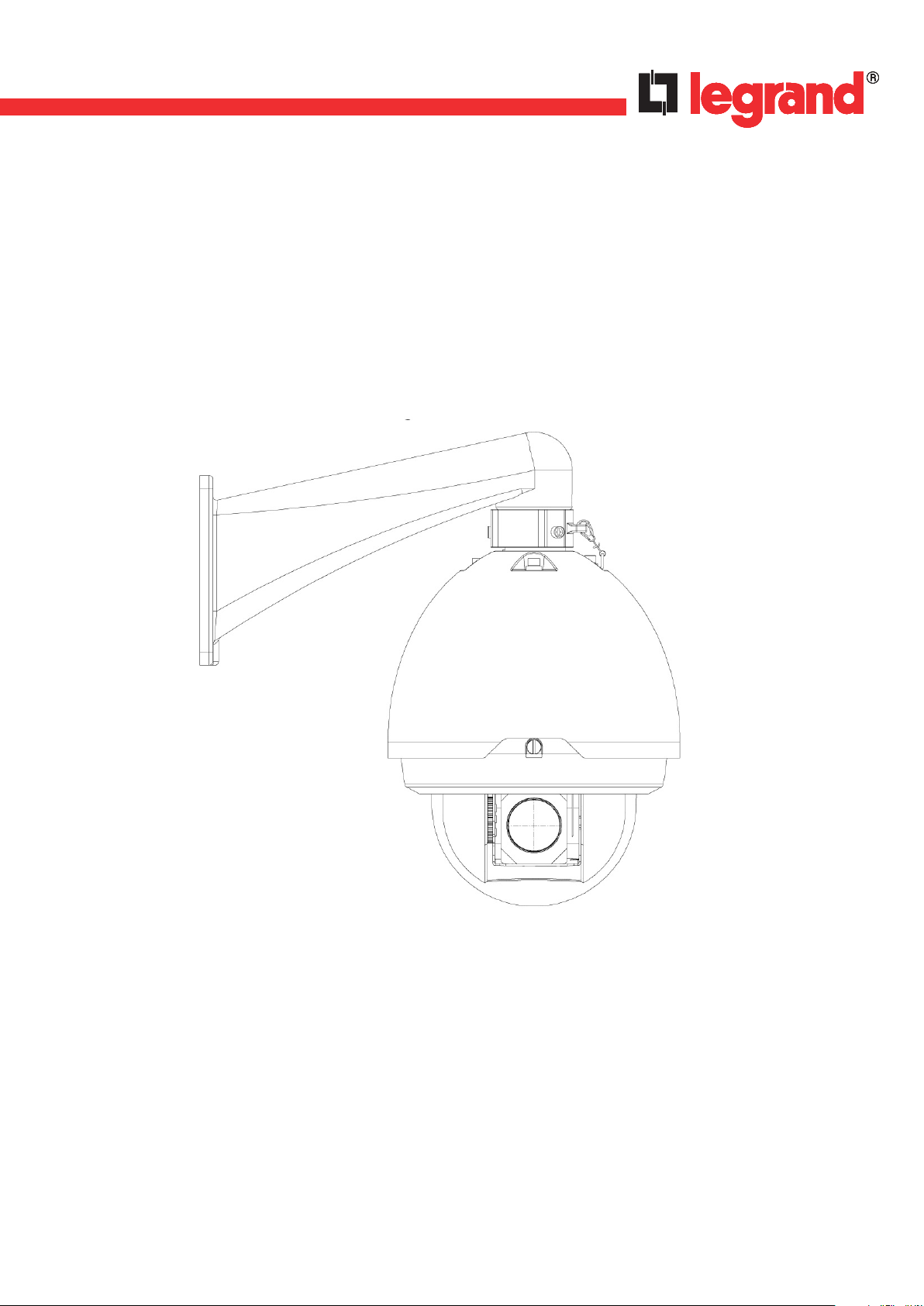

• Outdoor IP SpeedDome 18x 1,3MP
4 306 52

2
1 Accessories .............................................................................................................................................3
2 General Introduction ..............................................................................................................................4
2.1 Features and functions .................................................................................................................... 4
2.2 Specications.....................................................................................................................................7
3 Framework ...........................................................................................................................................13
3.1 Dimensions ......................................................................................................................................13
4 Installation ...........................................................................................................................................15
4.1 Install the speed dome...................................................................................................................15

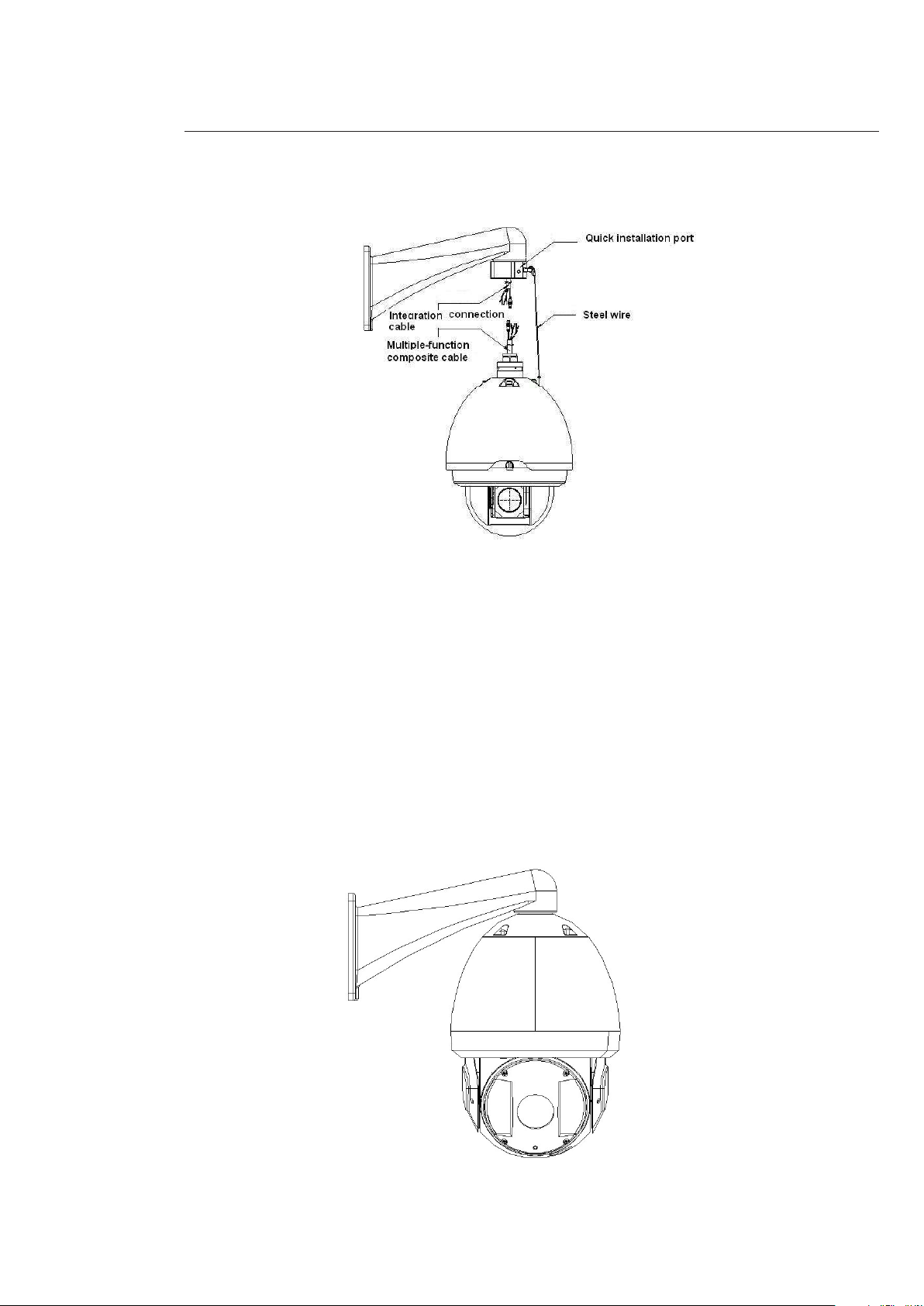

4.2 Install the speed dome in the bracket ........................................................................................16

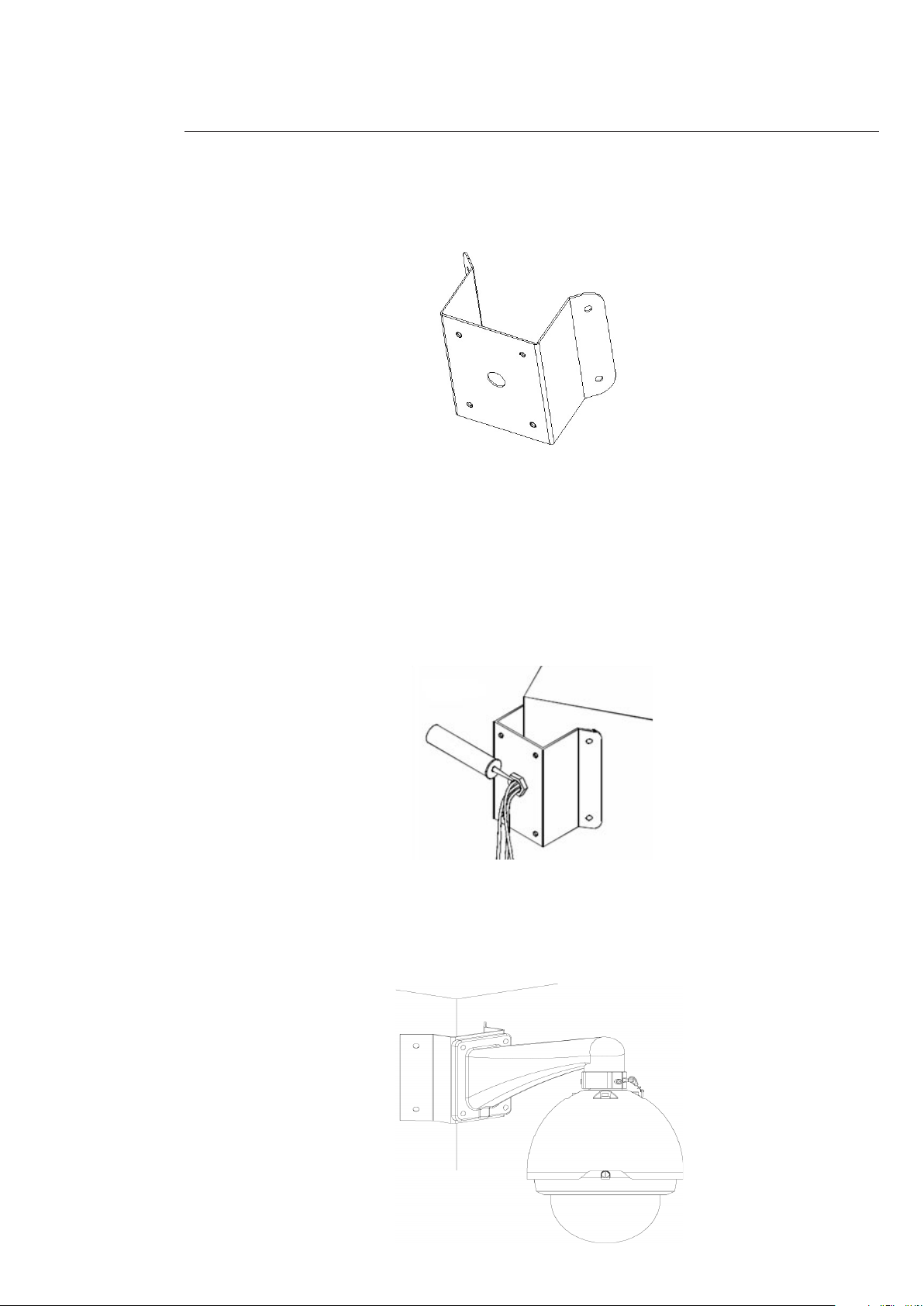

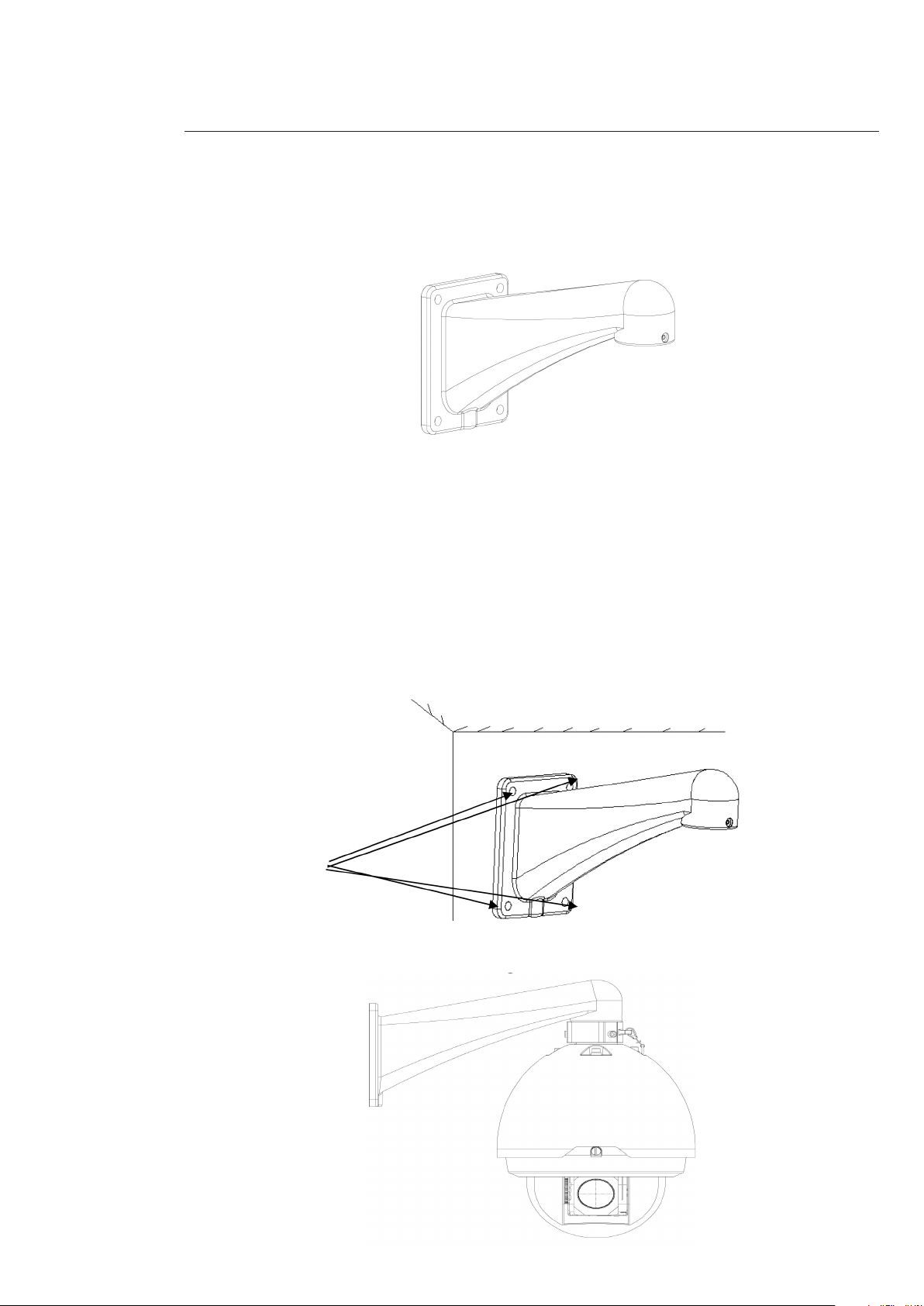

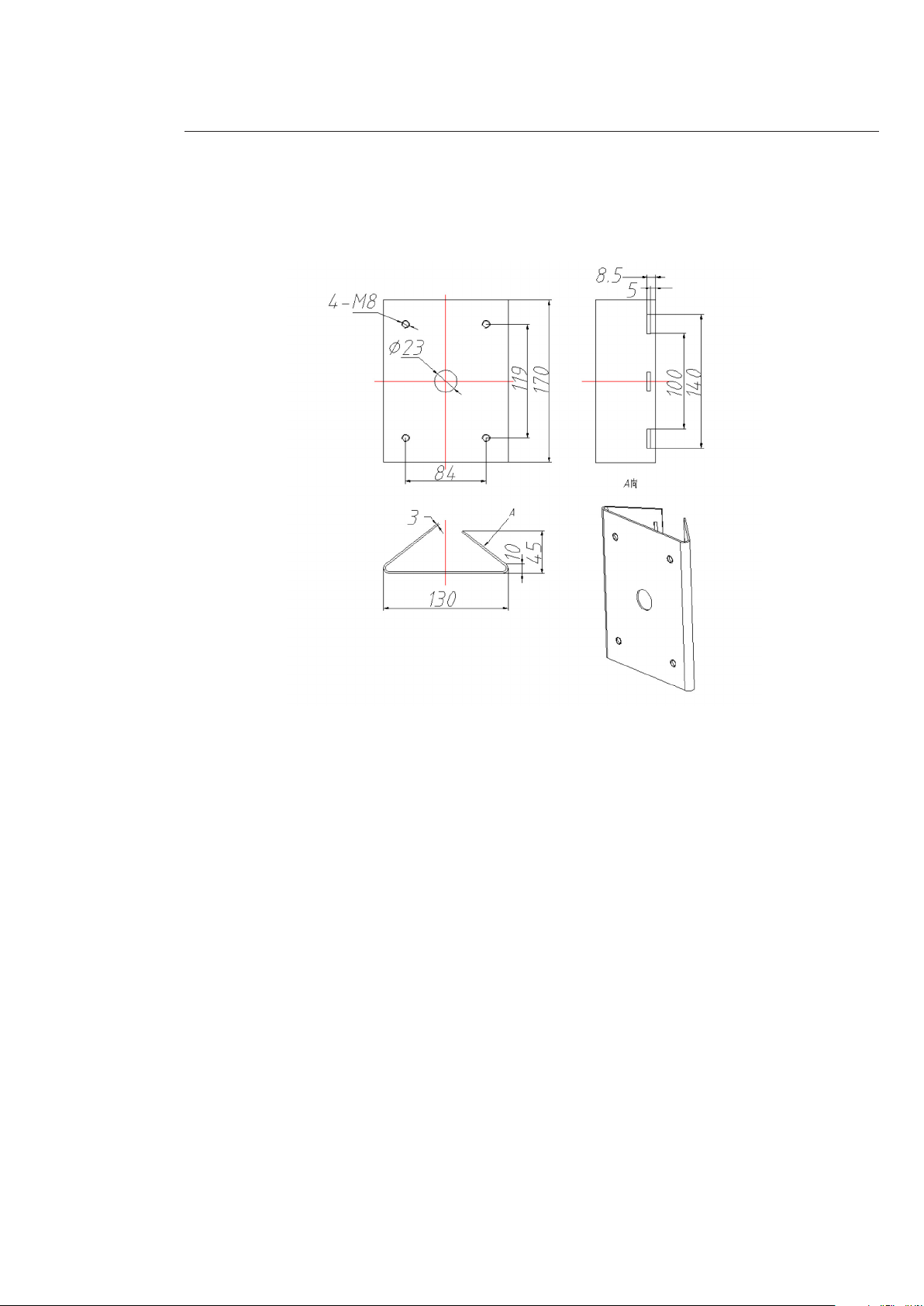

4.3 Wall mount bracket installation ...................................................................................................17
5 Menu ...........................................................................................................................................20
5.1 Screen Menu Index .........................................................................................................................20
5.2 Self-diagnosis system information..............................................................................................21
5.3 Main menu........................................................................................................................................21
5.4 Menu operation...............................................................................................................................22
5.5 Dome Abnormal Phenomenon Operation.................................................................................34
6 Connecting to a device and opening the web application............................................................35
6.1IE options confuguration for cong tool and IE.........................................................................35
6.2Connection with Mozilla Firefox or Google Chrome.................................................................36
7 Quick Conguration Tool......................................................................................................................37
7.1 Introduction......................................................................................................................................37
7.2 Searching/Connecting....................................................................................................................37
7.3 Connecting with the conguration tool......................................................................................39
7.4 Main interface of the tool...............................................................................................................41
8 Resetting the camera.............................................................................................................................42

3
1 Accessories
Name Qty
IP Dome 1
Bracket 1
Accessories bag 1
Quick Start Guide 1
CD 1
Power supply 1

4
2 General Introduction
2.1 Features and functions
User Management Dierent user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Data Transmission Support cable network data transmission via Ethernet.
Storage Function
Support central server backup function in accordance with conguration and setup
in alarm or schedule setting.
Support record via Web and the recorded le are stored in the client-end PC.
Alarm Function
Real-time respond to local alarm input and video detection as user pre-dened
activation setup and exert audio prompt(allow user to pre-record audio le).
Realize real-time video detect such as motion detect, camera masking and video
loss.
Network Monitor
Supports one-channel audio/video data transmission to network terminal.
Max supports 10 connections.
Adopts the following audio and video transmission protocol: HTTP, TCP, UDP, RTP/
RTCP and etc.
Support web access.
Network Management
Conguration and management via Ethernet.
Support device management via web.
Support various network protocols.
Power External power adapter. Support AC 24V.
Assistant Function
Day/Night mode auto switch.
Support system resource information and running status real-time display.
Support log function.
Support video watermark function.

5
This series speed dome has the following features:
- On-Screen Menu
This series product menu supports multiple languages. It is easy for you to view dome information and congure dome,
camera parameters.
- Support multiple protocols
Use various devices (such as matrix, control keyboard and DVR) and protocols to operate speed dome.
- Proportional Pan and Tilt
This function keeps the image from moving too fast when there is a large amount of zoom. The quick-installed high
denition speed dome continually decreases or increases pan and tilt speeds in proportion to depth of zoom.
When zooms speed is increasing, the camera moving speed becomes slow.
When zooms speed is decreasing, the camera moving speed becomes fast.
- On-screen Tips
Dome title and system version (Software and hardware)
Dome system temperature. (Optional. You can disable this function)
Dome pan/tilt coordinates, preset ID.
- Preset Setup and Call
Preset function is to save the address information (such as PTZ pan/tilt, focus and etc) to the memory so that you can
quickly adjust the dome and PTZ to the correct position.
This series quick-installed high denition speed dome supports 255 presets.
- Auto Scan
Camera scans back and forth regularly in a horizontal eld.
Here you need to set left and right limit and scan speed. You can set 5 scanning paths.
- Auto Touring
Add addresses into a routine in a desired order and then set time and stop duration for each address.
The dome will begin an auto touring between these addresses. You can set 8 touring paths.
Each touring path can contain max 32 presets.
- Auto Pattern
Memorize dome operation such as pan, tilt, and zoom to repeat. Focus and iris are in auto mode during auto pattern. For
each pattern, the time should be less than 60 seconds.
- Privacy Masking
Privacy masking is a user-dened, four-sided area that can not be viewed by you. The masking area will move with pan
and tilt functions and automatically adjust in size as the lens zooms.
- Auto Flip
As long as you continue to hold the keyboard joystick in the down position, the dome rotates 180 degrees and repositions
itself for uninterrupted viewing of any subjects that passes directly beneath the dome.
- Self-diagnosis
There is a self diagnosis procedure when dome boots up.
. Tilt and vertical engine check
. Camera diagnostics
. Display dome information and diagnosis information such as address, protocol, baud rate, type.
- Day/Night Mode (B/W & Color Mode)
Auto/manual switches in low illumination.
. Auto: camera will automatically adjust CCD light level.
. Manual: use menu or function keys to select day/night mode.
This function needs the speed dome driver (camera) supported.

6
- Auto Focus
Auto focus allows the lens to remain in focus during zoom-in, zoom-out and motion functions to get vivid image. You can
use FAR or NEAR button to adjust focus manually.
- Backlight Compensation
Balance the brightest and darkest sections of a scene to produce a more vivid picture.
- Pan Tilt and Zoom
Supports zoom in and zoom out during tilt and pan movement.
In this period focus and iris are both in auto mode to get vivid image.
- Idle Status
When there is no available order, you can use menu to set dome idle status after specied duration.The idle status includes
turn to specied preset or go to scan, tour or pattern function.
- Image Stabilizer/Flip
Enable image stabilizer function and ip in the menu.
When there is vibration, this IS function can guarantee video stability and when ip, you can view video more clearly.
This function needs speed dome driver (camera) supported.

7
2.2 Specications
2.2.1 Performance Specications
Built-in Decode
All digital design. All data are in the connection board. No data loss when power o occurs.
- Integrated design, high stability.
- Quick-installed high denition speed dome max support 255 presets.
Support 8 auto touring. Each touring max has 32 presets.
- Low and medium speed dome max support 80 presets.
- 5 auto scan.
- 5 auto pattern. Each pattern can max support 400 commands and the interval shall be less
than 60s.
- Built-in direction indicator. Support max 24 privacy mask zones (Depends on the camera
type).
- 7 alarm inputs and 2 alarm outputs.
Built-in PTZ
- Fine stepper driver, stable performance, react quickly, precisely positioning.
- Integrated design, tight structure.
- Elegant mechanical driver device. Support 360 degrees continuous rotation, no monitor
blind spot.
- 0.1°/s rotation speed while maintain stable image.
- 180 degrees tilt continuous monitor.
Built-in zoom lens,
high sensitive, high
resolution integrated
digital process color
camera.
- Auto focus
- Auto BLC
- Auto brightness control
- Auto white balance
- Auto day/night switch (Auto B/W & color switch)(Depends on the camera type)
OSD
- Preset title display
- View dome initial setup information
- Modify camera parameter
- Set preset
- Set auto scan
- Set 7-channel alarm inputs and 2-channel alarm outputs.
- Set auto patter
- Set auto day/night switch (Auto B/W & color switch)(Depends on the camera type)
- Set privacy mask zones

8
2.2.2 Technical Specications
Power AC 24V/3A (±10%) (Includes temperature control circuit)
Camera Driver
Consumption
15W
Decoder Built-in
Engine Stepper motor
Preset
255 (In PELCOD, PELCOP protocol).
80 (In industrial protocol)
Please note the value may vary due to dierent protocols.
Auto Tour 8
Auto Pattern 5
Auto Scan 5
Privacy Mask 8 zones in one-window.
The dierent series products support dierent amount. It depends on the camera type.
Alarm Input/Output 7/2
Information Time, address, dome title, dome coordinates, temperature, alarm and etc.
Lens Adjust speed in accordance with lens
Auto Rotation Tilt 92º auto rotates to pan 180 º
Auto Pan 0 º -360º continuously
Manual Pan Motion
Speed
0.1º—200º/S
Preset Maximum
Speed
300º
Manual Tilt Motion 0.1º—120º/S
Manual Tilt Scan
Section
0º—180º
PTZ Scan Accuracy 0.06 ± 0.015º
Signal Format PAL
S/N Ratio > 50dB
Humidity < 90%
Environment -40°C—55°C (outdoor)

9
2.2.3 Factory Default Setup
Function conguration type Item Name Default setup
General Setup
Date format D-M-Y
DST Disable by default
Date separator ‘/’
Time format 24H
Language English
When HDD is full Overwrite
Record duration 60 min
Device No. 8
Video type PAL
Encode Setup
Main stream
Channel Channel01
Encode mode
Audio/Video
H.264
Enable audio and video
Main stream Main stream
Resolution 720p
Frame rate 25
Bit stream control CBR
Bit rate 6144
I frame interval control 50
Extra stream
Extra stream Main bit stream
Audio/Video Enable video disable audio
Resolution CIF
Frame rate 15
Bit stream control VBR
Quality High
Bit rate 512
I frame interval control 50
Image color Disable
Watermark
Enable
Stream type: all
Type: character
Character: DigitalCCTV
Cover area Never
Time title Enable.
Channel title Enable.
Schedule
Channel Ch01
Pre-record 5 seconds
Time Setup
Start time 0:00:00
End-time 23:59:59
Record Period 1 : Enable motion detection/
alarm
Snapshot Period 1 : Enable motion detection/
alarm
Week Sunday

10
Function conguration type Item Name Default setup
RS232
RS232 com COM01
Function Console
Data bit 8
Stop bit 1
Baud rate 115200
Parity None
Network setup
Ethernet Port 01
DHCP Disable
IP address 192.168.1.108
Subnet mask 255.255.0.0
Gateway 192.168.0.1
Device name Device factory default name
TCP port 37777
HTTP port 80
UDP port 37778
Network user connection amount 10
Network transmission QoS Disable
Remote host Multiple broadcast group
IP address 239.255.42.42
Port 36666
Email setup Disable
Multiple DDNs Disable
NAS setup Disable
NTP setup Disable
IP Filter Disable
Alarm setup
Event type Local alarm
Alarm input Input 01, disable
Type Normal open
Setup
Period: Start time 0:00:00
End time: 23:59:59
Period 1:enable
Week: Sunday
Anti-dither 0 second
Alarm out Disable
Alarm latch 10 seconds
Record channel 1, enable
Record latch 10 seconds
Send email Enable
PTZ activation
Disable
Event type: never
Address: 0
Capture Disable

11
Function conguration type Item Name Default setup
Detection
Event type Motion detection
Channel Ch01, Disable
Sensitivity 3
Time period setup
Period:
Start time 0:00:00
End time:23:59:59
Period 1:enable
Week: Sunday
Anti-dither 5 seconds
Alarm out Disable
Alarm latch 10 seconds
Record channel Disable
Record latch 10 seconds
Send email Disable
PTZ activation
Event type: Never
Address: 0
Disable
Capture Disable
PTZ Setup
Channel Ch01
Protocol DH-SD1
Address 1
Baud rate 38400
Data bit 8
Stop bit 1
Parity None
Default and Backup
All Disable
General Disable
Encode Disable
Schedule Disable
RS232 Disable
Network Disable
Alarm Disable
Video detection Disable
Maintain Disable
Channel Name Disable
Camera Disable
Advanced
Record control Auto. Ch1 (This series device does not
support this function.)
Abnormity
Even Type No disk, Disable
Alarm Output Disable
Alarm Latch 10 seconds
Send email Disable
User account
admin/admin (reusable)
888888/888888(reusable)
666666/666666(reusable)
default
Snapshot Channel Ch01

12
Function conguration type Item Name Default setup
Advanced
Snapshot
Snapshot mode Snapshot-timing
Frame rate 1 S/F
Resolution 720p
Quality 60%
Auto maintain
Auto reboot 2.00 each day
Auto delete old
les Never
Camera cong
Channel 1
Exposure Mode Auto
Day/Night Mode Disable
Backlight Compensation Disable
Auto Aperture N/A
White Balance N/A
Signal Type Inside
Mirror Disable
Rotate Disable
Auto Registration
N° 1
IP 0.0.0.0
Port 7000
DNS Setup DNS 202.101.172.35
Alternative DNS 202.101.172.35

13
3 Framework
3.1 Dimensions
3.1.1 Wall mount bracket
The wall mount bracket dimensions are shown as below.
3.1.2 Corner mount bracket
The corner mount bracket is shown as below.

14
3.1.3 Pole mount bracket
The pole mount bracket is shown as below.

15
4 Installation
4.1 Install the speed dome
Open the transparent cover and take out the packing material around the speed dome driver. Please remove the protective
paster from the driver and take o the camera lens cap.
- Install the quick installation port.
- Twist Teon tape around the screw thread of the quick installation port and turn it into the screw thread of the wall
mount bracket.
- Use M4 stainless screws to secure rmly.
Install the transparent cover
- Begin the cable connection.
Port Name Function Connection Color Note
VIDEO OUT Video output port BNC “/” Output analog video
signal.
AUDIO IN Audio input port / Black/White Input audio signal.
AUDIO OUT Audio output port / Black/Red Output audio signal.
+24V AC Power input port / Power port
LAN Network port Ethernet port Connect to standard
Ethernet cable.
“RS485_A RS 485 - RS 485 A port Yellow
“RS485_B” RS 485 + RS 485 B port Orange

16
Note : The video port is covered the heat shrink tube of high shrinking ratio. After the video connection, please heat
the tube to make sure the video port is damp proof and water proof.
4.2 Install the speed dome in the bracket
After you complete the above steps, please pull the integration cable and multiple-function composite cable to the wall
mount bracket.
- Line up the straight edge of the internal enclosure of the quick installation speed dome to the straight edge of the quick
installation port, and then push the speed dome to the bottom of the port slowly.
- Use your hands to turn the three stainless screws of the quick installation port to the groove of the internal enclosure of
the quick installation speed dome.
- Turn the stainless screw of straight edge of the quick installation port to the Ф6.5 hole of the straight edge of the internal
enclosure of the quick installation speed dome.
- Use the inner hex tool to x these three stainless screws.
Now you have completed the installation.

17
4.3 Wall mount bracket installation
Wall mount bracket is shown as below.
Installation requirements
The wall mount speed dome can be installed in the hard construction wall in the indoor or outdoor environments.
Before the installation, please make sure:
- The wall is thick enough to install the expansion bolt.
- The wall can at least sustain the 4x weight of the speed dome.
Installation steps
- Draw four holes position in the wall according to the hole of the bottom of the wall mount bracket.
- Dig four holes and insert the expansion bolts (not provided).
- Use four hex bolts and at washer to x the bracket in the expansion bolts.
Install the speed dome in the bracket (refer chapter 4.2)
Installation
Hole

18
4.4 Corner mount bracket installation
Corner mount bracket and its components are shown as below.
Installation requirements
The corner mount speed dome can be installed in the hard construction wall in the indoor or outdoor environments
where there is a 90 degrees angle.
Before the installation, make sure:
- The wall is thick enough to install the expansion bolt.
- The wall can at least sustain the 4x weight of the speed dome.
Installation steps
- Draw four holes position in the wall according to the holes of the corner installation accessories.
- Dig four holes and insert the M8 expansion bolts.
- Pull the cables through the centre hole of the bottom of the corner bracket, the waterproof adhesive, and the centre of
the bracket.
- Reserve the enough cable connection length and then use the M8 expansion bolt to secure the corer mount bracket
chassis on the wall.

19
- Pull the cable out of the pole accessories and then use clamp to x the pole accessories to the pole.
- Finally, use glass cement to the output hole to secure waterproof.
- After you installed bracket and external cover, loosen the captive screws and open the panel, pull the power cable
through the hanging bracket and then x the hanging bracket to the wall.
- Pay attention to the waterproof between the bracket and the wall.
- After you installed bracket and external cover, loosen the captive screws and open the panel, pull the power cable
through the hanging bracket and then x the hanging bracket to the wall.
- Pay attention to the waterproof between the bracket and the wall.
Refer to chapter 4. 2 for detailed installation information.

20
5 Menu
5.1 Screen Menu Index
Note:
ERR means current setup is invalid.
... means there is submenu.
SYSTEM INFORMATION
INITIAL INFORMATION...
ADDR INFORMATION...
SYSTEM TIME SETTING...
SET NORTH
LANGUAGE: ENGLISH
FACTORY DEFAULT
RESTART
BACK
EXIT
PRESET TITLE: ON (ON/OFF)
AZIMUTH DISP: ON (ON/OFF)
TIME DISP: OFF (ON/OFF)
POSITION: OFF (ON/OFF)
ZOOM DISP: OFF (ON/OFF)
INSIDE TEMP: °C (°C/F/OFF)
BACK: ON (ON/OFF)
EXIT
DISPLAY SETTING
WB SETTING
EXPOSURE SETTING
DAY/NIGHT SETTING
FOCUS MODE: AUTO (AUTO/MANUAL°
FOCUS LIMIT: 30 CM
ZOOM SPEED: 08 (01-08)
APERTURE: 06 (01-16)
NEXT PAGE
BACK: ON (ON/OFF)
EXIT
CAMERA SETTING
PRESET
AUTO PAN
AUTO SCAN
CRUISE
PATTERN
IDLE MOTION
AUTO RUN
NEXT PAGE
BACK
EXIT
ALARM NO: 01
ACTION: NONE
CONTACT: N/O
PRESET: 001
AUTO SCAN: 001
CRUISE: 001
RELAY OUT: OFF (OFF/1->5S/2->5S/1&2->5S
RESET DELAY: 3S
SAVE
BACK
EXIT
FUNCTION SETTING
ALARM SETTING
EXIT
