LEGRAND Arteor 5 746 05 User manual

Cat. No(s): 5 746 05/06/07/08/09/10/11/12/13/14/15/16
Technical data sheet: F03681EN/00 Updated: Created: 31/03/2022
1/2
ArteorTM with Netatmo - British Standard
Connected switches with neutral
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: [phone] - Fax: [phone]
www.legrand.com
3. DIMENSIONS (mm)
4. CONNECTION
Terminal type : with screws
Terminal capacity: 2 x 1.5 mm2 - 2 x 2.5 mm2- 1 x 4 mm2
Stripping length: 8 mm
1. USE
For local or remote control of lighting devices and other controls.
Can be combined with one or more wireless lighting controls.
Can be installed in place of an existing switch in a flush-mounting box 25 mm deep (minimum).
2. RANGE
A B C D
81.5 81.5 31 10.5
B
A
CD
Description White Magnesium Soft Alu Champagne
Product for use in conjunction with the starter pack.
With LED indicator (conguration) and RESET button (hidden) used to return
to factory settings.
Locator and indicator modes can be activated from the Home + Control App.
5 746 05
1-gang
5 746 06
1-gang
5 746 07
1-gang
5 746 08
1-gang
5 746 09
2-gang
5 746 10
2-gang
5 746 11
2-gang
5 746 12
2-gang
5 746 13
3-gang
5 746 14
3-gang
5 746 15
3-gang
5 746 16
3-gang
5. OPERATION
LED indicator:
- useful during installation
- illumination function can be activated
from the Home + Control app
RESET button
used to return to factory settings
ON/OFF
when press
5 746 05 5 746 09 5 746 13
1-gang: 5 746 05/06/07/08

2/2
Cat. No(s): 5 746 05/06/07/08/09/10/11/12/13/14/15/16
ArteorTM with Netatmo - British Standard
Connected switches with neutral
Technical data sheet: F03681EN/00 Updated: Created: 31/03/2022
Caution: Always test before using special cleaning products.
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies and liquids: IP 20
6.2 Material characteristics
Rocker plate: ABS White RAL 9003
ABS Magnesium painted
ABS Soft Alu painted
ABS Champagne painted
Mechanism casing: PC
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
6.3 Electrical characteristics
Voltage: 110/240 V~
Frequency: 50/60 Hz
Compatible with all loads:
LEDs and CFL lamps: 150 W LED
Incandescent and halogen lamps: 500 W
ELV halogen and CFL lamps with separate ballast: 300 VA
Note:
LED: or 10 lamps max. For comfortable lighting, we recommended using
bulbs of the same type and brand.
Use only with transformers designed to work with electronic switches.
Take account of transformer losses when calculating power.
Transformers must be loaded at more than 60% of their power.
Zigbee technology
Frequency: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Range: 200 m of unobstructed space
10 m between products indoors
6.4 Climate characteristics
Storage temperature: 0°C to + 45°C
Usage temperature: +5°C to + 35°C
7. CARE
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: Hexane (EN 60669-1), methylated
spirit, soapy water, diluted ammonia, bleach diluted to 10%, window-
cleaning products, pre-impregnated wipes.
8. STANDARDS AND APPROVALS
Compliant with installation and manufacturing standards.
See e-catalogue.
The undersigned, LEGRAND, declares that the radio-electric equipment
type (5 746 05/06/07/08/09/10/11/12/13/14/15/16) complies with directive
2014/53/EU.
The full text of the EU declaration of conformity is available on the
following website: www.legrandoc.com

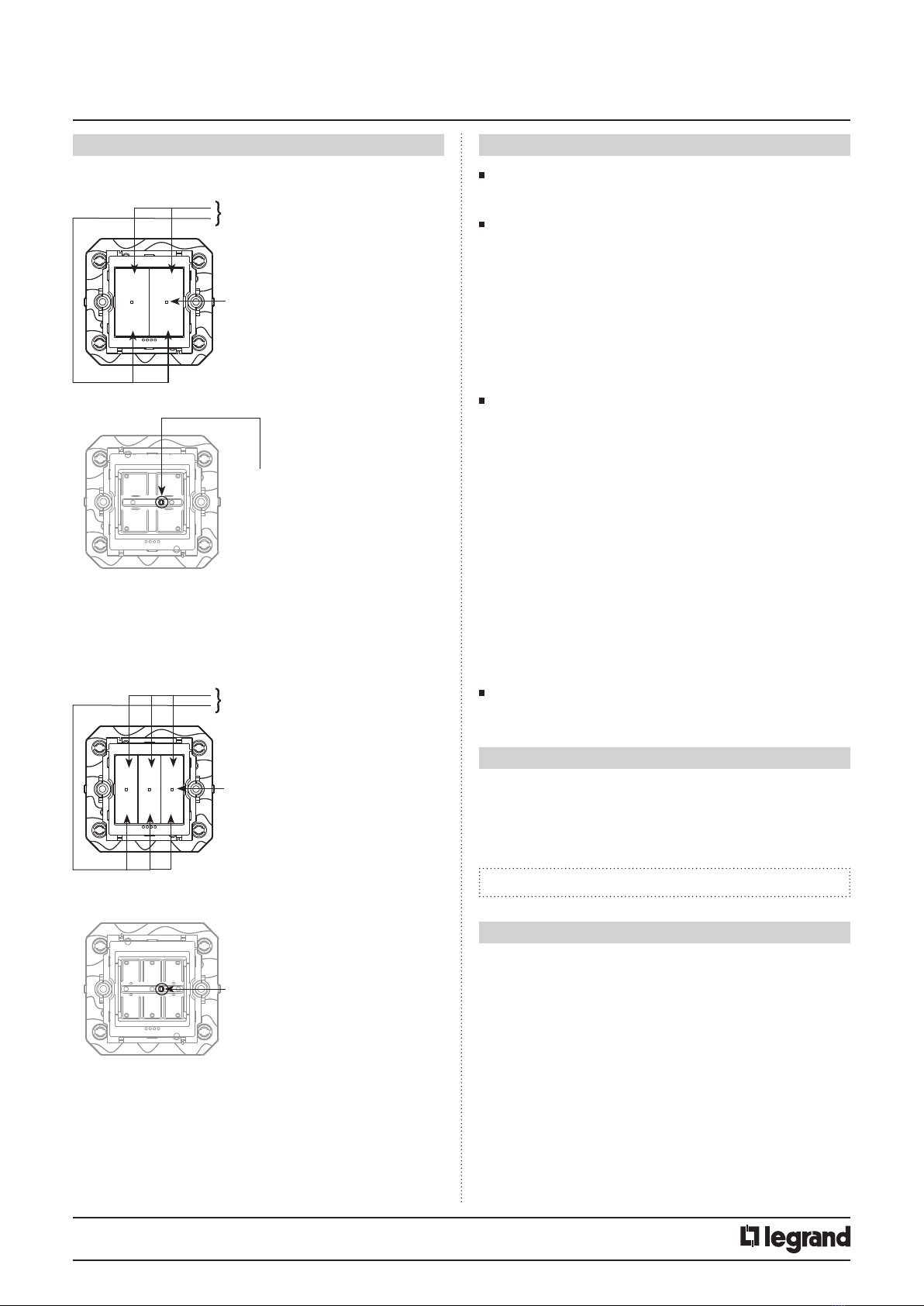

5. OPERATION (continued)
LED indicator:
- useful during installation
- illumination function can be activated
from the Home + Control app
RESET button
used to return to factory settings
ON/OFF
when press
LED indicator:
- useful during installation
- illumination function can be activated
from the Home + Control app
RESET button
used to return to factory settings
ON/OFF
when press
2-gang: 5 746 09/10/11/12
3-gang: 5 746 13/14/15/16
