LEGRAND bticino MyHOME Smarther SXG8002 Operating manual

www.homesystems-legrandgroup.com
Smarther
SXG/SXM/SXW8002 – XW/SXW8002W – XW/XM/XG8002
0 490 38 – 0 490 39 – 0 490 40
User and installation manual

2
Smarther
User and installation manual

32
Contents
Smarther
User and installation manual
Your Smarther, use it now! 5
Heat your home immediately (Boost) 5
Set the temperature 6
Installation 7
Flush-mounted installation (SXG8002 / SXM8002 / SXW8002) 7
With 503E boxes 7
With 500 boxes 8
With 502PB boxes 8
Wall-mounted installation SXW8002W 9
Front view 10
Symbols on the display 11
Rear view 12
SXG8002 / SXM8002 / SXW8002 12
Wiring diagrams 12
SXW8002W 13
Wiring diagrams 14
Technical data 15
Regulatory warnings 15
Operation 16
Basic functions 18
Boost functions 18
Set the temperature 20
Room humidity display 23
Control the Smarther with Home + Control app 24
Introduction 24
Download the Home + Control app 25
Account registration 26
Preliminary operations for the use of a smartphone with iOS operating system 27
Associate the Smarther 29
if you use a smartphone with Android operating system 30
If you use a smartphone with iOS operating system 34
Create a program using the guided procedure 40
Access your home through invitation 43
Forgotten password 44
Authentication 45
Home Page 46
Control a single device 48
Set the temperature 48
Set the Boost function 50
Control all the devices in the room 51
Control all the home devices 52
Absent Function 52
Frost guard Function 53
Set a program for all the home devices 54

44
Smarther
User and installation manual
Settings 55
Manage my home 55
Home parameters 55
Room settings 58
Smarther settings 60
Valve settings 69
Parameters 72
Schedules 73
Create a new program 73
Duplicate a program 74
Rename a program 75
Change a time interval 76
Activate a program 78
Delete a program 79
Copy-paste the days 80
Set point 81
Example of creation of a new program from an existing one 85
Thermal comfort 91
Chart 92
Manage my guests 93
Invite a user 94
Delete a user 94
Add a product to this home 95
Add valves to the Smarther thermostat 96
Install a new home 99
Quick selections 100
Help 101
My account 102
Tell us what you think! 108
Logout 108
Reset 109
Resetting the Wi-Fi configuration and the HOMEKIT settings 109
Reset to the factory settings 111
Manage your Smarther with third-party apps 114
Control your Smarther with HOMEKIT 115

Quick guide
54
Smarther
User and installation manual
4
Your Smarther, use it now!

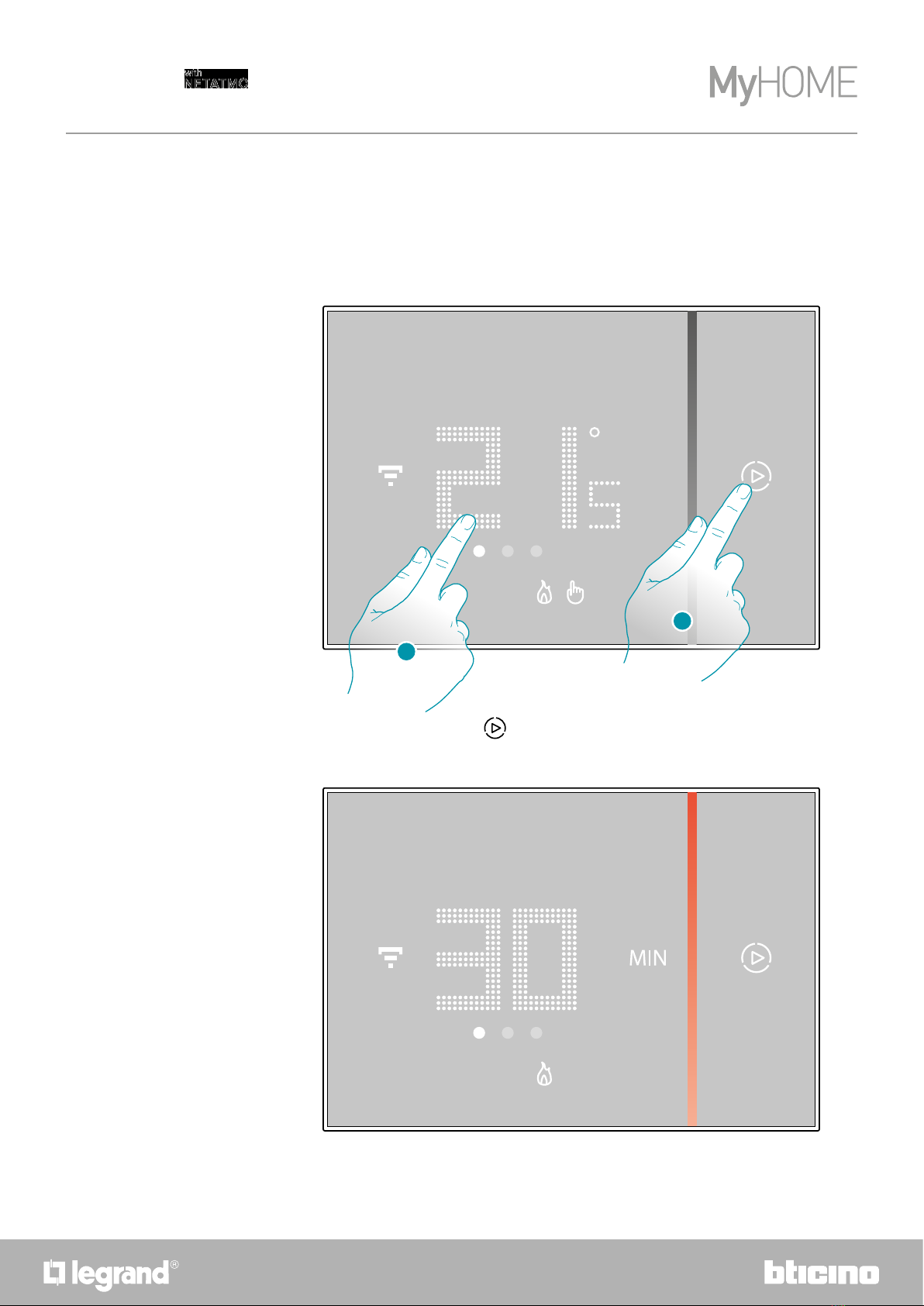

Heat your home immediately (Boost)
You can switch your system on quickly with the BOOST function
ACTIVATION FROM DEVICE or FROM APP
1
1
1. Touch to activate the function
2
2
2. Select the switching-on period from 30/60/90 minutes
33
3. A visual indicator will show you the remaining time for which your system will remain on

6
Quick guide
6
Smarther
User and installation manual

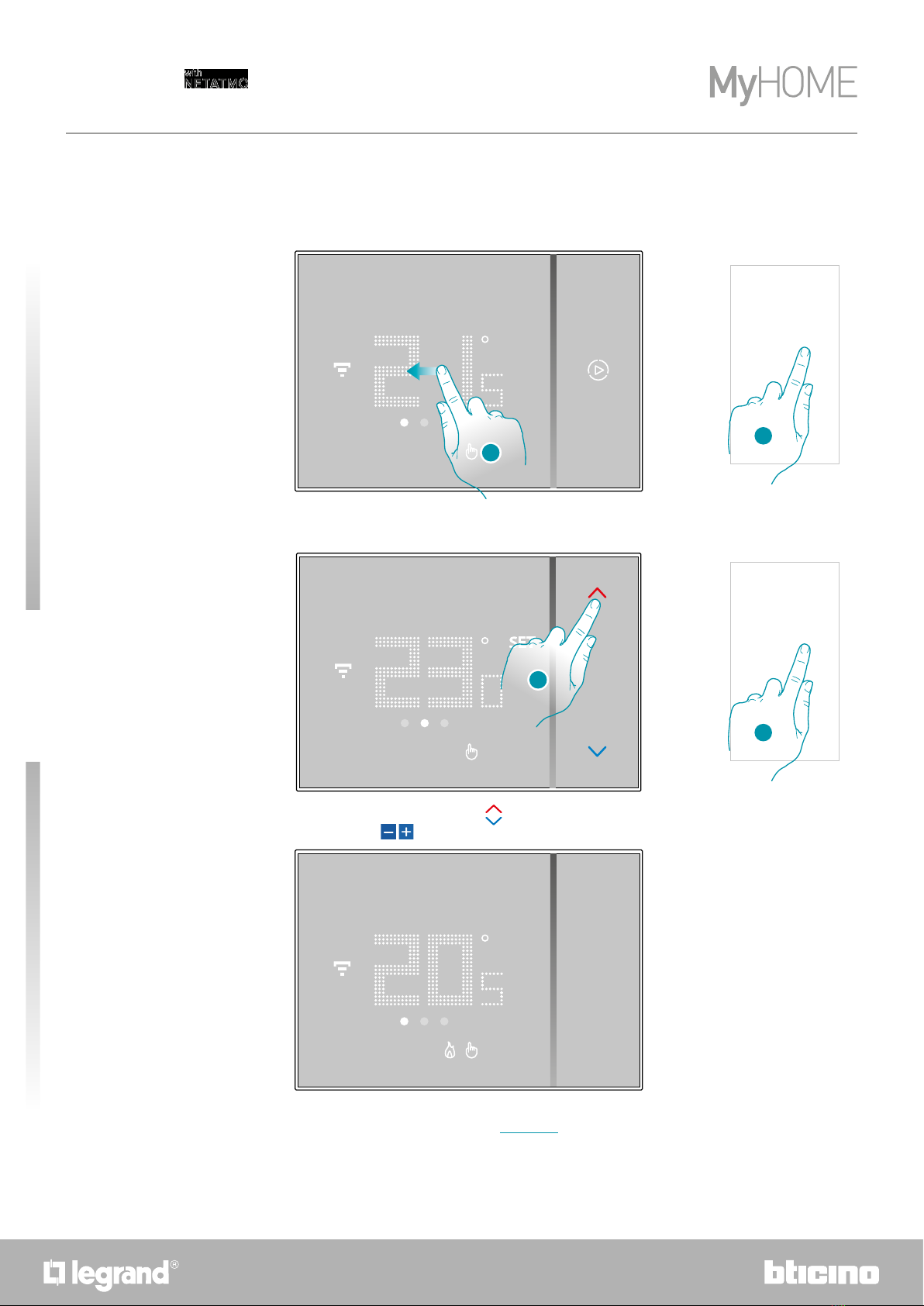

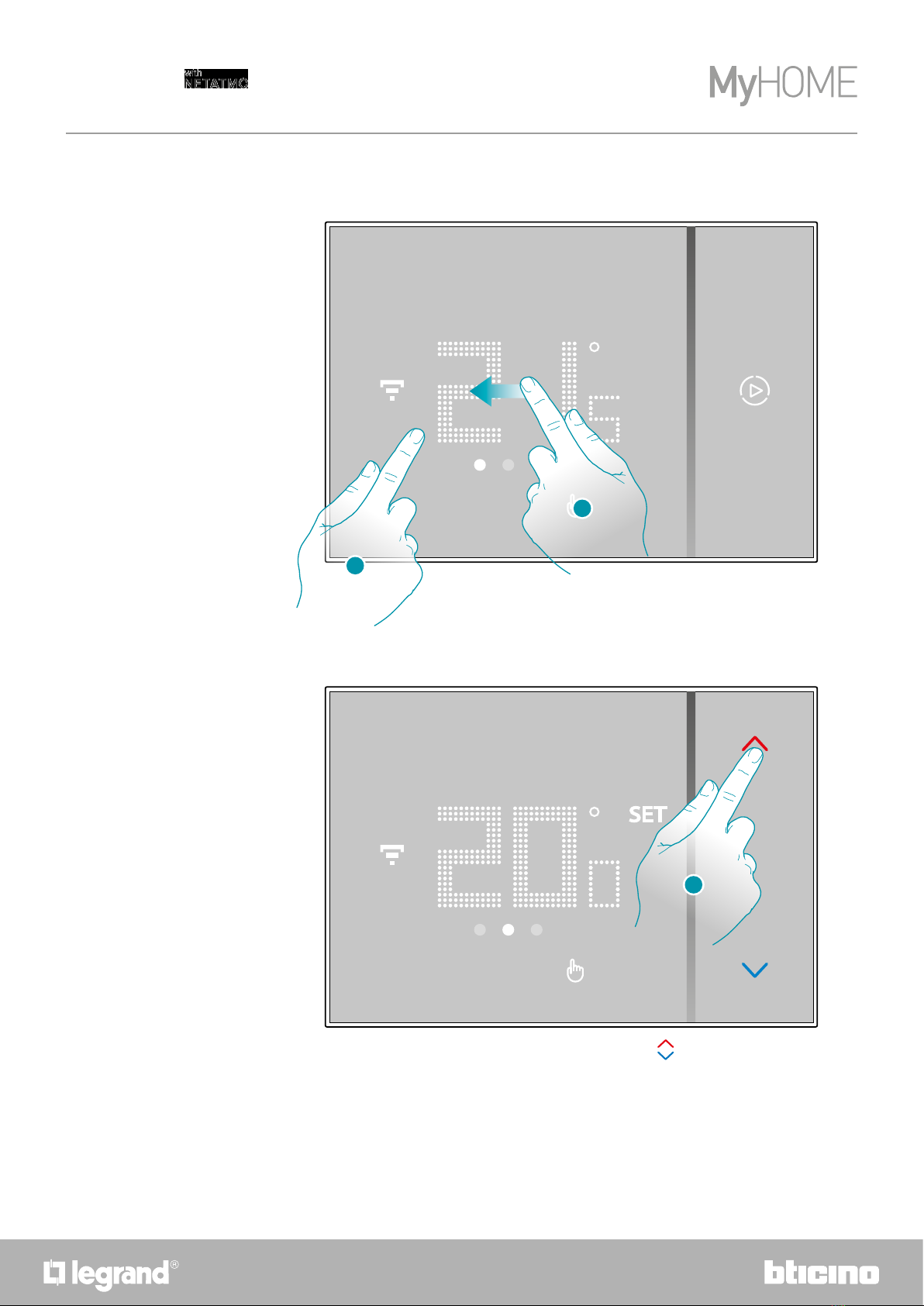

Set the temperature
ACTIVATION FROM DEVICE or FROM APP
1
1
1. From the Smarther scroll to display the temperature setting page or, from the App, touch the
icon
2
2
2. From the Smarther touch the keys to increase or decrease the temperature, or from the
App touch to increase or decrease the temperature.
Note: when you want to set different temperatures depending on the time and day of the week, you
need to create a special program (see Schedules)

76
Smarther
User and installation manual
6
Installation
Flush-mounted installation (SXG8002 / SXM8002 / SXW8002)
With 503E boxes
1
2
3
4
5
160 cm
Recommended height,
unless different
regulations are specified

8
Smarther
User and installation manual

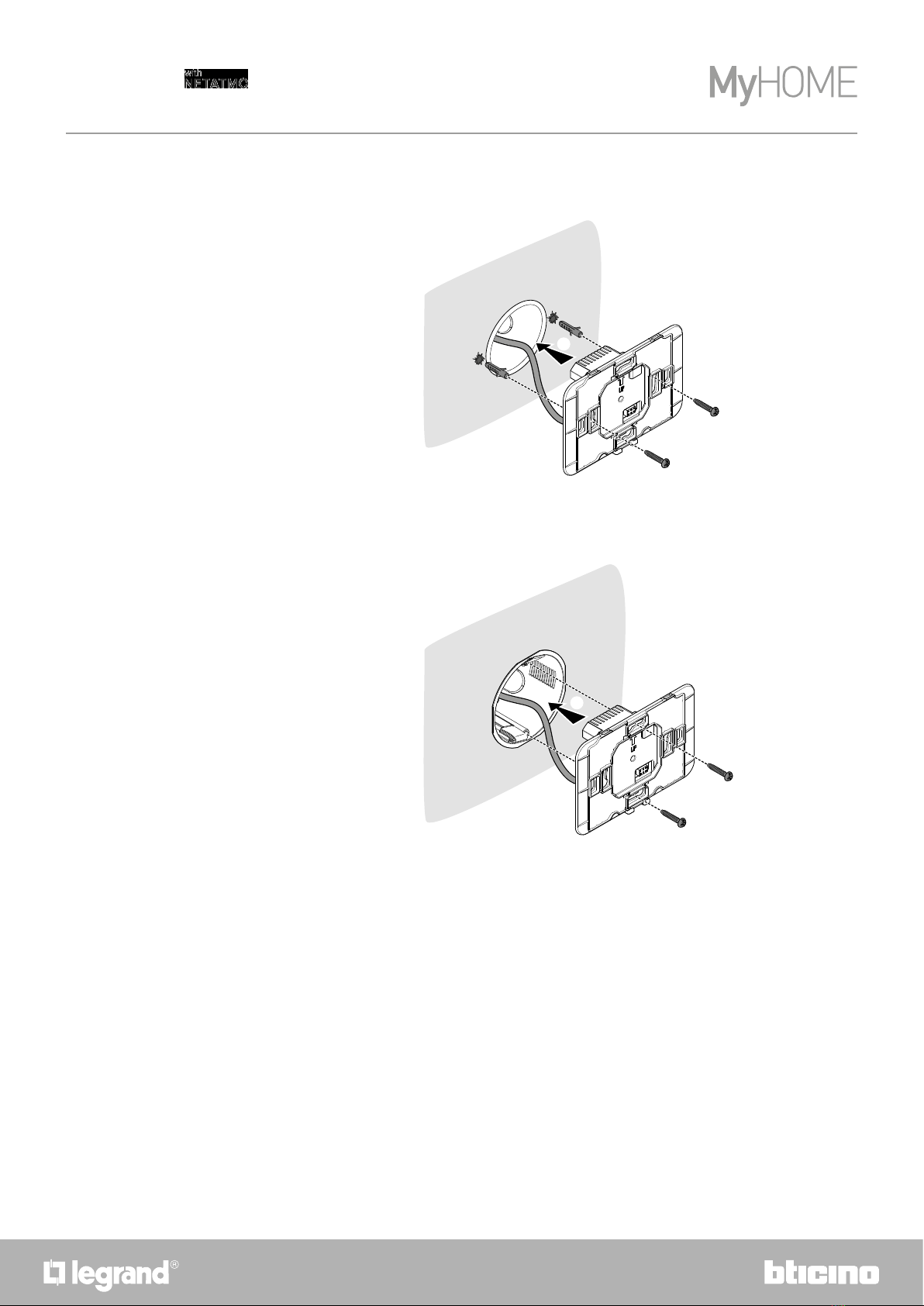

With 500 boxes
With 502PB boxes
4
4
Caution : avoid tightening the screws too much, in order to prevent any base distortion that may
compromise the correct installation of the device.
The front must be tightly fixed to the base and the fastening clip should lock into place.
Once the installation has been done, wait for 2 hours before checking the read temperature.

98
Smarther
User and installation manual
Wall-mounted installation SXW8002W
Caution : avoid fastening the base on irregular surfaces and excessive screw tightening, in order to
prevent any base distortion that may compromise the correct installation of the device.
The front must be tightly fixed to the base and the fastening clip should lock into place.
Once the installation has been done, wait for 2 hours before checking the read temperature.
1
2
3
5
4
67
8
160 cm
Recommended height,
unless different
regulations are specified.

10
Smarther
User and installation manual
Front view
1. Touch screen display
2. Temperature/humidity display
3. “Boost” mode indicator
4. Wi-Fi connection key
5. Reset Key
Note: the , , , , icons are only on when the device is on. If the device is in stand by the icons
will be off
4
5
1 2 3

1110
Smarther
User and installation manual
Symbols on the display
Icon Meaning
Smarther "OFF"
SYSTEM IN HEATING MODE:
The Smarther is set with a default temperature of 7
°C winter.
You can set this condition from the App or manually,
increasing or decreasing the temperature to the
default values.
SYSTEM IN COOLING MODE:
The Smarther is OFF
Heating mode operation The system is in heating mode and is ON.
Cooling mode operation The system is in cooling mode and is ON.
Manual mode operation
The manual mode temporarily excludes the hour
programs; using the Home + Control App you can
also set the length of this mode. When this time has
elapsed, operation will start again as in the program
Boost mode activation
The Boost forces the switching on of the system for
a limited time (30, 60 or 90 minutes) independent of
the measured and programmed temperature
Keys for temperature setting The set value is only valid for the manual mode
operation.
Wi-Fi connection indicator
ON = connected
OFF = disconnected
Blue flashing = it means that the device is ready for
the association to the Home + Control app
White flashing = it identifies the Smarther in some
procedures, in case there is more than one in the
system.
Note : the images of this manual are only indicative, and therefore may not exactly represent the
characteristics of the product.

12
Smarther
User and installation manual

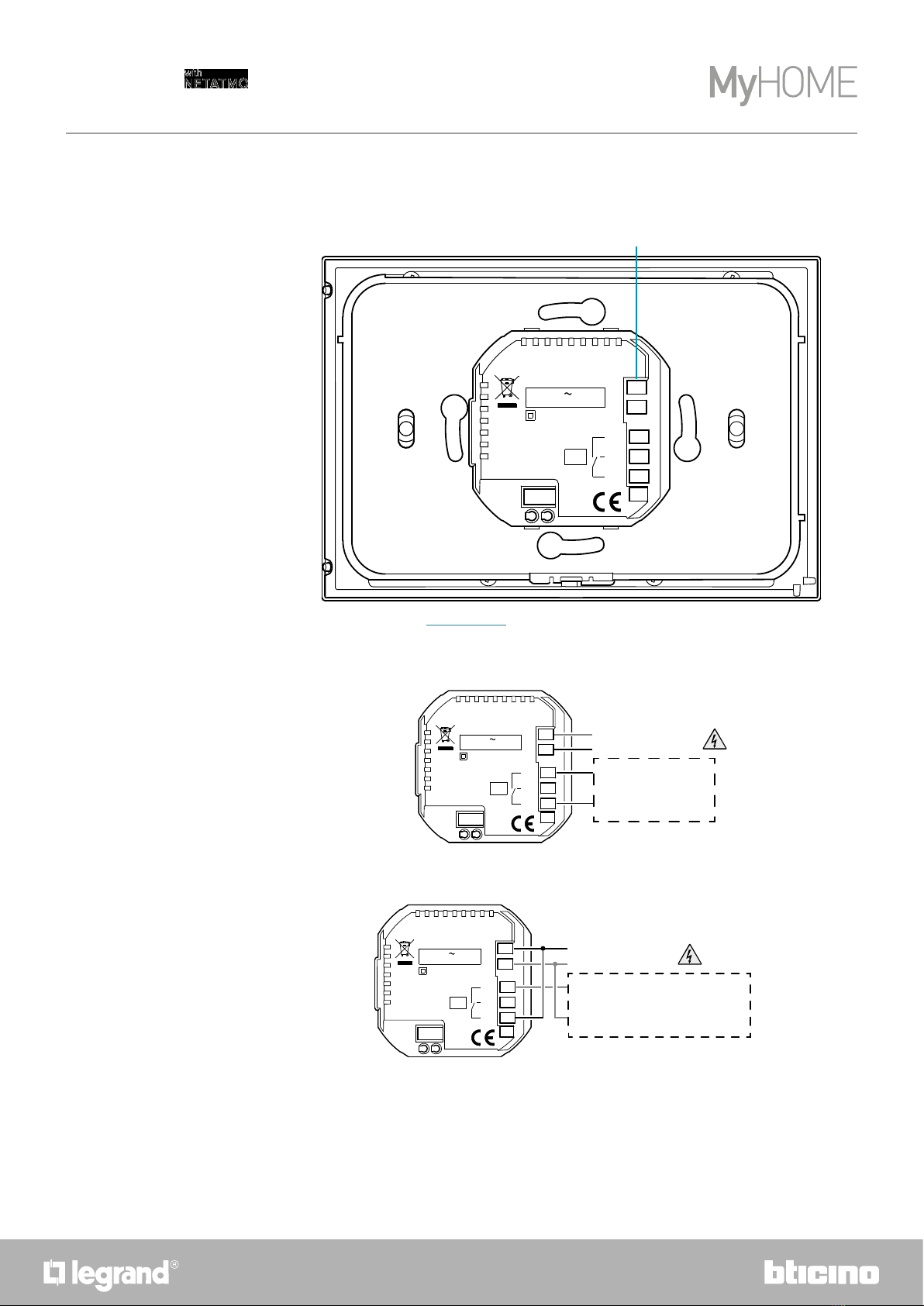

Rear view
SXG8002 / SXM8002 / SXW8002
Wiring diagrams
C
NC
NO
L
N
5(2) A
110 - 240 V 50/60 Hz
2 W max.
BTICINO
V.le Borri, 231
21100 (VA) ITALY
1
1. Connection clamps (see diagrams)
C
NC
NO
L
N
5(2) A
110 - 240 V 50/60 Hz
2 W max. 110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM
(CLEAN CONTACT) (ON/OFF)
BTICINO
V.le Borri, 231
21100 (VA) ITALY
System only for heating with clean contact (e.g. boiler activation)
System only for heating with load to be controlled to the mains voltage (e.g. 230Vac solenoid valve
or other loads, contact output 5(2) A)
C
NC
NO
L
N
5(2) A
110 - 240 V 50/60 Hz
2 W max. 110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM
(LOAD TO BE CONTROLLED TO THE NETWORK VOLTAGE)
BTICINO
V.le Borri, 231
21100 (VA) ITALY

1312
Smarther
User and installation manual
SXW8002W
110 - 240 V 50/60 Hz
N
L
5(2) A
HEATING
COOLING
NC
C
NO
NC
C
NO
2 W max.
BTICINO SpA
Viale Borri, 231
21100 VARESE
ITALY
1
1. Connection clamps (see diagrams)
C
NC
NO
L
N
5(2) A
110 - 240 V 50/60 Hz
2 W max. 110 – 240 Vac, 50/60 HZ
TO THE HEATING AND COOLING SYSTEM
WITH FLOOR SYSTEM
BTICINO
V.le Borri, 231
21100 (VA) ITALY
C
NC
NO
L
N
5(2) A
110 - 240 V 50/60 Hz
2 W max.
110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM
TO THE COOLING SYSTEM
*
BTICINO
V.le Borri, 231
21100 (VA) ITALY
*External changeover switch must be properly switched when system function is changed from
heating to cooling and vice versa.
Heating and cooling with floor system
Heating and cooling with different systems

14
Smarther
User and installation manual
Wiring diagrams
System only for heating with clean contact (e.g. boiler activation)
System only for heating with load to be controlled to the mains voltage (e.g. 230Vac solenoid valve
or other loads, contact output 5(2) A)
Heating and cooling with floor system
Heating and cooling with different systems
C
NC
L
N
NC
NO
C
NO
110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM (CLEAN CONTACT) (ON/OFF)
C
NC
L
N
NC
NO
C
NO
110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM
(LOAD TO BE CONTROLLED TO THE NETWORK VOLTAGE)
C
NC
L
N
NC
NO
C
NO
110 – 240 Vac, 50/60 HZ
TO THE HEATING AND COOLING SYSTEM
WITH FLOOR SYSTEM
C
NC
L
N
NC
NO
C
NO
110 – 240 Vac, 50/60 HZ
TO THE HEATING SYSTEM
TO THE COOLING SYSTEM

1514
Smarther
User and installation manual
Technical data
Power supply 110 – 240 Vac , 50/60Hz
Absorption 2 W max
Maximum cable section 1 x 1,5mm2
Contact output 5(2) A
Operating temperature 5 – 40 °C
Setpoint temperature
5 – 30 °C heating; increase of 0,5 °C
5 – 40 °C cooling; increase of 0,5 °C
Type of operation 1BU
Pollution index 2
Rated pulse voltage 4 kV
Wireless device in compliance with 802.11b/g/n standard, frequency 2.4 – 2.4835 GHz,
transmission power < 20 dBm.
WEP/WPA/WPA2 safety protocol. IPv4 protocol.
Radio connection: short range communication, 868MHz/915MHz frequency, transmission power
< 25mW e.r.p.
Regulatory warnings
Read carefully before use and keep for future reference
Touching the units with wet hands is forbidden
Using liquid cleaners or aerosols is forbidden
Blocking the ventilation openings is forbidden
Modifying the devices is forbidden
Removing protective parts from the devices is forbidden
Installing the units near liquids and powders is forbidden
Installing the units near heat sources is forbidden
Installing the units near harmful gases, metal dusts or similar is forbidden
Fastening the units on unsuitable surfaces is forbidden
Danger of electrical shock
Risk of devices falling because the surface on which they are installed collapses
or inappropriate installation
Switch the power supply OFF before any work on the system
Caution: Installation, configuration, starting-up and maintenance must be
performed exclusively by qualified personnel.
Check that the wall installation has been carried out correctly
Lay out the wires respecting the standards in force
Connect the power supply wires as indicated
Use only the items indicated in the technical specifications for any system
expansions

16
Smarther
User and installation manual
Operation
In basic mode the Smarther allows you to adjust the temperature manually and switch the system on for a limited time (Boost mode).
The advanced functions are available through the Home + Control App, which can be downloaded free from the Stores (for iOS devices
from App Store, for Android devices from Play Store). In advanced mode you can plan the schedules.
The smartphone on which the Home + Control App is installed and the Smarther communicate via the device's Wi-Fi connection. You
therefore do not need wire connections or a mains power supply and connections with the heating system.
Functions available and differences between newly installed Smarther and Smarther connected with App
Functions
Smarther just installed
(not connected)
Smarther connected with the App
By Smarther By App
Boost
At the end of the set period the
Smarther returns to the mode which
was active before the activation
At the end of the set period the
Smarther returns to the program in
progress.
At the end of the set period the Smarther returns to the
program in progress.
Switching off
The set mode is permanent The set mode is permanent The set mode is permanent
I set the temperature
The set temperature is permanent
The set temperature has a fixed
time (default 3 hours) which can be
modified from the App
The set temperature has a fixed time (default 3 hours)
which can be modified
Display the humidity
Displayed in the third page Displayed in the third page Displayed in the Home Page
Frost guard mode
Absent mode

1716
Smarther
User and installation manual
Note: a domestic Wi-Fi with internet access is needed for the connection between the Smarther and the smartphone. To use the service, the Customer must acquire the technical equipment which allows
access to the Internet, on the basis of an agreement made by the Customer himself with an ISP (Internet Service Provider). BTicino plays no part in this.
Install the dedicated Home + Control application on your smartphone to program and use the Smarther. The services offered by means of the App require being able to interact with Smarther remotely and
through the Internet. In these cases the integration and good working between Smarther and App may depend on:
– a) quality of the Wi-Fi signal;
– b) quality of the data signal;
We would like to inform you that the remote use via the App involves the use of data. The cost linked to data usage depends on the type of contract which the customer has with his ISP (Internet Service
Provider) and is solely the customer’s responsibility.
Functions available and differences between newly installed Smarther and Smarther connected with App
Functions
Smarther just installed
(not connected)
Smarther connected with the App
By Smarther By App
Settings
– Heating/cooling switch (default: heating)
– Enable touch interface (default: enabled)
– Display brightness (*) (default: automatic without
switching off)
– Heating protection temperature (default: 7 °C)
– Temperature calibration
– Beep activation (default: disabled)
– Vibration activation (default: enabled)
Program of a daily or weekly temperature
profile
Management of several Smarther and several
houses
(*) display brightness levels: Off, Automatic without switching off, Automatic with switching off, Customised

18
Smarther
User and installation manual
The Boost forces the switching on of the system for a limited time (30, 60 or 90 minutes)
independent of the measured and programmed temperature.
Once the time set has elapsed, Smarther will resume operation according to the previous program.
Basic functions
Boost functions
After setting the desired duration (30, 60 or 90 minutes) wait until the digits stop flashing after
which the Boost mode will be activated.
1. Touch the display, the symbol comes on
2. Touch the symbol once or more to set the function duration; the display shows the set time, at
the same time the LED lights up.
2
1

1918
Smarther
User and installation manual
The display shows the measured temperature; the LED gradually switches off while the set time
passes by.
3. To end the setting early touch the ; symbol; Smarther will continue operation according to
the previous program.
3

20
Smarther
User and installation manual
The temperature level that can be locally set refers only to the manual mode operation.
Set the temperature
1. Touch the display
2. Scroll on the display to go to the next page
3. The current setting is displayed, change the setting with the keys
3
2
1
