Leica Geosystems GKL24 User manual

Leica Geosystems GKL24 Dual Bay Battery Charger
English 3
Deutsch 21
Français 39
Español 57

Leica Geosystems GKL24 Dual Bay Battery Charger
User Manual
Version 1.0
English

Leica Geosystems GKL24 User Manual-1.0.0en
4
Leica Geosystems GKL24 Dual Bay Battery
Charger
Congratulations on purchasing your new Leica
Geosystems charger.
In addition to containing instructions on use,
these operating instructions also contain impor-
tant safety instructions (see "Safety directions").
Please read through the operating instructions
carefully before using the charger.
Product identification
The model and serial number is given on the name plate
attached to the underside of your unit. Enter these details
in your operating instructions and always quote them
whenever you raise a query with our representatives or
service workshops.
Model: ________________Serial No.: _______________
Symbols used
The symbols used in these operating instructions have the
following meanings:
DANGER:
Immediate danger when using, the consequences of
which are serious personal injury or death.
WARNING:
Danger when using, or on improper use, which can
cause serious personal injury or death.
CAUTION:
Danger when using, or on improper use, which can
cause slight personal injury only but serious damage
to property, financial loss or damage to the environ-
ment.
)Information concerning utilisation, which helps to use
the product in a technically correct and efficient
manner.

5
Leica Geosystems GKL24 User Manual-1.0.0en
Contents
Introduction................................................................ 6
Most important elements...................................... 7
Operation .................................................................... 8
Connecting the charger .............................................. 8
Supplementations....................................................... 8
Connecting batteries................................................... 9
Battery charging ......................................................... 9
Determining charging sequence................................. 9
Conservation of charge ............................................ 10
Illuminated Display ................................................... 10
Problems .................................................................. 11
Tips........................................................................... 11
Care and Storage................................................... 12
Safety Directions................................................... 13
Intended use of instrument....................................... 13
Permitted uses .................................................... 13
Adverse uses ...................................................... 13
Limits of use ............................................................. 14
Responsibilities ........................................................ 14
Hazards of use ......................................................... 15
Main hazards of use............................................ 15
Electromagnetic compatability (EMC) ...................... 16
FCC statement ( applicable in U.S.)......................... 17
Technical Data........................................................ 18

Introduction Leica Geosystems GKL24 User Manual-1.0.0en
6
Introduction
The Leica Geosystems GKL24 Dual Bay Battery Charger
is an intelligent charger employing advanced charging
technology. It is suitable for charging Leica Geosystems
GEB90 batteries not only from the mains supply but also in
a vehicle, and represents an optimal complement to your
battery-operated Leica Geosystems instrument.
Up to two batteries may be connected to the charger. The
type of cell technology used in the battery (Li-Ion) is imma-
terial because the microprocessor-controlled charger
recognises the type of battery which has been connected,
and its state of charge, and deduces from this charging
parameters such as charging current and charging algo-
rithm.
The batteries are charged as quickly and reliably as
possible one after the other (sequentially) in the order they
are connected, and so hold their charge for a long time.
The charging time depends primarily on the maximum
charging current, the battery capacity and its state of
charge on insertion / connection (see "Technical Data").
Only Leica Geosystems Li-Ion batteries with 3-pin charger
plugs are charged quickly.
)The charger is only suitable for charging original
Leica Geosystems GEB90 batteries.

Most important elements
7
Leica Geosystems GKL24 User Manual-1.0.0en

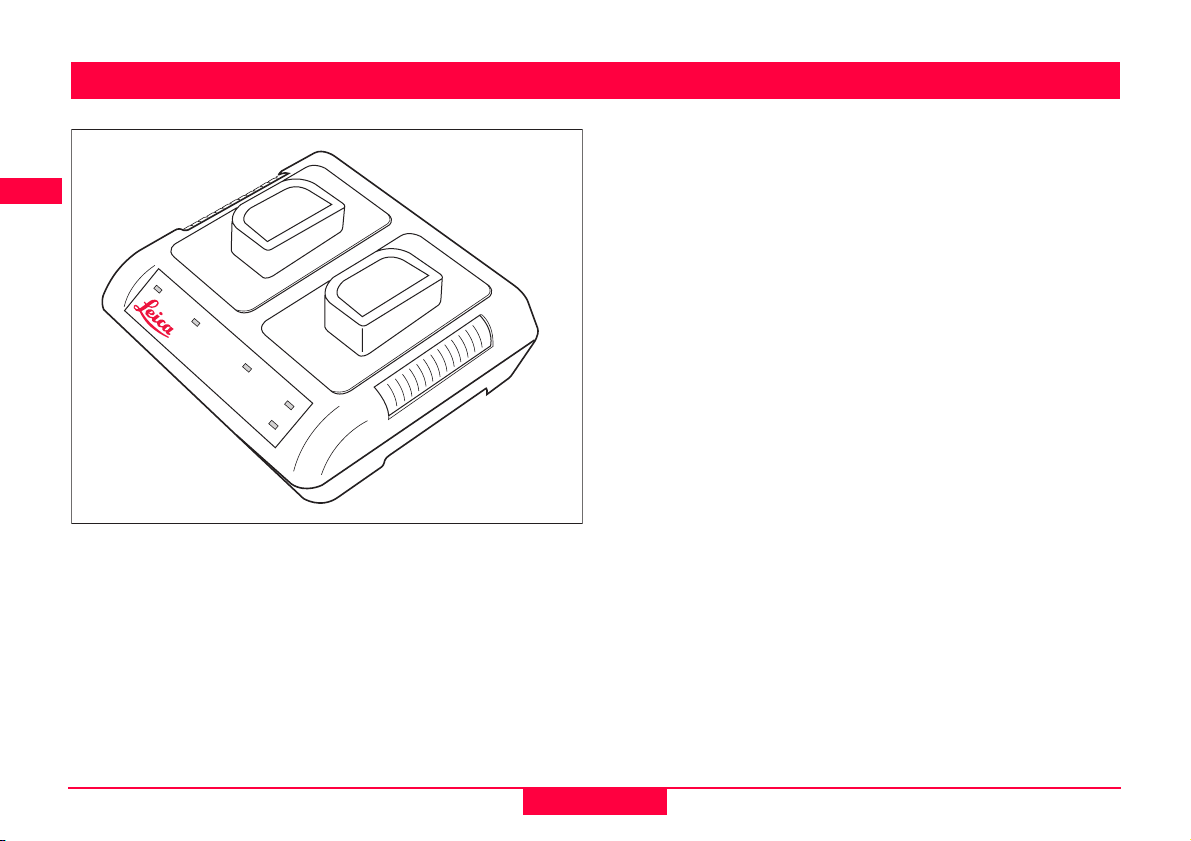

Most important elements
1 GEB90 Battery Li-Ion 7.2 V
2 Battery connections I and II for
Leica Geosystems standard
batteries (GEB90)
3 Mains/Vehicle connection
4 Vehicle cable (fuse in plug of ciga-
rette lighter)
5 AC/DC Converter
6 Cable specifically for the country in
question
7 Squared operation indicator lamp,
green
8 Squared battery indicator lamps for
function / status (4x); 1 for each
battery connection; the battery lamp
is for the corresponding connection;
two colored yellow and green

Operation Leica Geosystems GKL24 User Manual-1.0.0en
8
Operation
Connecting the charger
WARNING:
Use the charger only indoors, in dry rooms. Units
which have become wet and contain condensed air
must not be used.
)During the charging process avoid fast increasing of
ambient temperature.
Before using the product for the first time, ensure that it is
standing firmly or attach it so that it is not possible to
change the position of the unit unintentionally. Connect the
unit to the mains supply either with the mains cable
supplied or if using in a vehicle with the vehicle's electrical
system by using the vehicle cable supplied.
)For a safe separation from mains and if the charger
is not used for a longer period, the plug of the mains
cable and the plug of the vehicle cable must be
disconnected.
Supplementations
)Pay attention to the correct polarity of the cigarette
lighter when using older motor vehicles (+ pole on
centre contact).
In case of a wrong polarity the fuse of the charger
must be replaced by a field technician.
)For supply of charger via vehicle connector only use
vehicle on-board supply systems.
In case of power supply via other systems (e.g.
current-limiting power supply units) malfunctions
could be the result.

Operation
9
Leica Geosystems GKL24 User Manual-1.0.0en
Connecting batteries
Leica Geosystems GEB90 batteries have three contact
surfaces. The charger can differentiate between empty,
partly loaded and full batteries and adapt the charging
procedure accordingly.
WARNING:
For safety reasons, only Leica Geosystems GEB90
batteries may be connected.
Battery charging
1. Connect charger.
2. Connect battery.
3. Ensure that the charging lamp is showing a solid yellow
light. The battery is now being charged. If the battery
lamp gives another signal after the battery has been
connected, see "Illuminated Display".
4. The battery is 80 % charged when the charging lamp
flashes green, when battery lamp is showing solid
green the battery is fully loaded. (for charge time ref. to
"Technical Data"; eg. for GEB90 after 2.5 h to 3.5 h)
5. The battery can now be removed for use or it may
remain connected so that it is available when required.
Determining charging sequence
If more than one battery is connected to the charger, they
are charged in the order that they have been connected.
For this reason, connect the battery that is most urgently
needed so that it has priority for charging.

Operation Leica Geosystems GKL24 User Manual-1.0.0en
10
Conservation of charge
If batteries which have been connected are fully charged,
they may remain connected. Conservation of charge takes
place in sequence so that the battery self-discharge which
takes place for technical reasons, is compensated and the
batteries are always available for use with their full
capacity.
Illuminated Display
Symbol Meaning / Status
Lamp off
Lamp continuously on
Lamp flashes
Everything in order; no
battery connected.
Both Batteries are
connected and are fully
charged
Power
Power
Symbol Meaning / Status
YELLOW:
The battery connected is being
charged (quick or normal charging)
GREEN:
The battery connected is fully
charged and may be removed.
YELLOW:
The charger has recognized the
battery on connection. It is in waiting
mode, as at the moment another
battery is being charged.
GREEN:
The battery connected is more than
80% charged and may be used.

Operation
11
Leica Geosystems GKL24 User Manual-1.0.0en
Problems
)If the charger displays a malfunction while a battery
is connected, it is best to connect another battery for
a short period to determine whether the fault is in the
battery or in the charger. If the problem cannot be
rectified, please contact the service workshop.
Please also check:
• Is the cable making a firm contact?
Replace the cable if necessary.
• Has the vehicle's electrical system sufficient energy
(voltage, fuse in vehicle cable, battery charge)
• Is voltage supplied to the mains socket?
Tips
)Let batteries in the instrument run down as far as
possible.
• Batteries should always be charged in a vehicle while
the motor is running.
• In order to utilise the battery's capacity to the full, new
batteries should be fully charged and discharged three
to five times.
)During the charging process avoid fast increasing of
ambient temperature, eg. by exposure to sunlight of
chargers and batteries.
Fast increasing of ambient temperature could result
in an early end of charging with reduced battery
capacity.

Care and Storage Leica Geosystems GKL24 User Manual-1.0.0en
12
Care and Storage
The charger basically needs no maintenance.
• Always keep the charger in a dry place.
• Keep to the specified storage temperature range (see
”Technical Data”).
• Keep cables, plugs or contacts clean and dry. Blow out
any dirt lodged in the plugs or contacts.
• When dispatching or transporting the charger, always
use the original Leica Geosystems packaging.
)Temperature limits
When storing the equipment, particularly in summer
and inside a vehicle, take the storage temperature
limits (-40°C to +70°C / -40°F to +158°F) into
account.
)Damp products must be unpacked. Dry the product,
the case, the foam inserts and the accessories at not
more than 40°C / 108°F and clean them. Do not
repack until everything is completely dry.

Safety Directions
13
Leica Geosystems GKL24 User Manual-1.0.0en
Safety Directions
The following directions should enable the person respon-
sible for the product, and the person who actually uses the
product, to anticipate and avoid operational hazards.
The person responsible for the product must ensure that all
users understand these directions and adhere to them.
Intended use of instrument
Permitted uses
Refer to "Introduction" and "Technical Data" for permitted
uses of the product.
Adverse uses
• Use of the product without instruction
• Use outside of the intended limits
• Disabling safety systems
• Removal of hazard notices
• Opening the product using tools (screwdriver, etc.),
unless this is specifically permitted for certain functions
• Modification or conversion of the product
• Use after misappropriation
• Use with accessories from other manufacturers without
the prior express approval of Leica Geosystems
WARNING:
Adverse use can lead to injury, malfunction and
material damage.
It is the task of the person responsible for the equip-
ment to inform the user about hazards and how to
counteract them. The product is not to be operated
until the user has been properly instructed how to
use it.

Safety Directions Leica Geosystems GKL24 User Manual-1.0.0en
14
Limits of use
Environment:
Suitable only for use in dry rooms and not under severe
conditions.
Refer to "Technical Data".
Responsibilities
Area of responsibility for the manufacturer of the orig-
inal equipment Leica Geosystems AG, CH-9435 Heer-
brugg (hereinafter referred to as Leica Geosystems):
Leica Geosystems is responsible for supplying the product,
including the User Manual and original accessories, in a
completely safe condition.
)Responsibilities of the manufacturers of non-
Leica Geosystems accessories:
The manufacturers of non-Leica Geosystems accessories
for the product are responsible for developing, imple-
menting and communicating safety concepts for their prod-
ucts, and are also responsible for the effectiveness of
those safety concepts in combination with the Leica
Geosystems product.

Safety Directions
15
Leica Geosystems GKL24 User Manual-1.0.0en
Responsibilities of the person in charge of the equip-
ment:
WARNING:
The person responsible for the equipment must
ensure that it is used in accordance with the instruc-
tions. This person is also accountable for the training
and deployment of personnel who use the equip-
ment and for the safety of the equipment when in
use.
The person in charge of the product has the following
duties:
• To understand the safety instructions on the product
and the instructions in the User Manual.
• To be familiar with local regulations relating to accident
prevention.
• To inform Leica Geosystems immediately if the equip-
ment becomes unsafe.
Hazards of use
Main hazards of use
WARNING:
The absence of instruction, or the inadequate
imparting of instruction, can lead to incorrect or
adverse use, and can give rise to accidents with far-
reaching human, material, financial and environ-
mental consequences.
Precautions:
All users must follow the safety directions given by the
manufacturer and the directions of the person responsible
for the product.
WARNING:
The charger is not designed for use under wet and
severe conditions. If unit becomes wet it may cause
you to receive an electric shock.
Precautions:
Use charger only indoors, in dry rooms and protect it from
damp. If the charger is damp, do not use it.
WARNING:
If you open the charger, either of the following
actions may cause you to receive an electric shock:
• Touching live components
• Using the charger after incorrect attempts to carry out
repairs

Safety Directions Leica Geosystems GKL24 User Manual-1.0.0en
16
Precautions:
Do not open the charger. Only a Leica Geosystems-
approved service technician is entitled to repair it.
WARNING:
If the equipment is improperly disposed of, the
following can happen:
• If polymer parts are burnt, poisonous gases are
produced which may impair health.
• By disposing of the equipment irresponsibly you may
enable unauthorized persons to use it in contravention
of the regulations, exposing themselves and third
parties to the risk of severe injury and rendering the
environment liable to contamination.
Precautions:
Dispose of the equipment appropriately in accordance with
the regulations in force in your country. Always prevent
access to the equipment by unauthorized personnel.
Electromagnetic compatability (EMC)
The term "Electromagnetic compatability" is taken to mean
the capability of the product to function correctly in an envi-
ronment where electromagnetic radiation and electrostatic
discharges are present, and without causing electromag-
netic disturbances in other equipment.
WARNING:
Electromagnetic radiation can cause disturbances in
other equipment.
Although the product meets the strict regulations and
standards which are in force in this respect, Leica Geosys-
tems cannot completely exclude the possibility that other
equipment may be disturbed.

Safety Directions
17
Leica Geosystems GKL24 User Manual-1.0.0en
FCC statement ( applicable in U.S.)
WARNING:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.
WARNING:
Changes or modifications not expressly approved by
Leica Geosystems for compliance could void the
user's authority to operate the equipment.
Product Labeling:
This device complies with part 15 of the FCC Rules. Oper-
ation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
STATUS
CAUTION
Model # 020109
Serial #
Amber solid:
Tested to comply
with FCC standards
for Home or Office
Leica Geossystems Inc. California, USA
Input:
12V, 18-50W
Made In Mexico
I.T.E. Battery charger
65 FK
E204931
US LISTEDC®
UL
Green solid:
Green flashing:
Amber flashing:
Charging battery
Battery is completely charged
Battery is 80% charged & useable
Standby
• Read operating instructions completely before use.
• Use only with a LPS power supply.
• Use only with Leica battery model 010416-01.
• No user serviceable parts inside-Warranty void if opened.
• Call Authorized Leica Representative when service or repair is needed.
• For indoor operation only. Do not expose to rain.
LEI00037
Output:
8.5 - 9.0V

Technical Data Leica Geosystems GKL24 User Manual-1.0.0en
18
Technical Data
Power
• Mains connection
• Vehicle connection
Input voltage
AC voltage setting is automatic
• 90 - 264 VAC ~ (+10/-15%) @ 1.0 AMPS, 47-63Hz
Output voltage
• 4.2 V +/- 50mV @ 50-150 mA
Operating environment
• Only for use in dry rooms (buildings or vehicles)
Temperature range
Charging time
• Full charge 2.5 hrs total
• 80 % charge 2 hrs
Display
• See section "Illuminated display"
Weight
• Charger: 0.35 Kg
• AC/DC Converter: 0.25 Kg
• mains, vehicle and 2 charging cables: 0.185kg
Storage Operating
-40°C to +70°C
(-40°F to +158°F)
0°C to +45°C
(+32°F to +113°F)

Leica Geosystems AG
CH-9435 Heerbrugg
(Switzerland)
Phone [phone]
Fax [phone]
Leica Geosystems AG, Heerbrugg,
Switzerland, has been certified as
being equipped with a quality system
which meets the International
Standards of Quality Management and
Quality Systems (ISO standard 9001)
and Environmental Management
Systems (ISO standard 14001).
Total Quality Management-
Our commitment to total
customer satisfaction.
Ask your local Leica
Geosystems agent for more
information about our TQM
program.
734256-1.0.0en
Printed in Switzerland - Copyright Leica Geosystems AG,
Heerbrugg, Switzerland 2003
Original text
