Introduction
Congratulations on the purchase of the Leica 3D Disto.
This manual contains important safety directions as well as instructions for
setting up the product and operating it. Refer to "1 Safety Directions" for fur-
ther information.
Read carefully through the User Manual before you switch on the product.
The model and serial number of your product are indicated on the type plate.
Always refer to this information when you need to contact your agency or
Leica Geosystems authorised service centre.
•Windows® is a registered trademark of Microsoft Corporation in the
United States and other countries
All other trademarks are the property of their respective owners.
Name Description/Format
3D Disto Quick Start Intended as quick reference guide for
rst setup.
ü ü
3D Disto User Manual All instructions required in order to
operate the instrument at a basic level
are contained in this User Manual.
Provides an overview of the instrument
together with technical data and safety
directions.
-ü
Safety Manual Provides important safety instructions
for use of 3D Disto.
ü ü
Refer to the following resources for all 3D Disto documentation/soft-
ware:
•Leica USB memory stick
•https://myworld.leica-geosystems.com
On the last page of this manual, you can nd the address of Leica Geosystems
headquarters. For a list of regional contacts, please visit
http://leica-geosystems.com/contact-us/sales_support.
myWorld@Leica Geosystems (https://myworld.leica-geosystems.com)
offers a wide range of services, information and training material.
With direct access to myWorld, you are able to access all relevant services
whenever it is convenient for you.
Purchase
Product identication
Trademarks
Available Documenta-
tion
Leica Geosystems
address book
2

Service Description
myProducts Add all products that you and your company own
and explore your world of Leica Geosystems: View
detailed information on your products and update
your products with the latest software and keep up-
to-date with the latest documentation.
myService View the current service status and full service his-
tory of your products in Leica Geosystems service
centres. Access detailed information on the services
performed and download your latest calibration cer-
ticates and service reports.
mySupport Create new support requests for your products that
will be answered by your local Leica Geosystems
Support Team. View the complete history of your
support requests and view detailed information on
each request in case you want to refer to previous
support requests.
myTraining Enhance your product knowledge with Leica Geosys-
tems Campus - Information, Knowledge, Training.
Study the latest online training material on your
products and register for seminars or courses in
your country.
myTrustedServices Add your subscriptions and manage users for Leica
Geosystems Trusted Services, the secure software
services, that assist you to optimise your workow
and increase your efciency.
3

Table of Contents
1 Safety Directions 6
1.1 General Introduction 6
1.2 Denition of Use 7
1.3 Limits of Use 7
1.4 Responsibilities 7
1.5 Hazards of Use 8
1.6 Laser Classication 10
1.6.1 General 10
1.6.2 Integrated Distance Meter 11
1.7 Electromagnetic Compatibility (EMC) 11
1.8 Conformity to National Regulations 13
1.8.1 FCC Statement, Applicable in U.S. 13
1.8.2 ISED Statement, Applicable in Canada 14
1.8.3 Japanese Radio Law Compliance 14
1.8.4 Singapore 14
1.9 Labelling 15
2 Description of the System 16
2.1 Overview 16
2.2 Container Contents 16
2.3 Instrument Components 17
2.3.1 3D Disto 17
2.3.2 RM100 Remote Control 19
2.4 Power Supply 19
2.5 3D Disto Software 20
2.5.1 Software Concept 20
2.5.2 User Interface 21
3 Instrument Setup 27
3.1 Setting Up 3D Disto 27
3.2 Connecting the 3D Disto to a Windows Device 27
3.3 Assistant 28
3.4 Tilt Sensor 29
3.5 Device Conguration and Menu Settings 29
3.6 Data Management 30
3.6.1 File Manager 30
3.6.2 Export and Import of Data 32
3.7 Calculator 32
4 Technical Terms and Abbreviations 34
5 Operation 38
5.1 Measurements 38
5.2 Using Layers 38
5.3 Pointnder 39
5.4 Measurement Workow 42
6 Software Applications 46
6.1 Overview 46
6.2 Measure 46
6.2.1 Reference Height 46
6.2.2 Scan Tool for Automated Scans 47
6.2.3 CAD Tools 50
6.3 Projector 62
6.3.1 Workow 63
6.3.2 Targeting and Layout with RM100 Remote Control 66
4 Table of Contents

6.4 Location 66
6.5 Tool Kit 69
6.5.1 Comfort Plumbing 69
6.5.2 Comfort Targeting 70
6.5.3 Comfort Level 71
6.5.4 Meter Mark 71
6.5.5 Height Tracking 72
6.5.6 Parallel Line 73
7 Error Messages 75
8 Check & Adjust 77
8.1 Overview 77
8.2 Tilt Sensor Calibration 77
8.3 Crosshairs Offset 78
8.4 V-Index Error 79
8.5 Reset to Factory Settings 80
9 Instrument Protection (Theft Protection) 81
10 Care and Transport 82
10.1 Transport 82
10.2 Storage 82
10.3 Cleaning and Drying 83
11 Technical Data 84
11.1 Technical Data 84
11.2 Conformity to National Regulations 85
11.3 Dangerous Goods Regulations 86
12 Warranty 87
13 Software Licence Agreement 88
Table of Contents 5

1 Safety Directions
1.1 General Introduction
The following directions enable the person responsible for the product, and
the person who actually uses the equipment, to anticipate and avoid opera-
tional hazards.
The person responsible for the product must ensure that all users understand
these directions and adhere to them.
Warning messages are an essential part of the safety concept of the instru-
ment. They appear wherever hazards or hazardous situations can occur.
Warning messages...
•make the user alert about direct and indirect hazards concerning the use
of the product.
•contain general rules of behaviour.
For the users‘ safety, all safety instructions and safety messages shall be
strictly observed and followed! Therefore, the manual must always be available
to all persons performing any tasks described here.
DANGER, WARNING, CAUTION and NOTICE are standardised signal words for
identifying levels of hazards and risks related to personal injury and property
damage. For your safety, it is important to read and fully understand the fol-
lowing table with the different signal words and their denitions! Supplement-
ary safety information symbols may be placed within a warning message as
well as supplementary text.
Type Description
DANGER Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in minor or moderate injury.
NOTICE
Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in appreciable material, nancial
and environmental damage.
☞Important paragraphs which must be
adhered to in practice as they enable the
product to be used in a technically correct
and efcient manner.
Description
About warning
messages
6 Safety Directions

1.2 Denition of Use
•3D measuring of distances, heights, grades, angles, area and volume.
•Manual and automatic measurement of room dimensions.
•Automatic measurement of proles.
•Laying out points and designs, for example from blueprint.
•Generation of drawings.
•Camera functionality.
•Import/Export of data.
•Administration of data.
•Use of the product without instruction.
•Use outside of the intended use and limits.
•Disabling safety systems.
•Removal of hazard notices.
•Opening the product using tools, for example screwdriver, unless this is
permitted for certain functions.
•Modication or conversion of the product.
•Use after misappropriation.
•Use of products with recognisable damage or defects.
•Use with accessories from other manufacturers without the prior explicit
approval of Leica Geosystems.
•Inadequate safeguards at the working site.
•Deliberate dazzling of third parties.
•Controlling of machines, moving objects or similar monitoring application
without additional control and safety installations.
1.3 Limits of Use
Suitable for use in an atmosphere appropriate for permanent human habita-
tion: not suitable for use in aggressive or explosive environments.
WARNING
Working in hazardous areas, or close to electrical installations or sim-
ilar situations
Life Risk.
Precautions:
▶Local safety authorities and safety experts must be contacted by the per-
son responsible for the product before working in such conditions.
1.4 Responsibilities
Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica
Geosystems, is responsible for supplying the product, including the User
Manual and original accessories, in a safe condition.
Intended Use
Reasonably foresee-
able misuse
Environment
Manufacturer of the
product
Safety Directions 7

The person responsible for the product has the following duties:
•To understand the safety instructions on the product and the instructions
in the User Manual.
•To ensure that it is used in accordance with the instructions.
•To be familiar with local regulations relating to safety and accident pre-
vention.
•To inform Leica Geosystems immediately if the product and the applica-
tion becomes unsafe.
•To ensure that the national laws, regulations and conditions for the oper-
ation of the product are respected.
1.5 Hazards of Use
NOTICE
Dropping, misusing, modifying, storing the product for long periods or
transporting the product
Watch out for erroneous measurement results.
Precautions:
▶Periodically carry out test measurements, particularly after the product
has been subjected to abnormal use and before and after important
measurements.
WARNING
Distraction/loss of attention
During dynamic applications, for example stakeout procedures, there is a
danger of accidents occurring if the user does not pay attention to the envir-
onmental conditions around, for example obstacles, excavations or trafc.
Precautions:
▶The person responsible for the product must make all users fully aware of
the existing dangers.
WARNING
Inadequate securing of the working site
This can lead to dangerous situations, for example in trafc, on building sites
and at industrial installations.
Precautions:
▶Always ensure that the working site is adequately secured.
▶Adhere to the regulations governing safety, accident prevention and road
trafc.
Person responsible
for the product
8 Safety Directions

CAUTION
Not properly secured accessories
If the accessories used with the product are not properly secured and the
product is subjected to mechanical shock, for example blows or falling, the
product may be damaged or people can sustain injury.
Precautions:
▶When setting up the product, make sure that the accessories are correctly
adapted, tted, secured, and locked in position.
▶Avoid subjecting the product to mechanical stress.
WARNING
Inappropriate mechanical inuences to batteries
During the transport, shipping or disposal of batteries it is possible for inap-
propriate mechanical inuences to constitute a re hazard.
Precautions:
▶Before shipping the product or disposing it, discharge the batteries by the
product until they are at.
▶When transporting or shipping batteries, the person in charge of the
product must ensure that the applicable national and international rules
and regulations are observed.
▶Before transportation or shipping, contact your local passenger or freight
transport company.
WARNING
Exposure of batteries to high mechanical stress, high ambient temper-
atures or immersion into uids
This can cause leakage, re or explosion of the batteries.
Precautions:
▶Protect the batteries from mechanical inuences and high ambient tem-
peratures. Do not drop or immerse batteries into uids.
WARNING
Short circuit of battery terminals
If battery terminals are short circuited e.g. by coming in contact with jewellery,
keys, metallised paper or other metals, the battery can overheat and cause
injury or re, for example by storing or transporting in pockets.
Precautions:
▶Make sure that the battery terminals do not come into contact with
metallic objects.
Safety Directions 9

WARNING
Improper disposal
If the product is improperly disposed of, the following can happen:
•If polymer parts are burnt, poisonous gases are produced which may
impair health.
•If batteries are damaged or are heated strongly, they can explode and
cause poisoning, burning, corrosion or environmental contamination.
•By disposing of the product irresponsibly you may enable unauthorised
persons to use it in contravention of the regulations, exposing themselves
and third parties to the risk of severe injury and rendering the environ-
ment liable to contamination.
Precautions:
▶The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with
the national regulations in force in your country.
Always prevent access to the product by unauthorised
personnel.
Product-specic treatment and waste management information can be
received from your Leica Geosystems distributor.
CAUTION
Changes or modications not expressly approved by Leica Geosystems for
compliance could void the user's authority to operate the equipment.
WARNING
Improperly repaired equipment
Risk of injuries to users and equipment destruction due to lack of repair
knowledge.
Precautions:
▶Only authorised Leica Geosystems Service Centres are entitled to repair
these products.
1.6 Laser Classication
1.6.1 General
The following chapters provide instructions and training information about
laser safety according to international standard IEC 60825-1 (2014-05) and
technical report IEC TR 60825-14 (2004-02). The information enables the per-
son responsible for the product and the person who actually uses the equip-
ment, to anticipate and avoid operational hazards.
☞According to IEC TR 60825-14 (2004-02), products classied as laser
class 1, class 2 and class 3R do not require:
•laser safety ofcer involvement,
•protective clothes and eyewear,
•special warning signs in the laser working area
if used and operated as dened in this User Manual due to the low
eye hazard level.
General
10 Safety Directions

☞National laws and local regulations could impose more stringent
instructions for the safe use of lasers than IEC 60825-1 (2014-05)
and IEC TR 60825-14 (2004-02).
1.6.2 Integrated Distance Meter
The Leica 3D Disto produces a visible laser beam which emerges from the
front of the instrument.
The laser product described in this section is classied as laser class 2 in
accordance with:
•IEC 60825-1 (2014-05): “Safety of laser products”
These products are safe for momentary exposures but can be hazardous for
deliberate staring into the beam. The beam may cause dazzle, ash-blindness
and after-images, particularly under low ambient light conditions.
Description Value
Wavelength 620 nm - 690 nm
Maximum average radiant power <1 mW
Pulse repetition frequency 320 MHz
Pulse duration <1 ns
Beam divergence 0.16 mrad × 0.6 mrad
CAUTION
Class 2 laser product
From a safety perspective, class 2 laser products are not inherently safe for
the eyes.
Precautions:
▶Avoid staring into the beam or viewing it through optical instruments.
▶Avoid pointing the beam at other people or at animals.
1.7 Electromagnetic Compatibility (EMC)
The term Electromagnetic Compatibility is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radi-
ation and electrostatic discharges are present, and without causing electro-
magnetic disturbances to other equipment.
WARNING
Electromagnetic radiation
Electromagnetic radiation can cause disturbances in other equipment.
Precautions:
▶Although the product meets the strict regulations and standards which
are in force in this respect, Leica Geosystems cannot completely exclude
the possibility that other equipment may be disturbed.
▶The product is a class A product when operated with the internal batter-
ies. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Integrated Distance
Meter
Description
Safety Directions 11

CAUTION
Use of the product with accessories from other manufacturers. For
example eld computers, personal computers or other electronic equip-
ment, non-standard cables or external batteries
This may cause disturbances in other equipment.
Precautions:
▶Use only the equipment and accessories recommended by Leica Geosys-
tems.
▶When combined with the product, they meet the strict requirements stip-
ulated by the guidelines and standards.
▶When using computers, two-way radios or other electronic equipment,
pay attention to the information about electromagnetic compatibility
provided by the manufacturer.
CAUTION
Intense electromagnetic radiation. For example, near radio transmit-
ters, transponders, two-way radios or diesel generators
Although the product meets the strict regulations and standards which are in
force in this respect, Leica Geosystems cannot completely exclude the possib-
ility that function of the product may be disturbed in such an electromagnetic
environment.
Precautions:
▶Check the plausibility of results obtained under these conditions.
CAUTION
Electromagnetic radiation due to improper connection of cables
If the product is operated with connecting cables attached at only one of their
two ends, for example external supply cables, interface cables, the permitted
level of electromagnetic radiation may be exceeded and the correct function-
ing of other products may be impaired.
Precautions:
▶While the product is in use, connecting cables, for example product to
external battery, product to computer, must be connected at both ends.
12 Safety Directions

WARNING
Use of product with radio or digital cellular phone devices
Electromagnetic elds can cause disturbances in other equipment, in installa-
tions, in medical devices, for example pacemakers or hearing aids and in air-
crafts. Electromagnetic elds can also affect humans and animals.
Precautions:
▶Although the product meets the strict regulations and standards which
are in force in this respect, Leica Geosystems cannot completely exclude
the possibility that other equipment can be disturbed or that humans or
animals can be affected.
▶Do not operate the product with radio or digital cellular phone devices in
the vicinity of lling stations or chemical installations, or in other areas
where an explosion hazard exists.
▶Do not operate the product with radio or digital cellular phone devices
near to medical equipment.
▶Do not operate the product with radio or digital cellular phone devices in
aircrafts.
▶Do not operate the product with radio or digital cellular phone devices for
long periods with the product immediately next to your body.
1.8 Conformity to National Regulations
1.8.1 FCC Statement, Applicable in U.S.
WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference
that may cause undesired operation.
☞
Safety Directions 13

The radiated output power of the instrument is far below the FCC radio fre-
quency exposure limits. Nevertheless, the instrument should be used in such a
manner that the potential for human contact during normal operation is min-
imised. To avoid the possibility of exceeding the FCC radio frequency exposure
limits, keep a distance of at least 20 cm between you (or any other person in
the vicinity) and theantenna that is built into the instrument.
1.8.2 ISED Statement, Applicable in Canada
WARNING
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
1.This device may not cause interference; and
2.This device must accept any interference, including interference that may
cause undesired operation of the device.
The radiated RF output power of the instrument is below the Health Canada’s
Safety Code 6 exclusion limit for portable devices (radiated element separation
distance between the radiating element and user and/or bystander is below
20 cm).
1.8.3 Japanese Radio Law Compliance
Japanese Radio Law Compliance:
•This device is granted pursuant to the Japanese Radio Law (
電波法
).
•This device should not be modied (otherwise the granted designation
number will become invalid).
1.8.4 Singapore
Leica 3D Disto:
Complies with
IMDA Standards
DB102875
FCC Radiation Expos-
ure Statement
Radio Frequency (RF)
Exposure Compliance
Statement
☞
☞
14 Safety Directions

1.9 Labelling
010747_003
SWISS Technology
by Leica Geosystems
Art.No.: 844709 Power: 24V / 2.5A
Contains IC: 5123A-BGTWF111
Contains FCC ID: QOQWF111
Patents: US 8279421, US 6864966, US 7030969, US 6859744, US 6463393
www.leica-geosystems.com
Type: Leica 3D Disto
Made in Singapore
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including inteference that may cause undesired operation.
010748_001
RM100
Type: RM100
Art.No.: 780994
Power: 1.5V / 0.4A
Leica Geosystems AG
CH-9435 Heerbrugg
Made in XXX
Labelling 3D Disto
Labelling RM100
Remote Control
Safety Directions 15

2 Description of the System
2.1 Overview

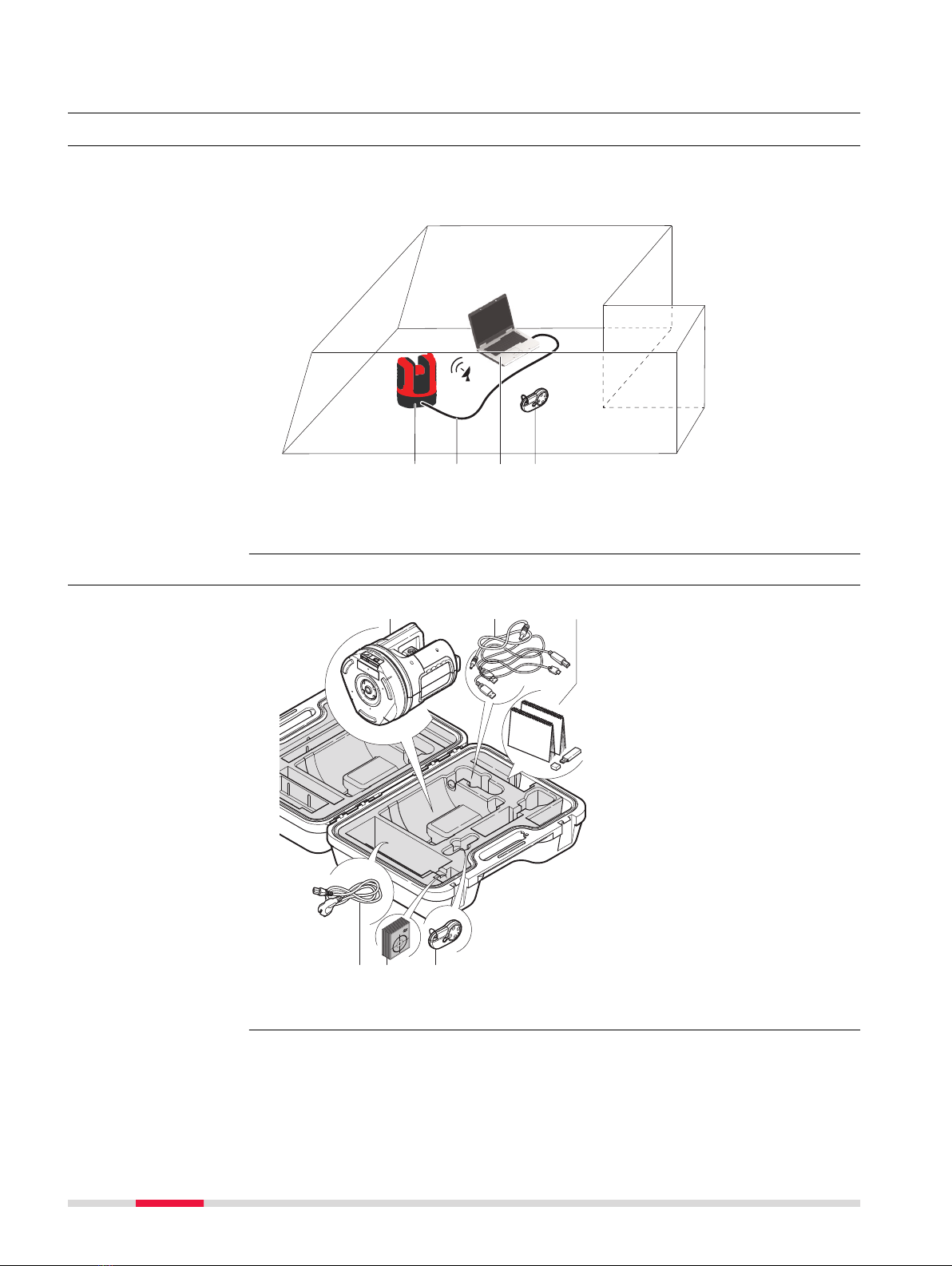

The Leica3D Disto is a three-dimensional measuring and projection system. To
operate the 3D Disto you need a Windows device. To perform certain func-
tions you can also use the RM100 Remote Control.
010714_001 abcd
a 3D Disto
b USB Cable
c Windows device (not part of the delivery)
d RM100 Remote Control
2.2 Container Contents
ab
e fd
c
010992_002
a 3D Disto with built-in
SD WLAN card
b USB connection cable
3D Disto to the Win-
dows device
c Safety Instructions
Manual, 3D Disto Quick
Start, CE and Producer
Certicate, USB memory
stick (with licence keys,
User Manual, Windows
software and setup
information)
d Four country-specic
cables for 3D Disto
power supply
e Target marks, self-
adhesive, 50 units in
one bag
f RM100 remote control
and battery
3D Disto General
Description
Container Contents
(1/2)
16 Description of the System

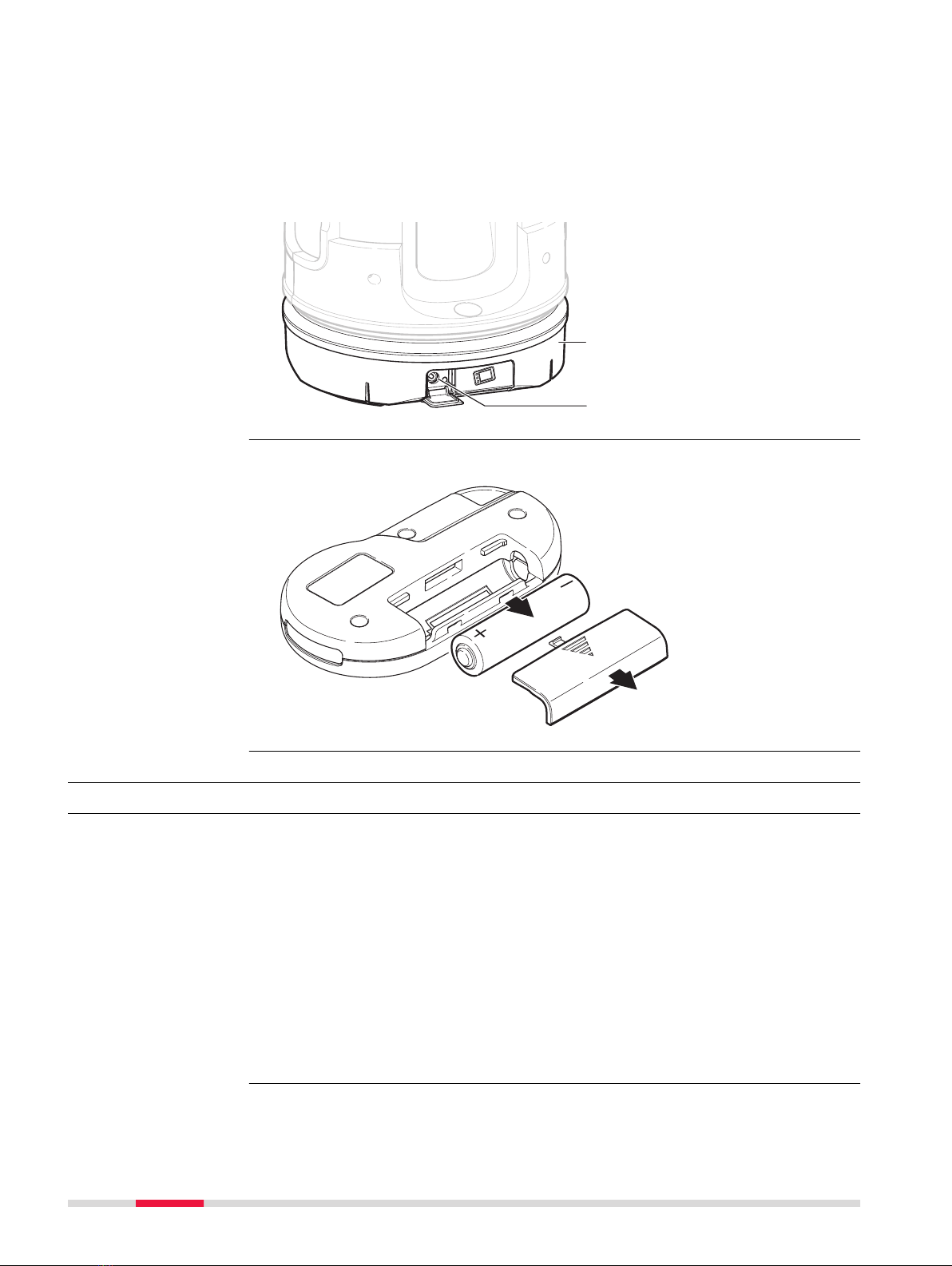

a
b
010993_001
a Ruler for offset points
b 3D Disto power supply
2.3 Instrument Components
2.3.1 3D Disto
a
c
b
d
e
f
g
010735_001
c
c
a LEDs for 3D Disto status
b ON/OFF button
c Grips to hold the instrument
d Infrared (IR) interface
e WLAN interface
f Laser distance meter with
Pointnder
g Circular bubble
010736_001
d
cebba
a Tripod thread 5/8”
b 90° marking
c Power supply connector for 3D
Disto
d LED for battery status
e Data cable connector
Container Contents
(2/2)
Motor-driven Part
Battery Socket
Description of the System 17

Button/LEDs Description
ON/OFF button
010732_001
Button to turn instrument ON or OFF.
Instrument turns OFF after 15 minutes if
not connected to the PC.
LEDs for 3D Disto status
010731_001
•Green and orange LEDs light up
continuously: 3D Disto is booting.
•Orange LED ashes: Self-levelling
procedure is running or tilt > 3°.
•Green LED ashes: 3D Disto is ready
for measurement. Tilt sensor is on.
•Orange LED lights up continuously:
An error occurred. Refer to "7 Error
Messages".
•Green and orange LEDs light up
continuously: Press the ON button
to reset the instrument.
For experts only: Tilt sensor off
Green LED ashes once; orange LED
three times.
LED for battery status
010733_001
If instrument is on and connected to the
charger:
•Green LED ashes 1x: Battery is
charged to 25%.
•Green LED ashes 2x: Battery is
charged to 50%.
•Green LED ashes 3x: Battery is
charged to 75%.
•Green LED is on: Battery is fully
charged.
Status of Laser Beam Description
010734_001
OFF Pointnder is OFF or 3D Disto targets
automatically.
ON Pointnder is ON or user is targeting by
Remote Control.
Flashing To indicate the precise position of a pro-
jected point.
LEDs and Buttons
LDM Laser
18 Description of the System

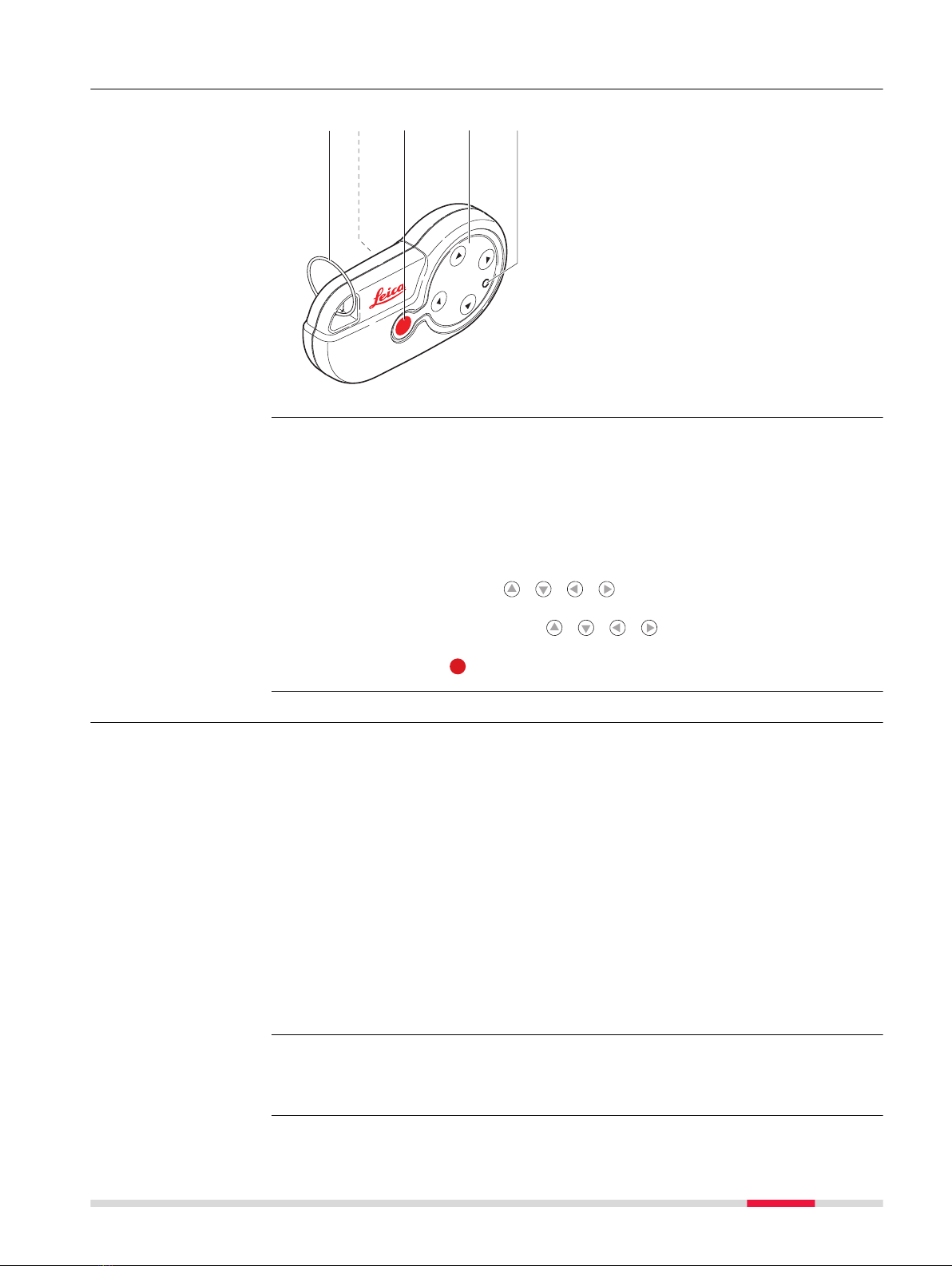

2.3.2 RM100 Remote Control
RM100
acbde
010737_001
a Key ring
b Battery compartment
c DIST button
d Navigation buttons: Up/Down/Right/
Left
e Control LED
The RM100 Remote Control has ve buttons that allow turning the 3D Disto
and executing a distance measurement or point projection, depending on the
application program running.
☞The RM100 Remote Control does not support the Tool Kit applica-
tions.
Targeting Procedure
1.Rough targeting: hold / / / to turn the 3D Disto as long as key
is pressed.
2.Fine targeting: short tap on / / / to turn the 3D Disto by small
single steps.
3.Measure: Press .
2.4 Power Supply
•The battery must be charged before using it for the rst time because it is
delivered with an energy content as low as possible.
•The permissible temperature range for charging is from 0 °C to
+40 °C/+32 °F to +104 °F. For optimal charging, we recommend charging
the batteries at a low ambient temperature of +10 °C to +20 °C/+50 °F to
+68 °F if possible.
•It is normal for the battery to become warm during charging. Using the
chargers recommended by Leica Geosystems, it is not possible to charge
the battery once the temperature is too high.
•For new batteries or batteries that have been stored for a long time
(> three months), it is effectual to make only one charge/discharge cycle.
•For Li-Ion batteries, a single discharging and charging cycle is sufcient.
We recommend carrying out the process when the battery capacity indic-
ated on the charger or on a Leica Geosystems product deviates signic-
antly from the actual battery capacity available.
•Batteries can operate from -10°C to +50°C/14°F to +122°F.
•Low operating temperatures reduce the capacity that can be drawn; high
operating temperatures reduce the service life of the battery.
Remote Control Com-
ponents
Navigation Buttons
First-time use/
charging batteries
Operation / Dischar-
ging
Description of the System 19

☞Only Leica Geosystems authorised service workshops are entitled to
replace the battery socket.
•Internal: by battery socket, with non-removable Li-Ion batteries, 14.4 V,
63 Wh.
•External: Power supply for 3D Disto connected by cable with country-
specic plugs for worldwide use. Input: 100 - 240 V AC, 50/60 Hz. Output:
24 V DC, 2.5 A. Length: 1.80 m.
a
b
010761_001
a Battery socket
b Power supply con-
nector
The RM100 is equipped with one AA alkaline battery, 1.5 V.
010762_001
2
1
1.Push the battery
cover in the dir-
ection of the
arrow to open the
battery compart-
ment.
2.Replace the bat-
tery and ret the
battery cover.
2.5 3D Disto Software
2.5.1 Software Concept
The 3D Disto includes a user interface software for computers with Windows
operating systems.
Hardware requirements:
•Windows 7 and later. RT versions are not supported.
•Desktop devices or laptops with keyboard and mouse.
•Touchscreen devices and tablets.
•Screen resolution at least 680 × 1000 px
•32 bit or 64 bit
☞Insert the Leica USB memory stick only into a USB port “Type A”. For
other port types, use an adapter. Ensure, that both the port and the
adapter have “on-the-go” functionality (OTG).
To enable the 3D Disto applications, the software needs a licence key. Refer
to the following list for information about where to nd the licence keys:
3D Disto Power Sup-
ply
RM100 Remote Con-
trol Power Supply
3D Disto System
Software
License Key
20 Description of the System
