1Safety Instructions
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
User Manual
English
Congratulations on the purchase of your
Leica Racer 100 .
Carefully read the Safety Instruc-
tions and the User Manual before
using this product.
The person responsible for the instrument must
ensure that all users understand these directions and
adhere to them.
Contents
Safety Instructions .............................................1
Start-up................................................................5
Menu functions ...................................................6
Operation.............................................................8
Measuring ............................................................9
Functions .............................................................9
Appendix ............................................................14
Safety Instructions
Symbols used
The symbols used in the Safety Instructions have the
following meanings:
WARNING:
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, will result in
death or serious injury.
CAUTION:
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, may result
in minor injury and/or in appreciable material, finan-
cial and environmental damage.
)Important paragraphs which must be adhered
to in practice as they enabled the product to be used
in a technically correct and efficient manner.
Use of the instrument
Permitted use
• Measuring distances
• Computing functions, e. g. areas and volumes
•Measuringtilts

2
Safety Instructions Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Prohibited use
• Using the instrument without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of
explanatory and hazard labels
• Opening of the equipment by using tools (screw-
drivers, etc.), as far as not specifically permitted
for certain cases
• Carrying out modification or conversion of the
product
• Use after misappropriation
• Use of accessories from other manufacturers
without the express approval of Leica Geosys-
tems.
• Deliberate or irresponsible behaviour on scaf-
folding, when using ladders, when measuring
near machines which are running, or near parts of
machines or installations which are unprotected
• Aiming directly into the sun
• Deliberate dazzling of third parties; also in the
dark
• Inadequate safeguards at the surveying site (e.g.
when measuring on roads, construction sites,
etc.)
Limits of use
)See section “Technical Data“.
The Leica Racer is designed for use in areas perma-
nently habitable by humans, do not use the product
in explosion hazardous areas or in aggressive envi-
ronments.
Areas of responsibility
Responsibilities of the manufacturer of the orig-
inal equipment Leica Geosystems AG, CH-9435
Heerbrugg (for short Leica Geosystems):
Leica Geosystems is responsible for supplying the
product, including the User Manual and original
accessories, in a completely safe condition.
Responsibilities of the manufacturer of non-
Leica accessories:
)The manufacturers of non-Leica accessories
for the Leica Racer are responsible for developing,
implementing and communicating safety concepts for
their products. They are also responsible for the
effectiviness of these safety concepts in combination
with the Leica Geosystems equipment.
Responsibilities of the person in charge of the
instrument:
WARNING
The person responsible for the instrument
must ensure that the equipment is used in accor-
dance with the instructions. This person is also
accountable for the deployment of personnel and for
their training and for the safety of the equipment
when in use.

3Safety Instructions
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
The person in charge of the instrument has the
following duties:
• To understand the safety instructions on the
product and the instructions in the User Manual.
• To be familiar with local safety regulations
relating to accident prevention.
• To inform Leica Geosystems immediately if the
equipment becomes unsafe.
Hazards in use
CAUTION:
Watch out for erroneous distance measure-
ments if the instrument is defective or if it has been
dropped or has been misused or modified.
Precautions:
Carry out periodic test measurements. Particularly
after the instrument has been subject to abnormal
use, and before, during and after important measure-
ments.
Make sure the Leica Racer optics is kept clean and
that there is no mechanical damage to the bumpers.
CAUTION:
In using the instrument for distance measure-
ments or for positioning moving objects (e.g. cranes,
building equipment, platforms, etc.) unforeseen
events may cause erroneous measurements.
Precautions:
Only use this product as a measuring sensor, not as
a control device. Your system must be configured and
operated in such a way, that in case of an erroneous
measurement, malfunction of the device or power
failure due to installed safety measures (e.g. safety
limit switch), it is assured that no damage will occur.
WARNING:
Flat batteries must not be disposed of with
household waste. Care for the environment and take
them to the collection points provided in accordance
with national or local regulations.
The product must not be disposed of with
household waste.
Dispose of the product appropriately in
accordance with the national regulations in
force in your country.
Always prevent access to the product by
unauthorized personnel.
Product specific treatment and waste
management information can be downloaded from
the Leica Geosystems home page at
http://www.leica-geosystems.com/treatment or
received from your Leica Geosystems dealer.
Electromagnetic Compatibility
(EMC)
The term "electromagnetic compatibility" is taken to
mean the capability of the product to function
smoothly in an environment where electromagnetic
radiation and electrostatic discharges are present,
and without causing electromagnetic interference to
other equipment.

4
Safety Instructions Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
WARNING:
The Leica Racer conforms to the most stringent
requirements of the relevant standards and regula-
tions. Yet, the possibility of it causing interference in
other devices cannot be totally excluded.
CAUTION:
Never attempt to repair the product yourself. In
case of damage, contact the local dealership.
Laser classification
Integrated distancemeter
The Leica Racer produces a visible laser beam which
emerges from the front of the instrument.
It is a Class 2 laser product in accordance with:
• IEC60825-1 : 2007 "Radiation safety of laser
products"
Laser Class 2 products:
Do not stare into the laser beam or direct it towards
other people unnecessarily. Eye protection is
normally afforded by aversion responses including
the blink reflex.
WARNING:
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous
to the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser
is aimed above or below eye level. (particularly with
fixed installations, in machines, etc.)

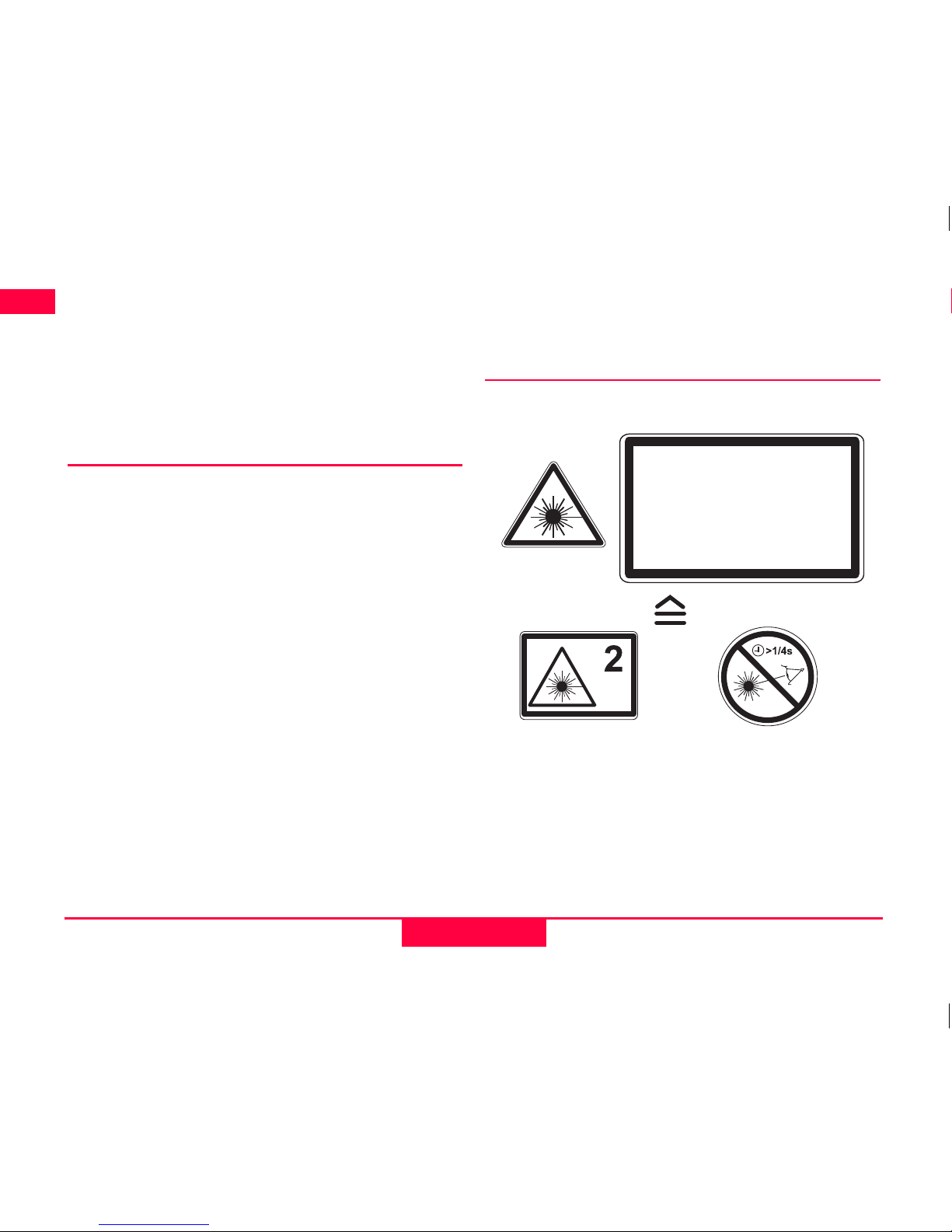

Labelling
Position of the product label see last page!
Laser Radiation
Do not stare into the beam
Laser class 2
acc. IEC 60825-1:2007
Maximum radiant power: <1mW
Emitted wavelength: 620-690nm
Beam divergence: 0.16 x 0.6 mrad
Pulse duration: 1 x 10 -9 s

5Start-up
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Start-up
Inserting/replacing batteries
See figure {A}
1 Remove battery compartment lid and attach
handstrap.
2 Insert batteries, observing correct polarity.
3 Close the battery compartment again. Replace
the batteries when the symbol flashes perma-
nently in the display.
)Use alkaline batteries only.
)Remove the batteries before any long period
of non-use to avoid the danger of corrosion.
Changing the reference point
(multifunctional endpiece)
See figure {B}
The instrument can be adapted for the following
measuring situations:
• For measurements from an edge, fold out the
positioning bracket until it first locks in place. See
figure {C}.
• For measurements from a corner, open the posi-
tioning bracket until it locks in place, then push
the positioning bracket lightly to the right to fold
it out fully. See figure {D}.
A built-in sensor automatically detects the orienta-
tion of the positioning bracket and adjusts the zero
point of the instrument accordingly.
Keypad
See figure {E}:
1 ON / DIST (On/measuring) button
2Plus(+)button
3 Minus (-) button
4Area/volumebutton
5 Indirect measurement (Pythagoras) button
6 Reference button
7Functionsbutton
8Timerbutton
9 Storage button
10 Menu/equal button
11 Clear/off button

6
Menu functions Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Display
See figure {F}
1Laseractive
2 Reference (front)
3 Reference (rear)
4 Reference (corner stop)
5 Measuring with the tripod
6 Stake out function
7 Single Pythagorean measurement
8 Double Pythagorean measurement
9 Double (partial height) measurement
10 Illumination
11 Save constant value, call up constant value
12 Historical memory, call up values
13 Battery status
14 Timer
15 Area/volume
16 Tilt
17 Horizontal distance measurement using tilt
18 Room corner angle function
19 Menu
20 Continuous laser
21 Reset
22 Reference (tripod)
23 Beep
24 Circumference
25 Wall area
26 Ceiling area
27 Intermediate line 1
28 Intermediate line 2
29 Intermediate line 3
30 Summary line
Menu functions
Settings
The menu allows settings to be altered and perma-
nently stored. After switching off the device or
replacing the batteries the settings are stored.
Navigation in the menu
The menu allows settings to be made at the user
level. The instrument can be specifically configured to
your personal requirements.
General description
button (pressed long) brings up the , the
set units and the symbol are displayed.
button (pressed short) pages through each
menu item. See figure {G}.
or button to make changes in menu items.
button (pressed short) brings up the next menu
item.
A long press on the button in the menu confirms
the new settings made in the submenu items .
Pressing the button for longer in the menu
allows you to quit the settings function without
saving.
MENU

7Menu functions
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Setting the unit for distance
measurements
The following units can be set:
Setting the unit for tilt
measurements
The following units can be set for tilt measurements:
Beep ( )
You can switch the beep on or off.
Continuous laser ( )
You can switch the continuous laser function on or
off.
With the continuous laser function set on, each press
of the button triggers a measurement. The laser
automatically switches off after 15 minutes.
Measuring with the tripod ( )
The reference must be appropriately adjusted in
order to be able to take correct measurements with
a tripod. To do this select the TRIPOD symbol in this
menu item. You can switch the reference on the
tripod on or off. The setting can be seen on the
display .
Display - keypad illumination ( )
Automatic illumination of the display and the keypad
can be switched on or off.
Reset - returning the instrument to
the factory settings ( )
The instrument has a RESET function. When you
select the menu function RESET and confirm, the
instrument defaults to the factory settings.
Distance Area Volume
1. 0.000 m 0.000 m² 0.000 m³
2. 0.0000m 0.000 m² 0.000 m³
3. 0.00 m 0.000 m² 0.000 m³
4. 0.00 ft 0.00 ft² 0.00 ft³
5. 0'00'' 1/32 0.00 ft² 0.00 ft³
6. 0.0 in 0.00 ft² 0.00 ft³
7. 0 1/32 in 0.00 ft² 0.00 ft³
Units for tilt
1. +/- 0.0°
2. 0.00%
BEEP
TRIPOD

8
Operation Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
A reset returns the following values to their factory
settings:
• Reference (rear)
• Display illumination (ON)
•Beep(ON)
• Unit (m(mm))
• Stack and memory are erased
)All customised settings and stored values are
also lost.
Operation
Switching on and off
Switches on the instrument and laser. The
display shows the battery symbol until the
next button is pressed.
Pressing this button for longer switches the
instrument off.
The instrument switches off automatically
after six minutes of inactivity.
CLEAR button
The last action is cancelled. While making area or
volume measurements, each single measurement can
be deleted and remeasured in series.
Display / keypad illumination
The instrument has a sensor that automatically
switches the display and keypad illumination on or off
in response to lighting conditions.
Reference setting
The default reference setting is from the rear of the
instrument.
Press this button to take the next measurement
from the front edge . A special beep sounds when-
ever the reference setting is changed.
After a measurement the reference returns automat-
ically to the default setting (rear reference). See
figure {H}.
Press this button for longer the front reference
is set permanently.
Press this button, the rear reference is set again.

9Measuring
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Measuring
Single distance measurement
Press to activate the laser. Press again to trigger
the distance measurement.
The result is displayed immediately.
Minimum/maximum measurement
This function allows the user to measure the
minimum or maximum distance from a fixed
measuring point. It can also be used as to determine
spacings. See figure {I}
It is commonly used to measure room diagonals
(maximum values) or horizontal distances (minimum
values).
Press and hold down this button until you hear
a beep. Then slowly sweep the laser back and forth
and up and down over the desired target point - (e.g.
into the corner of a room).
Press to stop continuous measurement. The
values for maximum and minimum distances are
shown in the display as well as the last measured
value in the summary line.
Functions
Addition / subtraction
Distance measuring.
The next measurement is added to the previous
one.
The next measurement is subtracted from the
previous one.
This process can be repeated as required. The result
is always shown in the summary line with the
previous value in the second line.
The last step is cancelled.
Area
Press once. The symbol appears in the
display.
Press this button to take the first length
measurement (e.g. length).
Press it again to take the second length
measurement (e.g. width).
The result is displayed in the summary line.
Press the button for longer to calculate the
circumference.

10
Functions Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Volume
Press this button twice. The symbol
appears in the display.
Press this button to take the first length
measurement (e.g. length).
Press this button to take the second length
measurement (e.g. width).
Press this button to take the third length measure-
ment (e.g. height).
The volume then appears in the summary line.
Press the button for longer to display additional
room information such as ceiling/floor area, surface
area of the walls, circumference.
Tilt measurement
)The inclination sensor measures tilts between
± 45°.
)During tilt measurement the instrument
should be hold without a transverse tilt (± 10°).
Press this button once to activate the tilt
sensor. The symbol appears in the display. The
tilt is continuously shown as ° or % depending on the
setting.
Press to measure the inclination and the
distance. See figure {J}.
Direct horizontal distance
Press this button twice and the following
symbol appears in the display .
Press this button to measure tilt and distance.
The summary line displays the result as the direct
horizontal distance.
Room corner angle function
The angles in a triangle can be calculated by measuring
the three sides. This function can be used e. g. to
check a right-angled room corner. See figure {K}.
Press this button three times and the room
corner symbol appears in the display .
Mark the reference points to the right and left (d1/
d2) of the angle to be measured.
Press this button to measure the first (short)
side of the triangle (d1 or d2).
Press this button to measure the second (short)
side of the triangle (d1 or d2).
Press this button to measure the third (long)
side of the triangle (d3).
The result is displayed in the summary line as the
room corner angle.

11 Functions
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Stake out function
Two different distances (a and b) can be entered into
the instrument and can then be used to mark off
defined measured lengths, e.g. in the construction of
wooden frames.
See figure {L}.
Entering stake out distances:
Press this button four times and the stake out
function symbol appears in the display .
The value (a) and the corresponding intermediate line
flash.
By using and , you can adjust the values
(first a and then b) to suit the desired stake out
distances. Holding the buttons down increases the
rate of change of the values.
Once the desired value (a) has been reached it can be
confirmed with the button.
The value (b) and the intermediate line flashes (the
defined value (a) is automatically adopted). Value (b)
can be entered using and .
The defined value (b) is confirmed with the
button.
Pressing the button starts the laser measure-
ment. The display shows required stake out distance
in the summary line between the stake out point
(first a and then b) and the instrument (rear refer-
ence).
If the Racer is then moved slowly along the stake out
line the displayed distance decreases. The instrument
starts to beep at a distance of 0.1m from the next
stake out point.
The arrows in the display indicate in which direc-
tion the Racer needs to be moved in order to achieve
the defined distance (either a or b). As soon as the
stake out point is reached the beep changes and the
intermediate line starts to flash.
The function can be stopped at any time by pressing
the button.
Indirect measurement
The instrument can calculate distances using
Pythagoras’ theorem.
)Make sure you adhere to the prescribed
sequence of measurement:
• All target points must be in a horizontal or vertical
plane.
• The best results are achieved when the instru-
ment is rotated about a fixed point (e.g. with the
positioning bracket fully folded out and the
instrument placed on a wall).
a
b
b
a
b
b

12
Functions Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
• The minimum/maximum function can be used -
see explanation in "Measuring -> Minimum/
maximum measurement". The minimum value
must be used for measurements at right angles to
the target; the maximum distance for all other
measurements.
)Make sure that the first measurement and the
distance to be measured are at right angles. Use the
Minimum/maximum function, as explained in
"Measuring -> Minimum/maximum measurement".
Indirect measurement - determining a dis-
tance using 2 auxilliary measurements
See figure {M}
e.g. for measuring building heights or widths. It is
helpful to use a tripod when measuring heights that
require the measurement of two or three measure-
ments.
Press this button once, the display shows .
The laser is switched on.
Aim at the upper point (1) and trigger the
measurement. After the first measurement the value
is adopted. Keep the instrument as horizontal as
possible.
Press and hold down this button to trigger
continuous measurement, sweep the laser back and
forth and up and down over the ideal target point.
Press to stop continuous measurement (2). The
result is displayed in the summary line, the partial
results in the secondary line.
Indirect Measurement - determining a dis-
tance using 3 measurements
See figure {N}
Press this button twice; the display shows the
following symbol . The laser is switched on.
Aim at the upper point (1) and trigger the
measurement. After the first measurement the value
is adopted. Keep the instrument as horizontal as
possible
Press and hold down this button to trigger
continuous measurement, sweep the laser up and
down over the ideal target point.
Press to stop continuous measurement (2). The
value is adopted. Aim at the lower point and
press this button to trigger the measurement
(3). The result is displayed in the summary line, the
partial results in the secondary lines.

13 Functions
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Indirect measurement - determining a chain
value using 3 measurements
See figure {O}
e.g. determining the height between point 1 and
point 2 using three target points.
Press this button three times ; the display
shows the following symbol . The laser is
switched on.
Aim at the upper point (1).
Press this button and trigger the measurement.
After the first measurement the value is adopted. The
display flashes (2).
Triggers the measurement. After the second
measurement the value is adopted. The display
flashes (3).
Press and hold down this button to trigger
continuous measurement. Sweep the laser up and
down over the ideal target point.
Press this button to end continuous measure-
ment. The result is displayed in the summary line, the
partial results in the secondary lines.
Storage of constants/historical
storage
Storage of a constant
You can store and recall a frequently used value e.g.
height of a room. Measure the desired distance,
press and hold the button until the device beeps
to confirm storage.
Recalling the constant
Press this button once to recall the constant
and make it available for further calculations by
pressing button .
Historical storage
Press this button twice and the previous 20
results (measurements or calculated results) are
shown in reverse order.
The and buttons can be used for navigation.
Press this button to use a result from the
summary line for further calculations.
Pressing the and buttons at the same time
erases all the values in historical storage.

14
Appendix Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Timer (self-triggering)
Press this button to set a 5-second time delay.
or
Press and hold down this button until the
desired time delay is reached (max. 60 seconds).
Once the key is released the remaining seconds until
measurement (e.g. 59, 58, 57...) are displayed in a
countdown. The last 5 seconds are counted down
with a beep. After the last beep the measurement is
taken and the value is displayed.
)The timer can be used for all measurements.
Appendix
Message codes
All message codes are displayed with either or
"Error". The following errors can be corrected:
Cause Remedy
156 Transverse tilt
greater than 10° Hold the instrument without any transverse
tilt
160 Main tilt direction,
angle too high
(> 45°)
Measure angle up to
max. ± 45°
204 Calculation error Repeat procedure
252 Temperature too
high Cool down instrument
253 Temperature too
low Warm up instrument
255 Receiver signal too
weak, measurement
time too long,
distance > 100 m
Use target plate
256 Received signal too
strong Target too reflective (use target plate)
257 Wrong measure-
ment, background
brightness too high
Darken target (measure
in different lighting
conditions)
260 Laser beam inter-
rupted Repeat measurement
Error Cause Remedy
Error Hardware error Switch on/off the
device several times. If
the symbol still
appears, then your
instrument is defective.
Please call your dealer
for assistance.
Cause Remedy

15 Appendix
Leica Racer 100 784117 en
EN
D
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
H
RUS
CZ
Technical data
* maximum deviation occurs under unfavourable conditions such
as bright sunlight or when measuring to poorly reflecting or very
rough surfaces. Measuring accuracy between 10 m and 30 m may
deteriorate to approx. ± 0.025 mm/m, for distances above 30 m
to ± 0.1 mm/m.
Distance
measurements:
Measuring accuracy
up to 10 m
(2 σ , standard deviation)
typically: ± 1.0 mm*
Power Range
Technology™:
Range (use target plate
from about 80m)
0.05 m to 100 m
Smallest unit displayed 0.1 mm
Distance measurement
9
Minimum/maximum
measurement, Continuous
measurement
9
Area/volume calculation of
room data
9
Addition / subtraction 9
Indirect measurement
using Pythagoras
9
Tilt measurements:
Tilt sensor:
Accuracy
(2 σ , standard deviation)
- to laser beam
- to the housing
± 0.3°
± 0.3°
Indirect measurement
using tilt sensor (direct
horizontal distance)
9
Angle measurement using
tilt sensor(
± 45°)
9
General:
Laser class II
Laser type 635 nm, < 1 mW
Ø laser point
(at distances) 6 / 30 / 60 mm (10 / 50 / 100 m)
Autom. laser switch-off after 3 min
Autom. instrument switch-
off after 6 min
Display illumination
9
Keypad illumination 9
Multifunctional endpiece 9
Timer (self-triggering) 9
Save constant value 9
Historical storage
(20 values)
9
Tripod thread 9
Battery life,
Type AAA, 2 x 1.5V up to 5 000 measurements
Protection against
splashes and dust IP 54, dust-proof, splash-proof
Dimensions 125 x 45 x 25 mm
Weight (with batteries) 110 g
Temperature range:
Storage
Operation
-25°C up to +70°C
(13°F up to +158°F)
-10°C up to +50°C
(14°F up to +122°F)
