Leica RUNNER 20 User manual

User Manual
English
Version 1.0
RUNNER 20/24

RUNNER 20/24-1.0.1en 2
This manual contains important safety directions (refer to section
"Safety directions") as well as instructions for setting up the
instrument and operating it.
Please read this User Manual carefully to achieve maximum
efficiency from your Instrument.
Congratulations on your purchase of a new Leica Geosystems
automatic level.
Automatic level
Automatic level

RUNNER 20/24-1.0.1en 3
The type of your product is indicated on the label on the bottom of
the base plate. The serial number is on the right side of your
product.
Write the type and serial number of your instrument in the space
provided below, and always quote this information when you need
to contact your agency or service workshop.
Type: Serial no.:
Product identification
Product identification

RUNNER 20/24-1.0.1en 4
The symbols used in this User Manual have the following
meanings:
DANGER:
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, could result in death or
serious injury.
CAUTION:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, may result in minor or
moderate injury and / or appreciable material, financial and
environmental damage.
Important paragraphs which must be adhered to in practice as they
enable the product to be used in a technically correct and efficient
manner.
Symbols used in this manual
Symbols used in this manual

RUNNER 20/24-1.0.1en 5
Introduction .......................................................................... 7
Measurement preparation ................................................ 10
Measuring ........................................................................... 14
Checking and adjusting .................................................... 19
Care and Storage ............................................................... 21
Safety Directions ............................................................... 24
Accessories ........................................................................ 31
Technical Data ................................................................... 32
Index.................................................................................... 33
View of chapters
View of chapters

RUNNER 20/24-1.0.1en 6
Contents
Introduction ............................................... 7
Special features ..................................... 7
Important parts ....................................... 8
Technical terms and abbreviations ........ 9
Measurement preparation ..................... 10
Unpacking ............................................ 10
Setting up the tripod............................. 11
Levelling up .......................................... 12
Focusing telescope .............................. 13
Centring ................................................ 13
Measuring ................................................ 14
Height reading ...................................... 14
Distance measuring ............................. 15
Angle measuring .................................. 15
Line levelling ........................................ 16
Area levelling ....................................... 17
Levelling total station measuring ......... 18
Levelled stakeout ................................. 18
Checking and adjusting ......................... 19
Tripod ................................................... 19
Circular level ........................................ 19
Checking and adjusting of
the line-of-sight .................................... 20
Care and Storage .................................... 21
Transport .............................................. 21
In the field ................................................ 21
Inside vehicle ........................................... 22
Shipping ................................................... 22
Storage ................................................. 22
Cleaning ............................................... 23
Safety Directions .................................... 24
Intended use of instrument .................. 24
Permitted uses ......................................... 24
Adverse uses ........................................... 24
Limits of use ......................................... 25
Responsibilities .................................... 26
Hazards of use ..................................... 27
Accessories ............................................. 31
Technical Data ........................................ 32
Index......................................................... 33
Contents

Introduction
7
RUNNER 20/24-1.0.1en 7
Introduction
The RUNNER 20/24 is a
member of a new generation of
construction levels.
Its innovative technology makes
the daily surveying jobs easier.
The instrument is ideally suited
for all applications of a reliable
and robust construction level.
The easy operation of the
instrument functions can be
quickly learned even by
inexperienced surveyors.
Special features
• Easy operation; quickly to
learn !
• Attractive design; low weight.
• Endless drive.
• Robust and reliable.
• Enables angle measurements
with horizontal circle.
• Resistant to water and dirt.
• Adaptable to all types of
tripods with 5/8" central fixing
screw.
BL-01

8
8Introduction
RUNNER 20/24-1.0.1en
Important parts
1 Endless drive (both sides)
2 Circular level
3 Knurled ring of adjustable
horizontal circle
4 Footscrew
5 Compensator test knob
6 Base plate
7 Objective
8 Optical sight with point
marking
9 Focusing knob
10 Eyepiece
11 Level prism
1
7
46
9 8
32
10
11
BL-02
5

Introduction
9
RUNNER 20/24-1.0.1en 9
Technical terms and abbreviations
Backsight/Foresight/
Intermediate sight
For determining the height
difference (∆H) between the
ground points A and B the back
sight (R) is measured first
followed by the forward sight
(V). Additional points relating to
A are measured as intermediate
sight (S).
Plumb line
By centring the circular level the
instrument is nearly levelled up.
A small instrument tilt remains
(the vertical axis tilt).
Compensator
The compensator in the
instrument is responsible for
compensating the vertical axis
tilt enabling an exactly horizontal
aiming.
BL-06
BL-04
Plumb line
Line-of-sight
A
B
RV/S
(∆H)
BL-05
Plumb line
Vertical
axis tilt

10 Measurement preparation
RUNNER 20/24-1.0.1en

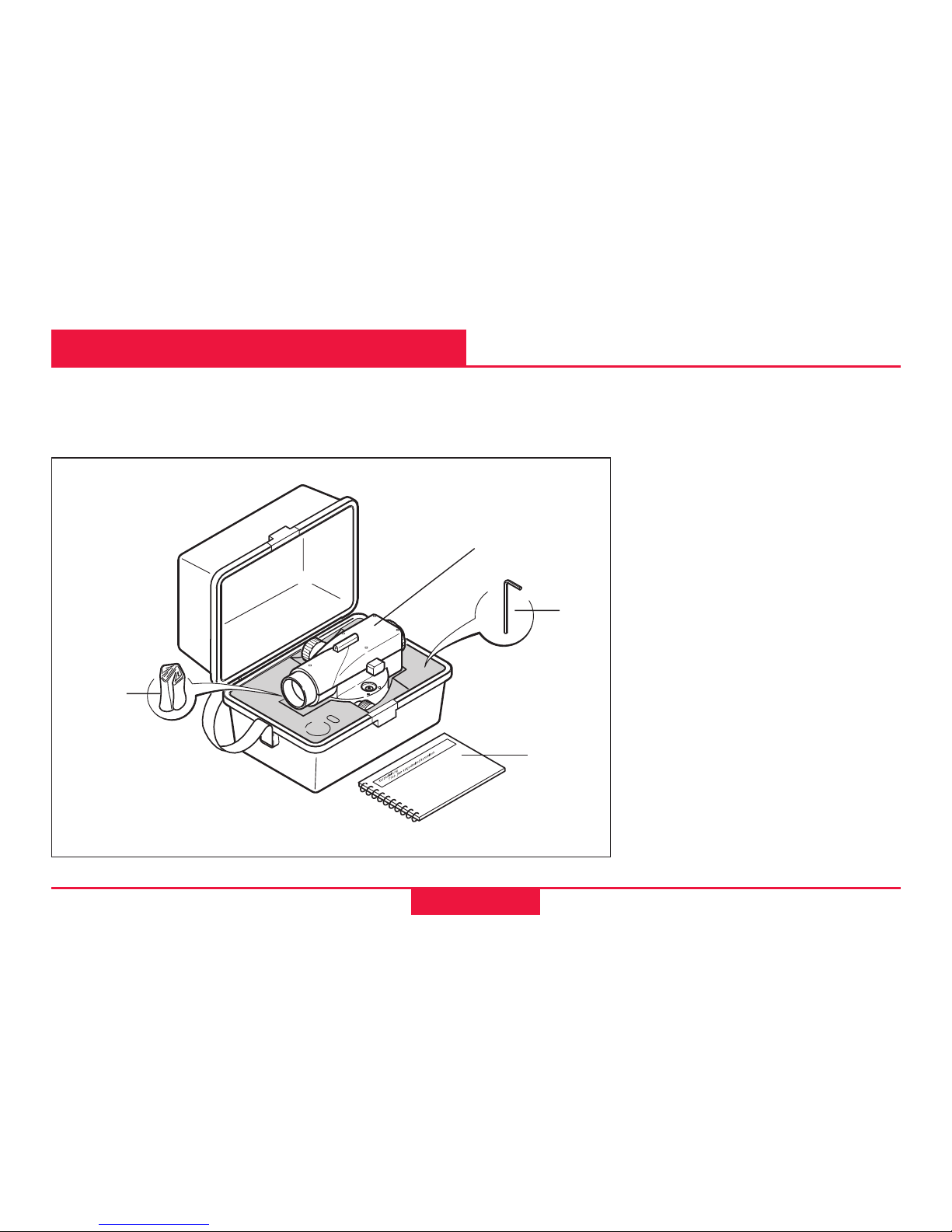

1 Level
2 Allen key
3 User Manual
4 Protective cover
Remove RUNNER 20/24 from the case and check for
completeness:
Unpacking
Measurement preparation
BL-35
2
1
4
3

Measurement preparation
11
RUNNER 20/24-1.0.1en 11
BL-08
When setting up the
tripod pay attention to a
horizontal position of the tripod
plate.
Heavy inclinations of the tripod
must be corrected with the
footscrews of the tribrach.
Setting up the tripod
1. Loosen screws of tripod legs,
pull out to required length and
tighten screws.
2. In order to guarantee a firm
foothold sufficiently press the
tripod legs into the ground.
When pressing the legs into
the ground note that the force
must be applied along the legs.
Careful handling of tripod
• Check all screws and bolts for
correct fit.
• During transport always use
the cover supplied.
Scratches and other damages
can result in poor fit and
measuring inaccuracies.
• Use the tripod only for
surveying jobs.
BL-09
BL-10 BL-11
BL-07
1. 1.
1.
2.
2. 2.

12 Measurement preparation
RUNNER 20/24-1.0.1en

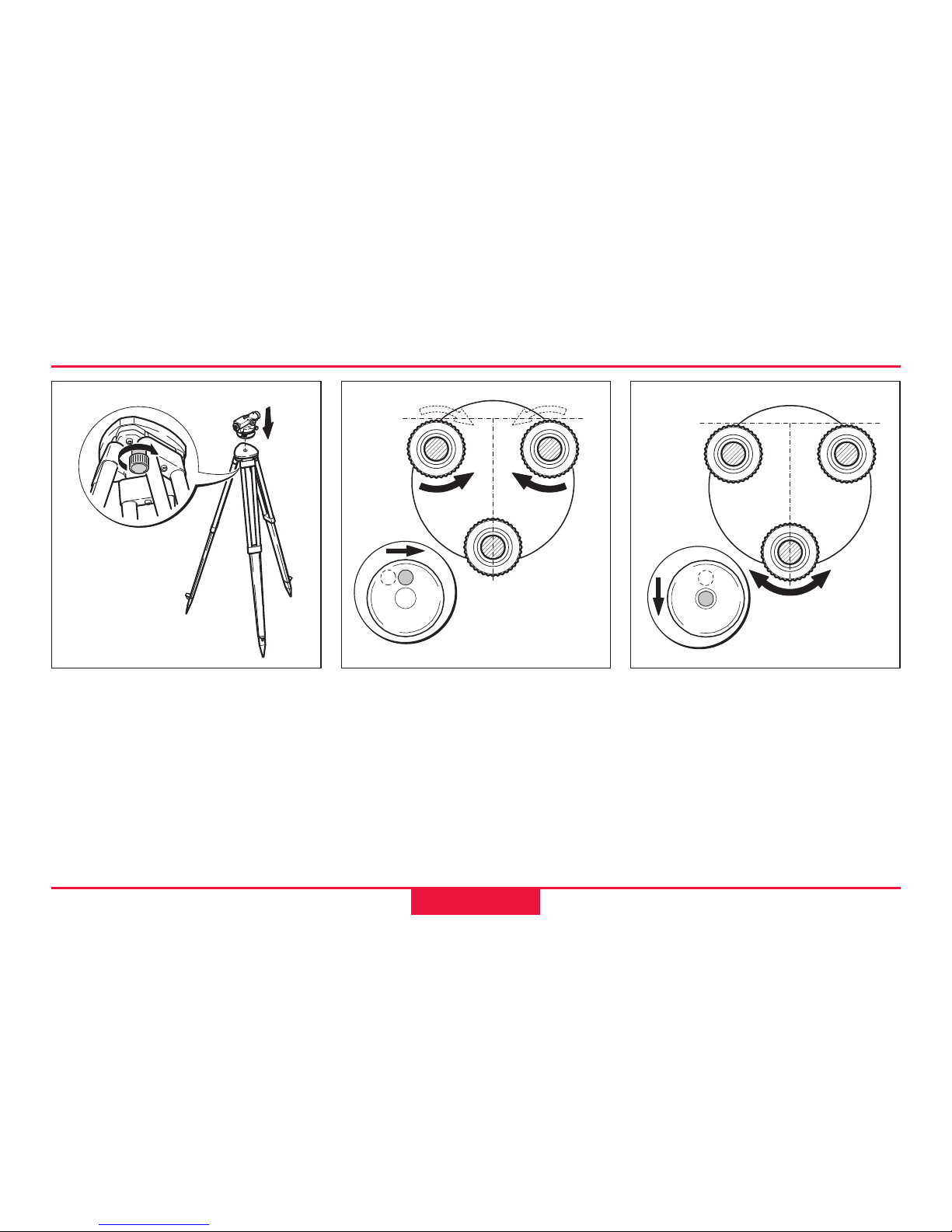

Levelling up
1. Place level onto tripod head.
Tighten central fixing screw of
tripod.
2. Turn footscrews of tribrach
into its centre position.
3. Centre circular level by
turning the foot screws.
Centring the circular level
1. Turn foot screws A and B
simultaneously in the opposite
direction until bubble is in the
centre (on the imaginary "T").
BL-12
BL-13
BL-14
BA
C
2. Turn foot screw C until bubble
is centred.

Measurement preparation
13
RUNNER 20/24-1.0.1en 13
Focusing telescope
1. Aim telescope against a
bright background (e.g. white
paper).
2. Turn eyepiece until reticule is
sharp-focussed and deep
black. Now the eyepiece is
adapted to your eye.
3. Aim telescope on staff using
the optical sight.
4. Turn focussing knob until
image of staff is sharply
focussed. If the eye is moved
up and down behind the
eyepiece the image of the staff
and the reticule may not be
displaced against each other.
For possible centring over a
ground point:
1. Attach plumb bob.
2. Loosen central fixing screw
slightly and shift instrument
parallel on tripod until the
plummet is exactly over the
point.
3. Tighten central fixing screw.
Centring
BL-15 BL-16 BL-17

14 Measuring
RUNNER 20/24-1.0.1en
Measuring
Before starting field work
or after longer periods of
storage/transport of your
equipment check the field
adjustment parameters
specified in this User Manual.
Reduce possible
vibrations by holding the
tripod legs.
If the optical parts of
your instrument are dirty
of fogged, your measurements
can be affected. Keep clean all
optical parts of your instrument
and follow the cleaning
instructions specified in the
User Manual.
1. Setup instrument, level and
sharp-focus the reticule.
2. Setup level staff vertically
(refer also to Instruction
Manual of staff).
3. Roughly aim on staff using
the optical sight.
4. Sharp-focus using the
focussing knob.
Height reading
5. Fine-aim on staff using the
endless drives.
6. Check if circular level is
centred (view level prism).
7. Read off height H at the
centre hair of the reticule.
Example above:
H = 2.585 m
d
BL-25
BL-18
H
H

Measuring
RUNNER 20/24-1.0.1en 15
Result:
Distance d = 100 x L
Carry out steps 1 to 6 according
to height reading.
Reading:
Upper distance line: 2.670 m
Lower distance line: 2.502 m
Difference L: 0.168 m
Distance d: 16.8 m
Distance measuring
The instrument is equipped with
a horizontal circle. The
graduation is 1°.
Wanted:
Angle between point A and point
B.
Angle measuring
BL-23
BL-26 BL-27
AB
Carry out steps 1 to 6 according
to height measuring. By doing
so, align the vertical hair of the
reticule to the staff centre.
7. Turn Hz-circle to "0".
8. Align instrument to point B
and aim on the centre of the
staff.
9. Read off Hz-angle from Hz-
circle: Example above:
Hz = 60°.

16 Measuring
RUNNER 20/24-1.0.1en
Wanted:
Height difference (∆H) between
point A and B.
Select instrument station
and staff location by
pacing off in that way, that
approximately the same target
distances are resulting (d1 ≈d2;
approx. 40 to 50m).
Procedure:
1. Setup instrument at I1.
Line levelling
6. Carry out a foresight at
changepoint 3.
7. Continue in the same way
until height at point B is
measured.
Result:
∆∆
∆∆
∆H = sum backsight - sum
foresight
Point
No.
Back-
sight R
Fore-
sight V Height
A+2.502 650.100
2+0.911 -1.803
3+3.103 -1.930
B-0.981 651.902
Sum +6.516 -4.714 ∆H=
+1.802
Example for the booking:
BL-28
A
B
2
3
RV
RVR V
I2I3
d1d2
∆H
I1
2. Setup level staff vertically at
point A.
3. Aim on staff and read off and
take down height (backsight
R).
4. Setup level at the
changepoint 2, aim on staff
and read off and take down
height (foresight V).
5. Setup level at I2, airm on staff
at the hangepoint 2 and read
backsight and take down.

Measuring
RUNNER 20/24-1.0.1en 17
Wanted:
Height difference of several
reference points.
The required accuracy is
usually not very high
with such measurements.
Nevertheless, from time to time
read the staff on a stable
intermediate point (reading must
remain the same).
Area levelling
Procedure:
1. Set up instrument centrally
between the desired points.
The instrument telescope may
not be below the highest
measured intermediate point.
2. Set up staff vertically at
reference point A.
3. Aim on staff and read and
take down height (=backsight
to known point).
4. Set up staff vertically at
point 1.
5. Aim on staff and read and
take down height (=measuring
intermediate point,
intermediate sight)
6. Repeat steps 4 and 5 for
additional intermediate points.
7. The height of individual points
are:
BL-29
RS1
A1
2
3
4
S2
S3
S4
Height =
Height of station point
+ backsight (A)
- intermediate sight
Example for booking:
⊗=Instrument horizon
Point
No.
Interm.
sight Height
A 592.00
R1 +2.20
⊗594.20
S1 -1.80 592.40
S2 -1.90 592.30
S3 -2.50 591.70
S4 -2.30 591.90

18 Measuring
RUNNER 20/24-1.0.1en
Wanted:
Position of several ground
points.
The levelling total station
measuring is normally
carried out during area levelling.
Levelling total station measuring
Procedure:
1. Sequence of measurements
is the same as with area
levelling. However, beside the
height read also the staff
section L (see chapter
"Distance measuring") and
the Hz-angle.
2. Transfer measured value into
the map - points are deter-
mined by position and height.
Levelled stakeout
The stakeout is the counterpart
to the levelling total station
measuring - map points are set
out in the field.
Procedure:
1. Set up instrument at a known
point, centre and level up.
2. Focus instrument and aim on
known orientation point.
3. Orient horizontal circle (Hz-
direction).
4. Move staff to stakeout point
due to known values
(distance and Hz-angle,
height) and stakeout point.
BL-36 BL-37
R
A
1
2
Backsight to known point Measuring ground points
A

Checking and adjusting
RUNNER 20/24-1.0.1en 19
12
Checking and adjusting
1. Level up instrument.
2. Turn instrument by 180°.
3. If bubble of level is outside
the circle then it should be
adjusted (see point 4).
BL-31
Circular level
Connection of individual
elements must always be tight.
1.Tighten the Allen screws (2)
moderately (if available).
2. Tighten the articulated joints
on the tripod head (1) just
enough to keep the tripod
legs open when you lift it off
the ground.
Tripod
BL-30
4. Correct the half error using an
Allen key and repeat steps 2
and 3 until the bubble of level
is in the centre in any
telescope direction.
BL-32
∆
∆/2
1. 2.
3.

20 Checking and adjusting
RUNNER 20/24-1.0.1en
Checking and adjusting of the line-of-sight
With the circular bubble centred
and adjusted, the line of sight
should be horizontal.
Checking (see example):
1. Choose a distance of appr.
30 m within a gentle terrain.
2. Set up a staff at both final
points (A, B).
3. Set up the instrument at point
I1(halfway between A and B,
just pass it down) and centre
the bubble.
4. Read both staffs.
reading on A = 1.832 m
reading on B = 1.616 m
∆H = A - B = 0.216 m
5. Set up the level about 1 m
from staff A
6. Read staff A (eg.: 1.604 m)
7. Find nominal reading B;
eg.: Reading A - ∆H =
1.604 m - 0.216 m = 1.388 m
8. Read staff B, compare
nominal-/actual- reading.
When the difference
nominal-/actual- reading
is more than 3 mm the line of
sight must be adjusted.
1. Turn the adjusting srew until
the midle hair gives the
required reading
(eg. 1.388 m).
2. Check line of sight again.
BL-33
BL-38 BL-34
I1
B
A
H=1.832 H=1.616
B
A
actual=1.604
nominal
=1.388
I2
dd
∆H
∆H
δδδ
