Leica Disto Special5 User manual

THE ORIGINAL LASER DISTANCEMETER

1
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
User Manual
Version 1.0
English
Contents
Keypad.......................................................................... 2
Display .......................................................................... 2
How to Use the Instrument ..................................... 3
Functions ..................................................................... 7
User Information ...................................................... 11
Safety Instructions .................................................. 12
Technical Data.......................................................... 18
Message Codes........................................................ 18
DISTO special5hand-held laser meter
Congratulations on your purchase of a DISTO™.
This User Manual contains important safety
directions (see section "Safety directions")
as well as instructions on use of the instrument.
Read carefully through the User Manual before you switch
on the instrument.
Product identification
The identification label for your product is fitted on the
front. The serial number is in the battery compartment.
Enter model and serial number in your User Manual, and
always refer to this information when you need to contact
your agency or service centre.
Model: DISTO™ ................................................................
Serial no.: .........................................................................
Date of purchase ...............................................................
International Manufacturer’s
Warranty
Leica Geosystems AG offers its customers a two (2) year
warranty on DISTO instruments. For more information,
refer to www.disto.com.
In case of a defect, please contact the dealership near you.
...........................................................................................
Symbols used
The symbols used in the User Manual have the following
meanings:
WARNING:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, will result in death or
serious injury.
CAUTION:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, may result in minor
injury and/or in appreciable material, financial and
environmental damage.
)Important paragraphs which must be adhered to
in practice as they enabled the product to be used in a
technically correct and efficient manner.
 

2
Keypad Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
Keypad
D5-Z1
Display
D5-Z2
1 Laser "on"
2 Measurement reference (front/ stand/ rear)
3 Information
4 Display of the mathematical signs/operations
5 Main display (e.g. measured distance)
6 Distance measurement
7 Tracking
8 Area/ Volume
9 min. Tracking
10 max. Tracking
11 Pythagoras function
12 Pythagoras function with partial height
13 Units with exponents (²/ ³)
14 Time symbol for time delay release
15 Save constant
16 Contact customer service
17 3 auxiliary displays (e.g. previous values)
18 SET
19 RESET
20 Battery display
21 Recall stored constant (max. 10)
22 Recall last 15 values
23 Illumination (on/ off)
24 Beep (on/ off)
25 Offset setting
1 Illumination 9 Clear
2 Measuring 10 On/off key
3 Meas. reference 11 Equals, Enter
4 Areas, Volumes 12 Minus [ - ]
5 Distance measuring,
Tracking
13 Pythagoras functions
6 Multiply [ x ]/ Timer
Release
14 min. / max. Tracking
7 Plus [ + ] 15 Mermory, Stack
8Menu
1
2
3
5
4
7
6
9
10
11
12
13
15
14
8
1
17
19
2
3
5
4
6
7
98 10 11 12
14
15
16
13
21
2325
20 1822
24

3How to Use the Instrument
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
How to Use the Instrument
Inserting / replacing the batteries
1 Depress the locking clip and slide end piece to the
right.
D5-Z3
2 Remove battery cover. Replace batteries.
Appears on the display if battery voltage is too
low.
For type of battery, refer to Technical Data.
)Fit batteries the right way round.
)Use only Alkaline batteries.
3 Push in end piece and listen for locking click sound.
DISTO™ Switching on/off
Briefly press.
The illumination, Battery and Beep symbols are displayed
until the first key press.
The instrument can be switched off from any menu point.
)The instrument switches off automatically after
90 seconds if no key is pressed.
Clear key
The clear key resets the instrument to Normal
Mode, i. e. it is set to zero (=Clear).
The clear key may be pressed before or after a
measurement/ calculation.
In Menu Mode it resets to Normal Mode.
During a function (area, volume or Pythagoras) the single
measurements can be deleted step by step and
remeasured.
Used to exit menu settings without saving changes.
Illumination
Briefly press.
Illumination is switched on/off with a key press.
)Illumination switches off after 30 seconds if no
key is pressed.

4
How to Use the Instrument Leica DISTO™ special51.0.0 en
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Reference setting
Press until desired reference setting appears.
Possible settings
D5-Z4
front stand rear
)At the back of the instrument is a 1/4" camera
thread for the stand.
)Changes are lost when instrument is switched
off.
)Basic setting: rear reference
Measuring
Distance measurement
Press and the laser is switched on, the
instrument is in"Pointing Mode".
A second press starts the distance
measurement.
The result is displayed immediately in the selected unit.
)With the instrument on and the laser off, it is in
"Normal Mode".
)With the laser on, it is in "Pointing Mode".
Measuring from flat planes
D5-Z5
)For stable measuring turn bumper 90°.
Measuring from corners
D5-Z6

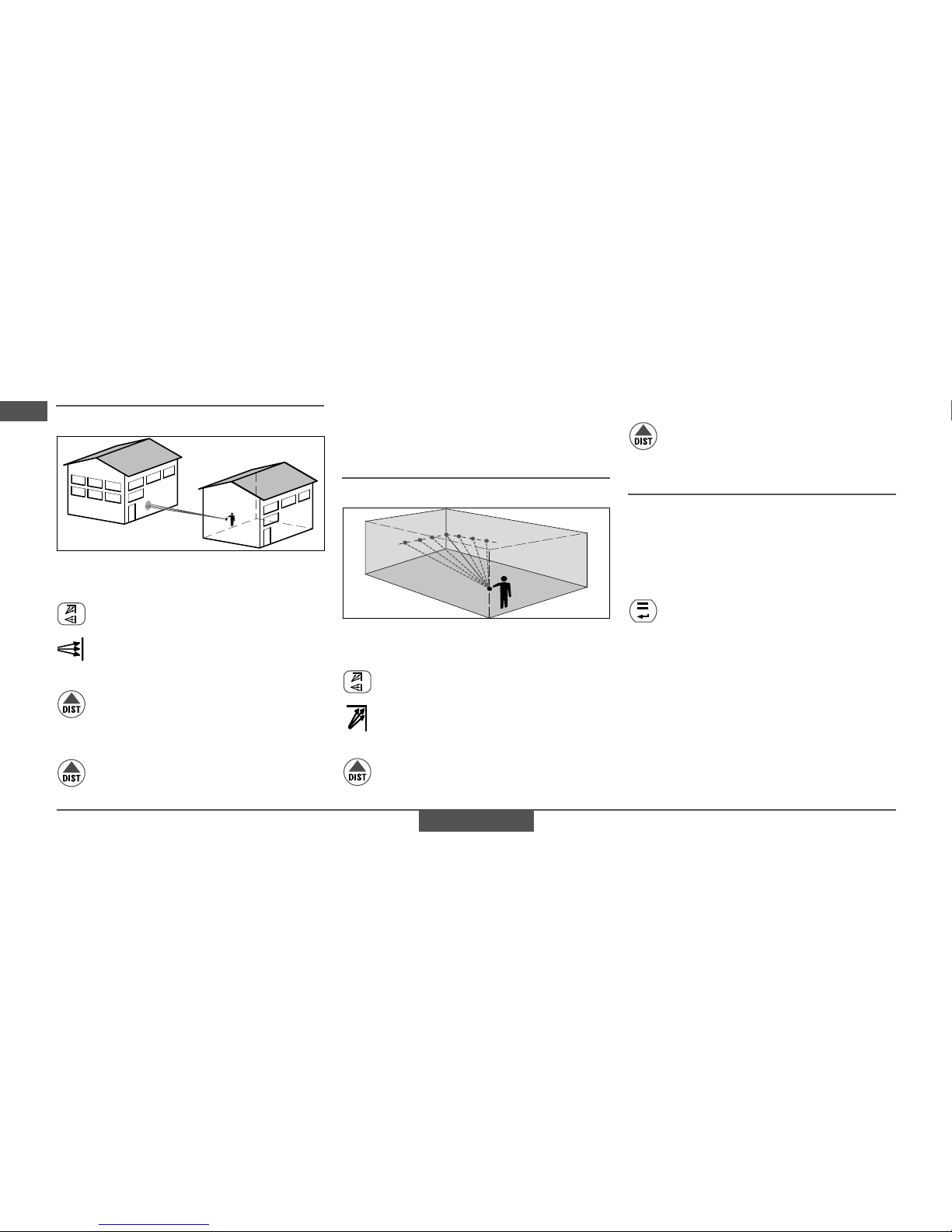

Continuous measurement (Tracking)
Press until
appears on the display.
Continuous measurement is started and the
result is displayed.
Press to end Tracking Mode. Last result is
shown in the display.
Example: Stake off distance
D5-Z7

5How to Use the Instrument
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Laser in continous operation
Press until a long "beep" is heard. Now the laser
is activated permanently.
A distance measurement is triggered each time
the key is pressed.
Press to end continuous laser operation.
Time delay release
Instrument must be in Pointing Mode.
Press and hold until desired time delay has been
reached (max. 60 seconds).
appears on the display.
Once the key is released, the remaining seconds (e.g. 59,
58, 57...) are displayed, until measuring.
The last 5 seconds are counted down with a "beep".
After the last "beep", the measurement is made and the
value displayed.
Example: Measuring without any key activation.
D5-Z8
Calculations
Area
Press until
appears on the display.
The side to be measured blinks.
Make 2 measurements (l x w).
The result and the two partial results appear on the
display.
Volume
Press until
appears on the display.
The side to be measured blinks.
Make 3 measurements (l x w x h).
The result and the three partial results appear on the
display.

6
How to Use the Instrument Leica DISTO™ special51.0.0 en
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el

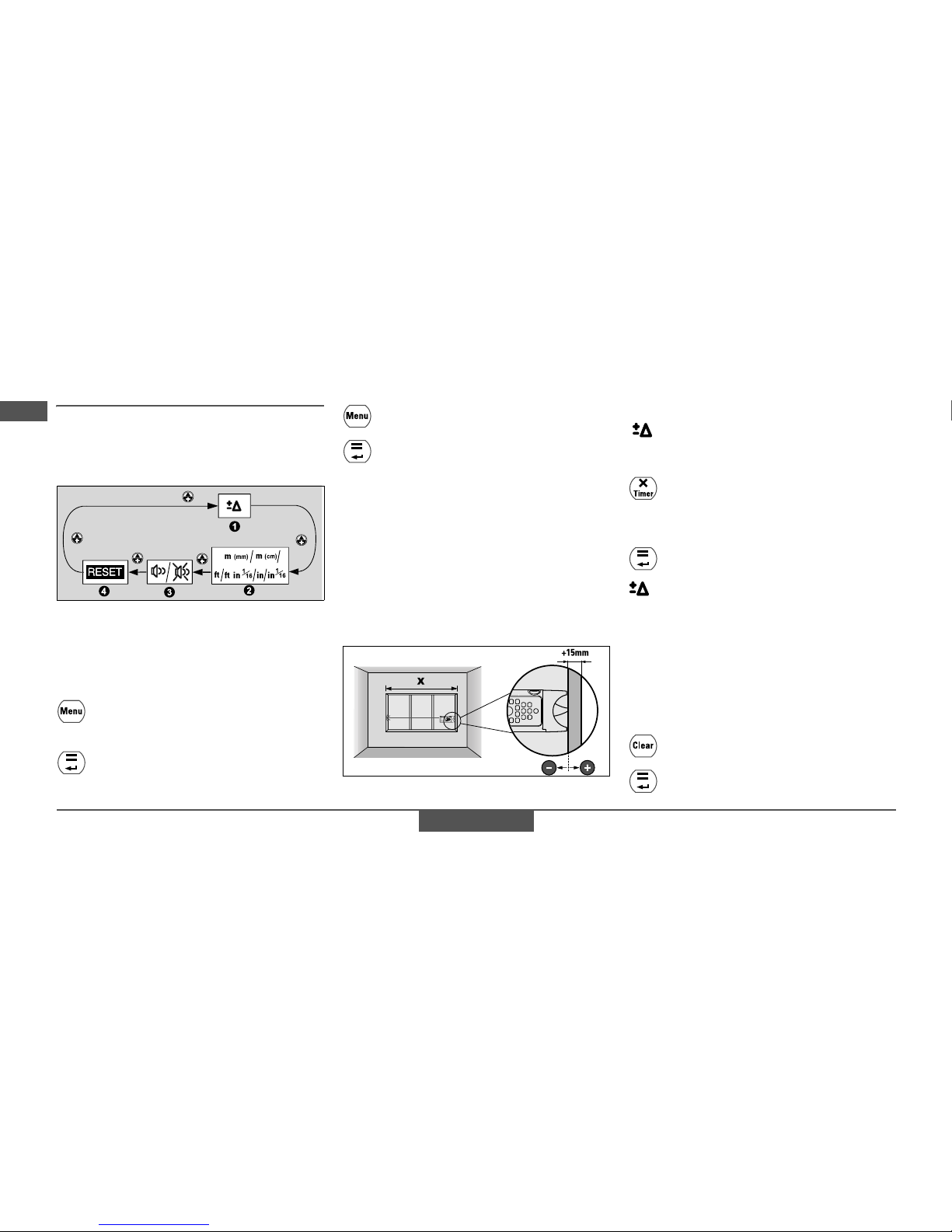

Menu/ Settings
With this menu settings on the user level are possible. The
user can configure the instrument to his/her own specific
and personal needs.
D5-Z9
1 Measure with offset (add/reduce)
2 Selecting measuring units
3Beep
4 Reset
Calling up a menu:
Press until desired menu point appears or with
key [+ / -] switch between the various menu
points.
Confirm selection, activate menu point.
or with key [+ / -] change setting as desired.
Confirm selection, reset to Normal Mode.
)"Clear Entry" may also be used (e.g. to cancel a
selection).
Selecting units
Selectable units:
Measure with offset
D5-Z10
Call up menu point.
blinks on the display.
With key [+ / -] set desired offset (=shifting reference) (e.g.
0,015m); quick set by keeping key pressed.
For larger steps hold additionally.
)Offset can be positive (add) or negative
(reduce)!
Confirm setting.
Is displayed continuously if offset ≠0.
)Subject to set offset, the measured results are
displayed.
Using this function you can measure with rough size, as an
example!
Please make this a rule: After rough size measurement
always set the DISTO™ to offset 0.000: Call up function as
described
Press.
Confirm function.
– m (mm) = 0.000 m – 14’ 06’’ 1/16 = ’ ’’ 1/16
– m (cm) = 0.00 m – in = 0.0 in
– ft = 0.00 ft – in 1/16 = 0 1/16in
– ft in 1/16 = 0.00 1/16ft in

7Functions
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
)After making/changing settings, it is imperative
that a test measurement is performed.
Resetting
Call up menu point.
starts blinking on the display.
With key [+ / -] select components to be reset. To choose
from:
Stack/ Mermory
Stack and Constant
If additional symbols, e.g. measuring frequency and units
are shown in the display, the following values are reset:
– Offset (=0), Beep (On) and Units (meter)
Selected components are reset; back to
Measuring Mode.
Functions
Save values (constants)
Measure/ calculate desired value (e.g. height of room,
area, volume).
Press longer.
starts to blink on the display.
With key [+ / -] adjust value as desired (e.g. from 2.297m
to 2.300m).
For larger steps press and hold additionally.
Press to adjust unit (²/³).
)The adjustment isfor m, m² and m³ rsp. ft, ft² and
ft³ only.
Confirm.
and a number (=memory location) starts to blink.
With key [+ / -] select memory location (1-10).
Save value.
Recalling the constant
Press briefly.
and the contents of the first constant memory
location are displayed (e.g. 2.300m).
With key [+ / -] select desired mermory (1 to 10).
Confirm; value is ready to be used for (e.g.
calculating an area) or
Recall last measured value (Stack)
Briefly press twice
and the last value in the display is shown.
With key [+ / -] select desired value (max. 15!).
Confirm; value is ready to be used for (e.g.
calculating an area).

8
Functions Leica DISTO™ special51.0.0 en
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
Tracking - Minimum
D5-Z11
Determine the minimum dimension, e.g. ceiling height,
without having to precisely align to the normal.
Press until
appears on the display.
Aim DISTO™ approximately at the target point.
Activate continuos measurement with a brief
press.
Move the DISTO™ a large amount around the target point.
Stop continuous measurement.
The smallest measurement is displayed (e.g. 3.215m =
height of room).
)Both planes (e.g. floor/ ceiling, walls) must be
nearly parallel to each other.
Tracking - Maximum
D5-Z12
Determine maximum dimension, e.g. to determine the
(room) diagonal.
Press until
appears on the display.
Move the DISTO™ a large amount around the target point.
Activate continuous measurement with a brief
press.
Slowly rotate the DISTO™ to the right/ left past the corner.
Stop continuous measurement.
The largest measurement is displayed (e.g. 12.314m =
diagonal of room).
Calculations
Partial heights, partial distances
Make measurement.
Add by [ + ] key/ Subtract by[ - ] key.
Make additional measurements.
= Result.
)In the same way chain values (= any amount of
distance measurements) and sums of areas/ volumes can
be added up.
)During calculations "Clear" is available as long
as the function has not been executed!

9Functions
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Multiplication
Make measurement (e.g. 8.375m).
Multiplication by pressing [ x ] key.
Additional measurements (e.g. 8.375m).
= Area (e.g. 29.313m²)
)The volume can be calculated by an additional
multiplication following an area calculation.
This function can be used for calculating areas or volumes
with individual partial heights/ partial distances.
Doubling a measured value
It is easy to double the measured values, e.g. to determine
the length of walls in a room:
Make measurement.
Add by [ + ] key.
Make additional measurements.
= Sum (=half circumference)
With key [ + ] repeat, double measured value.
= Sum (=circumference)
D5-Z13
Pythagoras, height/ width measure-
ment
)The measuring sequence must be adhered to in
any case!
)All three (two) points must be on a vertical or
horizontal line in the plane of the wall!
)With each of the distance measurements you
can use:
• a simple distance measurement,
• a value from stack/ mermory or
• a measurement with time delay release.
)For short distances, a good base behind the
instrument is sufficient for mechanical alignment.
)You will obtain the best results if the DISTO™ is
rotated around a fixed point (rear edge, thread position)
and the axis ofthe laser beam passes through this axis. So
do not simply place the DISTO™ on a camera tripod. In
this case the axis of the laser beam is approx. 70 to
100mm above the centre of rotation - this can lead to signi-
ficant variations in the height.

10
Functions Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
Determination with two points
For estimating the height/
width of buildings. Very
useful for making measure-
mentsfrom standingposition
(no bending) if the height is
determined with two or three
distances.
Press until
appears on the display; laser is activated and "1
---" starts blinking.
Aim at the upper point (1).
Trigger measurement; do not move the
instrument!
Value is accepted.
appears on the display and "2 ---" starts blinking.
Point the DISTO™ approximately horizontal (2).
Press, a continuous measurement is triggered.
Move the DISTO™ a large amount around the ideal
measurement point.
Stop of continuous measurement. The height
and width are displayed from measurements
(Pythagoras).
Detemination with 3 points
Press until
appears on the display; laser is activated and "1
---" starts blinking.
Aim at the upper point (1).
Trigger measurement; do not move the
instrument!
Value is accepted.
appears on the display and "2 ---" starts blinking.
Point the DISTO™ approximately horizontal (2).
Press, a continuous measurement is triggered.
Move the DISTO™ a large amount around the ideal
measurement point.
Stop of continuous measurement.
Value is accepted and and on the display "3 ---" starts
blinking.
Aim at the lower point (3).
Trigger measurement; do not move the
instrument!
The height and width are displayed from three
measurements (Pythagoras).

11 User Information
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Determination of a partial height with 3
points
Height determination between
point 1 and point 2 with three
measured points.
Press until
appears on the display; laser is activated and
"1 ---" starts blinking.
Aim at the upper point (1).
Trigger measurement; do not move the
instrument!
Value is accepted and on the display "2 ---" starts blinking.
Trigger measurement; do not move the
instrument!
Value is accepted.
appears on the display and "3 ---" starts blinking.
Press, a continuous measurement is triggered.
Move the DISTO™ a large amount around the ideal
measurement point.
Stop of continuous measurement. The height
and width are displayed between point 1 and 2
(Pythagoras).
User Information
Range
In daylight (outdoors) always work with a laser viewfinder.
If neceesary, shade the target. If required, use a target
plate.
Increased range:
At night, at dusk and when target area is in the shade.
Reduced range:
E.g., to mat green and blue surfaces (also plants or trees).
Rough surfaces
On a rough surface (e.g. coarse plaster) measure against
the centre of the illuminated area.
To avoid measuring to the bottom of plaster joints:
Use target plate, 3M "Post-it" or board.
Transparent surfaces
To avoid measuring errors, do not measure towards
colorless liquids (e.g. water) or (dust free) glass, styropor.
or similar semi- permeable surfaces. For materials and
liquids unfamiliar to you always take a trial measurement.

12
Safety Instructions Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
)When aiming through panes of glass, of if there
are several objects in the line-of-sight erroneous measure-
ments can occur.
Wet, smooth or high-gloss surfaces
1 Aiming at a "Acute" angle deflects the laser beam.
The DISTO™ may receive a signal that is too weak
(error message 255).
2 If aiming at a right angle, the DISTO™ may receive a
signal that is too strong (error message 256).
Inclined, round surfaces
Can be measured with the laser.
Requirement: There is enough area on the target surface
for the laser spot.
Free-handed aiming
(approx. 20 - 40 m):
From about 30 m, use target plate 563875 (DIN C6) rsp.
723385 (DIN A4). Use a tripod, if required.
• White surface: to 30 m
• Brown surface: from 30 m on
Safety Instructions
The following directions should enable the person
responsible for the DISTO™, and the person who actually
uses the instrument, to anticipateand avoid operational
hazards.
The person responsible for the instrument must ensure
that all users understand these directions and adhere to
them.
Use of the instrument
Permitted use
The permitted use of the DISTO™ are the following:
• Measuring distances
• Computing areas and volumes
• Storing measurements
Prohibited use
• Using the instrument without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of
explanatory and hazard labels
• Opening of the equipment by using tools
(screwdrivers, etc.), as far as not specifically
permitted for certain cases
• Carrying out modification or conversion of the product
• Use after misappropriation
• Use of accessories from other manufacturers without
the express approval of Leica Geosystems.
• Deliberate or irresponsible behaviour on scaffolding,
when using ladders, when measuring near machines
which are running, or near parts of machines or
installations which are unprotected
• Aiming directly into the sun
• Deliberate dazzling of third parties; also in the dark
• Inadequate safeguards at the surveying site (e.g.
when measuring on roads, etc.)
WARNING
Prohibited use can lead to injury, malfunction, and
material damage. It is the task of the person responsible
for the instrument to inform the user about hazards and
how to counteract them. The DISTO™ is not to be
operated until the user has been instructed.

13 Safety Instructions
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Limits of use
)See section “Technical Data“
Environment:
Suitable for use in an atmosphere appropriate for
permanent human habitation. Cannot be used in an
aggressive or explosive environment. Use in rain is
permissible for limited periods.
Areas of responsibility
Responsibilities of the manufacturer of the original
equipment Leica Geosystems AG, CH-9435 Heerbrugg
(kurz Leica Geosystems):
Leica Geosystems is responsible for supplying the
product, including the User Manual and original
accessories, in a completely safe condition.
Responsibilities of the manufacturer of non-Leica
accessories:
)The manufacturers of non-Leica accessories for
the DISTO™ are responsible for developing, implementing
and communicating safety concepts for their products.
They are also responsible for the effectiviness of these
safety concepts in combination with the Leica Geosystems
equipment.
Responsibilities of the person in charge of the
instrument:
WARNING:
The person responsible for the instrument must
ensure that the equipment is used in accordance with the
instructions. This person is also accountable for the
deployment of personnel and for their training and for the
safety of the equipment when in use.
The person in charge of the instrument has the following
duties:
• To understand the safety instructions on the product
and the instructions in the User Manual.
• To be familiar with local safety regulations relating to
accident prevention.
• To inform Leica Geosystems immediately if the
equipment becomes unsafe.
Hazards in use
Important hazards in use
WARNING:
The absence of instruction, or the inadequate
imparting of instruction, can lead to incorrect or prohibited
use, and can give rise to accidents with far-reaching
human, material and environmental consequences.
Precautions:
All users must follow the safety instructions given by the
manufacturer and the directions of the person responsible
for the instrument.
CAUTION:
Watch out for erroneous distance measurements if
the instrument is defective or if it has been dropped or has
been misused or modified.
Precautions:
Carry out periodic test measurements. Particularly after
the instrument has been subject to abnormal use, and
before, during and after important measurements.
Make sure the DISTO™ optics is kept clean and that there
is no mechanical damage to the bumpers.

14
Safety Instructions Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
WARNING:
Insufficient securing or marking of your
measurement site could cause a dangerous situation on
the public highway, building site, or in the factory, etc.
Precautions:
Always ensure your measurement site is appropriately
secured. Obey the local accident prevention regulations,
and road safety rules, at all times.
CAUTION:
In using the instrument for distance measurements
or for positioning moving objects (e.g. cranes, building
equipment, platforms, etc.) unforeseen events may cause
erroneous measurements.
Precautions:
Only use this product as a measuring sensor, not as a
control device. Your system must be configured and
operated in such a way, that in case of an erroneous
measurement, malfunction of the device or power failure
due to installed safety measures (e.g. safety limit switch),
it is assured that no damage will occur.
WARNING:
Dispose of the equipment appropiately in
accordance with the regulations in force in your country.
Always prevent access to the equipment by unauthorized
personnel.
CAUTION:
Be careful when pointing a telescope towards the
sun, because the telescope functions as a burning glass
and can injure your eyes and/or cause damage inside the
DISTO™.
Precautions:
Do not point the telescopic viewer directly at the sun.

15 Safety Instructions
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Laser classification
The DISTO™ produces a visible laser beam which
emerges from the front of the instrument.
It is a Class 2 laser product in accordance with:
• IEC60825-1 : 1993 "Radiation safety of laser
products"
• EN60825-1 : 1994 "Radiation safety of laser
products"
It is a Class II laser product in accordance with:
• FDA 21CFR Ch.I §1040 : 2001 (US Department of
Health and Human Service, Code of Federal
Regulations)
Laser Class 2/ II products:
Do not stare into the laser beam or direct it towards other
people unnecessarily. Eye protection is normally afforded
by aversion responses including the blink reflex.
WARNING:
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous to
the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser is
aimed above or below eye level. (particularly with fixed
installations, in machines, etc.)
WARNING:
Looking right at the reflected laser beam in a
DISTO operated with telescopic viewfinder could be
dangerous when you aim at areas that reflect like a mirror,
or emit reflections unexpectedly (e.g. a mirror, metallic
surfaces, windows, prisms, liquids).
Precautions:
If you are using a telescopic viewfinder, do not aim at
areas that are reflective like a mirror, or which could
produce unintended reflections (e.g. mirrors, metallic
surfaces, windows, prisms).
Electromagnetic Compatibility(EMC)
The term "electromagnetic compatibility" is taken to mean
the capability of the DISTO™ to function smoothly in an
environment where electromagnetic radiation and
electrostatic discharges are present, and without causing
electromagnetic interference to other equipment.
WARNING:
Electromagnetic radiation can cause interference
in other equipment.
Although the DISTO™ meets the strict regulations and
standards which are in force in this respect, Leica
Geosystems cannot completely exclude the possibility that
interference may be caused to other equipment.

16
Safety Instructions Leica DISTO™ special51.0.0 en
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
FCC statement (applic. in U.S.)
WARNING:
This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interfe-
rence to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the follo-
wing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit diffe-
rent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.
WARNING:
Changes or modifications not expressly approved
by Leica Geosystems for compliance could void the user’s
authority to operate the equipment.
Product labelling:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, inclu-
ding interference that may cause undesired operation.

17 Safety Instructions
Leica DISTO™ special51.0.0 en
de
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
el
Labelling
D5-Z14
D5-Z15
D5-Z16 D5-Z17
D5-Z18
CAUTION:
Allow only authorized Leica Geosystems service
workshops to service the instruments.
Maximum radiant power: 0.95mW
Emitted wavelength: 620-690nm
Standard applied: EN60825-1: 1994
IEC60825-1: 1993
Laser beam outlet
Beam divergence 0.16 x 0.6 mrad
Pulse duration 15 x 10-9 s
Max. radiant power *
Measurement uncertainty 0.95 mW* ±5%
Max. radiant power per pulse 8 mW

18
Technical Data Leica DISTO™ special51.0.0 en
en
fr
it
es
pt
nl
da
sv
no
fi
jp
zh
ko
pl
hr
hu
ru
cz
Technical Data Message Codes
Error message
appears beside the message number on the
display.
In case of this message switch on/off instrument
several times and check if message is still
displayed. Then call service and specify the
message displayed.
Care
Look after the optical surfaces with the same care that you
would apply to spectacles, cameras and field glasses.
* Maximum deviation occurs under unfavorable condi-
tions, such as in bright sunlight or when measuring to
inadequately reflecting surfaces. For distances over
30m-without using a target plate- themaximum devia-
tion may increase by ±0.1mm/m to maximum
± 10mm. For more information, refer to
www.disto.com.
** As of 100m the measuring units are displayed in cm.
All illustrations, descriptions and technical specifica-
tions are subject to change without prior notice.
Measuring accuracy
(2x standard deviation)
DISTO™ special5typ.: ± 1,5mm / max.: ± 3mm*
Smallest unit displayed 1mm**
Range (from about 30m, use
target plate) 0.2m up to 200 m * **
Time for a measurement dist / trc 0.5...ca.4s / 0.16...ca.1s
∅Laser spot (at distance) 6 / 30 / 60 mm (10 / 50 / 100 m)
Illumination 
Multiline display 
Multifunctional bumper 
Time delay release 
Pocket calculator 
Tracking 
Constant 10 values
min./ max. Tracking. 
Pythagoras 
Mermory (Stack) 15 Werte
Battery, Type AA, 2x 1.5V up to 10’000 measurements
(only with Alkaline batteries!)
Splash and dust
proof IP54 acc. IEC529: splash proof, dust proof
Dimension 172 x 73 x 45 mm
Measuring accuracy of bubble 1°
Temperature range
Storage
Operating
-25°C to +70°C
(-13°F to +158°F)
-10°C to +50°C
(-14°F to +122°F)
Message
Code Cause Remedy
203 Wrong sequence with
Pythagoras meas. Carry out measurement in correct sequence
204 Calculation error Repeat procedure
252 Temperature too high,
above 50°C (measuring) Cool down instrument
253 Temperature too low,
below -10°C (measuring) Warm up instrument
255 Receiver signal too weak,
measurement time too
long, distance <200 mm
Use target plate
measurement time >10
sec.
256 Received signal too
powerful Use target plate (correct side)
257 Wrong measurement,
ambient brightness too
high
Use target plate
260 Laser beam interrupted Repeat measurement
All other messages Call service "System"

Leica Geosystems AG
CH-9435 Heerbrugg
(Switzerland)
www.leica-geosystems.com
Pat. No.
• US 5,815,251
• US 5,949,531
• US 6,336,277
• US 6,463,393
• EP 0738 899
• EP 0932 835
Leica Geosystems AG, Heerbrugg, Switzerland has been
certified as being equipped with a quality system which
meets the International Standards of Quality
Management and Quality Systems (ISO standard 9001)
and Environmental Management Systems (ISO standard
14001).
SAP-Nr. 744544-1.0.0 de/en/fr/it/es/pt/nl/da/sv/no/fi/ja/zh/ko/pl/hr/hu/ru/cz/el
Printed in Switzerland - Copyright Leica Geosystems AG,
Heerbrugg, Switzerland 2004
Translation of original text (744544-1.0.0 de)
Total Quality Management - Our commitment to total
customer satisfaction
Ask your local Leica Geosystems agent for more
information about our TQM program.
