Leica TS02 User manual

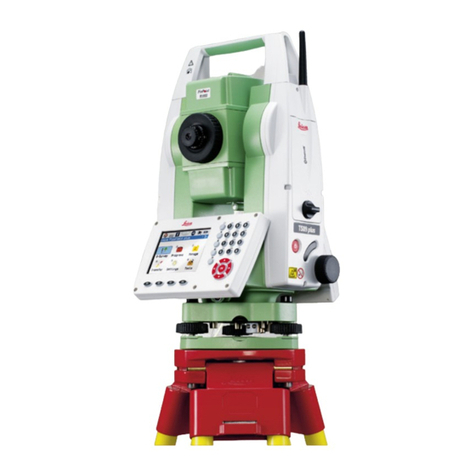

Leica FlexLine
TS02/TS06/TS09
Quick Guide
Version 2.0
English

To use the product in a permitted manner, please refer to the detailed safety instructions in the User
Manual.
Container Contents
a) GKL211 battery charger*
b) GFZ3 diagonal eyepiece*
c) GEV189 data cable (USB-RS232)*
d) GLI115 clip-on bubble*
e) GHT196 holder for height meter*
f) CPR105 flat prism*
g) GLS115 mini prism pole*
h) GHM007 height meter*
i) Protective cover / Lens hood
j) GEV223 data cable (USB-mini USB)
k) GMP111 mini prism*
l) Adjustment tools
m) GEB211 batteries*
n) GAD105 flat or mini prism adapter*
o) MS1 Leica industrial grade USB memory stick
p) GEB221 battery*
q) Tip for mini prism pole*
r) Counterweight for diagonal eyepiece*
s) Instrument with supplied tribrach
t) User manual and quick guide
* Optional
The GEV223 data cable (USB-mini USB) and MS1 Leica industrial grade USB memory stick are for instruments with a
Communication side cover.
Leica FlexLine
TS02/TS06/TS09
User Manual
lm n o p r st
cba d e f g h i j k
q

User Interface
Keys
Page key. Displays the next screen when several screens are available.
FNC key. Quick-access to measurement supporting functions.
User key 1. Programmable with a function from the FNC menu.
User key 2. Programmable with a function from the FNC menu.
ENTER key. Confirms an entry and continues to the next field.
Navigation key. Controls the focus bar.
ESC key. Quits a screen or edit mode without saving changes. Returns to next higher level.
,,,Function keys that are assigned the variable functions displayed at the bottom of the screen.
Alphanumeric keypad for entry of text and numerical values.

Keyboard
Screen
Standard keyboard Alphanumeric keyboard
a) Fixed keys
b) Navigation key
c) ENTER key
d) ESC key
e) Function keys F1 to F4
f) Alphanumeric keypad
a) Title of screen
b) Fields
c) Status icons
d) Focus in screen. Active field
e) Softkeys
S_QG_TSOX_001
a
b
c
d
e
S_QG_TSOX_002
a
f
b
c
d
e
a
b
c
d
e
S_TSOX_001

Status Icons
Icon Description Icon Description
The battery symbol indicates the level of the
remaining battery capacity.
Telescope position face I.
Compensator is on. Telescope position face II.
Compensator is off. Leica standard prism.
Prism EDM mode. Leica mini prism.
Non-Prism EDM mode. Leica 360° prism.
! Offset is active. Leica 360° mini prism.
Keypad is set to numeric mode. Leica reflector tape.
Keypad is set to alphanumeric mode. User defined prism.
Anticlockwise horizontal angle measure-
ment.
USB communication port is selected.
Selectable field. Bluetooth is connected. If the icon has a
small cross beside it, the Bluetooth commu-
nication port is selected, but the status is
inactive.
Up and down arrows indicate that several
screens are available, which are accessed
using .
012
ABC

Data Storage and Transfer
Description
An internal memory is included in all instruments. The FlexField firmware stores all data in jobs in a database in the
internal memory. Data can then be transferred to a computer or other device for post processing via a LEMO cable
connected to the serial interface RS232 port.
For instruments fitted with a Communication side cover, data can also be transferred from the internal memory to
a computer or other device via:
• a USB memory stick inserted into the USB host port,
• a USB cable connected to the USB device port, or
• via a Bluetooth connection.
Main Menu
a) Quick Survey program to begin measuring immediately.
b) To select and start applications.
c) To manage jobs, data, codelists, formats, system memory and USB memory
stick files
d) To export and import data.
e) To change EDM configurations, communication parameters and general
instrument settings.
f) To access instrument related tools such as check and adjust calibrations,
personal start up settings, PIN code settings, licence keys and system infor-
mation.
abc
def
S_TSOX_002

Menu Tree
|—— Q-Survey |—— Setting
| | |—— General
|—— Programs | | |—— Contrast, Trigger Key 1, Trigger Key 2, USER Key 1, USER Key
2, Tilt Correction, Hz Correction, Beep, Sector Beep, HZ Incre-
ment, V-Setting, Face I Definition, Language, Language
Choice, Angle Unit, Minimum Reading, Distance Unit,
Distance Decimal, Temperature Unit, Pressure Unit, Grade
Unit, Data Output, GSI Format, GSI Mask, Code record, Code,
Display IIIumination, Reticle IIIumination, Display Heater, Pre-
/Suffix, Identifier, Sort Type, Sort Order, Double Point ID,
Auto-Off, V After DIST.
|
|
|
|
|
|
|
|
|
|
|
|
|
|—— Station Setup
|—— Surveying
|—— Stakeout
|—— Reference Element
|—— Tie Distance
|—— Area & DTM-Volume
|—— Remote Height
|—— Construction
|—— Cogo
|—— Road 2D
|—— Roadworks 3D
|—— TraversePRO
|—— Reference Plane
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |—— EDM Settings
|
|
|
|
|—— EDM Setting, Atmospheric Data, Individual PPM, Projection
Scale, EDM Signal Reflection, EDM Frequency
| |—— Communication Parameters
| |—— Communication Settings, Bluetooth PIN
|—— Manage |—— Tools
|
|
|
|
|
|
|
|
|—— Jobs
|—— Fixpoints
|—— Measurements
|—— Codes
|—— Formats
|—— Delete Job Memory
|—— Memory Statistics
|—— USB-File Manager
|—— Adjust
|
|
|
|
|
|——
|——
|——
|——
|——
Hz-Collimation
V-Index
Tilt Axis
View Adjustment Reminder
Adjustment Reminder
|—— Start Up
|—— System Information
|—— Transfer | |—— Instrument Information, Software Information, Set Date, Set
Time|
|
|
|—— Export Data
|—— Import Data
|
|—— Licence Key
|—— PIN
|—— Load Firmware

Q-Survey Application
Description
After switching on and setting up correctly, the instrument is immediately ready for measuring.
Access
Select Q-Survey from the MAIN MENU.
QUICK-SURVEY
Next step
Measure and record the point by pressing DIST and REC, or ALL.
ALL
To start measurements and save the measured values.
DIST
To start measurements and display the measured values.
REC
To save the displayed values.
CODE
To find/enter codes.
STATION
To enter station data and set the station.
Hz=0
To set the orientation to horizontal direction = 0.
Hz / Hz
To set the horizontal angle reading to the left (anticlockwise)
or to the right (clockwise).

EDM Settings
EDM mode Prism type
Prism-
Standard
Fine measuring mode for high precision
measurements with prisms.
Round Standard prism GPR121/111
Leica Constant: 0.0 mm
Non-Prism-
Std.
For distance measurements without
prisms.
Mini GMP111
Leica Constant: +17.5 mm
GMP111-0
Leica Constant: 0.0 mm
Non-Prism-
Track.
For continuous distance measurements
without prisms.
Prism
(>3.5km)
For long range distance measurements
with prisms.
JpMini Miniprism. Leica Constant: +34.4 mm
Prism-Fast Quick measuring mode with prisms with
higher measuring speed and reduced
accuracy.
360° GRZ4/122
Leica Constant: +23.1 mm
Prism-
Tracking
For continuous distance measurements
with prisms.
360°
Mini
GRZ101
Leica Constant: +30.0 mm
Tape For distance measurements using Retro
reflective targets.
User1 /
User2
The user can define two of their own prisms.
Constants can be entered in mm.
FlexPoint For distance measurements without
prisms, up to ~30 m.
Tape Leica Constant: +34.4 mm
None Without prism. Leica Constant: +34.4 mm
48
3886
26 91
100
4030
50
86
86
59
78
64
