Leica FlexLine plus User manual

Leica FlexLine plus
User Manual
Version 5.0
English

FlexLine plus, Introduction 2
Introduction
Purchase Congratulations on the purchase of a FlexLine plus instrument.
This manual contains important safety directions as well as instructions for setting up
the product and operating it. Refer to "1 Safety Directions" for further information.
Read carefully through the User Manual before you switch on the product.
Product identifica-
tion
The model and serial number of your product are indicated on the type plate.
Always refer to this information when you need to contact your agency or Leica
Geosystems authorised service workshop.
Trademarks • Windows is a registered trademark of Microsoft Corporation.
•
Bluetooth
®is a registered trademark of Bluetooth SIG, Inc.
All other trademarks are the property of their respective owners.
Validity of this
manual
WARNING
Description
General This manual applies to TS02 plus, TS06 plus, and TS09 plus instru-
ments. Where there are differences between the various instru-
ments they are clearly described.
For the Tunnel application, refer to the separate manual "Leica
FlexLine plus Tunnel Application".
Telescope •Measuring with Prism mode: When measuring distances to a
reflector with Electronic Distance Measurement (EDM) mode
"Prism", the telescope uses a wide visible red laser beam, which
emerges coaxially from the telescope's objective.
•Measuring with Non-Prism modes: Instruments that are
equipped with a reflectorless EDM additionally offer the EDM
mode "Non-Prism". When meauring distances with this EDM
mode, the telescope uses a narrow visible red laser beam, which
emerges coaxially from the telescope's objective.
Do NOT remove the battery during operation of the instrument, or during the shut-
down procedure.
This can result in a file system error and data loss!
Always switch off the instrument by pressing the On/Off key, and wait until the
instrument has shutdown completely before removing the battery.
TSOX_135

FlexLine plus, Introduction 3
myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a
wide range of services, information and training material.
With direct access to myWorld, you are able to access all relevant services whenever
it is convenient for you, 24 hours a day, 7 days per week. This increases your efficiency
and keeps you and your equipment instantly updated with the latest information from
Leica Geosystems.
Service Description
myProducts Add all products that you and your company own and explore your
world of Leica Geosystems: View detailed information on your prod-
ucts and update your products with the latest software and keep up-
to-date with the latest documentation.
myService View the current service status and full service history of your prod-
ucts in Leica Geosystems service centres. Access detailed informa-
tion on the services performed and download your latest calibration
certificates and service reports.
mySupport View the current service status and full service history of your prod-
ucts in Leica Geosystems service centres. Access detailed informa-
tion on the services performed and download your latest calibration
certificates and service reports.
myTraining Enhance your product knowledge with Leica Geosystems Campus -
Information, Knowledge, Training. Study the latest online training
material on your products and register for seminars or courses in
your country.
myTrusted
Services
Add your subscriptions and manage users for Leica Geosystems
Trusted Services, the secure software services, that assist you to
optimise your workflow and increase your efficiency.

FlexLine plus, Table of Contents 4
Table of Contents
In this manual Chapter Page
1SafetyDirections 8
1.1 General 8
1.2 Definition of Use 9
1.3 Limits of Use 9
1.4 Responsibilities 9
1.5 Hazards of Use 10
1.6 Laser Classification 12
1.6.1 General 12
1.6.2 Distancer, Measurements with Reflectors 12
1.6.3 Distancer, Measurements without Reflectors
(Non-Prism mode) 13
1.6.4 Red Laser Pointer 15
1.6.5 Electronic Guide Light EGL 17
1.6.6 Laser Plummet 17
1.7 Electromagnetic Compatibility EMC 19
1.8 FCC Statement, Applicable in U.S. 20
2 Description of the System 22
2.1 System Components 22
2.2 Container Contents 23
2.3 Instrument Components 24
3UserInterface 26
3.1 Keyboard 26
3.2 Screen 27
3.3 Status Icons 28
3.4 Softkeys 30
3.5 Operating Principles 31
3.6 Pointsearch 32
3.7 Graphic Symbols 33
4Operation 34
4.1 Instrument Setup 34
4.2 Working with the Battery 37
4.3 Data Storage 38
4.4 Main Menu 38
4.5 Q-Survey Program 39
4.6 Distance Measurements - Guidelines for Correct Results 40
5 Settings 41
5.1 Work Settings 41
5.2 Regional Settings 43
5.3 Data Settings 46
5.4 Screen & Audio Settings 47
5.5 EDM Settings 49
5.6 Interface Settings 53
6 Programs - Getting Started 55
6.1 Overview 55
6.2 Starting a Program 56
6.3 Setting the Job 57
6.4 Station Setup 58

FlexLine plus, Table of Contents 5
7Programs 59
7.1 Common Fields 59
7.2 Station Setup 60
7.2.1 Starting 60
7.2.2 Measuring the target points 62
7.2.3 Station Setup Results 63
7.3 Surveying 65
7.4 Stakeout 66
7.5 Reference Line 69
7.5.1 Overview 69
7.5.2 Defining the Base Line 69
7.5.3 Defining the Reference Line 70
7.5.4 Measure Line & Offset 72
7.5.5 Stakeout 73
7.5.6 Grid Stakeout 75
7.5.7 Line Segmentation 77
7.6 Reference Arc 79
7.6.1 Overview 79
7.6.2 Defining the Reference Arc 79
7.6.3 Measure Line & Offset 81
7.6.4 Stakeout 82
7.7 Reference Plane 84
7.8 Tie Distance 86
7.9 Area & DTM Volume 88
7.9.1 Overview 88
7.9.2 2D / 3D Area 89
7.9.3 Area to Reference Plane 90
7.9.4 DTM Volume 91
7.9.5 Area Division 93
7.10 Remote Height 95
7.11 COGO 96
7.11.1 Starting 96
7.11.2 Inverse and Traverse 96
7.11.3 Intersections 97
7.11.4 Offsets 98
7.11.5 Line - Extension 99
7.12 Road 2D 100
7.13 Road 3D 102
7.13.1 Starting 102
7.13.2 Basic Terms 103
7.13.3 Creating or Uploading Alignment Files 107
7.13.4 Stake 108
7.13.5 Check 109
7.13.6 Stake Slope 110
7.13.7 Check Slope 113
7.14 Traverse 114
7.14.1 Overview 114
7.14.2 Starting and Configuring Traverse 115
7.14.3 Measuring Traverse 116
7.14.4 Moving ahead 118
7.14.5 Closing a Traverse 119
7.15 Tunnel 121

FlexLine plus, Table of Contents 6
8Favourites 122
8.1 Overview 122
8.2 Target Offset 123
8.2.1 Overview 123
8.2.2 Cylindrical Offset Subprogram 124
8.3 Hidden Point 126
8.4 Check Tie 127
8.5 EDM Tracking 128
8.6 Backsight Check 128
8.7 SketchPad 129
9Coding 130
9.1 Coding 130
9.2 Quick Coding 132
10 MapView Interactive Display Feature 133
10.1 Overview 133
10.2 Accessing MapView 133
10.3 Configuring MapView 133
10.4 MapView Components 134
10.4.1 Screen Area 134
10.4.2 Keys, Softkeys and Toolbar 135
10.4.3 Point Symbols 135
10.5 Selecting Points 136
11 Imaging & Sketching 137
11.1 Screenshot 137
11.2 Sketching 137
11.3 Image Management 138
12 Tools 139
12.1 Adjust 139
12.2 Startup Sequence 140
12.3 System Information 141
12.4 Licence Keys 143
12.5 Instrument Protection with PIN 144
12.6 Loading Software 145
13 Data Management 146
13.1 Manage 146
13.2 Exporting Data 147
13.3 Importing Data 150
13.4 Working with a USB Memory Stick 152
13.5 Working with Bluetooth 153
13.6 Working with Leica Instrument Tools 154
14 Check & Adjust 155
14.1 Overview 155
14.2 Preparation 155
14.3 Adjusting Line-of-Sight and Vertical Index Error 156
14.4 Adjusting the Compensator 158
14.5 Adjusting the Tilting Axis Error 159
14.6 Adjusting the Circular Level of the Instrument and Tribrach 160
14.7 Inspecting the Laser Plummet of the Instrument 161
14.8 Servicing the Tripod 162

FlexLine plus, Table of Contents 7
15 mySecurity 163
16 Care and Transport 165
16.1 Care 165
16.2 Transport 165
16.3 Storage 166
16.4 Cleaning and Drying 166
17 Technical Data 167
17.1 Angle Measurement 167
17.2 Distance Measurement with Reflectors 167
17.3 Distance Measurement without Reflectors (Non-Prism mode) 169
17.4 Distance Measurement Reflector (>4.0 km) 170
17.5 Conformity to National Regulations 171
17.5.1 Products without Communication side cover 171
17.5.2 Products with Communication side cover 171
17.5.3 Dangerous Goods Regulations 172
17.6 General Technical Data of the Instrument 173
17.7 Scale Correction 176
17.8 Reduction Formulas 178
18 Software Licence Agreement 179
19 Glossary 180
Appendix A Menu Tree 182
Appendix B Directory Structure 184

FlexLine plus, Safety Directions 8
1SafetyDirections
1.1 General
Description The following directions enable the person responsible for the product, and the
person who actually uses the equipment, to anticipate and avoid operational hazards.
The person responsible for the product must ensure that all users understand these
directions and adhere to them.
About Warning
Messages
Warning messages are an essential part of the safety concept of the instrument. They
appear wherever hazards or hazardous situations can occur.
Warning messages...
• make the user alert about direct and indirect hazards concerning the use of the
product.
• contain general rules of behaviour.
For the users‘ safety, all safety instructions and safety messages shall be strictly
observed and followed! Therefore, the manual must always be available to all persons
performing any tasks described here.
DANGER, WARNING, CAUTION and NOTICE are standardised signal words for iden-
tifying levels of hazards and risks related to personal injury and property damage. For
your safety, it is important to read and fully understand the following table with the
different signal words and their definitions! Supplementary safety information
symbols may be placed within a warning message as well as supplementary text.
Type Description
DANGER Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation or an unintended
use which, if not avoided, could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation or an unintended
use which, if not avoided, may result in minor or moderate
injury.
NOTICE Indicates a potentially hazardous situation or an unintended
use which, if not avoided, may result in appreciable material,
financial and environmental damage.
Important paragraphs which must be adhered to in practice as
they enable the product to be used in a technically correct and
efficient manner.

FlexLine plus, Safety Directions 9
1.2 Definition of Use
Intended use • Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Visualizing the aiming direction and vertical axis.
• Data communication with external appliances.
• Computing by means of software.
Reasonably
forseeable misuse
• Use of the product without instruction.
• Use outside of the intended use and limits.
• Disabling safety systems.
• Removal of hazard notices.
• Opening the product using tools, for example screwdriver, unless this is permitted
for certain functions.
• Modification or conversion of the product.
• Use after misappropriation.
• Use of products with obvious damages or defects.
• Use with accessories from other manufacturers without the prior explicit approval
of Leica Geosystems.
• Deliberate dazzling of third parties.
• Controlling of machines, moving objects or similar monitoring application without
additional control and safety installations.
• Aiming directly into the sun.
• Inadequate safeguards at the working site.
1.3 Limits of Use
Environment Suitable for use in an atmosphere appropriate for permanent human habitation: not
suitable for use in aggressive or explosive environments.
DANGER Local safety authorities and safety experts must be contacted before working in
hazardous areas, or close to electrical installations or similar situations by the person
in charge of the product.
1.4 Responsibilities
Manufacturer of
the product
Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica Geosys-
tems, is responsible for supplying the product, including the user manual and original
accessories, in a safe condition.
Person responsible
for the product
The person responsible for the product has the following duties:
• To understand the safety instructions on the product and the instructions in the
user manual.
• To ensure that it is used in accordance with the instructions.
• To be familiar with local regulations relating to safety and accident prevention.
• To inform Leica Geosystems immediately if the product and the application
becomes unsafe.
• To ensure that the national laws, regulations and conditions for the operation of
e.g. radio transmitters or lasers are respected.

FlexLine plus, Safety Directions 10
1.5 Hazards of Use
CAUTION Watch out for erroneous measurement results if the product has been dropped or has
been misused, modified, stored for long periods or transported.
Precautions:
Periodically carry out test measurements and perform the field adjustments indicated
in the user manual, particularly after the product has been subjected to abnormal use
as well as before and after important measurements.
DANGER Because of the risk of electrocution, it is dangerous to use poles, levelling staffs and
extensions in the vicinity of electrical installations such as power cables or electrical
railways.
Precautions:
Keep at a safe distance from electrical installations. If it is essential to work in this
environment, first contact the safety authorities responsible for the electrical instal-
lations and follow their instructions.
CAUTION Be careful when pointing the product towards the sun, because the telescope func-
tions as a magnifying glass and can injure your eyes and/or cause damage inside the
product.
Precautions:
Do not point the product directly at the sun.
WARNING During dynamic applications, for example stakeout procedures there is a danger of
accidents occurring if the user does not pay attention to the environmental conditions
around, for example obstacles, excavations or traffic.
Precautions:
The person responsible for the product must make all users fully aware of the existing
dangers.
WARNING Inadequate securing of the working site can lead to dangerous situations, for example
in traffic, on building sites and at industrial installations.
Precautions:
Always ensure that the working site is adequately secured. Adhere to the regulations
governing safety, accident prevention and road traffic.
CAUTION If the accessories used with the product are not properly secured and the product is
subjected to mechanical shock, for example blows or falling, the product may be
damaged or people can sustain injury.
Precautions:
When setting up the product, make sure that the accessories are correctly adapted,
fitted, secured, and locked in position.
Avoid subjecting the product to mechanical stress.
WARNING If the product is used with accessories, for example masts, staffs, poles, you may
increase the risk of being struck by lightning.
Precautions:
Do not use the product in a thunderstorm.

FlexLine plus, Safety Directions 11
CAUTION During the transport, shipping or disposal of batteries it is possible for inappropriate
mechanical influences to constitute a fire hazard.
Precautions:
Before shipping the product or disposing of it, discharge the batteries by running the
product until they are flat.
When transporting or shipping batteries, the person in charge of the product must
ensure that the applicable national and international rules and regulations are
observed. Before transportation or shipping contact your local passenger or freight
transport company.
WARNING High mechanical stress, high ambient temperatures or immersion into fluids can cause
leakage, fire or explosions of the batteries.
Precautions:
Protect the batteries from mechanical influences and high ambient temperatures. Do
not drop or immerse batteries into fluids.
WARNING If battery terminals are short circuited e.g. by coming in contact with jewellery, keys,
metallised paper or other metals, the battery can overheat and cause injury or fire, for
example by storing or transporting in pockets.
Precautions:
Make sure that the battery terminals do not come into contact with metallic objects.
WARNING If the product is improperly disposed of, the following can happen:
• If polymer parts are burnt, poisonous gases are produced which may impair health.
• If batteries are damaged or are heated strongly, they can explode and cause
poisoning, burning, corrosion or environmental contamination.
• By disposing of the product irresponsibly you may enable unauthorised persons to
use it in contravention of the regulations, exposing themselves and third parties to
the risk of severe injury and rendering the environment liable to contamination.
• Improper disposal of silicone oil may cause environmental contamination.
Precautions:
Product-specific treatment and waste management information can be downloaded
from the Leica Geosystems home page at
http://www.leica-geosystems.com/treatment or received from your Leica Geosystems
distributor.
WARNING Only Leica Geosystems authorised service centres are entitled to repair these prod-
ucts.
The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with the national
regulations in force in your country.
Always prevent access to the product by unauthorised personnel.

FlexLine plus, Safety Directions 12
1.6 Laser Classification
1.6.1 General
General The following chapters provide instructions and training information about laser safety
according to international standard IEC 60825-1 (2014-05) and technical report IEC TR
60825-14 (2004-02). The information enables the person responsible for the product
and the person who actually uses the equipment, to anticipate and avoid operational
hazards.
1.6.2 Distancer, Measurements with Reflectors
General The EDM module built into the product produces a visible laser beam which emerges
from the telescope objective.
The laser product described in this section is classified as laser class 1 in accordance
with:
• IEC 60825-1 (2014-05): “Safety of laser products”
These products are safe under reasonably foreseeable conditions of operation and are
not harmful to the eyes provided that the products are used and maintained in accord-
ance with this User Manual.
Labelling
According to IEC TR 60825-14 (2004-02), products classified as laser class 1,
class 2 and class 3R do not require:
• laser safety officer involvement,
• protective clothes and eyewear,
• special warning signs in the laser working area
if used and operated as defined in this User Manual due to the low eye hazard
level.
National laws and local regulations could impose more stringent instructions
for the safe use of lasers than IEC 60825-1 (2014-05) and IEC TR 60825-14
(2004-02).
Description Value Value
Wavelength 658 nm 658 nm
Pulse duration 400 ps 800 ps
Pulse repetition frequency 320 MHz 100 MHz
Maximum average radiant power 0.33 mW 0.34 mW
Beam divergance 1.5 mrad x 3 mrad 1.5 mrad x 3 mrad
a) Laser beam
001918_003
a

FlexLine plus, Safety Directions 13
1.6.3 Distancer, Measurements without Reflectors (Non-Prism mode)
General The EDM module built into the product produces a visible laser beam which emerges
from the telescope objective.
The laser product described in this section is classified as laser class 3R in accordance
with:
• IEC 60825-1 (2014-05): “Safety of laser products”
Direct intrabeam viewing may be hazardous (low eye hazard level), in particular for
deliberate ocular exposure. The beam may cause dazzle, flash-blindness and after-
images, particularly under low ambient light conditions. The risk of injury for laser
class 3R products is limited because of:
a) unintentional exposure would rarely reflect worst case conditions of (e.g.) beam
alignment with the pupil, worst case accommodation,
b) inherent safety margin in the maximum permissible exposure to laser radiation
(MPE)
c) natural aversion behaviour for exposure to bright light for the case of visible
radiation.
CAUTION From a safety perspective, class 3R laser products should be treated as potentially
hazardous.
Precautions:
1) Prevent direct eye exposure to the beam.
2) Do not direct the beam at other people.
CAUTION Potential hazards are not only related to direct beams but also to reflected beams
aimed at reflecting surfaces such as prisms, windows, mirrors, metallic surfaces, etc.
Precautions:
1) Do not aim at areas that are essentially reflective, such as a mirror, or which could
emit unwanted reflections.
2) Do not look through or beside the optical sight at prisms or reflecting objects when
the laser is switched on, in laser pointer or distance measurement mode. Aiming at
prisms is only permitted when looking through the telescope.
Description Value Value
(R500) (R500/R1000)
Wavelength 658 nm 658 nm
Maximum average radiant power 4.8 mW 4.8 mW
Pulse duration 400 ps 800 ps
Pulse repetition frequency 320 MHz 100 MHz
Beam divergence 0.2 mrad x 0.3 mrad 0.2 mrad x 0.3 mrad
NOHD (Nominal Ocular Hazard
Distance) @ 0.25 s
46 m 44 m

FlexLine plus, Safety Directions 14

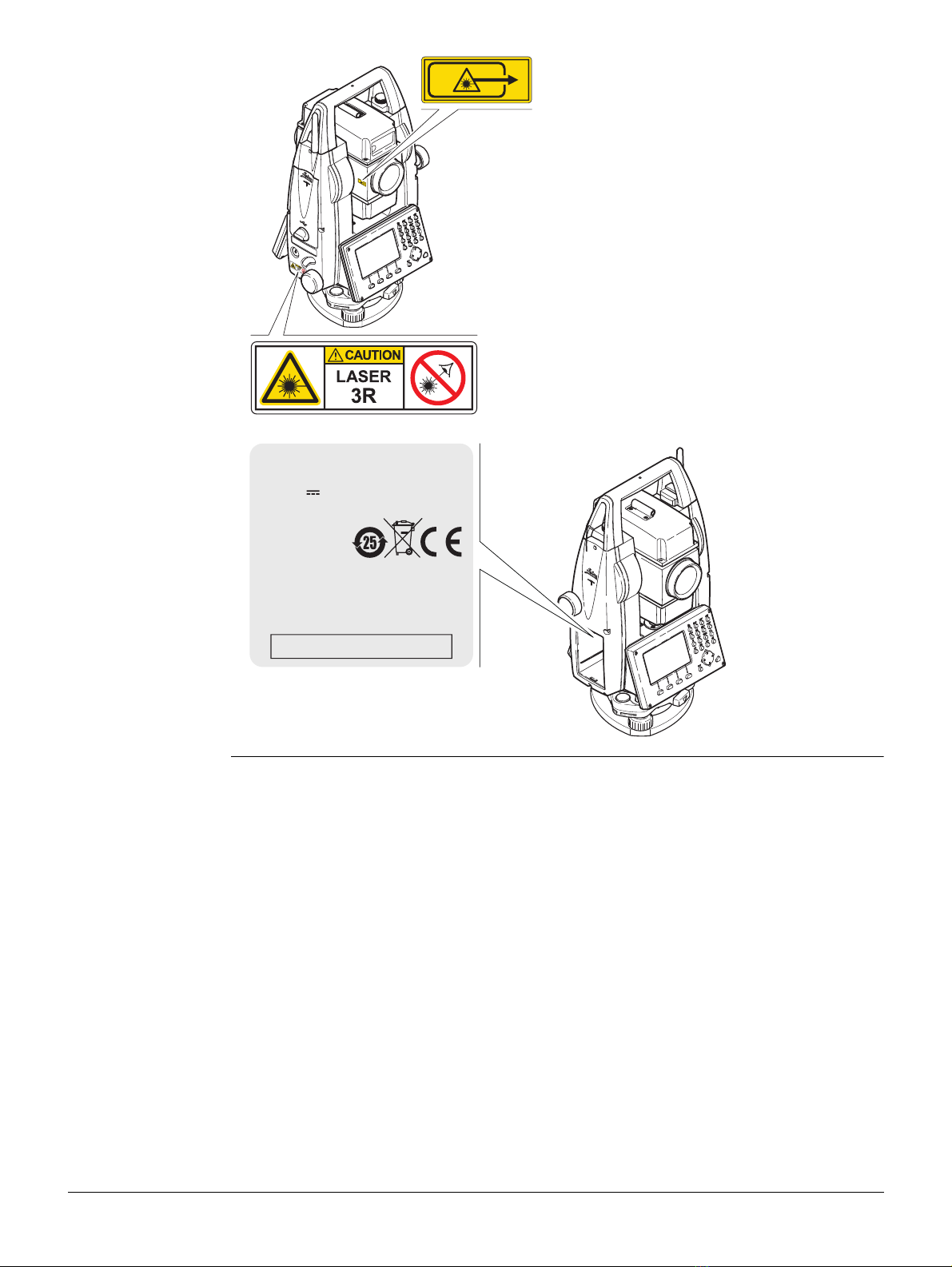

Labelling
001919_003
Pav = 4.8mW λ= 660nm tp = 400ps
IEC 60825-1:2014
Complies with FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
123456
S.No.:
123456
Art.No.:
Equip.No.: 1234567
Power: ..V ..W max
Leica Geosystems AG
CH-9435 Heerbrugg
Manufactured: 20XX
Made in Switzerland
TS0X
Type:
009328_001

FlexLine plus, Safety Directions 15
1.6.4 Red Laser Pointer
General The laser pointer built into the product produces a visible red laser beam which
emerges from the telescope objective.
The laser product described in this section is classified as laser class 3R in accordance
with:
• IEC 60825-1 (2014-05): “Safety of laser products”
Direct intrabeam viewing may be hazardous (low eye hazard level), in particular for
deliberate ocular exposure. The beam may cause dazzle, flash-blindness and after-
images, particularly under low ambient light conditions. The risk of injury for laser
class 3R products is limited because of:
a) unintentional exposure would rarely reflect worst case conditions of (e.g.) beam
alignment with the pupil, worst case accommodation,
b) inherent safety margin in the maximum permissible exposure to laser radiation
(MPE)
c) natural aversion behaviour for exposure to bright light for the case of visible
radiation.
CAUTION From a safety perspective, class 3R laser products should be treated as potentially
hazardous.
Precautions:
1) Prevent direct eye exposure to the beam.
2) Do not direct the beam at other people.
CAUTION Potential hazards are not only related to direct beams but also to reflected beams
aimed at reflecting surfaces such as prisms, windows, mirrors, metallic surfaces, etc.
Precautions:
1) Do not aim at areas that are essentially reflective, such as a mirror, or which could
emit unwanted reflections.
2) Do not look through or beside the optical sight at prisms or reflecting objects when
the laser is switched on, in laser pointer or distance measurement mode. Aiming at
prisms is only permitted when looking through the telescope.
Description Value (R400/R1000)
Wavelength 658 nm
Maximum average radiant power 4.8 mW
Pulse duration 800 ps
Pulse repetition frequency (PRF) 100 MHz
Beam divergence 0.2 mrad x 0.3 mrad
NOHD (Nominal Ocular Hazard Distance) @ 0.25s 44 m / 144 ft

FlexLine plus, Safety Directions 16
Labelling
001919_003
Pav = 4.8mW λ= 660nm tp = 400ps
IEC 60825-1:2014
Complies with FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
123456
S.No.:
123456
Art.No.:
Equip.No.: 1234567
Power: ..V ..W max
Leica Geosystems AG
CH-9435 Heerbrugg
Manufactured: 20XX
Made in Switzerland
TS0X
Type:
009328_001

FlexLine plus, Safety Directions 17
1.6.5 Electronic Guide Light EGL
General The Electronic Guide Light built into the product produces a visible LED beam which
emerges from the front side of the telescope.
1.6.6 Laser Plummet
General The laser plummet built into the product produces a visible red laser beam which
emerges from the bottom of the product.
The laser product described in this section is classified as laser class 2 in accordance
with:
• IEC 60825-1 (2014-05): “Safety of laser products”
These products are safe for momentary exposures but can be hazardous for deliberate
staring into the beam. The beam may cause dazzle, flash-blindness and after-images,
particularly under low ambient light conditions.
CAUTION From a safety perspective, class 2 laser products are not inherently safe for the eyes.
Precautions:
1) Avoid staring into the beam or viewing it through optical instruments.
2) Avoid pointing the beam at other people or at animals.
The product described in this section, is excluded from the scope of
IEC 60825-1 (2014-05): “Safety of laser products”.
The product described in this section, is classified as exempt group in accord-
ance with IEC 62471 (2006-07) and does not pose any hazard provided that
the product is used and maintained in accordance with this user manual.
a) LED beam red
b) LED beam yellow
001921_002
a
b
Description Value
Wavelength 640 nm
Maximum average radiant power 0.95 mW
Pulse duration 10 ms - cw
Pulse repetition frequency (PRF) 1 kHz
Beam divergance <1.5 mrad

FlexLine plus, Safety Directions 18
Labelling
a) Laser beam
b) Exit for laser beam
001923_002
b
a

FlexLine plus, Safety Directions 19
1.7 Electromagnetic Compatibility EMC
Description The term Electromagnetic Compatibility is taken to mean the capability of the product
to function smoothly in an environment where electromagnetic radiation and electro-
static discharges are present, and without causing electromagnetic disturbances to
other equipment.
WARNING Electromagnetic radiation can cause disturbances in other equipment.
Although the product meets the strict regulations and standards which are in force in
this respect, Leica Geosystems cannot completely exclude the possibility that other
equipment may be disturbed.
CAUTION There is a risk that disturbances may be caused in other equipment if the product is
used with accessories from other manufacturers, for example field computers,
personal computers or other electronic equipment, non-standard cables or external
batteries.
Precautions:
Use only the equipment and accessories recommended by Leica Geosystems. When
combined with the product, they meet the strict requirements stipulated by the guide-
lines and standards. When using computers or other electronic equipment, pay atten-
tion to the information about electromagnetic compatibility provided by the manufac-
turer.
CAUTION Disturbances caused by electromagnetic radiation can result in erroneous measure-
ments.
Although the product meets the strict regulations and standards which are in force in
this respect, Leica Geosystems cannot completely exclude the possibility that the
product may be disturbed by intense electromagnetic radiation, for example, near
radio transmitters, two-way radios or diesel generators.
Precautions:
Check the plausibility of results obtained under these conditions.
CAUTION If the product is operated with connecting cables attached at only one of their two
ends, for example external supply cables, interface cables, the permitted level of elec-
tromagnetic radiation may be exceeded and the correct functioning of other products
may be impaired.
Precautions:
While the product is in use, connecting cables, for example product to external battery,
product to computer, must be connected at both ends.
Bluetooth Use of product with Bluetooth:
WARNING Electromagnetic radiation can cause disturbances in other equipment, in installations,
in medical devices, for example pacemakers or hearing aids and in aircraft. It can also
affect humans and animals.
Precautions:
Although the product meets in combination with radio or digital cellular phone devices
recommended by Leica Geosystems the strict regulations and standards which are in
force in this respect, Leica Geosystems cannot completely exclude the possibility that
other equipment may be disturbed or that humans or animals may be affected.
• Do not operate the product with radio or digital cellular phone devices in the vicinity
of filling stations or chemical installations, or in other areas where an explosion
hazard exists.
• Do not operate the product with radio or digital cellular phone devices near to
medical equipment.
• Do not operate the product with radio or digital cellular phone devices in aircraft.

FlexLine plus, Safety Directions 20
1.8 FCC Statement, Applicable in U.S.
The greyed paragraph below is only applicable for products without radio.
WARNING
WARNING Changes or modifications not expressly approved by Leica Geosystems for compliance
could void the user's authority to operate the equipment.
Labelling
FlexLine plus
instrument
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Pav = 4.8mW λ= 660nm tp = 400ps
IEC 60825-1:2014
Complies with FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
123456
S.No.:
123456
Art.No.:
Equip.No.: 1234567
Power: ..V ..W max
Leica Geosystems AG
CH-9435 Heerbrugg
Manufactured: 20XX
Made in Switzerland
TS0X
Type:
009328_001
