Leister GROOVER User manual

LEISTER Groover 4
Grooving machine
Please read operating instructions carefully before use
and keep for future reference.
• Cutting welding grooves into floor coverings of:
tiles,
rolls,
nap-tiles and -rolls
GB
OPERATING INSTRUCTIONS
APPLICATION
®
LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen/Switzerland
Tel. [phone] Fax [phone] www.leister.com [email protected]
2

Danger! Unplug the tool before opening it, as live compo-
nents and connections are exposed.
The equipment must be operated with supervision.
For personal protection, we strongly recommend the
tool to be connected to an RCCB (Residual Current
Circuit Breaker) / GFCI (Ground Fault Circuit Interrupter)
before using it on building sites.
The voltage rating stated on the tool must correspond to
the line/mains voltage.
Risk of injury from touching the cutting blade.
Protect the tool from damp and wet.
Use earmuff!
FI
120
230
2
WARNING
CAUTION
Risk of injury by ejected particles. Ejector pipe and
dustbag must be fitted.
Electrical safety 4double insulated
APPROVAL MARKS
TECHNICAL DATA
This tool is CCA certified (CENELEC Certification Agreement).
Voltage V~ 120, 230
Frequency Hz 50 / 60
Power consumption W 350, 700
Cutting speed rpm Pos 1: 14500, Pos 2: 18 000
Noise emission level LpA (dB) 84
Sound pressure level LWA (dB) 100
Vibration acceleration ahw (m/s2)1.6
Groove depth adjustment mm 0 – 4, infinitely
inch 0 – 3/16
Weight kg 6,7 }with 3 m (10 feet.) cord and
lbs 14,7 ejector pipe
Size mm 240 ×205 ×255
inch 9,4 ×8×10
3

WARNING! Read all instructions. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury. The term “power tool” in all of
the warnings listed below refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools.
Unmodified
plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use to cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under influence of
drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or heating protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before
plugging in.
Carrying power tools with your finger on the switch or plugging
in power tools that have the switch on invites accidents.
General Safety Rules
3

d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loos clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices provided for the connection of dust extraction and collection facili-
ties, ensure these are connected and properly used.
Use of these devices can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hand of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, bre-
akage of parts and any other condition that may affect the power tools ope-
ration. If damaged, have the tool repaired before use.
Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use
of the power tool for operations different from those intended could result in a
hazardous situation.
5) Service
a) Have your power tools serviced by a qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power tool is maintained.
General Safety Rules
4

1
16

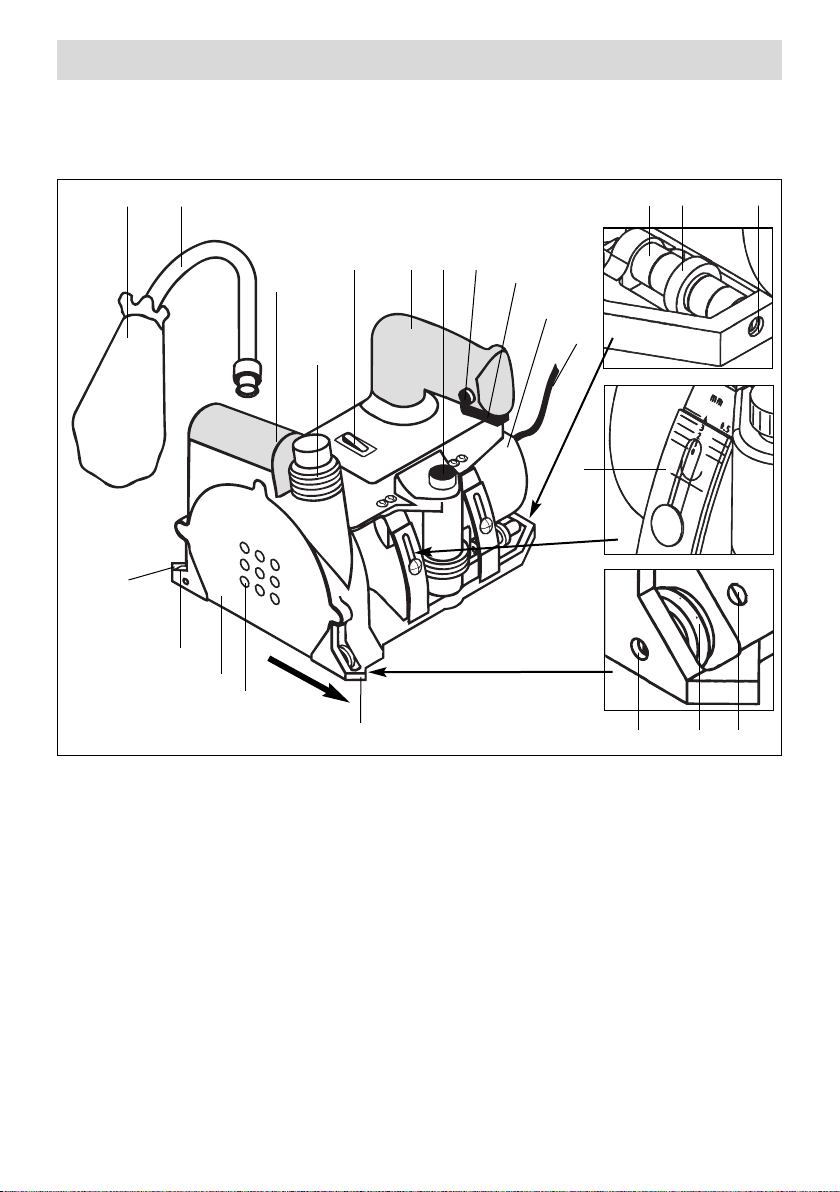

Description of tool
OPERATION LEISTER Groover
2
4583
6
7
10
22
11
19
15
18
14
12 1317
920 21
22
cutting direction
1. Power supply cord
2. Operating switch
3. Locking button of operating switch
4. Cutting speed switch
5. Handle
6 Hand rest
7. Scale for depth adjustment
8. Control knob for depth adjustment
9. Adjustable guide roller
10. Rear roller
11. Tracking wheel
12. Spacers
13. Roller axle
14. Cutting blade cover
15. Threaded connection
16. Ejector pipe
17. Dustbag
18. Air inlet openings
19. Motor housing
20. Adjustment screw for
guide roller
21. Locking screw
22. Positioning arrows
5

OPERATION LEISTER Groover
Operating condition
• Adjust the tracking wheel (11) with spacers (12) to the pitch as required when
using nap-rolls, or tiles.
• Fit the ejector pipe (16) and dustbag (17).
• Adjust the groove depth.
– With your left hand push down the handle (5) of the drive unit up to the magnet
stop.
– With your right hand on the control knob (8) adjust the required groove depth
until approx. 3/4 of the material thickness is visible on the scale.
•
• Align the tool along the grooving line via the adjustable guide roller (9) and the
red positioning arrows (22). Pay attention to the direction of cutting!
Operation
• Connect tool to the power supply.
•Cutting speed switch (4) set to position 1 or position 2 depend from material
thickness.
• Hold the groover by the handle (5) (left hand) and by the hand rest (6) (right
hand).
• Align the marking arrows on the tool (red) with the grooving line. The adjustable
guide roller (9) should run inside the grooving line and the rear roller (10) in the
groove.
• Activate the locking button(3). Switch on the operating switch (2).
• Press the handle down to the magnet stop (grooving position).
• The Groover is easy to push forward and straight along the grooving line with
the adjustable guide roller (9) and the rear roller (10).
• At the end of the groove, switch off the operating switch (2) and release the
handle (5). The tool will spring back into the starting position.
• If required set the guide roller (9) with the locking screw (21) and adjustment
screw (20) (grooving centre).
Changing the cutting blade
•
• Remove the cutting blade cover (14).
• Remove the blade with a box spanner.
• Clean the hub of the tool as well as the cutting blade to be inserted.
• Insert and fit the cutting blade. Check that the cutting blade revolves freely.
• Refit the cutting blade cover (14).
Caution: Unplug the tool !
Caution: The cutting blade run out!
Caution: Cutting blade can protude!
6

ACCESSORIES LEISTER Groover
• The LEISTER Groover is fitted with a tungsten carbide tipped cutting blade.
• Only LEISTER tungsten carbide cutting blades should be used.
• Only perforated blades should be fitted to the groover. Otherwise
the suction pressure is too low.

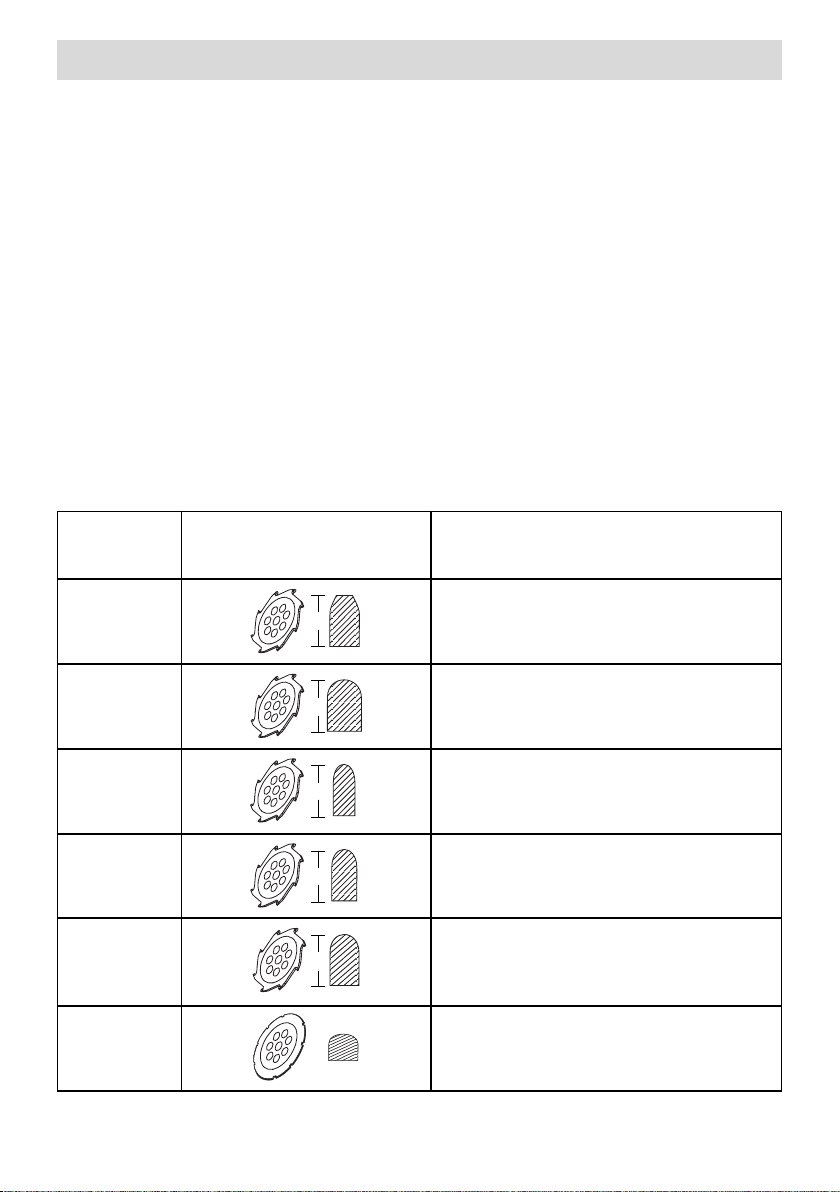

Order Illustration
number not to scale
Tungsten carbide tipped blade
∅ 110 ×3.5 mm, trapezium profile
Tungsten carbide tipped blade
∅110 ×4 mm, round profile
Tungsten carbide tipped blade
∅110 ×2.5 mm, round profile
Tungsten carbide tipped blade
∅110 ×2.8 mm, round profile
2
2
R2
R1,25
R1,4
3,5
4
2,5
2,8
6
6
6
6
Tungsten carbide tipped blader
∅110 ×3.5 mm, round profile
R1,75
3,5
6
Diamond cutting blade
∅ 110 ×3.5 mm, semi-round profile
3,5
102.401
102.402
102.404
102.403
102.405
102.406
7

• After use, disconnect the tool from the power supply. Remove the cutting
blade cover (14). Clean the cutting blade, cutter housing and dustbag (17).
Refit the cutting blade cover (14).
• The carbon brushes of the tool's motor should be checked after about 1600 hours
running time by your Service Centre.
• Repairs have to be carried out by authorised LEISTER Service Centres only. They
guarantee a specialized and reliable repair service within 24 hours using original
LEISTER spare parts.
• Guarantee and liability are in accordance with the currently valid general
business and sales conditions.
• LEISTER Process Technologies rejects any guarantee claims for tools which are not
in their original condition. The tools must never be altered or changed.
Technical data and specifications are subject to change without prior notice.
Your authorized Service Centre is:
GUARANTEE AND LIABILITY
SERVICE AND REPAIR
MAINTENANCE
LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen/Switzerland
Tel. [phone] Fax [phone] www.leister.com [email protected]
BA Groover/09.97/02.2006/ENG
®
