WELCOME TO CLEANER AIR
4

CONTENTS
SAFETY INFORMATION
FEATURE HIGHLIGHTS
PRODUCT OVERVIEW
GETTING STARTED
CONTROL PANEL
AIR QUALITY DISPLAY
SPECIFICATIONS
CARE & MAINTENANCE
Replacing HEPA/Carbon Filters
Washing the Prefilters
FAQ & TROUBLESHOOTING
GUARANTEE & SUPPORT
6
8
9
10
12
13
14
15
15
16
17
19 5

6
SAFETY INFORMATION
PLEASE READ AND SAVE THESE INSTRUCTIONS
Unplug or disconnect the appliance from the power
supply before replacing filters or when the appliance is
not in use.
WARNING: To reduce the risk of fire or electric shock,
do not use this fan with any solid-state speed control
device.
Do not operate any purifier with a damaged cord or
plug, or if the wall socket is loose. If the supply cord is
damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to
avoid a hazard.
Do not run cord under carpeting, throw rugs, runners,
or similar coverings.
Do not run cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be
tripped over.
WARNING: Skin or eye damage may result from
directly viewing the light produced by the UV-C
emitter in this apparatus. Unintended use of the
appliance or damage to the housing may result in the
escape of dangerous UV-C radiation. UV-C radiation
may, even in small doses, cause harm to the eyes and
skin.
• Remove all packaging, including the filter bag,
before use.
• Appliances that are obviously damaged must not be
operated.
• The A-weighted emission sound pressure level is
below 70 dB(A).
• This appliance is designed to be used in commercial
areas.
• This appliance must only be connected to a wall
socket outlet matching the supply plug type and
rating stated on the rating plate.
• Locate air purifier near the outlet wall socket and do
not use extension cords.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with, clean, or try to maintain
the appliance.
• Do not attempt to service or repair this product
yourself.
• Only use the purifier and SensorPod™ with the
power cable provided.
• Only clean this machine with a damp cloth, do not
use solvents or bleach.
• Ensure appliance is always placed on firm level
surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake
or outlet vents.
• When the air purifier is in standby mode the
SensorPod™ is still transmitting a signal/data.

7
Operating Frequency
Wireless: 2402-2480 MHz
Maximum Transmit Power (EIRP)
Wireless: 7.1 dBm
Antenna Gain
Wireless: 2 dBi
Hereby, Leitz ACCO Brands GmbH & Co KG declares
that the radio equipment types, Leitz TruSens Air
Purifier Z-6000/Z-7000 are in compliance with
Directive 2014/53/EU and UK Radio Equipment
regulations.
The full text of the EU/UK declaration of conformity is
available at the following internet address:
https://declarations.accobrands.com/
A minimum separation distance of 0.2m must be
maintained between the user’s body and the device,
to comply with RF exposure requirements.
Waste Electrical and Electronic Equipment (WEEE)
At the end of its useful life, your product is considered
to be WEEE. As such, it is important to note that: WEEE
is not to be disposed of as unsorted municipal waste.
It is to be collected separately such that it can be
disassembled so its components and materials can be
recycled, re-used, and recovered (burned for energy
content in the production of electricity).
Public collection points have been set up by
municipalities for the collection of WEEE, free of charge
to you. Please return your WEEE to the collection facility
nearest your home or office.
If you have difficulty locating a collection facility, the
retailer that sold you the product should accept your
WEEE. If you are no longer in contact with your retailer,
please contact Leitz for assistance with this matter.
Recycling of WEEE is geared toward protecting the
environment, protecting human health, preserving
raw materials, improving sustainable development,
and ensuring a better supply of commodities in
the European Union and United Kingdom. This will
be achieved by retrieving valuable secondary raw
materials and reducing the disposal of waste. You can
contribute to the success of these goals by returning
your WEEE to a collection facility.
Your product is marked with the WEEE symbol (wheelie
bin with an X through it). This symbol is to inform you
that the WEEE is not to be disposed of as unsorted
municipal waste.

8
FEATURE HIGHLIGHTS
Informs and Adapts
Colour-coded illumination provides additional
information by communicating air quality in real-time.
AQI
TRU-BEAM™ UV-C
Proprietary TRU-BEAM UV-C system. No replacements required.
Dual-sided Filtration
Combination filter featuring HEPA to capture pollutants and
Activated Carbon to capture odours and VOCs on both sides.
SensorPod™
Remote air quality monitor that ensures cleaner air,
right where you need it.

9
PRODUCT OVERVIEW
Combination
HEPA/Carbon
Filter
Air outlet
Control panel
Washable Prefilter
Air quality indicator display
Air intake (both sides)
Side panel filter door (both sides)
Air Purifier
Filters
Power & signal
indicator
Power cord
Air inlet
SensorPod™

10
GETTING STARTED
Install the filter (combination HEPA/Carbon)
Remove side panel door (a), prefilter (b) then bagged HEPA/Carbon filter. Remove plastic bag
from filter (c) and install inside the purifier with HEPA layer (white) on the inside, and the Carbon
layer (black) on the outside. Replace the prefilter and side panel door.
NOTE: Perform steps on both le and right sides.

11
Set up
Plug-in your SensorPod™, and place upright on a tabletop or counter across the
room, within line of sight of the purifier.
Plug-in your air purifier unit and power on. Place the purifier on a flat surface, free
from obstructions.
Signal strength may vary by location. In the rare occasion that it doesn’t work –
see page 18.
Start living with cleaner air!
The purifier will automatically adjust fan speeds based on the air quality readings
from SensorPod, and will deliver purified air in the room.
up to 15m

12
CONTROL PANEL
Fan Speed Settings
Select fan speed or AUTO mode. In AUTO mode,
purifier automatically adjusts fan speed based on air
quality readings from SensorPod.
(AUTO mode only available when purifier is paired with SensorPod
and receiving signal)
Dimmer Mode
Display illumination turns off without sacrificing the
effectiveness of the purifier. Simply press the button
again to bring back all display features.
Timer Mode
Purifier will automatically turn off aer 2, 4, 8, or 12
hours. To cancel this countdown, simply press button
until no timer setting is displayed.
Power Button UV Mode
UV-C within the purifier’s filter chamber are on when
the symbol is on.
SensorPod™ Signal Indicator
Filter Indicator Reset
HEPA and Carbon indicators glow red when it is time
to replace the filters. Simply hold Filter Reset button
for 3 seconds to reset the indicators. If replacing the
filter before HEPA and Carbon indicators turn red,
hold Filter Reset button for 10 seconds to reset the
indicators.
(See pages 16-18 for replacement instructions. Follow above Reset
button instructions aer replacing filter.)

13

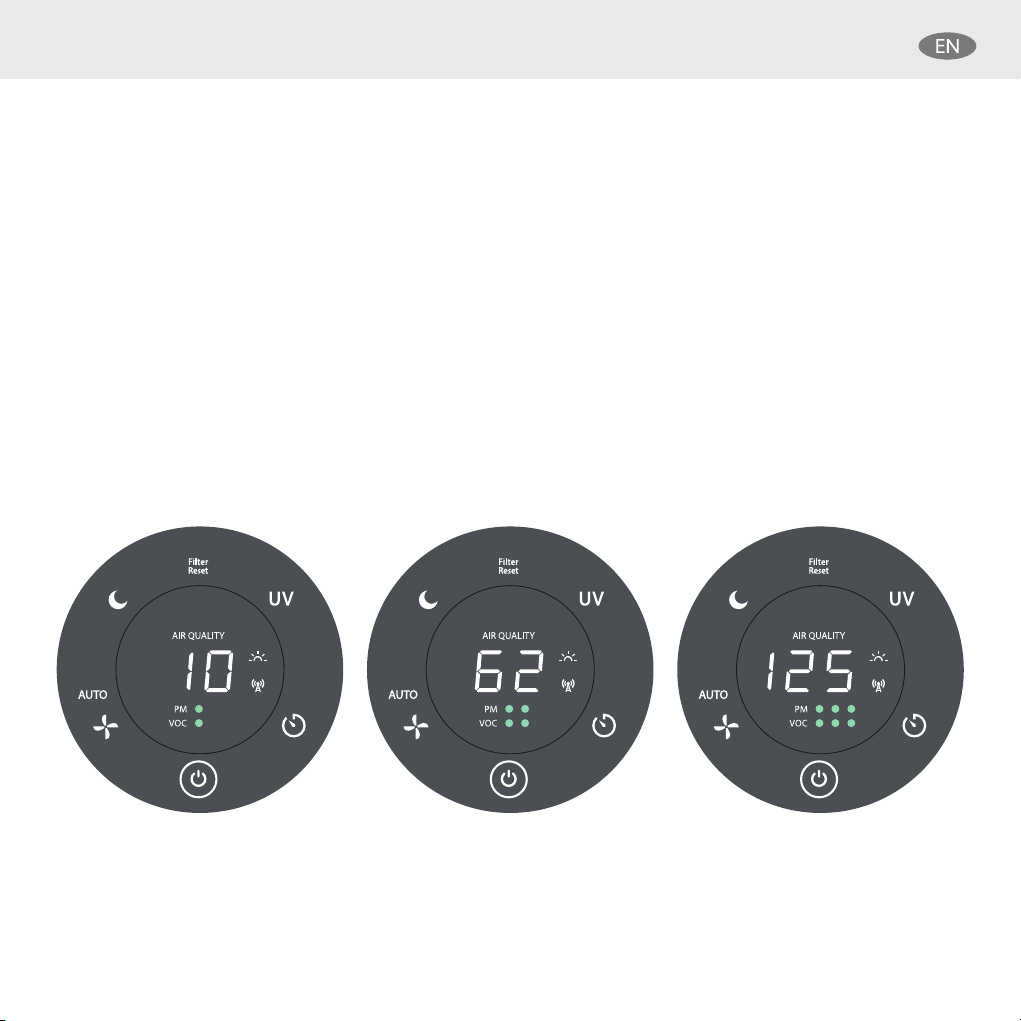

AIR QUALITY DISPLAY
Real-time Feedback
The enhanced SensorPod™ evaluates the condition of your air by measuring
both particulate matter (PM1.0, PM2.5, PM10) and volatile organic compounds
(VOCs). It calculates the overall air quality using a proprietary algorithm that is
reactive to genuine increases in pollutants without overreacting.
The illuminated, colour-coded display communicates good, moderate or poor
air quality and a numeric value provides a greater level of detail.
In AUTO mode, the purifier automatically adjusts the fan speed in response to
these air quality readings.
TruSens utilises the Air Quality Index (1-500) created by the U.S. Environmental Protection Agency (EPA).
GOOD
BLUE | 0 - 50
MODERATE
YELLOW | 50 - 100
POOR
RED | 100 - 500

14
SPECIFICATIONS
Z-6000
with H13 HEPA*
Z-6000
with E12 EPA*
Z-7000
with H13 HEPA*
Z-7000
with E12 EPA*
Air Inlet Dual-sided
Air Outlet Top
Sensor SensorPod™, works up to 15m from purifier
Fan Speed Settings Whisper, 1, 2, 3, Turbo, AUTO
Purification Levels Washable Prefilter, Carbon, E12 EPA or H13 HEPA, TRU-BEAM™ UV-C
Timer Settings 2, 4, 8, 12 hr
Filter Change Indicators HEPA/Carbon
Motor Type DC Motor
Power Requirements 100-240V AC / 50-60 HZ
Dimensions 374 x 468 x 693 mm 374 x 468 x 806 mm
Room Size @ 2 air changes per hour
(ACH) 100 m2155 m² 130 m² 190 m²
Room Size @ 4.84 air changes per hour
(ACH) 50 m² 78 m² 65 m² 95 m²
Noise 20 - 46 dB(A) 30 - 53dB(A) 20 - 47 dB(A) 31 - 54dB(A)
Weight (with filters installed) 17,3 kg 19,1kg 18,7 kg 20,5kg
Power Consumption 54 W 90 W 61 W 100 W
Warranty 2 years
Replacement Filters (2-pack) - replace every 12 months
Combination EPA with Carbon filter*
or
Combination HEPA with Carbon filter*
2415162 2415164 2415163 2415165
*The filters used in Leitz TruSens Z-6000 / Z-7000 have been tested and graded according to EN 1822-1:2019 & EN ISO 29463-5:2018

15
CARE & MAINTENANCE
Refer to page 14 for HEPA/Carbon filter replacement part number.
WARNING: Always power off the purifier by pressing the
Power Button and unplugging the power cord.
To access the filter chamber, gently remove both side panel
filter doors (Fig. A).
REPLACING HEPA/CARBON FILTERS
The HEPA and Carbon indicators will glow red when it is
time to change the combination filter.
1. Gently remove the washable prefilters from both sides
(Fig. B).
Refer to page 16 for cleaning instructions.
2. Remove the current combination HEPA/Carbon filters
from both sides (Fig. C).
3. Gently install the replacement combination HEPA/
Carbon filters with the HEPA layer (white) on the inside,
and the Carbon layer (black) on the outside (page 10).
4. Replace the prefilters and side panel filter doors on both
sides (page 10).
5. Plug-in and power on your purifier, and hold the Reset
button until the red filter indicators turns off.
Fig. A
Fig. B
Fig. C

16
WASHING THE PREFILTERS
We recommend that you visually inspect the prefilters every
month, and clean as needed. Wipe clean with a damp cloth
or gently vacuum the prefilters every time you change the
combination HEPA/Carbon filters.
1. Gently remove both side panel filter doors.
2. Gently remove the prefilters (Fig. D).
3. Gently clean with a dampened cloth or vacuum – allow
prefilters to air dry before re-installing (where necessary).
4. Replace the prefilters (Fig. E) and both side panel filter
doors. Fig. D
Fig. E

17
Where do I place the
SensorPod™?
Anywhere you want to measure the air quality within the room.
For optimal results, place the SensorPod™ up to 15m away from the air purifier
on a counter or table, within line of sight of the purifier. In Auto Mode, the purifier
will work to distribute clean air until the SensorPod reads an acceptable level of
air quality.
How oen do I need to change
the filters?
That’s easy! The purifier’s replacement indicators will notify you when it is time to
replace the combination HEPA/Carbon filters.
Plan on replacing the filters every 12 months.
How oen do I need to wash the
prefilters?
The prefilter captures larger particles and preserves the efficiency of the other
filters, so we recommend that you visually inspect the prefilters every month and
wash or vacuum as needed.
Purifier won’t turn on. Check that the power cord is connected securely to both the wall outlet and the
purifier. Check if there is a power outage in the outlet by trying a nearby light or
device, or by trying a working device in the same outlet.
Check that the filters and filter covers are fitted properly into filter chamber.
Please contact us if you’re still having a problem! (page 19)
FAQ & TROUBLESHOOTING

18
Pairing SensorPod™and Purifier
The SensorPod communicates with the purifier using
radio frequency signals, and will be paired on the
production line and ready for use when you open the
box. In the rare event that the signal is interrupted, the
purifier’s sensor indicator light will blink. You can
repair the connection in just a few easy steps.
1. Unplug the SensorPod.
2. HOLD the Power Button on the purifier for 3
seconds, when you should hear two chimes.
3. Plug-in the SensorPod and press and HOLD the
pairing button underneath the SensorPod for 5-7
seconds (Fig. F).
4. The connection is established when the purifier’s
sensor indicator light is lit with no blinking, and the
air quality indicators turn on.
Purifier won’t go into Auto
Mode.
OR
Air quality indicators are off.
OR
Purifier’s sensor signal indicator
is blinking.
First, check that the SensorPod is plugged-in and that its light is solid.
Next, check that the SensorPod is within range of the purifier (up to 15m).
If both are true and the connection is still failing, see below instructions on
repairing the SensorPod’s connection.
I’ve lost my SensorPod™!Don’t worry! Please contact our customer support team and you can order a
replacement SensorPod. Follow the easy pairing instructions below to pair your
replacement SensorPod with your existing air purifier!
FAQ & TROUBLESHOOTING
Fig. F

19
GUARANTEE
Operation of this machine is guaranteed for two years from date of purchase, subject to normal use.
Within the guarantee period, ACCO will at its own discretion either repair or replace the defective
machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered
under the guarantee. Proof of date of purchase will be required. Repairs or alterations made by
persons not authorised by ACCO will invalidate the guarantee. It is our aim to ensure that our products
perform to the specifications stated. This guarantee does not affect the legal rights which consumers
have under applicable national legislation governing the sale of goods.
SUPPORT
Thank you for welcoming TruSens™ into your home. Our customers
are at the heart of what we do, and we strive to design products that fit
your lifestyle. If you have any questions or feedback, please reach out!
Visit our website at www.leitz.com/trusens
Email us at [e-mail]
Call us at 0800 279 5102
Ireland: [phone]
M-Th 09:00 - 16:30
F 09:00-16:00
To register and activate your warranty go to www.leitz.com/register

WILLKOMMEN IN SAUBERER LUFT
20
