Table of content
Important Safety Instructions...................................................................................3,4
Features......................................................................................................................4
Installation...................................................................................................................5
Description of Parts...............................................................................................5,6,7
Listening to iPod / iPhone...........................................................................................7
FM Radio Tuner Operation .........................................................................................8
DAB / DAB+ Tuner Operation................................................................................9,10
Listening to CD Music.......................................................................................... 10,11
Treble and Bass Settings..........................................................................................12
Listening to an External Audio Source......................................................................12
Clock Setting.............................................................................................................12
Sleep Timer Function................................................................................................13
Care and Maintenance..............................................................................................13
Specifications............................................................................................................14
2
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:46IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:16

Important Safety Instructions
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep these instructions handy for
future reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture
The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry
tub, swimming pool or in a set basement.
2. Ventilation
The unit should be situated so that its location or position does not interfere with its proper ventilation.
For example, it should not be situated on a bed, sofa, rug or similar surface that may block the
ventilation openings. The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc. Also, it should not be placed in a built-in
installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation
openings.
3. Heat & Flame
The unit should be situated away from heat sources such as radiators, heat registers, stoves or other
appliances (including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
4. Power Source
The unit should be connected to a power supply only of the type described in the operating instructions
or as marked on the appliance.
Where the power cord is used as the disconnect device, the disconnect device shall remain readily
operable.
5. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them. It is always best to have a clear area from where the cord exits the unit to
where it is plugged into an AC outlet.
6. Cleaning
The unit should be cleaned only as recommended. See the section "Care and Maintenance" of this
manual for cleaning instructions.
7. Object and Liquid Entry
Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents
located on the product. It shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
8. Attachments
Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection
Unplug the unit from the wall outlet and disconnect the periods of time. This will prevent damage to
the product due to lightning and power-line surges.
10.Overloading
Do not overload wall outlets, extension cords as this can result in a risk of fire of electric shock.
11.Damage Requiring Service
This unit should be serviced by qualified service personnel when:
A. The power supply cord or plug has been damaged.
B. Objects have fallen into or liquid has been spilled into the enclosure.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged.
E. The unit exhibits a marked change in performance or does not operate normally.
12.Periods of Nonuse
If the unit is to be left unused for an extended period of time, such as a month or longer, the power cord
should be unplugged from the unit to prevent damage or corrosion.
13.Servicing
The user should not attempt to service the unit beyond those methods described in the user's operating
instructions. Service methods not covered in the operating instructions should be referred to qualified
service personnel.
3
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:46IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:17

Important Safety Instructions
Follow the advice below for safe and appropriate operations.

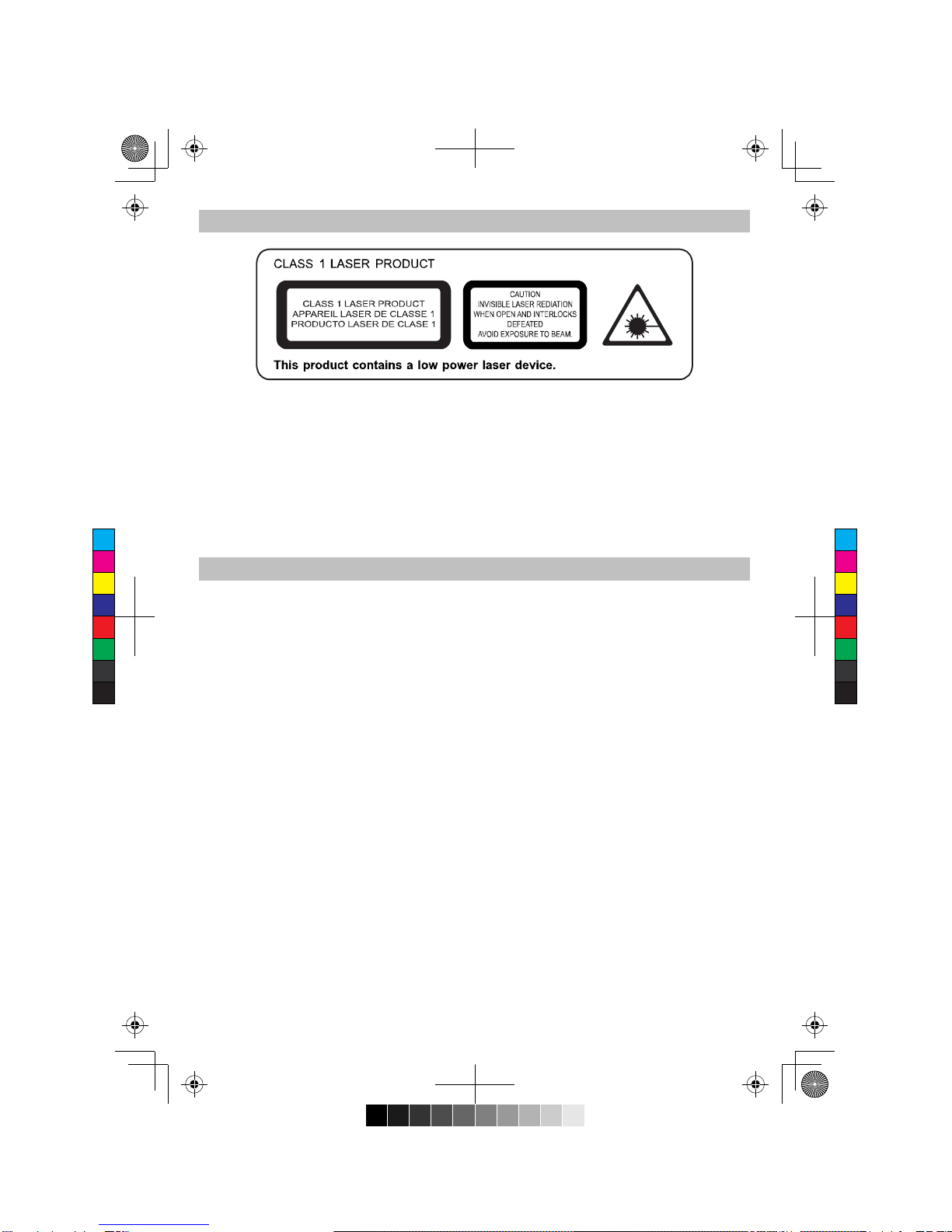

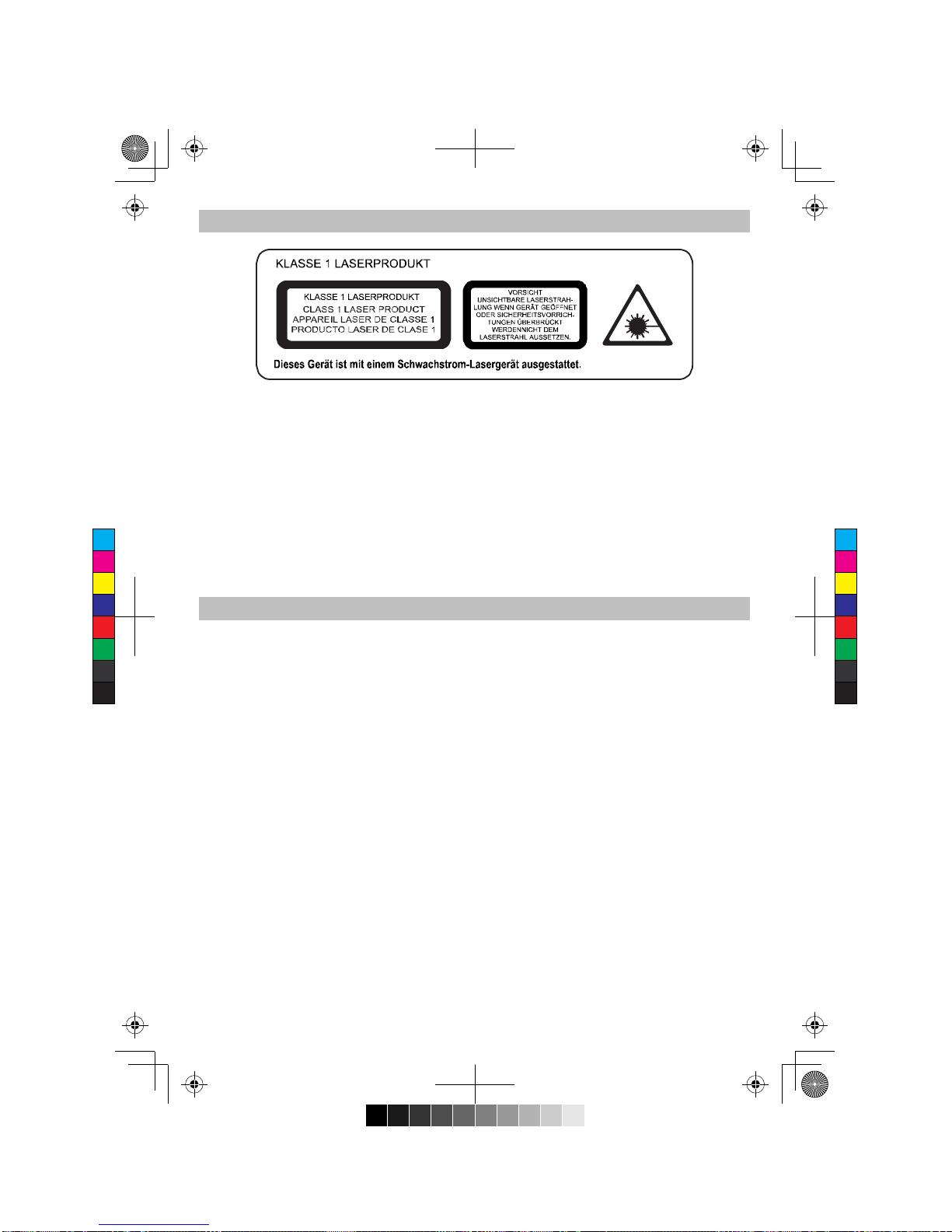

ON PROTECTION AGAINST LASER ENERGY EXPOSURE
●As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to
disassemble the casing.
●Stop operation immediately if any liquid or solid object should fall into the cabinet.
●Do not touch the lens or poke at it. If you do, you may damage the lens and the player may not
operate properly.
●Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open.
●This unit employs a laser. The use of controls or adjustment or performance of procedures other
than those specified here may result in exposure to hazardous radiation.
Features
Thank you for purchasing the CD DAB+ RADIO with iPod / iPhone DOCKING music system.
This model incorporates following features:
zSupport for different iPod / iPhone models Player / Re-charger
zCD player with playback of Audio CDs and MP3 songs
zID3 technology displaying song title
zDAB / DAB+ receiver
zFM receiver with digital read out on LCD
zRDS function
zLCD Clock
zSleep timer function
zLCD display with back-light
zAudio line-in (AUX) for connecting other digital audio players
zVideo output for watching iPod/iPhone movie using an external video display (e.g. TV set)
zBuilt-in 2 High Fidelity Speakers
zBuild-in Subwoofer for heavy bass effect
zith Bass and Treble settingsW
“Made for iPod” and “Made for iPhone” means that an electronic accessory has been designed to connect
specifically to iPod or iPhone respectively and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with iPhone or iPod may affect
wi less performance.re
iPhone, iPod, iPod mini, iPod nano, iPod touch, iPod classic and iPod shuffle are trademarks of Apple Inc.,
registered in the U.S. and other countries.
iPhone, iPod are not included.
4
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:46IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:18

Installation
Clock setting battery back-up
A backup battery compartment located at rear of the unit.
(1) Open the clock battery compartment lid.
(2) Follow the polarity diagram shown inside the compartment and install 2x AAA (UM-4) batteries (not included).
(3) Close the clock battery compartment lid.
Remote Control
A battery compartment located at rear of the remote control.
(1) Open the battery compartment lid.
(2) Follow the polarity diagram shown inside the compartment and install 2x AAA (UM-4) batteries (not included).
(3) Close the battery compartment lid.
AC-DC Adaptor Connection
The unit can be powered by an external AC-DC Adaptor, required the output DC 16V 3000mA (included).
(1) Firmly and securely plug the adaptor's AC plug into AC main outlet.
(2) Connect the adaptor's DC output plug to the DC-in jack of the unit.
Warnings:
- Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
- Be sure that the batteries are installed correctly. Wrong polarity may damage the unit.
- Do not mix old and new batteries.
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel- cadmium) batteries.
- Only batteries of the same or equivalent type as recommend are to be used.
- If the unit is not to be used for an extended period of time, remove the battery.
- Do not dispose of batteries in fire, battery may explode or leak.
- Danger of explosion if battery is incorrectly replaced.

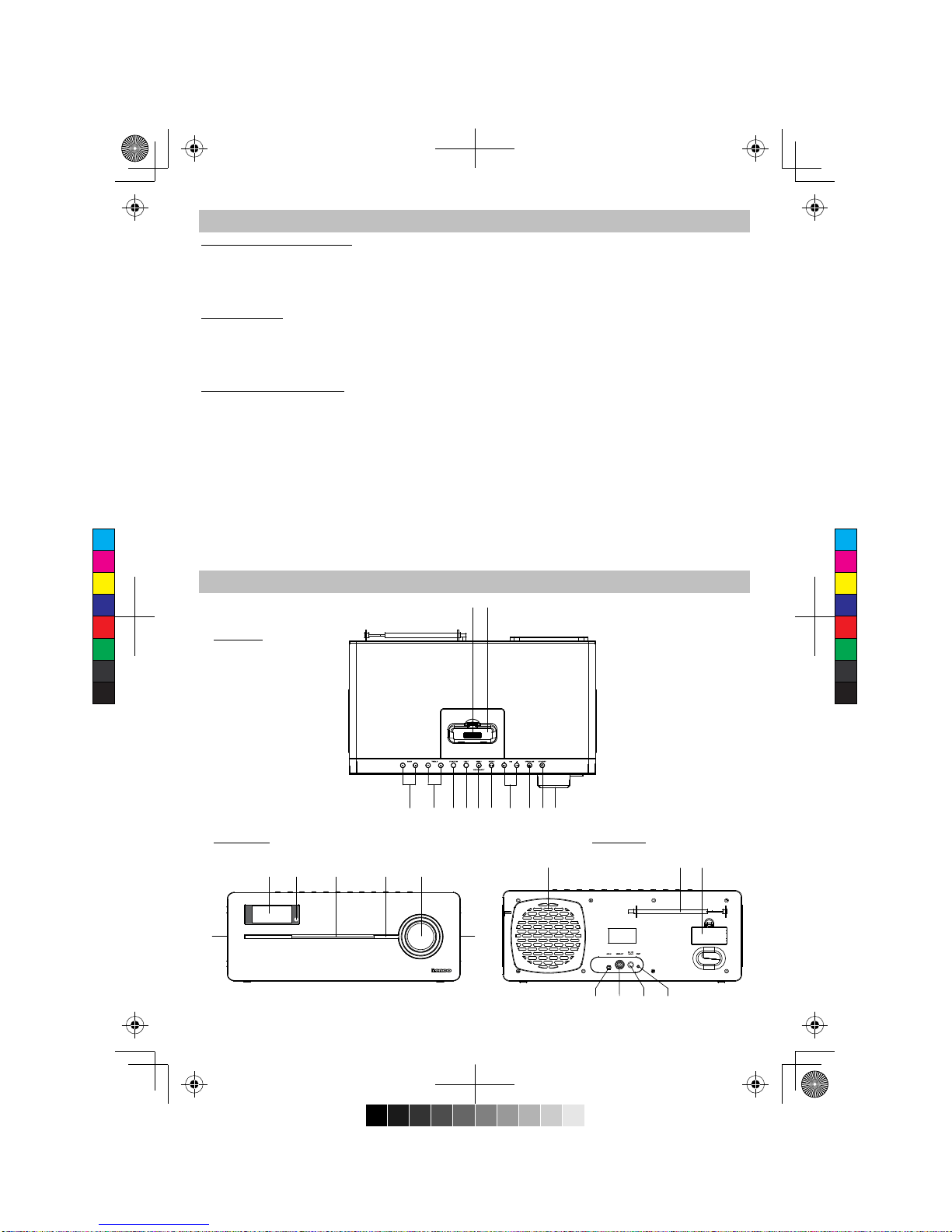

Description of Parts
Main Unit
12
435678910
1112
Top View
Rear ViewFront View
2322
20
21 24
18 19
413
14
1516
17
17
5
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:50IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:22

Description of Parts
Main Unit
1. iPod/iPhone docking station
2. iPod/iPhone docking connector
3. STANDBY button ----- To turn the unit on and off.
4. VOLUME knob ----- Adjust volume level up or down.
5. OPEN/CLOSE button ---- Open / Close CD slot.
6. TUN / + and / - buttons
------ In DAB / FM tuner mode: Tune the FM radio frequency up/down; Select DAB channel.
In DAB / FM menu mode: Acts as navigation button.
In iPod/iPhone and CD mode: Skip tracks Forward / Backward; perform high-speed
search.
7. ENTER / button ----- Confirm DAB / FM radio settings selection; iPod/iPhone / CD Play/Pause
function.
8. MENU / / VIDEO ON/OFF button ---- Select DAB and FM radio menu setting mode; Stop CD
playback; Select video-out on/off in iPod/iPhone mode.
9. LIGHT button ----- Turn LCD backlight and Power indicator ON / OFF.
10. FUNCTION button ---- Select FM radio / DAB / iPod/iPhone / AUX-IN / CD mode.
11. TREBLE + / - button ------- Adjust Treble level.
12. BASS + / - button ---- Adjust Bass level.
13. Power Status indicator
14. CD slot
15. Remote Control Infrared receiver
16. LCD display
17. Speakers
18. Subwoofer
19. Memory backup battery compartment
20. Rod antenna
21. AUX-IN jack ---- Auxiliary audio signal input.
22. VIDEO-OUT jack ---- Composite video output.
23. DC-in jack ----- For the connection of external DC power supply.
24. RESET button ---- For resetting the unit

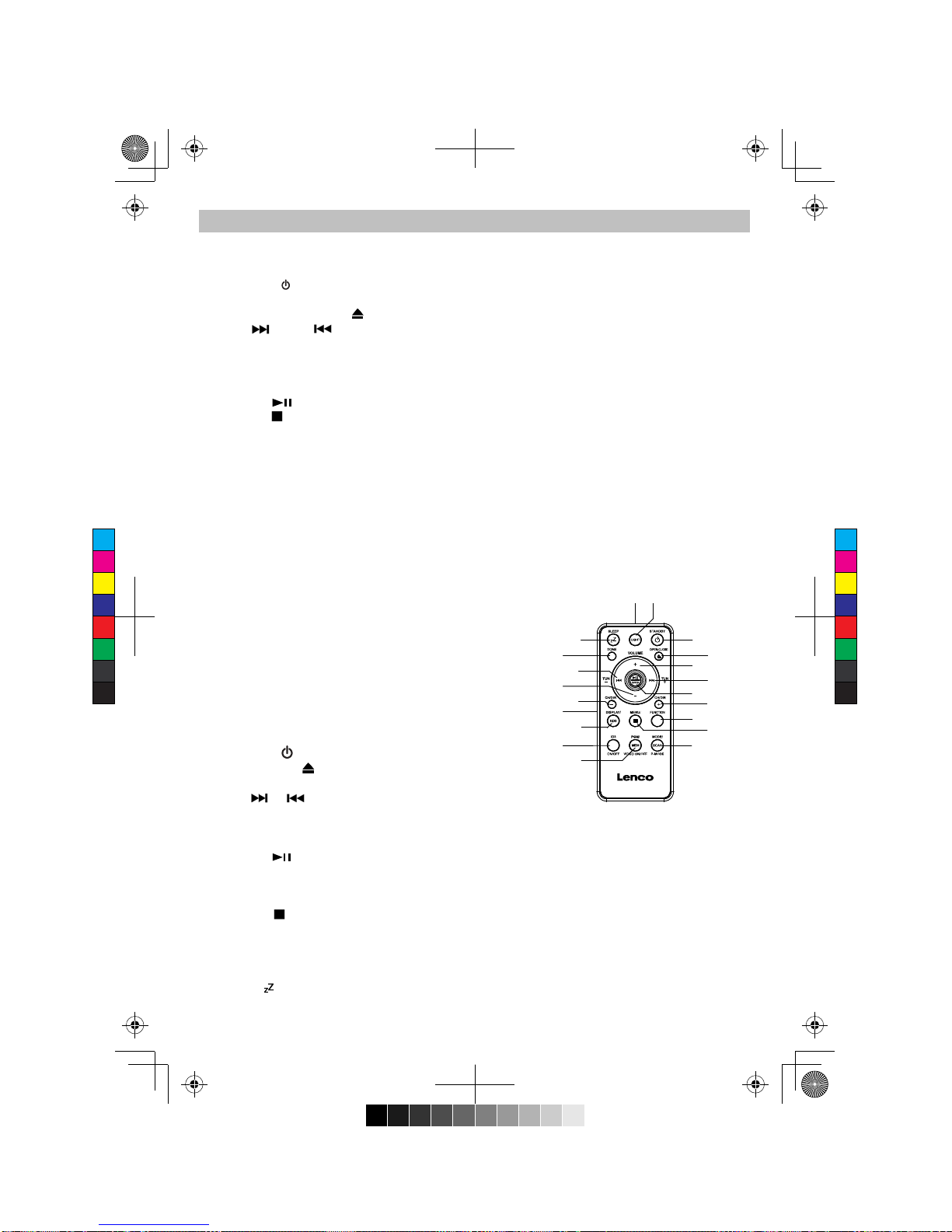

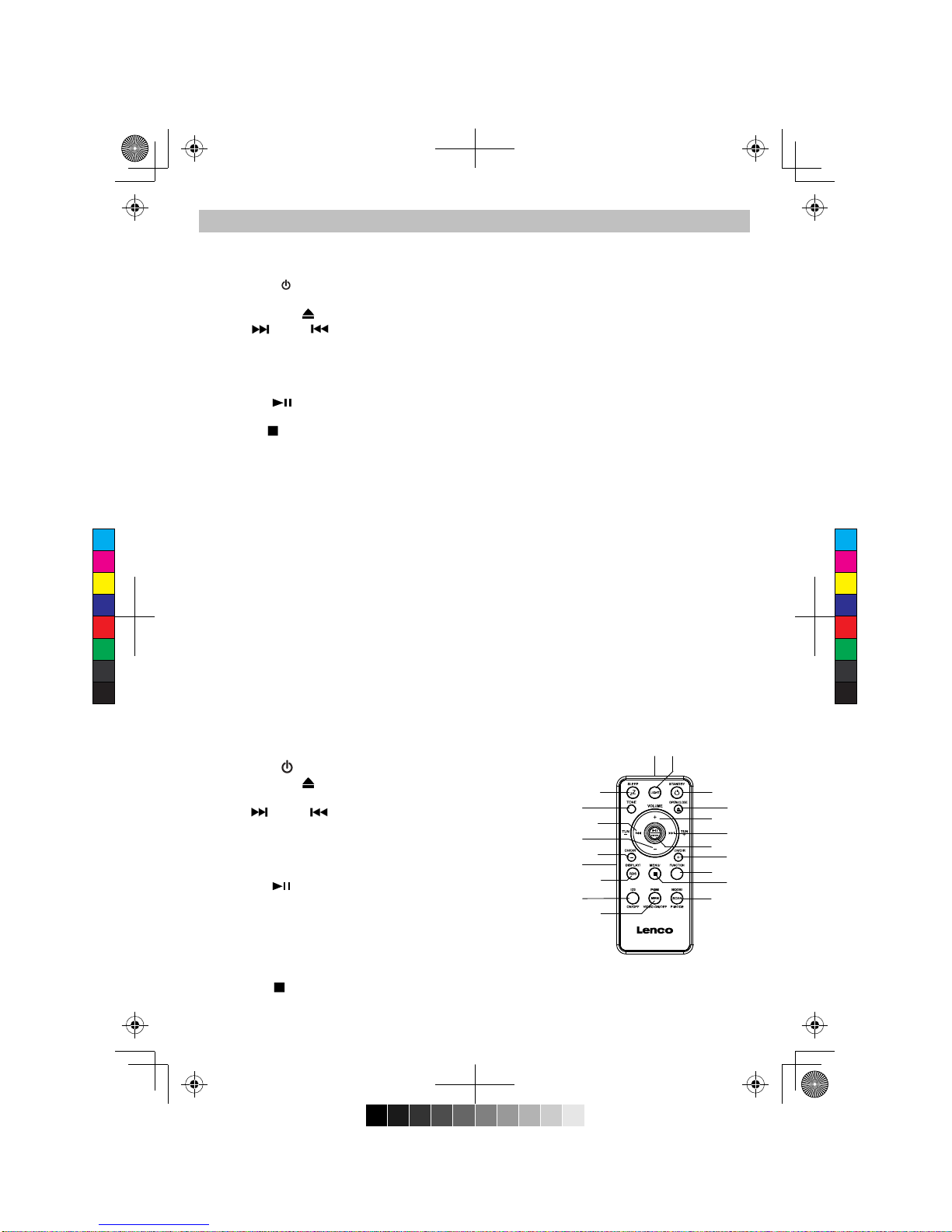

Remote Control
1. Infrared Transmitter
2. LIGHT button ----- Turn the LCD backlight and Power indicator
On / Off. 1
98
76
54
3
2
10
11
6
5
12
13
8
1714
16
15
3. STANDBY button
4. OPEN/CLOSE button ---- Open / Close CD slot.
5. VOLUME +/- button ----- Adjust volume level up or down.
6. TUN / + and / - buttons ----- In DAB / FM tuner mode:
Tune the radio frequency up/down; Select DAB channel.
In DAB / FM menu mode: Act as navigation button.
In iPod/iPhone and CD mode: Skip tracks Forward / Backward;
perform high-speed search.
7. ENTER / button ----- Confirm DAB / FM settings selection;
iPod/iPhone / CD Play/Pause function.
8. CH / DIR +/- button ----- In DAB / FM radio mode: Select
preset channel.
In CD mode: Select MP3 song
directory/folder.
9. FUNCTION button ---- Select FM radio / DAB / iPod/iPhone / AUX-IN / CD modes.
10. MENU / button ---- Select DAB and FM radio menu setting mode; Stop CD playback.
6
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:51IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:23

11. MODE / SCAN / P-MODE button ----- In Standby mode: Set clock and 12/24 hour format.
In FM radio mode: Scan FM radio station.
In CD mode: Select CD play mode.
12. SLEEP button ----- Select the time duration of the sleep timer.
13. TONE button ----- For Bass and Treble settings
14. DISPLAY / RDS button ---- In DAB mode: Display DAB station information.
In FM radio mode: Display FM station RDS information.
15. ID3 ON/OFF button ---- In CD mode: Enable / Disable ID3 function.
16. PGM / MEM / VIDEO ON/OFF button ----- Set CD program; Save DAB / FM radio preset station; Select
video-out on/off in iPod/iPhone mode.
17. Battery Compartment ----- Located at the back of the remote control.
Listening to iPod / iPhone
This model supports different iPod/iPhone models.
1. Insert your iPod/iPhone into the docking port by placing the connector on the bottom of the
iPod/iPhone onto connector in the docking bay.
Caution: Please be careful when seating the iPod/iPhone into the docking to avoid damaging the
30-pin connector on the iPod/iPhone or in the docking system.
2. Press the STANDBY button to turn on the unit and the power status indicator lights on.
3. Press the FUNCTION button to select iPod/iPhone mode.
In iPod/iPhone mode:
- To start playback music, press the button once.
- To pause the music, press the button.
- To resume music, press the button again.
- You may rotate the VOLUME knob (from the main unit) or press the VOLUME +/- button
(from the remote control) to adjust the volume to a desired level.
Note: The volume level cannot be adjusted using the volume control on your iPod / iPhone after being
docked.
- During a song playback, press and hold the / buttons to perform high speed
search backward / forward.
- To skip to previous or next song, press and release the / buttons.
- To turn off the unit, press the STANDBY button and the power status indicator will turn off.
- When the unit is powered by external DC adaptor and once the iPod/iPhone connected to
the docking station, the unit recharges the iPod/iPhone battery.
- In the case your Apple device "Shake to Shuffle" function was set to "On", your iPod music
song recorded in a higher signal level and the unit is turned to maximum volume level then
the unit may vibrate by heavy bass music which might cause your iPod music skipping
songs. You may reduce the volume level or set the "Shake to Shuffle" function to "Off" from
the path " Settings \ iPod \ Music \ Shake to Shuffle " in your Apple device.
Video Out from the iPod / iPhone
1. You can connect this unit to a television or other video display that has composite video input.
2. Securely dock the iPod (with video) / iPhone.
3. Connect the yellow RCA cable to the rear RCA video jack on the unit.
4. Connect the other end of the yellow RCA cable to VIDEO IN of television or video display.
5. Press the FUNCTION button to select iPod/iPhone mode.
6. Select a movie from your iPod/iPhone menu.
Note:
For earlier iPod with video models (with click wheel):
(a) On the main menu choose video then select video setting.
(b) Set the TV Out section to “ON”.
(c) Switch back to the movie library and ready for playback a movie of your choice.
For iPod Touch, iPhone:
TV OUT “ON” is automatically set so the TV OUT selection setting is not available for user to
change.
7. The movie will playback on the Apple device screen.
8. Press the VIDEO ON/OFF button which toggle between the video out “ON” (watch movie on TV) and
video out “OFF” (watch movie on Apple device screen).
7
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:51IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:24

FM Radio Tuner Operation
Antenna
For the best radio reception, fully extend the rod antenna located at rear of the unit.
MENU Option
In the FM radio mode, the unit allows you to select following options.
(1) Press the MENU button entering menu mode.
(2) Two options, [Scan setting] and [Audio setting] can be set by pressing the / buttons.
(a) Whilst [Scan setting] is displayed, press the ENTER button to confirm the selection.
- Then press / buttons to display [All stations] or [Strong stations].
Note:
[All stations] ----- By default FM scan stops at any available station (All stations). This
may result in poor quality audio from distant stations.
[Strong stations] ----- FM scan stops only at stations with good signal strength.
- Press the ENTER button to confirm the desired selection when [All stations] or [Strong stations]
displayed.
(b) Whilst [Audio setting] displays, press the ENTER button to confirm selection.
- Then press
/ buttons to display [Stereo] or [Forced mono].
Note:
[Stereo] ---- By default, all stereo stations are reproduced in stereo. For weak stations,
this may result in poor quality audio. The audio quality can be improved
using mono.
[Forced mono] ----- only reproduce mono audio.
- Press the ENTER button to confirm the desired selection when [Stereo] or [Forced mono]
displayed.
(3) You may press the MENU button to exit menu setting mode at any time.
Auto-scan and store Preset Stations
The unit allows you to store up to 20 FM stations for easy recall at any time.
1. Press the STANDBY button to turn on the unit, where the power status indicator light on.
2. Press the FUNCTION button to select FM radio mode.
3. Press and hold the SCAN button until the frequency digits begin to change. The tuner will automatically
scan for stations from low to high frequency and then store them in the preset location.
Note: After each auto-scan & store operation, it will overwrite the existing preset stations by overwriting
and storing the new stations in their place.
4. To recall the preset station, press the CH +/- buttons from the remote control.
F
M Radio Tuning and manual store Preset Stations
1. Press the STANDBY button to turn on the unit, where the power status indicator light on.
2. Press the FUNCTION button to select FM radio mode.
FM Radio Tuning
3. You can have following ways to tune to a desired station:
(a) Press the / buttons with 0.05MHz tuning step and tune to a desired radio station
frequency figure.
(b) Press and hold the / buttons and tune to a desired radio station frequency figure then
release the button.
(c) For up-scan, press the button once then press the SCAN button from the remote control and it
will tune to the next higher radio station.
For down-scan, press the button once then press the SCAN button from the remote control and it
will tune to the next lower radio station.
8
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:52IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:25

Save preset station
4. Press the MEM button. The preset channel number appears on display and blinks.
5. To select a desired preset station number, press the / buttons.
Note: Each time the station number changed, it will display the current frequency or “Empty” of that
preset station location.
6. To confirm preset location, press the ENTER button and “Preset store” displays a while then returns to
normal tuner mode. The newly tuned frequency will replace the frequency in the selected preset
station location.
7. Repeat steps 3 to 6 to store other stations, if apply.
Notes:
●There is a few seconds delay when programming, after this delay time, the unit will automatically
switch back to normal tuner mode.
●You can overwrite a preset station by overwriting and storing the new frequency in its place.
Recalling Preset Station
8. Press the CH +/- button from the remote control. The preset channel number and frequency appear on
display.
RDS function
The unit incorporated the RDS functions,
When the received radio station with RDS information, you may press the RDS button repeatedly from the
remote control to display the RDS information.
DAB / DAB+ Tuner Operation
The unit is able to receive available DAB and DAB+ radio stations in your area.
Antenna
For the best radio reception, fully extend the rod antenna located at rear of the unit.
MENU Option
In the DAB mode, before listening to a DAB / DAB+ radio station, following section describes options which
are available for your selection, if apply.
Navigation button
In the menu setting mode, you can make use of following navigation buttons to implement the option
selection.
MENU button ---- Press to enter or exit menu mode.
/ buttons ---- Press to select / display option item.
ENTER button ----- Press to confirm selection.
MENU Options
[Full scan] ----- A full scan of DAB/DAB+ radio stations in your area. Once the scan is completed, the radio
returns to play the previously-selected station or first station on the station list.
[Manual tune] ----- Manual tune to a particular channel/frequency.
[DRC] -----Dynamic range compression (DRC), this function reduces the difference between the loudest
and quietest audio being broadcast. Effectively, this makes quiet sounds comparatively louder
and loud sounds comparatively quieter.
Note: DRC only works if it is enabled by the broadcaster for a specific station.
[Prune] ----- This removes all invalid stations indicated in the station list with a “?” in front of the station
name.
[System] ----- Factory Reset Y/N option, select “Y” to initiate a factory reset.
Full scan operation
1. Press the STANDBY button to turn on the unit, where the power status indicator light on.
2. Press the FUNCTION button to select DAB radio mode.
3. Press the MENU button and the [Full scan] indicator displays.
9
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:52IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:26

4. Press ENTER button to confirm selection. The unit starts scanning DAB / DAB+ stations around your
area and the display will show “Scanning 0 “. Please wait for the completion of the scanning process.
5. Once the scan is completed, the radio returns to play the previously-selected station or first station on
the station list.
Manual tune operation
Before beginning a manual tune, you may first want to obtain the available DAB/DAB+ stations
channel/frequency information for your area.
1. In the DAB radio mode, press the MENU button entering menu setting mode.
2. Press the / buttons until [Manual tune] indicator displays.
3. Press the ENTER button to confirm the selection.
4. Press the / buttons to display a particular channel/frequency.
5. Press the ENTER button to tune to that channel/frequency.
6. If stations are captured and display will show signal strength from “SG Str : 0” to “SG Str : xx”, where
xx is greater than zero.
7. Press MENU button repeatedly to exit menu setting mode.
Save preset station
1. Whilst a desired station is displayed, press the MEM button. The preset channel number appears on
display and blinks.
2. To select a desired preset station number, press the / buttons.
Note: Each time the station number changed, it will display the current station name or “Empty” of that
preset stations location.
3. To confirm preset location, press the ENTER button and “Preset store” displays a while then returns to
normal DAB tuner mode. The new station will replace the last station in the selected preset station
location.
Notes:
●There is a few seconds delay when programming, after this delay time, the unit will automatically
switch back to normal tuner mode.
●You can overwrite a preset station by overwriting and storing the new station.
Recalling Preset Station
Press the CH +/- button from the remote control. The preset channel number and station names appear on
display.
Change listening channel
1. Whilst listening to current channel, press the / button once to inform the unit that you
would like to switch channels.
2. Press the / button repeatedly until the desired channel name is displayed.
3. Press the ENTER button to confirm the selection.
Display DAB radio station information
If necessary, you may press the DISPLAY button repeatedly from the remote control to display current
receiving DAB station’s information.
Listening to CD Music
T
he CD player can playback CD/CD-R/CD-RW disc with Audio CD and MP3 format.
CD Playback
1. Press the STANDBY button to turn on the unit.
2. Press the FUNCTION button to select CD mode.
3. Insert a CD with printed side facing up into the CD slot.
4. Music playback will automatically start.
5. For Audio CD format disc ----- The display will show the “CD” indicator and the track number (e.g. T001).
For MP3 file format disc ---- The display will show the “MP3” indicator, Folder number (e.g. A01) and
the track number (e.g. T001).
6. Adjust the volume level by rotating the VOLUME knob.
7. To skip to a desired CD track, press the /buttons. If it is playing the MP3 song, you may
press the DIR +/- buttons from the remote control to select the desired folder.
10
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:52IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:26

8. To fast-rewind or forward within the currently playing track, press and hold either the /
button.
9. To pause CD playback, press the play/pause button.
To resume playback, press the play/pause button again.
10. To stop CD playback, press the STOP button.
1. To eject the CD, press the OPEN/CLOSE button.1
CD Play Modes
Repeat Playback
●For Audio CD discs :
To repeat playback of one track, press the P-MODE button once (from the remote control). A repeat one
indicator “ ”appears on the LCD.
To repeat playback of an entire CD, press the P-MODE button until the repeat all “ ” indicator
appears on LCD.
●For MP3 discs :
To repeat playback of one track, press the P-MODE button once (from the remote control). A repeat
one indicator “ ” appears on the LCD.
To repeat playback a directory, press the P-MODE twice. A repeat directory indicator “ DIR”
appears on LCD.
To repeat playback of an entire CD, press the P-MODE button until the repeat all “ ” indicator
appears on LCD.
Random Playback
To playback CD tracks in random order, press the P-MODE button (from the remote control) until “RND”
ndicator appears on the LCD.i
INTRO Playback
To playback the first ten seconds of each song, press the P-MODE button (from the remote control) until “INTRO”
indicator appears on LCD.
o cancel a CD play mode, press the STOP button at any time.T
CD Program Playback
This feature allows you to program up to 20 tracks for Audio CD or 30 songs for MP3 CD in a desired order.
1. With CD playback stopped, press the PGM button once from the remote control.
The LCD shows following indication: “PGM” indicator
The program number (e.g. P01) blinks.
The Track number (e.g. T001)
The Directory (Folder) number (e.g. A01) ---- apply for MP3 disc only.
2. To select a directory number, press the DIR +/- button from the remote control (for MP3 disc only).
To select a track number, press the / button.
3. When desired track number displayed, press the PGM button to confirm entry.
4. To program up to 20 Audio CD tracks or 30 MP3 CD songs, repeat steps 2 and 3 until all desired tracks
are entered.
Or, to begin programmed playback, press the Play/Pause button, the “PGM” indicator stays on
the display.
5. To cancel programmed playback, press the STOP button twice.
Note:
●If you press the / button during programmed playback, the unit will skip backward / forward
to previous / next track in the program, which is not necessarily the previous / next track on the disc.
●The CD play modes function, “ ”repeat one track and “ ” repeat all programmed track, work
in the same manner as during normal CD playback (see CD Play Modes above).
ID3 Function
This function allows users to view the song information (if any) on the track (file) that they are playing.
To enable this function:
1. During CD-MP3 playback, press the ID3 button. The information (e.g. artist name, song title) saved on
the track (file) will be shown on the LCD display.
2
. To turn off the ID3 function, press the ID3 button again.
Note:
●Only applicable for recorded MP3 tracks (files) with ID3 tags.
●The unit supports ID3 tags in English characters only. It does not support any other languages.
11
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:53IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:27

Treble and Bass Settings
When the unit is powered on (in iPhone/iPod, CD, Aux-In , FM Radio or DAB Radio mode), you can press
he TONE button from the remote control to enter the Bass and Treble setting mode.t
Treble setting:
1. Press the TONE button once entering Treble setting mode, the "Treble" indicator displays.
2. Press the VOLUME +/- buttons from the remote control to adjust to the desired Treble level and the
“TONE” indicator displays.
Bass setting:
3. Press the TONE button again entering Bass setting mode, the "Bass" indicator displays.
4. Press the VOLUME +/- buttons from the remote control to adjust to the desired Bass level and the
“TONE” indicator displays.
Exit Bass / Treble setting mode:
5
. Press the TONE button to exit Bass / Treble setting mode.
Note: You may also directly press the TREBLE + / - button or the BASS + / - button from the main unit to
set the desired Treble and Base level.
Listening to an External Audio Source
1. Connect an audio cable with 3.5mm stereo plug from an auxiliary audio device to the AUX IN jack of
the unit.
2. Press the STANDBY button to turn on the unit.
3. To select auxiliary audio input, press the FUNCTION button. The "AUX-IN" indicator shows on display.
4. Turn on the external auxiliary audio device.
5. The volume can now be controlled through the unit.
Operate all other functions on the external device as usual.
Notes: Press the STANDBY button to turn off the unit when you finish listening.
Don't forget to switch off the power of the external audio device as well.
Clock Setting
Auto-setting
The unit can auto-synchronize with the DAB radio station time information.
Each time a DAB station is received and its time information will be copied to this unit automatically which
will overwrite current time setting on the unit.
Manual setting
W
hen the unit is OFF (Standby mode):
Set 12/24 Hour format
1. Press the MODE button from the remote control entering 12/24 hour format setting mode.
2. Rotate the VOLUME knob or press the VOLUME + / - button from the remote control to select 12 or 24
hour display format.
Set Clock
3. Press the MODE button again and the clock hour digits blink.
4. Rotate the VOLUME knob or press the VOLUME + / - button from the remote control to set hour.
5. Press the MODE button again and clock minute digits blink.
6
. Rotate the VOLUME knob or press the VOLUME + / - button from the remote control to set minute.
Exit setting mode
7. To save all settings, press the MODE button or wait for a few seconds to exit the setting mode.
12
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:53IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:28

Sleep Timer Function
Sleep to timer
This feature allows you to fall asleep to the CD, radio or iPod for up to 90 Minutes.
T
he unit shuts off automatically when the time expires.
1. Press the STANDBY button to turn the unit on.
2. Either tune to the desired FM or DAB radio station in radio mode, playback CD song or playback music
from the iPod.
3. To select the sleep timer to turn the unit off after 15, 30, 45, 60 or 90 minutes, press the SLEEP button
(from the remote control) repeatedly. The display shows the “SLEEP” indicator. The unit plays for the
selected length of time then automatically turns off.
4. To check the remaining sleep time, press the SLEEP button (from the remote control) once.
To turn the unit off before the sleep timer counts down to zero, press the STANDBY button at any time.
Notes:
●If you are falling asleep to music from an external device connected to the AUX input, the sleep timer
will shut off the power to this system but it will not turn off the external device.
●If you activate the sleep timer while a CD is playing, the unit will only continue playing until the end of
the disc then shut off automatically no matter the sleep timer setting. For example, if your CD is only 30
minutes long and 45 minutes sleep timer is selected, the unit will shut off approximately 2 minutes after
the disc ends.
Care and Maintenance
- Do not subject the unit to excessive force, shock, dust or extreme temperature.
- Do not tamper the internal components of the unit.
- Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used.
- Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
- Keep your unit away from heating appliances and sources of electrical noise such
as fluorescent lamps or motors.
If drop-outs or interruptions occur in the music during play, or if the disc fails to play
at all, its bottom surface may require cleaning.
B
efore playing, wipe the disc from the center outwards with a good soft clean cloth.

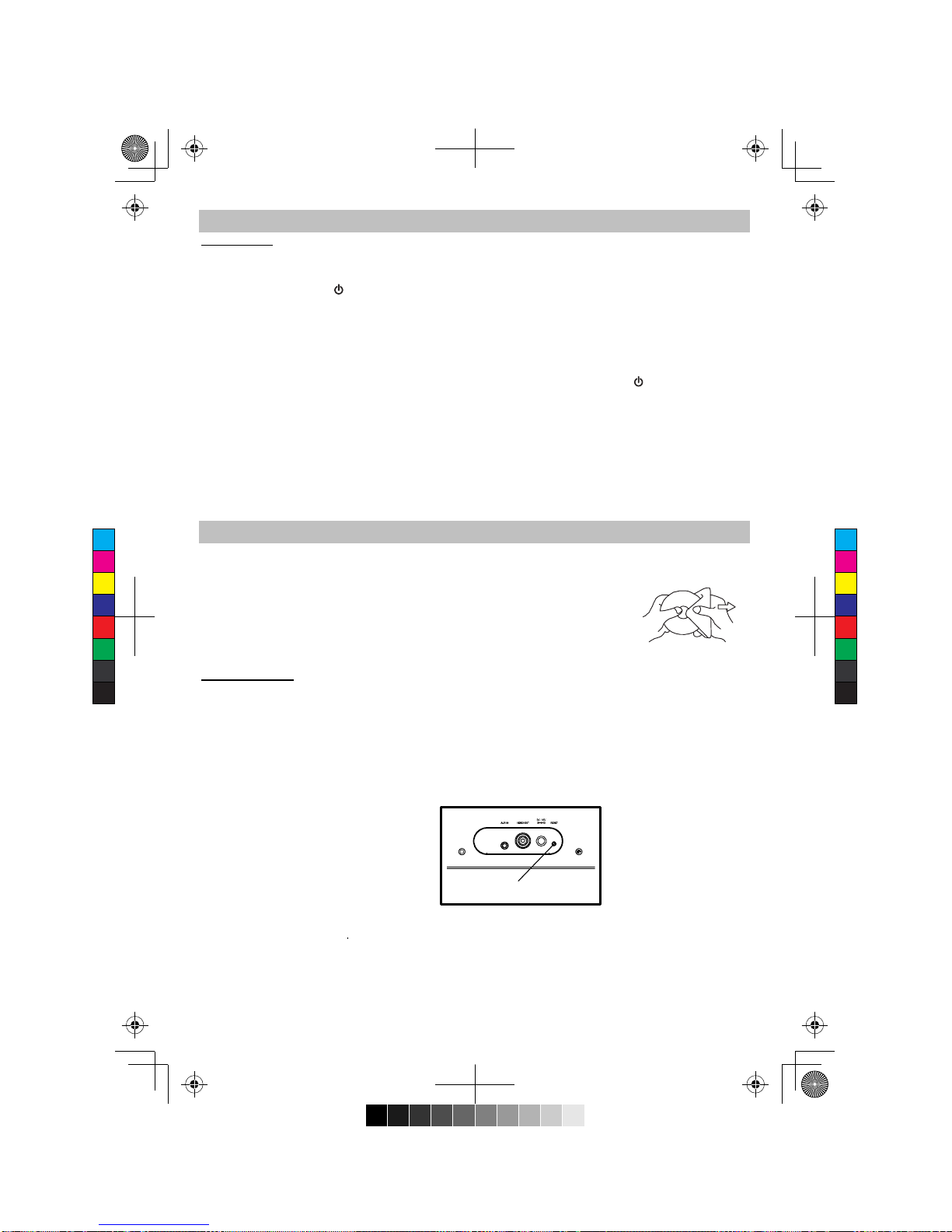

Resetting the Unit
If the unit experiences a power surge or electric shock, it is possible that the internal micro-controller
may lock up and the unit will not respond to any commands from the panel controls.
1. In this event, unplug and then reconnect the AC power plug into the wall outlet.
2. Use a straightened paper clip, toothpick or similar objects to press the RESET button located at the rear
of the main unit (see the below figure). The reset operation clears the system memory and all of your
previous settings will be erased.
CAUTION: DO NOT USE SHARP, POINTED OBJECT TO PRESS THE RESET BUTTON.
IT MAY DAMAGE THE RESET SWITCH INSIDE THE UNIT.
RESET Button
Note:
●In case of malfunction due to electrostatic discharge (ESD), just reset the product to resume normal
operation.
●The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so,
simply reset the product to resume normal operation. In case the function could not resume, please use
the product in other location.
13
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:54IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:29

Specifications
Power Supply
Power Adaptor Input --- AC 100-240V ~ 50/60Hz
Output --- DC 16V 3000mA
Battery Back-up for clock / memory DC3V--- AAA (UM-4) type x 2 (not included)
R
emote Control battery DC3V --- AAA (UM-4) type x 2 (not included)
Speaker Output 10W+10W (Max.)
Subwoofer Output 25W (Max.)
Power consumption 1 W (Standby)
52 W (Max.)
Dimensions 351 x 136 x 214 mm
Weight 3400g
Operating Temperature 0 C ~ + 45 C
and Humidity 70%
THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE SET ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
If at any time in the future you should need to dispose of this product please note that: Waste
electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and
Electronic Equipment Directive)
For information and support www.lenco.eu
14
IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:27:54IPD9000 DAB+_IB draft R03 (1).pdf 2012-5-16 21:31:29

CD DAB+ RADIO MIT iPod / iPhone DOCK
iPD-9000 DAB+
Weitere Informationen und Hilfe bei www.lenco.eu
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:31

Inhalt
Wichtige Sicherheitshinweise ..................................................................................3,4
Eigenschaften .............................................................................................................4
Installation...................................................................................................................5
Tasten und Funktionen..........................................................................................5,6,7
Wiedergabe von iPod / iPhone ...................................................................................7
UKW Radiotuner.........................................................................................................8
DAB / DAB+ Tuner.................................................................................................9,10
Wiedergabe von CDs................................................................................................ 11
Einstellungen für Treble und Bass............................................................................12
Wiedergabe von externen Audiogeräten ..................................................................12
Einstellung der Uhrzeit..............................................................................................12
Sleep-Timer...............................................................................................................13
Reinigung und Pflege................................................................................................13
Technische Daten......................................................................................................14
2
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:33

Wichtige Sicherheitshinweise
Das Gerät ist sicher, sofern es bestimmungsgemäß verwendet wird. Ein unsachgemäßer Gebrauch kann
jedoch einen Stromschlag oder Feuer verursachen. Lesen Sie alle Sicherheitshinweise und
Bedienungsanleitungen vor der Installation und dem Gebrauch sorgfältig durch, und bewahren Sie die
Anleitungen für zukünftige Verwendungszwecke gut auf. Befolgen Sie insbesondere alle Warnungen in
diesem Handbuch und auf dem Gerät.
1. Wasser und Nässe
Gerät nicht in der Nähe von Wasser verwenden, wie z.B. Badewannen, Waschbecken, Küchenspülen,
Waschwannen, Schwimmbecken oder im Keller.
2. Belüftung
Der Standort und die Position des Geräts dürfen dessen angemessene Belüftung nicht beeinträchtigen.
Gerät nicht auf Betten, Sofas, Läufer oder ähnliche Oberflächen stellen, durch die die
Belüftungsöffnungen blockiert werden könnten. Keine Gegenstände wie Zeitungen, Tischdecken,
Gardinen usw. auf die Belüftungsöffnungen legen, da dadurch die Belüftung unterbrochen werden
könnte. Gerät nicht in geschlossenen Installationen wie Bücherschränken oder Regalen aufstellen, um
den Luftstrom durch die Belüftungsöffnungen nicht zu behindern.
3. Hitze & Flammen
Gerät nicht in der Nähe von Wärmequellen wie Heizkörpern, Wärmespeichern, Öfen oder anderen
wärmeerzeugenden Geräten (einschließlich Verstärkern) aufstellen.
Kein offenes Feuer wie angezündete Kerzen auf das Gerät stellen.
4. Stromversorgung
Gerät nur an eine Stromversorgung anschließen, die den Angaben in diesem Handbuch oder auf dem
Gerät entspricht.
Sofern das Netzkabel als Trennvorrichtung verwendet wird, muss es immer betriebsbereit sein.
5. Netzkabelschutz
Das Netzkabel muss so verlegt werden, dass niemand auf das Kabel treten und das Kabel nicht durch
abgestellte oder anlehnende Gegenstände eingeklemmt werden kann. Der Bereich um den
Netzkabelanschluss am Gerät und an Steckdosen sollte immer frei von Hindernissen sein.
6. Reinigung
Gerät nur wie beschrieben reinigen. Anleitungen zur Reinigung finden Sie im Abschnitt „Reinigung und
Pflege“.
7. Gegenstände und Flüssigkeiten
Es dürfen keine Gegenstände oder Flüssigkeiten in die Öffnungen oder Schlitze des Geräts eindringen.
Das Gerät ist nicht spritz- oder tropfwasserdicht. Keine mit Flüssigkeit gefüllten Gegenstände, wie
Vasen, auf das Gerät stellen.
8. Zubehör
Nur vom Hersteller empfohlenes Zubehör verwenden.
9. Gewitter und Spannungsstöße
Nehmen Sie das Gerät während solcher Zeiten vom Netz, um das Gerät vor Schäden durch Gewitter
oder Spannungsstöße zu schützen.
10.Überlastung
Steckdosen und Verlängerungskabel nicht überlasten, da dies ansonsten zu Stromschlägen oder
Feuer führen könnte.
11.Erforderliche Reparaturen
Dieses Gerät muss von einer qualifizierten Fachkraft gewartet werden, wenn:
A. Das Netzkabel oder der Netzstecker beschädigt sind.
B. Gegenstände oder Flüssigkeiten in das Gehäuse eingedrungen sind.
C. Das Gerät Regen ausgesetzt war.
D. Das Gerät fallengelassen oder das Gehäuse beschädigt wurde.
E. Das Gerät eine verringerte Leistung aufweist oder nicht ordnungsgemäß funktioniert.
12.Nichtgebrauch
Wenn Sie das Gerät über einen längeren Zeitraum nicht verwenden werden, z.B. einen Monat oder
länger, ziehen Sie den Stecker aus der Steckdose, um Schäden oder Korrosion zu vermeiden.
13.Wartung
Führen Sie keine anderen als in diesem Handbuch beschriebenen Wartungsmaßnahmen durch.
Lassen Sie andere Wartungsmaßnahmen von qualifizierten Fachkräften durchführen.
3
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:33

Wichtige Sicherheitshinweise
Folgen Sie den nachstehenden Anleitungen für einen sicheren und ordnungsgemäßen Gebrauch.
SCHUTZ VOR LASERENERGIE
●Der in dieser CD Kompaktanlage integrierte Laserstrahl ist gefährlich für Ihre Augen. Demontieren
Sie nicht das Gehäuse.
●Beenden Sie umgehend den Betrieb, falls Gegenstände oder Flüssigkeiten in das Gehäuse
eingedrungen sind.
●Die Linse nicht mit den Fingern oder Gegenständen berühren, da dadurch die Linse beschädigt und
das Gerät abnormal funktionieren könnte.
●Führen Sie keine Gegenstände in die Sicherheitsschlitze ein, anderenfalls könnte die Laserdiode auch bei
geschlossener CD-Tür ANGEHEN.
●Das Gerät ist mit einem Laser ausgestattet. Das Durchführen oder Ändern von Steuerungen oder
Funktionen, welche nicht in diesem Handbuch beschrieben sind, kann dazu führen, dass Sie
gefährlicher Strahlung ausgesetzt werden.
Eigenschaften
Vielen Dank für den Kauf des CD DAB+ RADIO mit iPod / iPhone DOCK.
Dieses Modell zeichnet sich durch folgende Eigenschaften aus:
zUnterstützt unterschiedliche iPod / iPhone Modelle und Ladegeräte
zCD-Spieler für die Wiedergabe von Audio-CDs und MP3-Titeln
zID3-Technologie für die Anzeige von Musiktiteln
zDAB / DAB+ Empfänger
zUKW-Empfang mit digitaler Anzeige im LCD
zRDS-Funktion
zLCD-Uhr
zSleep-Timer
zLCD-Anzeige mit Hintergrundbeleuchtung
zAudio Line-In (AUX) für den Anschluss externer digitaler Audiogeräte
zVideoausgang für die Wiedergabe von iPod/iPhone Filmen unter Verwendung eines externen
Bildschirms (z.B. Fernseher)
z2 integrierte Hi-Fi Lautsprecher
zIntegrierter Subwoofer für einen verstärkten Bass
zinstellungen für Treble und BassE
„Made for iPod“ und „Made for iPhone“ weisen darauf hin, dass dieses elektronische Zubehör speziell für
den Anschluss von iPods und iPhones hergestellt und vom Hersteller bezüglich der Einhaltung der Apple
Leistungsstandards zertifiziert gelassen wurde. Apple ist nicht verantwortlich für den Betrieb dieses Geräts
oder dessen Konformität mit Sicherheits- und Rechtsnormen. Bitte beachten Sie, dass der Gebrauch
dieses Geräts mit iPhones oder iPods die schnurlose Leistungsfähigkeit beeinträchtigen kann.
iPhone, iPod, iPod mini, iPod nano, iPod touch, iPod classic und iPod shuffle sind eingetragene
Markenzeichen von Apple Inc. in den USA und anderen Ländern.
iPhone und iPod sind nicht im Lieferumfang enthalten.
4
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:34

Installation
Gangreserve für die Uhrzeit
Auf der Rückseite des Geräts befindet sich das Batteriefach für die Gangreserve.
(1) Öffnen Sie die Abdeckung des Batteriefachs.
(2) Legen Sie 2 x AAA (UM-4) Batterien (nicht mitgeliefert) den Polaritätsmarkierungen im Inneren des
Batteriefachs entsprechend ein.
(3) Schließen Sie das Batteriefach.
Fernbedienung
An der Rückseite der Fernbedienung befindet sich das Batteriefach.
(1) Öffnen Sie die Abdeckung des Batteriefachs.
(2) Legen Sie 2 x AAA (UM-4) Batterien (nicht mitgeliefert) den Polaritätsmarkierungen im Inneren des
Batteriefachs entsprechend ein.
(3) Schließen Sie das Batteriefach.
AC-DC Adapteranschluss
Das Gerät kann über einen externen AC-DC Adapter DC 16V 3000mA (mitgeliefert) betrieben werden.
(1) Schließen Sie den AC-Stecker des Adapters sicher an eine Steckdose (AC) an.
(2) Schließen Sie den DC-Stecker an die DC-In Buchse des Geräts an.
Warnung:
- Batterien vor übermäßiger Wärme wie Sonneneinstrahlung, Feuer oder ähnlichem schützen.
- Batterien müssen richtig installiert sein. Bei falscher Polarität kann das Gerät beschädigt werden.
- Alte und neue Batterien nicht mischen.
- Alkalibatterien, herkömmliche (Karbon-Zink) Batterien oder wiederaufladbare (Nickel-Kadmium)
Batterien nicht gemischt verwenden.
- Verwenden Sie nur Batterien des gleichen oder gleichwertigen Typs, wie vorgeschrieben.
- Falls Sie das Gerät über einen längeren Zeitraum nicht verwenden werden, entnehmen Sie die
Batterien.
- Batterien nicht ins Feuer werfen, da diese explodieren oder auslaufen könnten.
- Es besteht Explosionsgefahr, falls Batterien falsch ersetzt werden.
Tasten und Funktionen
Hauptgerät
12
435678910
1112
Draufsicht
Vorderansicht Rückseite
2322
20
21 24
18 19
413
14
1516
17
17
5
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:38

Tasten und Funktionen
auptgerät
. iPod/iPhone Dockingstation
. iPod/iPhone Dock
. STANDBY
H
1
2
3 ----- Gerät ein- und ausschalten.
. LAUTSTÄRKEREGLER ----- Lautstärke erhöhen oder reduzieren.
. ÖFFNEN/SCHLIESSEN
4
5---- CD-Fach öffnen/schließen.
6. TUN / + und / - ------ D diofrequenz erhöhen / verringern;
D
DAB / UKW Menümodus: Taste fungiert als Navigationstaste.
iPod/iPhone und CD-Modus: Titel vorwärts / rückwärts überspringen;
rückspulen.
AB / UKW Tuner-Modus: UKW-Ra
AB-Kanal auswählen.
Titel vor- oder zu
7. ENTER / ----- DAB / UKW Radioeinstellung bestätigen; Wiederga
8. MENU / be/Pause für iPod/iPhone / CD. / VIDEO ON/OFF ---- Einstellungsmenü für DAB und UKW-Radio; CD-Wiedergabe
-
FUNCTION ---- Modus auswä
1. TREBLE + / - --- Treble ei
12. BASS + / - ---- Bass einstell
.
ang für externe Audiosignale.
.
rät zurücksetzen.
beenden; Videoausgabe für iPod/iPhone ein-/ausschalten.
9. LIGHT - --- LCD-Hintergrundbeleuchtung und Betriebsleuchte EIN / AUS.
hlen: UKW-Radio / DAB /10. iPod/iPhone / AUX-IN / CD.
1 ---- stellen.n
en.
13. Betriebsstatusanzeige
14. CD-Fach
15. Infrarotempfänger der Fernbedienung
LCD -Display16
17. Lautsprecher
18. Subwoofer
19. Batteriefach für die Gangreserve
20. Antennenstab
21. AUX-IN Buchse ---- Eing
22. VIDEO-OUT Buchse ---- Composite Videoausgang
23. DC-in Buchse----- Anschluss des externen Netzteils (DC).
24. RESET ---- Ge
Fernbedienung
1. Infrarotsensor
2. LIGHT ----- LCD-Hintergrundbeleuchtung und
Betriebsleuchte ein-/ausschalten.
3. STANDBY
4. OPEN/CLOSE ---- CD-Fach öffnen/schließen.
5. VOLUME +/- ----- Lautstärke erhöhen oder reduzieren.
6. TUN / + / - ----- DAB / UKW Tuner-Modus:
höhen/verringern; DAB-Kanal auswählen.
r zurückspulen.
1
98
76
54
3
2
10
11
6
5
12
13
8
1714
16
15
Radiofrequenz er
DAB / UKW Menümodus: Taste fungiert als Navigationstaste.
iPod/iPhone und CD Modus: Titel vorwärts/rückwärts überspringen; Titel vor- ode
7. ENTER / ----- DAB / UKW Einstellungen bestätigen;
8. CH / DIR +/- ----- DAB / UKW Radiomodus: Prese Wiedergabe/Pause für iPod/iPhone / CD. ählen.
0.
t ausw
CD-Modus: MP3-Titel, Verzeichnis/ Ordner auswählen.
9. FUNCTION ---- Modus auswählen: UKW-Radio / DAB / iPod/iPhone / AUX-IN / CD.
MENU /1 ---- Einstellungsmenü für DAB und UKW-Radio öffnen; C
D-Wiedergabe beenden.
1 MODE / SCA / P-MODE ----- Standby-Modus: Uhrzeit und 12-/24-Stundenformat einstellen.1. N
UKW-Radiomodus: Nach UKW-Radiosendern suchen.
CD-Modus: CD-Wiedergabemodus einstellen.
12. SLEEP ----- Da
13. TONE ----- Einstellungen für Treble und Bass vornehmen.
uer des Sleep-Timers einstellen.
6
IPD9000 DAB+_IB draft R02_4_21_12_DE.pdf 2012-5-16 20:54:39
