Lennox Hearth Products LEGACY C260 User manual

INSTALLATION AND OPERATION MANUAL
WARNINGS
• Hot! Do not touch! The glass and surfaces of this appliance will
be hot during operation and will retain heat for a while after
shutting off the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance.
Retain These Instructions
For Future Reference
A French manual is available upon request. Order P/N 775,210CF.
Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la
pièce 775,210CF.
These appliances must be properly installed and operated in order to prevent the
possibility of a house re. Please read this entire installation and operation
manual before installing and using your wood stove. Failure to follow
these instructions could result in property damage, bodily injury or
even death. Contact your local building or re ofcials to obtain
a permit and information on any installation requirements
and inspection requirements in your area.
Wood Fireplace Inserts
Legacy™/Elite™ Models C/E260
EPA Certied
Wood-Burning
Fireplace Inserts
P/N 775,210M, Rev. B 12/2007
US
Legacy™ C260
Elite™ E260
DRAFT
12-05-2007
Report #050-S-02b-2

2
TesTing informaTion
This manual describes the installation and operation of the
Legacy™/Elite™ C/E260 non-catalytic wood heaters. These
heaters meet the U.S. Environmental Protection Agency’s
emissions limits for wood heaters sold on or after July 1,
1990.Thisheaterhasbeendeveloped,tested,andconstructed
in accordance with the requirements of UL 1482, ULC S628
and HUD standards and is listed by OMNI Test Laboratories,
Beaverton, OR. It has been approved for residential and
alcove installations.
general safeTy PrecauTions
1. When this room heater is not properly installed, a
housefiremayresult.Toreducetheriskoffire,follow
the installation instructions. Contact local building
or fire officials about restrictions and installation
inspection requirements in your area.
2. Wear gloves during installation to avoid injury from
sharp edges on the stove and/or its parts.
3. This unit is designed and engineered to burn only
dry, well-seasoned wood. Burning wet wood will
greatlyreduceyourstovesefficiency,produceexces-
sive amounts of smoke, and can cause dangerous
chimney fires due to creosote build-up.
4. Before opening the door, the draft control must be
fullyopento avoid possiblecombustionflash(igni-
tion of hot volatile gases as the door is opened).
5. Do not use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter fluid, or similar liquids
to start or “freshen up” a fire in this stove. Keep all
flammable liquids and combustible materials 36”
from any point of the stove when it is in use.
6. While burning, fuel utilizes oxygen from the air in the
room. Be sure to allow an adequate amount of fresh
air into the room where the stove is burning.
7. The outside surface of the stove will be hot while
burning properly and can set items like clothing
and curtains on fire. Keep furnishings and other
combustible materials away from the stove. Using
the heat from the stove to dry wet clothing can be
hazardous if clothes are placed too near the surface
of the stove.
8. Do not allow children to play near the stove without
close supervision. Do not touch the stove while it
is burning. Use extreme caution while the unit is
in use. Surface temperatures become dangerously
hot and can cause serious burns.
9. Do not allow anyone to operate the stove who is
not familiar with the operating instructions.
10. Attempts to achieve heat output rates that exceed
stove design specifications can result in permanent
damage to the stove. Never leave your stove unat-
tendedonhighburnrates.Thismaycauseoverfiring.
Overfiring the stove may cause a house fire. If the
stove glows, you are overfiring.
11. Use smoke detectors near your stove as well as in
sleeping areas. Keep a water hose or hand-operated
fire extinguisher close for safety.
12. Inspect your chimney at least once a month during
the burning season to check for soot and creosote
accumulations. Any accumulations over 1/4” thick
should be removed by a professional chimney
sweep. Do not attempt to burn out heavy creosote
accumulationswith a hot fire. If largeaccumulations
are occurring, review your burning procedures.
13. If a creosote fire should develop, the fire department
should be called immediately, and then attempts
should be made to control the fire until assistance
arrives. If a “runaway” fire should develop causing
over-heating of the stove, the door and draft regula-
tors should be closed immediately. The fire should
die down once deprived of oxygen. After a severe
chimney fire, the complete chimney system should
be checked before further use.
14. Do not operate with a grate or with an elevated
fire. Always build the fire on the surface of the
firebrick.
15. Please read this entire manual before you install
and use your new room heater. Failure to follow
instructions may result in property damage, bodily
injury, or even death.

3
conTenTs
TesTing informaTion .........................................................................2
general safeTy PrecauTions ................................................................2
DrafTing .....................................................................................4
negaTive Pressure Warning ...........................................................4
creosoTe.....................................................................................4
ash DisPosal ................................................................................5
fuel..........................................................................................5
Break-inPerioD .............................................................................5
PainT curing.................................................................................5

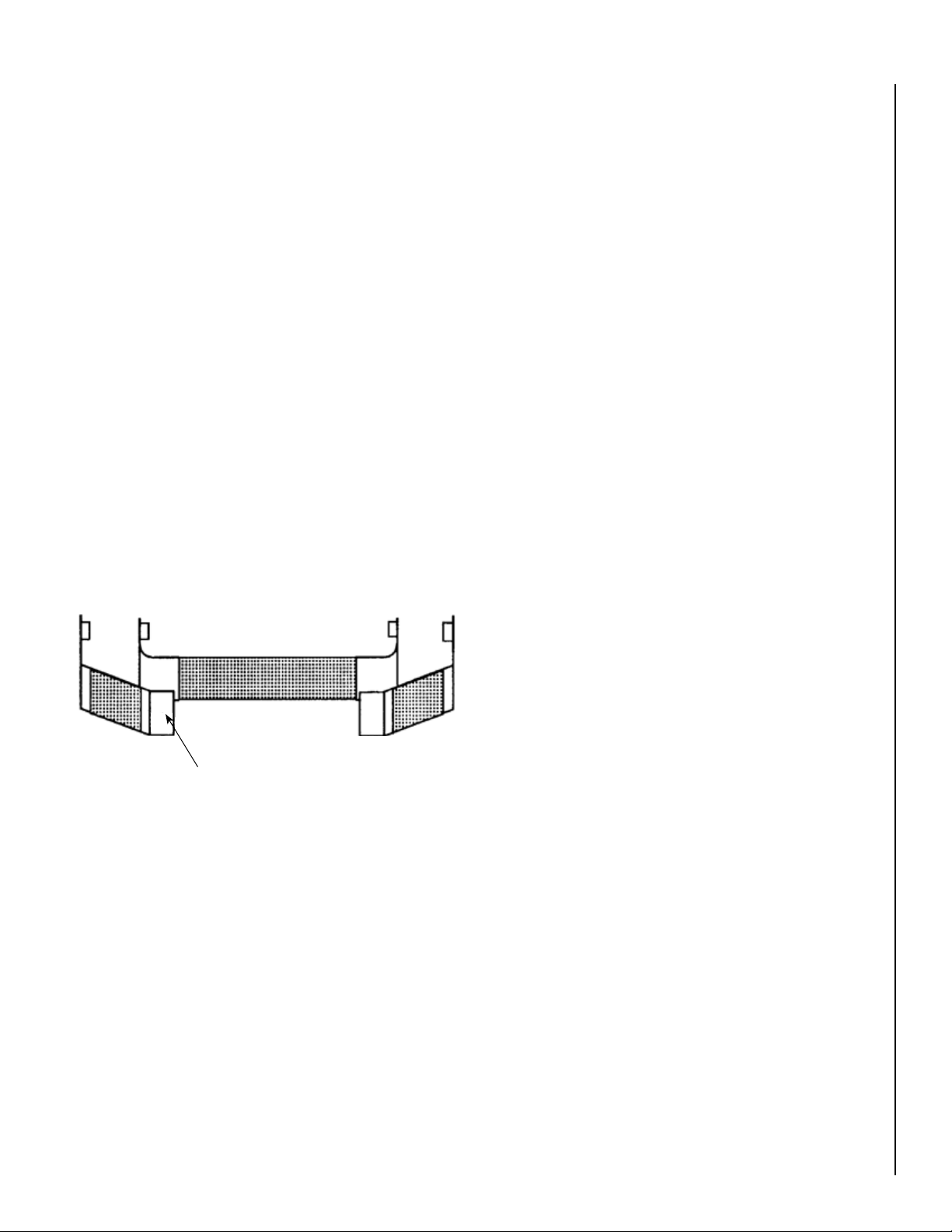

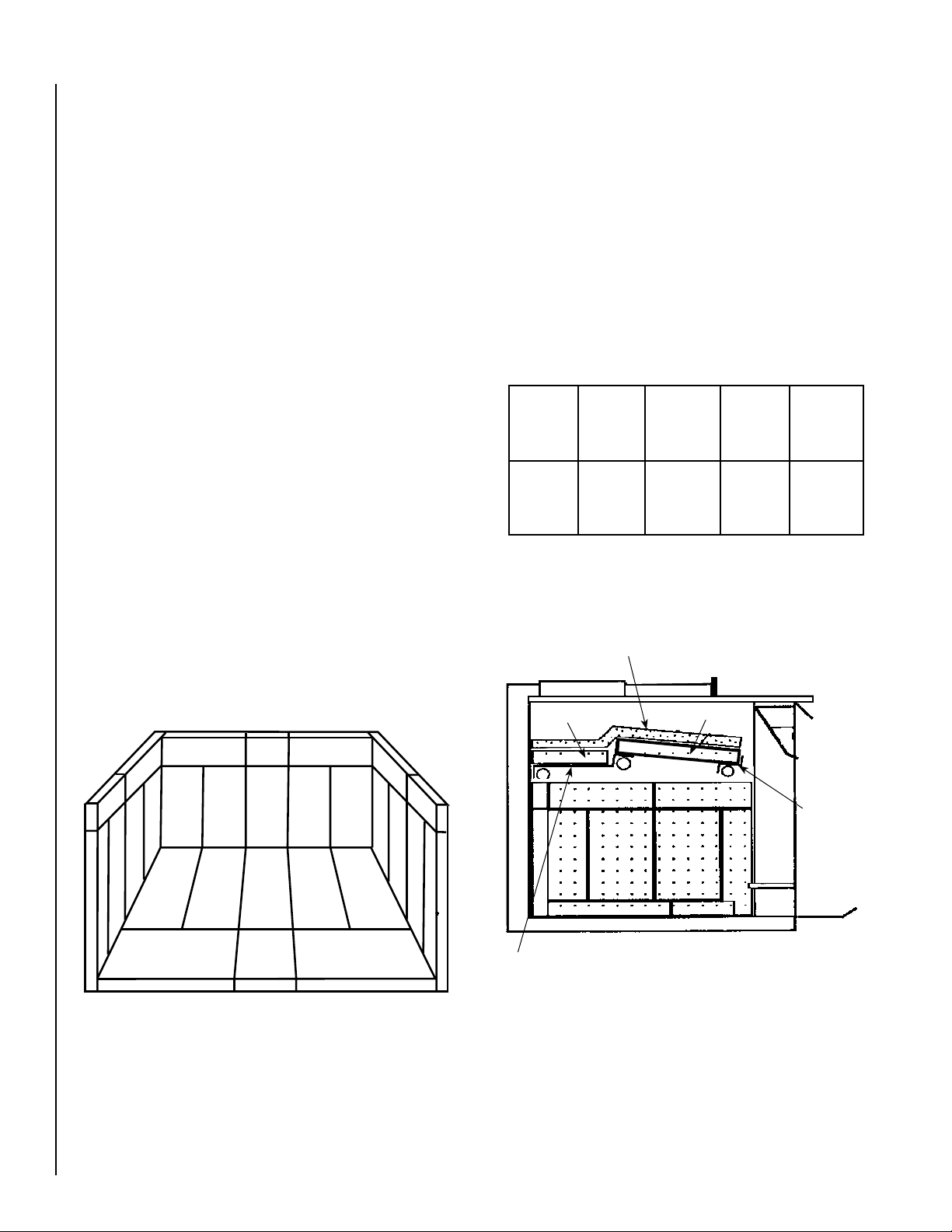

Brick insTallaTion ...........................................................................6
requireD clearances ........................................................................7
hearTh ProTecTion ..........................................................................7
chimney requiremenTs.......................................................................8
insTallaTion ProceDures- masonry chimney................................................8
firePlace Pre-insTallaTion PreParaTion ....................................................9
inserT Pre-insTallaTion PreParaTion ........................................................9
chimney liner insTallaTion ................................................................ 10
insTalling The inserT ...................................................................... 10
PosT insTallaTion checks.................................................................. 10
oPeraTing hinTs ........................................................................... 11
sTarTing anD mainTaining afire .......................................................... 12
clean glass ............................................................................... 13
oPeraTing Techniques anD hinTs .......................................................... 13
geTTing The mosT ouT of your sTove .................................................... 13
maximizing your sTove’soverall efficiency ............................................. 14
achieving clean, long Burns ............................................................. 14
mainTenance ............................................................................... 15
TrouBleshooTing........................................................................... 16
Do’sanD Don’T............................................................................ 17
rePlacemenT ParTs lisTs.............................................................. 18-19
accessories................................................................................ 20
ProDucT reference informaTion........................................................... 22

4
DrafTing

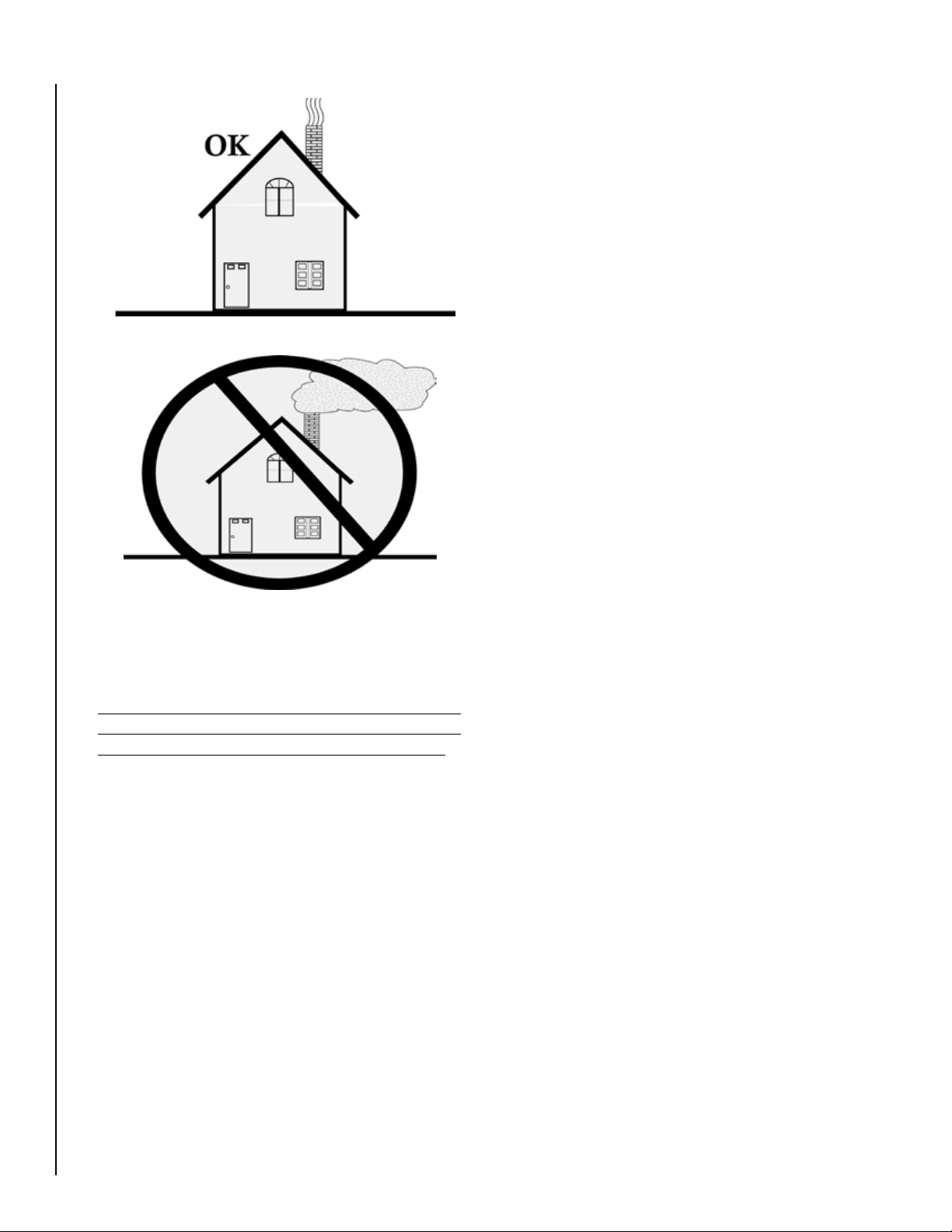

Your wood stove is dependent upon a properly functioning
chimney for optimum performance. It is a high efficiency
appliance that loses much less heat up the chimney than
olderappliancesandfireplaces.Forthisreasonit is important
to match the stove to the chimney. The chimney has two
functions: 1) It draws combustion air into the appliance
(without air, no fuel will burn) and 2) It exhausts combustion
by-products. Your new Country™ Collection stove is what is
known as a “natural draft” appliance. The appliance depends
solely on the natural draft of the chimney system to draw
combustion air into the unit. Draft is the force that moves air
from the appliance up into the chimney. The amount of draft
in your chimney depends on the length of the chimney, local
geography,nearbyobstructions,andotherfactors.Toomuch
draftmaycauseexcessivetemperaturesintheappliance.Slow
or inadequate draft equals poor combustion and possible
smoking problems. The two main culprits of poor chimney
draft are: 1) A chimney too large for your appliance and 2) A
chimney with not enough height to produce adequate draft
for your particular stove model. Your Lennox Hearth Prod-
ucts dealer will be able to advise you on matching a proper
system for your new stove. Inadequate draft will cause the
appliance to leak smoke into the room through the stove
and the chimney connector joints. An uncontrollable burn
or a glowing red stove or chimney part indicates excessive
draft. Also see Troubleshooting on Page 16.
negaTive Pressure Warning
This appliance is not designed to be operated in a negative
pressure. Very airtight homes with large kitchen exhaust
fans, or homes with furnace cold air returns located in close
proximity to the wood stove or fireplace insert may create
negative pressure in the same room as the heating appli-
ance. This can create dangerous back drafting of the stove
and chimney joints, drawing combustion by-products into
the home. Be sure your home has adequate makeup air to
eliminatenegativepressurescausedbytheabove-mentioned
sources. Outside air connected to the appliance probably
will not resolve such a problem as the stove or fireplace
insert is not the source of negative pressure. Lennox Hearth
Products accepts no liability for damages resulting from
negative pressures described above.
creosoTe
Creosote, Formation and Need for Removal.
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture
to form creosote. The creosote vapors condense in the
relatively cool chimney flue of a slow-burning fire. As a
result, creosote residue accumulates on the flue lining.
When ignited, this creosote makes an extremely hot fire.
The chimney and chimney connector should be inspected
at least once every two months during the heating season
to determine if a creosote buildup has occurred. If creosote
has accumulated, it should be removed to reduce the risk
of a chimney fire.

5
Please be patient with the heat output of your stove for the
firstfewweeks.Thesteelwillgothrougha curingprocessthat
eliminates moisture, which is deep in the steel and firebrick.
This moisture will reduce initial heat output of your stove
and may make it difficult to start. After you have broken in
the paint on the stove it will be necessary to build hot fires
to thoroughly remove the moisture from the appliance. Run-
ning the stove with the draft fully open for 1 to 1-1/2 hours
after starting and adding generous amounts of fuel during
the first week or two should complete the curing process.
We recommend the use of a thermometer attached to the
stovetop or chimney. Temperatures on the connector pipe
should run in the 250-600 degree range. (DO NOT OVERFIRE
THE STOVE DURING THIS PROCESS. IF THE STOVE OR
CHIMNEY BECOMES RED, REDUCE THE AMOUNT OF AIR
ENTERING THE STOVE IMMEDIATELY).
PainT curing
YournewLegacy™/Elite™C/E260 is painted with Forest High
Temperature Paint that cures during the first few firings. We
recommend that you put your stove through a regimen of
three burns. The first two should last for 20 minutes each at
250 degrees (the stove should be allowed to cool completely
between each burn). The third should be a burn of at least
450 degrees F. for 45-60 minutes. The paint will become
soft, gummy, and emit non-toxic smoke during these burns.
After the stove cools down for the third time, the paint will
harden.DONOTBUILDALARGEROARINGFIREUNTILTHIS
CURING EFFECT IS COMPLETE OR YOU MAY DAMAGE THE
FINISH OF YOUR STOVE. Spray can touch-ups should be
done only with Forest brand paint, available from a Lennox
Hearth Products dealer.
ash DisPosal
Ashes should be scooped out of a cool stove with a small
metal shovel. Ashes should be placed in a metal container
with a tight fitting lid. The closed container of ashes should
be placed on a non-combustible floor or on the ground, well
awayfromallcombustiblematerials,pendingfinaldisposal.If
the ashes are disposed of by burial in soil or otherwise locally
dispersed, they should be retained in the closed container
until all the cinders have thoroughly cooled. Ashes can ignite
up to 72 hours after removal from the stove.
fuel
This unit is designed and engineered to burn, dry, well-
seasoned wood only. Dry, seasoned wood is that which
has been cut, split, and allowed to dry under a covered area
where air is free to flow and circulate under and around the
wood (not under a tarp or plastic). Make sure wood is not
stacked directly on the ground, it may absorb moisture from
the ground. It should be allowed to dry in these conditions
for a minimum of six months, preferably one year or more.
IT MUST BE UNDERSTOOD THAT WOOD CANNOT BE
LEFT IN ANY KIND OF WET OR DAMP AREA OR IT WILL
NEVER BECOME COMPLETELY SEASONED. Your stove will
not operate at the level that it is meant to unless you use
seasoned, dry wood. Do not burn driftwood or wood that
has been in salt water, doing so will void your warranty. Do
not burn treated wood, coal, garbage, cardboard, solvents,
or colored paper. Burning treated wood, garbage, solvents,
or colored paper may result in the release of toxic fumes.
This type of burning will also void your warranty.
Break-inPerioD
If your stove has a Gold or Nickel-Plated Door, be sure to
clean it with Windex brand glass cleaner and a very soft cloth
to remove any fingerprints and residues prior to the first fire
and before any fire if the gold has been handled or soiled.
Do not close the door tightly during the “Break-in Period.”
Also, open the door frequently (every 5-10 minutes) to keep
the gasket from adhering to the curing paint. Ventilate the
house well during these first firings as the paint gives off
carbondioxideandunpleasantodors.Itisrecommendedthat
persons sensitive to an imbalance in the indoor air quality
avoid the stove during the curing process.

6NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Brick insTallaTion
Legacy™/Elite™ C/E260 Brick Installation
CAUTION: Wear gloves during brick installation in
case of sharp edges inside the stove.
Note: Installation of the baffle bricks and insulating blanket
is easier when you can still access the flue outlet, (before
connecting the flue pipe). Be sure the insulating blanket
is placed flat on the bricks so as not to block the flue and
that it does not hang out over the front of the baffle. Use
a ruler or a piece of kindling to reach over the blanket to be
sure it is completely flat on top of the baffle bricks.
1. Installbricks#1-28inthenumberedsequenceshown
in Figure 1.
2. Next, install bricks #29 & 33 on top of the rear stain-
less steel baffle support (Figures 2 and 3)in the
upper back part of the firebox.
3. Install bricks #34-38 by sliding the back of one brick
at a time over the top of the rear stanless baffle.
4. Next, install the insulating blanket on top of the baffle
bricks by carefully sliding it in from the front.
WARNING: IF THE BRICKS AR NOT INSTALLED EXACTLY
AS SHOWN THEY COULD FALL OUT OF PLACE DURING
REFUELING OR BURNING OF THE STOVE CAUSING SERI-
OUS INJURY.
Front View
See the following for brick sizes
*Fits against the back of the firebox.
Note: These bricks may be slightly smaller to adjust for steel and
firebrick tolerances beyond our control. Be sure to measure and
mark bricks with their numbers when removing.
Figure 1
22
S
6
F10
F
11
F
12
F
13
E
7
F
8
F
9
E
23
G24 S
1
F
14
F
19
F20
H21
F
15
F16
A17
F18
F
2
F3
A4
F5
F
29
S
28
D
0.0
0.2
0.4
0.6
0.8
1.0
2
5 S
2
6
D
legacy™/eliTe™ c/e260 Brick sizes
(see Figures on this page)
A = 4-1/4” x 9” F = 4-1/2” x 9”
B = 4-1/4” x 5-1/2” G = 2-1/8” x 4-1/4”
C = 4-1/2” x 5-1/2” H = 4-1/4” x 4-1/2”
D = 2-1/8” x 6-1/4” S = 2-1/8” x 9”
E - 1-3/4” x 9”
Insulating Blanket Size is 1” x 15-1/2” x 22-1/2” and fits on
top of the baffle brick.
Top View of Baffle Brick
Ceramic Wool Insulation Blanket
29 C 34 F
Rear Stainless Steel Baffle Support
SIDE VIEW
Front
Stainless
Steel Baffle
Support
Figure 2
Figure 3
Side Cut-A-Way View of Firebox
Firebrick Diagram
29
C
30
C
31
B
32
C
33
C
38
F
37
F
35
F
34
F
36
F

7
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Model F (1) G H J M
C260 22”
559mm
14”
356mm
22-1/2”
572mm
5-1/4”
133mm
50-1/2”
1283mm
E260 22”
559mm
14”
356mm
22-1/2”
572mm
5-3/4”
133mm
45”
1143mm
C260 with mantel
and/or side
shields u
22”
559mm
14”
356mm
22-1/2”
572mm
5-1/4”
133mm
38”
965mm
* Reduced clearances may be available for A, B, C and D
dimensions per NFPA 211 - latest edition, Standard for
Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appli-
ances (in Canada CSA B365 - latest edition). See section on
“Reduction of Appliance Clearance with Specified Forms of
Protection.”
**Side view of optional mantel deflector shown.
uElite™ E260 - Not tested for reduction of clearances
(1)Hearth extension reductions: 2” (51mm) reduction for 2”
(51mm) raised hearth. (USA) 16” minimum hearth exten-
sion on all stoves as measured from the door opening of the
unit. (Canada) 18”(450mm) minimum hearth extension on
all stoves as measured from the door opening of the unit.
Minimumdistanceoffloorprotectiontotheside=8”(200mm).
This is measured from the sides of the door opening in the
USA and from the sides of the insert in Canada.
hearTh ProTecTion
The hearth and/or floor protection must be a thermally rated
non-combustiblehearth/floorprotectormeetingorexceeding
a thermal rating of k=.84 or equivalent with a listed thickness
of listed thickness of 3/4" (19mm) minimum in the USA and
Canada. The covering must extend USA-16”/Canada-18”
(C260) and 22” (E260) in front of the heater and 8” to the
side (measured from door opening in the USA and measured
from the side of the unit in Canada).
Top Facing / Trim
Side Facing Material
SIDE WALL
C
E (USA)
D
BA
COMBUSTIBLE MANTEL
Insert
Maximum Mantel Depth = 9” (229 mm)
Hearth Protection
E (Canada)
M6-1/2”
165mm
F
**
J
G
H
Mantel
Hearth Protection
Trim
Model *A *B *C *D E(1)
C260 30”
762mm
20”
508mm
20”
508mm
15”
381mm
8”
200mm
E260 23”
584mm
17”
432mm
20”
508mm
15”
381mm
8”
200mm
C260 with mantel
and/or side
shields u
17”
432mm
14-1/2”
368mm
20”
508mm
8”
200mm
8”
200mm
Notes
• Facing material that projects more than 3/4” (19mm) from
the wall is considered a mantel or side wall.
• MINIMUM FIREPLACE OPENING 22-1/2” (572mm) High x
28-1/2” (724mm)
requireD clearances
WARNING: BE ABSOLUTELY SURE THE DISTANCE BE-
TWEEN THE HEATER AND THE SURFACE OF ANY COM-
BUSTIBLE CONSTRUCTION IS NOT LESS THAN SHOWN
ON THIS PAGE.
Figure 4
Figure 5

8NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
chimney requiremenTs
The Legacy™/eLite™ c/e260 inserts are approved for use in
masonry fireplaces built to UBC Chapter 37 or equivalent
with a minimum 30” opening at the front of the fireplace.
Do not remove brick or mortar from masonry fireplace to
accommodate insert. Do not remove brick or mortar from
masonry fireplace to accommodate insert. Approved with or
without positive flue connection. Approved with minimum
6” (152mm) diameter stainless steel listed reline system.
Ask your dealer for recommended chimney size. Country
Collection inserts are tested to UL 1482 / ULC S628 and
listed by OMNI-Test Laboratories, Inc.; Beaverton, OR.
Remove and clean behind unit frequently, as creosote build
up may occur rapidly.
insTallaTion ProceDures - masonry chimney
NOTE: Although not required, a full-length stainless steel liner is
recommended for optimum safety and performance. See your
Lennox Hearth Products dealer for details.
NOTE: When installing your stove with a positive flue connection,
be sure to leave the insulation off the surround panels (flanges) and
leave a 1/4” (6mm) airspace insulation off the surround panels
and the facing of your fireplace.
1. READ ENTIRE INSTALLATION INSTRUCTIONS.
2. Check all REQUIRED CLEARANCES as specified in the previous
section (Page 7)of this installation instruction booklet.
3. Wear gloves during installation in case of sharp edges on the
stove and it’s parts
4. Determine the depth of the fireplace lintel. The lintel is the
masonry area over the fireplace opening, and is supported by
a noncombustible plate, usually of steel. The depth may vary
from a single brick width (4”/102mm) to that of several brick.
If any portion of the flue collar opening on top of the insert (as
shown in the diagram below) will project under the lintel area,
a deflector plate must be mechanically attached to the fireplace
insert to divert heat and gases away from the lintel. Consult your
dealer for the correct attachment piece. Compare lintel depth
to the distance from the flue collar opening to the fireplace to
determine if this caution pertains to your installation. If there
is sufficient clearance, a flue offset may also be used. Consult
your dealer.
5. Open or remove the existing fireplace damper. Make sure the
damper cannot fall closed.
6. Install the two 1/2” x 3” (13mm x 76mm) leveling bolts -heads
up- a few turns in the leveling nuts on each side of the outer
chamber of the insert at the lower rear corners.
7. Position the insert in the center of the fireplace opening and
push it back until the surround brackets are approximately 2”
(51mm) away from the fireplace front.
8. Install the side surround panels and push the insert up snug
against the fireplace face. Then with the location selected re-
move the surround panels and level the stove with the leveling
bolts using a 3/4” (19mm) socket, extensions (to reach the bolt
head), and a ratchet.
9. Glue the insulation around the outer edge of both the top and
side surround panels.
10. Install the surround panels loosely, align and tighten. Check
for a tight fit against the fireplace.
11.Locate the draft rod extension (5/16” [8mm] round by
11-3/4” [299mm] long), and a coupling nut (5/16”/8mm x
7/8”/22mm).
POSITIVE FLUE CONNECTION: See your authorized Len-
nox Hearth Products dealer for necessary accessories and
installation instructions.
Positive flue connectors required for installation in Canada are
availablefromyour LennoxHearthProductsdealer. Please
use one of the part numbers indicated below.
71162 - 8" Positive Flue Connector Ring Kit
71163 - 8" to 6" Reducer w/ Positive Flue Connector
Lintel
Flue Outlet Not to Scale
Brick Face
Insert Surround
Smoke
Deflector
Mechanically
Attached to
Insert
Figure 6

9
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Clearance to Combusibles
See “Required Clearances” on Page 7.
Fireplace Pre-Installation Preparation
NOTE: LENNOX HEARTH PRODUCTS RECOMMENDS PRO-
FESSIONAL INSTALLATION BY A LICENSED AND BONDED
INSTALLER.SEEYOURDEALERFORRECOMMENDATIONS.
IMPROPER INSTALLATION OR MIS-USE WILL VOID YOUR
WARRANTY AND CREATE A SERIOUS SAFETY HAZARD.
Remove any doors or screen materials from the fireplace
opening. Remove the damper mechanism completely. Also
remove grates or ember catches inside the fireplace hearth.
If your fireplace is equipped with a smoke shelf or baffle and
if it interferes with the installation it may be removed. Side
and rear refractory may also be removed, if necessary, to
facilitate installation. No modifications shall be done unless
allowed on the previous list. Retain all removed parts, they
must be reinstalled before the fireplace can be used in it’s
original condition.
inserT Pre-insTallaTion PreParaTion
Install the two 3” (76mm) long bolts (with the head up)
through the nuts attached to the insert on the lower rear
corner of each side. This will allow you to level the insert
when placed into the fireplace.
Measure from the front of the top surround mount to the
center of the flue. Determine if there is an alignment problem
in connecting a liner from the chimney to the insert’s flue.
If there is an alignment problem, connection can be made
using a short piece of stainless flex or a stainless steel offset
box (available from your dealer). Before installing the liner,
make any attachment brackets or drill any holes in the liner,
offset box, or insert. Once installed, it may be difficult or
impossible to drill additional holes.
12.Slide the extension draft rod through the bracket attached to
the bottom of the left side hearth plate, making sure the end
without the grooves is toward the stove body. Thread the
coupling nut on the end closest to the stove body and then
thread the coupling nut on the rod from the stove.
13.Slide the stove tight to the fireplace face. Level the stove with
the leveling bolts using a 3/4” socket, extensions (to reach in
to the bolt head), and a ratchet.
14.To install the decorative brass trim on the top surround panel,
connect the 3 pieces at the mitered corners using the corner
brackets supplied. Slide the assembled trim down onto the top
surround panel. The surround should fit snugly in the groove
towards the back of the trim.
15.Install the top surround panel on the stove with the 3 screws
supplied. Tighten snugly.
16.Locate the blower and blower extensions. Slide the blower
partially under the hearth plate. Run the blower cord through
the slot in the blower housing extension o the appropriate side.
Slide the left housing extension over the draft rod on the left
side and slide the right housing using the method described
below (the ends without the cord slots attach to the blower
housing). Now slide the blower assembly under the hearth
plate and center it.
Use the adhesive strip on the inside of the side trim pieces.
Be sure to position the side trim pieces exactly as desired then
slide the trim piece out just enough to remove the cover strip
on the adhesive and press the trim piece tightly against the
blower and hold for 30 seconds.
17.Install the brick and baffle as per instructions on Page 6.
Figure 7

10 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
chimney liner insTallaTion
Remove the existing chimney cap and install a stainless steel
liner into the chimney (if a special section has been used or
drilled to attach to the insert, it must be the bottom piece).
The next piece should be a dripless slip joint; followed by
the rest of the chimney liner. Fasten the chimney at the top
when it is positioned so that the slip joint will allow the lowest
piece to slide up enough to clear the insert during installa-
tion. Insulate the top four to six feet between the liner and
the chimney to prevent heat loss. Install the cap and flash
if necessary to prevent water or creosote from entering the
chimney’s venting system.
From inside the fireplace firebox, attach any adapters or
flue offsets and slide the liner up as far as necessary for the
bottom piece to clear the insert during installation.
insTalling The inserT
Place the insert into the fireplace, making sure to center it
side to side. Slide the insert in until the surround mounts are
approximately 1/2” (13mm) from the face of the fireplace
where the surround panels cover.
Lower the chimney and make attachment to the insert. Level
the stove by using a 3/4” socket and a long extension and
adjusting the bolts on either side of the insert.
Install the side surround panels with the screws supplied.
Push the insert in until there is approximately a 1/4” (6mm)
gap between the back of the surround panels and the face
of the fireplace. Before installing the top surround panel,
make sure all connections are tight and that no part of the
insert or chimney is touching the firebox or chimney in the
fireplace. There must be a minimum of 1” (25mm) clearance
between the stove and the zero clearance fireplace. Install
the top surround panel.
If additional support is necessary, factory punched holes
in the front corners of the bottom air chamber will accept
leveling legs. Carefully measure the distance from the hearth
protection to the bottom of the stove. Use 3/8” diameter
bolts that are 1/2” (13mm) longer that the distance just
measured. Thread a nut onto the the bolt approximately 1”
(25mm). Lift the stove slightly and insert a bolt into each
hole and then thread the nut up the bolt until the front is
securely supported. Install another nut onto the bolt through
the air space in the stove and tighten securely. If desired an
insert front support, IFS2101, is available to fill the space
between the insert and the hearth protection.
Install the brick and baffle as per Page 6.
PosT insTallaTion checks
1. Check that all chimney pipe joints are securely fas-
tened.
2. Check that the heater is securely fastened to the floor
(if applicable).
3. Make sure the intake vent has clear access to outside
air (if applicable).
4. Make sure the outside air vent has been sealed
properly to keep rodents out (if applicable).
5. Be sure all roof flashings are watertight (if appli-
cable).
6. Be sure the stove is properly grounded (if appli-
cable).
FOR YOUR OWN PROTECTION, AND INSURANCE
PURPOSES, HAVE YOUR CHIMNEY AND CONNECTOR
PIPE INSTALLATION INSPECTED BY YOUR LOCAL
BUILDING CODE AUTHORITY OR FIRE MARSHAL
BEFORE STARTING A FIRE IN YOUR STOVE. NOTIFY
YOUR INSURANCE COMPANY.

11
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
oPeraTing hinTs
1. Burn only dry, well-seasoned wood for maxi-
mum heat output. In some states it is illegal to
burn wet wood or anything other than clean,
dry wood products.
2. Your stove is designed to operate with the door
closed! Operate only with the door shut tightly
at all times except when loading wood.
3. DO NOT hit or move the baffle brick while load-
ing wood. Occasionally check the baffle. Make
sure the insulating blanket is always flush with
the front of the baffle brick. Loading oversized
logs may dislodge the baffle bricks.
4. CAUTION: THE DRAFT CONTROL MUST BE
FULLY OPEN BEFORE OPENING THE DOOR
TO AVOID POSSIBLE COMBUSTION FLASH!!
(Ignition of hot volatile gases as the door is
opened).
5. Feeding excessive amounts of fuel to the stove
should be avoided. It is important to supply
it with sufficient draft and fuel to maintain a
moderately hot fire. If, during overnight burns,
heavy creosote deposits develop inside your
stove and on the door, the draft is set too low
- review your burning habits!

12 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
sTarTing anD mainTaining afire
Be sure to clean the Nickel or Gold Plated door with
Windex brand cleaner and a very soft cloth to remove
any fingerprints and residues prior to the first fire.
1. NEVER USE FLAMMABLE LIQUIDS TO START OR
REKINDLE A SOLID FUEL FIRE!!
2. Fully open the primary draft control by pulling the
1” plastic knob out on the left side (lower front
corner) until it stops (away from the stove). This
control determines the amount of air entering the
stove. Pushing it towards the stove reduces the
burn rate in the firebox. For your convenience, the
rod on this control is marked with four grooves to
assist you in obtaining repeatable burn rates.
3. Place a small amount of crumpled paper in front
of the firebox and cover it with a few pieces of
kindling.
4. Light the paper and allow sufficient time for the
kindling to become fully engulfed in flames. Close
the door. Your door may or may not need to be
left slightly open during this process, depending
on your stove model and chimney draft. Once the
kindling is burning well, larger pieces of wood may
be added.
5. For best results, use smaller pieces of wood to get
stove temperature very high before loading larger
wood for sustained burns. If necessary, crack the
door to allow ignition of the fuel charge. Now you
can add larger pieces of wood and after several
minutes of high burn, set the left control for the
desired heat output. Check the exhaust in about 15
to 20 minutes. Large amounts of smoke indicate an
improper burn setting (either too high or too low).
Adjust and recheck in 5 to 10 minutes.
6. Afteryourstovehasbeenthoroughlypreheated,your
blower can be switched on. When refueling your
stove, turn the blower off for the first 30 minutes. On
low and medium-low burns run the blower on low.
These burn rates would be achieved by operating
the stove with the draft rod fully pushed in to up
to 3/4” (19mm) open (out). To do this, turn on the
blower at the speed control and rotate the control
all the way to the right. On medium-high and high
burns you may run the blower on high. These burn
rates would be achieved by opening the draft rod
further than stated previously. To do this, turn on
the blower with the speed control and do not rotate
the switch after it clicks on.
Figure 8
Figure 9

13
Keeping freshly loaded wood away from the window will also
help. Load fresh logs in the rear of the firebox. Build up tends
to occur first on the right side of the window. This is caused
by the swirling motion of the exhaust gases similar to water
running down a drain. Keep fresh logs further back on the
right side of the firebox to help prevent this problem.
Understanding how your Country™ Collection stove works
should help you keep your glass door very clean, but as
stated: no glass door stays perfectly clean. We hope this
information is helpful in keeping your glass door clean so
that you may enjoy many hours viewing your high efficiency
stove. For more information, contact your Lennox Hearth
Products dealer.
oPeraTing Techniques anD hinTs
Recent developments in wood-burning technology have
made wood-burning a cleaner and more convenient way to
heat your home. Overall efficiency in a wood-burning ap-
pliance is a combination of combustion efficiency and heat
transfer efficiency. Whether heating your entire home or just
a room or two, your understanding of how to best operate
your stove or insert will enhance its overall efficiency and
performance. What this can mean to you is longer, cleaner
burns, less wood use, and more heat.
geTTing The mosT ouT of your sTove
The following sections will outline techniques you can use
to “get the most out of your stove.” Please read them care-
fully.
clean glass
see mainTenance on Page 15 for glass
cleaning TiPs
The operator plays an important part in keeping the glass
clean and free of buildups. The first and most important part
the operator plays is making sure to burn only well-seasoned
firewood. Wet wood = Dirty glass. Keeping your glass door
clean is partly accomplished by the air wash system of the
stove, which sends clean, fresh air for combustion, over
the window before it enters the fire. The high temperatures
inside the firebox also keep the glass clean. No stove door
stays perfectly clean. The following are methods for keeping
buildup on your glass to a minimum. When properly installed
and operated by a knowledgeable operator, your glass door
should require very little maintenance. Do not expect to get
extremely long burn times and keep the window perfectly
clean. Cool temperatures cause condensation of unburned
volatiles on the glass. If your glass gets very dirty during
overnight burning, try preheating the stove a little longer
before damping it down for an overnight burn. Also, don’t
damper your stove down as low because you’ll get more
heat for your money by burning a little hotter for a slightly
shorter time.
The air wash system will perform at its best at medium burn
rates. Some stove models will self clean by burning very hot
fires but be sure not to over-fire the stove. If it glows red it
is over-fired. Over-firing a stove also causes the window to
soot up. Extremely hot fires with fresh wood may cause the
flow rate to exceed one foot per second, which is as fast as
a flame can burn. This is why a candle goes out when you
blow on it. Blow on it gently and it burns brightly. Blow on
it hard and it goes out. This will cause excessive exhaust
emissions and your window to soot up, as the stove is un-
able to burn the gases emitted from the wood. Try slowing
the stove down a little by closing the damper somewhat as
it warms up.

14
maximizing your sTove’soverall efficiency
It is important to know that for high, combustion efficient,
clean burns, you will need to have sufficient temperatures
insidethefireboxforthoroughcombustion.Thebestmethod
for determining if you have sufficient temperatures is to
watch the brick lining in your firebox. When you first light
your stove, the bricks will turn a dark brown or black. After
20 to 30 minutes of a hot fire, most of the bricks should
return to near their original light brown or yellow color. This
means the bricks have reached a high enough temperature
for your stove to achieve high combustion efficiency.
Second, and just as important, is achieving a high level
of heat transfer efficiency. Slowing the rate of flow through
the stove or insert enhances heat transfer, thus allowing
more time for heat to be transferred into your home. To
do this, be sure to thoroughly preheat your stove and then
reduce the amount of primary air by closing the draft con-
trol (lower left) to about 1/2 to 3/4 open. This will decrease
the excess oxygen in your flue, which carries heat up your
chimney, but should still be enough air to allow the stove to
produce its maximum heat output. (More air may produce
a lightly greater amount of heat, but will greatly increase
wood consumption). When the area being heated reaches
a comfortable temperature, slow the burn rate by closing
the control to further improve heat transfer.
To get the most out of your stove, you will need to combine
goodcombustionefficiencywithgoodheattransferpractices.
The following are some tips on how to operate your stove
to achieve the highest overall efficiency.
1. Thoroughly preheat your stove before slowing the
burn rate by closing the draft control.
2. Measure the stove temperature at the hottest point
on the stove top or face. Use this information to
repeat burn rates.
3. Once preheated, add wood (if needed) and partially
close the draft control (lower left).
4. Operate your stove as much as possible in the low
to medium burn ranges.
5. Donotlowerthedraftsettingsolowas to completely
extinguish the flames in the firebox. Check for at
least some small flames 20 minutes after setting
the draft control.
6. Do not continually operate your stove in the high
(wide open) setting. This wastes wood by carrying
a great deal of heat up the chimney and can damage
your stove and chimney.
7. Go outside and check your chimney. More than a
very small amount of smoke indicates wasted heat,
creosote build up, and pollution.
achieving clean, long Burns
To achieve long burn times, after having thoroughly pre-
heated the stove, let the stove top cool down to 275 de-
grees to 400 degrees (on Elites, locate thermometer on
the face of the insert just above the door). Now load the
firebox and set the draft control. At this point, you may need
to burn the stove with the draft open for a few minutes to
ignite the wood. All Country™ Collection stoves are EPA
tested for emissions at low burn with the air control com-
pletely closed. Whether or not you should burn your stove
with the air control completely closed will depend on the
following factors:
* How you load your wood.
* Your chimney type, height, and draft.
* Your wood type and its moisture content.
* The temperature of the stove.
* Which model Country Collection stove
or insert you have.

15
Experimentwithdifferentloadingconfigurationstoachieve
longer burns. Try loading the wood from side to side and
nesting it in the ashes to prevent airflow under and around
the wood. Fresh wood should be loaded to the back of the
firebox or to the sides. Hot coals or half burned wood should
be brought towards the front of the firebox. The way you
load your wood can seriously affect burn times. If the new
load does not ignite within a few minutes, try crisscrossing
the load to allow more airflow around the fire or try a slightly
hotter stove temperature.
Determining the lowest setting for efficient low burns. This
will require some experimentation on your part. Try clos-
ing the air control all the way with the stove temperature at
325 degrees to 350 degrees. If the flames are completely
extinguished, open the air control half way and then slowly
close it until there is only a small amount of flame. It is im-
portant to check the stove about 20 minutes after setting the
draft control as it takes this long for the stove temperature
to stabilize. There should still be some small flames on or
above the wood load.
Use 325 degrees as a starting point. You can try starting
temperatures 25 degrees higher or lower to achieve desired
burn times, start 25 degrees lower if the stove burns the
wood too quickly or 25 degrees higher if there are no flames
in the firebox for more than a few minutes after loading the
wood. You may or may not need to burn the stove with the
air control open for a few minutes prior to setting the draft
for a low burn, this will depend on the factors mentioned
above. Be sure not to smolder a fire overnight. Check your
chimney for large amounts of smoke as this indicates very
poor combustion.
Itisimportanttorealizethatstove technologyhaschanged.
Stoves have changed a great deal in the last few years. This
has led to substantial changes in the methods of operation in
newstovesas comparedto olderstoves.Inoldstoveswithout
full brick linings and ceramic insulation, the rule was “get
the stove as hot as possible before setting the draft on low
for overnight burns.” On newer, high technology Country™
Collection stoves, this is not necessary. Although it is still
important to have the stove hot enough to burn efficiently, it
will require less preheating. Once you have determined your
optimum operating temperatures for various burn rates, we
believe you will find your stove an extremely convenient way
to achieve your heating needs.
Do not reload the stove for long burns when the stainless
secondary tubes or baffle supports are glowing red, or
when the stove is uncomfortably hot to load.This indicates
the stove is too hot to load for a long burn. Also, do not load
wood for a long burn on a deep bed of hot coals. Try stirring
the coals a few minutes before loading the stove for a low
burn to allow some of the unburned coals time to burn.
mainTenance
DOOR HINGES: If door hinges need lubricating, use an anti-
seize compound (never use oil) available from your Lennox
Hearth Products dealer.
DOOR LATCH: If your door latch fails to latch tightly and the
gasket is in good condition, place a length of pipe
(cheater bar) over the inside portion of the door handle and
bend slightly toward the door until the proper adjustment
is obtained. If the door handle does not close easily, apply
high temperature anti-seize to the striker.
DOOR GASKET: Periodically check gasket to make sure
it is not over-compressed. If compressed, replace with a
special woven door rope (Don’t try substituting rope, only
use special Lennox Hearth Products door rope).
GOLD OR NICKEL PLATED DOOR: Clean only with WIN-
DEX brand glass cleaner and a very soft cotton cloth. Other
products may damage brass, paint, and gaskets.
INSULATING BLANKETS: Your insulating blanket should be
inspected during every chimney cleaning. If the blanket is
compressed or heavily stained, it should be replaced. Heavy
creosote stains or matting is an indication of improper use
and your burning habits should be reviewed.
GLASS CLEANING: Only clean glass with products specifi-
cally made to use on wood stoves. Other products could
damage gaskets and paint. Never scrape glass with a razor
blade. This can pit the glass and make it impossible to clean
in the future.
WINDOW GASKET: The window gasket can be checked by
running the flame of the match near the gasket and around
the door. If the flame is drawn in around the window, the
gasket should be replaced.
DOOR HANDLE: Door handle may become tight as you
use the stove. Free the handle up by using dry graphite
supplied with the stove. The directions are included with
the graphite.

16
TrouBleshooTing
ProBlem soluTion
POOR DRAFT: Extend chimney in length or have the chimney realigned to the proper size flue. Oversized chimneys
normally have poor drafts. Remember, the stoves’ draft depend solely on the natural draft of the
chimney (See Drafting section on Page 4). If your stove is not drafting properly, your chimney is
the problem. All stoves are thoroughly tested to ensure proper draft with the correct size chimney
flue.
EXCESSIVE DRAFT: With better chimneys being more common, excessive draft can be an issue. Alleviate excessive
draft by slowing the burn rate of the stove once it has reached proper operating temperature (See
Maximizing Your Stoves Overall Efficiency on Page 14).
DIRTY GLASS: 1) Burn smaller, hotter fires and check to make sure you are not setting the draft down too far
with the draft control.
2) Make sure your wood is well seasoned and dry (not open to rain - see Creosote and Fuel sec-
tions on Pages 4 & 5).
3) See Poor Draft section (above) and Clean Glass (above).
SMOKES WHEN 1) If smoke is entering the room, check to make sure your baffle brick are properly installed
DOOR IS OPEN: and that the insulating blanket is pushed back flush with the front of the baffle brick.
2) Check the chimney for blockage due to creosote (see Creosote section on Page 4).
3) Check draft, (See POOR DRAFT section above).
WOOD BURNS 1) The draft control must be closed further.
TOO FAST: 2) Add fuel at lower firebox temperatures.
3) Load wood side to side and reduce the flow of air under wood.
4) The door seal may need replacing, check for leakage.
5) See “Excessive Draft.”
POOR HEAT OUTPUT: 1) Check your wood. Wet, moist, unseasoned wood will not produce heat.
2) Your stove needs to be seasoned (moisture removed from the steel and brick). Continue to burn
a fire. It normally takes from one to three weeks of burning to season your stove (See Break-in
procedures on Page 5).
3) See Excessive Draft section above.
PAINT GIVES OFF Paint is tempering-in. Burn only moderately hot for the first
ODOR (smoke): few days until paint is fully cured. Then burn a very hot fire to cure any paint that may not easily
cure. Open windows or door to ventilate (See Break-in procedures on Page 5).

17
Do’sanD Don’T
DO NOT: Install or operate this stove before reading this manual.
DO NOT: Close the draft beyond the point at which the flames are completely extinguished.
DO NOT: Open the stove door without fully opening the draft first.
DO NOT: Burn driftwood or wood that has been in salt water. This includes some mill ends and scrap lumber that
has been floated in salt water on the way to the mill. (This will void your warranty).
DO NOT: Handle the Nickel or Gold faceplate unnecessarily. Use the door handle only.
DO NOT: Force oversized logs into the firebox as this may dislodge the baffle assembly.
DO NOT: Close the door tightly during break-in period.
DO: Be sure to clean any fingerprints from the Gold or Nickel faceplate before burning the stove. Clean the
Gold or Nickel door only with Windex and a very soft cloth.
DO: Consult local building department if other than recommended clearances are desired.
DO: Read instructions for the brick baffles occasionally to ensure you have not bumped or moved them out
of place when loading wood.
DO: Check the chimney and baffle a minimum of every 3 months to make sure they are clean.
DO: Burn seasoned, dry wood only! (RAIN = WET WOOD)
DO: Open the door frequently during break-in period to keep gasket from adhering to the curing paint.
DO: Enjoy the warm feeling of your new Country™ Collection stove.

18
BLOWER PARTS
Cat. Number Description
H5655 Speed Control - Wood Insert UHP Blower
32014 Blower Power Cord
H5559 UHP1 Cage Black
H5618 UHP1 Cage Gold
H5617 UHP1 Cage Nickel
BRICKS, BLANKET, AND GASKETS
H5642 Firebrick (replacement - specify size)
H5576 Firebrick Letter A - 4-1/4” x 9” (3 per stove)”
H3093 Firebrick Letter B - 4-1/4” x 5-1/2” (1 per stove)”
H5606 Firebrick Letter C - 4-1/2” x 5-1/2” (4 per stove)”
H5595 Firebrick Letter D - 2-1/8” x 6-1/4” (2 per stove)”
H5613 Firebrick Letter E - 1-3/4” x 9” (2 per stove)”
H5612 Firebrick Letter F - 4-1/2” x 9”(20 per stove)”
H3094 Firebrick Letter G - 2-1/8” x 4-1/4” (1 per stove)”
H3097 Firebrick Letter H - 4-1/4” x 4-1/2” (1 per stove)”
H5611 Firebrick Letter S - 2-1/8” x 9” (4 per stove)”
H5592 Complete Baffle Brick Set
H5591 Complete Cut Brick Set
(Only need 4-1/2” x 9” bricks to finish)
H5590 Complete Brick Set
H5635 Ceramic Blanket (22-1/2” x 15-1/2” x 1”)
H5640 Glass Gasket 6 feet needed (per foot)
H5639 Door Rope 7/8” 6 feet needed (per foot)
H5638 Face Sealing Insulation/each lineal foot (9 feet needed)
HANDLES
H5654 Spring Handle / Nickel
H5653 Spring Handle / Gold
FACEPLATES
71082 Large / Black
71083 Large / Gold
71084 Large / Nickel
H5624 Gold Mirror Frame / each
H5623 Nickel Mirror Frame / each
GLASS
Cat. Number Description
71099 Large / Plain
71096 Large / Diamond
71100 Large / Sailboat
71095 Large / Cattail
71097 Large / Evergreen
71098 Large / Floral
H5580 Mirror / Diamond Replacement each
H5632 Mirror / Plain Replacement each
METAL COMPONENTS
H5631 Extended Draft Rod
H5570 Door Back and Handle (door gasket included)
H5629 Upper Hinge Pin
H5630 Lower Hinge Pin
H5626 Upper Hinge Pin E-Clip
H5646 Copper Washer for Lower Hinge
H5577 Set of 6 screws and 6 washers for door assembly
H5569 Complete Stainless Secondary Burn Setup
(includes tubes and all mounting hardware)
H5568 Front Stainless Secondary Burn Tube with Support
H5567 Middle & Rear Stainless Secondary Burn Tube with Support
H5645 Side Leveling Bolts / each (2 per)
H5644 Blower Mounting Bolts / each (2 per)
H5513 Rear Air Kit Block Off Plate
NAMEPLATES
H5573 Gold w/ Rivets
H5572 Nickel w/ Rivets
H5643 Rivets for Nameplates (2 per)
MISC. PARTS
H5652 Corner Brackets for Surround Trim/each (2 per)
H5648 Coupling Nut for Draft Rod
H5650 Draft Rod Knob
71052 Dry Graphite (Apply to door handle and door hinges)
H5633 Anti-Seize 2 gram pouch
H5637 High Temperature Door Glue Individual Tubes
H5651 Spring Clips for Surround Panels/each (9 per)
Replacement Parts
Model E260

19
Replacement Parts
Model C260
BLOWER PARTS
Cat. No. Description
H5655 Speed Control - Wood Insert UHP Blower
H6151 Blower Power Cord
H5559 UHP1 Cage Black
H5618 UHP1 Cage Gold
H5617 UHP1 Cage Nickel
BRICKS, BLANKET, AND GASKETS
H5642 Firebrick (replacement - specify size)
H5576 Firebrick Letter A - 4-1/4” x 9” (3 per stove)
H3093 Firebrick Letter B - 4-1/4” x 5-1/2” (1 per stove)
H5606 Firebrick Letter C - 4-1/2” x 5-1/2” (4 per stove)
H5595 Firebrick Letter D - 2-1/8” x 6-1/4” (2 per stove)
H5613 Firebrick Letter E - 1-3/4” x 9” (2 per stove)
H5612 Firebrick Letter F - 4-1/2” x 9” (20 per stove)
H3094 Firebrick Letter G - 2-1/8” x 4-1/4” (1 per stove)
H5594 Firebrick Letter H - 4-1/2” x 4-1/2” (1 per stove)
H5611 Firebrick Letter S - 2-1/8” x 9” (4 per stove)
H5592 Complete Baffle Brick Set
H5591 Complete Cut Brick Set (Only need 4-1/2” x 9” bricks to finish)
H5590 Complete Brick Set
H5635 Ceramic Blanket (22-1/2” x 15-1/2” x 1”)
H5640 Glass Gasket 6 feet needed (per foot)
H5639 Door Rope 7/8” 6 feet needed (per foot)
H5638 Face Sealing Insulation/each lineal foot (9 feet needed)
FACEPLATES
71082 Black
71083 Gold
71084 Nickel
71149 Brushed Gold
71146 Brushed Nickel
GLASS
Cat. No. Description
71099 Plain
71096 Diamond
71100 Sailboat
71095 Cattail
71097 Evergreen
71098 Floral
HANDLES
H5654 Spring Handle / Nickel
H5653 Spring Handle / Gold
METAL COMPONENTS
H5570 Door Back and Handle (door gasket included)
H5629 Upper Hinge Pin
H5630 Lower Hinge Pin
H5626 Upper Hinge Pin E-Clip
H5646 Copper Washer for Lower Hinge
H5577 Set of 6 screws and 6 washers for door assembly
H5569 Complete Stainless Secondary Burn Setup (includes tubes all
mounting hardware)
H5568 Front Stainless Secondary Burn Tube with Support
H5567 Middle and Rear Stainless Secondary Burn Tube with Support
H5645 Side Leveling Bolts / each (2 per)
H5644 Blower Mounting Bolts / each (2 per)
H5513 Rear Outside Air Block Off Plate
NAMEPLATES
H5573 Gold w/ Rivets
H5572 Nickel w/ Rivets
H5643 Rivets for Nameplates (2 per)
MISC. PARTS
H5650 Draft Rod Knob
H5652 Corner Brackets for Surround Trim/each (2 per)
71052 Dry Graphite
(Apply to door handle and door hinges)
H5633 Anti-Seize 2 gram pouch
H5637 High Temperature Door Glue Individual Tubes
71139 Large Surround Screws Black / each (7 per)
H5651 Spring Clips for Surround Panels/each (9 per)

20
TOP SURROUND PANEL (REQUIRED)
Cat. No. Description
71015 7-1/2”H x 48”W Black
(Total dimension when installed equals 29”x48”)
71016 10-1/2”H x 48”W Black Oversized
(Total dimension when installed equals 32”x48”)
BLOWER
71001 Blower Black
71002 Blower Gold
71003 Blower Nickel
BLOWER SIDES
71104 Blower Sides Black
71105 Blower Sides Gold
71106 Blower Sides Nickel
SURROUND TRIM
71029 Trim / Outside Surround / Standard / Gold
71141 Trim / Outside Surround / Standard / Nickel
DECO TRIM
71053 Paint Gold (1/2 pint)
71054 Paint Nickel (1/2 pint)
MISC.
71099 Large / Plain Glass
H5632 Mirrors / Plain each
H5294 Surround Screws Gold (3 needed)
H5295 Surround Screws Nickel (3 needed)
71134 Pipe Reducer from 8” to 6” Stainless
H6834 Adjustable Offset Flue Box 8” flue / 6” exhaust, 0” - 6”
H6835 Adjustable Offset Flue Box 8” flue / 6” exhaust, 6” - 12”
70004 Stove Bright Paint - Metallic Black
Accessories
Model E260
Accessories
Model C260
C260 ACCESSORIES CONTINUED
Cat. No. Description
29” x 48”:
71039 Top Surround 7-1/2” x 48”
71032 Side Surrounds 10” x 21-5/8”
33” x 40”:
71040 Top Surround 11-1/2” x 40”
71031 Side Surrounds 6” x 21-5/8”
33” x 48”:
71041 Top Surround 11-1/2” x 48”
71032 Side Surrounds 10” x 21-5/8”
FACEPLATE KIT (INCLUDES FACEPLATE, HANDLE, & NAMEPLATE)
71152 Traditional / Brushed Nickel
SURROUND TRIM - THESE ARE NOT REQUIRED, BUT AN OPTION
71023 Black 29” x 40”
71024 Black 29” x 48”
71027 Black 33” x 40”
71028 Black 33” x 48”
71009 Gold 29” x 40”
71010 Gold 29” x 48”
71013 Gold 33” x 40”
71014 Gold 33” x 48”
71076 Nickel 29” x 40”
71077 Nickel 29” x 48”
71080 Nickel 33” x 40”
71081 Nickel 33” x 48”
BLOWERS
71001 Blower Black
71002 Blower Gold
71003 Blower Nickel
71160 Blower Brushed Gold
71154 Blower Brushed Nickel
DECO TRIM
71053 Paint Gold (1/2 pint)
71054 Paint Nickel (1/2 pint)
MISC.
H5294 Large Surround Screws Gold (7 needed)
H5295 Large Surround Screws Nickel (7 needed)
71134 Pipe Reducer from 8” to 6” Stainless
H6834 Adjustable Offset Flue Box 8” flue / 6” exhaust, 0” - 6”
H6835 Adjustable Offset Flue Box 8” flue / 6” exhaust, 6” - 12”
70004 Stove Bright Paint - Metallic Black
SURROUND PANELS / TOP & SIDES (REQUIRED)
Cat. No. Description
29” x 40”:
71038 Top Surround 7-1/2” x 40”
71031 Side Surrounds 6” x 21-5/8”
